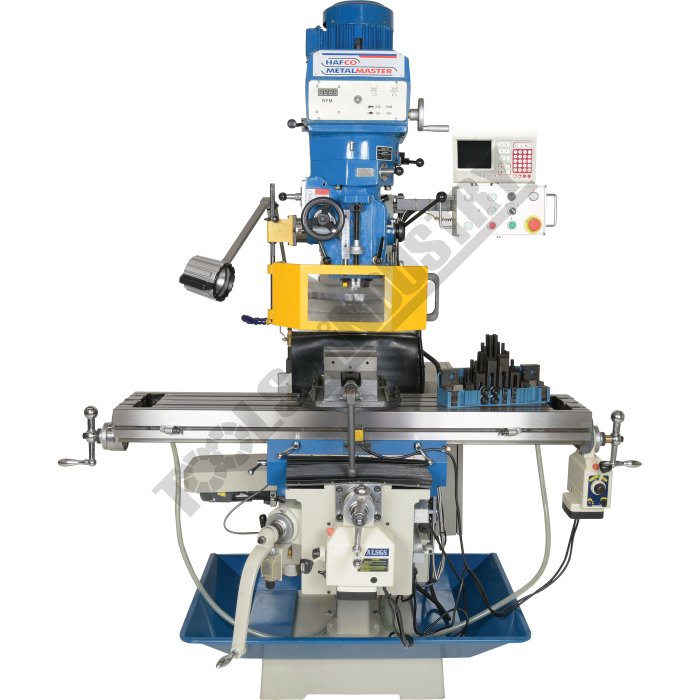

M599D

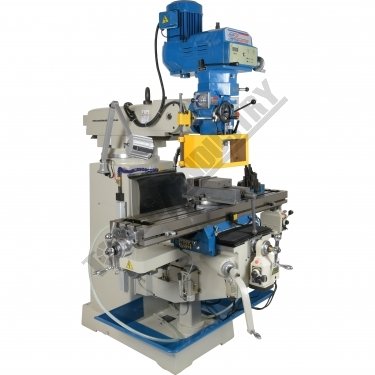

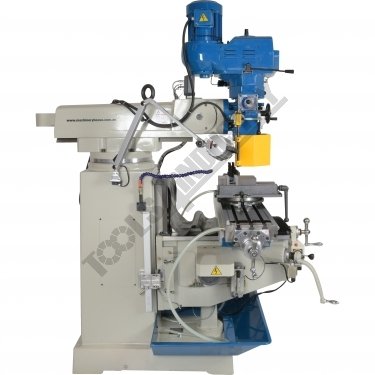

Left View

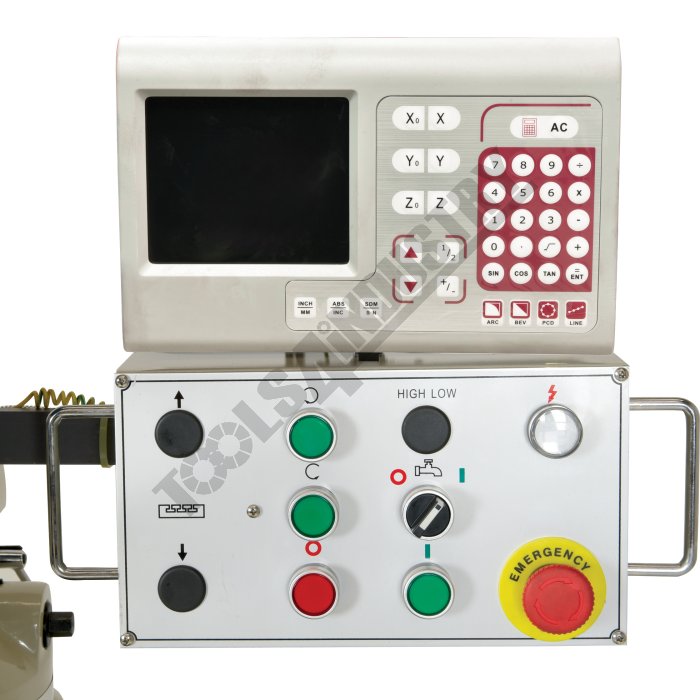

3 Axis Digital Readout

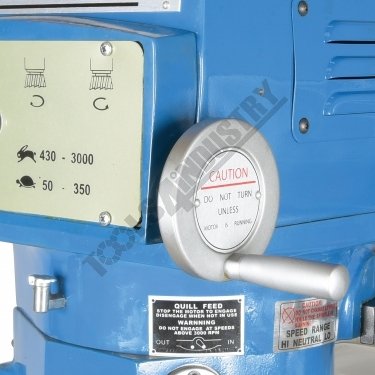

Variable Speed Hand Wheel

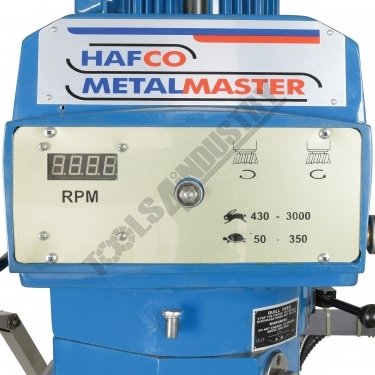

Variable Speed Digital Display

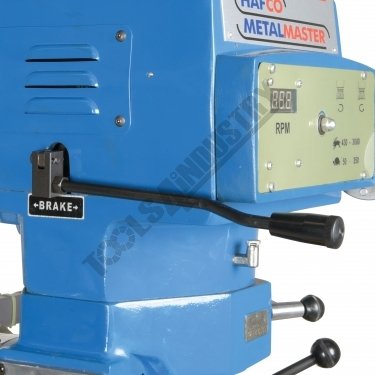

Spindle Brake Lever

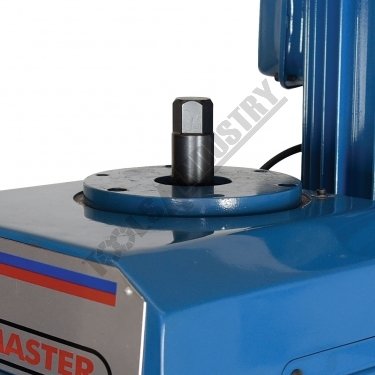

Drawbar

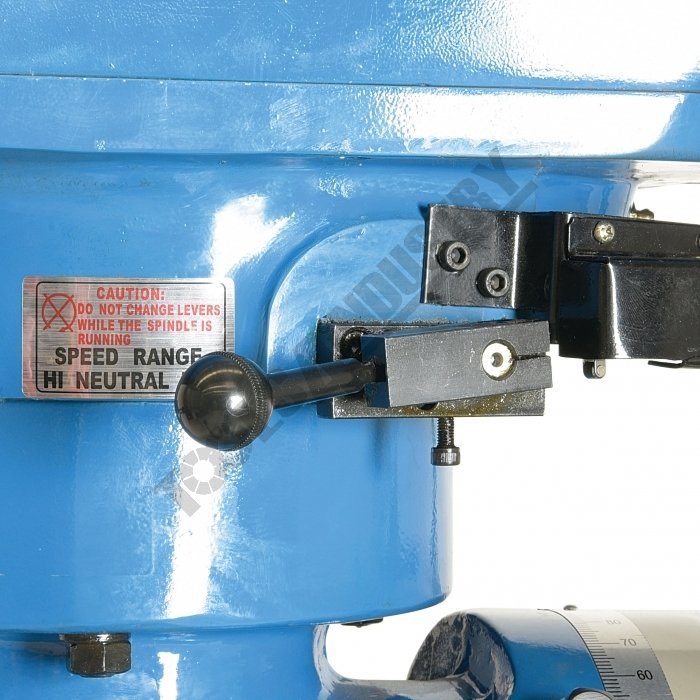

High Low Speed Range Selection Lever

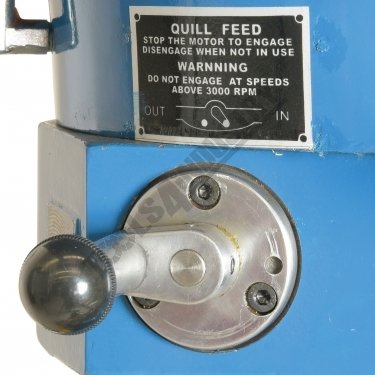

Quill Feed Engage Lever

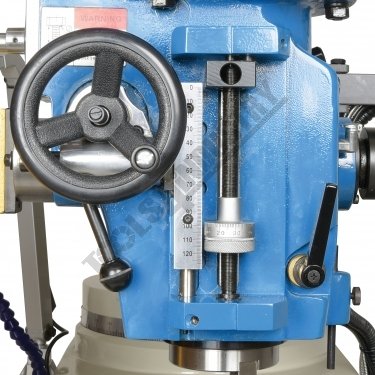

Quill Feed Depth Stop

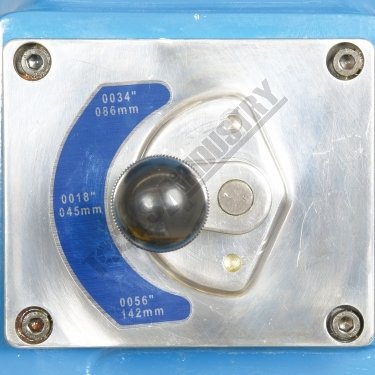

Feed Speed Selector Lever

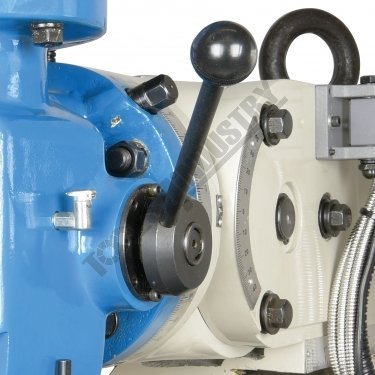

Quill Hand Lever

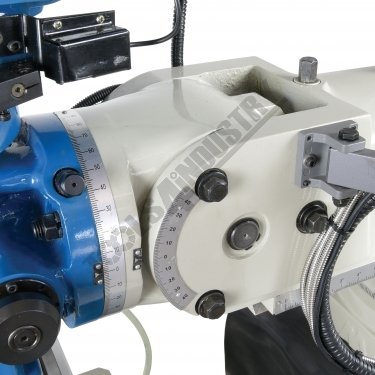

Head Tilt Knucle

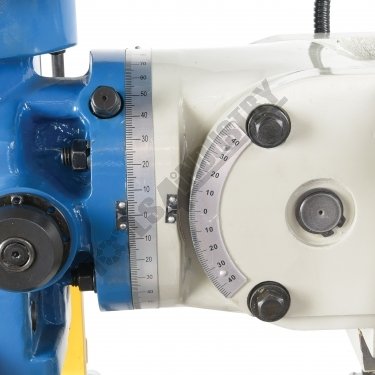

Universal Tilting and Rotating Head

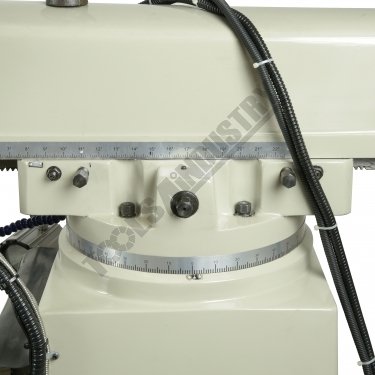

Adjustable Swivel and Sliding Ram

Tail Lug Spigot Supports Slotting Head

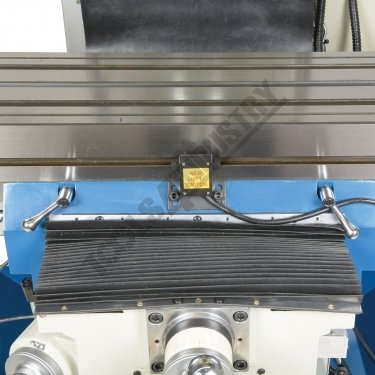

Table Feed Limit Switches

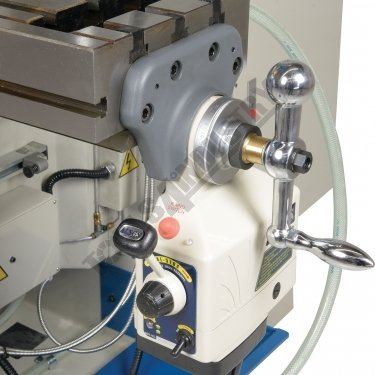

X Axis Power Feed with Rapid

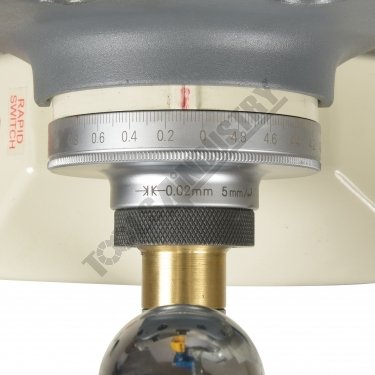

X Axis Dial Graduations

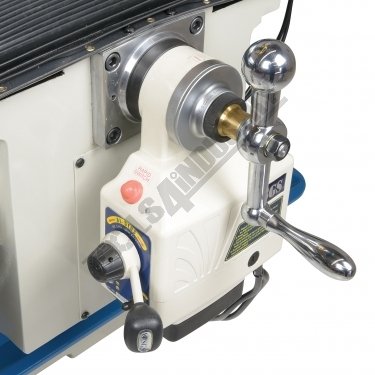

Y Axis Power Feed with Rapid

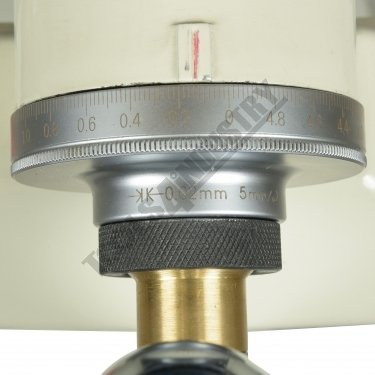

Y Axis Dial Graduations

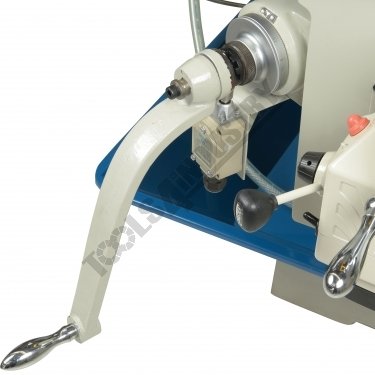

Z Axis Handle

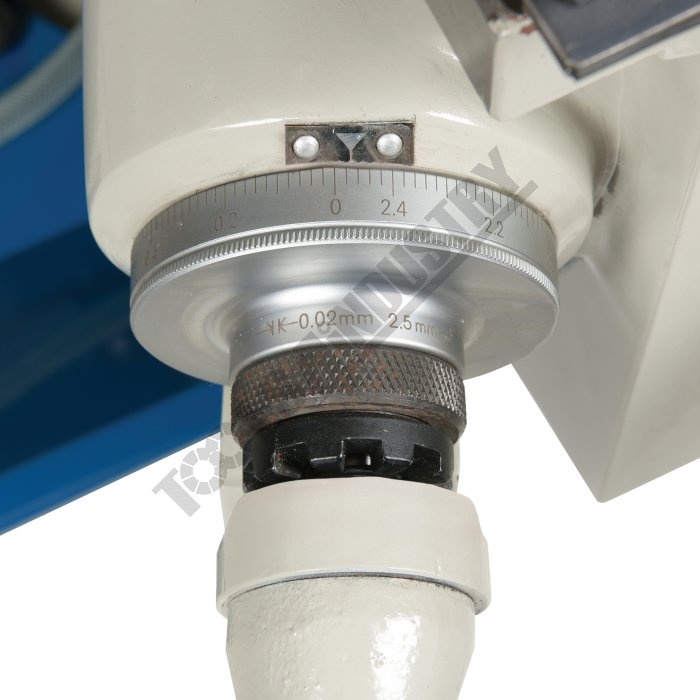

Z Axis Dial Graduations

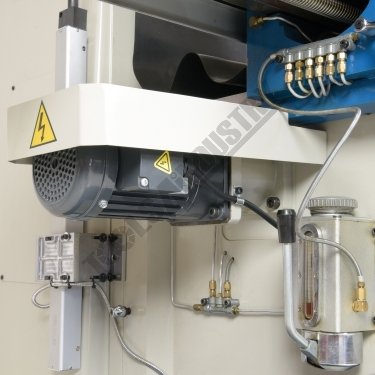

Z Axis Elevating Motor

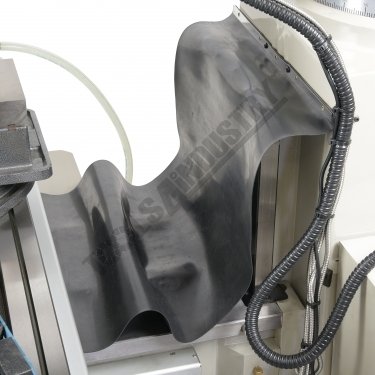

Rear Slideway Protection Cover

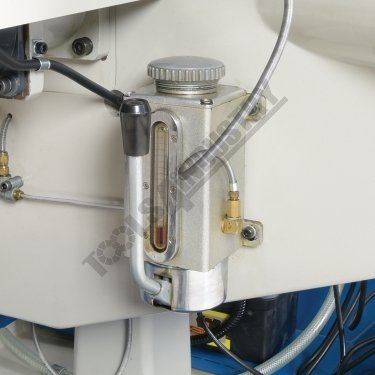

Manual Slideway Lubrication Pump

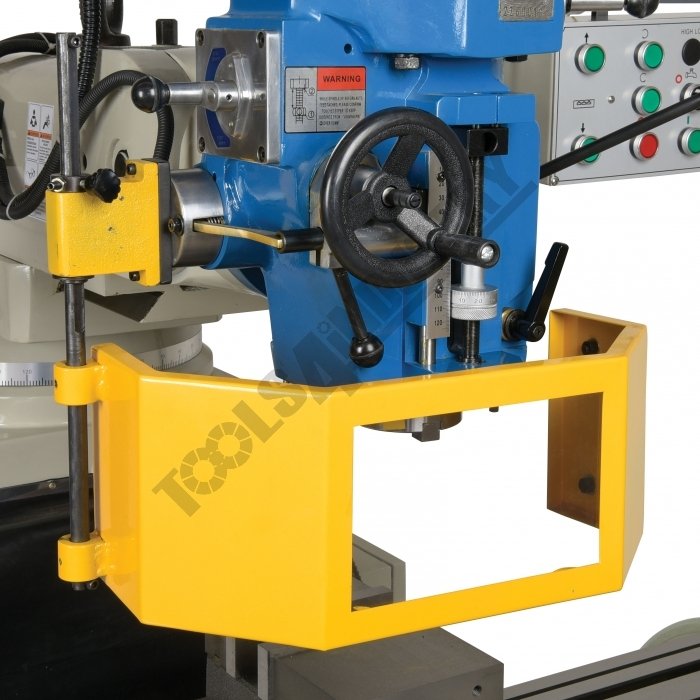

Safety Cutter Guard

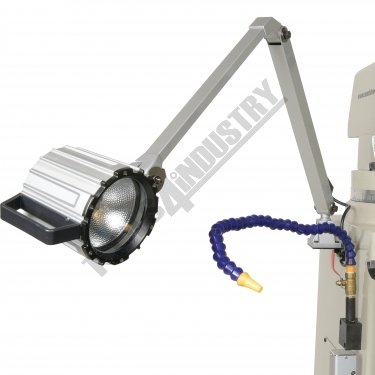

Work Light and Coolant Hose

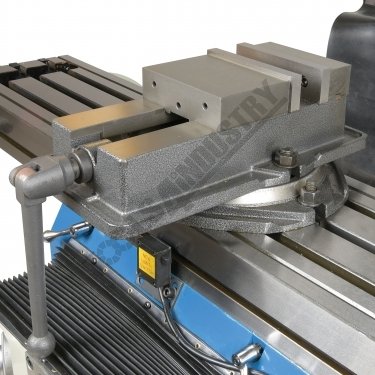

Includes Machine Vice

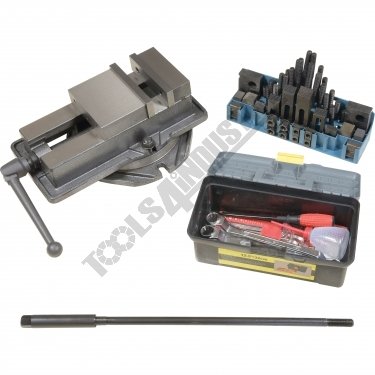

Included Accessories

Code	M599D
Model	BM-63VE
Capacity	Table Travel: (X) - 890mm (Y) - 400mm (Z) - 400mm
Weight (kg)	1555
Weight (m³)	4.953
Weight (Freight)	1,649.349
Dimensions (cm)	165 x 134 x 224

Product Brochure Instruction Manual [12 MB] Parts List [2 MB] Instruction Manual [6 MB]

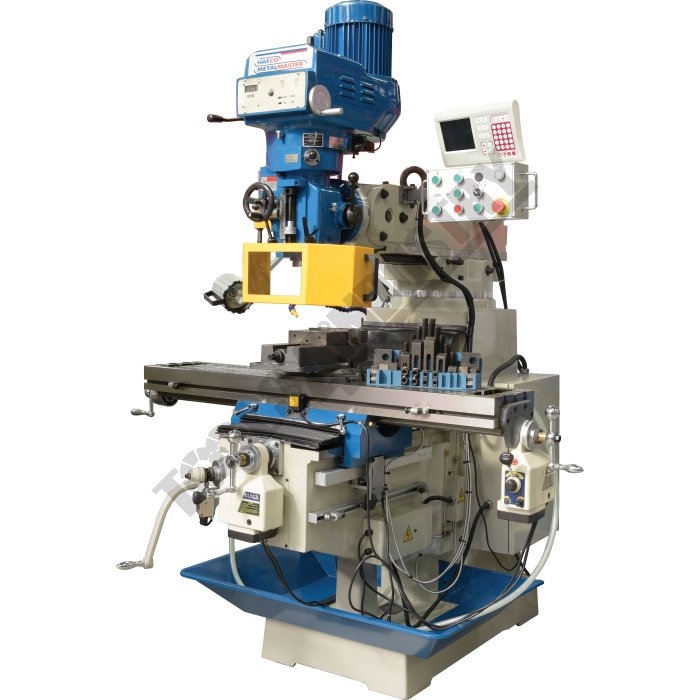

BM-63VE Industrial Turret Milling Machine Table Travel: (X) - 890mm (Y) - 400mm (Z) - 400mm

Description

Quality product representing excellent value

Features

3 Axis digital readout fitted
5HP 415V motor with mechanical variable speed system
NT40 Spindle taper with a 105mm chrome & ground quill
Hardened ballscrew X & Y-Axis providing smooth and accurate operation
Digital speed readout display for accurate cutter speed
Hardened & ground work table & slide-ways
Square construction slides for Y & Z-Axis to maximise rigidity
Powered elevating motor for Z-Axis
Meehanite casting for high strength & minimal deformation
Quality electrics & overload protection in an easy access enclosure
Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle
The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.
High / neutral and low gear selection lever to maximise torque
X & Y-Axis power-feed with adjustable micro switch feed stops
Micro switch on the manual knee handle for additional operator safety
Metric dial graduations @ 0.02mm for X , Y & Z-Axis
Automatic quill feed 0.04, 0.08, 0.15mm/rev
Automatic cut off depth stop on quill
Oil lubrication pump and reservoir
Slide-way covers Y & Z-Axis
Mill head tilts to ±45º forward and back
Mill head tilts to ±90º left and right
Manual quick action quill lever
Mechanical spindle brake
Tool box and manual

Includes

3 Axis digital readout fitted
Hardened ballscrew X & Y-Axis
Digital speed readout display
One-shot oil lubrication pump and reservoir
X & Y-Axis power-feed
Z-Axis powered elevating motor
Machine vice 160mm
Clamp kit set
Drawbar M16 thread
Coolant system
Slideway covers
Safety cutter guard
Halogen light
Swarf tray
Drawbar M16 thread

Specifications
