Code M579
Model HM-54GV
Capacity Table Travel: (X) - 600mm (Y) - 200mm (Z) - 340mm
Weight (kg) 900
Weight (m3) 3.437
Weight (Freight) 1,144.521
Dimensions (cm) 134 x 114 x 225
HAFCO METALMASTER
240V / 10A
1 Year

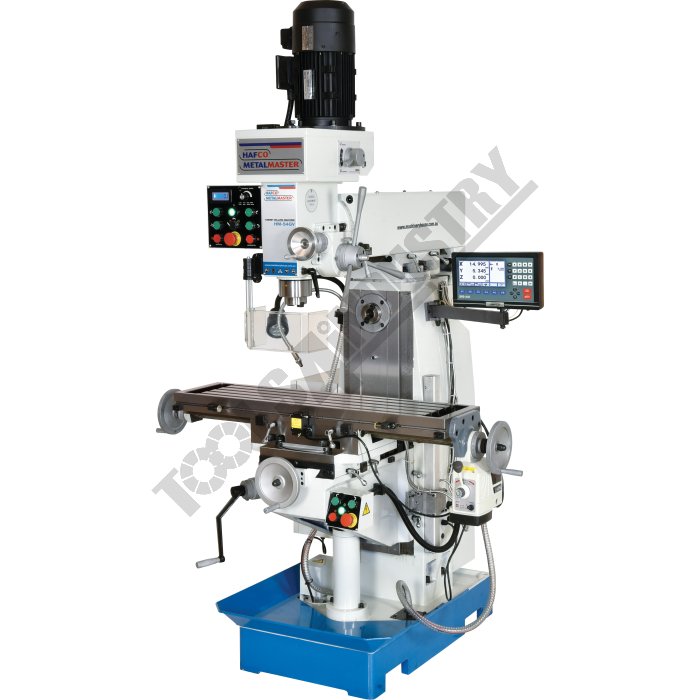

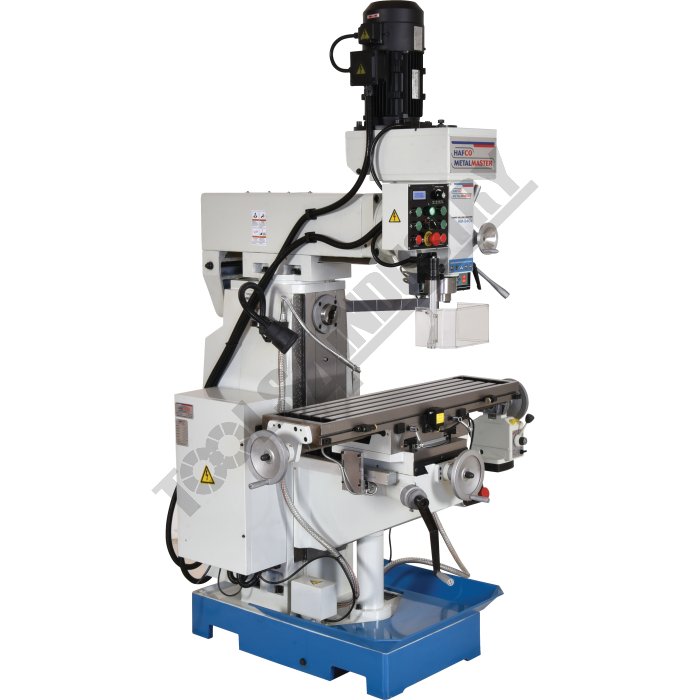

HM-54GV Workshop Turret Milling Machine Inverter Variable Speed, Geared Head - Horizontal & Vertical Table Travel: (X) - 600mm (Y) - 200mm (Z) - 340mm

Description

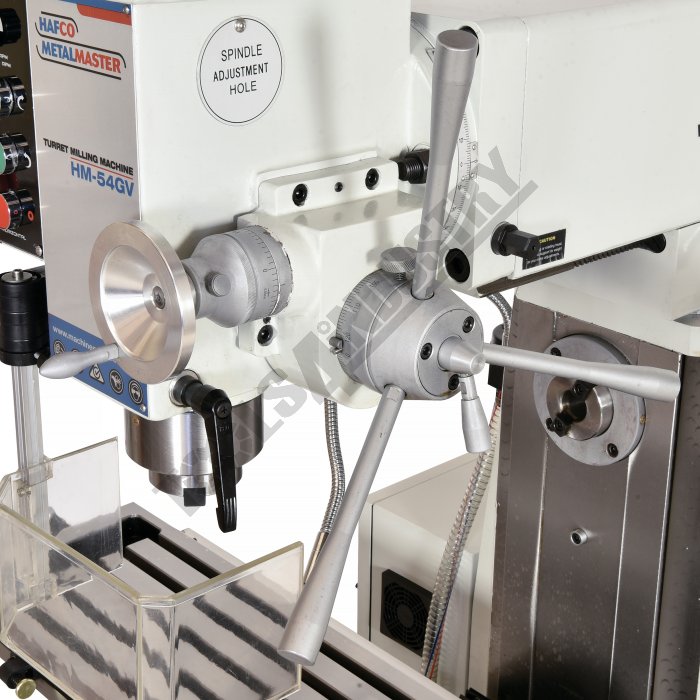

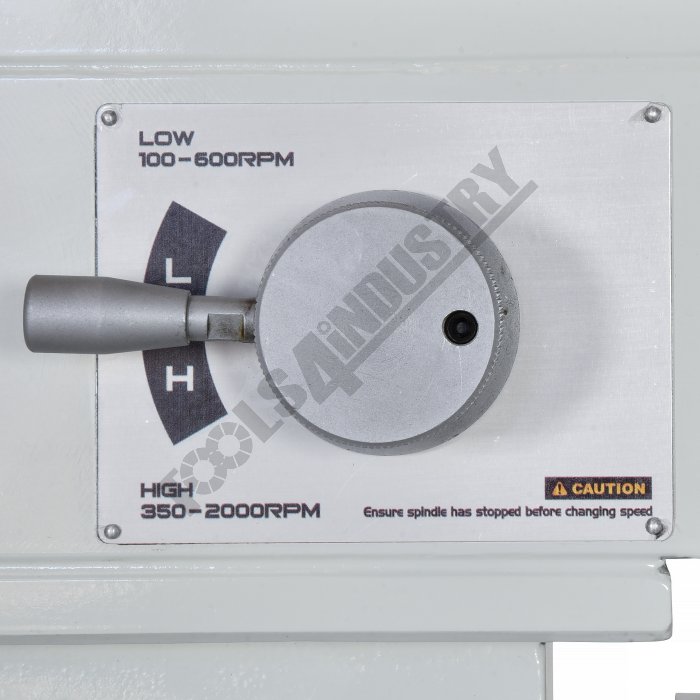

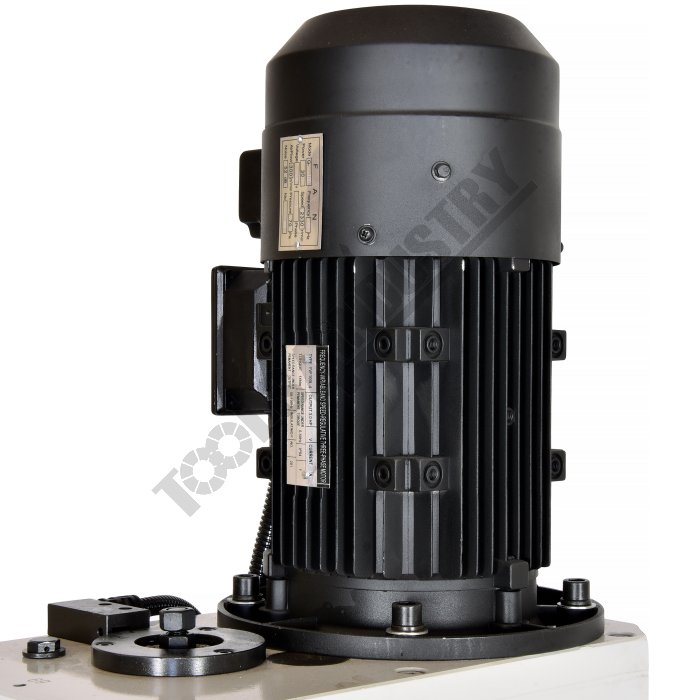

This HM-54GV geared head vertical and horizontal turret milling machine now includes a inverter variable speed drive on the vertical spindle, with a powerful continuous-load 2.2kW / 3hp vertical motor and a 2hp motor for the horizontal spindle, intended for trade use. The work table is precision made with adjustable dovetail guides and is recognised for its 600mm X axis by 200mm Y axis travel. There is a three armed handle on the side for drilling also incorporating a fine feed control hand wheel on the front for milling. The hi-low geared head selector lever mounted on right side of milling head allows for quick change off speed range.

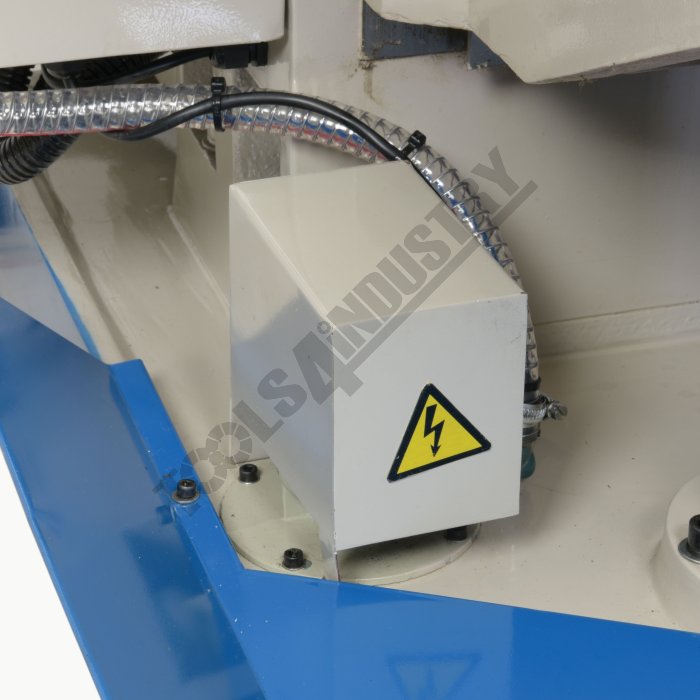

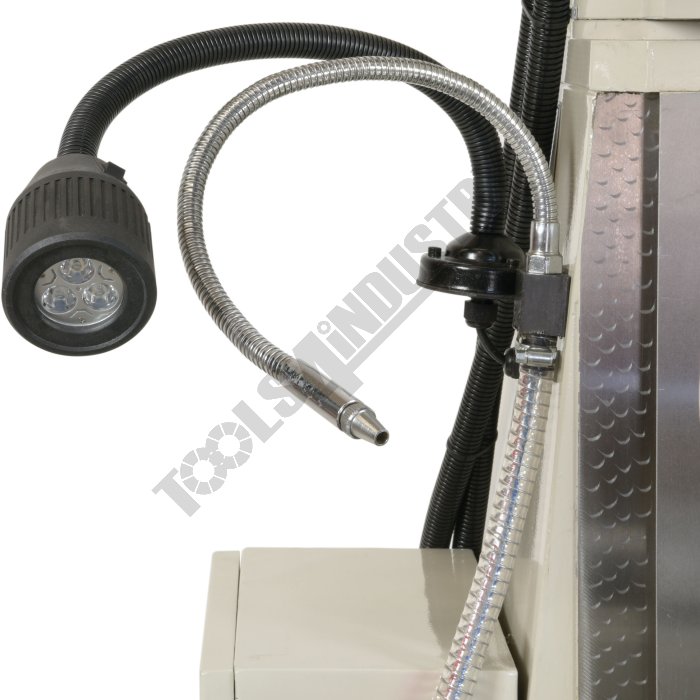

Other features include 3-Axis digital readout system, taper roller bearing support for the spindle, easy-to-read drilling depth stop, low voltage LED work light, coolant system, X axis power feed unit, drill chuck, 1" & 1-1/4" horizontal arbors, 2 & 3 morse taper adaptors. The combination of generous sized vertical support and rugged cast iron construction throughout reduces vibration and guarantees accurate and chatter-free operation.

Extra Features:
Swivel table
1" & 1-1/4" horizontal arbors

Features

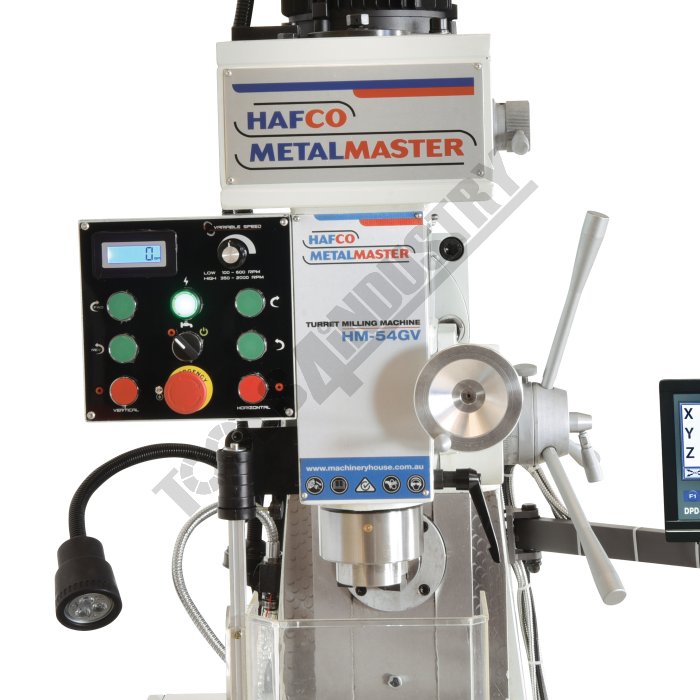

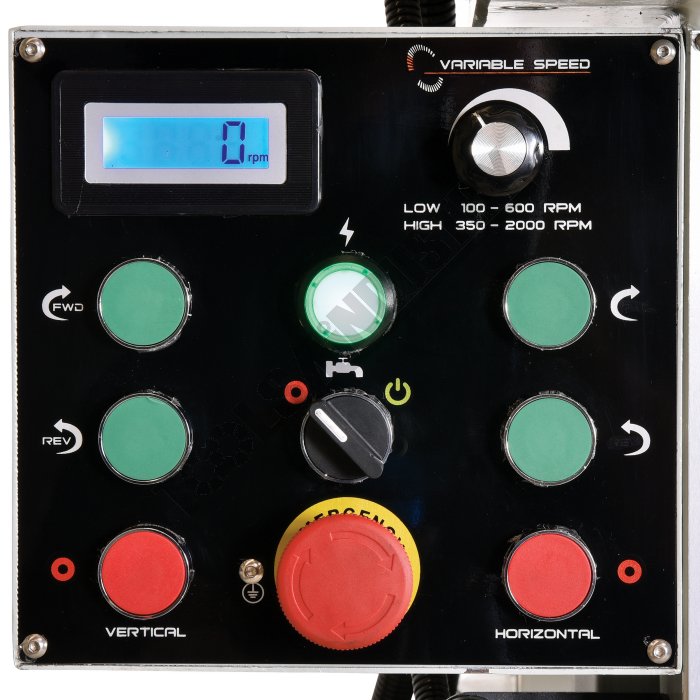

  • Electronic inverter variable spindle speeds

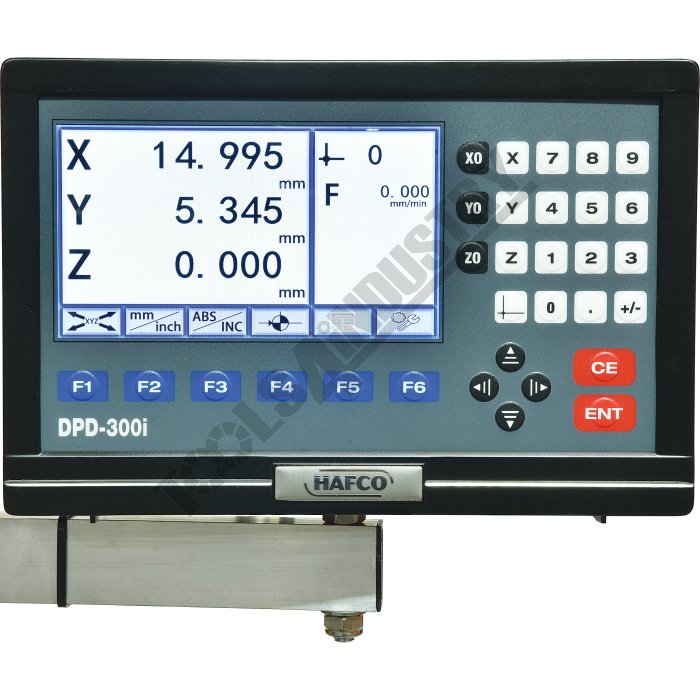

  • 3 Axis digital readout system

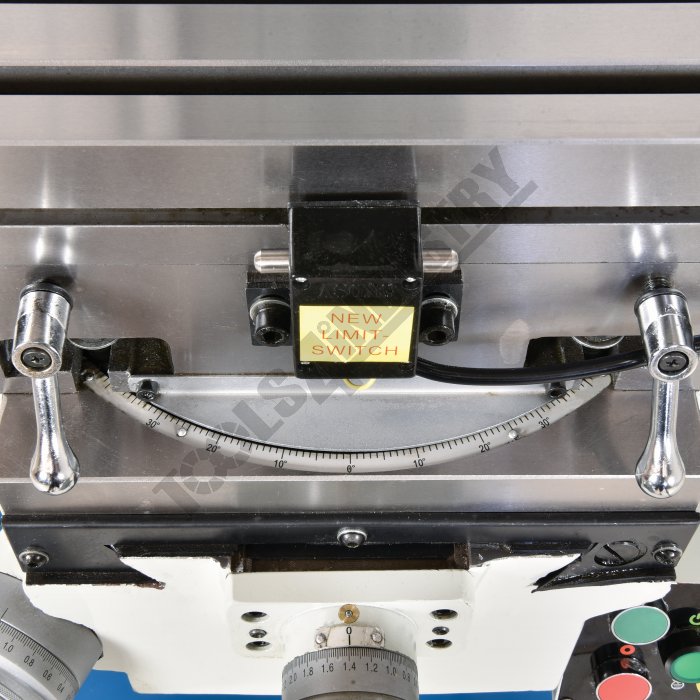

  • Swivel table left & right with graduated scale

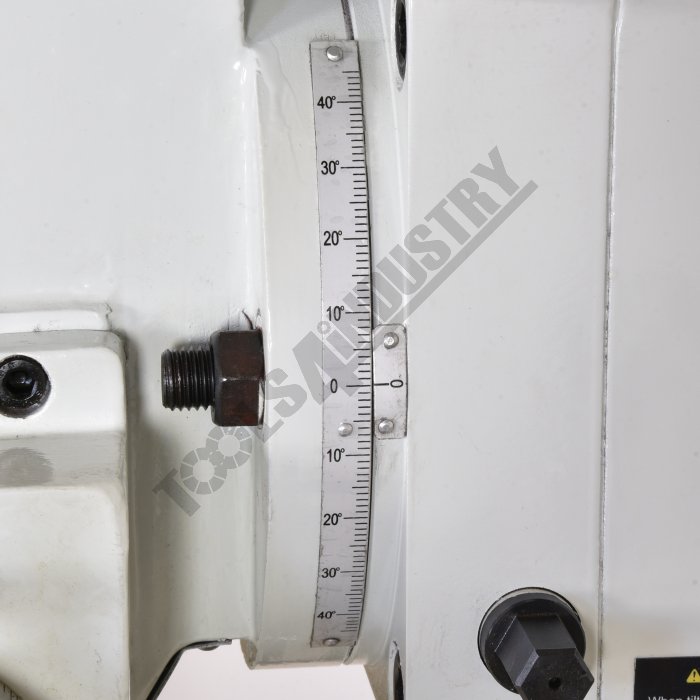

  • Mill head tilts to ±45º left to right

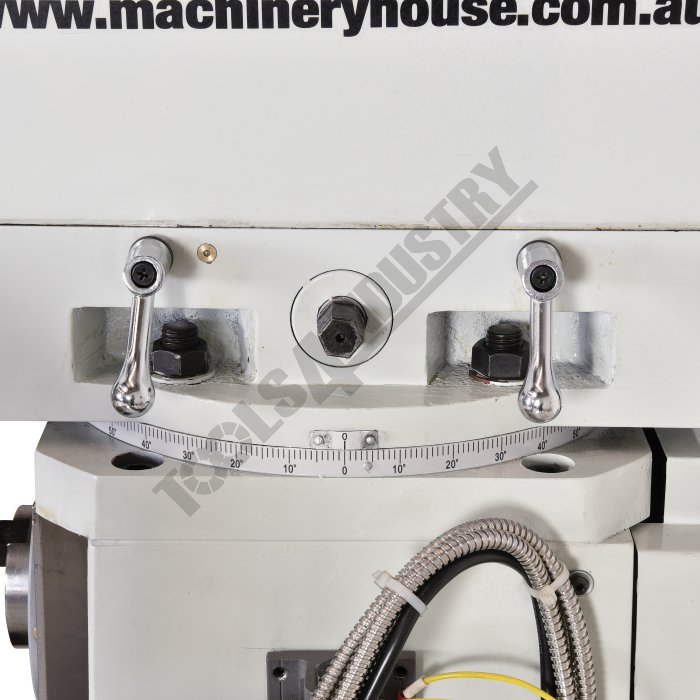

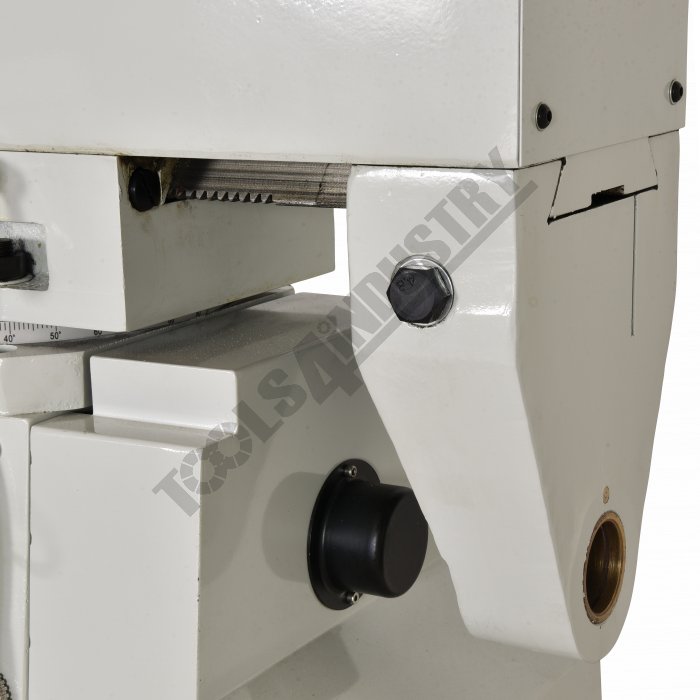

  • 450mm horizontally sliding and rotating ram

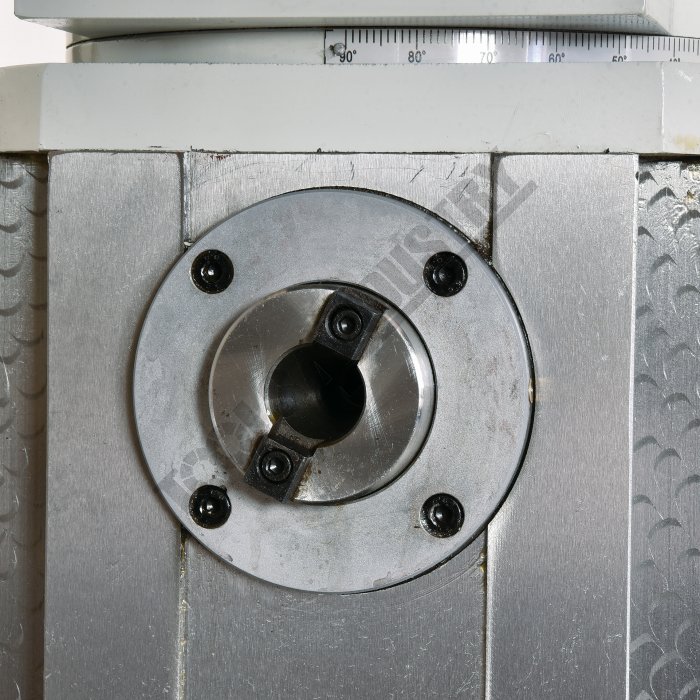

  • NT30 Horizontal and vertical spindles that are hardened and ground

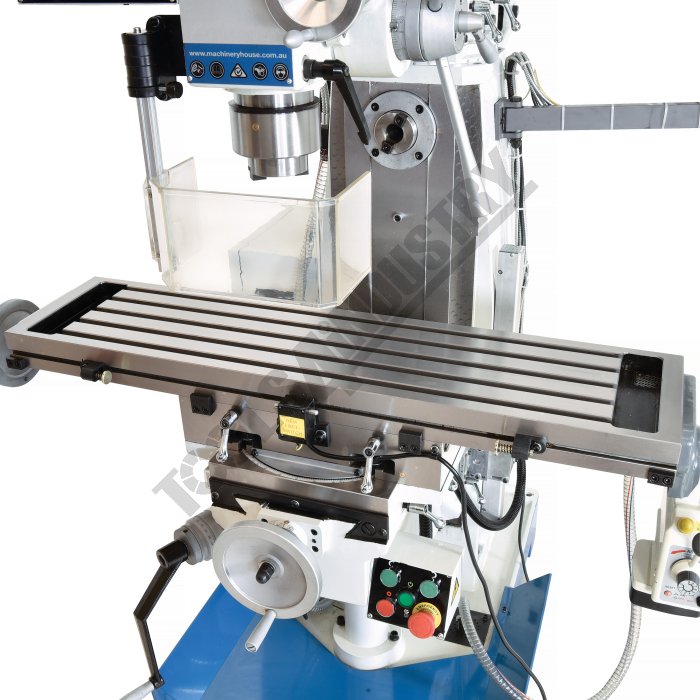

  • Precision-ground dovetail slide-ways and table
  • Precision milling table incorporating machined T slots

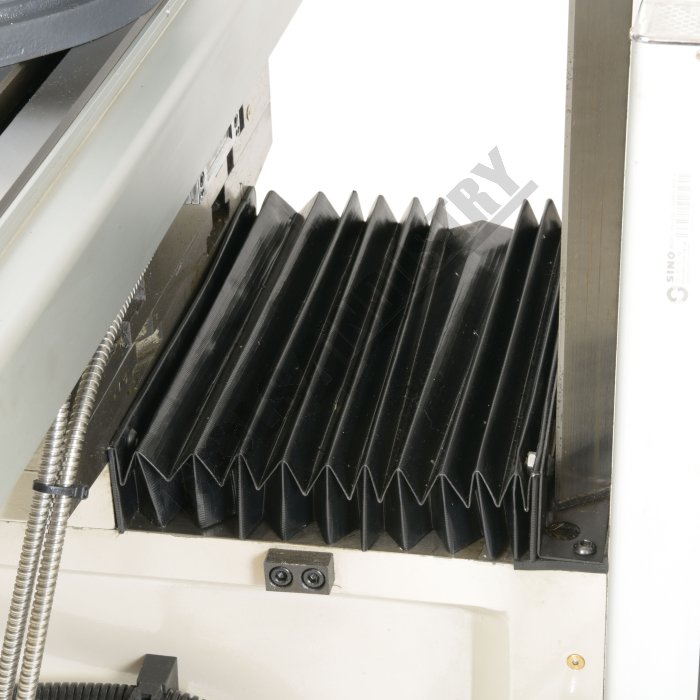

  • Rear concertina slide-way cover

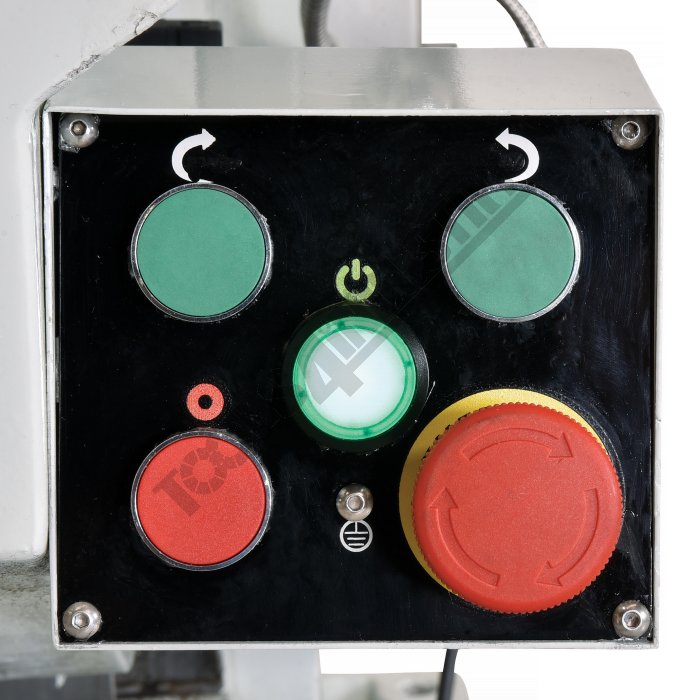

  • Forward and reverse button switch
  • Fine hand wheel operated quill feed
  • Swarf & splash tray

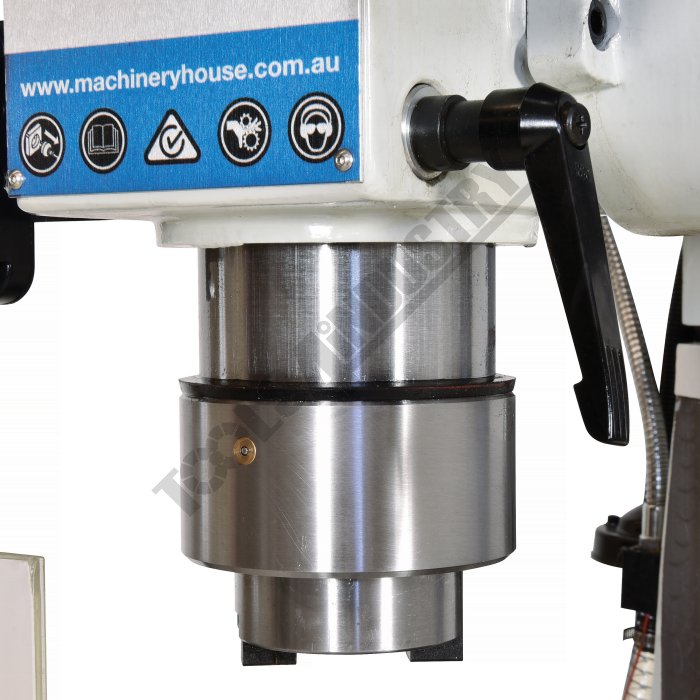

  • Spindle lock for quill

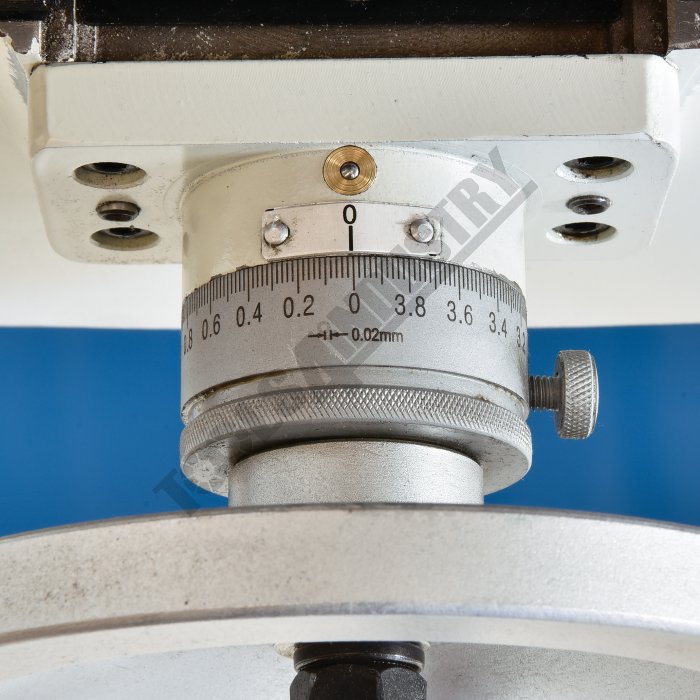

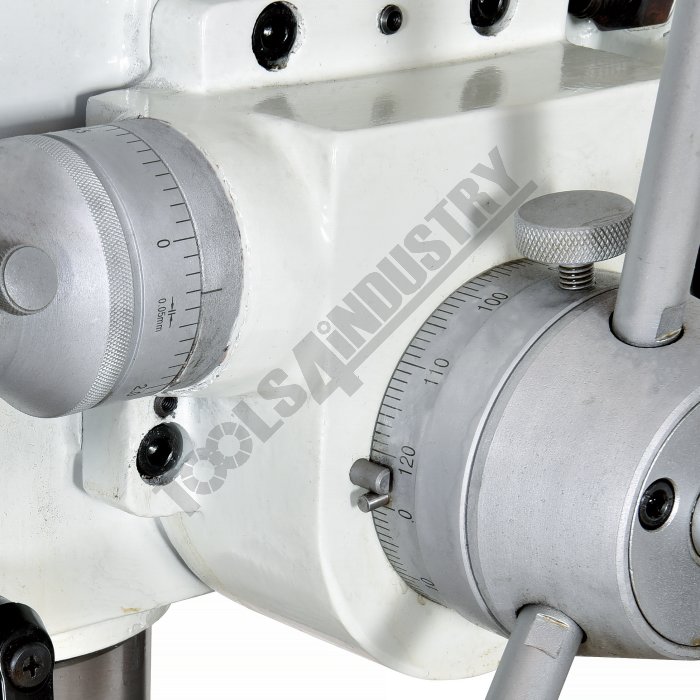

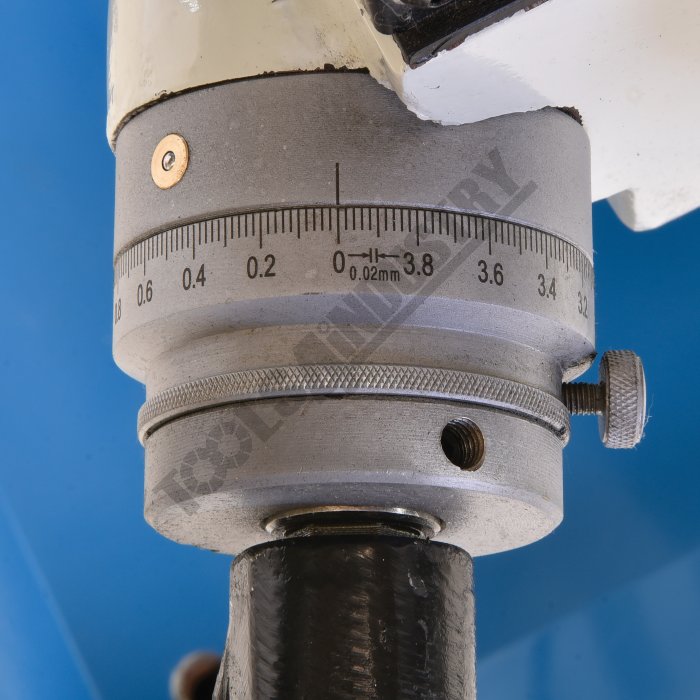

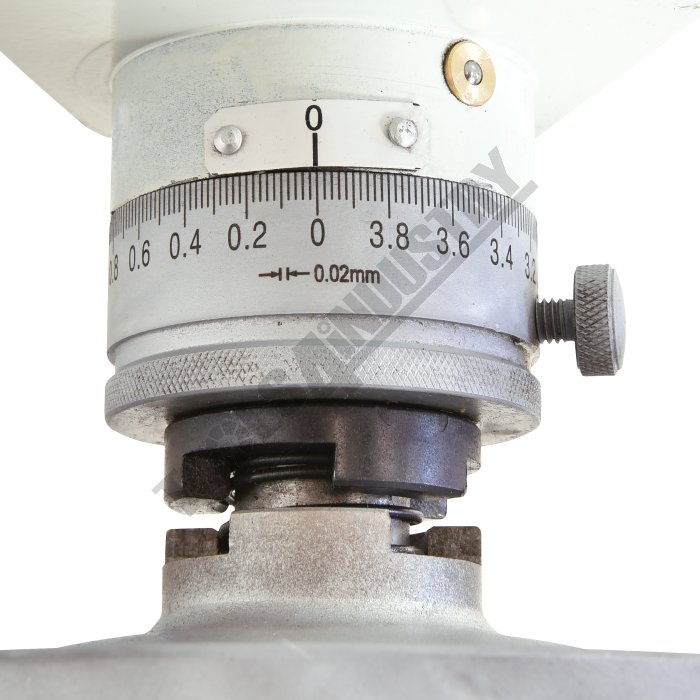

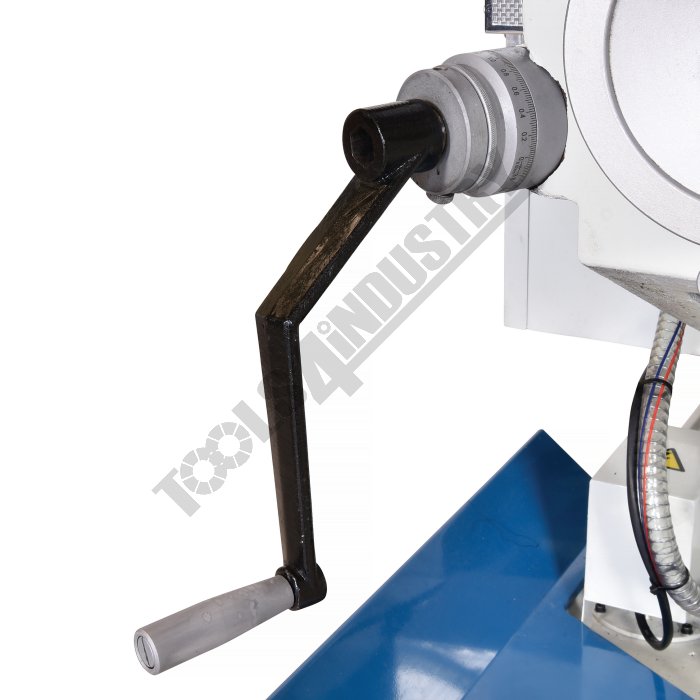

  • Metric dial graduations @ 0.02mm for X , Y & Z-Axis
  • Vertical quill hand-wheel dial graduations @ 0.05mm
  • All slides utilise dovetail construction for maximum rigidity
  • Includes 1" & 1-1/4" arbors for the horizontal spindle

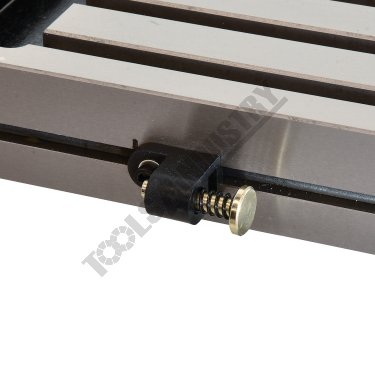

  • * Note: X & Y travels maybe reduced due to digital readout scales and safety stops
  • * Note: Optional Y & Z power feeds require additional parts & fitting (not included)

Includes

  • Electronic inverter variable spindle speeds
  • 3 Axis digital readout system

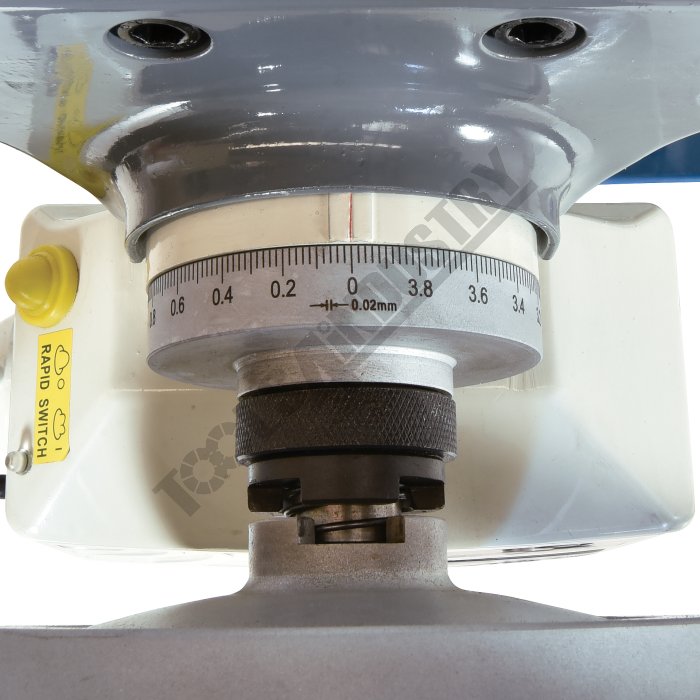

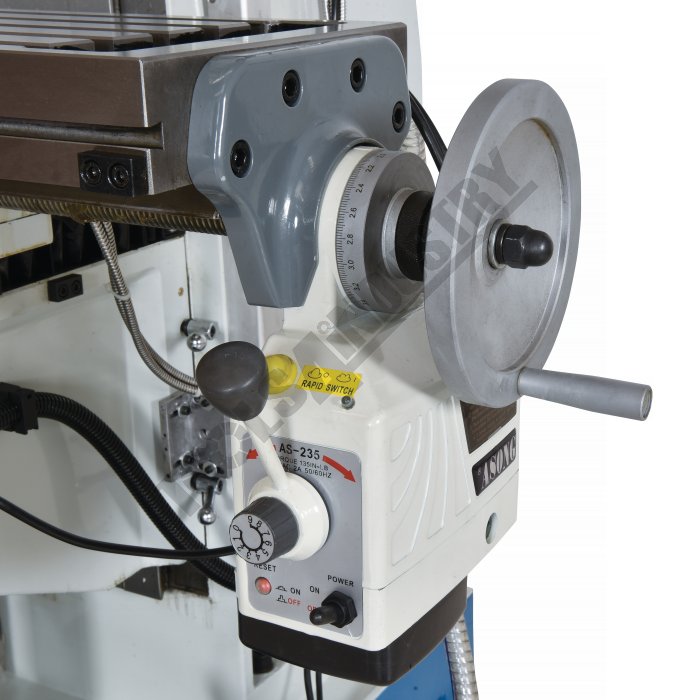

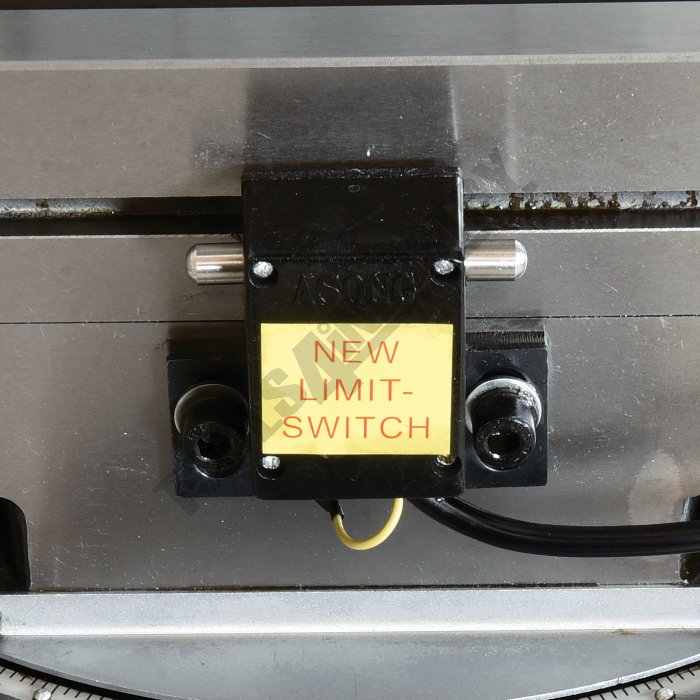

  • X-Axis power-feed

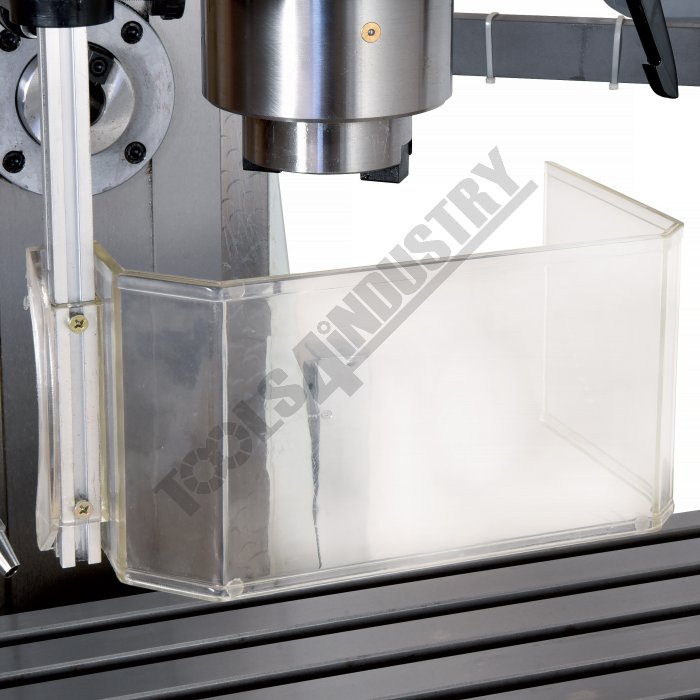

  • Safety cutter guard
  • Swarf tray
  • Coolant system
  • LED work light

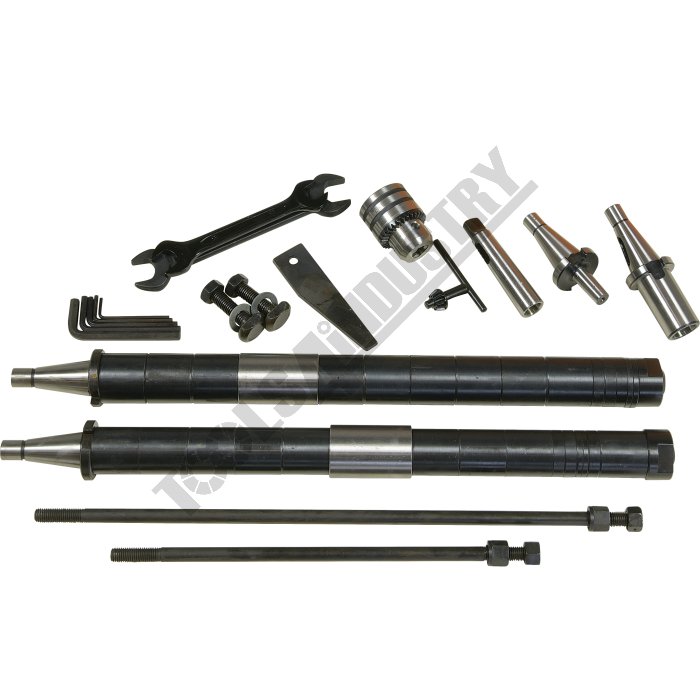

  • Drill chuck & arbor
  • NT30 to 3MT adaptor
  • 2MT & 3MT adaptors
  • Drawbar M12 thread

Specifications

ORDER CODEHM-54GV
MODEL3-Axis Digital Readout
Digital ReadoutVertical & Horizontal
Type1000 x 240
Table Sizemm~
Column TypeNT30
Spindle Taper - VerticalNT30
Spindle Taper - Horizontal600*
Longitudinal Travel (X-Axis)mm200*
Cross Travel (Y-Axis)mm340
Vertical Travel (Z-Axis)mmDovetail
Type of Slides450
Ram Travelmm375
Spindle to Tablemm~
Spindle to Base120 / 90
Spindle Travel / Diametermm640
Throat Depth (max.)mm±45º
Tilting Head (Left ~ Right)Fixed
Tilting Head (Forward ~ Back)40
Drilling Capacitymm25
End Milling Capacitymm80
Face Milling CapacitymmManual
Power Feed - Quillmm/rev20 - 2000
Power Feed - Longitudinal (X-Axis)mm/minOptional *
Power Feed - Cross (Y-Axis)mm/minOptional *
Power Feed - Vertical (Z-Axis)mm/min14
Table T-Slot Sizeinch / mm160
Work Table Load CapacitykgVariable (100 - 2000)
Spindle Speeds VerticalNo./ rpm9 (60 - 1350)

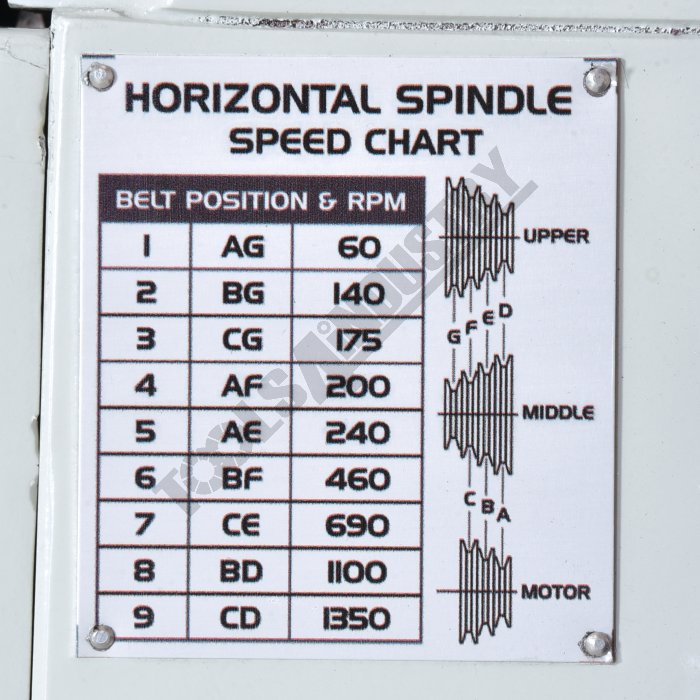

Spindle Speeds HorizontalNo./ rpm~
Spindle Speeds - Universal Head2.2 / 3
Motor Power - Vertical SpindlekW / hp1.5 / 2
Motor Power - Horizontal SpindlekW / hp~
Motor Power - Universal Head240 / 10
Voltage / AmperageV / amp134 x 114 x 225
Shipping Dimensions (L x W x H)cm900
Nett Weightkg
