MH-28V Mill Drill - Geared & Tilting Head Table Travel: (X) - 430mm (Y) - 220mm (Z) - 355mm

Description

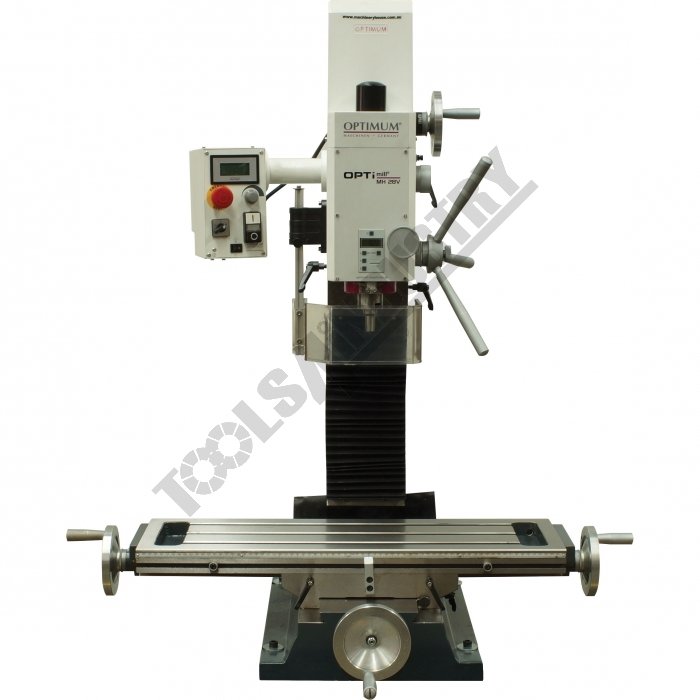

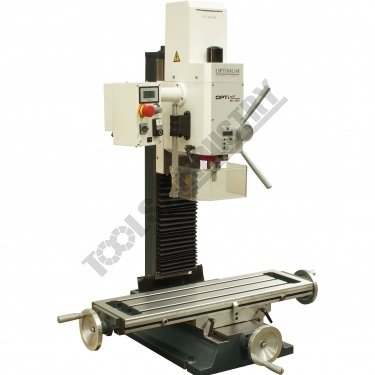

Excellent quality mill drill machine designed for the model engineer

Features

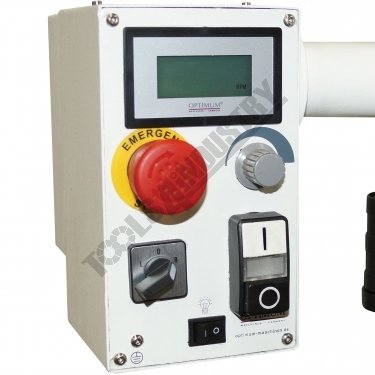

  • Electronic infinitely variable speed

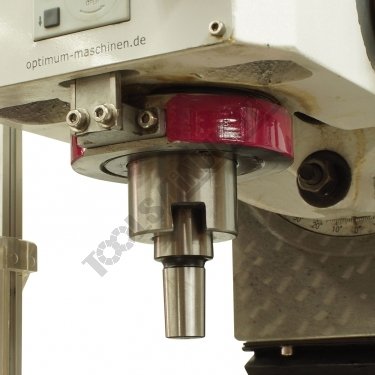

  • 3MT spindle taper
  • Dovetail vertical Z-Axis
  • Digital readout speed display

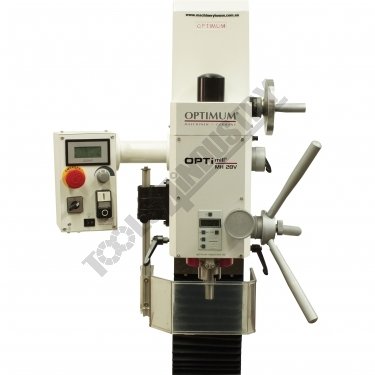

  • Work light mounted underneath mill head

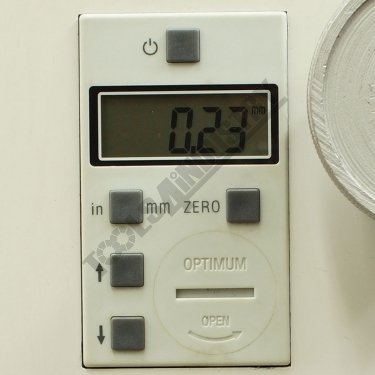

  • Digital depth display with zero reset for quill

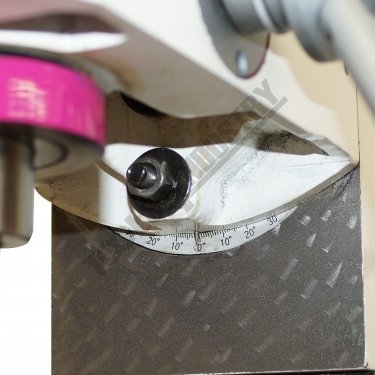

  • Tilting head to ± 90° from vertical

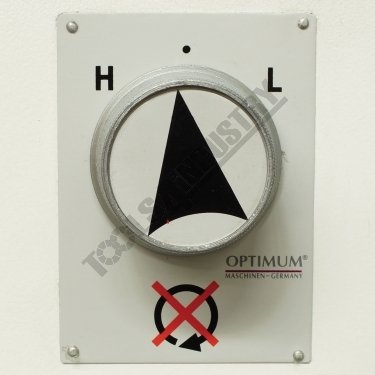

  • 2 speed gearbox (high / low) drive
  • Forward and reverse spindle switch
  • Adjustable dovetail slideways on all 3 axis
  • 730 x 210mm cast iron table with T-slots

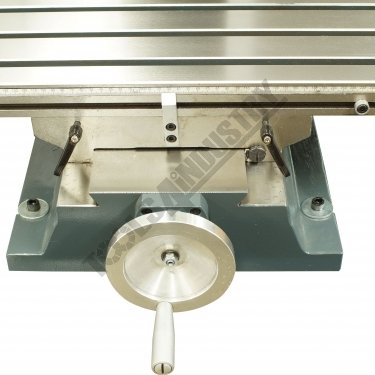

  • Adjustable table and drill length stops

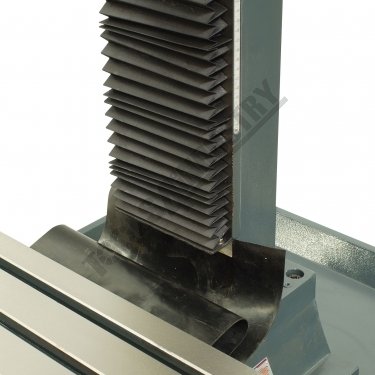

  • Rear slideway covers and slide clamps on all axis

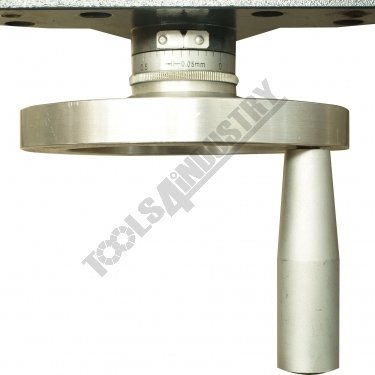

  • Metric dial graduations on X & Y-Axis


Includes

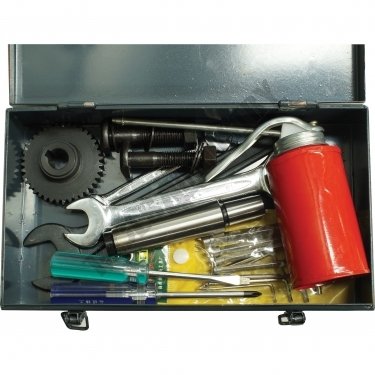

  • 3MT x JT6 drill chuck arbor

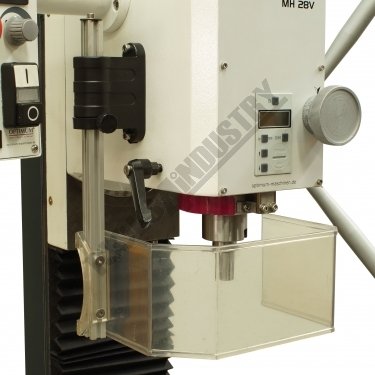

  • Safety cutter guard
  • Work light
  • Bracket kit for optional digital readout

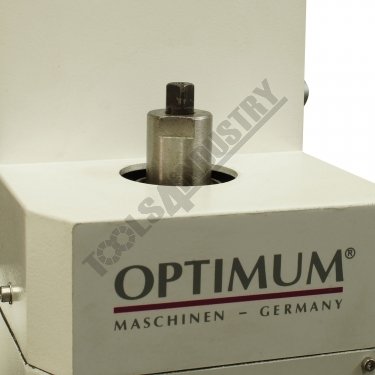

  • 1/2" x 12tpi whitworth drawbar

Specifications

ORDER CODEHM-28V
MODELOptional
Digital ReadoutVertical
Type730 x 210
Table SizemmDovetail
Column Type3MT
Spindle Taper - Vertical~
Spindle Taper - Horizontal430
Longitudinal Travel (X-Axis)mm220
Cross Travel (Y-Axis)mm355
Vertical Travel (Z-Axis)mmDovetail
Type of Slides~
Ram Travelmm465
Spindle to Tablemm~
Spindle to Base70 / ~
Spindle Travel / Diametermm210
Throat Depth (max.)mm±90º
Tilting Head (Left ~ Right)Fixed
Tilting Head (Forward ~ Back)20
Drilling Capacitymm28
End Milling Capacitymm70
Face Milling Capacitymm~
Power Feed - Quillmm/rev~
Power Feed - Longitudinal (X-Axis)mm/min~
Power Feed - Cross (Y-Axis)mm/min~
Power Feed - Vertical (Z-Axis)mm/min14
Table T-Slot Sizeinch / mm55
Work Table Load CapacitykgVariable (100 - 2500)
Spindle Speeds VerticalNo./ rpm~
Spindle Speeds HorizontalNo./ rpm~
Spindle Speeds - Universal Head1.1 / 1.5
Motor Power - Vertical SpindlekW / hp~
Motor Power - Horizontal SpindlekW / hp~
Motor Power - Universal Head240 / 10
Voltage / AmperageV / amp94 x 73 x 114
Shipping Dimensions (L x W x H)cm240
Nett Weightkg
