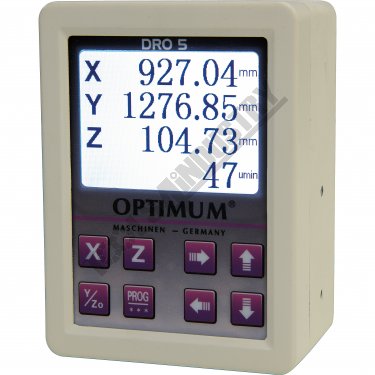

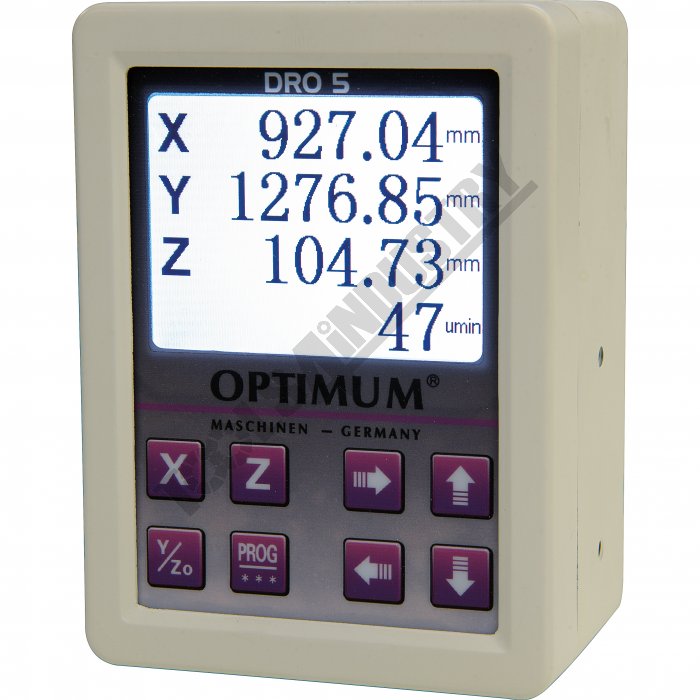

3-Axis Optimum Digital Readout Counter - 1µm DRO5 Includes RPM Speed Display

Description

This NEW DR05 3-Axis digital counter now with RPM speed display is highly suited to hobby & model engineer lathes & milling machines.
Please note: each Axis requires a DR05-RH reader head and a DR03-MS magnetic scale to make operational.

Features

• Mills X, Y, Z Axis or Lathes X, Y, Z Axis + (Z0) RPM speed display
• Display: 3 line position display, one speed display

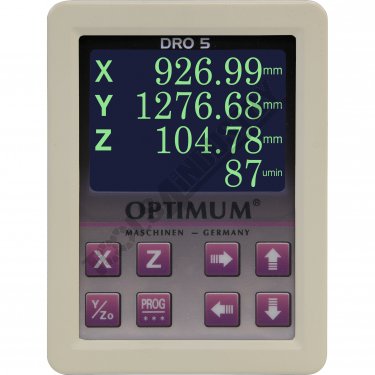

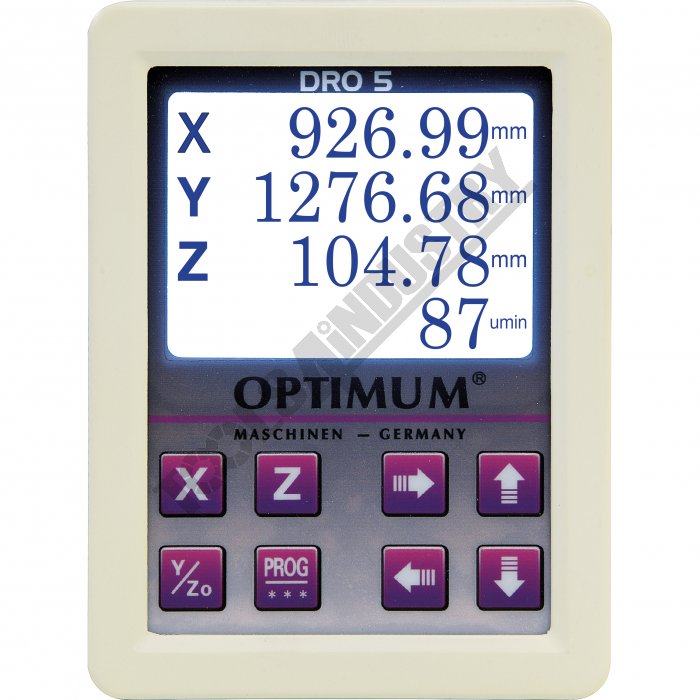

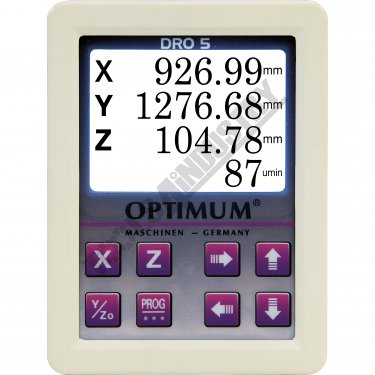

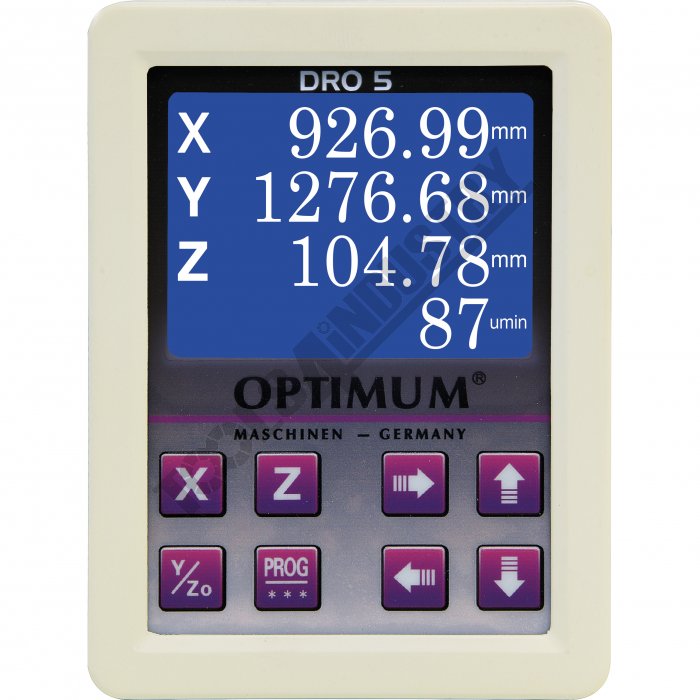

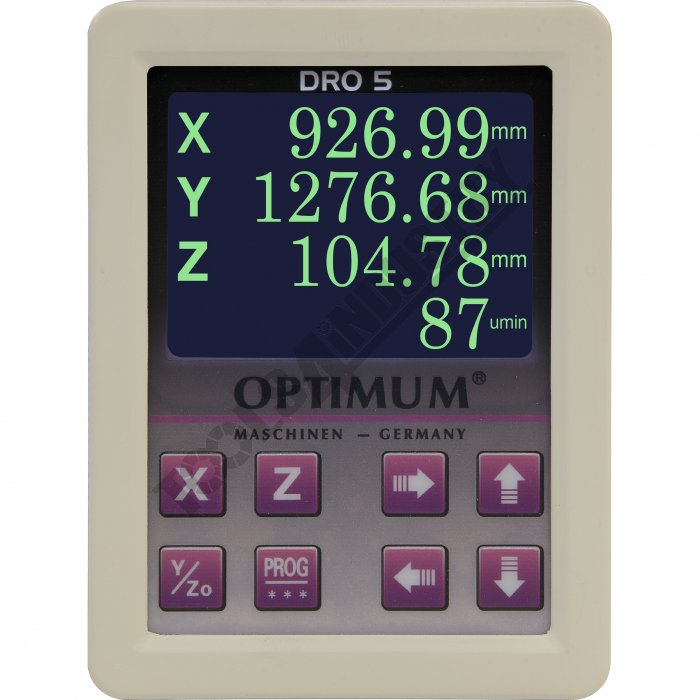

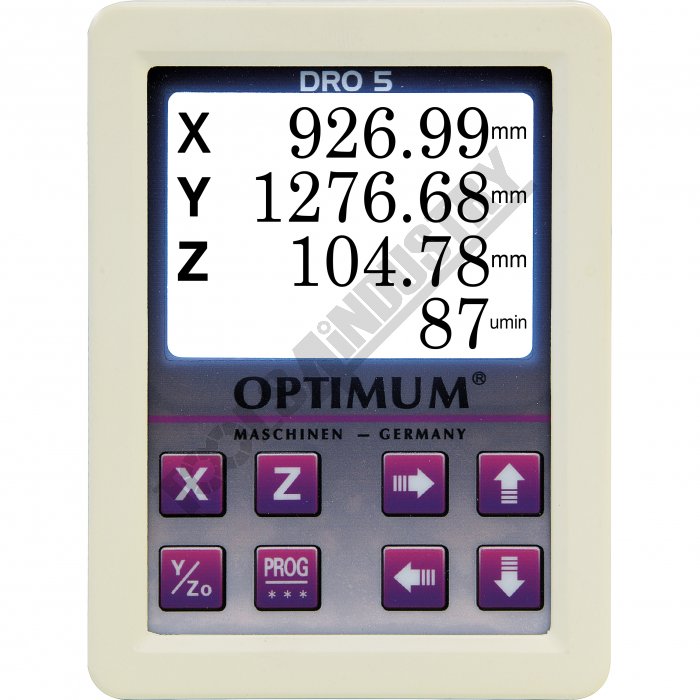

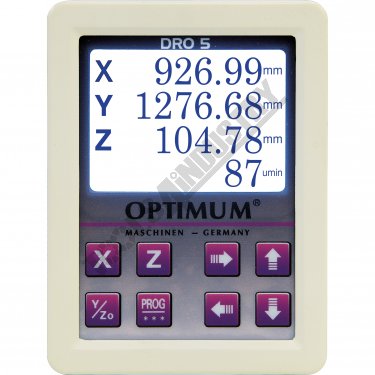

• 4 different LCD screen colour options
• 0º to 50ºC operating temperature
• IP50 rated protection

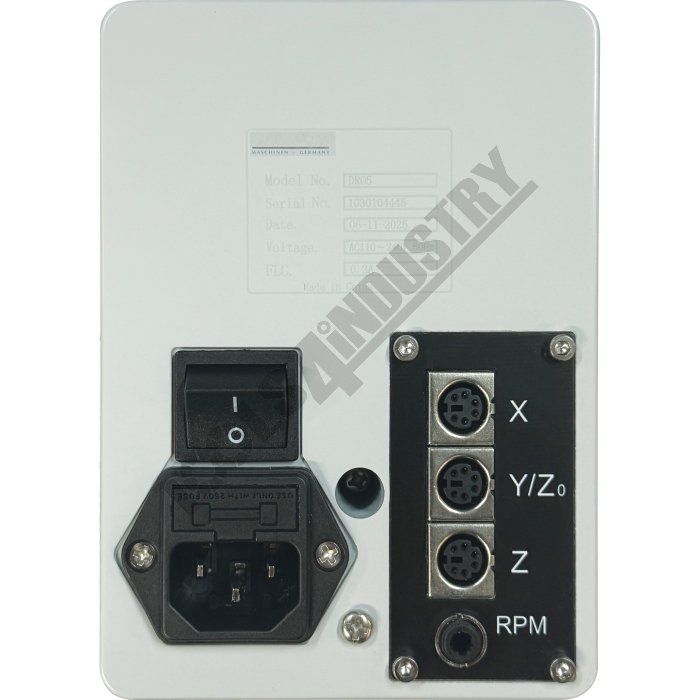

• Three incremental inputs
• Four-line LCD display

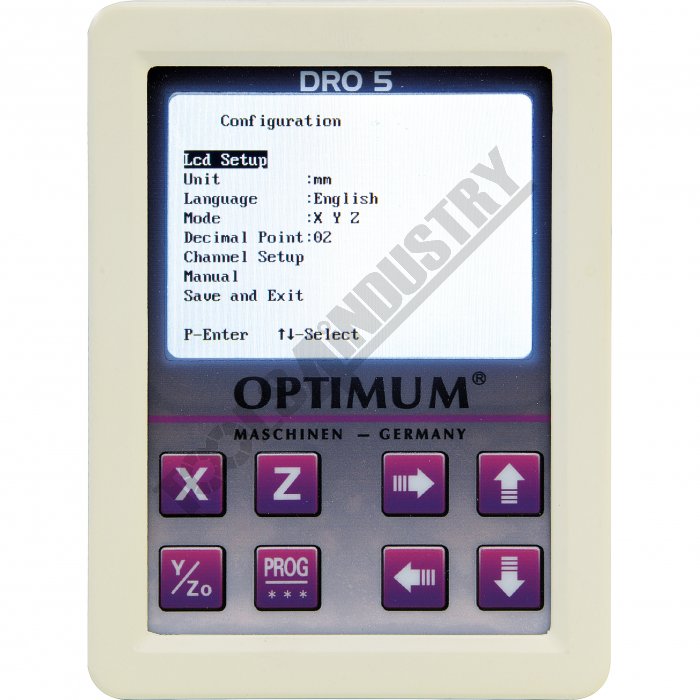

• User-friendly menu navigation
• Rugged aluminium housing
• Programming from the front
• 98mm x 65mm x 134mm (LxWxH)

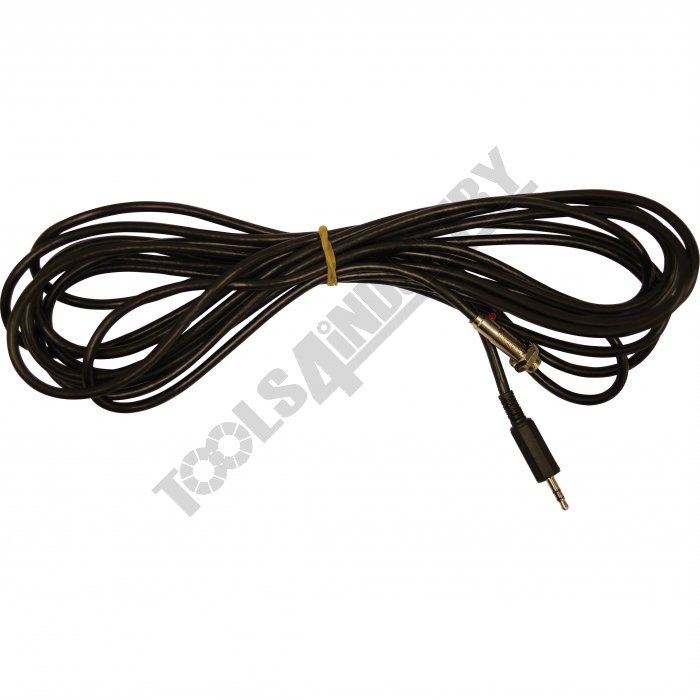

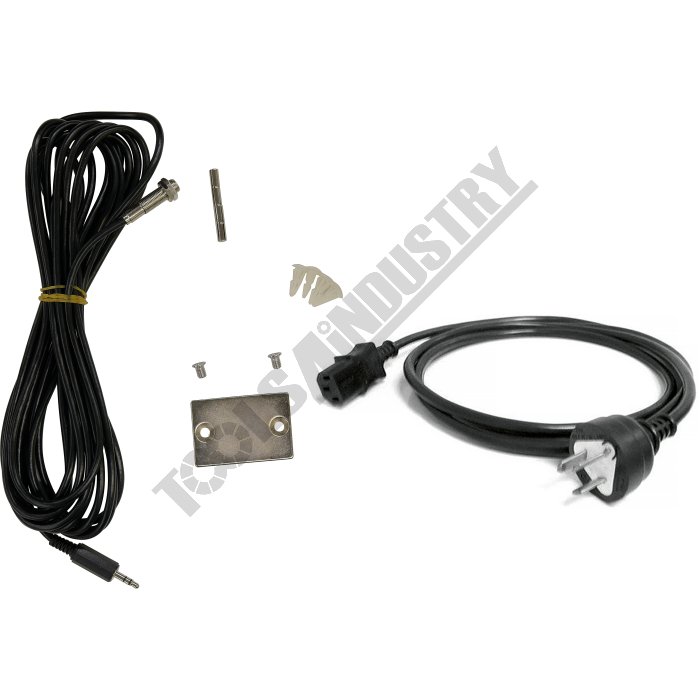

• 240V-24V transformer with 6 metre lead


• Key Functions:
• 2 or 3 decimal point selection
• Counting resolution setting
• Counting direction setting
• Linear error correction setting
• Metric / inches conversion setting
• LCD display status setting
• Contrast & backlight setting
• Speed mode setting
• Basic value setting


• Please Note: If fitting this DRO onto machines other than Optimum brand, you will need to make mounting brackets to suit your requirements
