HM-32B Mill Drill - Belt Drive Table Travel: (X) - 540mm (Y) - 235mm (Z) - 310mm

Description

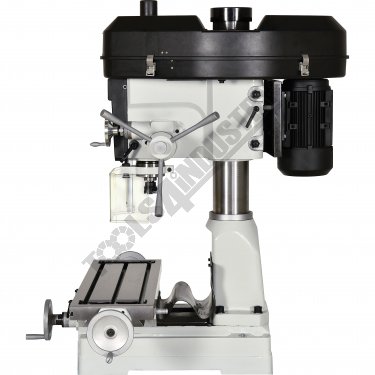

This new model HM-32B is a rugged and well made machine with good capacities and plenty of power, a good choice for a serious home engineer.

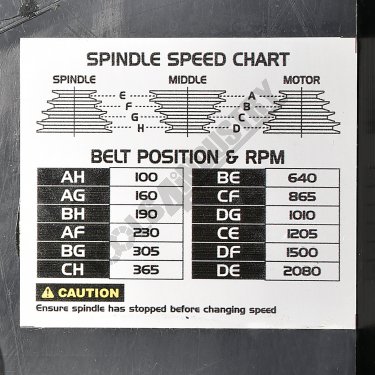

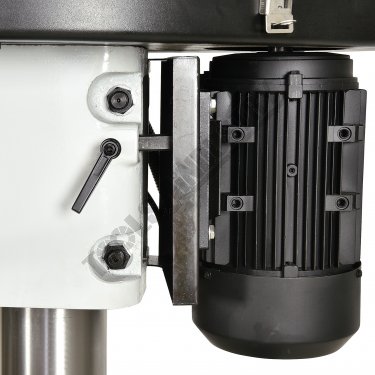

The belt driven head provides a useful range of 12 speeds, 100-2080rpm and is quiet in operation, the head can be re-positioned on the column with the aid of a handle driven rack and pinion drive.

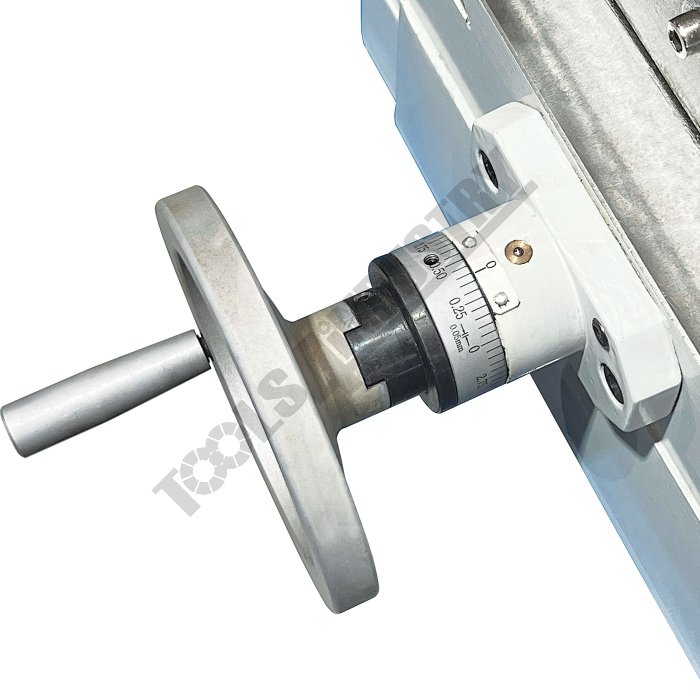

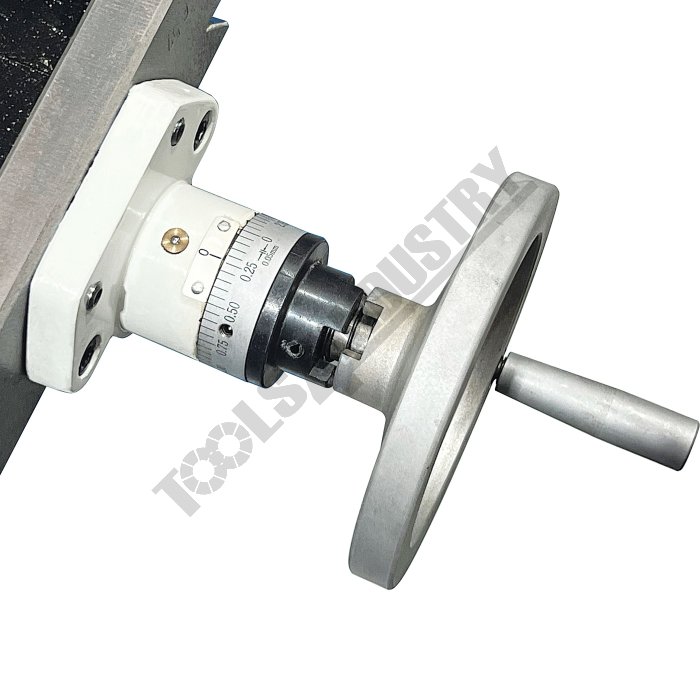

The table has T slots to allow the work to be directly mounting to table, or in a milling vice, with two large diameter control hand wheels with metric calibrations for the longitudinal axis.

The fine downfeed control can be locked firmly in position when milling and the mill also features an easy-to-read depth stop.

Optional power feed provides smooth variable speed drive to longitudinal travel

Features

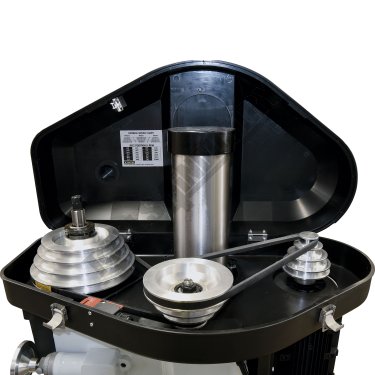

  • Quiet B section belt drive system
  • Milling head rotates 360º on column

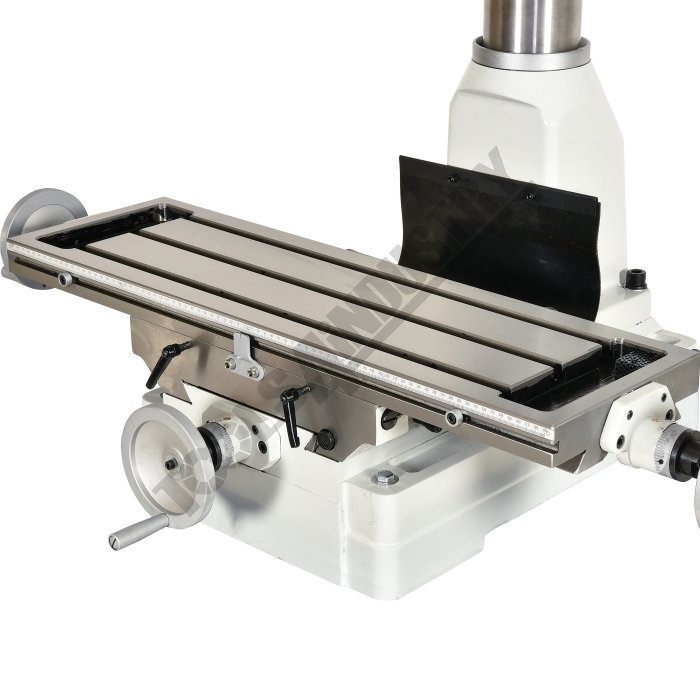

  • Extra large 820 x 240mm ground work table with T-slots
  • Adjustable leadscrew nuts eliminating backlash on both axis

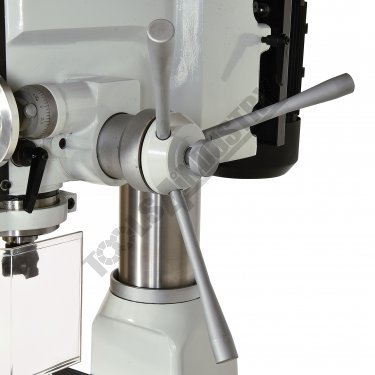

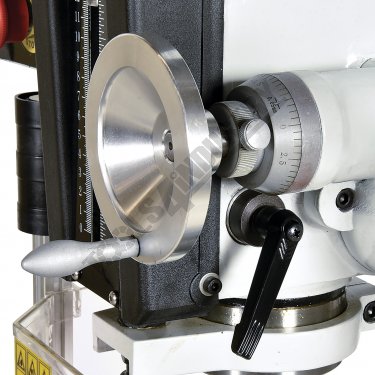

  • Fine feed hand wheel operating quill feed

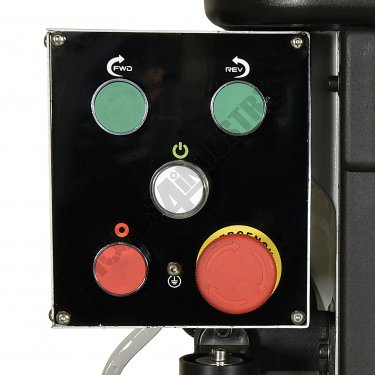

  • Forward and reverse on/off switch with emergency stop
  • 3MT spindle with 75mm diameter quill

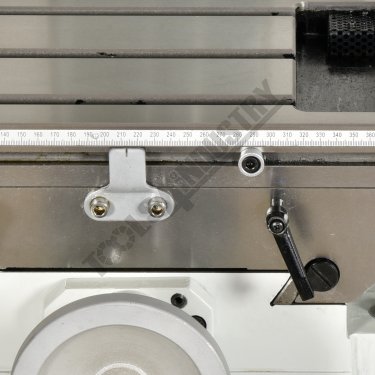

  • Adjustable table and drill length stops

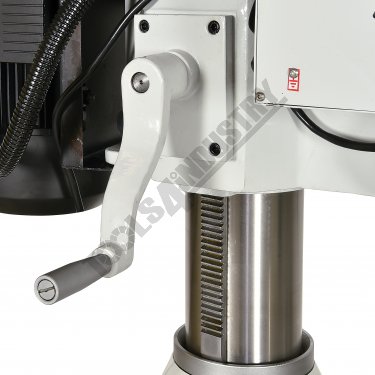

  • Rack and pinion wind-up head

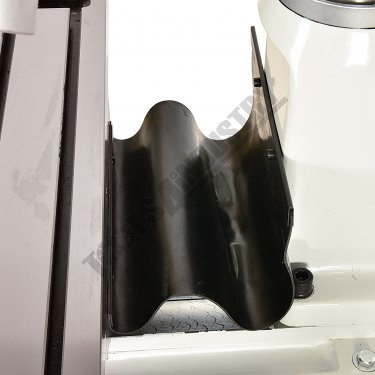

  • Rear slide-way cover and slide clamps on all axis
  • Spindle lock for quill
  • Table locks on both axis
  • Metric dial graduations @ 0.05mm for X & Y axis

Includes

  • Drill chuck & arbor
  • 3MT-2MT drill sleeve

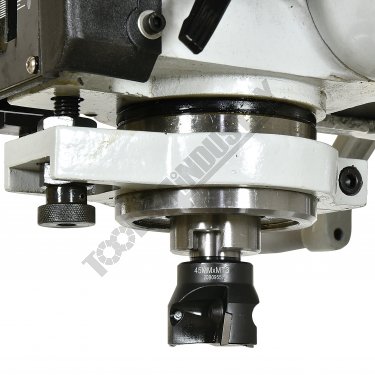

  • Face cutter & arbor

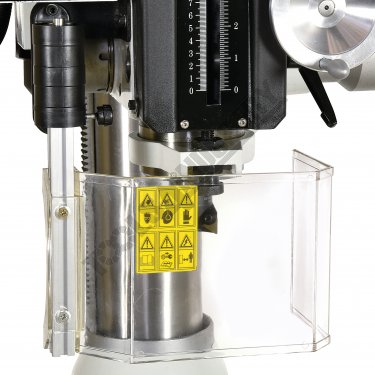

  • Safety cutter guard
  • 1/2" x 12tpi whitworth drawbar
  • M12 x 1.75mm metric drawbar

Optional Accessories

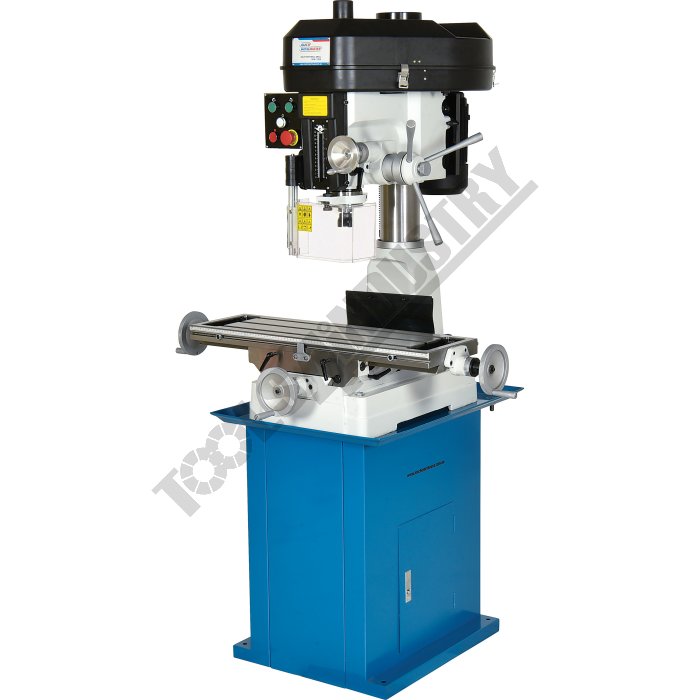

  • Machine stand (M135A)
  • Power feed X-Axis (M230)
  • Transformer to suit power feed (M240)

Specifications

ORDER CODEHM-32B
MODELOptional
Digital ReadoutVertical
Type820 x 240
Table SizemmØ115mm
Column Type3MT
Spindle Taper - Vertical~
Spindle Taper - Horizontal540
Longitudinal Travel (X-Axis)mm235
Cross Travel (Y-Axis)mm310
Vertical Travel (Z-Axis)mmDovetail
Type of Slides~
Ram Travelmm465
Spindle to Tablemm~
Spindle to Base130 / 75
Spindle Travel / Diametermm202
Throat Depth (max.)mmFixed
Tilting Head (Left ~ Right)Fixed
Tilting Head (Forward ~ Back)31.5
Drilling Capacitymm22
End Milling Capacitymm80
Face Milling Capacitymm~
Power Feed - Quillmm/revOptional
Power Feed - Longitudinal (X-Axis)mm/min~
Power Feed - Cross (Y-Axis)mm/min~
Power Feed - Vertical (Z-Axis)mm/min14
Table T-Slot Sizeinch / mm55
Work Table Load Capacitykg12 (100 - 2080)
Spindle Speeds VerticalNo./ rpm~
Spindle Speeds HorizontalNo./ rpm~
Spindle Speeds - Universal Head1.5 / 2
Motor Power - Vertical SpindlekW / hp~
Motor Power - Horizontal SpindlekW / hp~
Motor Power - Universal Head240 / 10
Voltage / AmperageV / amp97 x 76 x 120
Shipping Dimensions (L x W x H)cm310
Nett Weightkg
