| Code | V105 |
|---|---|
| Model | VK-5 |
| Capacity | 127mm Jaw Width |
| Weight (kg) | 16.65 |
| Weight (m3) | 0.010 |
| Weight (Freight) | 16.65 |
| Dimensions (cm) | 39 x 16 x 16 |

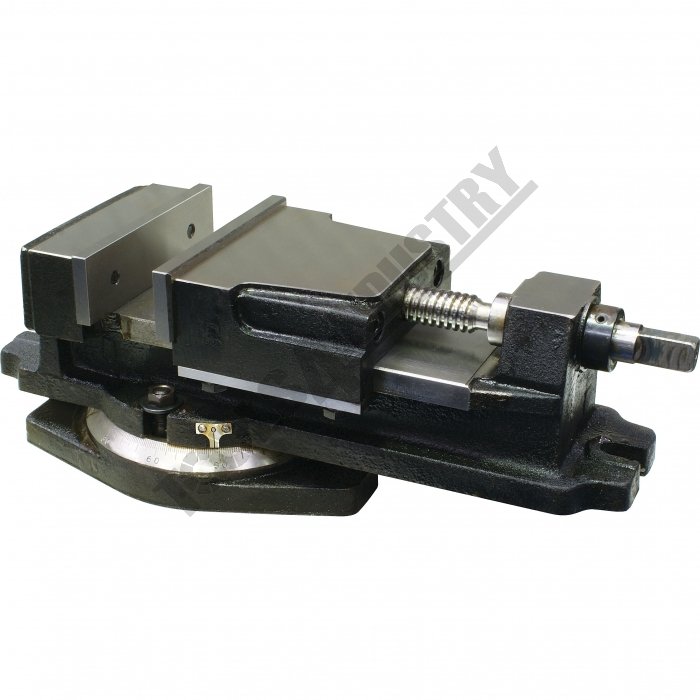

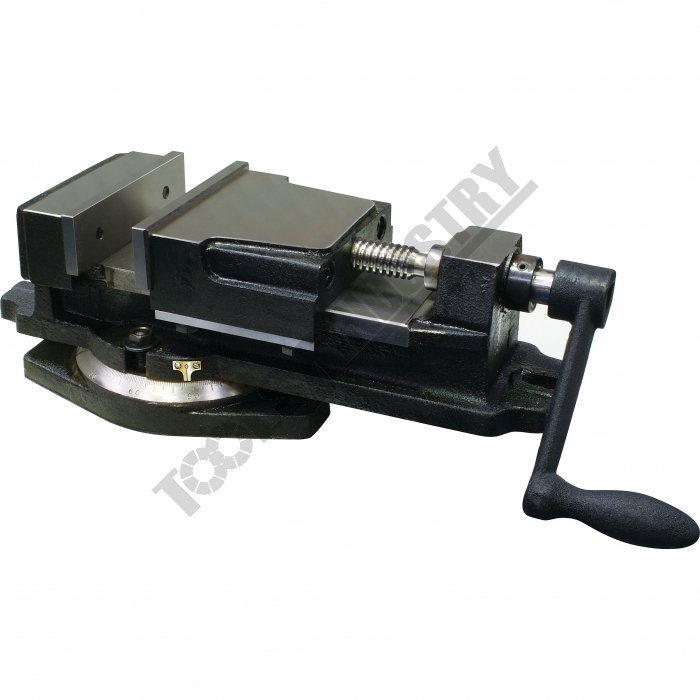

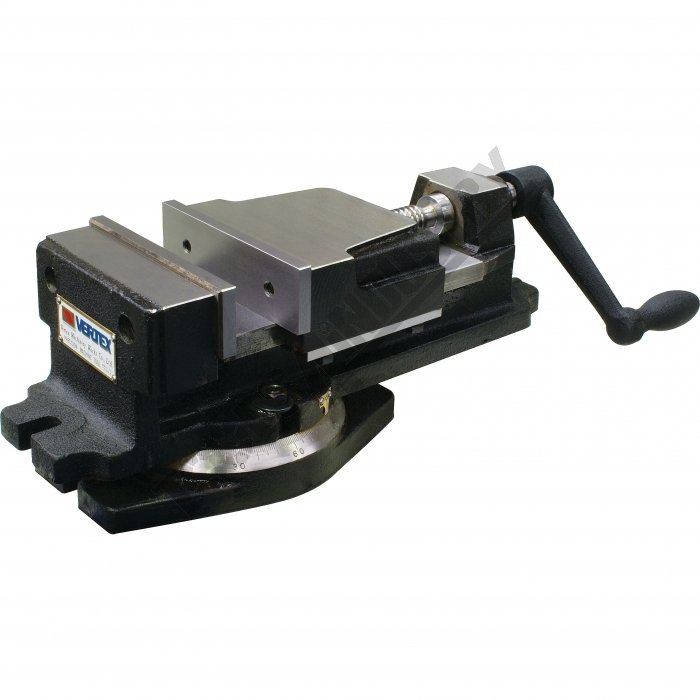

Vertex K-Type Milling Vice VK-5 127mm Jaw Width
Features
- Jaws hardened and ground alloy steel
- All working surfaces, such as top and bottom of bed, jaw plates and base, are precision ground square and parallel
- Bearing portion of the acme-threaded leadscrew is ground for accurate alignment
- Graduated swivel base with large, easy-to-read divisions

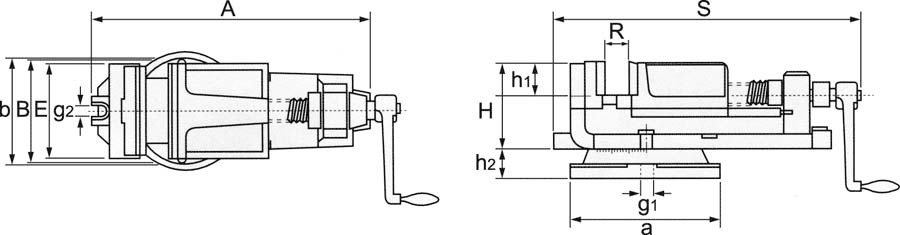

Specifications
- Compare 4 Products
- ORDER CODE
- MODEL
- E - Jaw Widthmm
- R - Jaw Openingmm
- h1 - Jaw Depthmm
- Amm
- Bmm
- Hmm
- Smm
- amm
- bmm
- h2mm
- g1mm
- g2mm
- Nett Weightkg
| ORDER CODE | VK-5 |
|---|---|
| MODEL | 127 |
| E - Jaw Widthmm | 80 |
| R - Jaw Openingmm | 37 |
| h1 - Jaw Depthmm | 345 |
| Amm | 128 |
| Bmm | 98 |
| Hmm | 370 |
| Smm | 208 |
| amm | 150 |
| bmm | 30 |
| h2mm | 12 |
| g1mm | 12 |
| g2mm | 18 |
| Nett Weightkg |
