| Code | V108 |
|---|---|
| Model | VK-8 |
| Capacity | 203mm Jaw Width |
| Weight (kg) | 59 |
| Weight (m3) | 0.045 |
| Weight (Freight) | 59 |
| Dimensions (cm) | 64 x 28 x 25 |

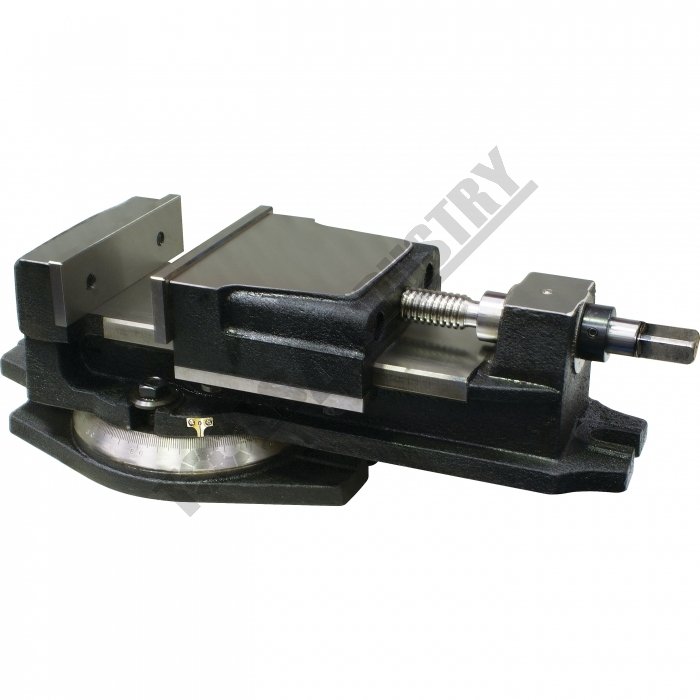

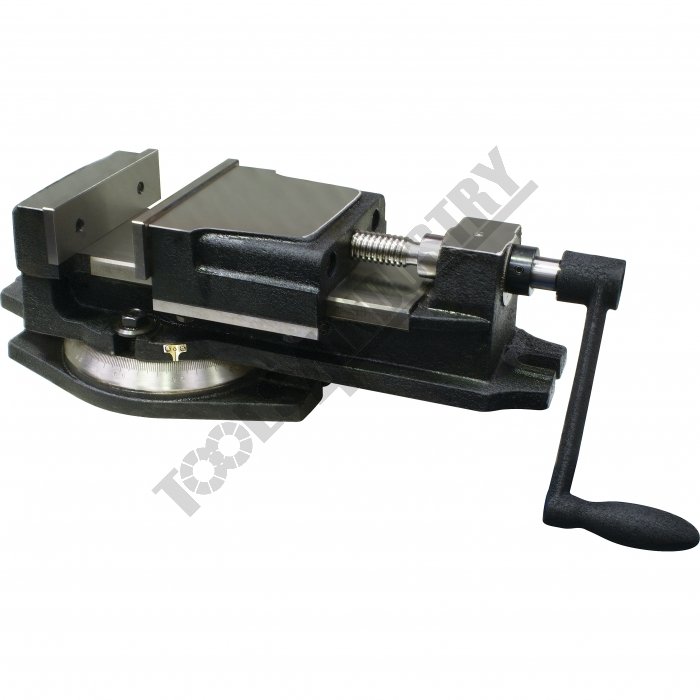

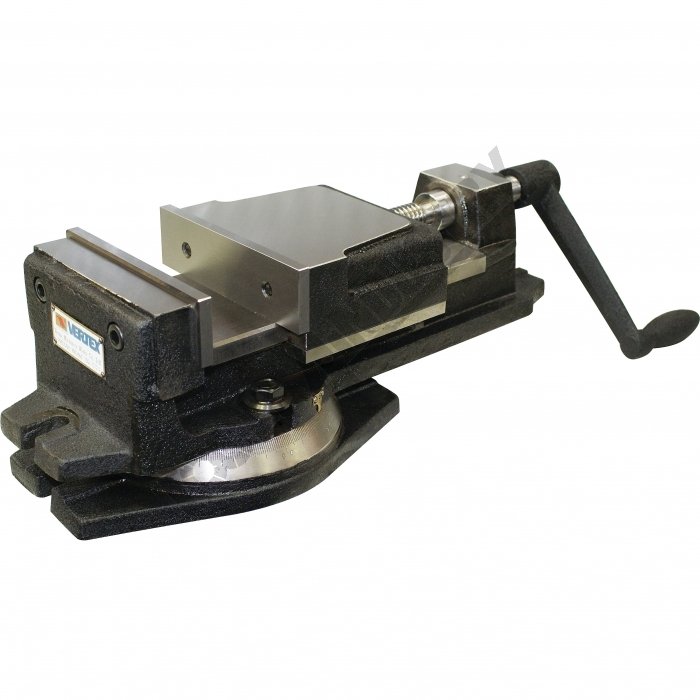

Vertex K-Type Milling Vice VK-8 203mm Jaw Width
Features
- Jaws hardened and ground alloy steel
- All working surfaces, such as top and bottom of bed, jaw plates and base, are precision ground square and parallel
- Bearing portion of the acme-threaded leadscrew is ground for accurate alignment
- Graduated swivel base with large, easy-to-read divisions

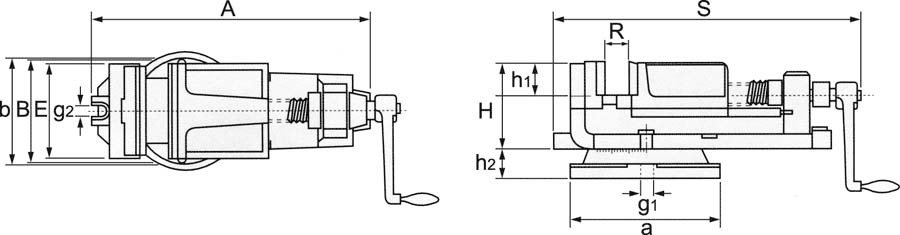

Specifications
- Compare 4 Products
- ORDER CODE
- MODEL
- E - Jaw Widthmm
- R - Jaw Openingmm
- h1 - Jaw Depthmm
- Amm
- Bmm
- Hmm
- Smm
- amm
- bmm
- h2mm
- g1mm
- g2mm
- Nett Weightkg
| ORDER CODE | VK-8 |
|---|---|
| MODEL | 203 |
| E - Jaw Widthmm | 146 |
| R - Jaw Openingmm | 58 |
| h1 - Jaw Depthmm | 576 |
| Amm | 215 |
| Bmm | 144 |
| Hmm | 620 |
| Smm | 340 |
| amm | 230 |
| bmm | 45 |
| h2mm | 18 |
| g1mm | 18 |
| g2mm | 55 |
| Nett Weightkg |
