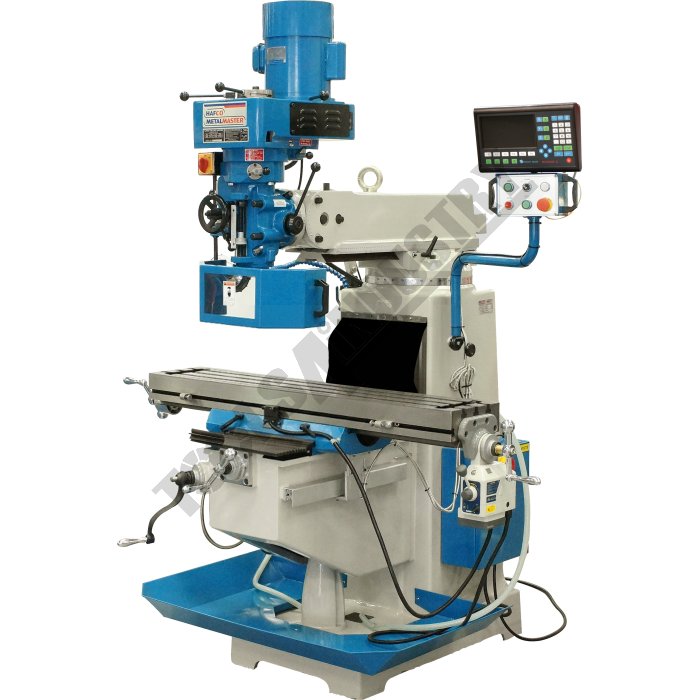

BM-30A Industrial Turret Milling Machine Table Travel: (X) - 760mm (Y) - 360mm (Z) - 430mm

Description

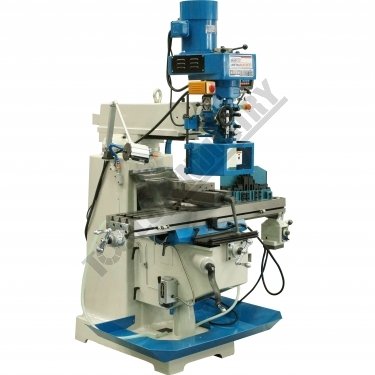

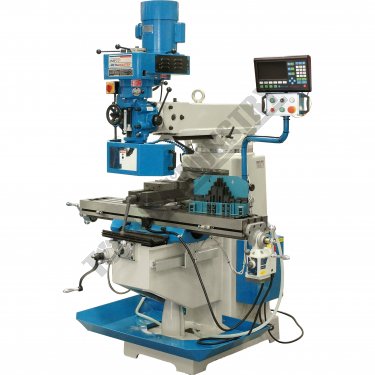

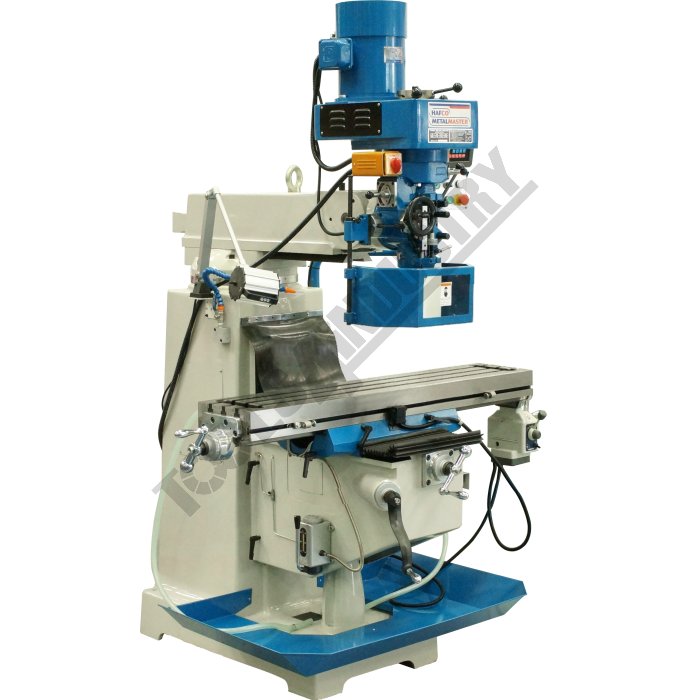

The BM-30A Industrial turret milling machine is manufactured in Taiwan to a strict precision engineering ultra-high tolerance & superior excellence to cope with many jobs set out by the professional machinist and importantly to deliver many years of valuable & reliable service.

This small but robust milling machine package is complete with a few of the most desirable features like, turcite B coated X & Y slide-ways that reduces friction to provide smooth table movement even when loaded up with a heavy job, hardened & ground work table & slide-ways, X-axis auto power-feed with adjustable feed stops, 3-axis digital readout counter plus X & Y scales fitted and also includes a machine vice & clamp kit set to get you started.

Another reliable feature in this range of precision milling machines is the manufacturing process of the main body & supports, it is made up form the highest quality Meehanite® cast iron. The key to the undisputed success of Meehanite® metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance.

To conclude this BM-30A turret milling machine may be small in structure but holds its own when put to the test to perform its duties to produce quality precise parts.

Features

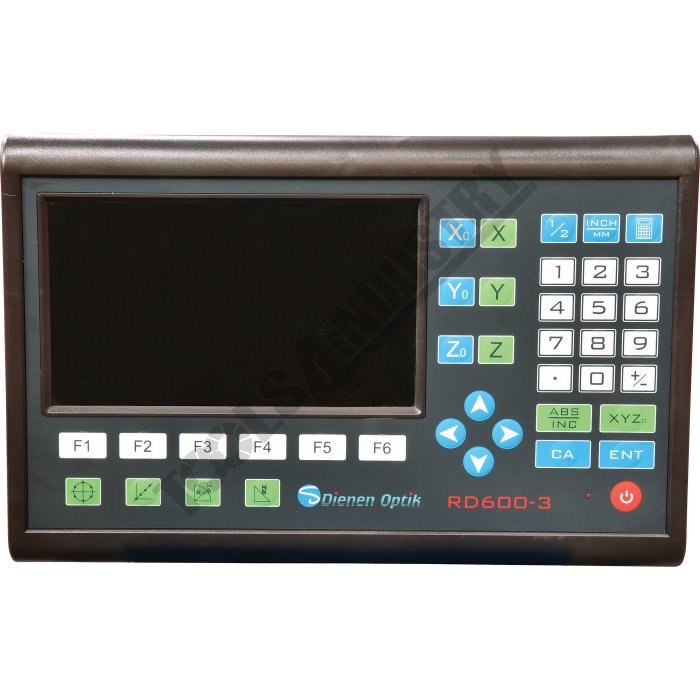

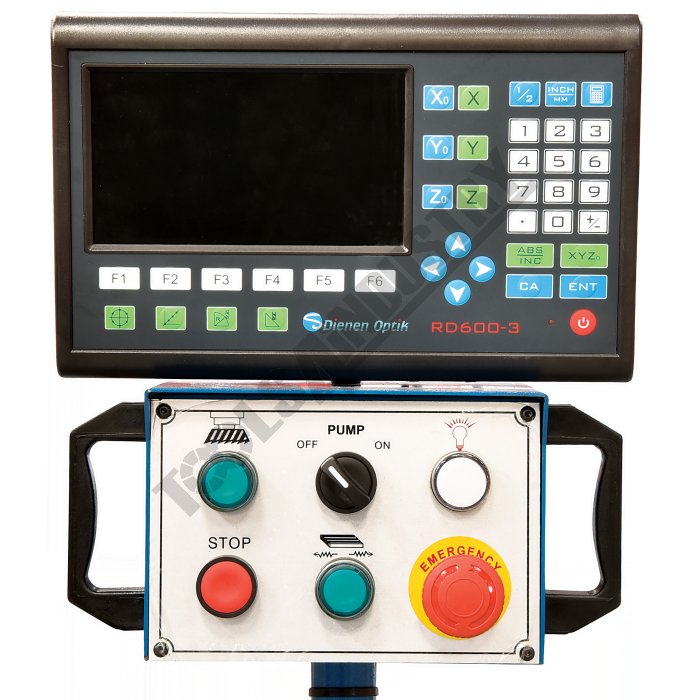

  • 3-Axis digital readout counter fitted with 2-Axis X & Y scales only
  • 3HP 240V motor, 8-speeds V-belt drive system
  • NT30 Spindle taper with a chrome & ground quill
  • Hardened & ground work table & slide-ways

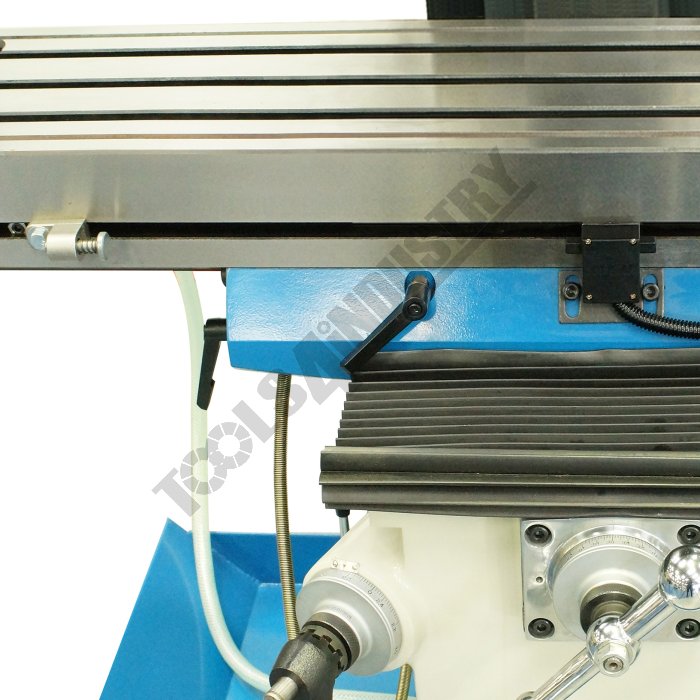

  • Turcite B coated X & Y-Axis slide-ways reduces friction for smooth operation
  • All slides utilise dovetail construction for maximum rigidity
  • Meehanite casting for high strength & minimal deformation
  • Quality electrics & overload protection in an easy access enclosure

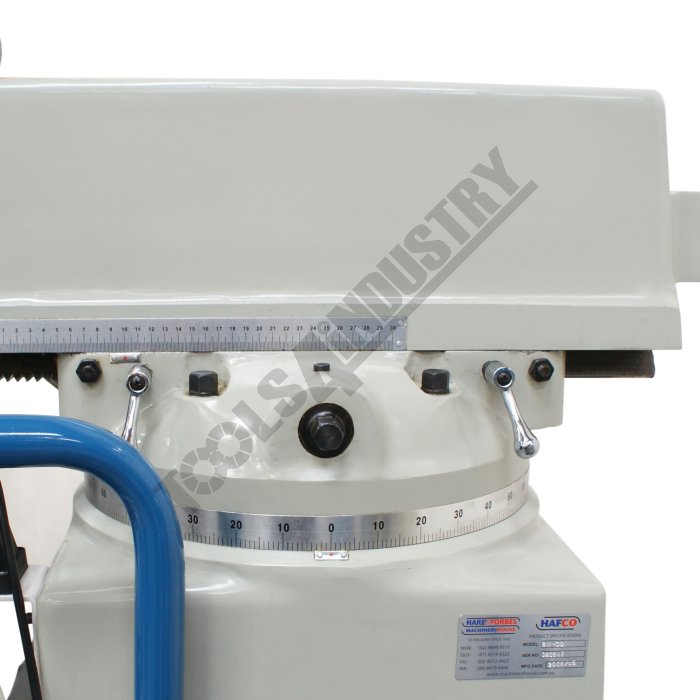

  • Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle

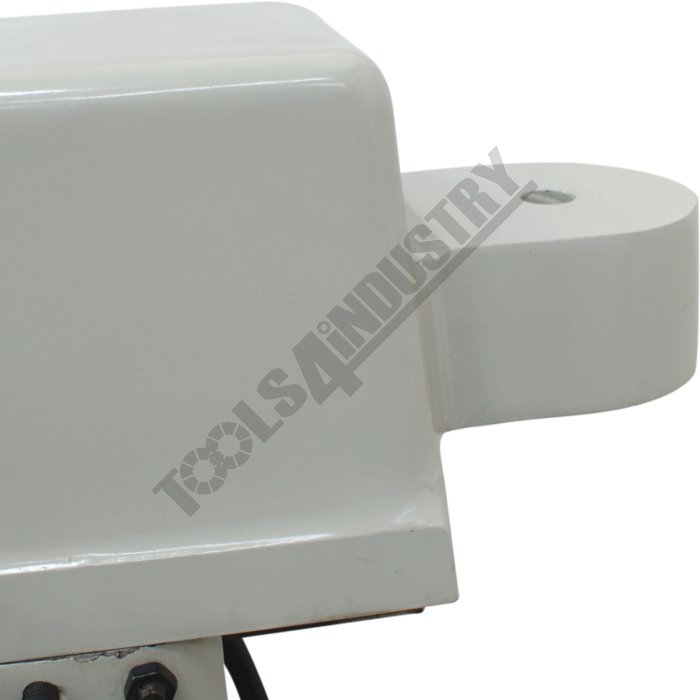

  • The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.

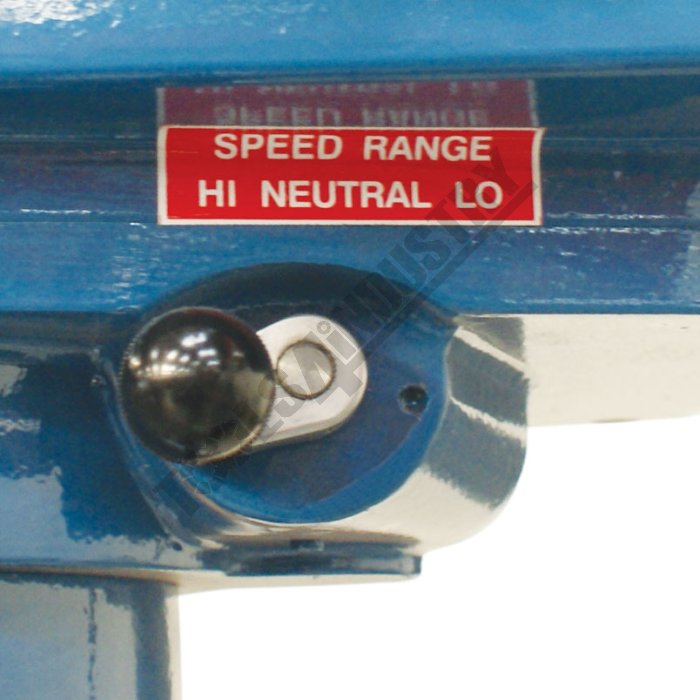

  • High / neutral and low gear selection lever to maximise torque

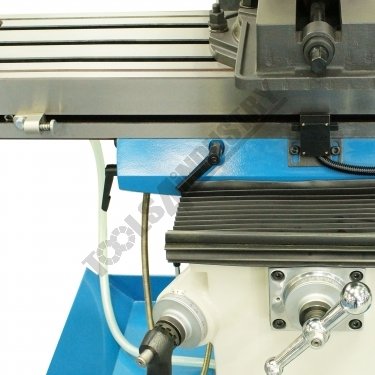

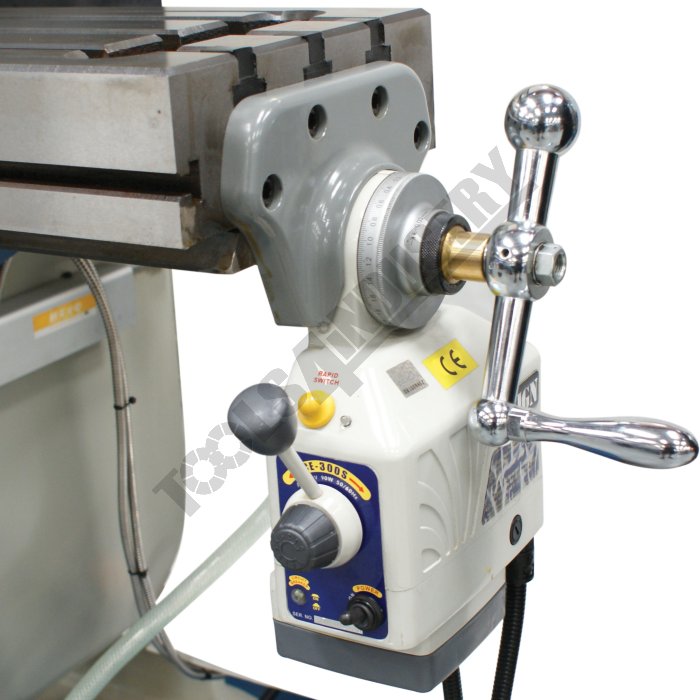

  • Align CE-300S X-Axis power-feed with adjustable micro switch feed stops

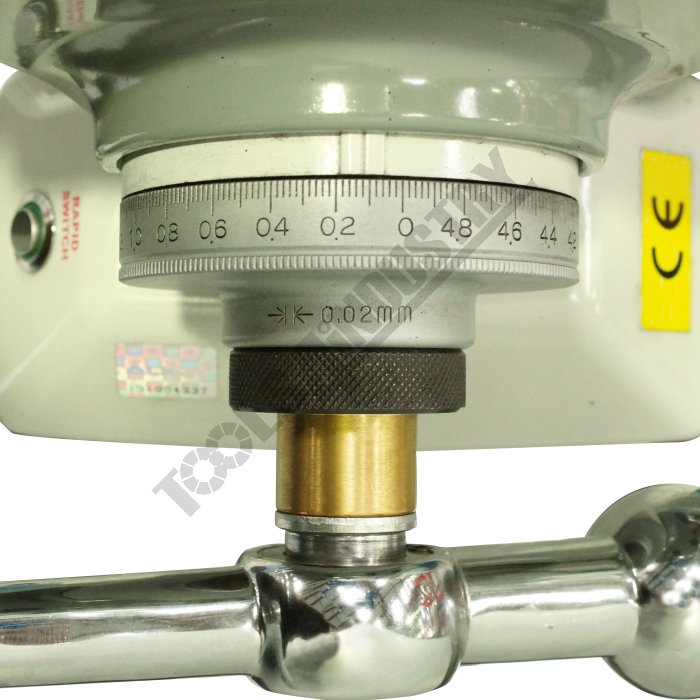

  • Metric dial graduations @ 0.02mm for X , Y & Z-Axis

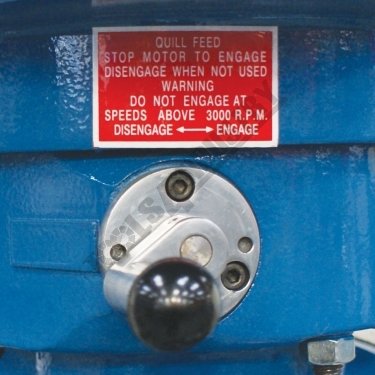

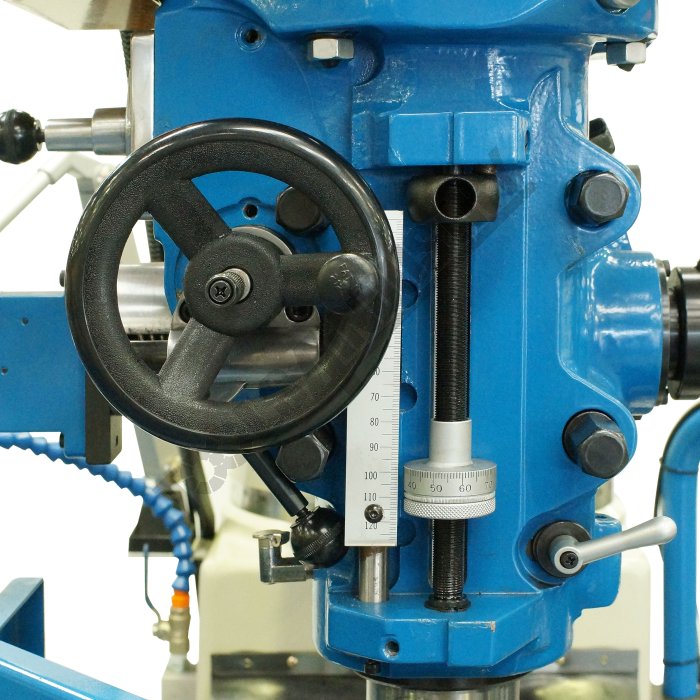

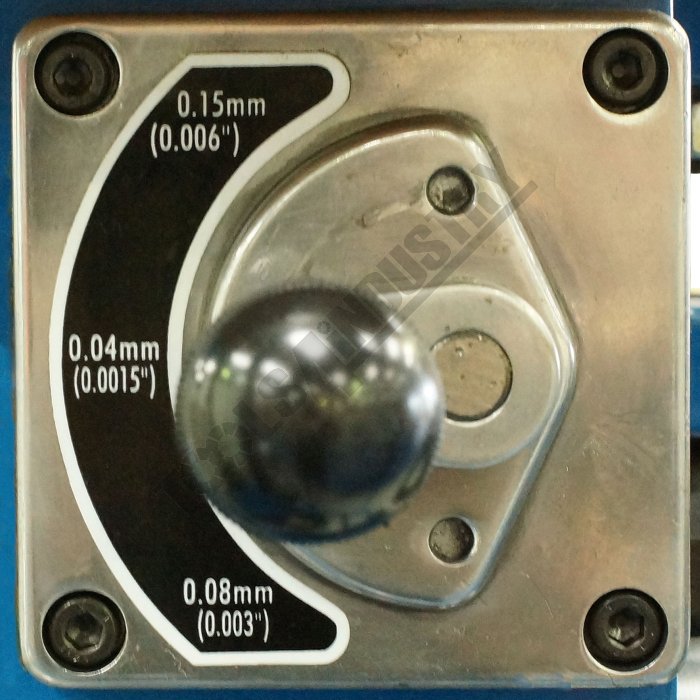

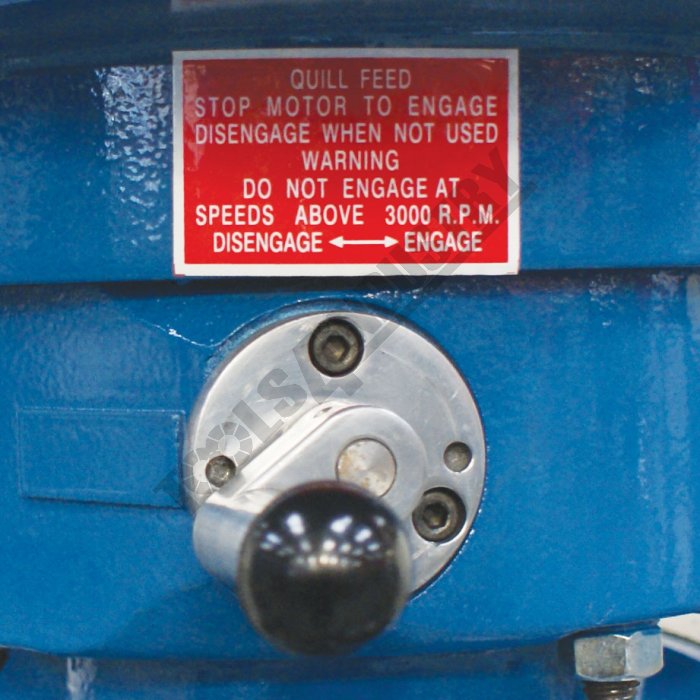

  • Automatic quill feed 0.015, 0.04, 0.08mm/rev
  • Automatic cut off depth stop on quill

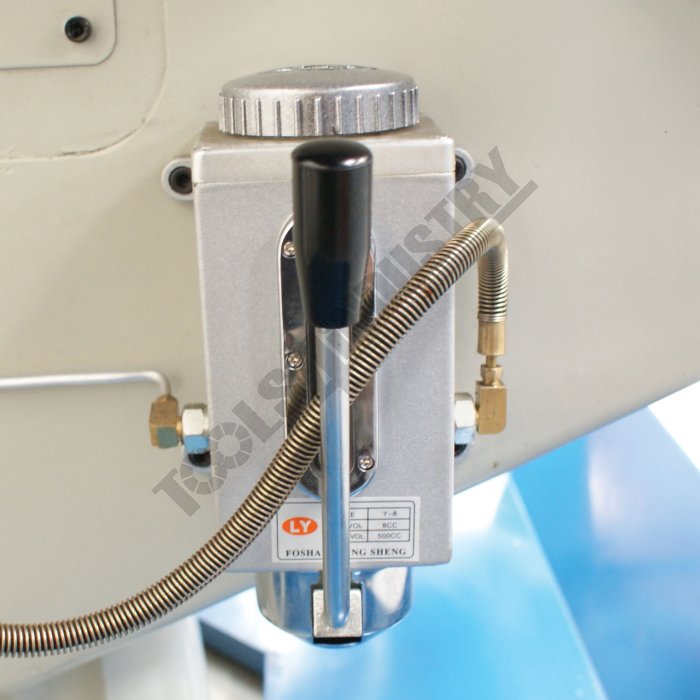

  • Oil lubrication pump and reservoir
  • Slideway covers Y & Z-Axis

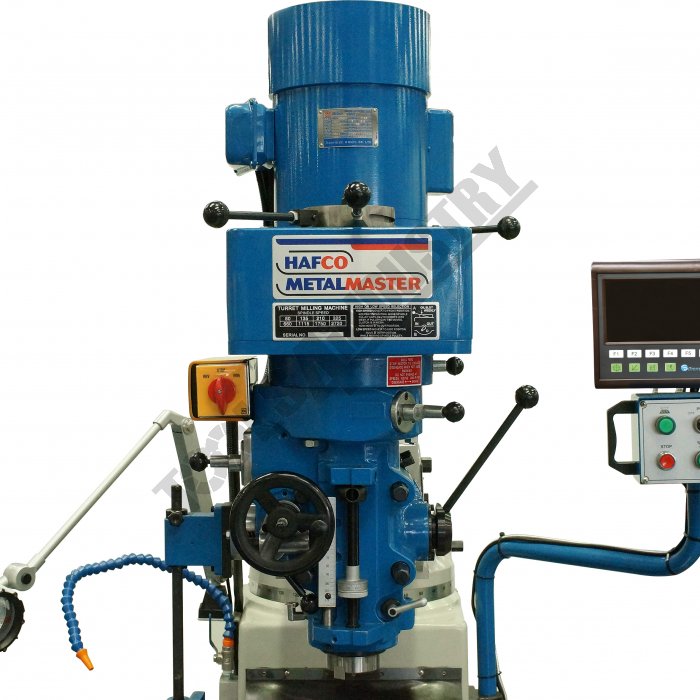

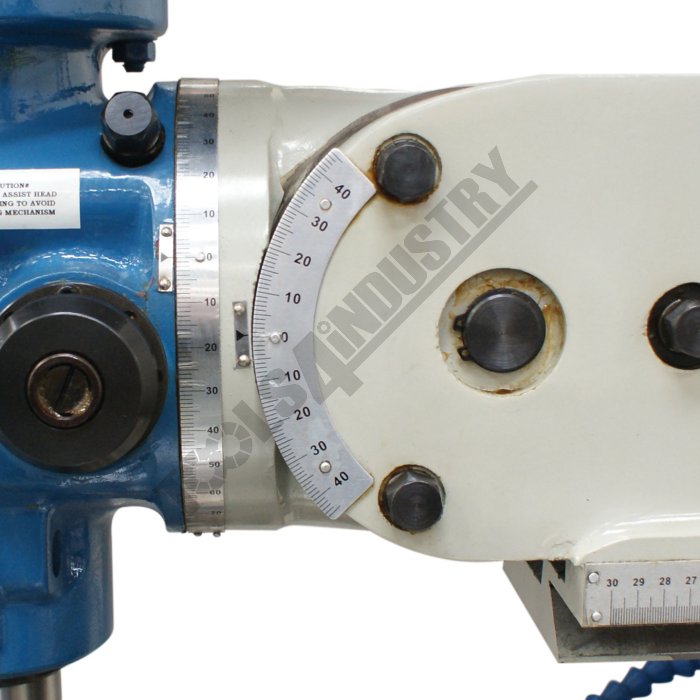

  • Mill head tilts to ±45º forward and back
  • Mill head tilts to ±90º left and right

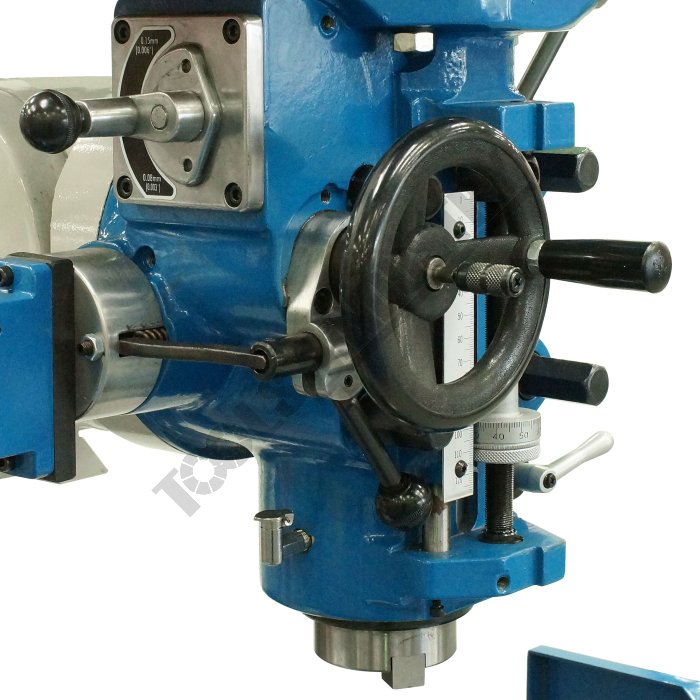

  • Manual quick action quill lever

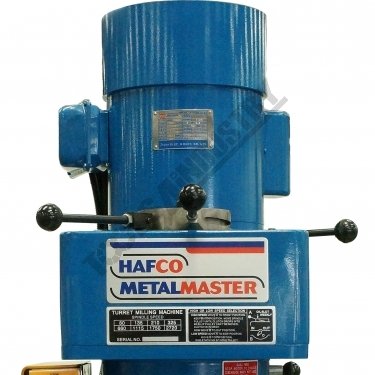

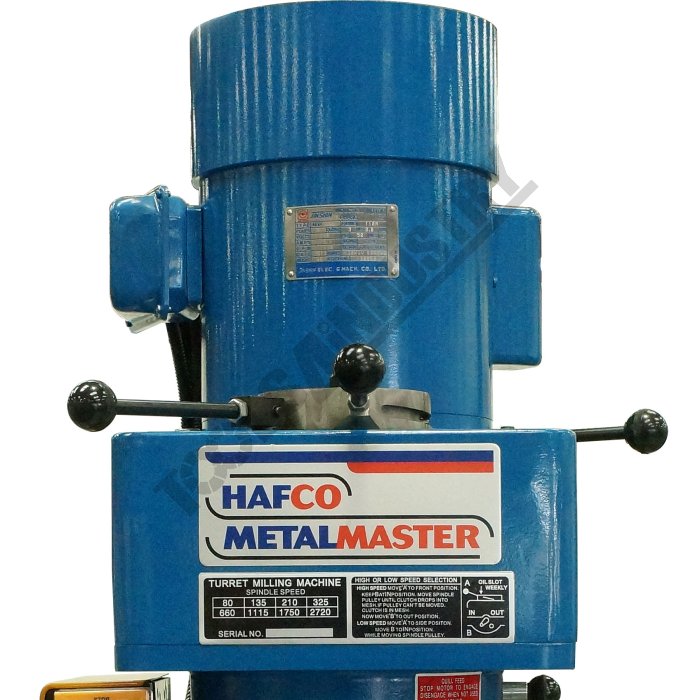

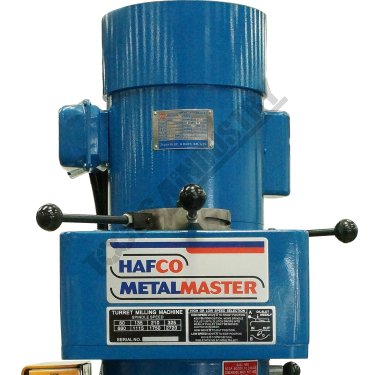

  • Mechanical spindle brake
  • Tool box and manual

Includes

  • 3-Axis digital readout counter fitted with 2-Axis X & Y scales only
  • One-shot oil lubrication pump and reservoir
  • Drawbar M12 thread
  • Coolant system
  • Slideway covers
  • X-Axis power-feed

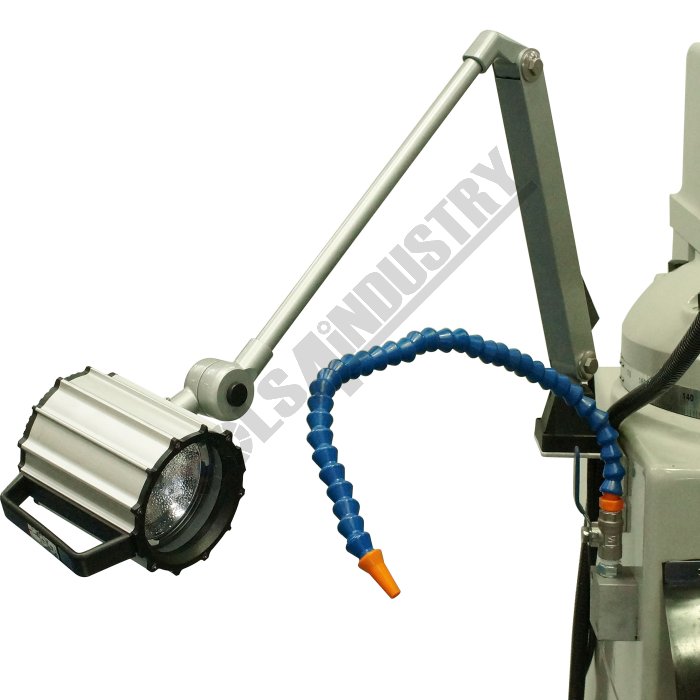

  • Halogen light

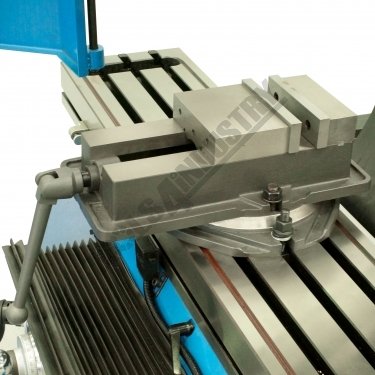

  • Machine vice (150mm)

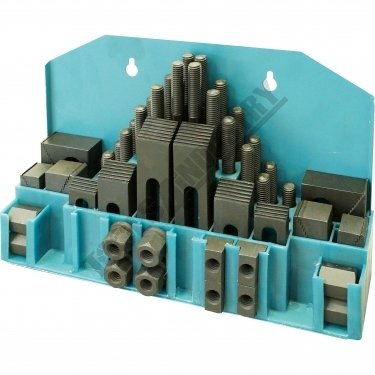

  • Clamp kit

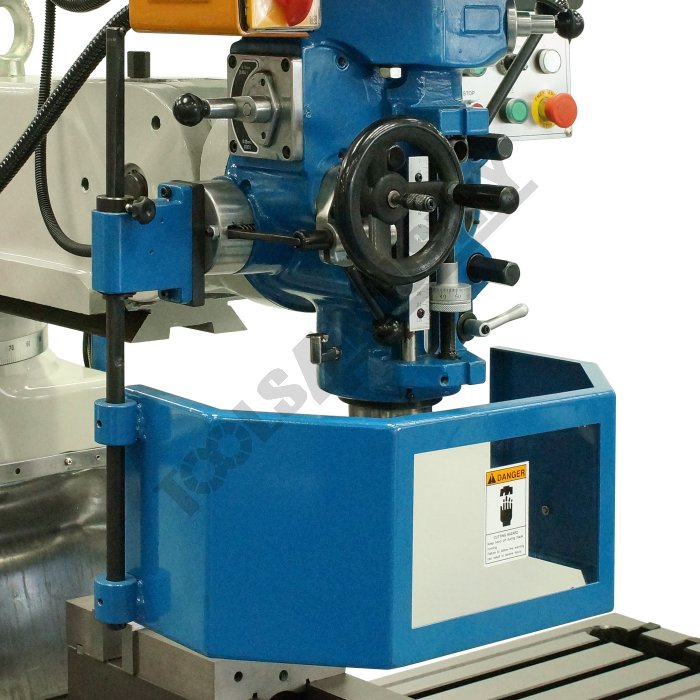

  • Safety cutter guard
  • Swarf tray

Specifications

ORDER CODEBM-30A
MODEL3-Axis Counter, X, Y Scales
Digital ReadoutVertical
Type1270 x 254
Table Sizemm~
Column TypeNT30
Spindle Taper - Vertical~
Spindle Taper - Horizontal760
Longitudinal Travel (X-Axis)mm360
Cross Travel (Y-Axis)mm430
Vertical Travel (Z-Axis)mmDovetail
Type of Slides520
Ram Travelmm505
Spindle to Tablemm~
Spindle to Base127 / 86
Spindle Travel / Diametermm740
Throat Depth (max.)mm±90º
Tilting Head (Left ~ Right)±45º
Tilting Head (Forward ~ Back)~
Drilling Capacitymm~
End Milling Capacitymm~
Face Milling Capacitymm0.015 / 0.04 / 0.08
Power Feed - Quillmm/rev20 - 2000
Power Feed - Longitudinal (X-Axis)mm/minOptional
Power Feed - Cross (Y-Axis)mm/minOptional
Power Feed - Vertical (Z-Axis)mm/min5/8
Table T-Slot Sizeinch / mm250
Work Table Load Capacitykg8 (80 - 2720)
Spindle Speeds VerticalNo./ rpm~
Spindle Speeds HorizontalNo./ rpm~
Spindle Speeds - Universal Head2.2 / 3
Motor Power - Vertical SpindlekW / hp~
Motor Power - Horizontal SpindlekW / hp~
Motor Power - Universal Head240 / 20
Voltage / AmperageV / amp160 x 150 x 220
Shipping Dimensions (L x W x H)cm1100
Nett Weightkg
