| Code | M503 |
|---|---|
| Model | MTP4125 |
| Capacity | Ø125mm |
| Weight (kg) | 3.52 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 3.52 |
| Dimensions (cm) | 16.5 x 15.5 x 8 |

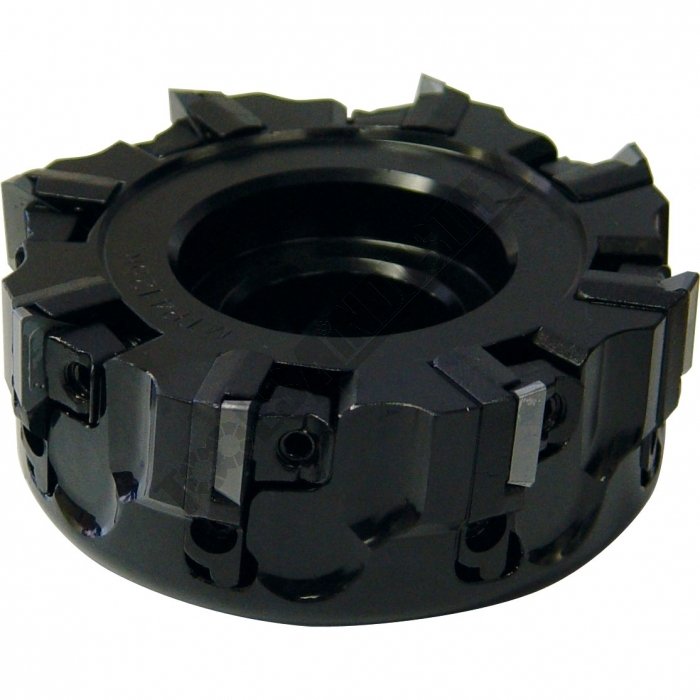

Face Mill 90º - Positive Rake MTP4125 Ø125mm
Description
POSITIVE RAKE FACE MILL - 125mm x 90ºUse carbide Inserts (ISO) TPKN2204 (L069)
NOTE: Inserts not included
Features
- Suitable for steel, cast iron and non-ferrous metals
- Low cutting pressure
- Cuts true 90º
Includes
- Lock key for insert

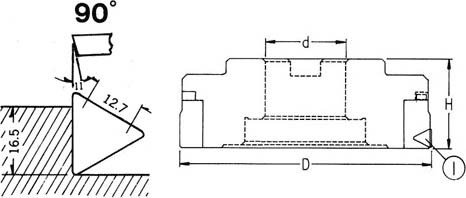

Specifications
- Compare 12 Products
- ORDER CODE
- MODEL
- Cutter Approach Angledeg
- Dmm
- D1mm
- Hmm
- d (lowercase)
- Drawbar Thread
- Number of InsertsNo.
- Replacement Insert Tips
- Nett Weightkg
- M503
- MTP4125
- 90º
- 125
- ~
- 55
- 40mm
- ~
- 8
- (L069)
- 3.95
- M504
- MTP4160
- 90º
- 160
- ~
- 60
- 40mm
- ~
- 10
- (L069)
- 6.65
- M528
- ME32TMT
- 90º
- 32
- ~
- ~
- 3MT
- 1/2" whitworth
- 2
- (L066)
- 0.50
- M529
- ME50TMT
- 90º
- 50
- ~
- ~
- 3MT
- 1/2" whitworth
- 3
- (L066)
- 0.70
- M510
- MS50T
- 90º
- 50
- ~
- 46
- 22mm
- ~
- 3
- (L066)
- 0.40
- M515
- F45SE12-D50
- 45º
- 50
- 64
- 40
- 22mm
- ~
- 4
- (L065)
- 0.60
- M511
- MS63T
- 90º
- 63
- ~
- 46
- 27mm
- ~
- 4
- (L066)
- 0.65
- M516
- F45SE12-D63
- 45º
- 63
- 77
- 40
- 22mm
- ~
- 5
- (L065)
- 0.95
- M512
- MS75T
- 90º
- 75
- ~
- 46
- 27mm
- ~
- 5
- (L066)
- 0.95
- M517
- F45SE12-D80
- 45º
- 80
- 93
- 50
- 27mm
- ~
- 6
- (L065)
- 1.35
- M513
- MS100T
- 90º
- 100
- ~
- 50
- 32mm
- ~
- 6
- (L066)
- 1.85
- M518
- F45SE12-D100
- 45º
- 100
- 114
- 50
- 32mm
- ~
- 6
- (L065)
- 1.85
| ORDER CODE | MTP4125 |
|---|---|
| MODEL | 90º |
| Cutter Approach Angledeg | 125 |
| Dmm | ~ |
| D1mm | 55 |
| Hmm | 40mm |
| d (lowercase) | ~ |
| Drawbar Thread | 8 |
| Number of InsertsNo. | (L069) |
| Replacement Insert Tips | 3.95 |
| Nett Weightkg |
