| Code | M517 |
|---|---|
| Model | F45SE12-D80 |
| Capacity | Ø80mm |
| Weight (kg) | 1.52 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 1.52 |
| Dimensions (cm) | 12 x 11 x 8 |

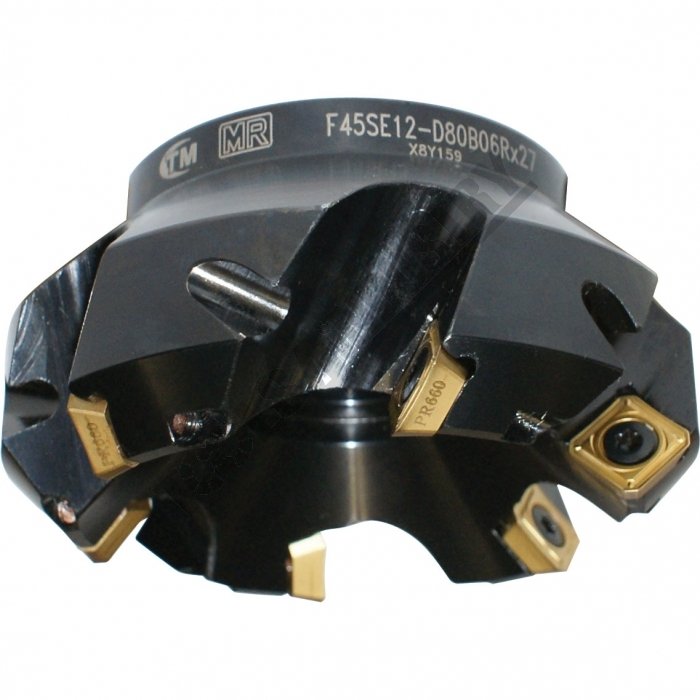

Face Mill 45º - Super High-Rake F45SE12-D80 Ø80mm
Description
SUPER HIGH-RAKE FACE MILL - 80mm x 45ºUse carbide inserts (ISO) SEKT1204 (L065)
NOTE: Carbide Inserts not included
Features
- Suitable for low horsepower machines where rapid metal removal is required.
- Suitable for steel, cast iron and non-ferrous metals
- Positive rake
Includes
- Lock key for insert
Specifications
- Compare 12 Products
- ORDER CODE
- MODEL
- Cutter Approach Angledeg
- Dmm
- D1mm
- Hmm
- d (lowercase)
- Drawbar Thread
- Number of InsertsNo.
- Replacement Insert Tips
- Nett Weightkg
- M517
- F45SE12-D80
- 45º
- 80
- 93
- 50
- 27mm
- ~
- 6
- (L065)
- 1.35
- M513
- MS100T
- 90º
- 100
- ~
- 50
- 32mm
- ~
- 6
- (L066)
- 1.85
- M518
- F45SE12-D100
- 45º
- 100
- 114
- 50
- 32mm
- ~
- 6
- (L065)
- 1.85
- M503
- MTP4125
- 90º
- 125
- ~
- 55
- 40mm
- ~
- 8
- (L069)
- 3.95
- M504
- MTP4160
- 90º
- 160
- ~
- 60
- 40mm
- ~
- 10
- (L069)
- 6.65
- M528
- ME32TMT
- 90º
- 32
- ~
- ~
- 3MT
- 1/2" whitworth
- 2
- (L066)
- 0.50
- M529
- ME50TMT
- 90º
- 50
- ~
- ~
- 3MT
- 1/2" whitworth
- 3
- (L066)
- 0.70
- M510
- MS50T
- 90º
- 50
- ~
- 46
- 22mm
- ~
- 3
- (L066)
- 0.40
- M515
- F45SE12-D50
- 45º
- 50
- 64
- 40
- 22mm
- ~
- 4
- (L065)
- 0.60
- M511
- MS63T
- 90º
- 63
- ~
- 46
- 27mm
- ~
- 4
- (L066)
- 0.65
- M516
- F45SE12-D63
- 45º
- 63
- 77
- 40
- 22mm
- ~
- 5
- (L065)
- 0.95
- M512
- MS75T
- 90º
- 75
- ~
- 46
- 27mm
- ~
- 5
- (L066)
- 0.95
| ORDER CODE | F45SE12-D80 |
|---|---|
| MODEL | 45º |
| Cutter Approach Angledeg | 80 |
| Dmm | 93 |
| D1mm | 50 |
| Hmm | 27mm |
| d (lowercase) | ~ |
| Drawbar Thread | 6 |
| Number of InsertsNo. | (L065) |
| Replacement Insert Tips | 1.35 |
| Nett Weightkg |
