| Code | M555 |
|---|---|
| Model | NT40 - FMB40-20 |
| Weight (kg) | 2.08 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 2.08 |
| Dimensions (cm) | 19.5 x 9.5 x 9 |

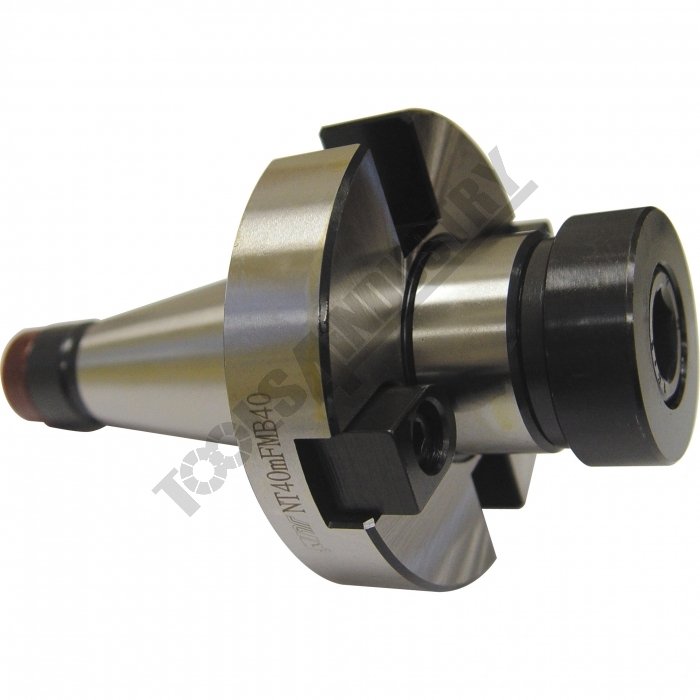

Face Mill Arbor NT40 - FMB40-20
Features
- Material: SCM-21
- Hardness: HRC 50º - 55º
- Squareness of mounting surface: Less than 0.0002" (0.005mm)
- Deflection in shaft and taper: Less than 0.0002" (0.005mm)

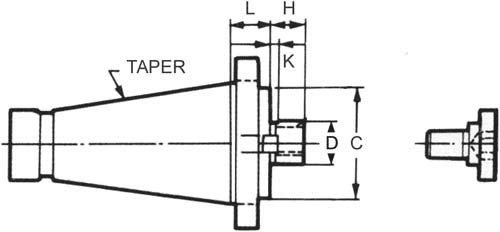

Specifications
- Compare 13 Products
- ORDER CODE
- MODEL
- Draw Barmm / inch
- Dmm
- Hmm
- Kmm
- Cmm
- Lmm
- Nett Weightkg
- M555
- NT40 - FMB40-20
- 16mm
- 40
- 23
- 8
- 85
- 20
- 2.70
- M562
- MT3 - FMB22-20
- 1/2"
- 22
- 18
- 5
- 48
- 20
- 0.62
- M563
- MT3 - FMB27-20
- 1/2"
- 27
- 20
- 7
- 54
- 20
- 0.70
- M535
- R8 - FMB22-20
- 7/16"
- 22
- 18
- 5
- 48
- 20
- 0.62
- M536
- R8 - FMB27-20
- 7/16"
- 27
- 20
- 7
- 54
- 20
- 0.70
- M537
- R8 - FMB32-20
- 7/16"
- 32
- 20
- 7
- 54
- 20
- 1.20
- M540
- NT30 - FMB22-20
- 12mm
- 22
- 18
- 5
- 44
- 20
- 0.87
- M542
- NT30 - FMB27-20
- 12mm
- 27
- 20
- 7
- 54
- 20
- 1.05
- M544
- NT30 - FMB32-20
- 12mm
- 32
- 25
- 7
- 64
- 20
- 1.20
- M545
- NT30 - FMB40-20
- 12mm
- 40
- 25
- 7
- 64
- 20
- 1.20
- M550
- NT40 - FMB22-20
- 16mm
- 22
- 18
- 5
- 44
- 20
- 2.00
- M552
- NT40 - FMB27-20
- 16mm
- 27
- 20
- 7
- 65
- 20
- 2.20
- M554
- NT40 - FMB32-20
- 16mm
- 32
- 21
- 7
- 73
- 20
- 2.40
| ORDER CODE | NT40 - FMB40-20 |
|---|---|
| MODEL | 16mm |
| Draw Barmm / inch | 40 |
| Dmm | 23 |
| Hmm | 8 |
| Kmm | 85 |
| Cmm | 20 |
| Lmm | 2.70 |
| Nett Weightkg |
