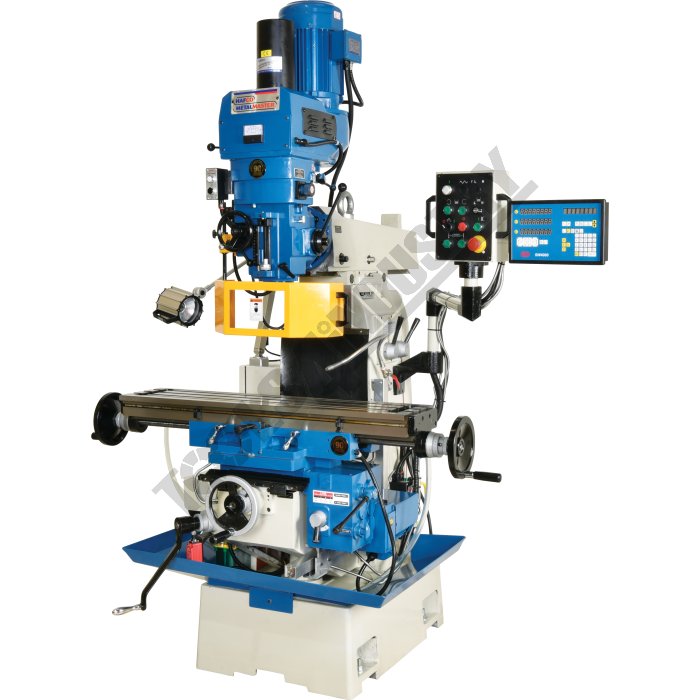

M586D

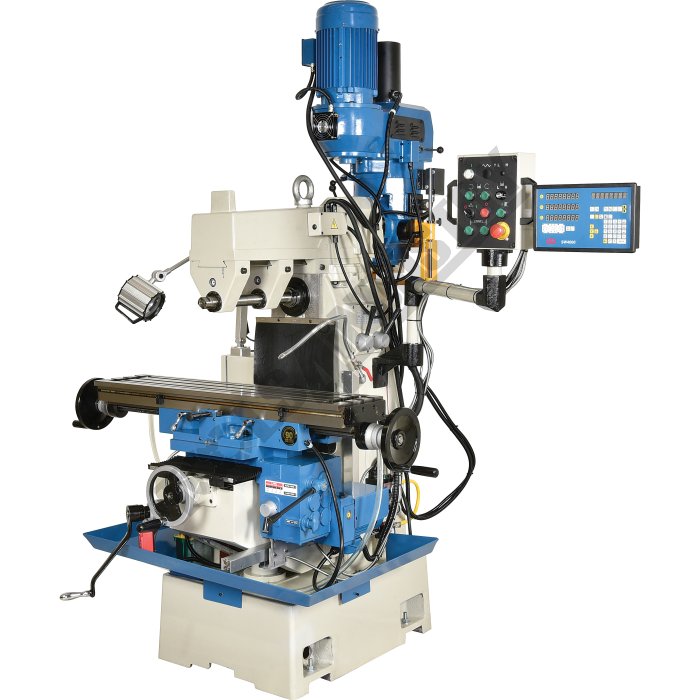

Horizontal Head Setup

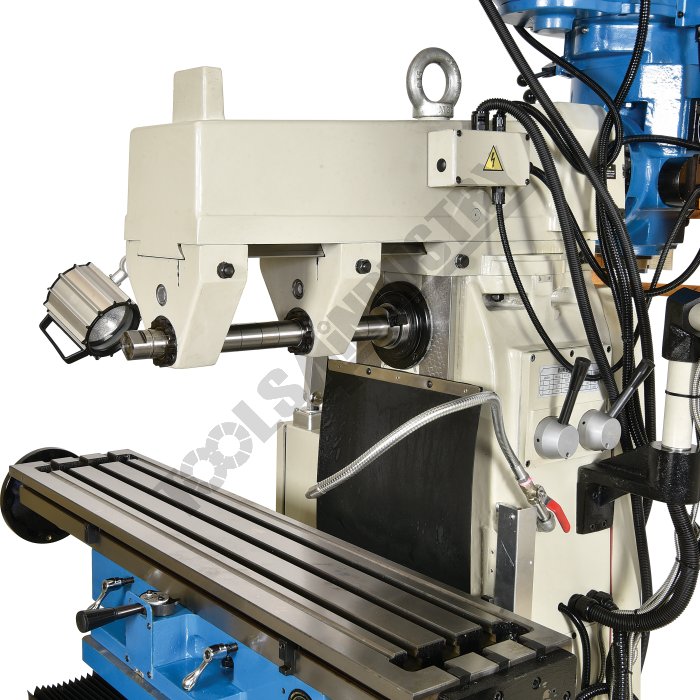

Horizontal Head Setup Close Up

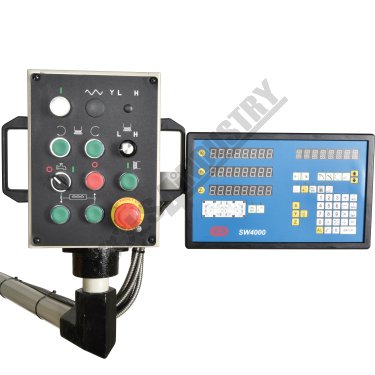

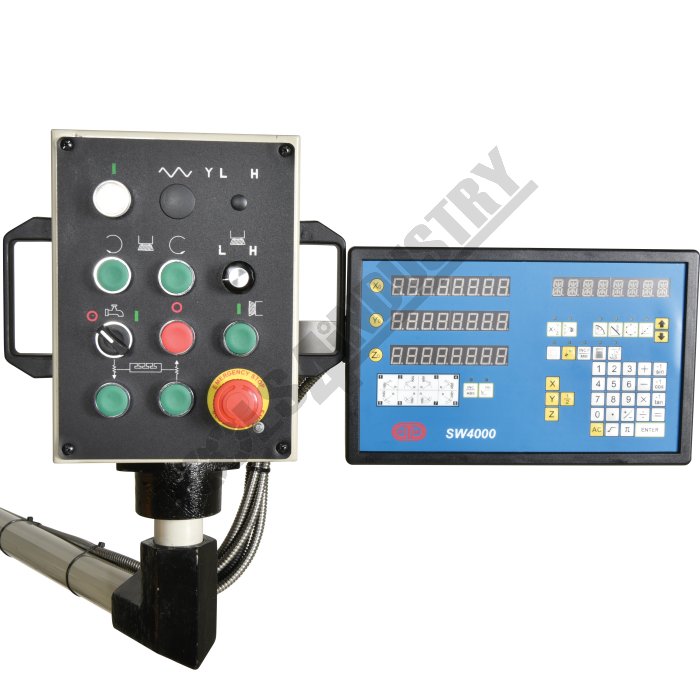

Swivel Arm Control Panel

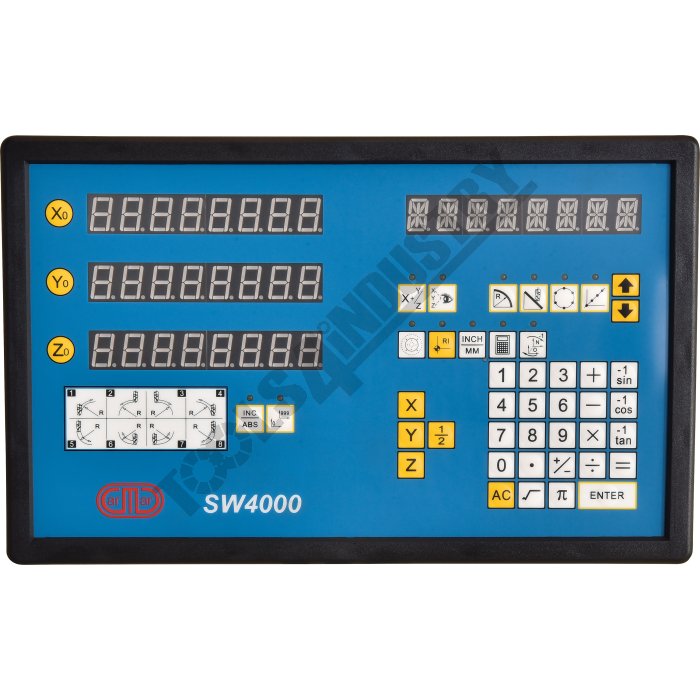

3 Axis Digital Read Out

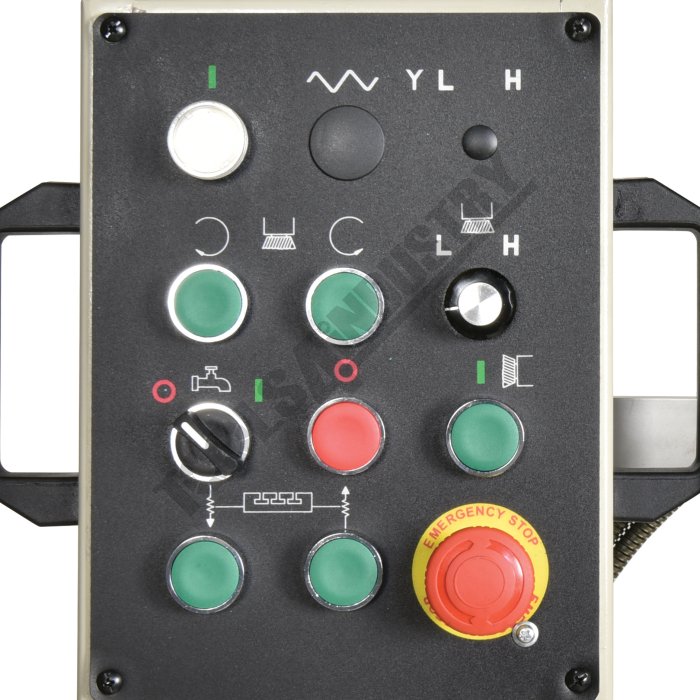

Control Panel

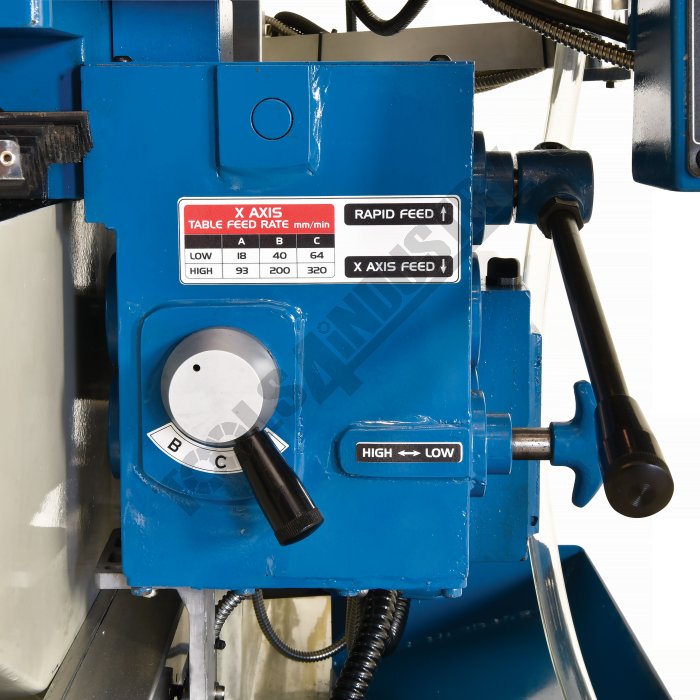

Gear Drive Table Feed

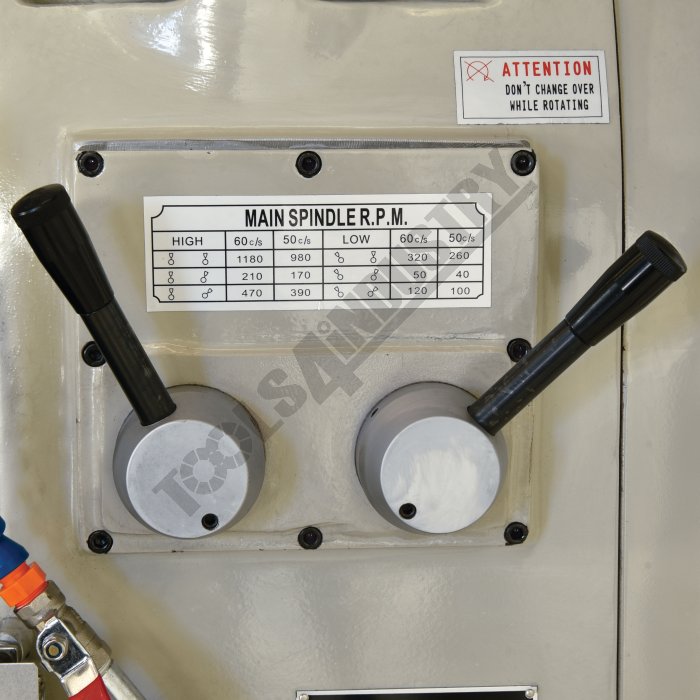

Horizontal Speed Selection Levers

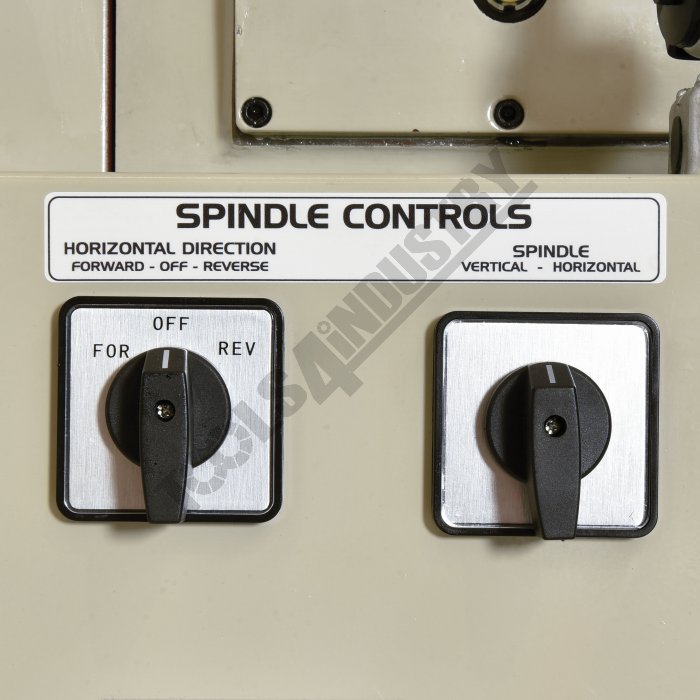

Spindle Controls

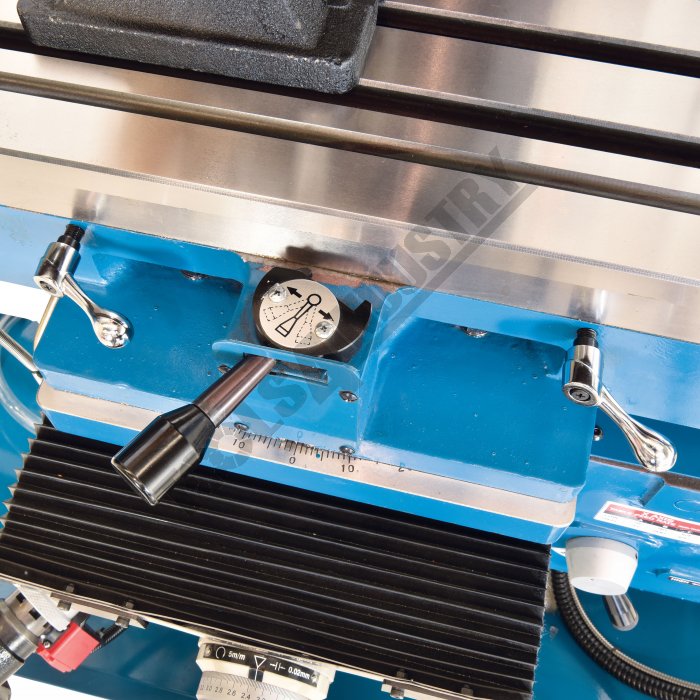

Swivel Table

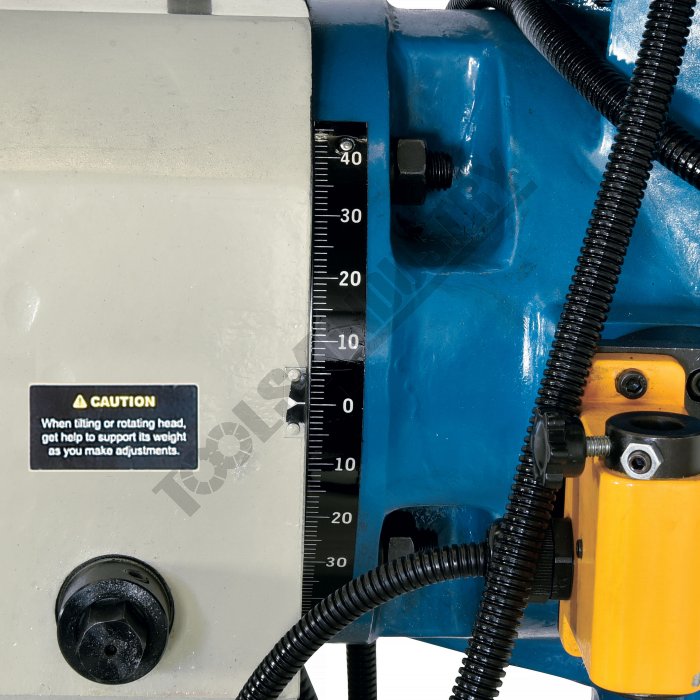

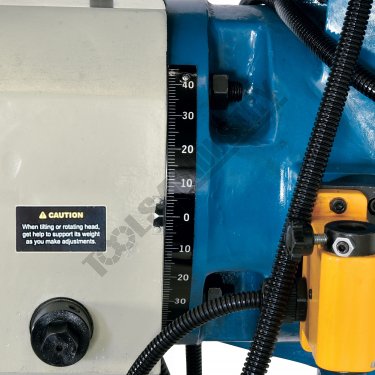

Tilting Mill Head Left & Right to 90 Degrees

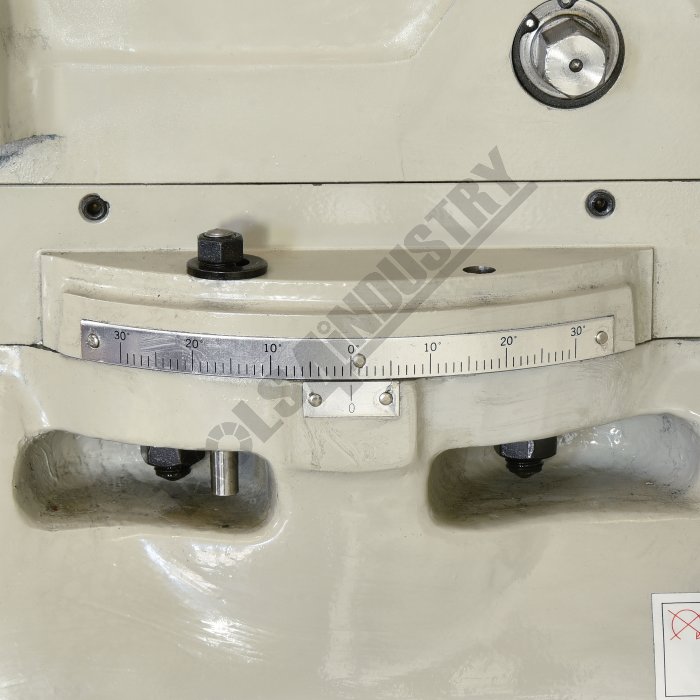

Rotating Horizontal Ram

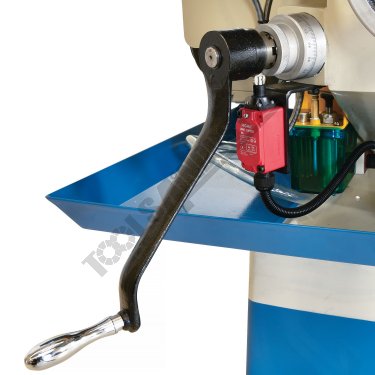

Z Axis Feed Handle with Micro

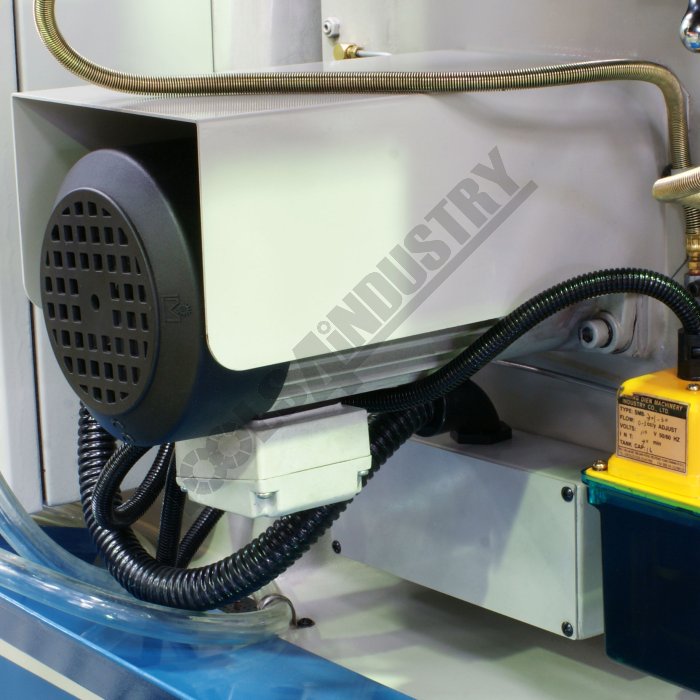

Z Axis Rapid Motor

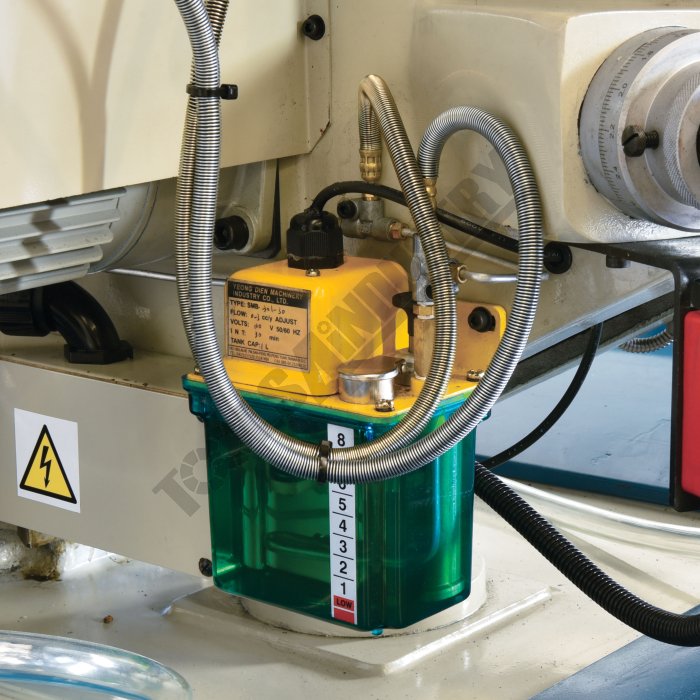

Automatic Slideway Lubrication System

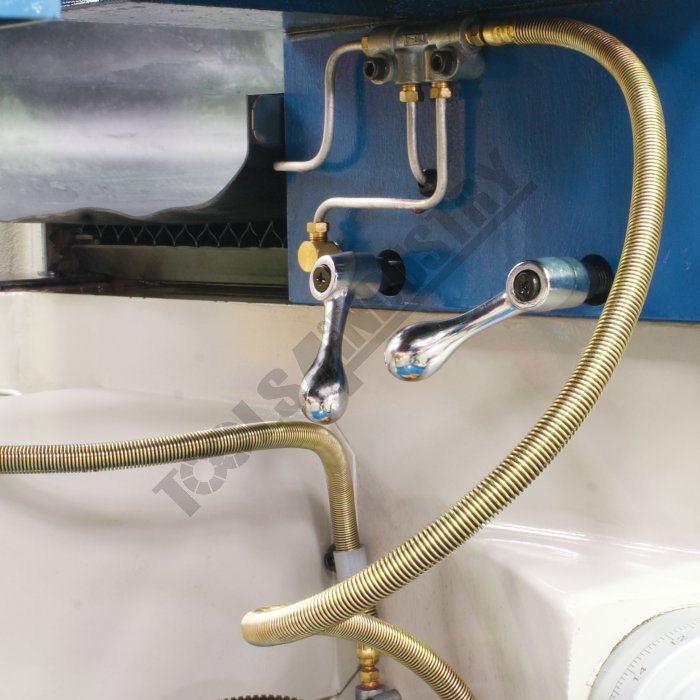

Y Axis Table Locks

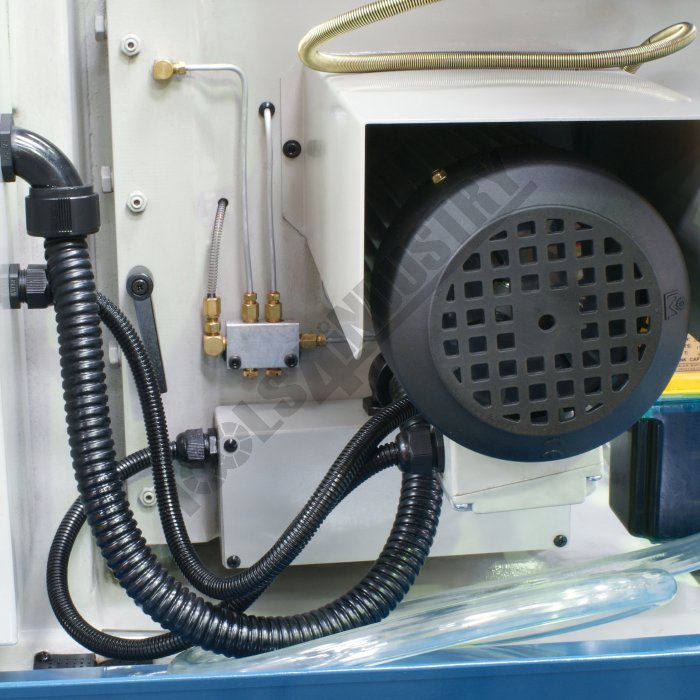

Oil Feeder Distribution Block

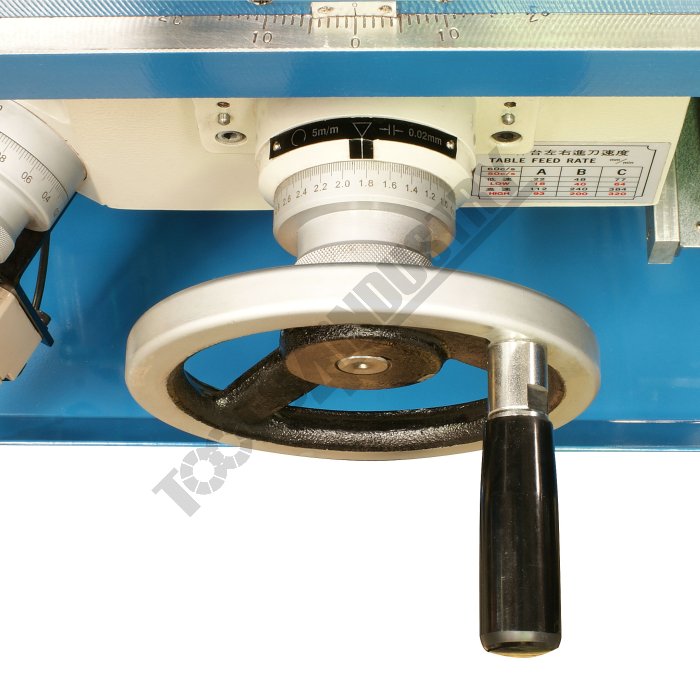

Y Axis Feed Handle

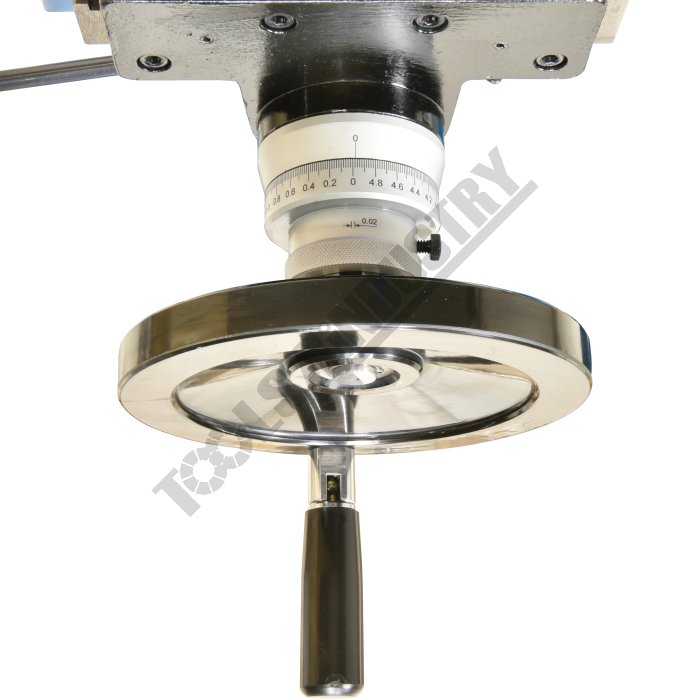

X Axis Feed Handle

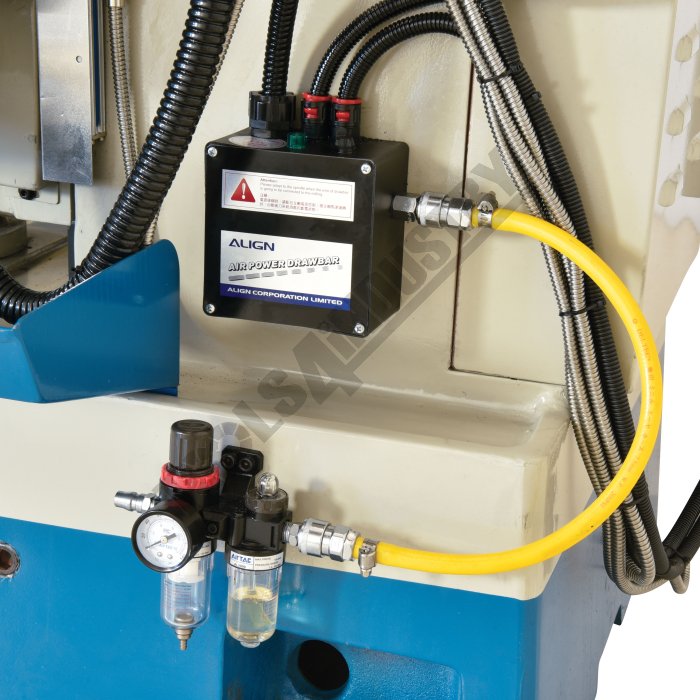

Air Powered Draw Bar System

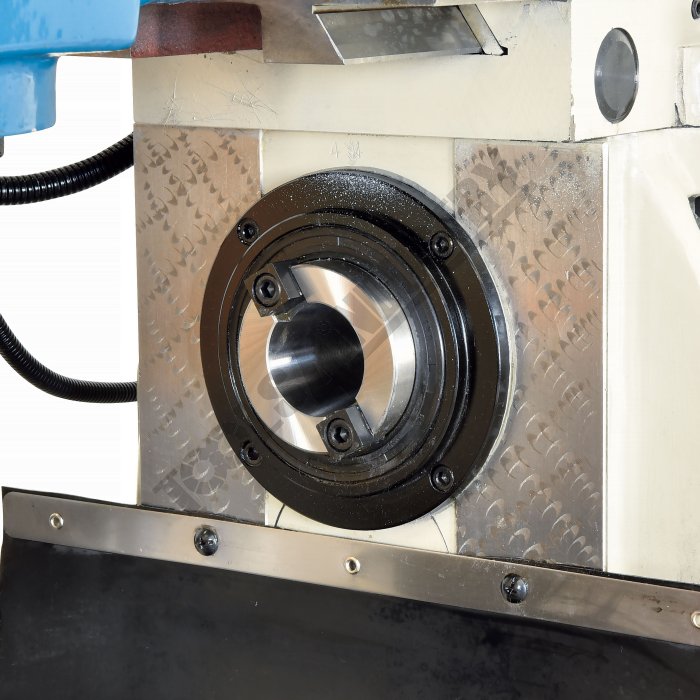

Horizontal Spindle

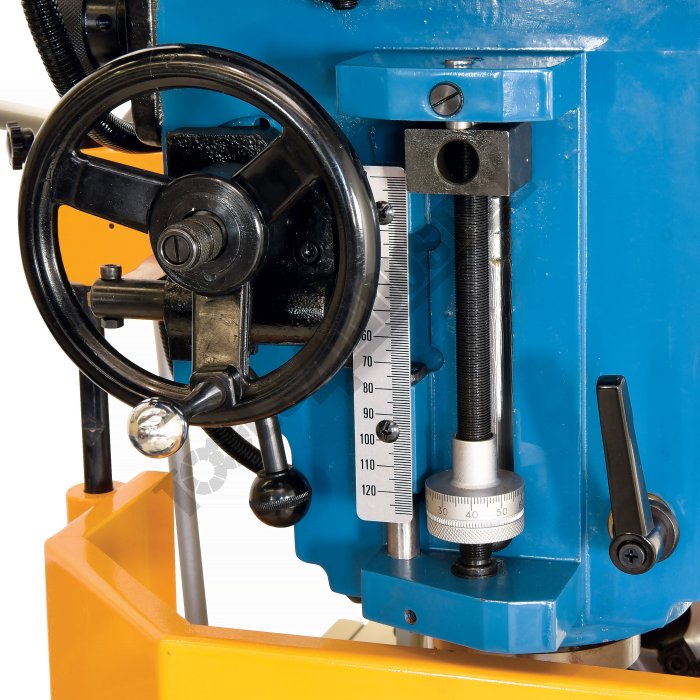

Quill Feed Depth Stop

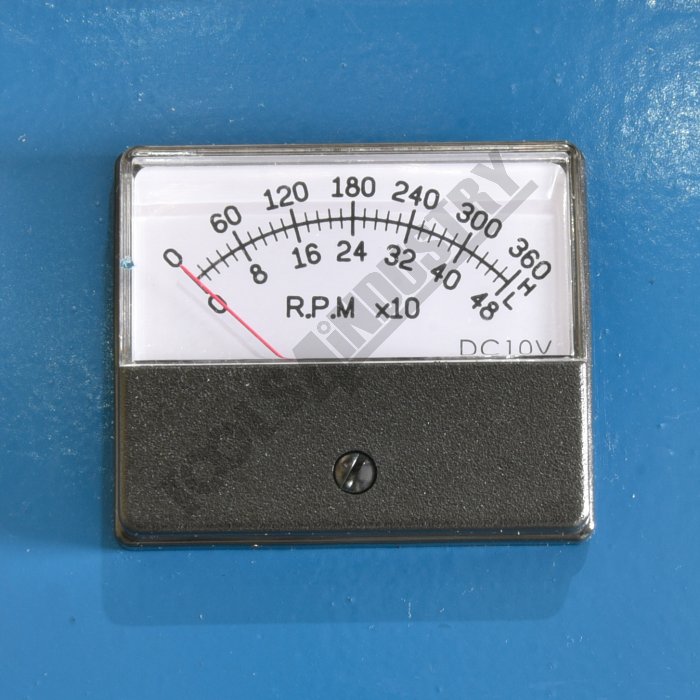

Variable Inverter Speed

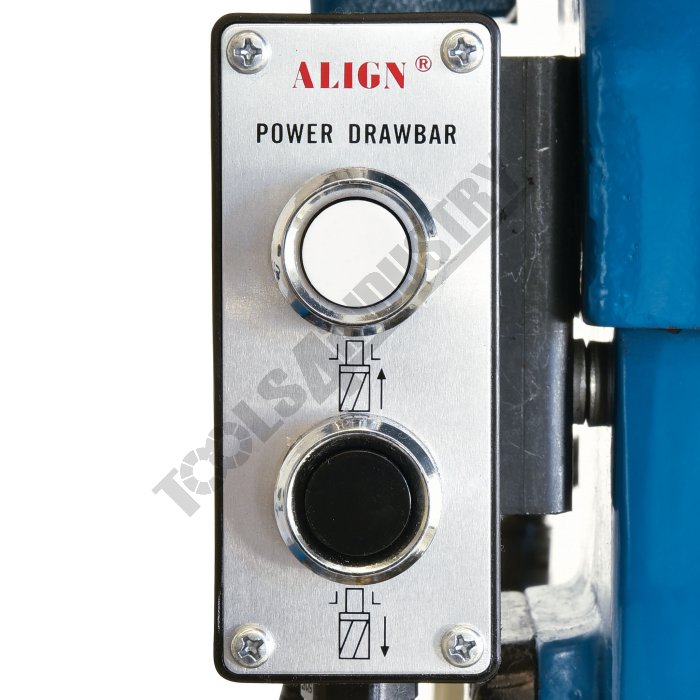

Air Powered Draw Bar Control

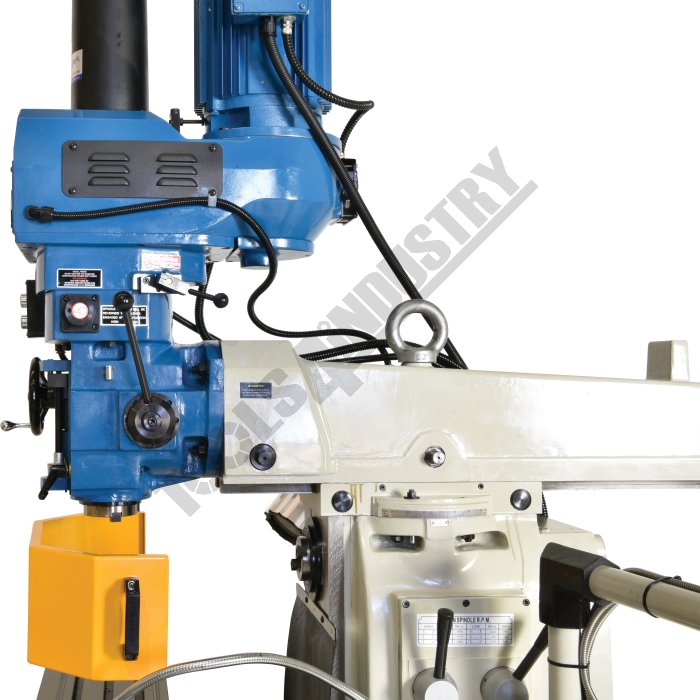

Mill Head Right Side View

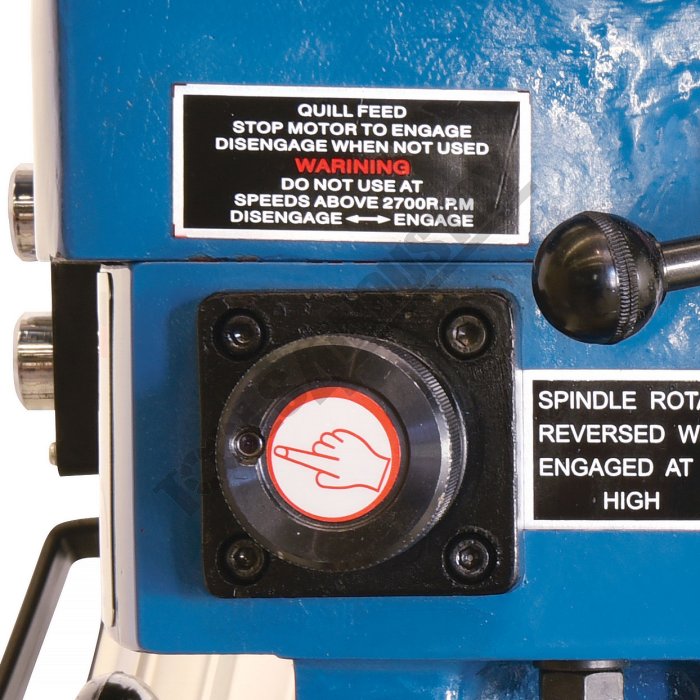

Quill Feed Engagement Dial

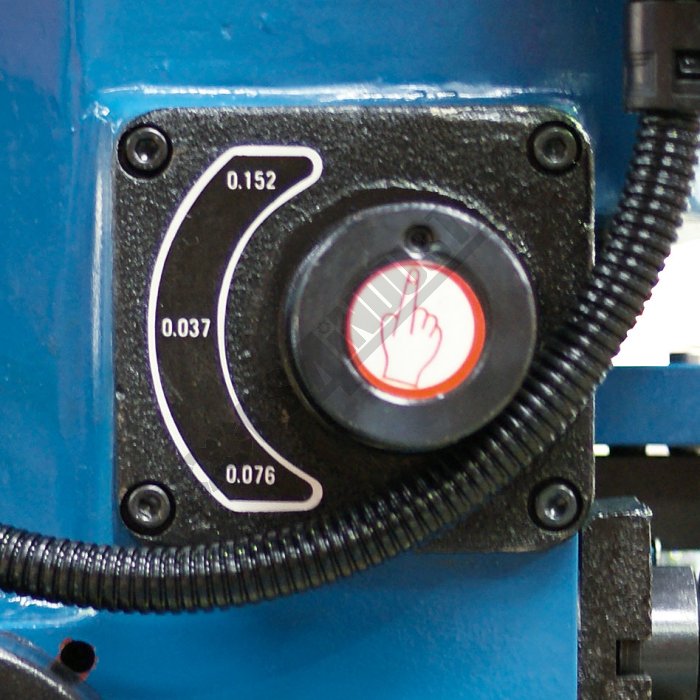

3 Speed Quill Feed

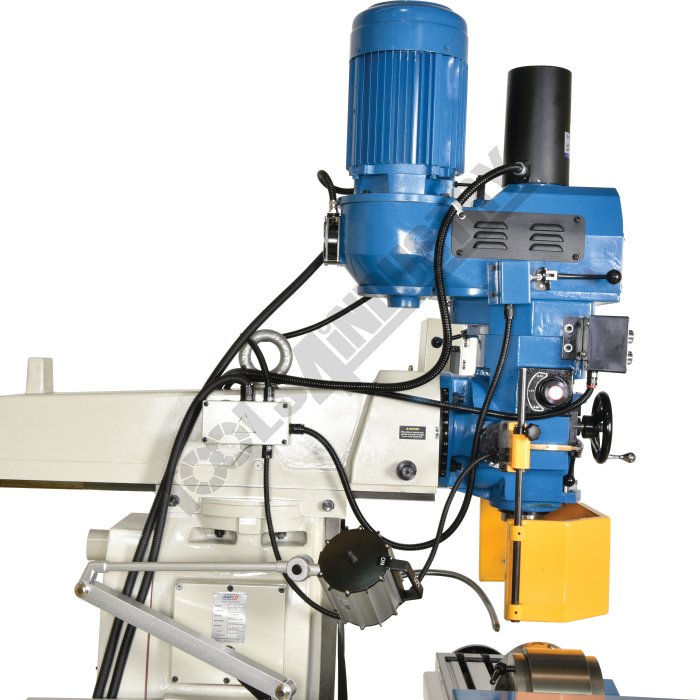

Mill Head Left Side View

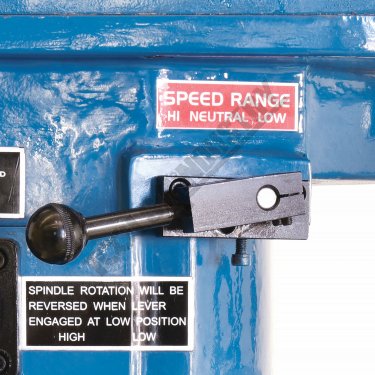

High Low Spindle Speed Gear Lever

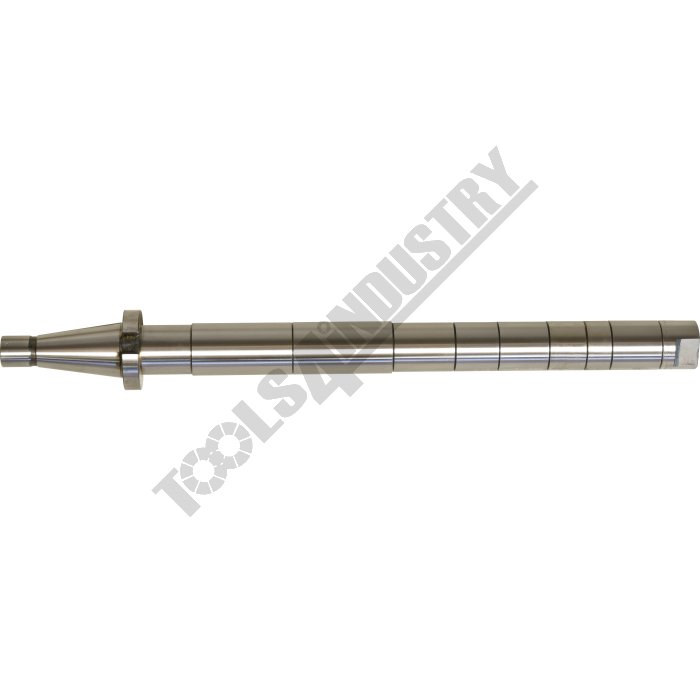

Includes Horizontal Arbor

Code	M586D
Model	BM-GEVS250
Capacity	Table Travel: (X) - 700mm (Y) - 250mm (Z) - 440mm
Weight (kg)	1350
Weight (m³)	5.333
Weight (Freight)	1,775.889
Dimensions (cm)	150 x 158 x 225

Product Brochure Milling Machine Risk Assessment

Industrial Turret Milling Machine - Horizontal & Vertical BM-GEVS250 Table Travel: (X) - 700mm (Y) - 250mm (Z) - 440mm

Features

Vertical spindle, Yaskawa inverter variable speed drive 60 – 3600rpm
Horizontal spindle, 40-980 rpm speeds controlled by gear selection levers with oil bath lubrication
5HP vertical & 3HP horizontal spindle motors provide exceptional machining power
NT40 spindle taper with Ø105mm chrome hardened and ground quill
1100 x 250mm hardened and ground worktable with ±45º left and right swivel
Automatic quill feed 0.037, 0.076, 0.152mm/rev
Vertical mill head swivels ±45º to left and right
Spindle guard with micro switch
3-Axis digital readout fitted
Pneumatic draw bar system for quick and effortless tool change
Heavy duty gear driven X Axis power-feed
Z-Axis powered elevating motor
Metric dial graduations @ 0.02mm for X , Y & Z-Axis
Meehanite castings for superior rigidity
Hardened and ground dovetail guideways
Turcite-B coating on X & Y-Axis ways for wear resistance and smooth operation
Auto lubrication system maintains proper lubrication to all slideways

Includes

3-Axis Digital Readout Fitted
Automatic Lubrication System
LED Lamp
Coolant System
Slide-way Covers
Safety Cutter Guard
Swarf Tray
1" Horizontal Arbor
2 x Horizontal Arbor Supports
2 x M16 Drawbars

Specifications
