| Code | V305 |
|---|---|
| Model | VA-5 |
| Capacity | 127mm Jaw Width |
| Weight (kg) | 31.13 |
| Weight (m3) | 0.023 |
| Weight (Freight) | 31.13 |
| Dimensions (cm) | 42 x 31 x 18 |

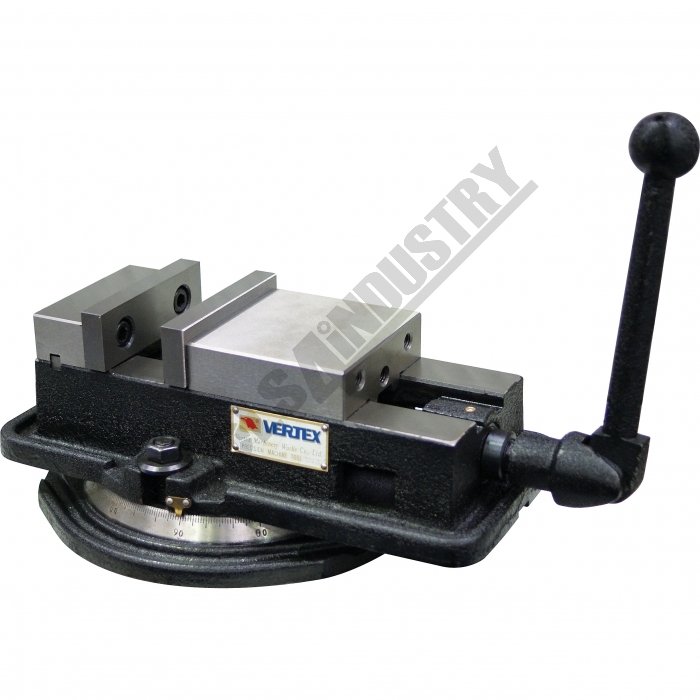

Vertex Anglock Machine Vice VA-5 127mm Jaw Width
Description
The VERTEX Anglock vice has a Ductile steel body with hardened and ground movable steel jaw.Features
- All surfaces are precision ground and the bed is flame hardened
- Spherical segment allows for all directional alignment
- When clamping, a downward pressure of 1kg is exerted by the movable jaw for every 2kg of clamping pressure, preventing the work piece from tilting
- Bearing thrust collar cuts friction and increases clamping pressure
- Swivel base is graduated to 360º
Specifications
- Compare 5 Products
- ORDER CODE
- MODEL

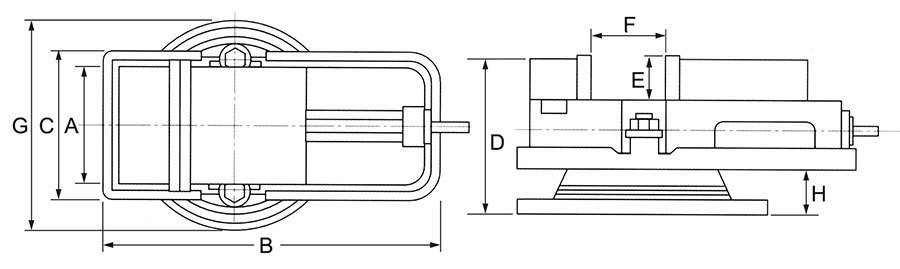

- A - Jaw Widthmm
- F - Jaw Openingmm
- E - Jaw Depthmm
- Bmm
- Cmm
- Dmm
- Gmm
- Hmm
- Nett Weightkg
| ORDER CODE | VA-5 |
|---|---|
| MODEL | 127 |
| A - Jaw Widthmm | 110 |
| F - Jaw Openingmm | 33 |
| E - Jaw Depthmm | 369 |
| Bmm | 193 |
| Cmm | 128 |
| Dmm | 254 |
| Gmm | 32 |
| Hmm | 31 |
| Nett Weightkg |
