| Code | V307 |
|---|---|
| Model | VA-8 |
| Capacity | 203mm Jaw Width |
| Weight (kg) | 85 |
| Weight (m3) | 0.064 |
| Weight (Freight) | 85 |
| Dimensions (cm) | 61 x 42 x 25 |

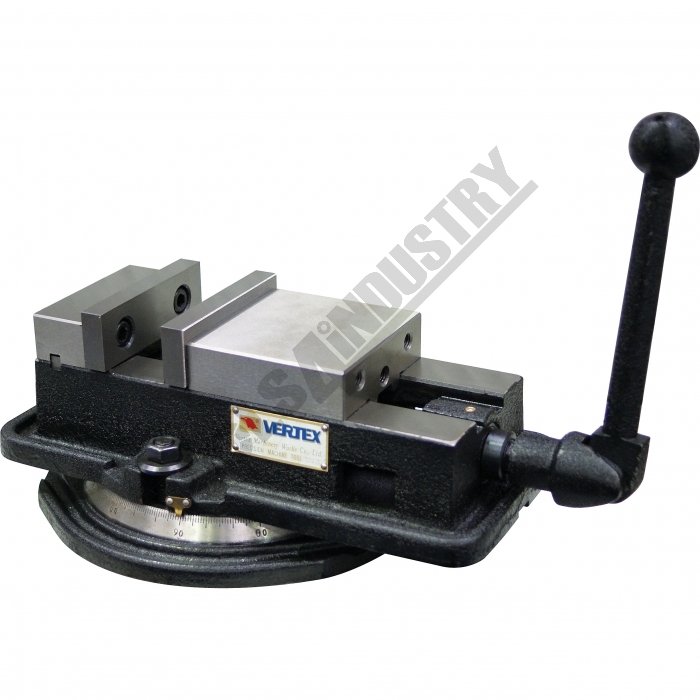

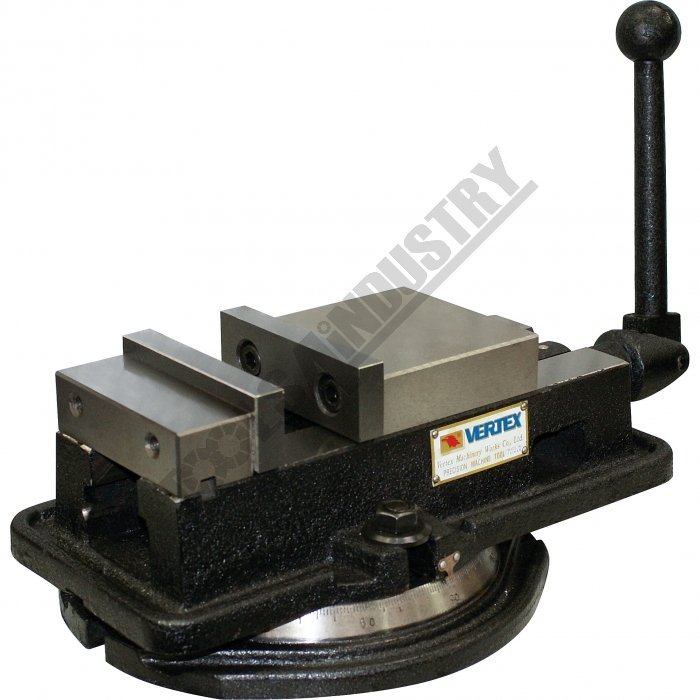

Vertex Anglock Machine Vice VA-8 203mm Jaw Width
Description
Ductile steel body with hardened and ground movable steel jaw.Features
- All surfaces are precision ground and the bed is flame hardened
- Spherical segment allows for all directional alignment
- When clamping, a downward pressure of 1kg is exerted by the movable jaw for every 2kg of clamping pressure, preventing the work piece from tilting
- Bearing thrust collar cuts friction and increases clamping pressure
- Swivel base is graduated to 360º
Specifications
- Compare 5 Products
- ORDER CODE
- MODEL

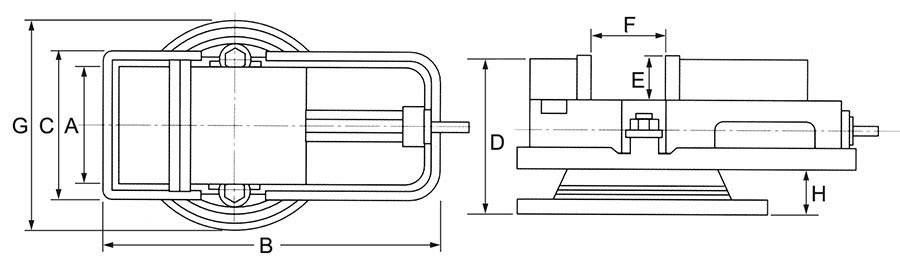

- A - Jaw Widthmm
- F - Jaw Openingmm
- E - Jaw Depthmm
- Bmm
- Cmm
- Dmm
- Gmm
- Hmm
- Nett Weightkg
| ORDER CODE | VA-8 |
|---|---|
| MODEL | 203 |
| A - Jaw Widthmm | 197 |
| F - Jaw Openingmm | 50 |
| E - Jaw Depthmm | 552 |
| Bmm | 295 |
| Cmm | 178 |
| Dmm | 368 |
| Gmm | 44 |
| Hmm | 97 |
| Nett Weightkg |
