Code	V3061
Model	TM-160
Capacity	160mm Jaw Width
Weight (kg)	37
Weight (m³)	0.026
Weight (Freight)	37
Dimensions (cm)	45 x 32 x 18

TOOLMASTER

1 Year Warranty

Product Brochure

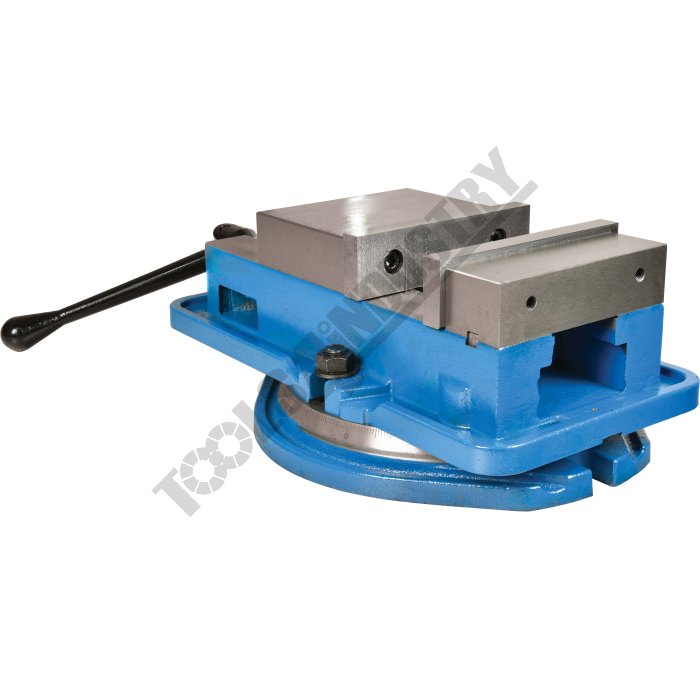

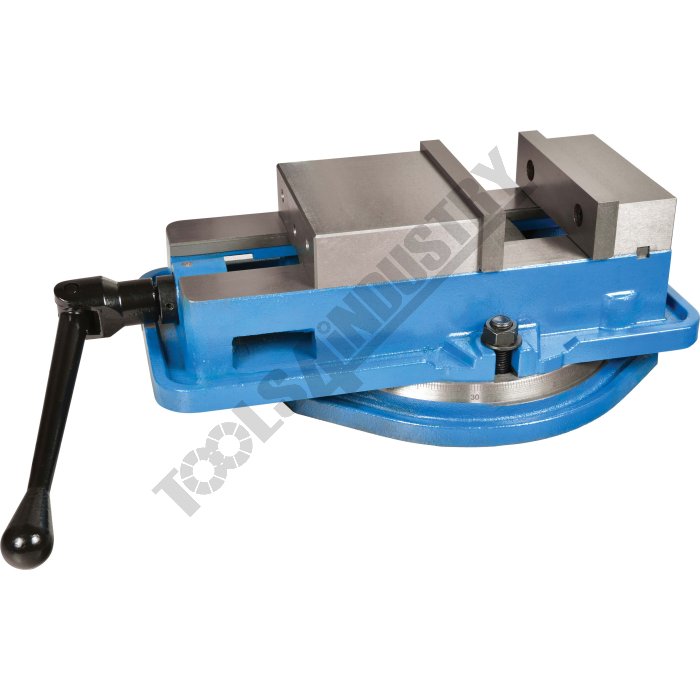

Anglock Vice TM-160 160mm Jaw Width

Description

Manufactured to JIS standards, this Toolmaster vice has all the qualities of a more expensive vice.
Suited to milling machines, drilling machines where the finishing of precision parts is required

Features

Accuracy of vice is 0.025mm/100mm for squareness and parallelism
Thrust needle bearing screw for easy use.
Special segment in the movable jaw creates down forces in the movable jaw when horizontal pressure is applied

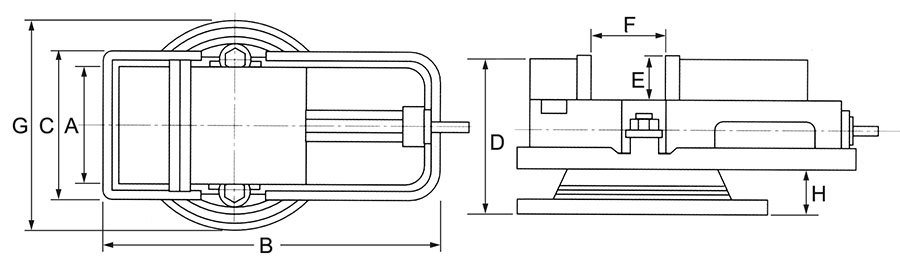

Specifications

Compare 5 Products
ORDER CODE
MODEL
A - Jaw Widthmm
F - Jaw Openingmm
E - Jaw Depthmm
Bmm
Cmm
Dmm
Gmm
Hmm
Nett Weightkg

V3061
TM-160
160
170
45
415
210
150
295
37
45

V307
VA-8
203
197
50
552
295
178
368
44
97

V304
VA-4
102
103
36
325
165
96
243
32
20

V305
VA-5
127
110
33
369
193
128
254
32
31

V306
VA-6
152
142
46
425
209
149
300
38
45

ORDER CODE	TM-160
MODEL	160
A - Jaw Widthmm	170
F - Jaw Openingmm	45
E - Jaw Depthmm	415
Bmm	210
Cmm	150
Dmm	295
Gmm	37
Hmm	45
Nett Weightkg
