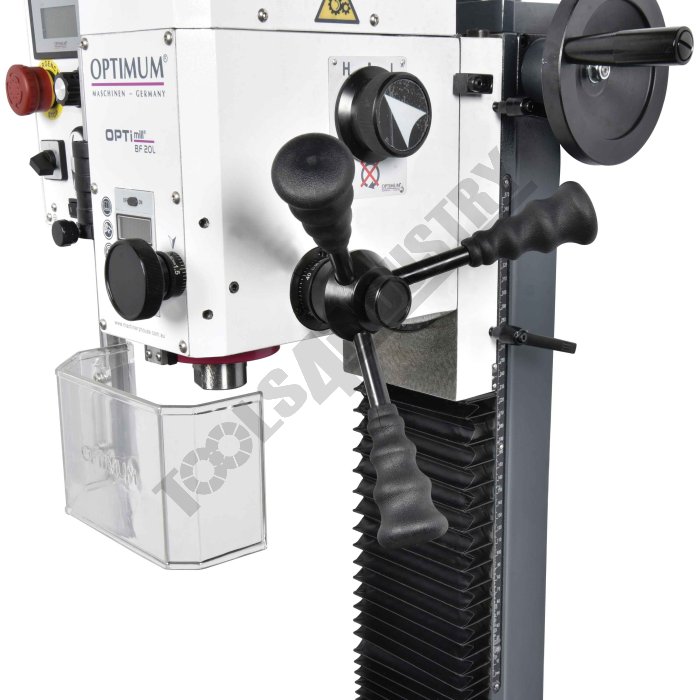

Quill Handle

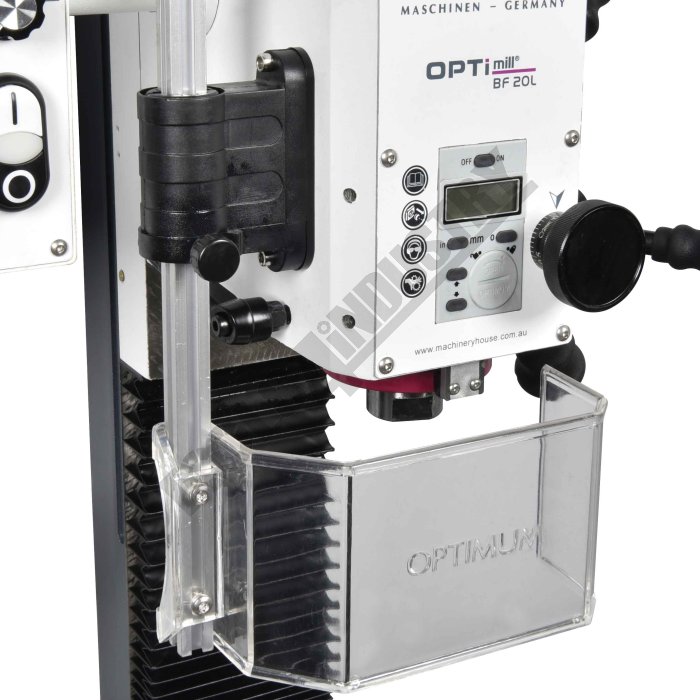

Safety Cutter Guard

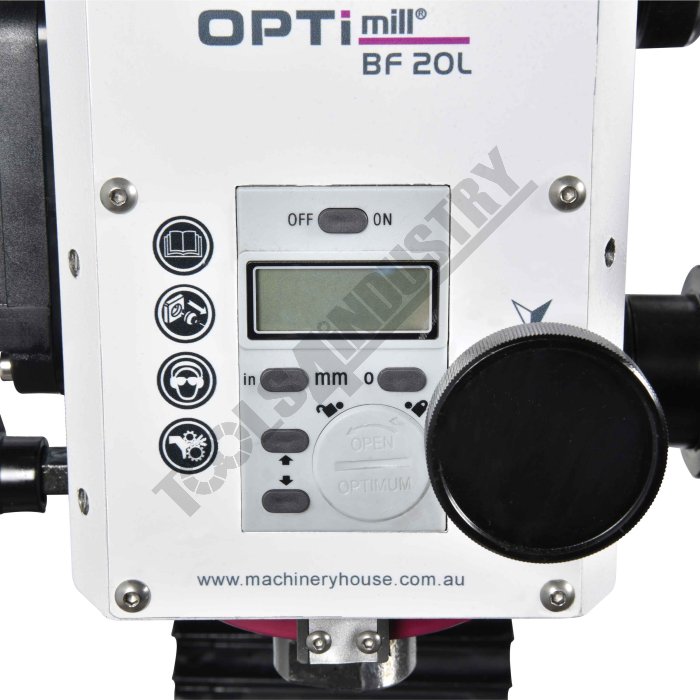

Digital Read Out For Quill Depth

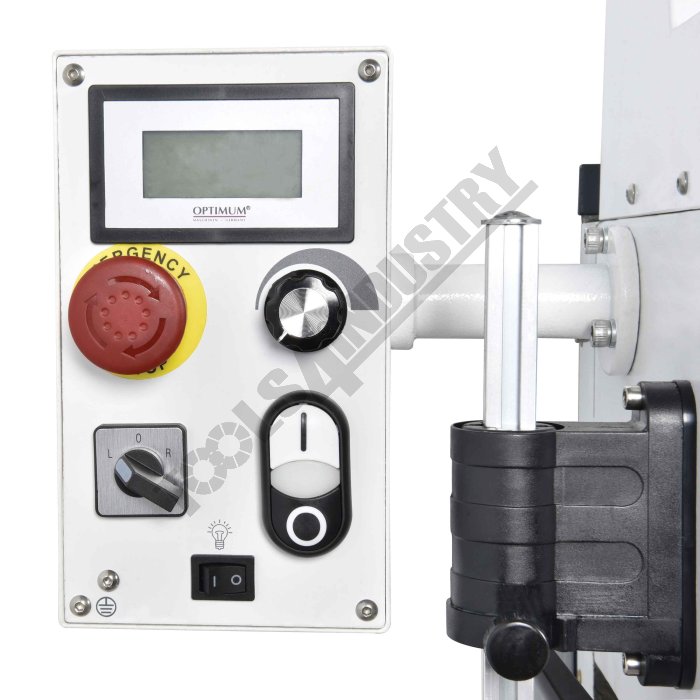

Control Panel With Variable Speed Dro Display

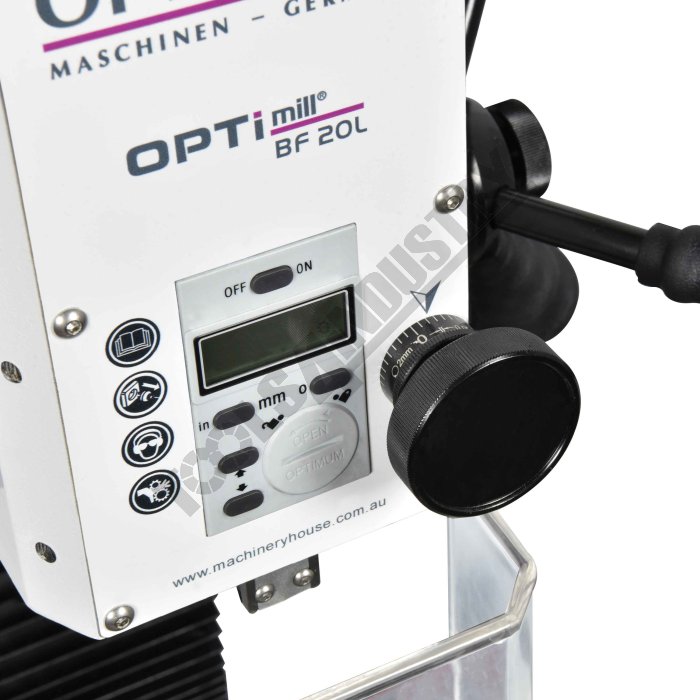

Quill Feed Adjustment

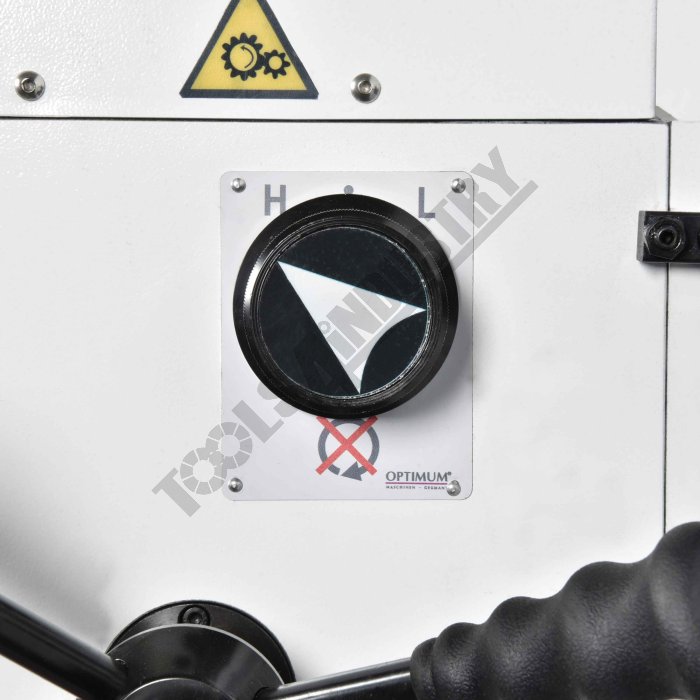

High Low Geared Head Dial

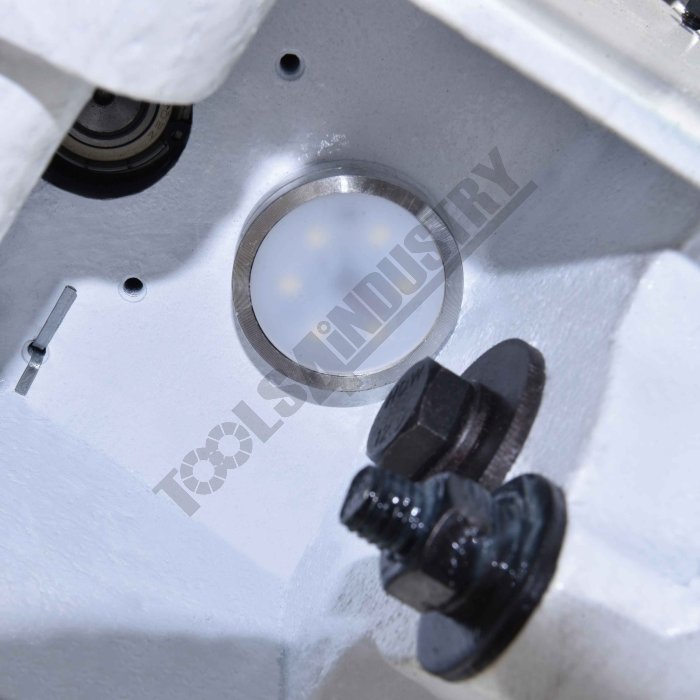

Inbuilt Work Light

Code	M647
Model	BF-20V
Weight (kg)	67
Weight (m³)	0.249
Weight (Freight)	82.917
Dimensions (cm)	81 x 53 x 58

Product Brochure Instruction Manual [5 MB]Milling Machine Risk Assessment

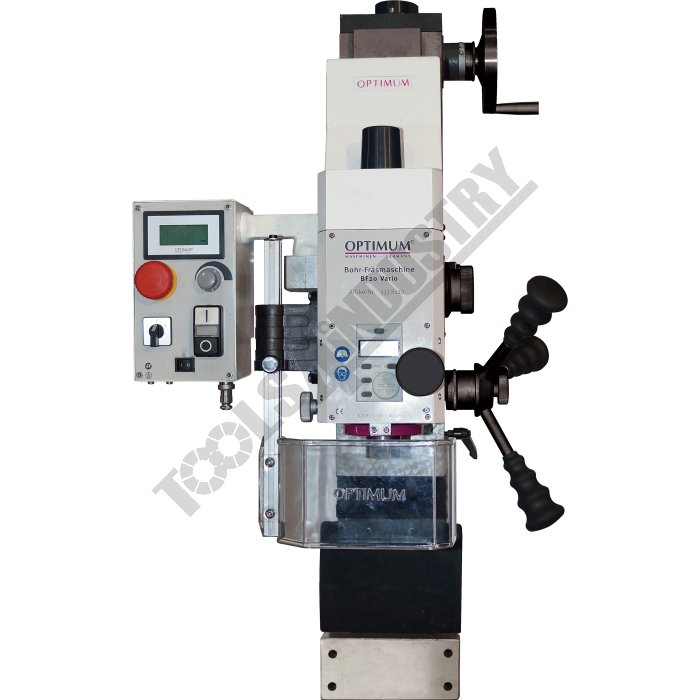

Opti-Mill Head Attachment - Geared & Tilting Head BF-20V

Description

The BF-20V mill head attachment has more throat & height capacity than the the BF-16AV and allows for larger work to be machined, it also is specifically designed to suit the TU-2506V & TU-3008G Optimum bench lathes; converting them into a universal combination lathe/mill when mounted together. In addition this compact setup has the advantage of that it requires less valuable floor space then the two separate conventional machines.

Features

Electronic infinitely variable speed
3MT spindle taper
Dovetail vertical Z-Axis
Digital readout speed display
Work light mounted underneath mill head
Digital depth display with zero reset for quill
Tilting head to ± 90° from vertical
2 speed gearbox (high / low) drive
Forward and reverse spindle switch
Scale collars for all Axis are adjustable
Adjustable dovetail slideway on Z-Axis
Adjustable drill length stop
Metric dial graduations

Note: The lathe rear splash tray is required to be removed to fit Mill Head Attachment

Includes

3MT x JT6 drill chuck arbor
Safety cutter guard
Bracket kit for optional digital readout
1/2" x 12tpi whitworth drawbar

Specifications

Compare 20 Products
ORDER CODE
MODEL
Digital Readout
Type
Table Sizemm
Column Type
Spindle Taper - Vertical
Spindle Taper - Horizontal
Longitudinal Travel (X-Axis)mm
Cross Travel (Y-Axis)mm
Vertical Travel (Z-Axis)mm
Type of Slides
Ram Travelmm
Spindle to Tablemm
Spindle to Base
Spindle Travel / Diametermm
Throat Depth (max.)mm
Tilting Head (Left ~ Right)
Tilting Head (Forward ~ Back)
Drilling Capacitymm
End Milling Capacitymm
Face Milling Capacitymm
Power Feed - Quillmm/rev
Power Feed - Longitudinal (X-Axis)mm/min
Power Feed - Cross (Y-Axis)mm/min
Power Feed - Vertical (Z-Axis)mm/min
Table T-Slot Sizeinch / mm
Work Table Load Capacitykg
Spindle Speeds VerticalNo./ rpm
Spindle Speeds HorizontalNo./ rpm
Spindle Speeds - Universal Head
Motor Power - Vertical SpindlekW / hp
Motor Power - Horizontal SpindlekW / hp
Motor Power - Universal Head
Voltage / AmperageV / amp
Nett Weightkg

M647
BF-20V
Optional
Vertical
~
Dovetail
3MT
~
~
~
280
Dovetail
~
~
~
50 / 60
185
±90º
Fixed
16
20
63
~
~
~
~
~
~
Variable (90 - 3000)
~
~
0.85 / 1.13
~
~
240 / 10
103

M649
BF-16V
Optional
Vertical
400 x 120
Dovetail
3MT
~
220
160
210
Dovetail
~
270
~
50 / 60
170
±90º
Fixed
16
20
63
~
~
~
~
10
25
Variable (100 - 3000)
~
~
0.5 / 0.66
~
~
240 / 10
78

M650
BF-20LV
Optional
Vertical
700 x 180
Dovetail
3MT
~
480
175
280
Dovetail
~
350
~
50 / 60
185
±90º
Fixed
16
20
63
~
~
~
~
12
40
Variable (90 - 3000)
~
~
0.85 / 1.13
~
~
240 / 10
162

M137
HM-32B
Optional
Vertical
820 x 240
Ø115mm
3MT
~
540
235
310
Dovetail
~
465
~
130 / 75
202
Fixed
Fixed
31.5
22
80
~
Optional
~
~
14
55
12 (100 - 2080)
~
~
1.5 / 2
~
~
240 / 10
310

M652
HM-28V
Optional
Vertical
730 x 210
Dovetail
3MT
~
430
220
355
Dovetail
~
465
~
70 / ~
210
±90º
Fixed
20
28
70
~
~
~
~
14
55
Variable (100 - 2500)
~
~
1.1 / 1.5
~
~
240 / 10
240

M138
HM-46B
~
Vertical
730 x 210
Dovetail
3MT
~
485
175
430
Dovetail
~
485
~
120 / 75
265
±90º
Fixed
31.5
28
80
~
Optional
~
~
14
55
6 (95 - 1650)
~
~
1.5 / 2
~
~
240 / 10
380

M138D
HM-46B
3-Axis Counter, X, Y Scales
Vertical
730 x 210
Dovetail
3MT
~
485*
175*
430
Dovetail
~
485
~
120 / 75
265
±90º
Fixed
31.5
28
80
~
Optional
~
~
14
55
6 (95 - 1650)
~
~
1.5 / 2
~
~
240 / 10
380

M139D
HM-46B
3-Axis Counter, X, Y Scales
Vertical
730 x 210
Dovetail
3MT
~
485*
175*
430
Dovetail
~
485
~
120 / 75
265
±90º
Fixed
31.5
28
80
~
Optional
~
~
14
55
6 (95 - 1650)
~
~
1.5 / 2
~
~
415 /
380

D185
DMF-44
Optional
Vertical
730 x 210
Ø125mm
3MT
~
480
200
850
Dovetail
~
630
~
120 / 75
280
±90º
Fixed
31.5
28
80
~
Optional
~
~
14
55
6 (95 - 1650)
~
~
1.5 / 2
~
~
240 / 10
390

M140D
HM-47B
3-Axis Counter, X, Y Scales
Vertical
800 x 240
Dovetail
3MT
~
540*
205*
385
Dovetail
~
485
~
120 / 75
265
±90º
Fixed
31.5
28
80
~
Optional
~
~
14
55
6 (95 - 1650)
~
~
1.5 / 2
~
~
240 / 10
430

M141D
HM-48B
3-Axis Digital Readout
Vertical
1000 x 240
Dovetail
3MT
~
670*
205*
380
Dovetail
~
480
~
120 / 75
265
±90º
Fixed
31.5
28
80
~
Yes
~
~
14
55
6 (95 - 1650)
~
~
1.5 / 2
~
~
240 / 10
450

M577
HM-51B
3-Axis Digital Readout
Vertical
1000 x 240
~
NT30
~
580*
190*
350
Dovetail
350
390
~
125 / 90
550
±45º
Fixed
30
25
80
Manual
20 - 2000
~
~
14
175
9 (220 - 2400)
~
~
2.2 / 3
~
~
240 / 15
850

M579
HM-54GV
3-Axis Digital Readout
Vertical & Horizontal
1000 x 240
~
NT30
NT30
600*
200*
340
Dovetail
450
375
~
120 / 90
640
±45º
Fixed
40
25
80
Manual
20 - 2000
~
~
14
160
Variable (100 - 2000)
9 (60 - 1350)
~
2.2 / 3
1.5 / 2
~
240 / 10
900

M603D
BM-30A
3-Axis Counter, X, Y Scales
Vertical
1270 x 254
~
NT30
~
760
360
430
Dovetail
520
505
~
127 / 86
740
±90º
±45º
~
~
~
0.015 / 0.04 / 0.08
20 - 2000
Optional
Optional
5/8
250
8 (80 - 2720)
~
~
2.2 / 3
~
~
240 / 20
1100

M607D
BM-40V
3-Axis Digital Readout
Vertical
1370 x 254
~
NT30
~
860
360
425
Dovetail
508
505
~
127 / 86
735
±90º
±45º
~
~
~
0.015 / 0.04 / 0.08
20 - 2000
Optional
Optional
5/8
300
Variable (70 - 3500)
~
~
2.2 / 3
~
~
415
1300

M584D
BM-EVS300
3-Axis Digital Readout
Vertical
1270 x 305
~
NT40
~
940
350
445
Dovetail (X) Square (Y & Z)
490
495
~
127 / 105
660
±90º
~
~
~
~
0.04 / 0.08 / 0.15
Yes
Yes
Rapid
5/8
300
Inverter (60 - 3600)
~
~
3.75 / 5
~
~
415
1650

M586D
BM-GEVS250
3-Axis Digital Readout
Vertical & Horizontal
1100 x 250
~
NT40
NT40
700
250
440
Dovetail (X, Y & Z)
300
470
~
127 / 105
500
±90º
~
~
~
~
0.037 / 0.076 / 0.152
0.02 - 0.20
Optional
Rapid
5/8
300
Variable (60 - 3600)
6 (40 - 980)
~
3.75 / 5
2.25 / 3
~
415
1350

M597D
BM-53VE
3-Axis Digital Readout
Vertical
1370 x 254
~
NT40
~
890
400
415
Dovetail (X), Square (Y & Z)
555
465
~
127 / 86
635
±90º
±45º
~
~
~
0.04 / 0.08 / 0.15
20 - 2000
20 - 2000
Rapid
16
350
Variable (50 - 3550)
~
~
3.75 / 5
~
~
415
1545

M599D
BM-63VE
3-Axis Digital Readout
Vertical
1370 x 254
~
NT40
~
890
400
400
Dovetail (X), Square (Y&Z)
550
450
~
127 / 105
740
±90º
±45º
~
~
~
0.04 / 0.08 / 0.15
20 - 2000
20 - 2000
Rapid
16
400
Variable (50 - 3550)
~
~
3.75 / 5
~
~
415
1555

M638D
BM-1600
3-Axis Digital Readout
Universal Head
1600 x 360
Dovetail
NT50
NT50
1310
300
410
Dovetail (X), Square (Y & Z)
45 - 745
150 - 560
~
~
~
360º
Fixed
~
~
~
~
30 - 750
20 - 500
15 - 375
18
400
12 / 60 - 1750
12 / 60 - 1800
27 (30 - 2050)
4 / 5.5
5.5 / 7.5
~
415
4500

ORDER CODE	BF-20V
MODEL	Optional
Digital Readout	Vertical
Type	~
Table Sizemm	Dovetail
Column Type	3MT
Spindle Taper - Vertical	~
Spindle Taper - Horizontal	~
Longitudinal Travel (X-Axis)mm	~
Cross Travel (Y-Axis)mm	280
Vertical Travel (Z-Axis)mm	Dovetail
Type of Slides	~
Ram Travelmm	~
Spindle to Tablemm	~
Spindle to Base	50 / 60
Spindle Travel / Diametermm	185
Throat Depth (max.)mm	±90º
Tilting Head (Left ~ Right)	Fixed
Tilting Head (Forward ~ Back)	16
Drilling Capacitymm	20
End Milling Capacitymm	63
Face Milling Capacitymm	~
Power Feed - Quillmm/rev	~
Power Feed - Longitudinal (X-Axis)mm/min	~
Power Feed - Cross (Y-Axis)mm/min	~
Power Feed - Vertical (Z-Axis)mm/min	~
Table T-Slot Sizeinch / mm	~
Work Table Load Capacitykg	Variable (90 - 3000)
Spindle Speeds VerticalNo./ rpm	~
Spindle Speeds HorizontalNo./ rpm	~
Spindle Speeds - Universal Head	0.85 / 1.13
Motor Power - Vertical SpindlekW / hp	~
Motor Power - Horizontal SpindlekW / hp	~
Motor Power - Universal Head	240 / 10
Voltage / AmperageV / amp	103
Nett Weightkg
