Code D185
Model DMF-44
Capacity Table Travel: (X) - 480mm (Y) - 200mm (Z) - 850mm
Weight (kg) 390
Weight (m3) 1.350
Weight (Freight) 449.550
Dimensions (cm) 95 x 76 x 187
HAFCO METALMASTER
240V / 10A
1 Year

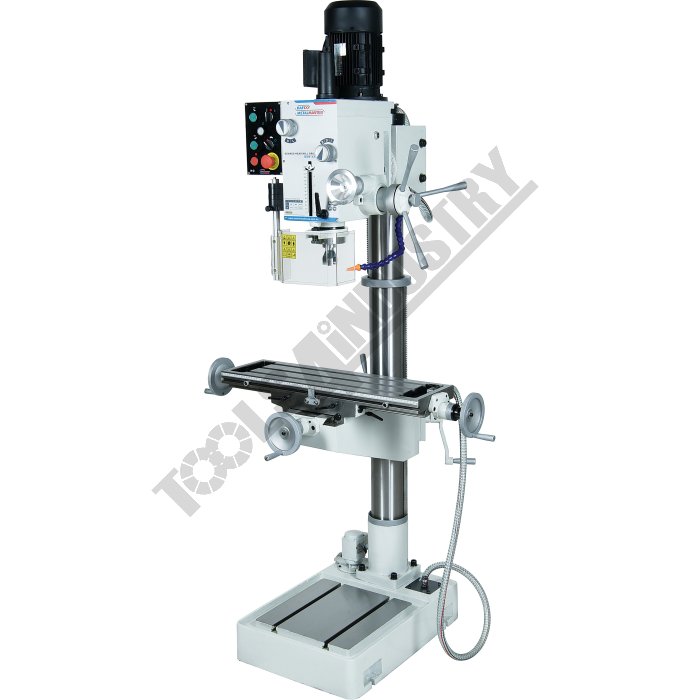

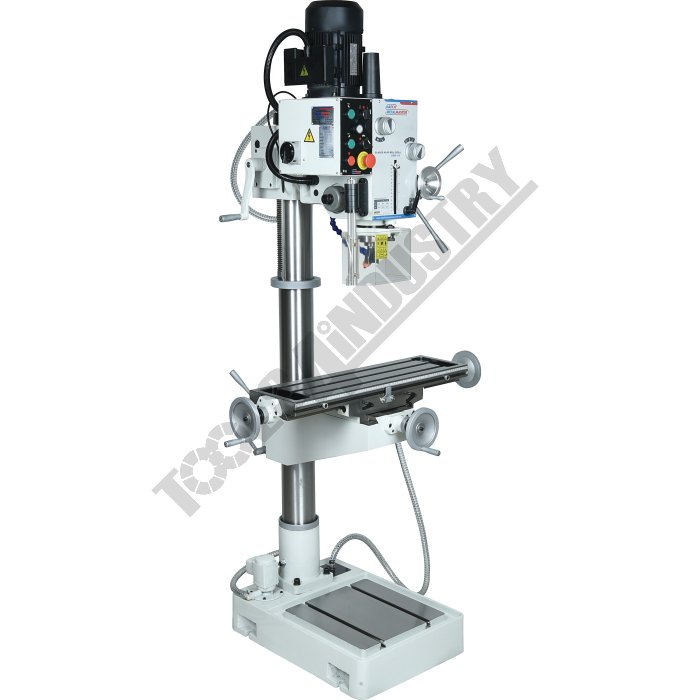

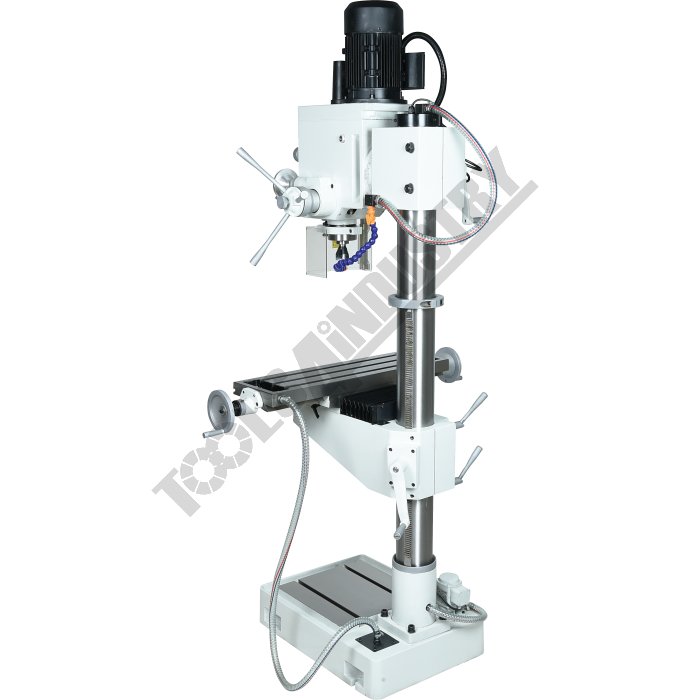

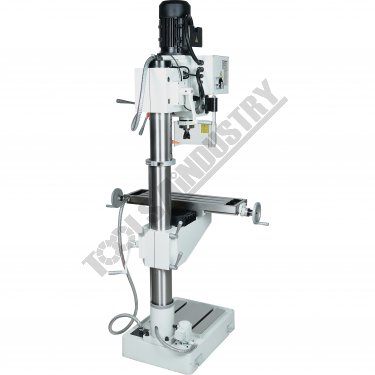

DMF-44 Pedestal Mill Drill - Geared & Tilting Head Table Travel: (X) - 480mm (Y) - 200mm (Z) - 850mm

Description

The DMF-44 pedestal milling & drilling machine offers a new dimension of milling capabilities compared to the standard conventional mill drills, as this machine allows you to have a longer job to fit onto the table or even mount your work directly to the machine base for maximum height clearance.

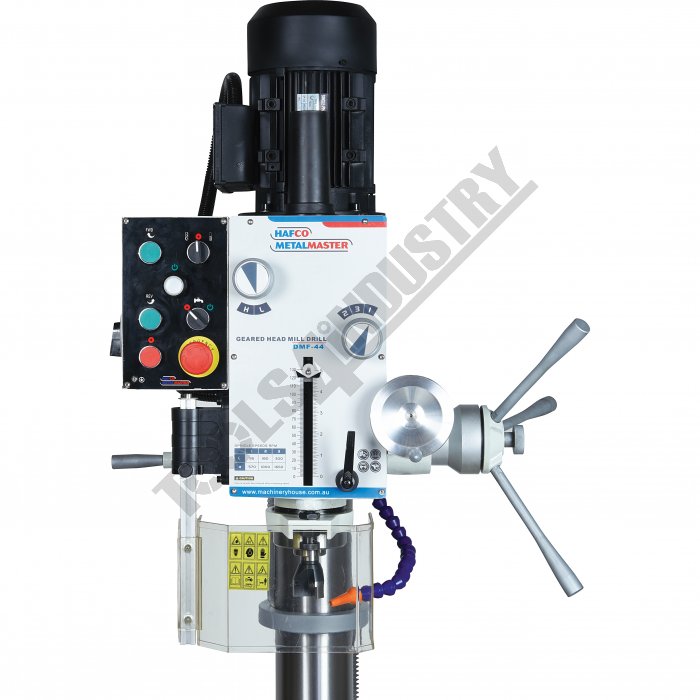

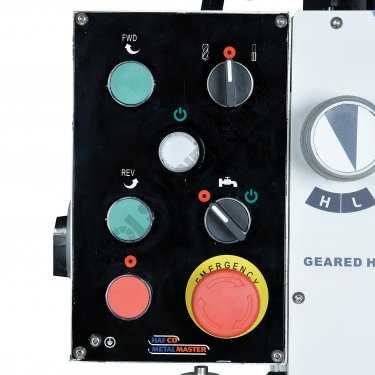

This machine has a tapping function switch to allow you to control the required depth when tapping holes. The milling head also has provisions to adjust up and down in addition to the worktable movement up & down as well, given you the optimum options to best suit your requirements.

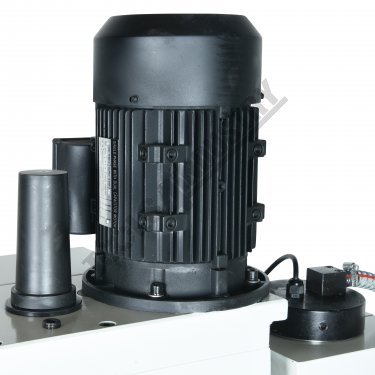

The spindle on this machine is a 3 morse taper that is driven by a 2hp, 240V motor via gears in the head to ensure maximum drive without any slippage that can occur & generally inherited with belt drive heads.

Features

  • Ideal for home or light industrial workshop use

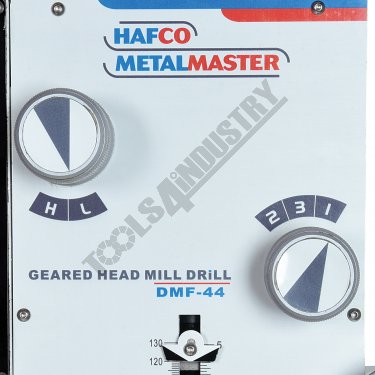

  • Geared head drill & mill machine with 3 morse taper spindle

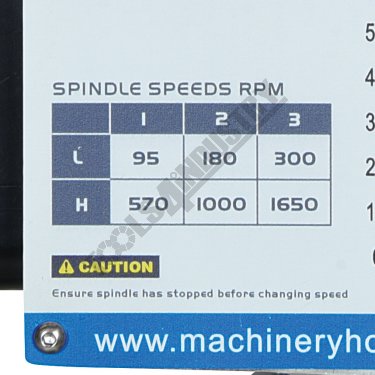

  • 6 drilling speeds from 95-1650rpm
  • Thread tapping function

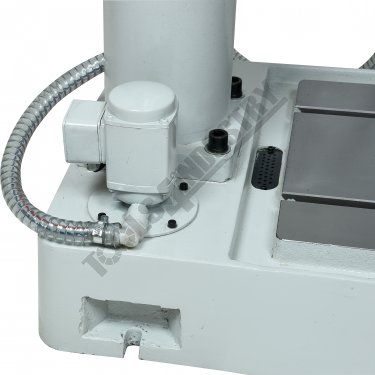

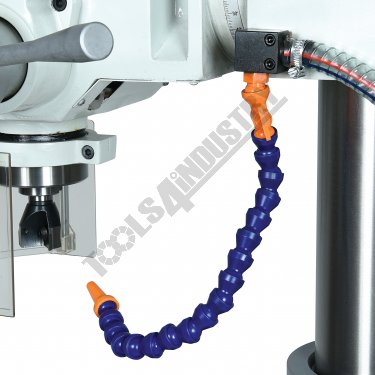

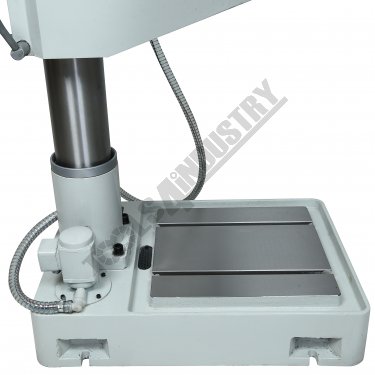

  • Coolant pump system with flexible hose

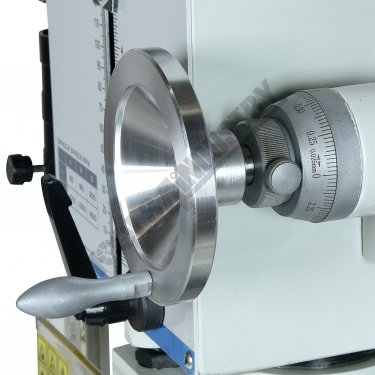

  • Micro down feed adjustment

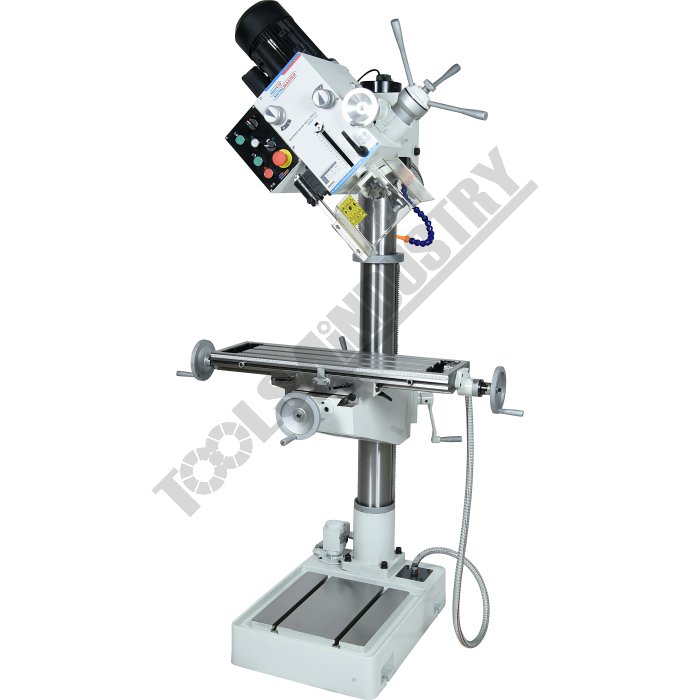

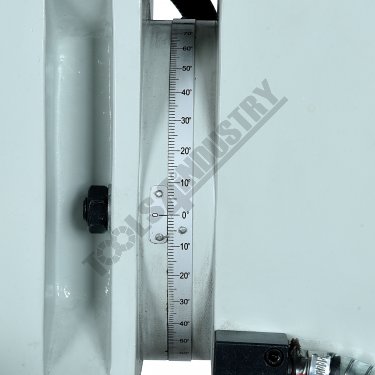

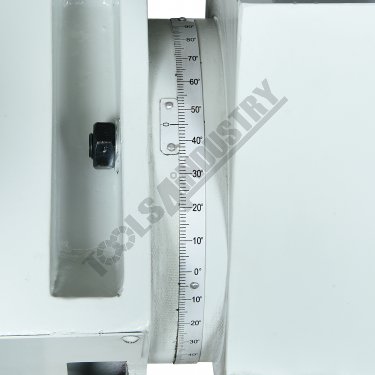

  • Mill head tilts to ±90º

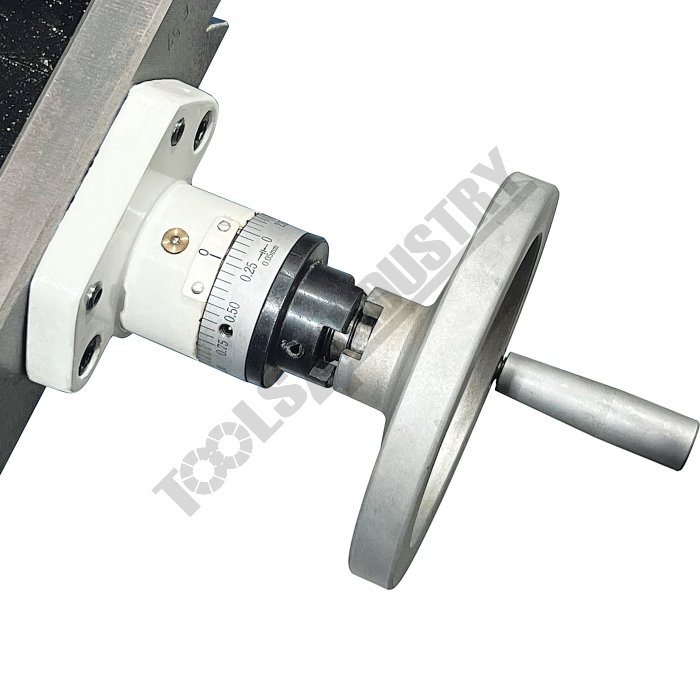

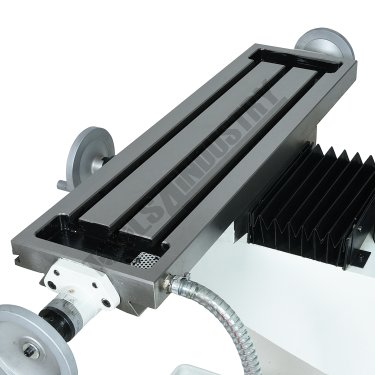

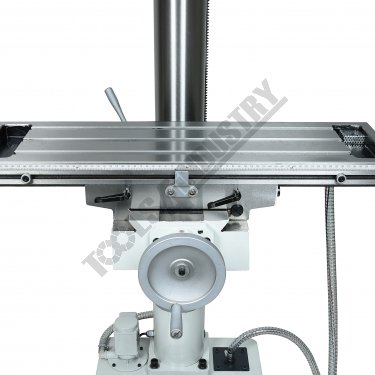

  • Milling table travels 480 x 200mm

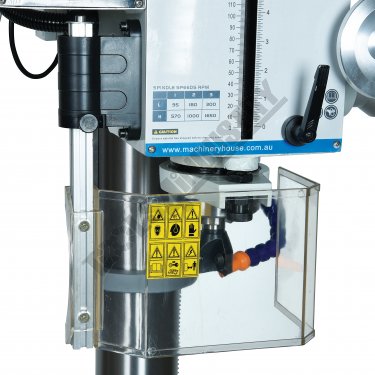

  • Swivel safety drilling chuck guard

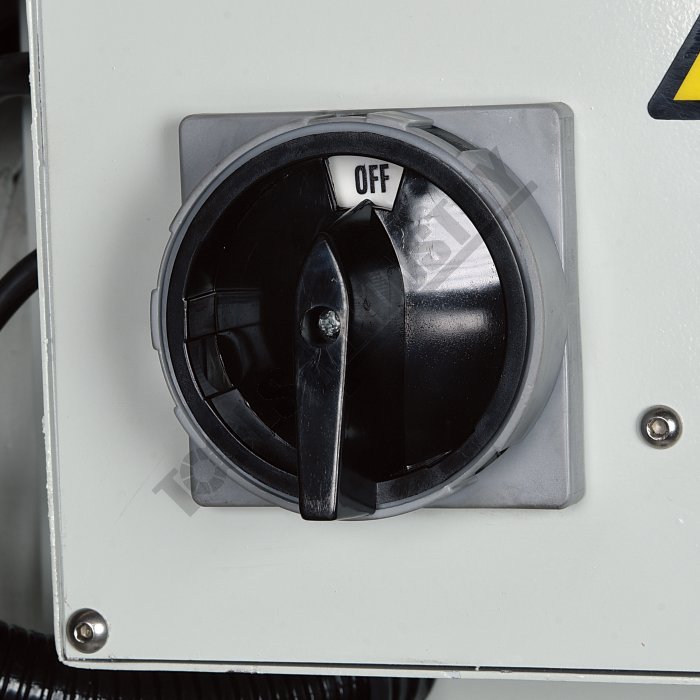

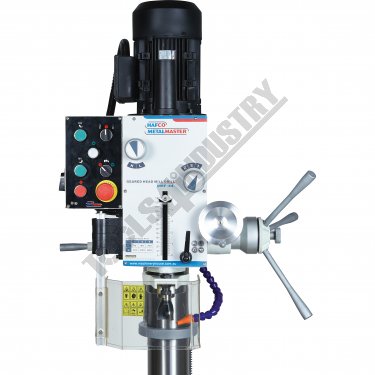

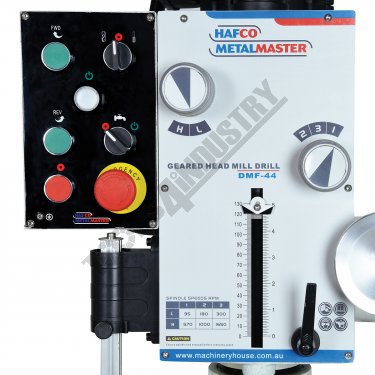

  • Emergency stop switch and overload protection

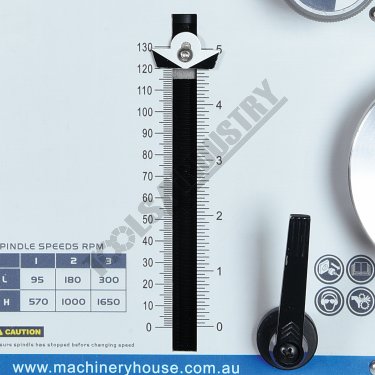

  • Adjustable accurate depth setting for increased productivity

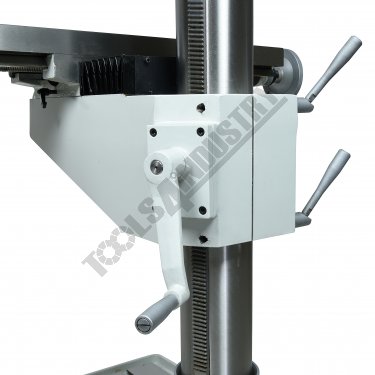

  • Rack and pinion wind-up table

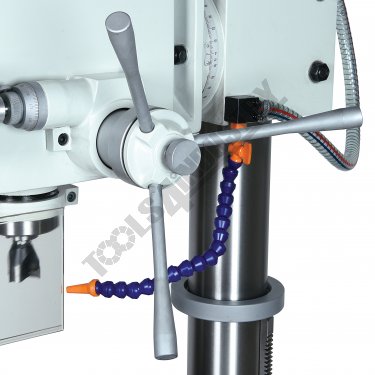

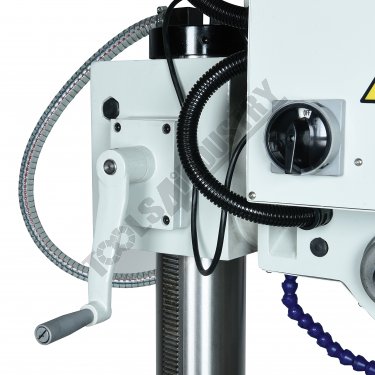

  • Rack and pinion wind-up drill head
  • Thick walled column ensuring greater rigidity

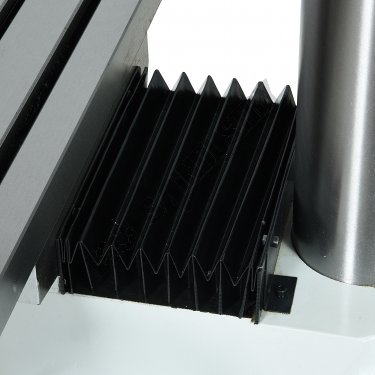

  • Concertina slide way cover on y axis

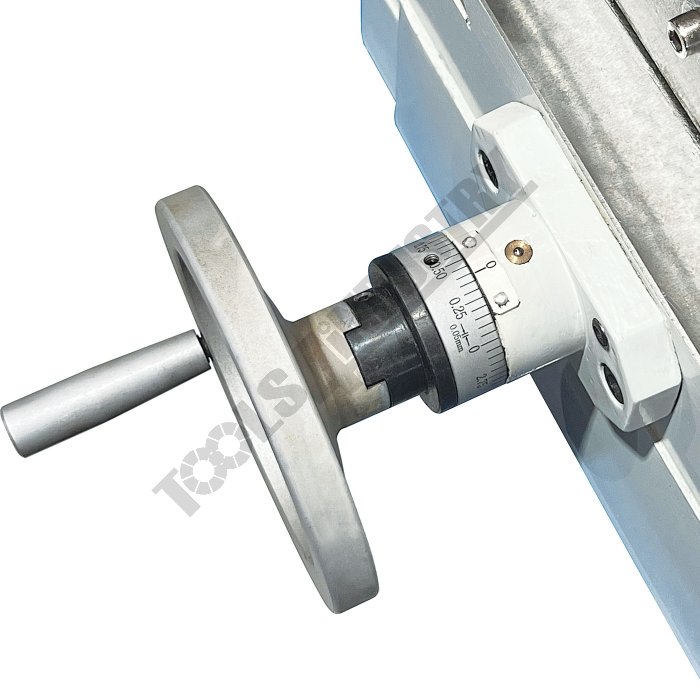

  • Adjustable gibs on table

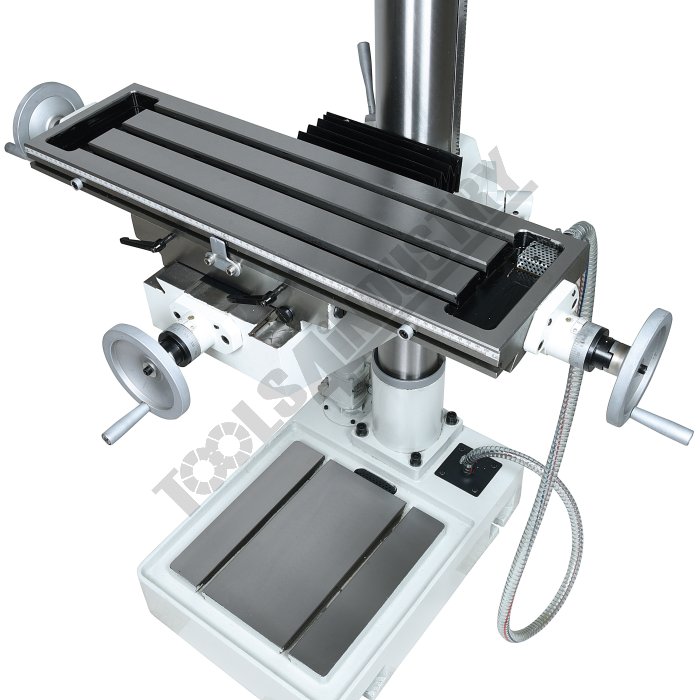

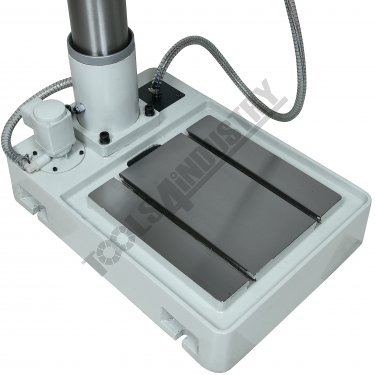

  • 14mm T slotted work table and base
  • 1.5kW 240V motor

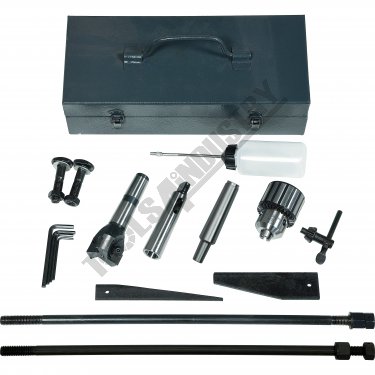

Includes

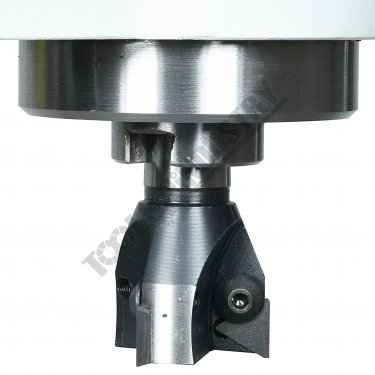

  • Face milling cutter with inserts
  • 13mm keyed drill chuck and arbor
  • Chuck key to suit
  • MT3 to MT2 drill sleeve adapter
  • Drill drift tool to remove drill chuck or taper shank drills

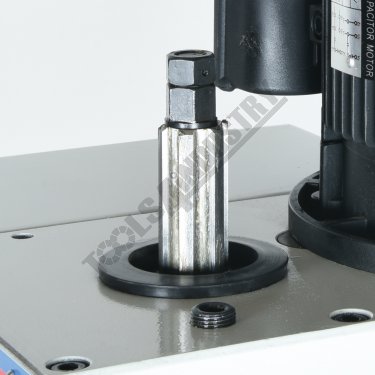

  • M12 x 1.75mm drawbar
  • 1/2" x 12TPI drawbar
  • Safety cutter guard

Specifications

ORDER CODEDMF-44
MODELOptional
Digital ReadoutVertical
Type730 x 210
Table SizemmØ125mm
Column Type3MT
Spindle Taper - Vertical~
Spindle Taper - Horizontal480
Longitudinal Travel (X-Axis)mm200
Cross Travel (Y-Axis)mm850
Vertical Travel (Z-Axis)mmDovetail
Type of Slides~
Ram Travelmm630
Spindle to Tablemm~
Spindle to Base120 / 75
Spindle Travel / Diametermm280
Throat Depth (max.)mm±90º
Tilting Head (Left ~ Right)Fixed
Tilting Head (Forward ~ Back)31.5
Drilling Capacitymm28
End Milling Capacitymm80
Face Milling Capacitymm~
Power Feed - Quillmm/revOptional
Power Feed - Longitudinal (X-Axis)mm/min~
Power Feed - Cross (Y-Axis)mm/min~
Power Feed - Vertical (Z-Axis)mm/min14
Table T-Slot Sizeinch / mm55
Work Table Load Capacitykg6 (95 - 1650)
Spindle Speeds VerticalNo./ rpm~
Spindle Speeds HorizontalNo./ rpm~
Spindle Speeds - Universal Head1.5 / 2
Motor Power - Vertical SpindlekW / hp~
Motor Power - Horizontal SpindlekW / hp~
Motor Power - Universal Head240 / 10
Voltage / AmperageV / amp95 x 76 x 187
Shipping Dimensions (L x W x H)cm390
Nett Weightkg
