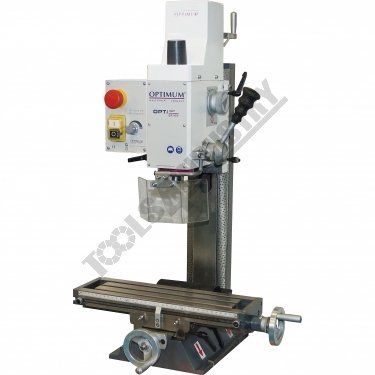

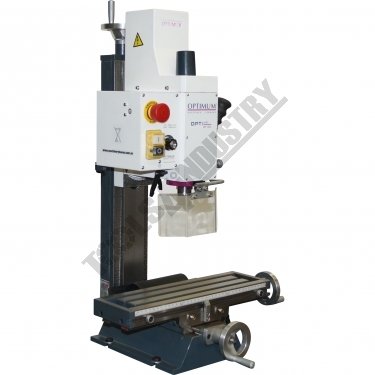

BF-16V Mini Opti-Mill Drill - Geared & Tilting Head Table Travel: (X) - 220mm (Y) - 160mm (Z) - 210mm

Description

Excellent quality mini mill drill machine designed for the model engineer

Features

  • Electronic infinitely variable speed (100-3000rpm)

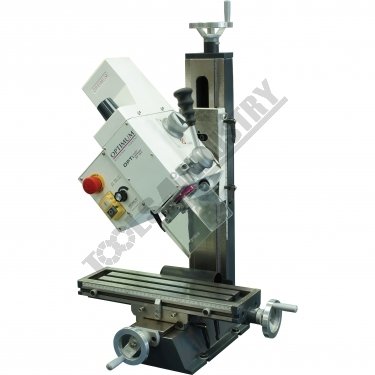

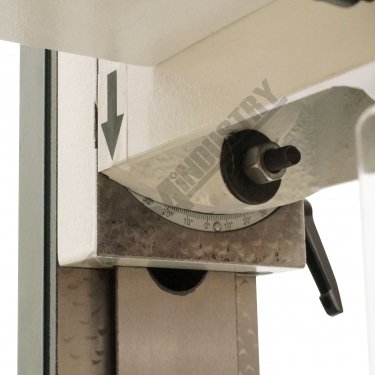

  • Tilting head to ±90º from vertical
  • 3MT spindle taper

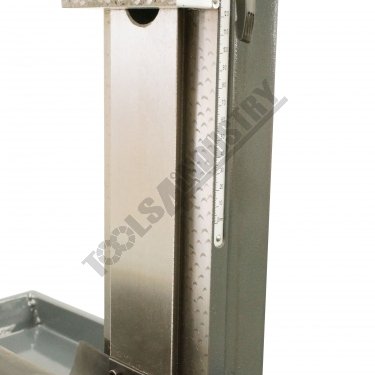

  • Adjustable dovetail slideways on all 3 axis
  • Heavy duty cast iron body and base for better stability

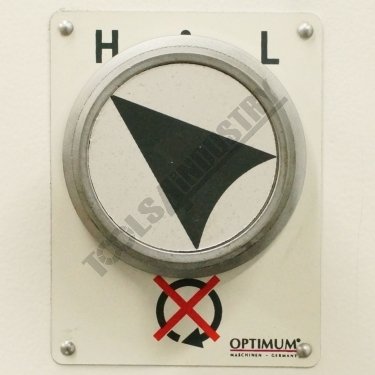

  • 2-speed gearbox (high/low) drive system to maximise torque

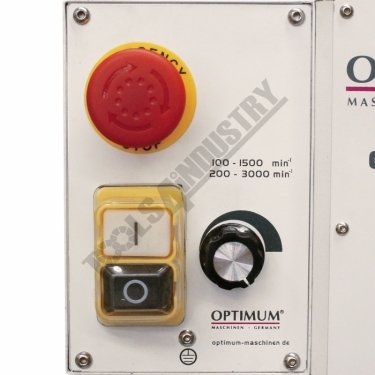

  • IP54 with low-voltage release switch
  • Scale collars for all axis are adjustable

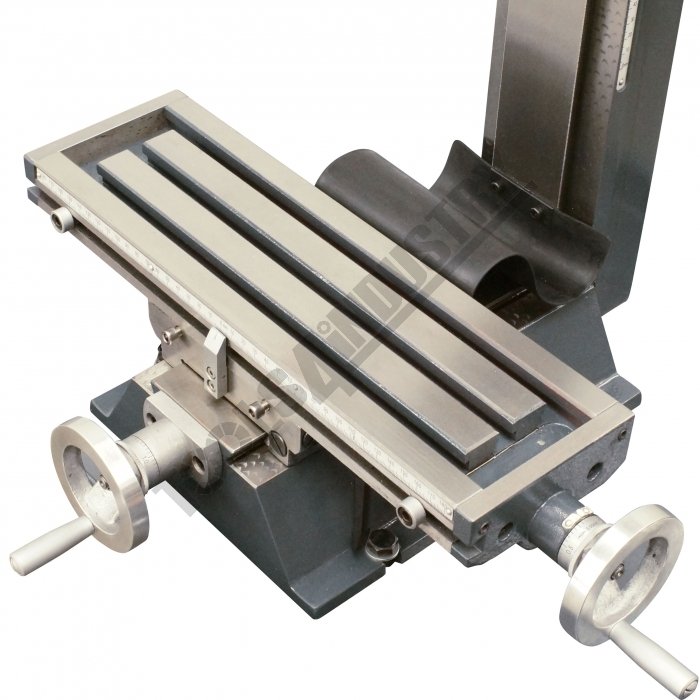

  • 400 x 120mm cast iron work table with T-slots

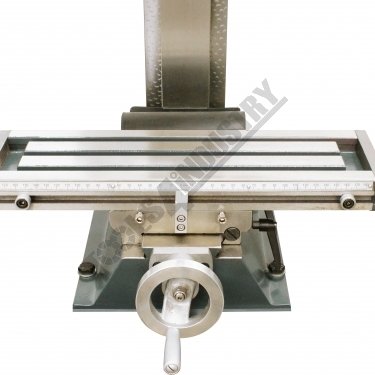

  • Adjustable table and drill length stops

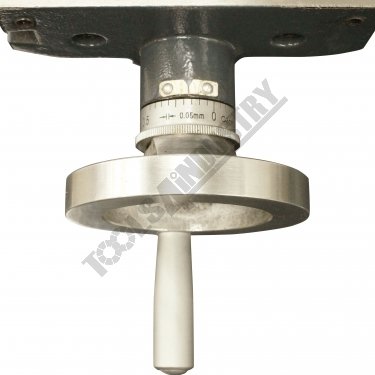

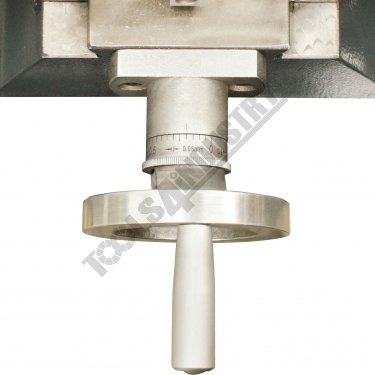

  • Metric dial graduations on X & Y Axis

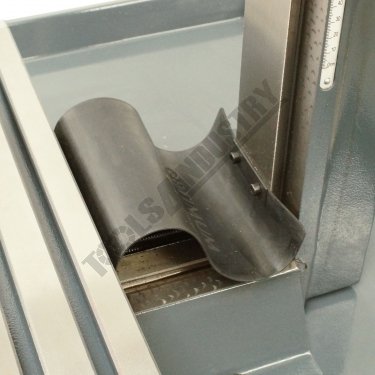

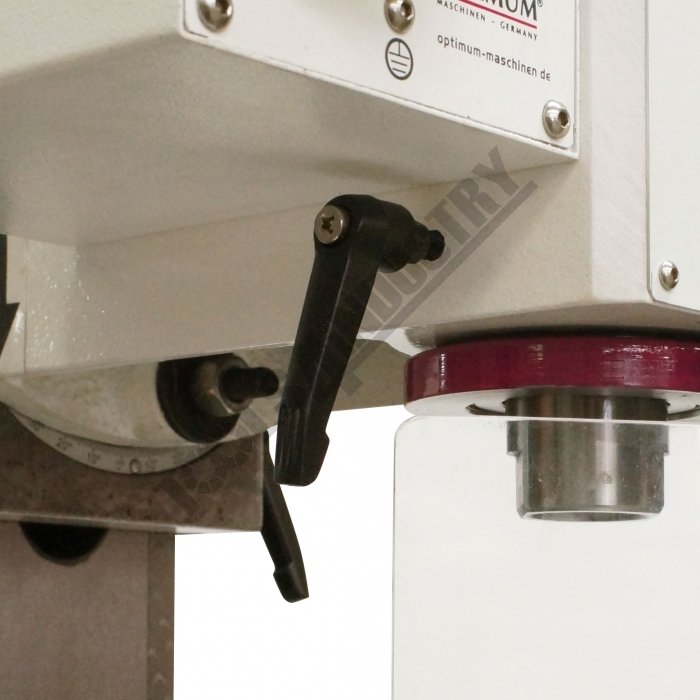

  • Rear slideway cover and slide clamps on all axis


Includes

  • 3MT x JT6 drill chuck arbor

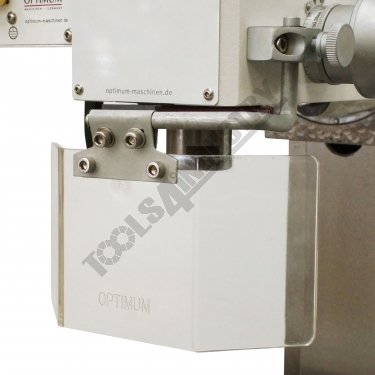

  • Safety cutter guard
  • Bracket kit for optional digital readout
  • 1/2" x 12tpi whitworth drawbar

Specifications

ORDER CODEBF-16V
MODELOptional
Digital ReadoutVertical
Type400 x 120
Table SizemmDovetail
Column Type3MT
Spindle Taper - Vertical~
Spindle Taper - Horizontal220
Longitudinal Travel (X-Axis)mm160
Cross Travel (Y-Axis)mm210
Vertical Travel (Z-Axis)mmDovetail
Type of Slides~
Ram Travelmm270
Spindle to Tablemm~
Spindle to Base50 / 60
Spindle Travel / Diametermm170
Throat Depth (max.)mm±90º
Tilting Head (Left ~ Right)Fixed
Tilting Head (Forward ~ Back)16
Drilling Capacitymm20
End Milling Capacitymm63
Face Milling Capacitymm~
Power Feed - Quillmm/rev~
Power Feed - Longitudinal (X-Axis)mm/min~
Power Feed - Cross (Y-Axis)mm/min~
Power Feed - Vertical (Z-Axis)mm/min10
Table T-Slot Sizeinch / mm25
Work Table Load CapacitykgVariable (100 - 3000)
Spindle Speeds VerticalNo./ rpm~
Spindle Speeds HorizontalNo./ rpm~
Spindle Speeds - Universal Head0.5 / 0.66
Motor Power - Vertical SpindlekW / hp~
Motor Power - Horizontal SpindlekW / hp~
Motor Power - Universal Head240 / 10
Voltage / AmperageV / amp49 x 45 x 85
Shipping Dimensions (L x W x H)cm78
Nett Weightkg
