| Code | M182 |
|---|---|
| Model | BC-2K |
| Capacity | Ø50mm Head |
| Weight (kg) | 3.25 |
| Weight (m3) | 0.004 |
| Weight (Freight) | 3.25 |
| Dimensions (cm) | 25.5 x 14 x 11 |

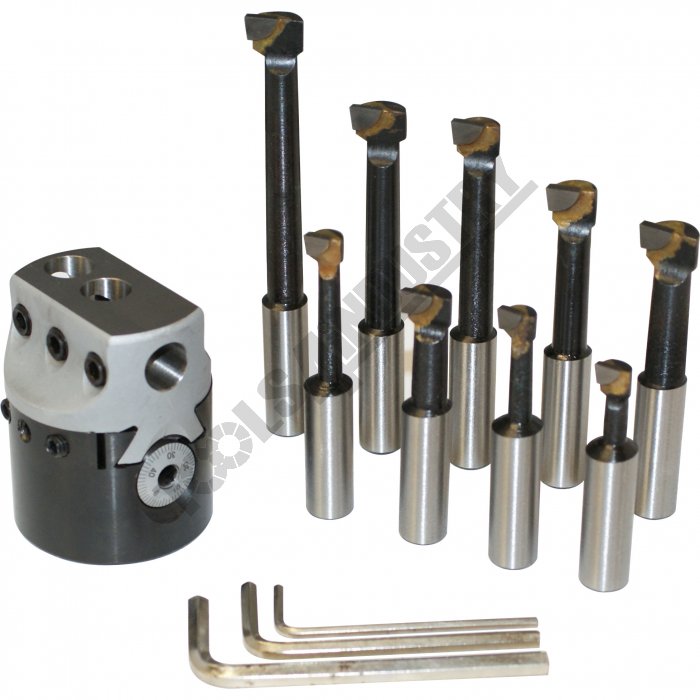

Precision Boring Head Kit BC-2K Ø50mm Head
Description
This precision boring head features two vertical holes and one cross hole for securely holding boring bars. It allows precise adjustment of the boring bar at a right angle to the spindle axis, enabling accurate positioning for boring holes with diameters ranging from 10mm to 100mm. The hardened and ground direct-reading adjustment screw features a satin chrome dial face, providing 0.01mm precise adjustments with excellent visibility. Perfect for professionals seeking reliability in metalworking, this boring head delivers exceptional results.Note: Arbor sold separately.
Features
- Wide range of boring diameters and depths
- Boring diameter 10mm - 100mm
- Calibrated micro adjusting screw via a hexagon key.
- 1-1/2" x 18TPI threaded body to mount optional arbors
- Accepts 12mm diameter boring bars

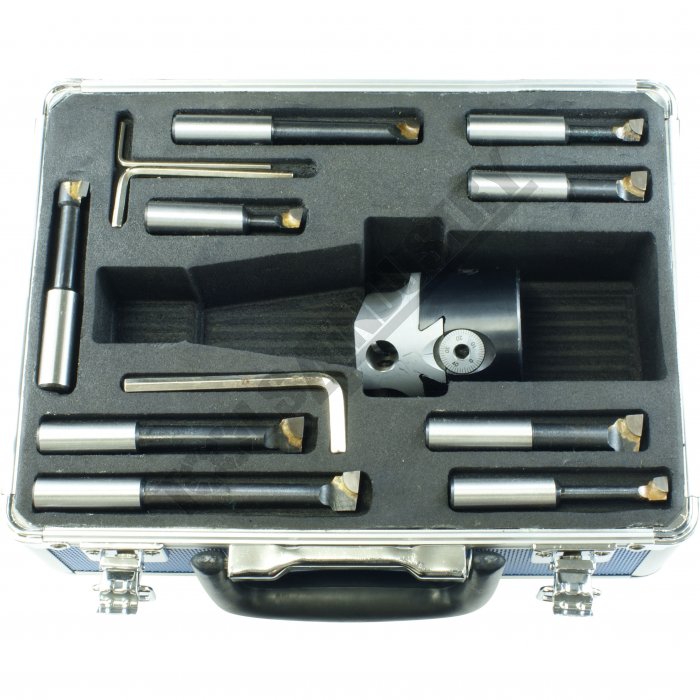

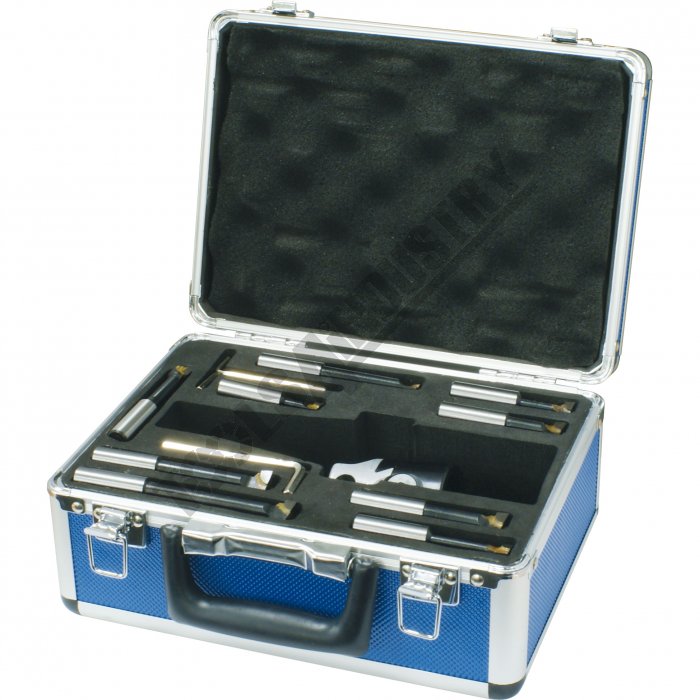

- Includes boring bars and aluminium foam padded case for protection
Specifications
- Compare 4 Products
- ORDER CODE
- MODEL
- Type
- Dmm
- Hmm
- d (lowercase)mm
- Wmm
- h (lowercase)mm
- Cross Hole Diametermm
- Centre Distance Between Holesmm
- Micro Adjustment Travelmm
- Nett Weightkg
| ORDER CODE | BC-2K |
|---|---|
| MODEL | Boring |
| Type | 50 |
| Dmm | 62 |
| Hmm | 12 |
| d (lowercase)mm | ~ |
| Wmm | ~ |
| h (lowercase)mm | ~ |
| Cross Hole Diametermm | 15 |
| Centre Distance Between Holesmm | 15 |
| Micro Adjustment Travelmm | 1.2 |
| Nett Weightkg |
