| Code | M183 |
|---|---|
| Model | BC-3K |
| Capacity | Ø75mm Head |
| Weight (kg) | 5.26 |
| Weight (m3) | 0.013 |
| Weight (Freight) | 5.26 |
| Dimensions (cm) | 35 x 28 x 13 |

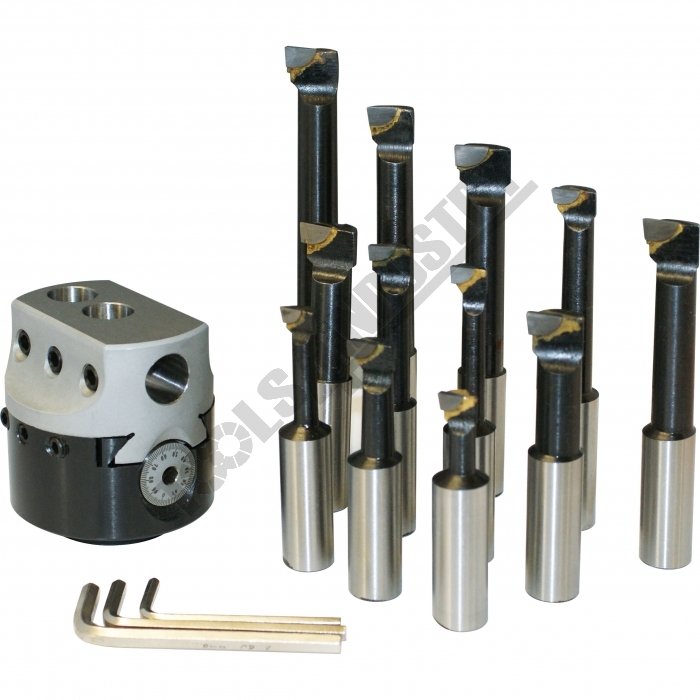

Precision Boring Head Kit BC-3K Ø75mm Head
Description
This precision boring head features two vertical holes and one cross hole for securely holding boring bars. It allows precise adjustment of the boring bar at a right angle to the spindle axis, enabling accurate positioning for boring holes with diameters ranging from 10mm to 220mm. The hardened and ground direct-reading adjustment screw features a satin chrome dial face, providing 0.01mm precise adjustments with excellent visibility. Perfect for professionals seeking reliability in metalworking, this boring head delivers exceptional results.Note: Arbor sold separately.
Features
- Wide range of boring diameters and depths
- Boring diameter 10mm - 220mm
- Calibrated micro adjusting screw via a hexagon key.
- 1-1/2" x 18TPI threaded body to mount optional arbors
- Accepts 18mm diameter boring bars

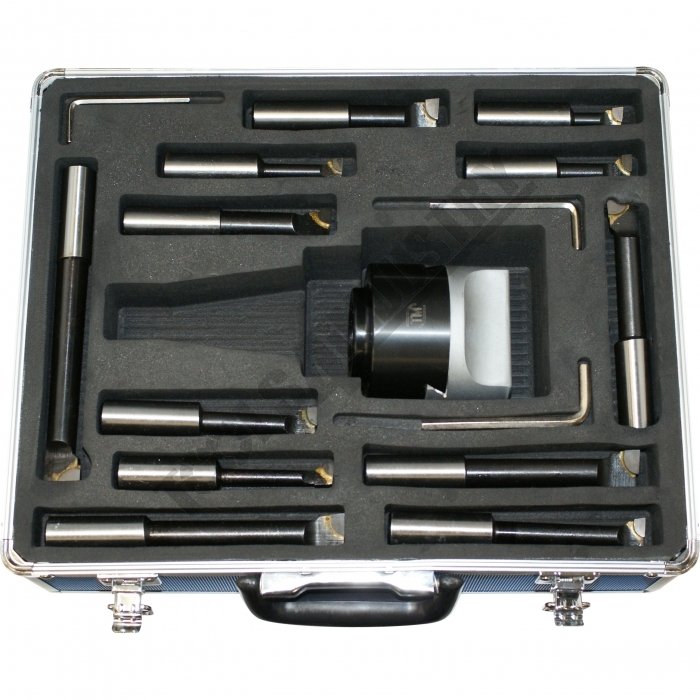

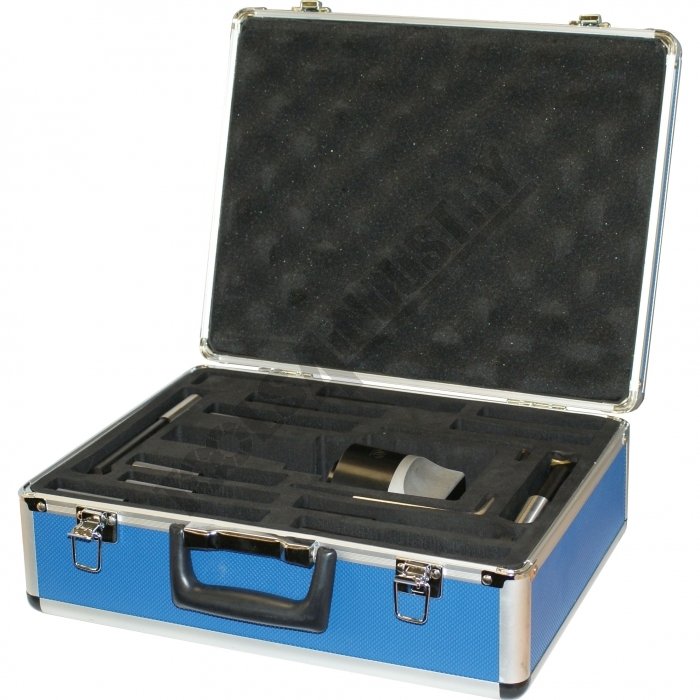

- Includes boring bars and aluminium foam padded case for protection

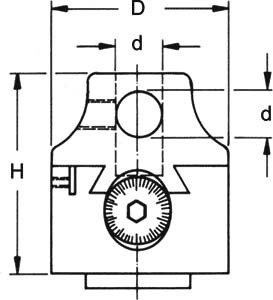

Specifications
- Compare 4 Products
- ORDER CODE
- MODEL
- Type
- Dmm
- Hmm
- d (lowercase)mm
- Wmm
- h (lowercase)mm
- Cross Hole Diametermm
- Centre Distance Between Holesmm
- Micro Adjustment Travelmm
- Nett Weightkg
| ORDER CODE | BC-3K |
|---|---|
| MODEL | Boring |
| Type | 75 |
| Dmm | 80 |
| Hmm | 18 |
| d (lowercase)mm | ~ |
| Wmm | ~ |
| h (lowercase)mm | ~ |
| Cross Hole Diametermm | 23 |
| Centre Distance Between Holesmm | 25 |
| Micro Adjustment Travelmm | 3.6 |
| Nett Weightkg |
