| Code | M184 |
|---|---|
| Model | BHB |
| Capacity | Ø84mm Head, Ø10 - Ø240mm Range |
| Weight (kg) | 4.28 |
| Weight (m3) | 0.009 |
| Weight (Freight) | 4.28 |
| Dimensions (cm) | 33 x 26 x 10 |

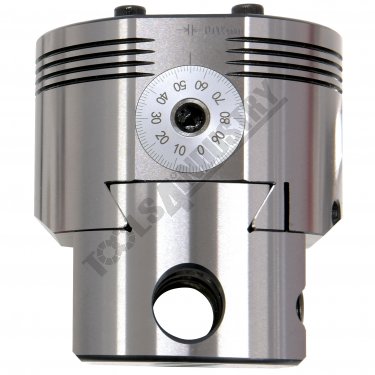

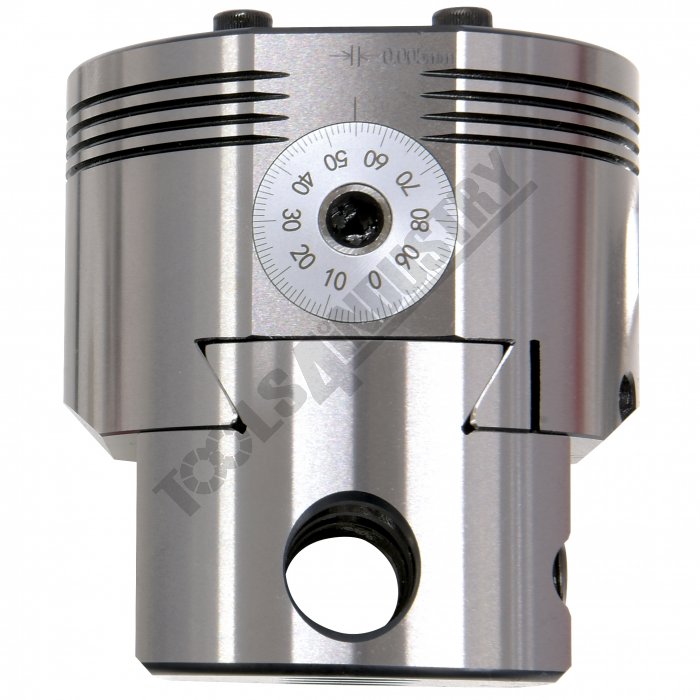

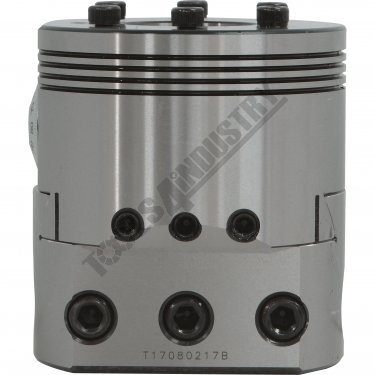

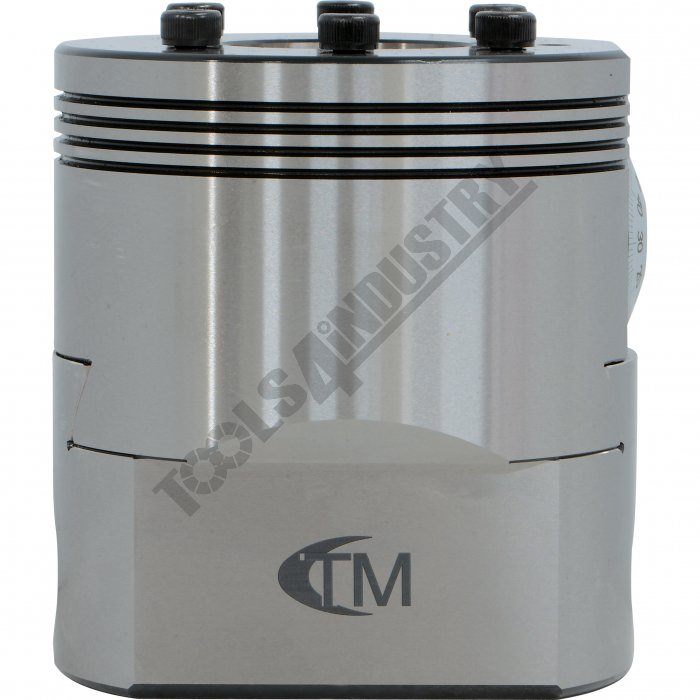

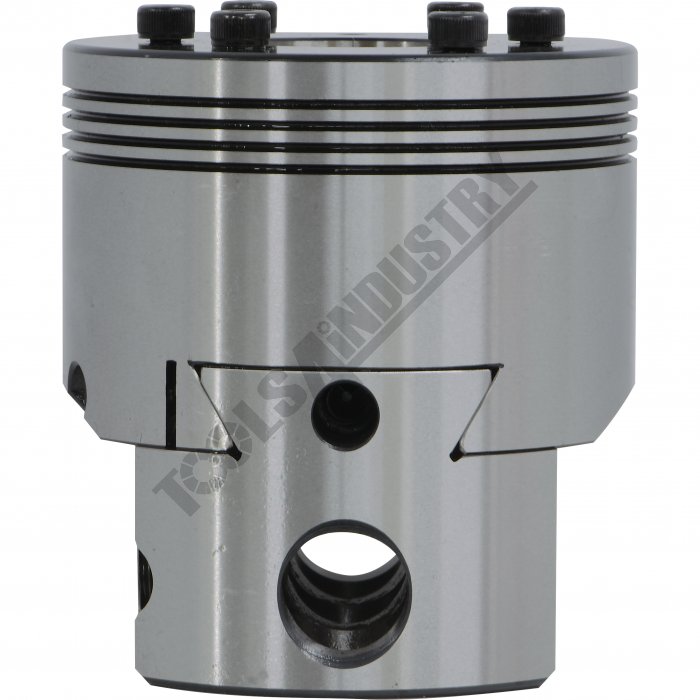

Precision Boring Head BHB Ø84mm Head, Ø10 - Ø240mm Range
Description
Manufactured in TaiwanRigid construction, Finest materials and craftsmanship are employed to combine strength, flexibility and accuracy with unique design.
Dependable adjustment --- Clear graduation for closer reading. Balanced for high speed operation.
NOTE: Arbor not included.
Features
- Manufactured from high grade steel. Heat treated for durability and consistent accuracy
- Suitable for milling machines or CNC applications
- Capacity of 10-240mm
- Graduations 0.01mm

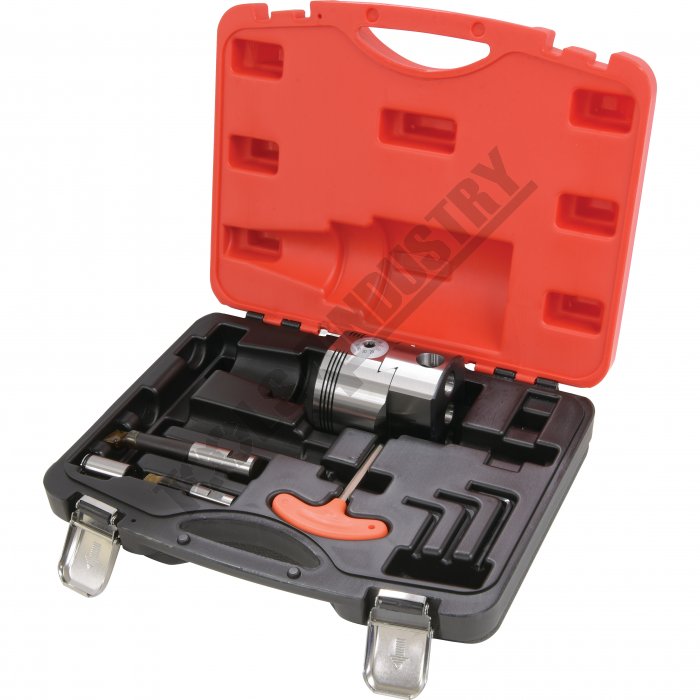

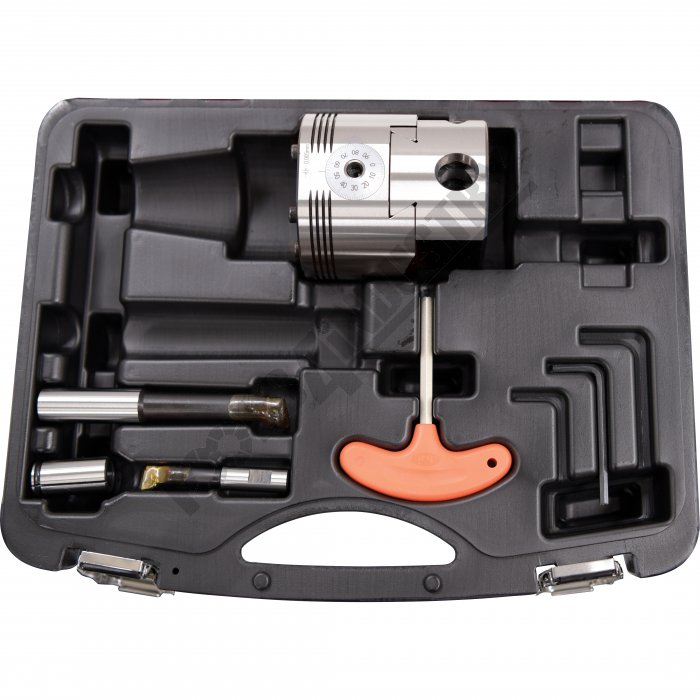

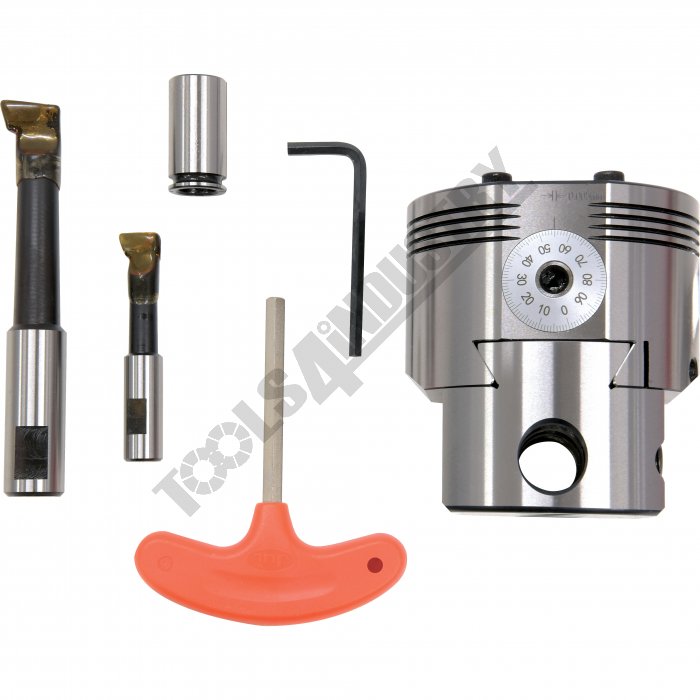

- Includes:
- 1 x 12mm shank carbide boring bar
- 1 x 18mm shank carbide boring bar
- 1 x 18-12mm boring bar sleeve
Specifications
- Compare 4 Products
- ORDER CODE
- MODEL
- Type
- Dmm
- Hmm
- d (lowercase)mm
- Wmm
- h (lowercase)mm
- Cross Hole Diametermm
- Centre Distance Between Holesmm
- Micro Adjustment Travelmm
- Nett Weightkg
| ORDER CODE | BHB |
|---|---|
| MODEL | Boring |
| Type | 84 |
| Dmm | 90 |
| Hmm | 18 |
| d (lowercase)mm | ~ |
| Wmm | ~ |
| h (lowercase)mm | ~ |
| Cross Hole Diametermm | ~ |
| Centre Distance Between Holesmm | ~ |
| Micro Adjustment Travelmm | 4.68 |
| Nett Weightkg |
