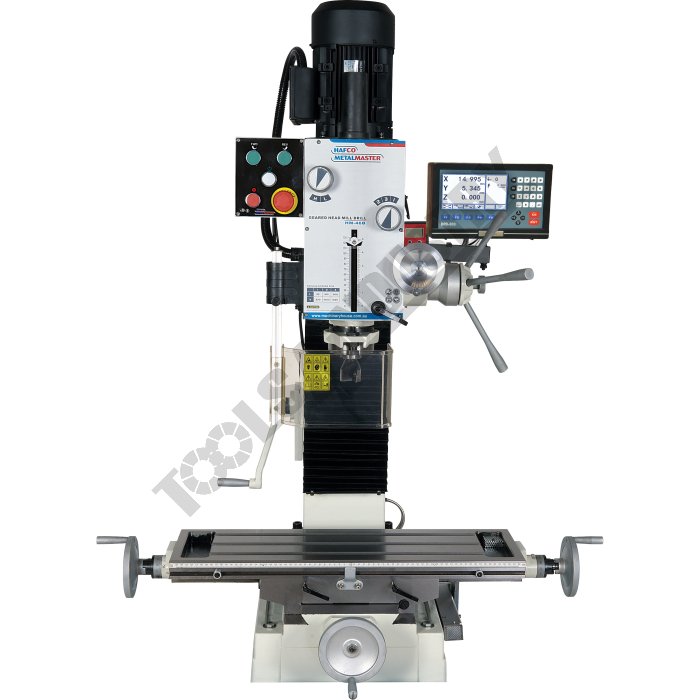

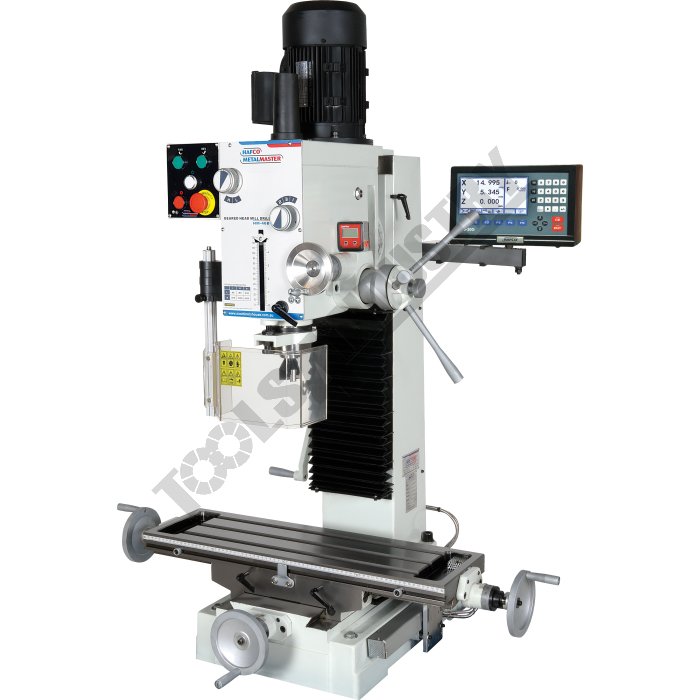

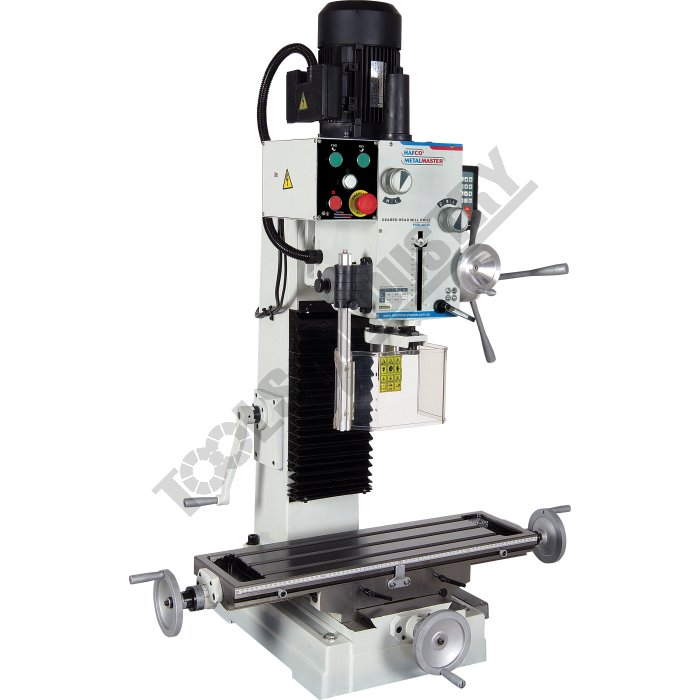

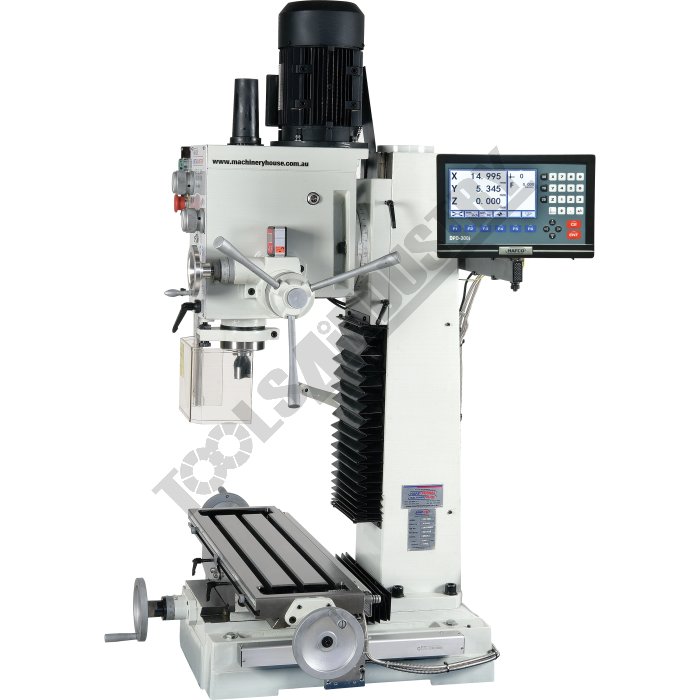

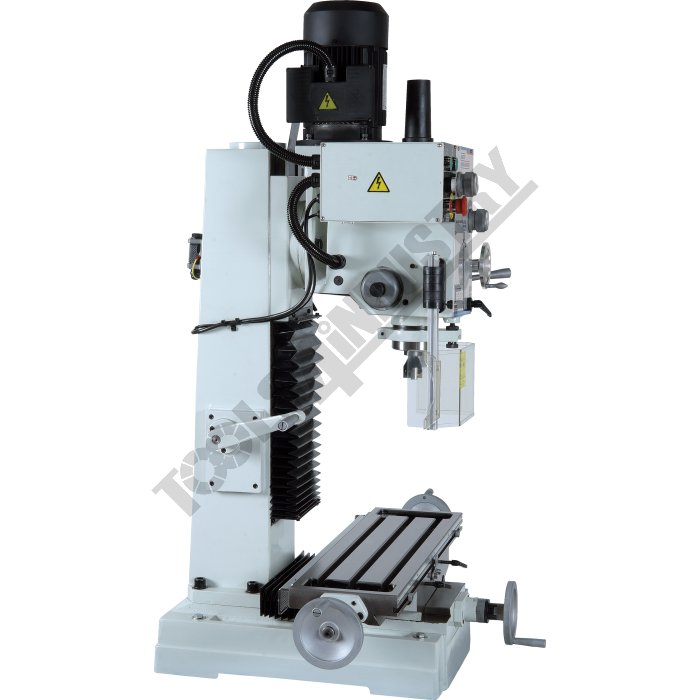

HM-46B Mill Drill - Geared & Tilting Head - 415V Table Travel: (X) - 485mm (Y) - 175mm (Z) - 430mm

Description

This HM-46B 415V milling machines is similar in overall size to the popular HM-32 but with the additional benefit of a 3-Axis digital readout counter fitted with 2-Axis X & Y scales for accurate table positioning with ease, 6-speeds 95-1650rpm, gear driven head which can be tilted up to 90º either side of the vertical. This feature allows the head to be positioned in a variety of positions, allowing a whole range of milling, slotting, grooving, drilling and boring operations to be carried out on different angles. In addition the milling head is also mounted to a vertical dovetail slide system that allows the head to maintain on the exact same centre position when raising or lowering.

The usual handle-driven down feed is available for precision drilling and there is a fine manual down-feed control for precise vertical milling.

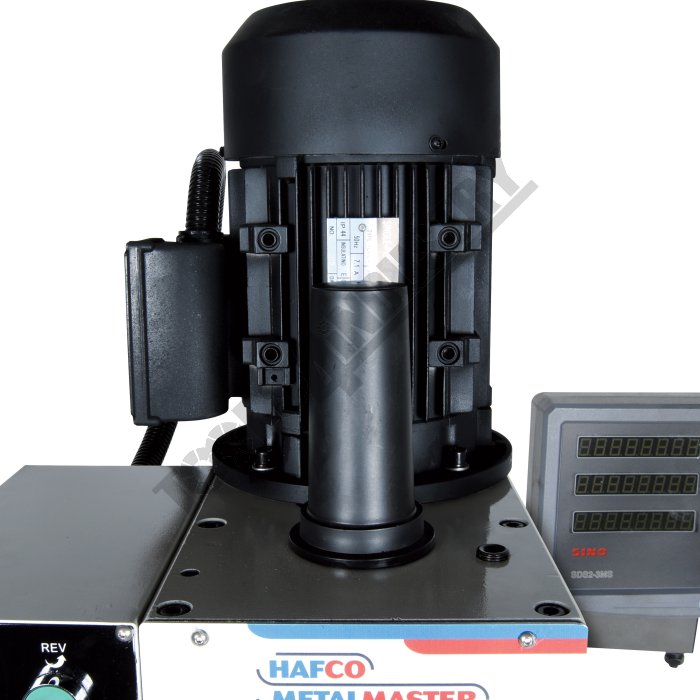

The motor is controlled by a separate forward and reverse on/off button switches.

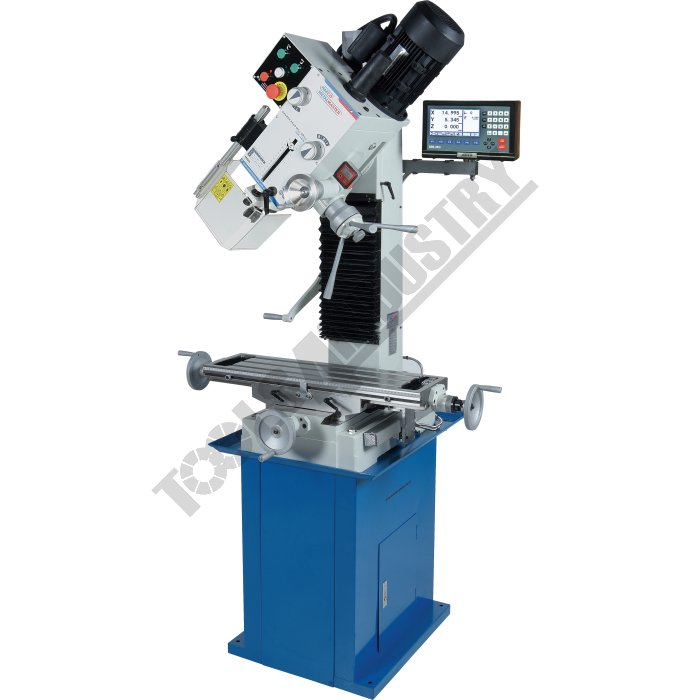

There is a heavy duty steel stand available as an extra, strongly recommended bearing in mind the weight of the machine.

Also available is an optional power feed attachment which fits to the left hand end of the table and provides a smooth, variable speed longitudinal drive.

Features

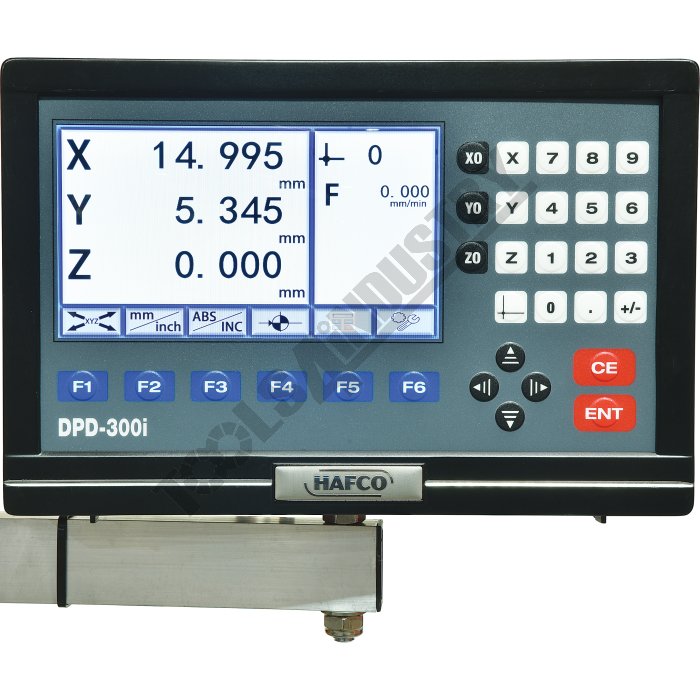

  • 3-Axis digital readout counter fitted with 2-Axis X & Y scales only

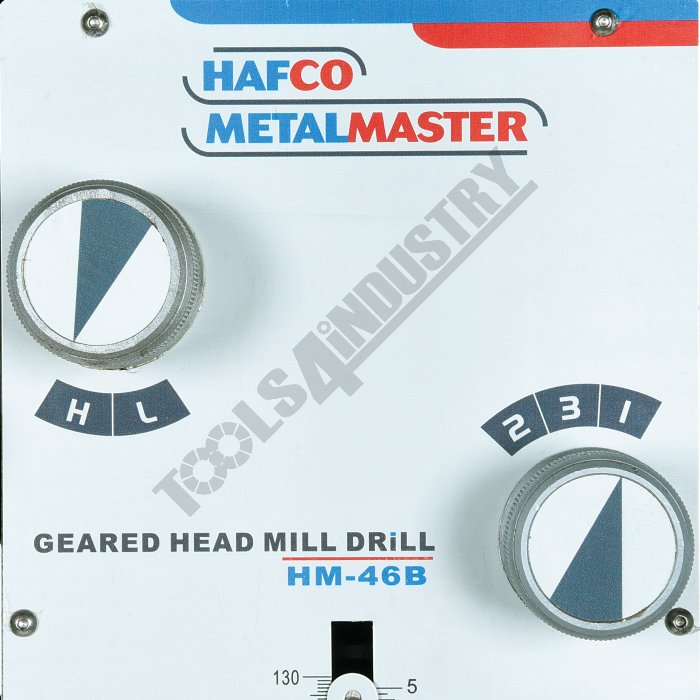

  • Gear driven head 6 speeds
  • Dovetail vertical Z-axis

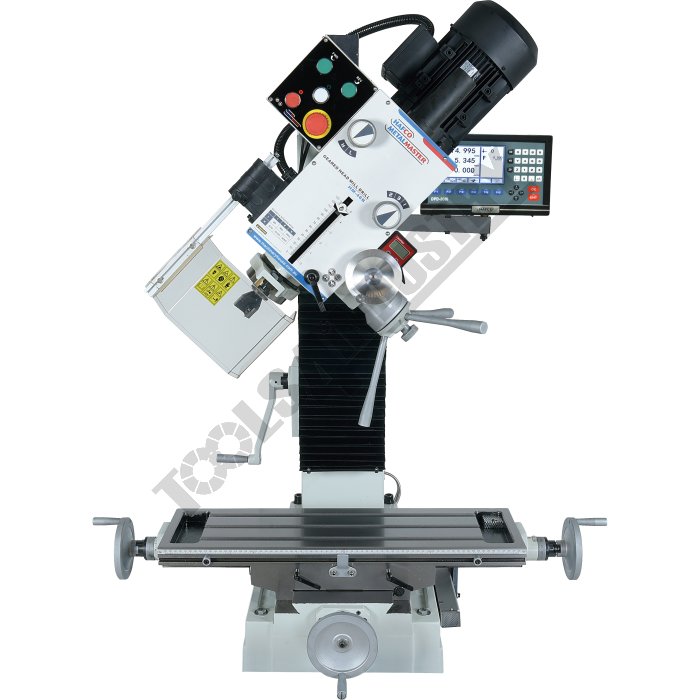

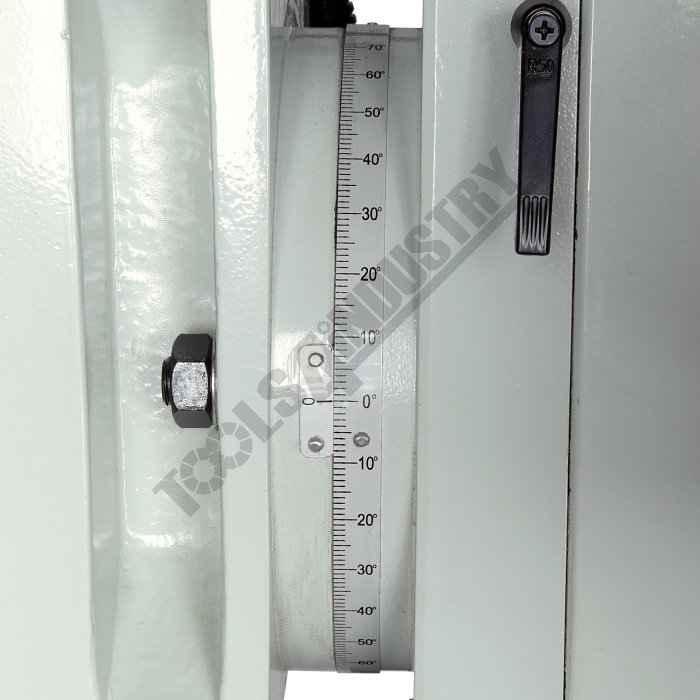

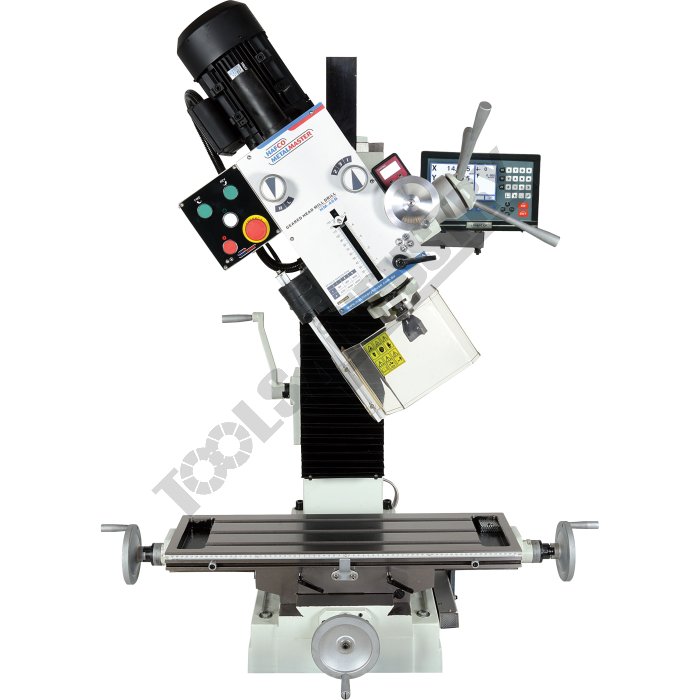

  • Mill head tilts to ±90º from vertical with digital display

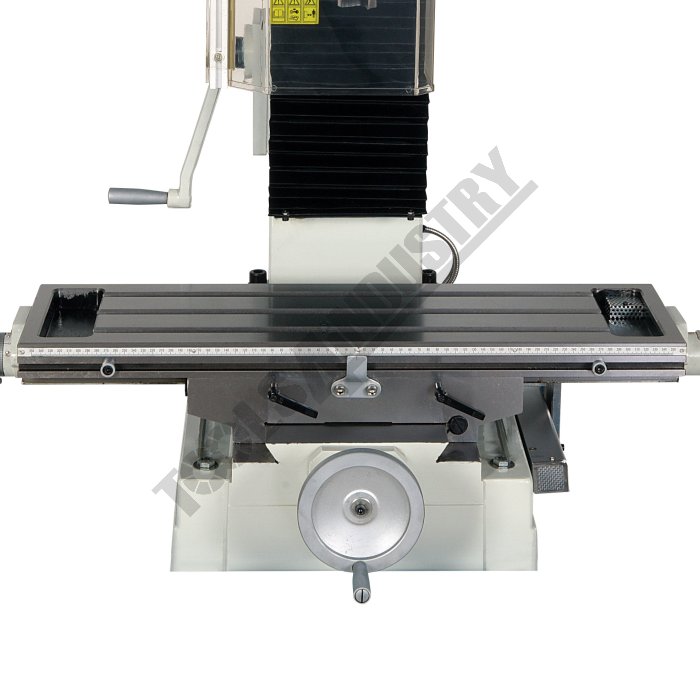

  • Large 730 x 210mm ground work table with T-slots
  • Adjustable leadscrew nuts eliminating backlash on both axis

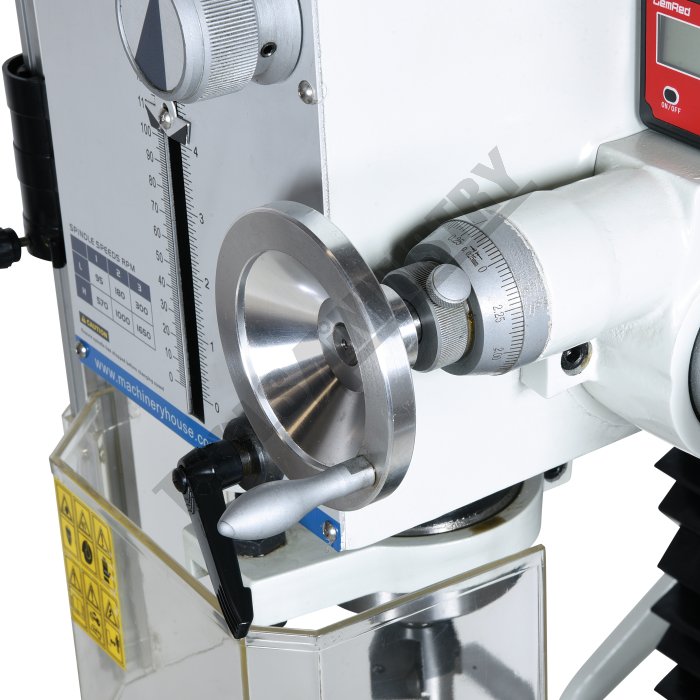

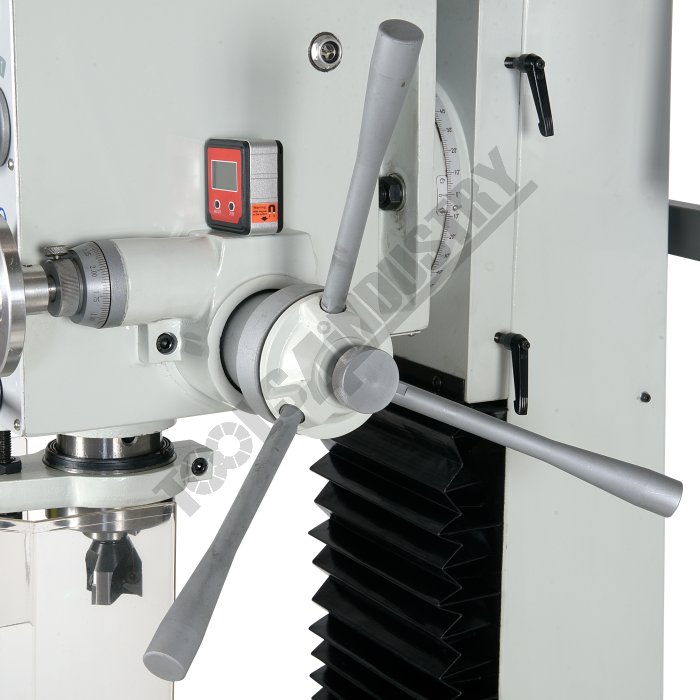

  • Fine feed hand wheel operating quill feed

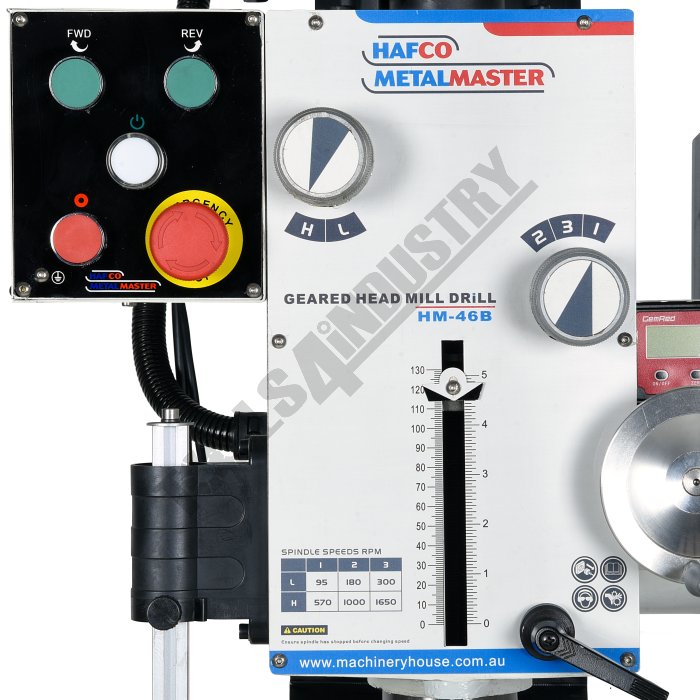

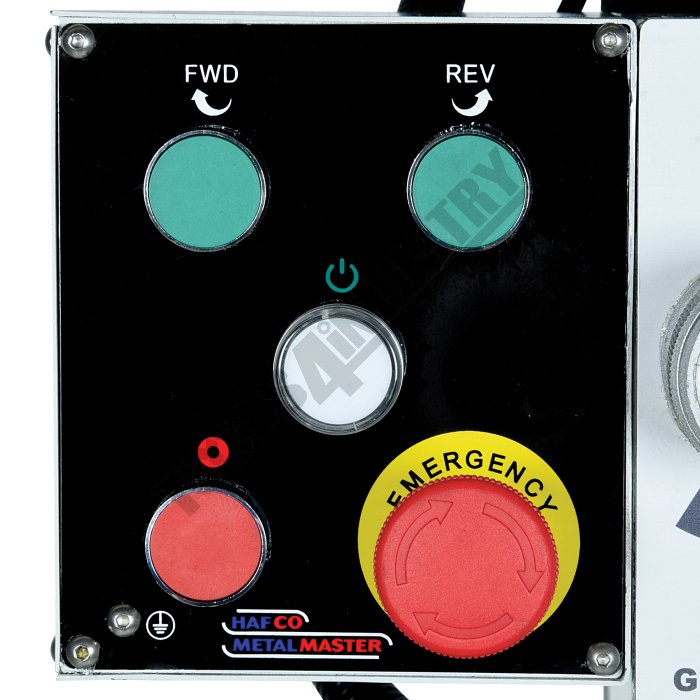

  • Forward and reverse on/off button switches

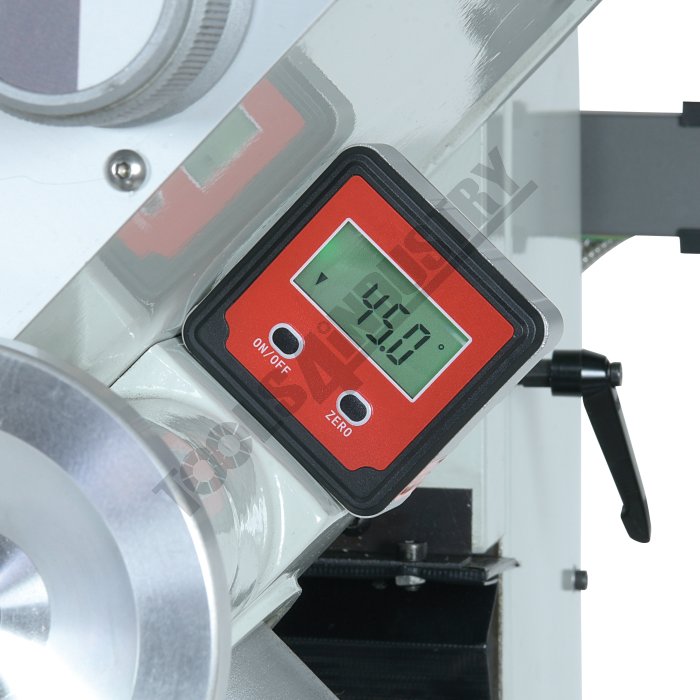

  • Digital tilting head gauge
  • 3MT spindle with 75mm diameter quill
  • Adjustable table and drill length stops

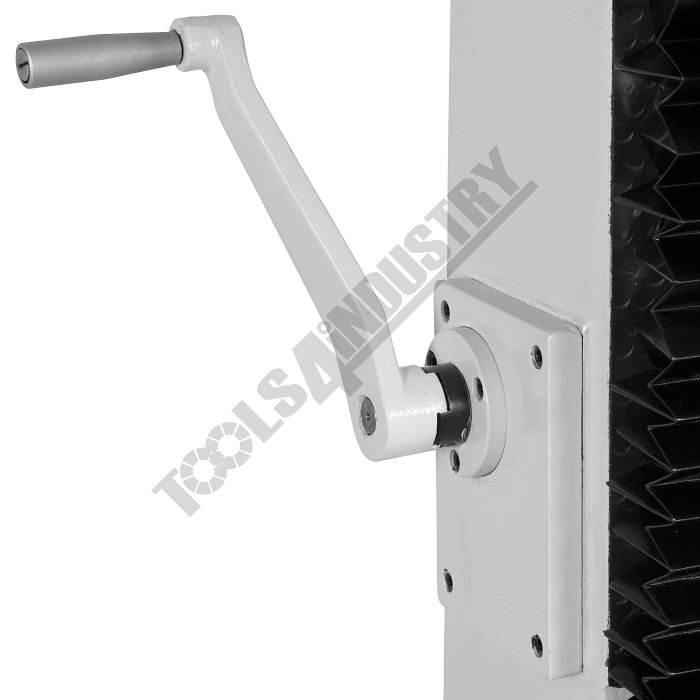

  • Rack and pinion wind-up head
  • Rear slide-way cover and slide clamps on all axis

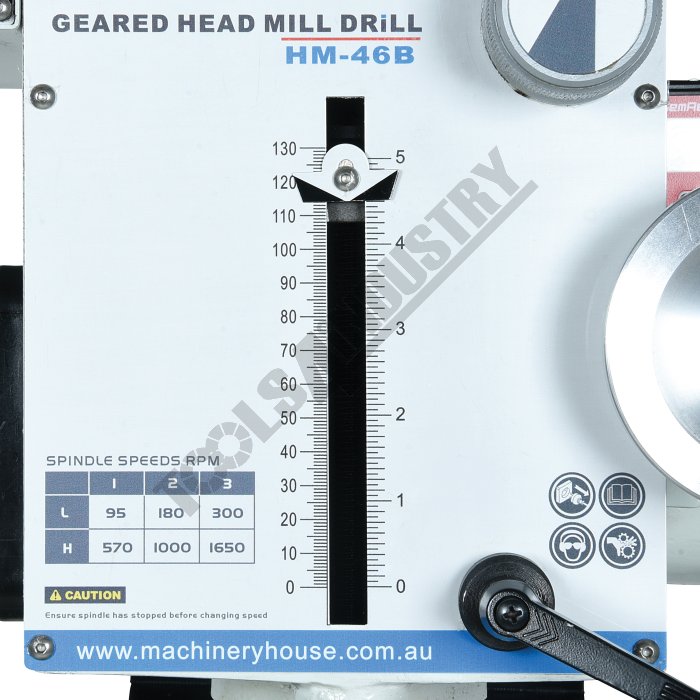

  • Spindle lock for quill
  • Table lock on both axis

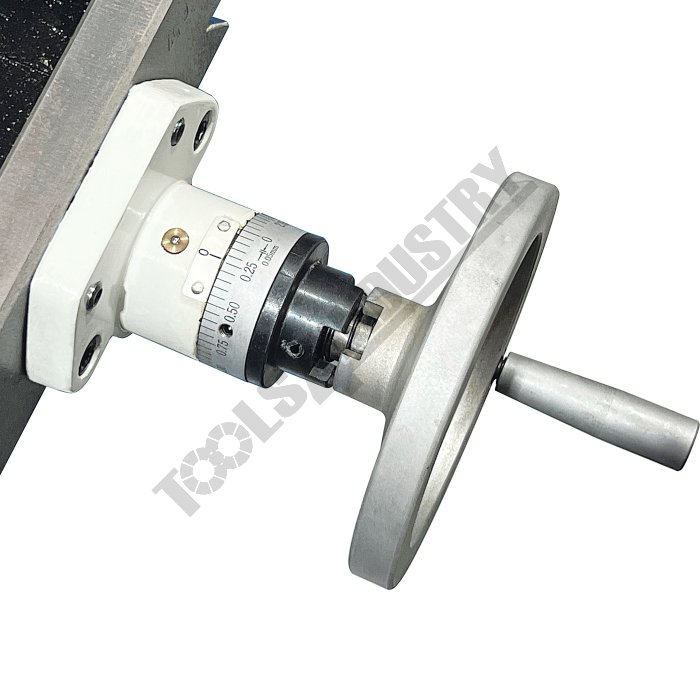

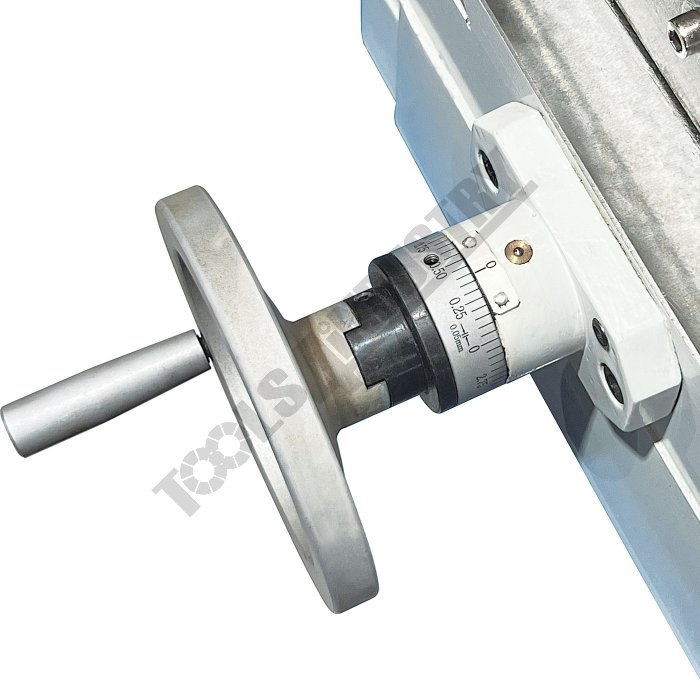

  • Metric dial graduations @ 0.05mm for X & Y axis

  • * Note: X & Y travels maybe reduced due to digital readout scales and safety stops

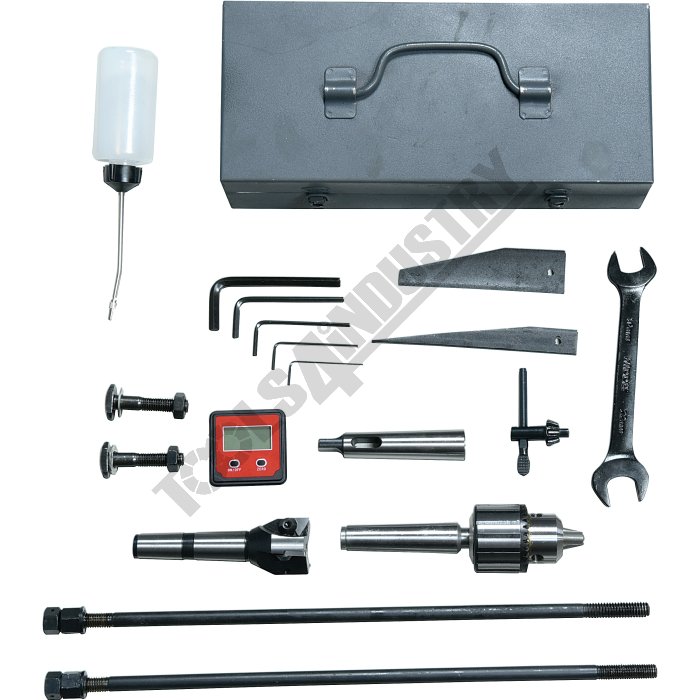

Includes

  • 3-Axis digital readout counter fitted with 2-Axis X & Y scales only
  • Digital tilting head gauge

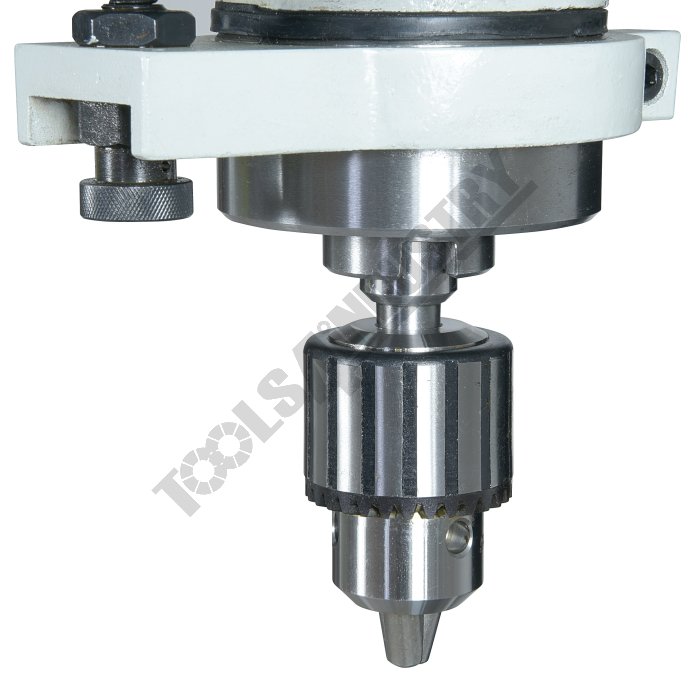

  • Drill chuck & arbor

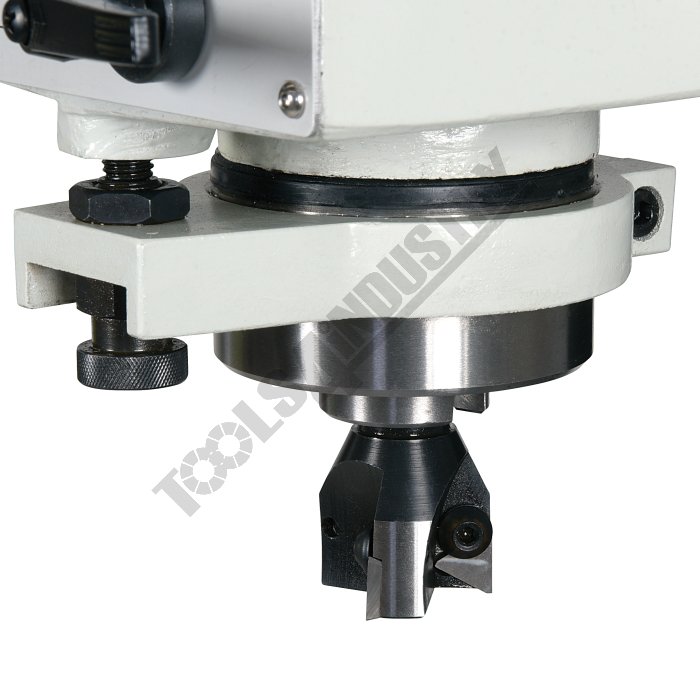

  • Face cutter & arbor

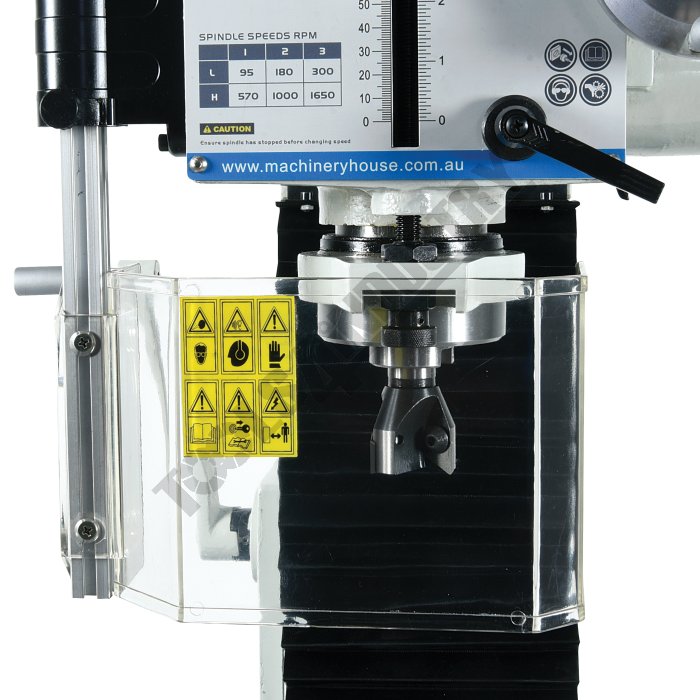

  • Safety cutter guard
  • 3-2MT sleeve
  • M12 drawbar
  • 1/2" x 12tpi whitworth drawbar

Optional Accessories

  • Z-Axis scale 470mm travel - (D5220)

Videos

Specifications

ORDER CODEHM-46B
MODEL3-Axis Counter, X, Y Scales
Digital ReadoutVertical
Type730 x 210
Table SizemmDovetail
Column Type3MT
Spindle Taper - Vertical~
Spindle Taper - Horizontal485*
Longitudinal Travel (X-Axis)mm175*
Cross Travel (Y-Axis)mm430
Vertical Travel (Z-Axis)mmDovetail
Type of Slides~
Ram Travelmm485
Spindle to Tablemm~
Spindle to Base120 / 75
Spindle Travel / Diametermm265
Throat Depth (max.)mm±90º
Tilting Head (Left ~ Right)Fixed
Tilting Head (Forward ~ Back)31.5
Drilling Capacitymm28
End Milling Capacitymm80
Face Milling Capacitymm~
Power Feed - Quillmm/revOptional
Power Feed - Longitudinal (X-Axis)mm/min~
Power Feed - Cross (Y-Axis)mm/min~
Power Feed - Vertical (Z-Axis)mm/min14
Table T-Slot Sizeinch / mm55

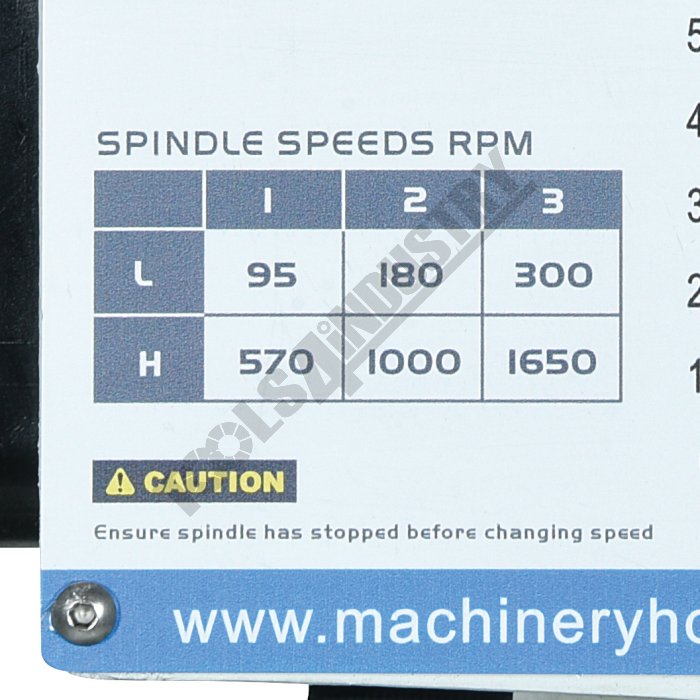

Work Table Load Capacitykg6 (95 - 1650)
Spindle Speeds VerticalNo./ rpm~
Spindle Speeds HorizontalNo./ rpm~
Spindle Speeds - Universal Head1.5 / 2
Motor Power - Vertical SpindlekW / hp~
Motor Power - Horizontal SpindlekW / hp~
Motor Power - Universal Head415 /
Voltage / AmperageV / amp102 x 102 x 143
Shipping Dimensions (L x W x H)cm380
Nett Weightkg
