| Code | M584D |
|---|---|
| Model | BM-EVS300 |
| Capacity | Table Travel: (X) - 940mm (Y) - 350mm (Z) - 445mm |
| Weight (kg) | 1750 |
| Weight (m3) | 6.243 |
| Weight (Freight) | 2,078.919 |
| Dimensions (cm) | 174 x 154 x 233 |

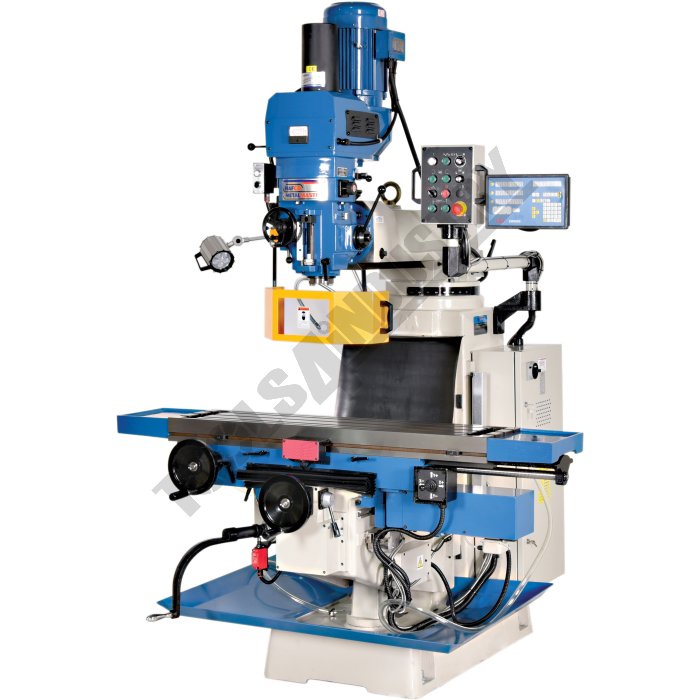

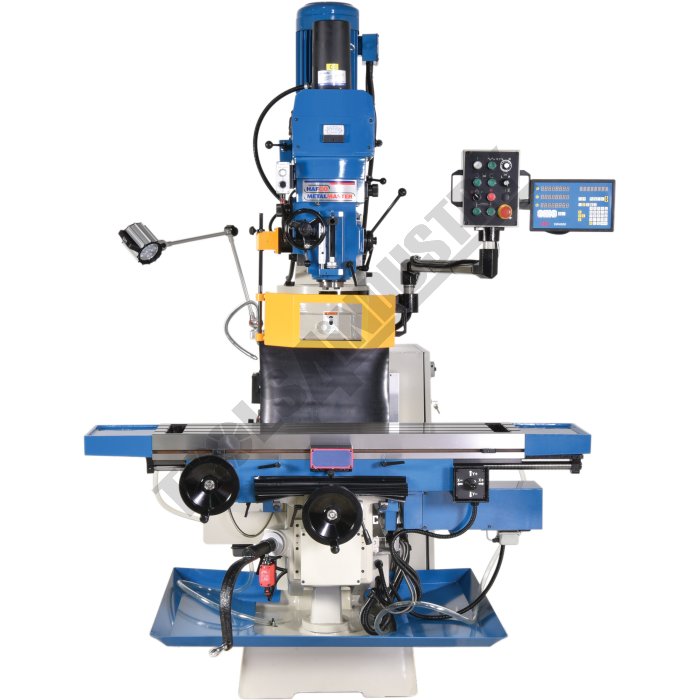

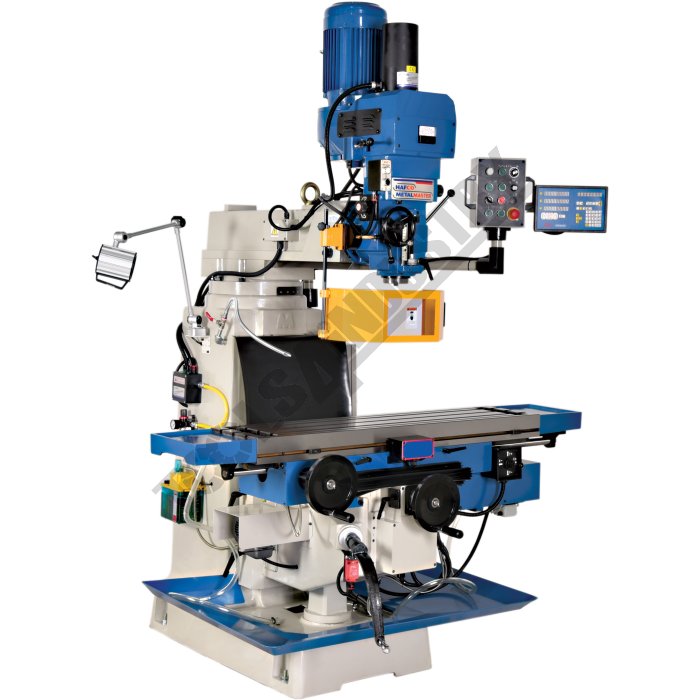

Industrial Turret Milling Machine BM-EVS300 Table Travel: (X) - 940mm (Y) - 350mm (Z) - 445mm
Features

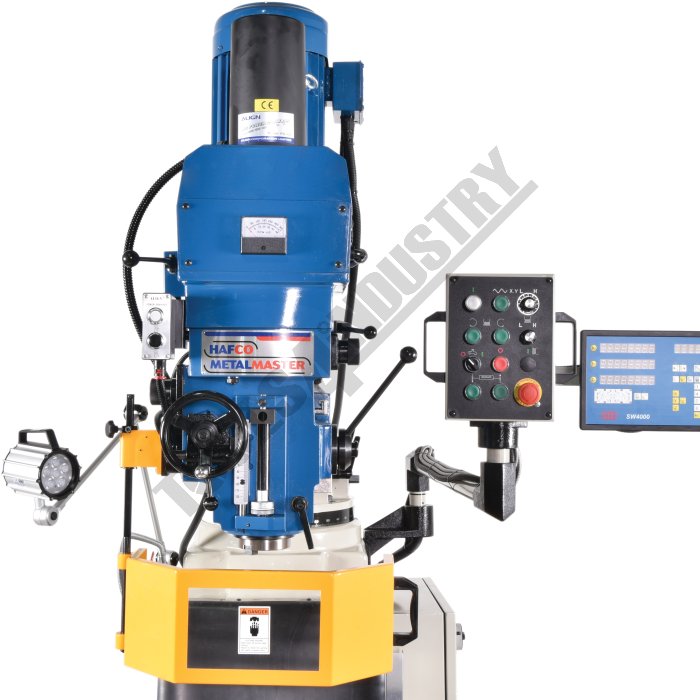

- Yaskawa inverter variable speed drive, 60 – 3600rpm
- 5HP - 415V spindle motor provides exceptional machining power
- 1270 x 300mm hardened and ground worktable

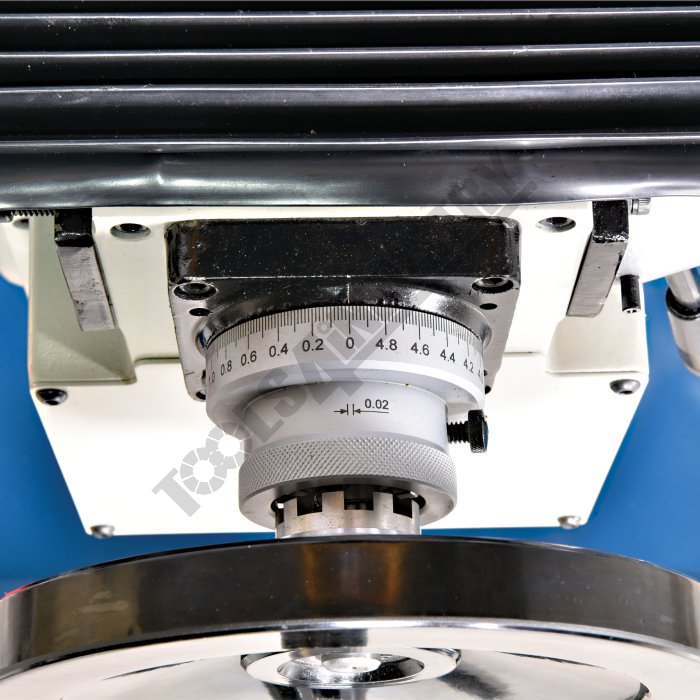

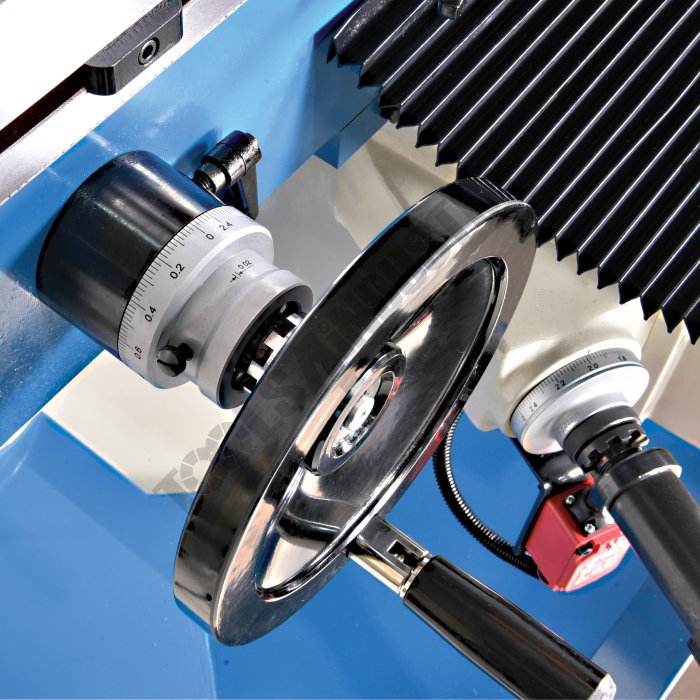

- Zero backlash preloaded ball screw to X & Y-Axis

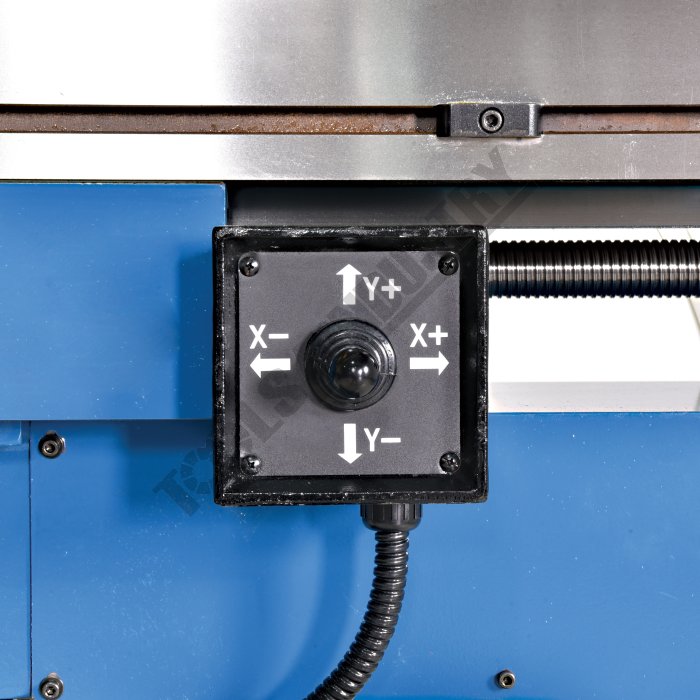

- Servo feeds on X & Y-Axis

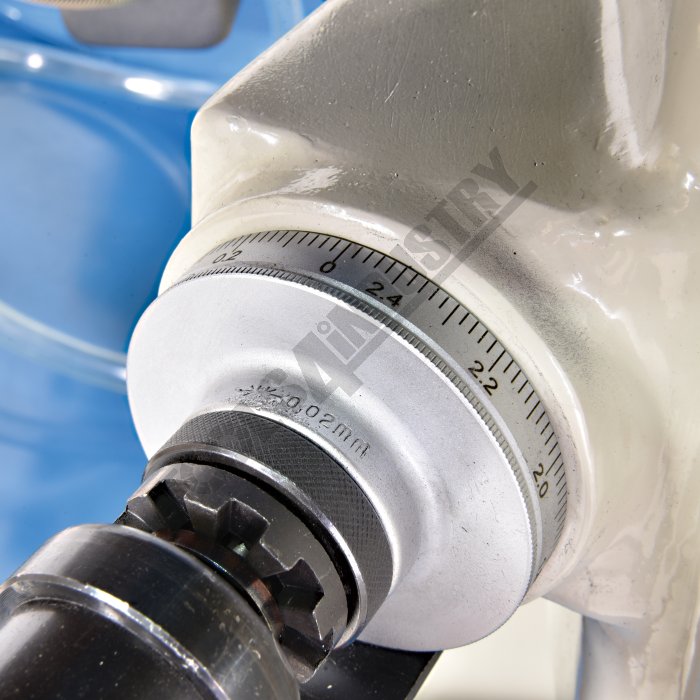

- Z-Axis powered elevating motor
- NT40 spindle taper with Ø105mm chrome hardened and ground quill

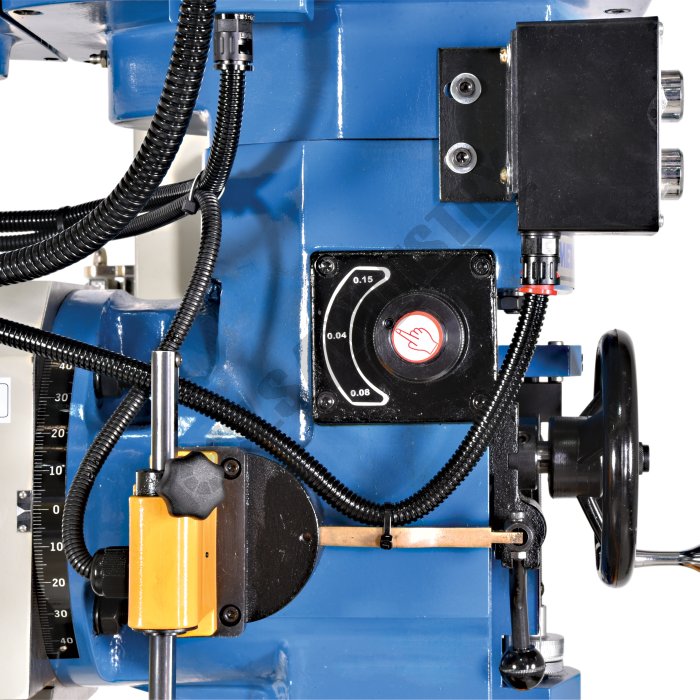

- Automatic quill feed 0.037, 0.076, 0.152mm/rev

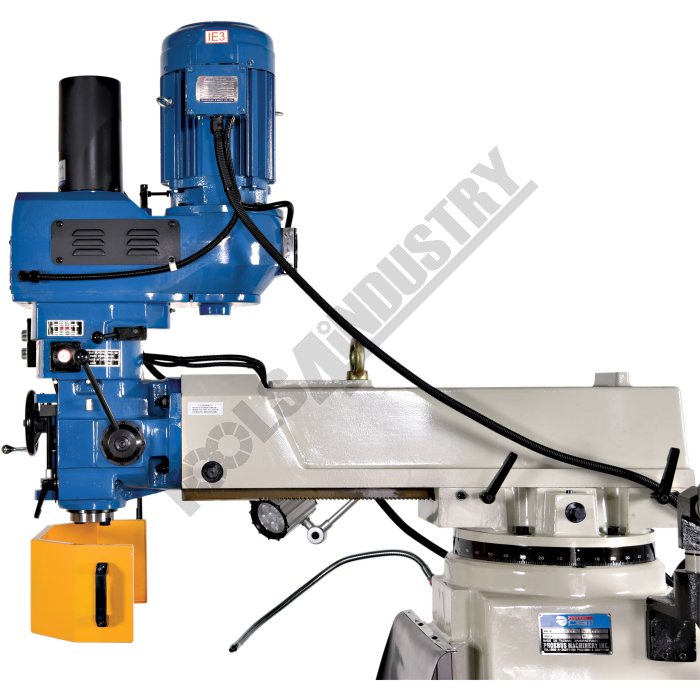

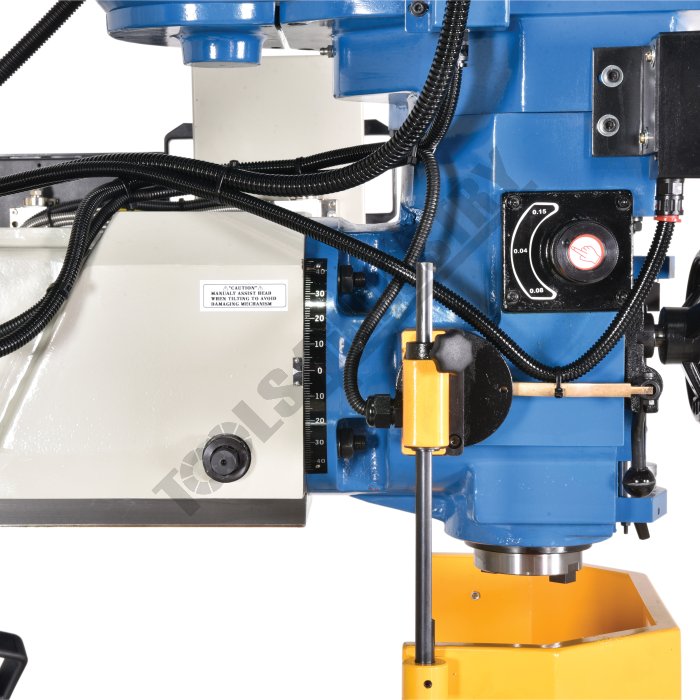

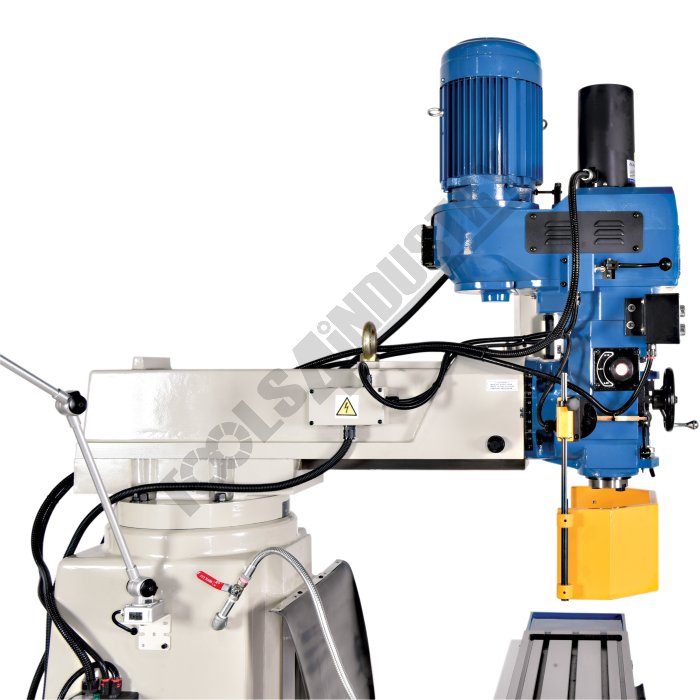

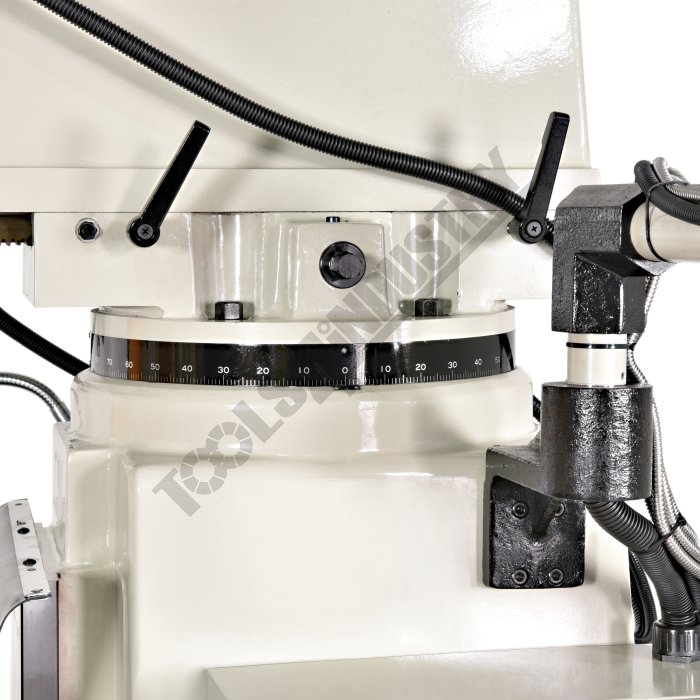

- Vertical mill head swivels ±45º to left and right

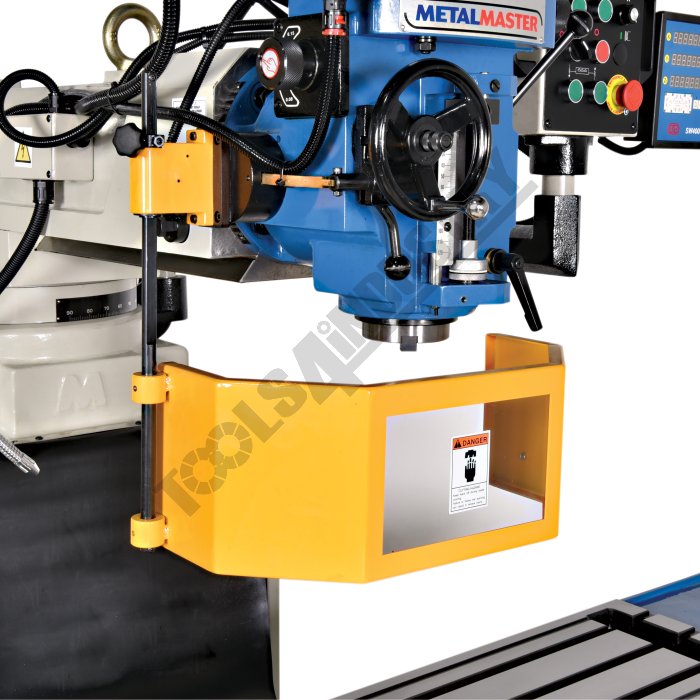

- Spindle guard with micro switch

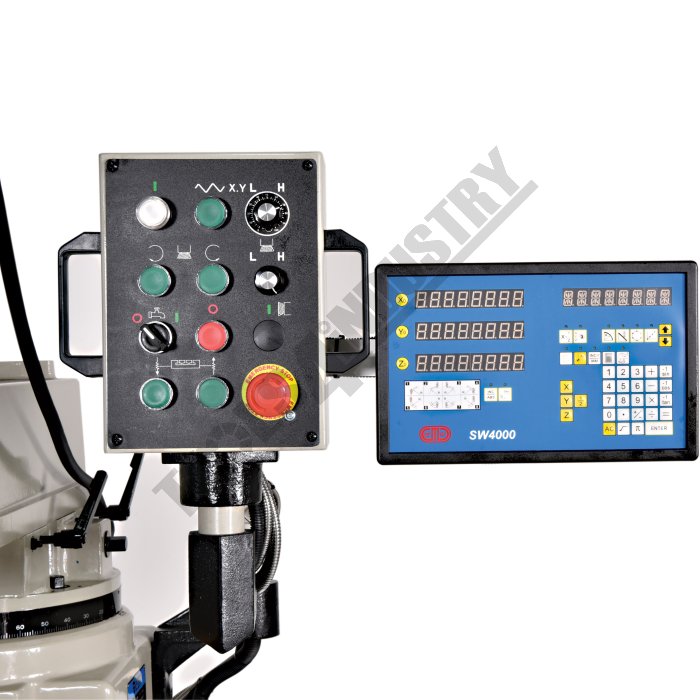

- 3-Axis digital readout fitted
- Pneumatic draw bar system for quick and effortless tool change
- Meehanite castings for superior rigidity
- Hardened and ground dovetail guideways on the X-Axis and square guideways on Y & Z-Axis
- Turcite-B coating on X & Y-Axis ways for wear resistance and smooth operation

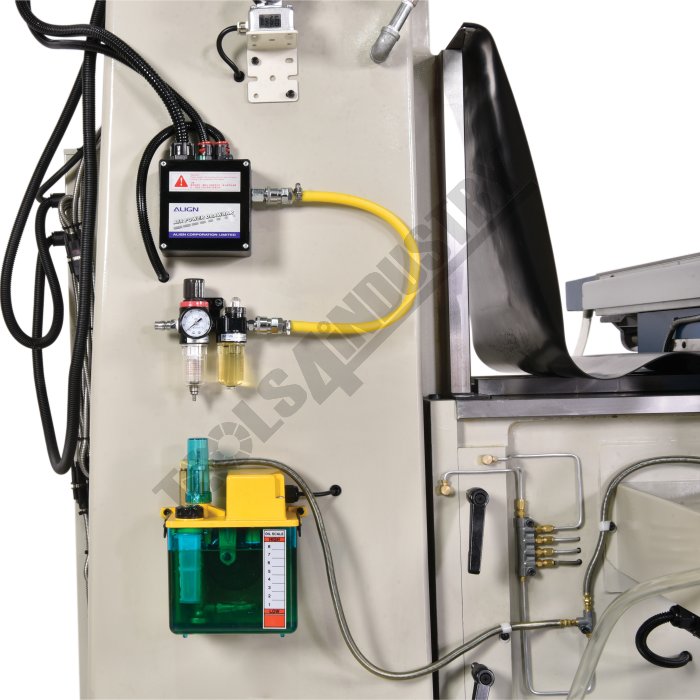

- Auto lubrication system maintains proper lubrication to all slideways
Includes
- 3-Axis Digital Readout
- Automatic lubrication System
- Pneumatic Tool Clamping

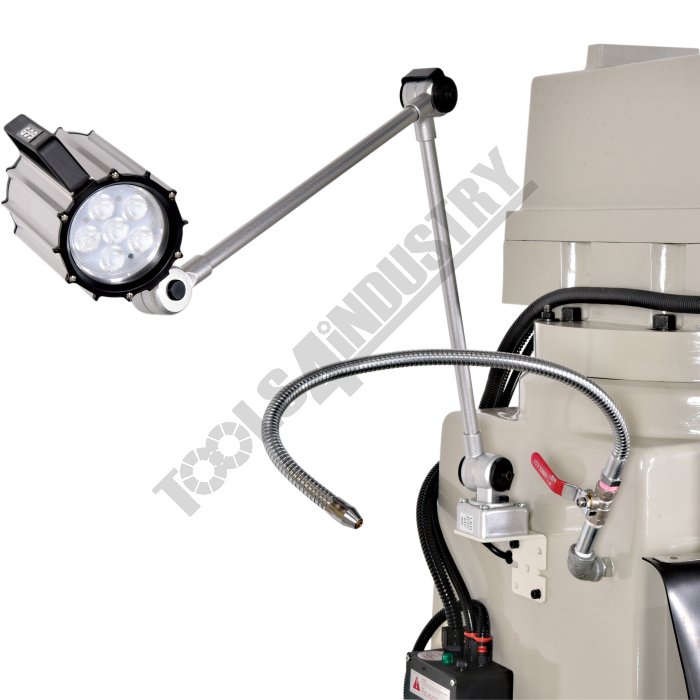

- LED Lamp, Coolant System
- Slide-way Covers
- Safety Cutter Guard
- Swarf Tray
- M16 Drawbar
Specifications
- Compare 20 Products
- ORDER CODE
- MODEL
- Digital Readout
- Type
- Table Sizemm
- Column Type
- Spindle Taper - Vertical
- Spindle Taper - Horizontal
- Longitudinal Travel (X-Axis)mm
- Cross Travel (Y-Axis)mm
- Vertical Travel (Z-Axis)mm
- Type of Slides
- Ram Travelmm
- Spindle to Tablemm
- Spindle to Base
- Spindle Travel / Diametermm
- Throat Depth (max.)mm
- Tilting Head (Left ~ Right)
- Tilting Head (Forward ~ Back)
- Drilling Capacitymm
- End Milling Capacitymm
- Face Milling Capacitymm
- Power Feed - Quillmm/rev
- Power Feed - Longitudinal (X-Axis)mm/min
- Power Feed - Cross (Y-Axis)mm/min
- Power Feed - Vertical (Z-Axis)mm/min
- Table T-Slot Sizeinch / mm
- Work Table Load Capacitykg
- Spindle Speeds VerticalNo./ rpm
- Spindle Speeds HorizontalNo./ rpm
- Spindle Speeds - Universal Head
- Motor Power - Vertical SpindlekW / hp
- Motor Power - Horizontal SpindlekW / hp
- Motor Power - Universal Head
- Voltage / AmperageV / amp
- Nett Weightkg
- M584D
- BM-EVS300
- 3-Axis Digital Readout
- Vertical
- 1270 x 305
- ~
- NT40
- ~
- 940
- 350
- 445
- Dovetail (X) Square (Y & Z)
- 490
- 495
- ~
- 127 / 105
- 660
- ±90º
- ~
- ~
- ~
- ~
- 0.04 / 0.08 / 0.15
- Yes
- Yes
- Rapid
- 5/8
- 300
- Inverter (60 - 3600)
- ~
- ~
- 3.75 / 5
- ~
- ~
- 415
- 1650
- M586D
- BM-GEVS250
- 3-Axis Digital Readout
- Vertical & Horizontal
- 1100 x 250
- ~
- NT40
- NT40
- 700
- 250
- 440
- Dovetail (X, Y & Z)
- 300
- 470
- ~
- 127 / 105
- 500
- ±90º
- ~
- ~
- ~
- ~
- 0.037 / 0.076 / 0.152
- 0.02 - 0.20
- Optional
- Rapid
- 5/8
- 300
- Variable (60 - 3600)
- 6 (40 - 980)
- ~
- 3.75 / 5
- 2.25 / 3
- ~
- 415
- 1350
- M597D
- BM-53VE
- 3-Axis Digital Readout
- Vertical
- 1370 x 254
- ~
- NT40
- ~
- 890
- 400
- 415
- Dovetail (X), Square (Y & Z)
- 555
- 465
- ~
- 127 / 86
- 635
- ±90º
- ±45º
- ~
- ~
- ~
- 0.04 / 0.08 / 0.15
- 20 - 2000
- 20 - 2000
- Rapid
- 16
- 350
- Variable (50 - 3550)
- ~
- ~
- 3.75 / 5
- ~
- ~
- 415
- 1545
- M599D
- BM-63VE
- 3-Axis Digital Readout
- Vertical
- 1370 x 254
- ~
- NT40
- ~
- 890
- 400
- 400
- Dovetail (X), Square (Y&Z)
- 550
- 450
- ~
- 127 / 105
- 740
- ±90º
- ±45º
- ~
- ~
- ~
- 0.04 / 0.08 / 0.15
- 20 - 2000
- 20 - 2000
- Rapid
- 16
- 400
- Variable (50 - 3550)
- ~
- ~
- 3.75 / 5
- ~
- ~
- 415
- 1555
- M638D
- BM-1600
- 3-Axis Digital Readout
- Universal Head
- 1600 x 360
- Dovetail
- NT50
- NT50
- 1310
- 300
- 410
- Dovetail (X), Square (Y & Z)
- 45 - 745
- 150 - 560
- ~
- ~
- ~
- 360º
- Fixed
- ~
- ~
- ~
- ~
- 30 - 750
- 20 - 500
- 15 - 375
- 18
- 400
- 12 / 60 - 1750
- 12 / 60 - 1800
- 27 (30 - 2050)
- 4 / 5.5
- 5.5 / 7.5
- ~
- 415
- 4500
- M647
- BF-20V
- Optional
- Vertical
- ~
- Dovetail
- 3MT
- ~
- ~
- ~
- 280
- Dovetail
- ~
- ~
- ~
- 50 / 60
- 185
- ±90º
- Fixed
- 16
- 20
- 63
- ~
- ~
- ~
- ~
- ~
- ~
- Variable (90 - 3000)
- ~
- ~
- 0.85 / 1.13
- ~
- ~
- 240 / 10
- 103
- M649
- BF-16V
- Optional
- Vertical
- 400 x 120
- Dovetail
- 3MT
- ~
- 220
- 160
- 210
- Dovetail
- ~
- 270
- ~
- 50 / 60
- 170
- ±90º
- Fixed
- 16
- 20
- 63
- ~
- ~
- ~
- ~
- 10
- 25
- Variable (100 - 3000)
- ~
- ~
- 0.5 / 0.66
- ~
- ~
- 240 / 10
- 78
- M650
- BF-20LV
- Optional
- Vertical
- 700 x 180
- Dovetail
- 3MT
- ~
- 480
- 175
- 280
- Dovetail
- ~
- 350
- ~
- 50 / 60
- 185
- ±90º
- Fixed
- 16
- 20
- 63
- ~
- ~
- ~
- ~
- 12
- 40
- Variable (90 - 3000)
- ~
- ~
- 0.85 / 1.13
- ~
- ~
- 240 / 10
- 162
- M137
- HM-32B
- Optional
- Vertical
- 820 x 240
- Ø115mm
- 3MT
- ~
- 540
- 235
- 310
- Dovetail
- ~
- 465
- ~
- 130 / 75
- 202
- Fixed
- Fixed
- 31.5
- 22
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 12 (100 - 2080)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 310
- M652
- HM-28V
- Optional
- Vertical
- 730 x 210
- Dovetail
- 3MT
- ~
- 430
- 220
- 355
- Dovetail
- ~
- 465
- ~
- 70 / ~
- 210
- ±90º
- Fixed
- 20
- 28
- 70
- ~
- ~
- ~
- ~
- 14
- 55
- Variable (100 - 2500)
- ~
- ~
- 1.1 / 1.5
- ~
- ~
- 240 / 10
- 240
- M138
- HM-46B
- ~
- Vertical
- 730 x 210
- Dovetail
- 3MT
- ~
- 485
- 175
- 430
- Dovetail
- ~
- 485
- ~
- 120 / 75
- 265
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 6 (95 - 1650)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 380
- M138D
- HM-46B
- 3-Axis Counter, X, Y Scales
- Vertical
- 730 x 210
- Dovetail
- 3MT
- ~
- 485*
- 175*
- 430
- Dovetail
- ~
- 485
- ~
- 120 / 75
- 265
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 6 (95 - 1650)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 380
- M139D
- HM-46B
- 3-Axis Counter, X, Y Scales
- Vertical
- 730 x 210
- Dovetail
- 3MT
- ~
- 485*
- 175*
- 430
- Dovetail
- ~
- 485
- ~
- 120 / 75
- 265
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 6 (95 - 1650)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 415 /
- 380
- D185
- DMF-44
- Optional
- Vertical
- 730 x 210
- Ø125mm
- 3MT
- ~
- 480
- 200
- 850
- Dovetail
- ~
- 630
- ~
- 120 / 75
- 280
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 6 (95 - 1650)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 390
- M140D
- HM-47B
- 3-Axis Counter, X, Y Scales
- Vertical
- 800 x 240
- Dovetail
- 3MT
- ~
- 540*
- 205*
- 385
- Dovetail
- ~
- 485
- ~
- 120 / 75
- 265
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Optional
- ~
- ~
- 14
- 55
- 6 (95 - 1650)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 430
- M141D
- HM-48B
- 3-Axis Digital Readout
- Vertical
- 1000 x 240
- Dovetail
- 3MT
- ~
- 670*
- 205*
- 380
- Dovetail
- ~
- 480
- ~
- 120 / 75
- 265
- ±90º
- Fixed
- 31.5
- 28
- 80
- ~
- Yes
- ~
- ~
- 14
- 55
- 6 (95 - 1650)
- ~
- ~
- 1.5 / 2
- ~
- ~
- 240 / 10
- 450
- M577
- HM-51B
- 3-Axis Digital Readout
- Vertical
- 1000 x 240
- ~
- NT30
- ~
- 580*
- 190*
- 350
- Dovetail
- 350
- 390
- ~
- 125 / 90
- 550
- ±45º
- Fixed
- 30
- 25
- 80
- Manual
- 20 - 2000
- ~
- ~
- 14
- 175
- 9 (220 - 2400)
- ~
- ~
- 2.2 / 3
- ~
- ~
- 240 / 15
- 850
- M579
- HM-54GV
- 3-Axis Digital Readout
- Vertical & Horizontal
- 1000 x 240
- ~
- NT30
- NT30
- 600*
- 200*
- 340
- Dovetail
- 450
- 375
- ~
- 120 / 90
- 640
- ±45º
- Fixed
- 40
- 25
- 80
- Manual
- 20 - 2000
- ~
- ~
- 14
- 160
- Variable (100 - 2000)
- 9 (60 - 1350)
- ~
- 2.2 / 3
- 1.5 / 2
- ~
- 240 / 10
- 900
- M603D
- BM-30A
- 3-Axis Counter, X, Y Scales
- Vertical
- 1270 x 254
- ~
- NT30
- ~
- 760
- 360
- 430
- Dovetail
- 520
- 505
- ~
- 127 / 86
- 740
- ±90º
- ±45º
- ~
- ~
- ~
- 0.015 / 0.04 / 0.08
- 20 - 2000
- Optional
- Optional
- 5/8
- 250
- 8 (80 - 2720)
- ~
- ~
- 2.2 / 3
- ~
- ~
- 240 / 20
- 1100
- M607D
- BM-40V
- 3-Axis Digital Readout
- Vertical
- 1370 x 254
- ~
- NT30
- ~
- 860
- 360
- 425
- Dovetail
- 508
- 505
- ~
- 127 / 86
- 735
- ±90º
- ±45º
- ~
- ~
- ~
- 0.015 / 0.04 / 0.08
- 20 - 2000
- Optional
- Optional
- 5/8
- 300
- Variable (70 - 3500)
- ~
- ~
- 2.2 / 3
- ~
- ~
- 415
- 1300
