| Code | D448 |
|---|---|
| Capacity | Suits Ø16mm Drill Chucks |
| Weight (kg) | 1.02 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 1.02 |
| Dimensions (cm) | 18.4 x 7.4 x 7.2 |

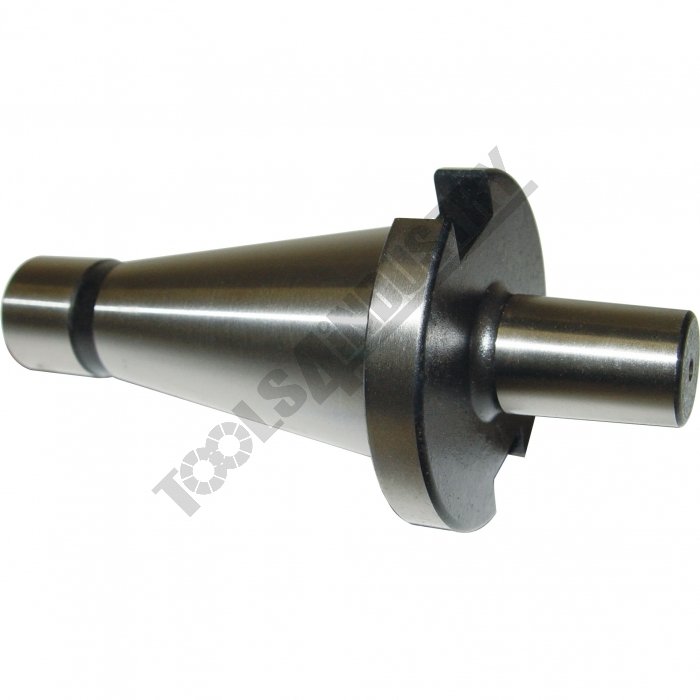

NT40 x JT3 Drill Chuck Arbor - M16 Threaded Shank Suits Ø16mm Drill Chucks
Description

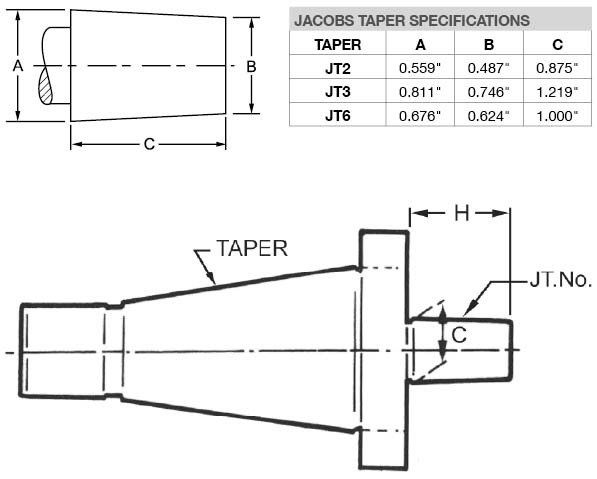

Drill chuck arbors have one end which is the taper of the machine. The most common are Morse Tapers for mounting in a drill press spindle or lathe, or NT tapers for mounting in Milling machines. The other end of the arbor is a short taper called a Jacobs Taper that is driven into the taper of the chuck body. The JT taper or Jacobs Taper is the most commonly used taper for mounting a drill chuck. The most common tapers used in Australia are JT2, JT3, JT4 & JT6Features
- Hardened & precision ground with M16 drawbar thread
Specifications
- Compare 15 Products
- ORDER CODE
- Long TaperMT
- Short TaperJT
- Suits Chuck Sizemm
- Threaded Shank
| ORDER CODE | NT40 |
|---|---|
| Long TaperMT | JT3 |
| Short TaperJT | 16 |
| Suits Chuck Sizemm | M16 |
| Threaded Shank |
