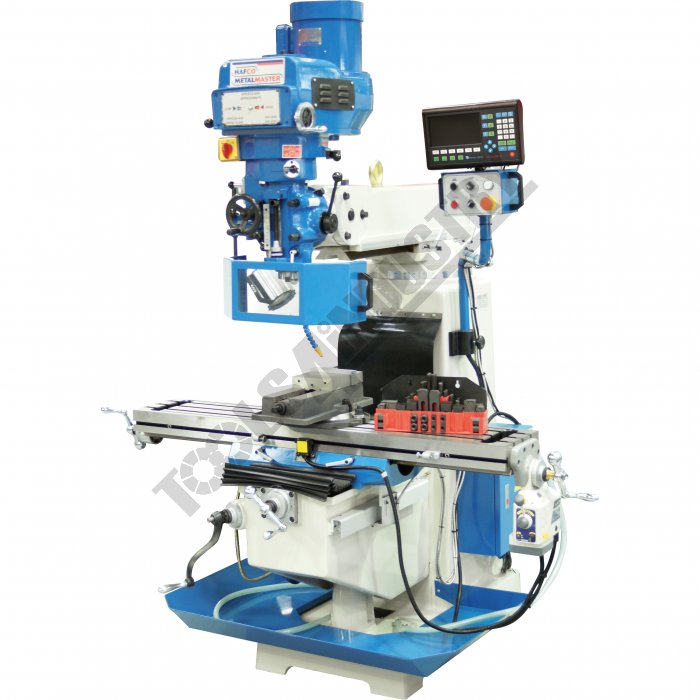

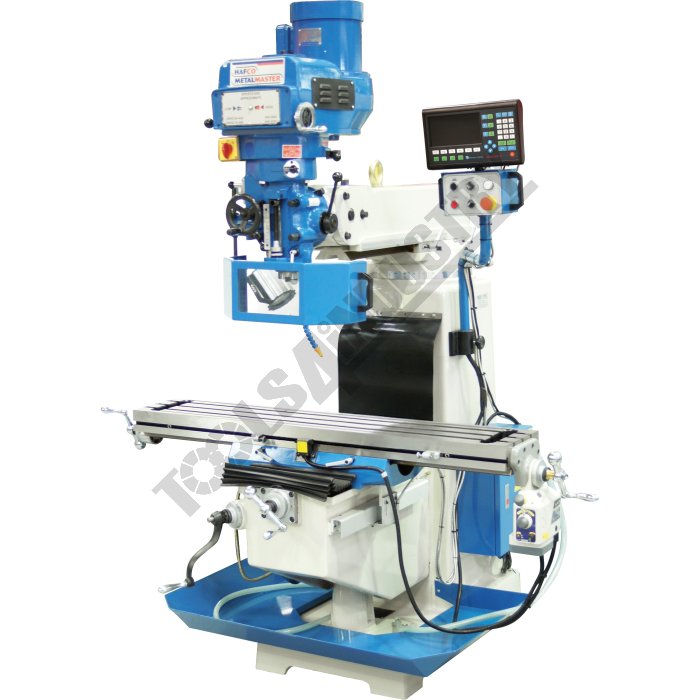

Industrial Turret Milling Machine BM-40V Table Travel: (X) - 860mm (Y) - 360mm (Z) - 425mm

Description

The BM-40V Industrial turret milling machine is manufactured in Taiwan to a strict precision engineering ultra-high tolerance & superior excellence to cope with many jobs set out by the professional machinist, and importantly to deliver many years of valuable & reliable service.

This medium robust milling machine package is next in the line up from the BM-30A model and is also complete with a few of the most desirable features for example, easy to use variable spindle speed dial, turcite B coated X & Y slide-ways that reduces friction to provide smooth table movement even when loaded up with a heavy job, hardened & ground work table & slide-ways, heavy duty X-axis auto power-feed with adjustable feed stops, 3-axis digital readout system fitted, manual operated oil pump to keep slides in perfect working order and also includes a machine vice & clamp kit set to get you started.

Another reliable feature in this range of precision milling machines is the manufacturing process of the main body & supports, it is made up form the highest quality Meehanite® cast iron. The key to the undisputed success of Meehanite® metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance.

To conclude this BM-40V turret milling machine is the most common size machine that’s found in approximately 70% of engineering workshops and when its put to the test it certainly performs its duties with no hesitation.

Features

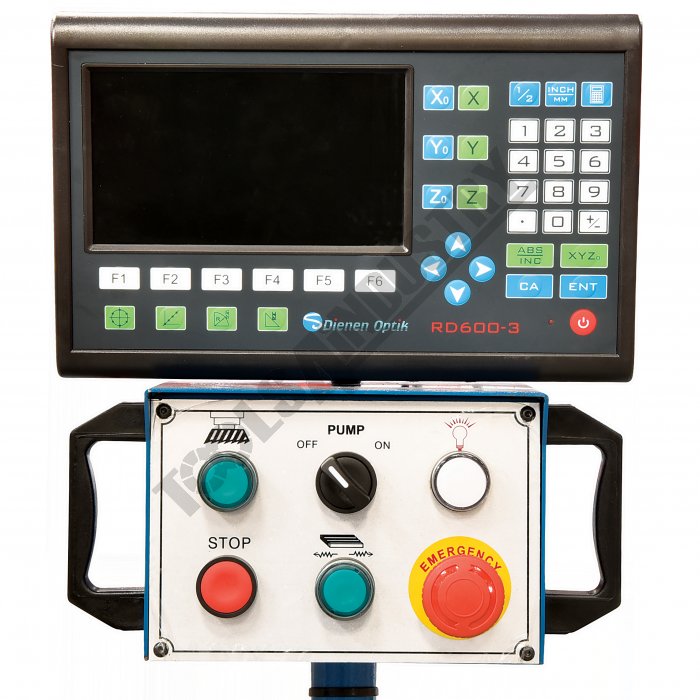

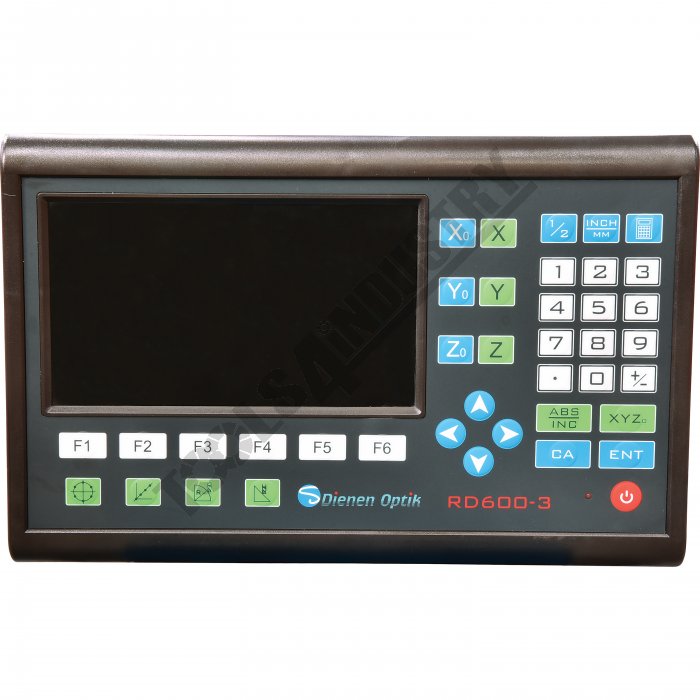

• 3 Axis digital readout fitted

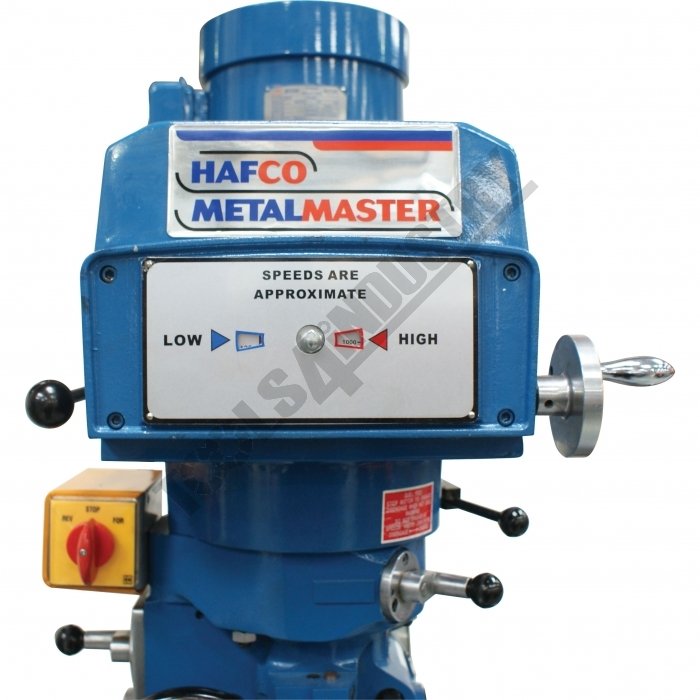

• 3HP 415V motor, dial variable speed system (BM-40V)
• NT30 spindle taper with a chrome & ground quill
• Hardened & ground work table & slide-ways
• Turcite "B" coated X & Y Axis slide-ways reduces friction for smooth operation
• All slides utilise dovetail construction for maximum rigidity
• Meehanite casting for high strength & minimal deformation
• Quality electrics & overload protection in an easy access enclosure

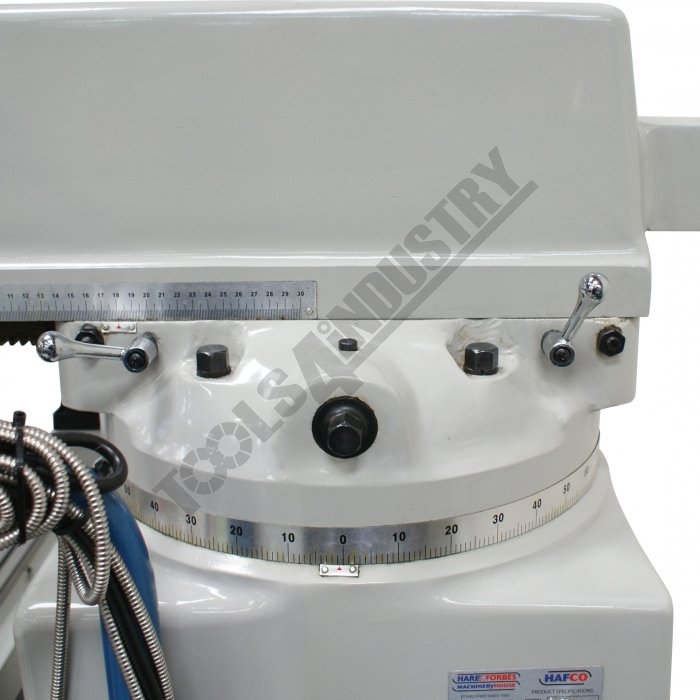

• Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle

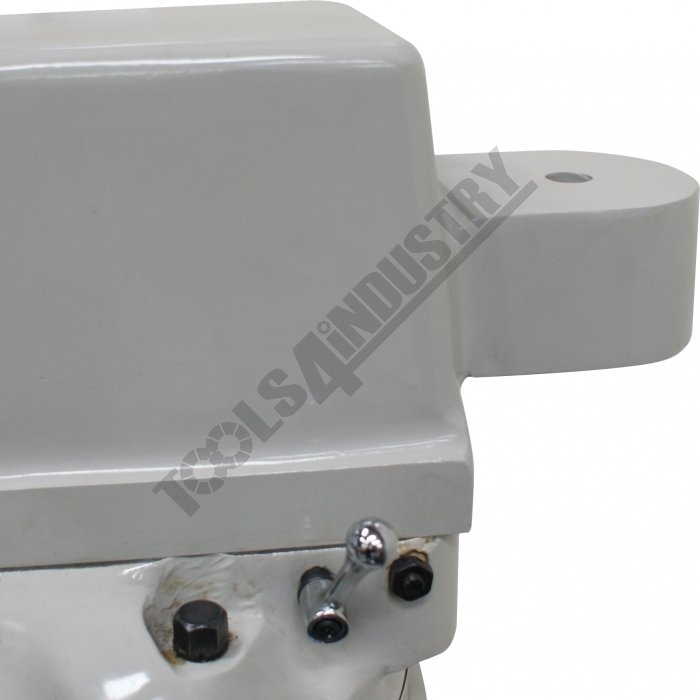

• The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.

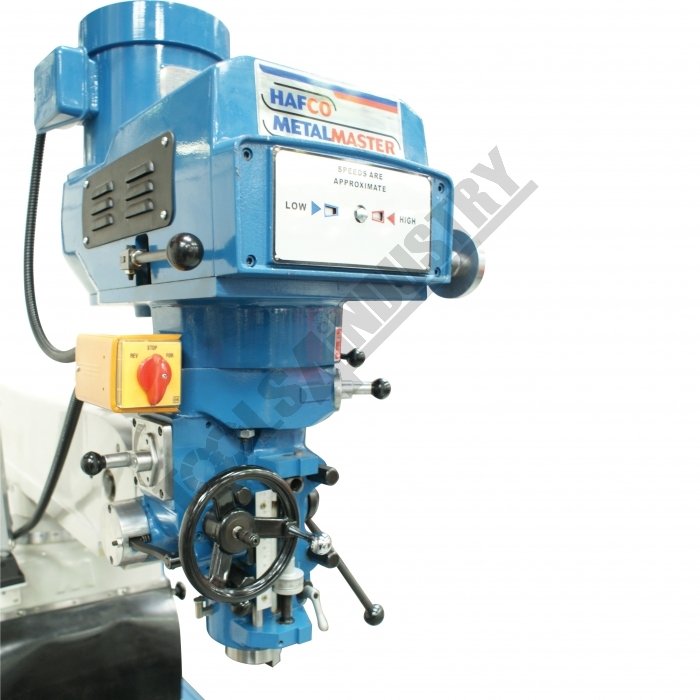

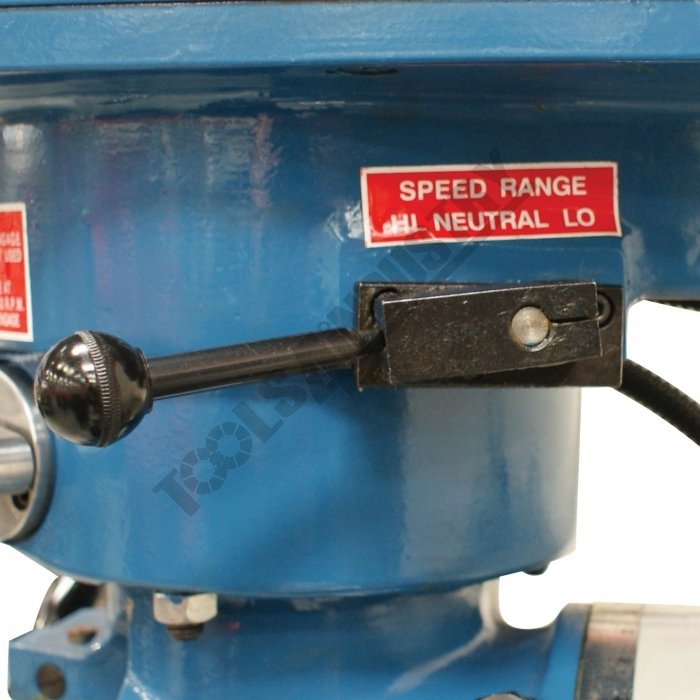

• High / neutral and low gear selection lever to maximise torque

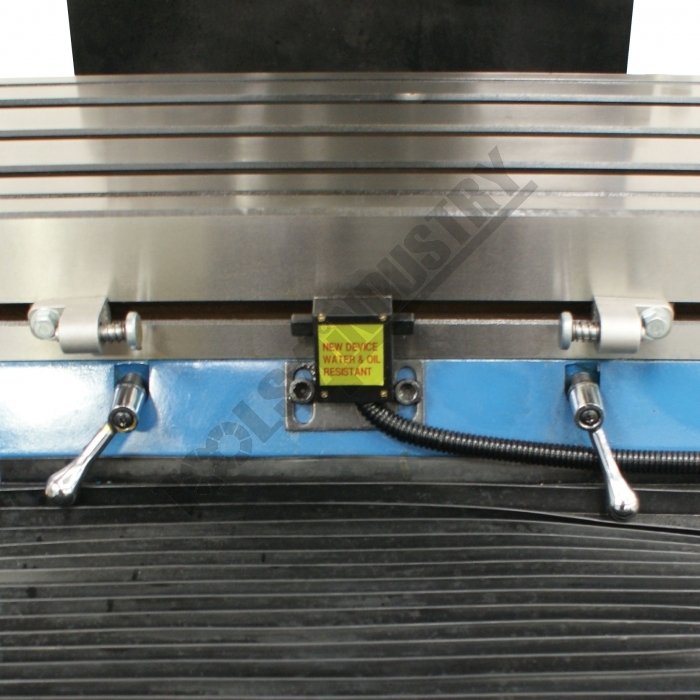

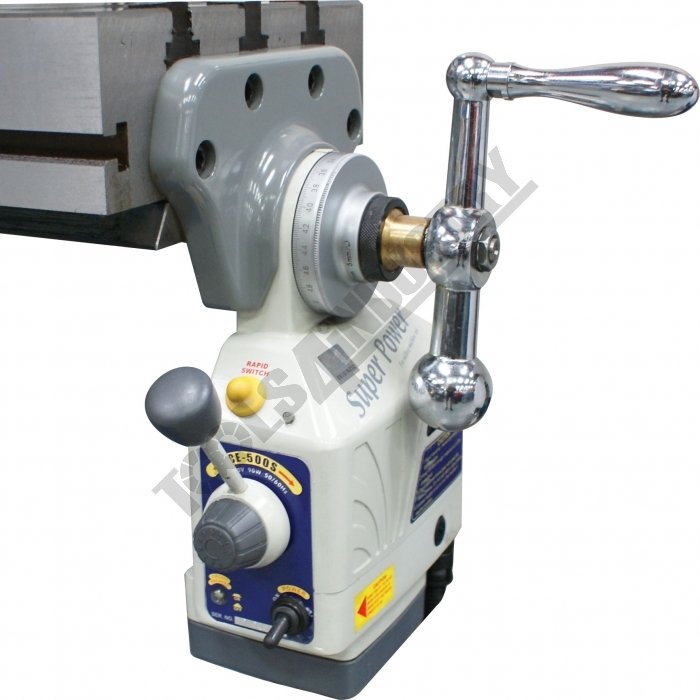

• Align AL-500S X-Axis power-feed with adjustable micro switch feed stops

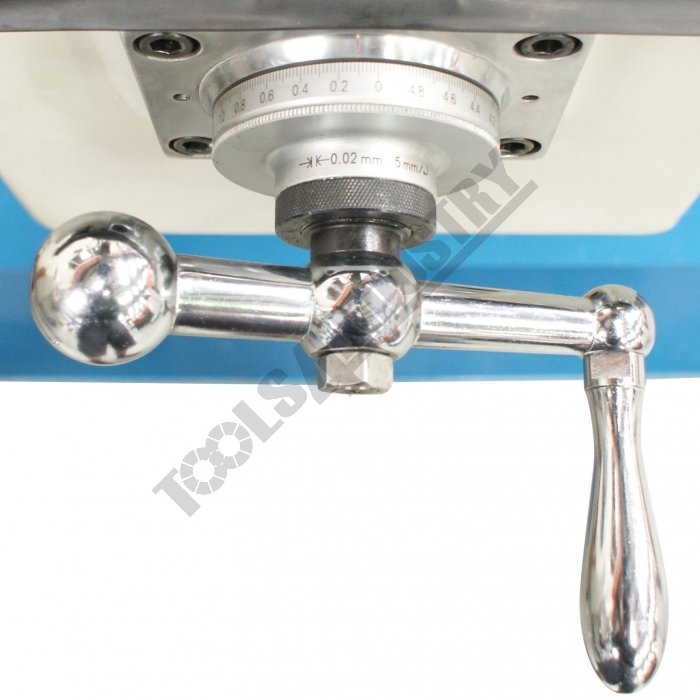

• Metric dial graduations @ 0.02mm for X , Y & Z-Axis

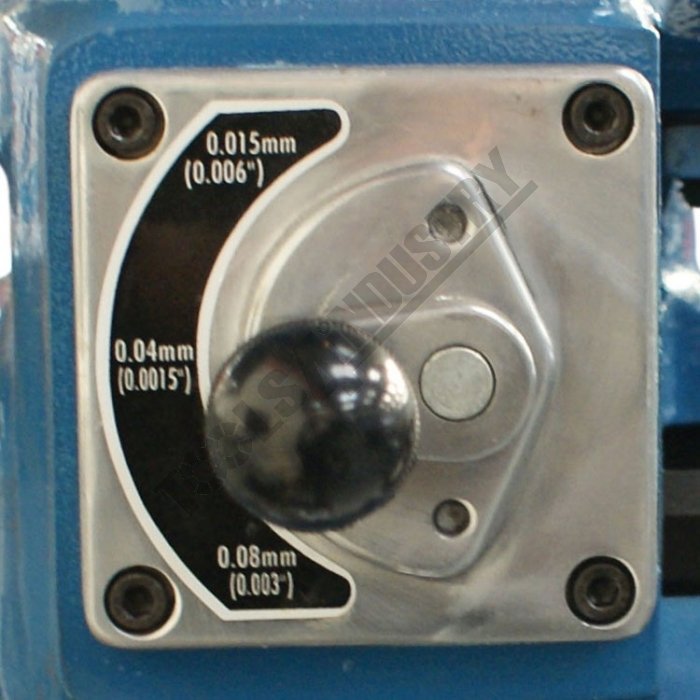

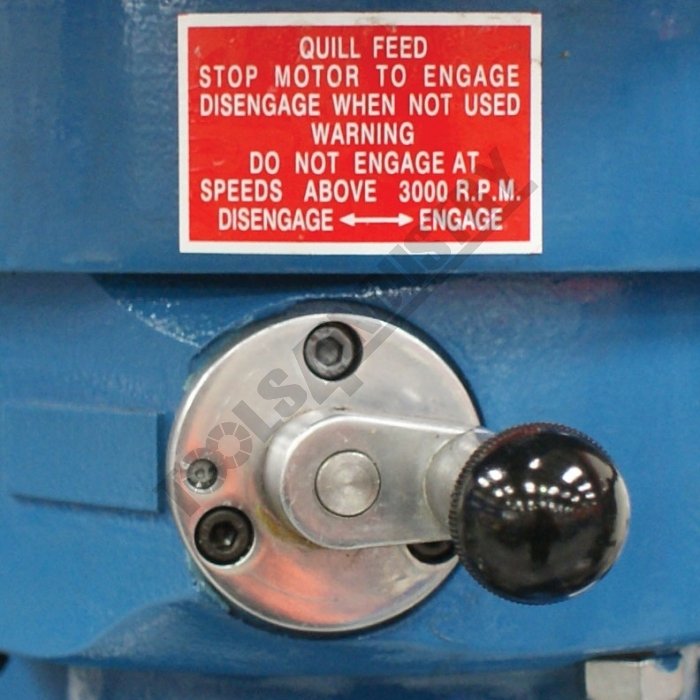

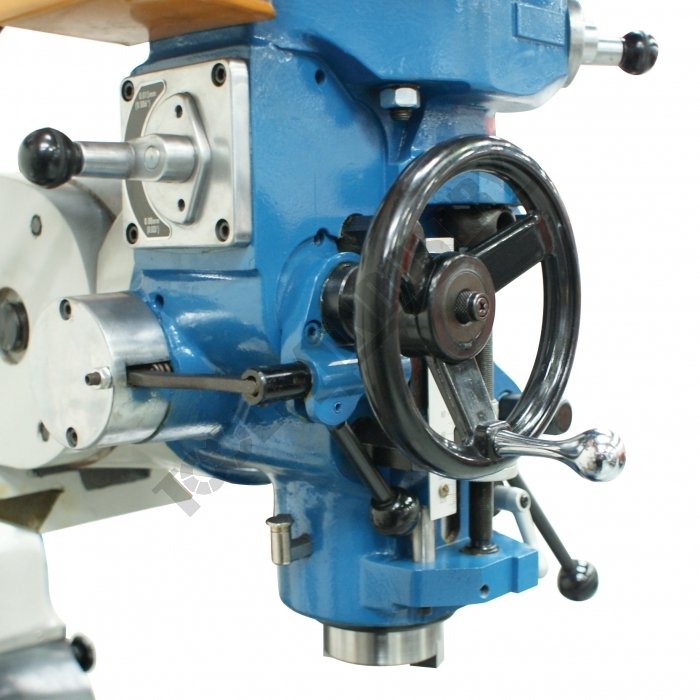

• Automatic quill feed 0.015, 0.04, 0.08mm/rev

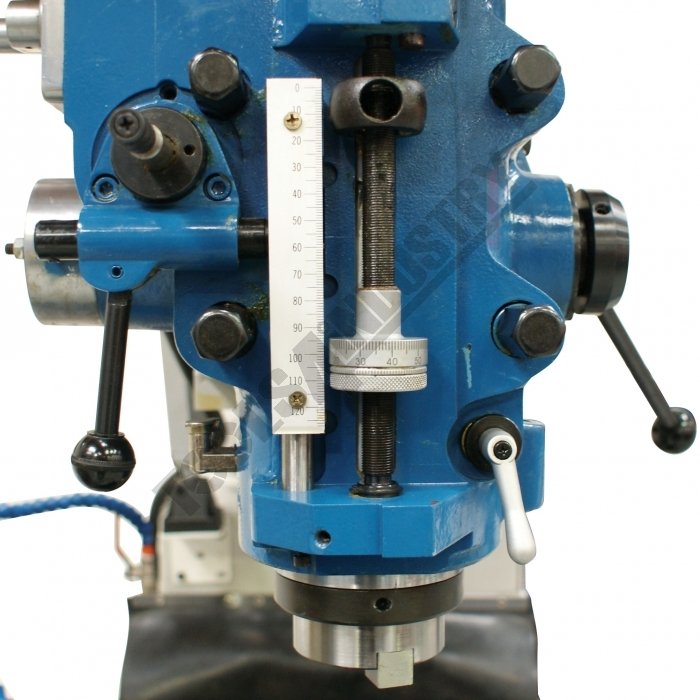

• Automatic cut off depth stop on quill

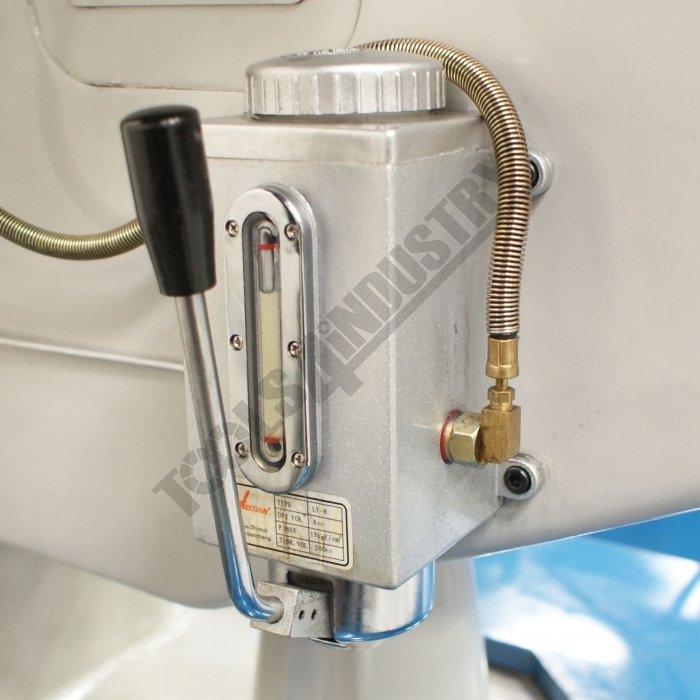

• Oil lubrication pump and reservoir

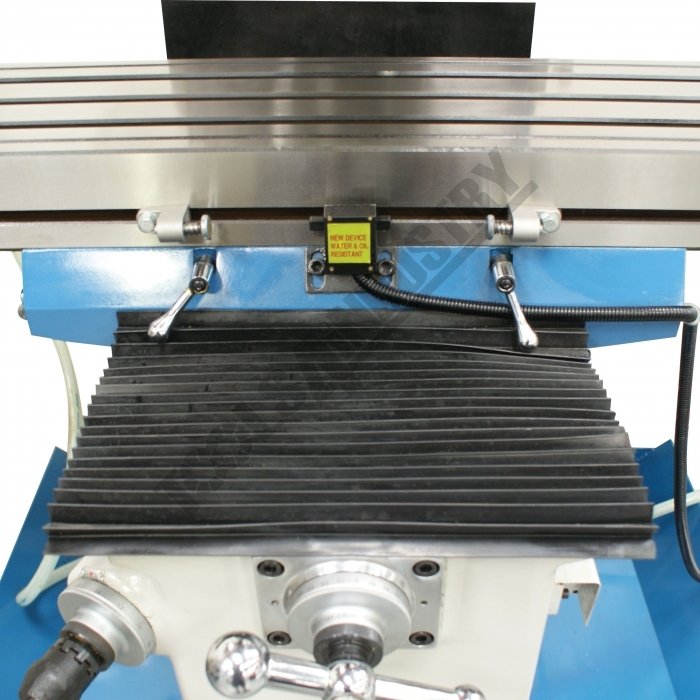

• Slide-way covers Y & Z-Axis

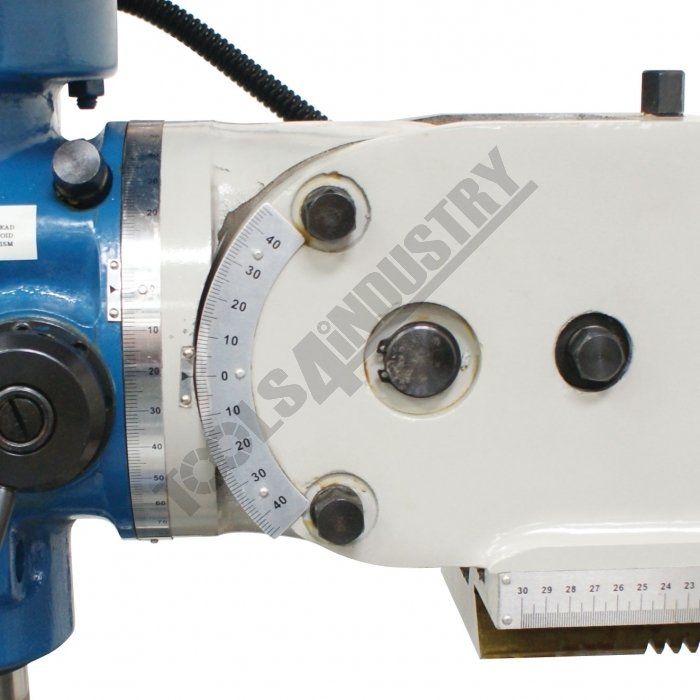

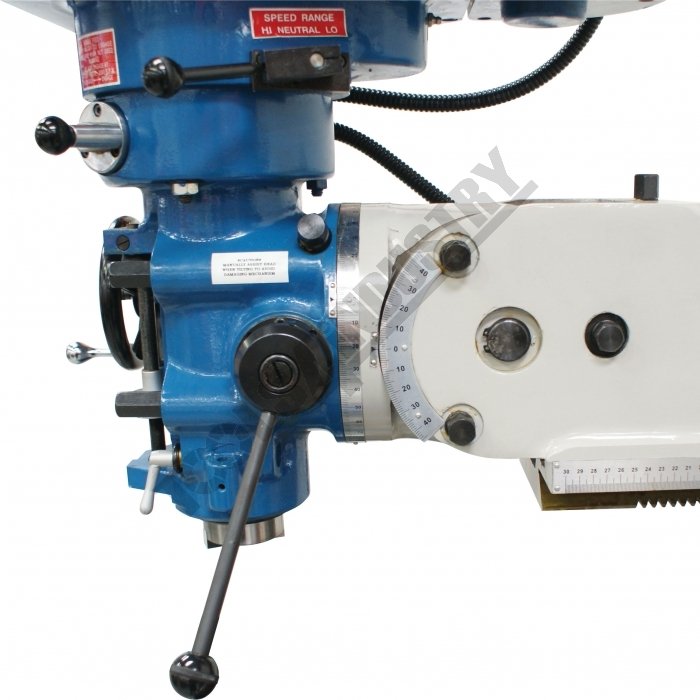

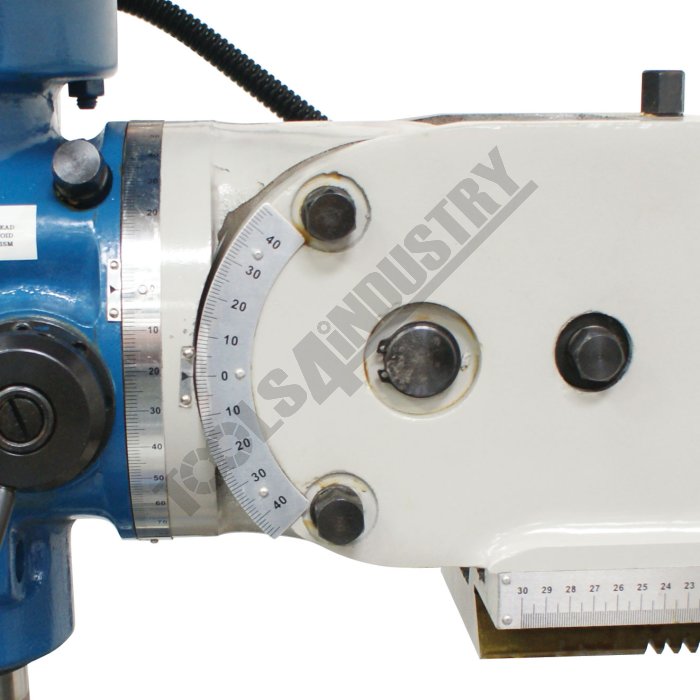

• Mill head tilts to ±45º forward and back
• Mill head tilts to ±90º left and right
• Manual quick action quill lever

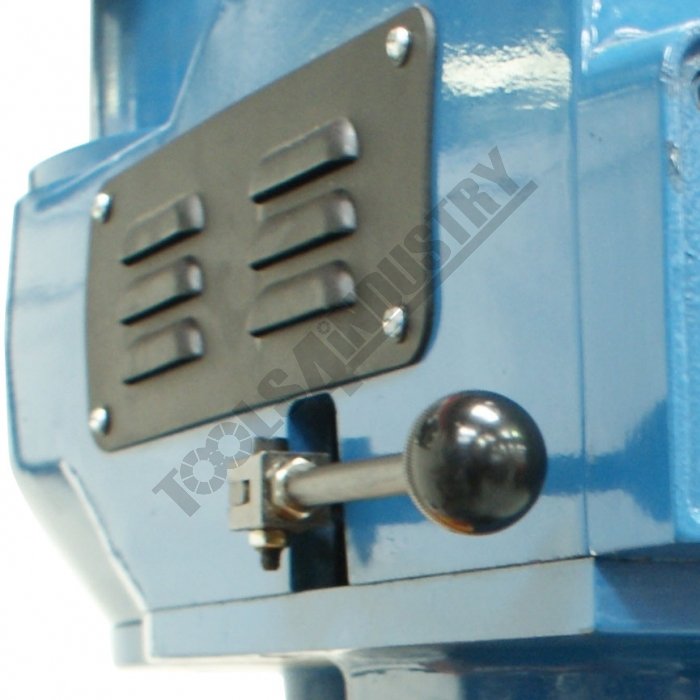

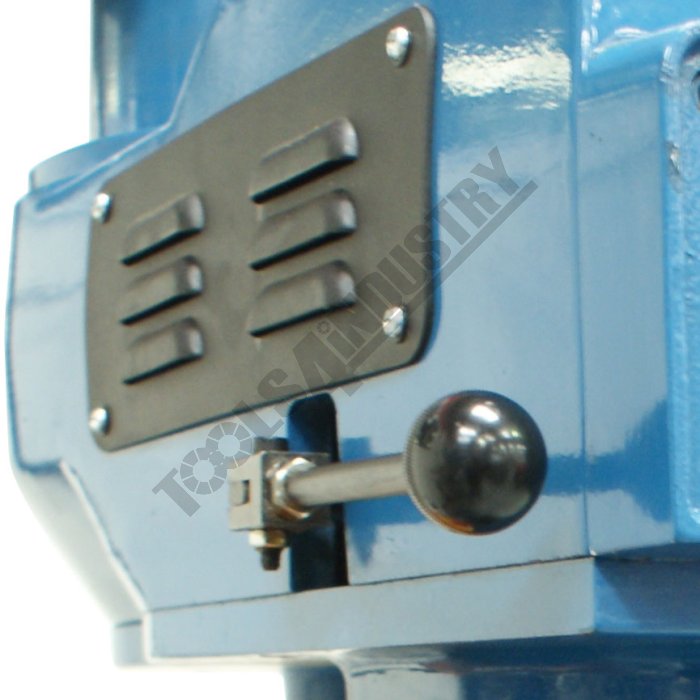

• Mechanical spindle brake

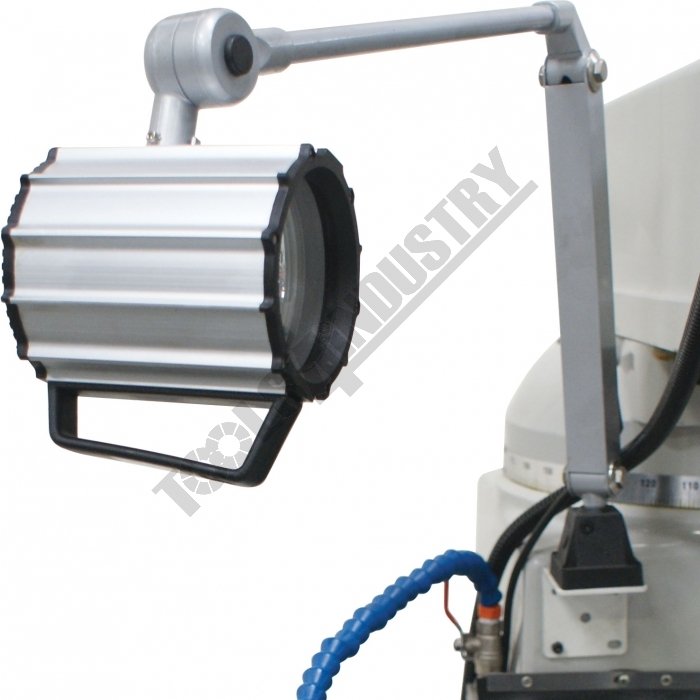

• Low voltage LED work light
• Tool box and manual

Includes

• 3-Axis digital readout fitted
• One-shot oil lubrication pump and reservoir
• Drawbar M12 thread

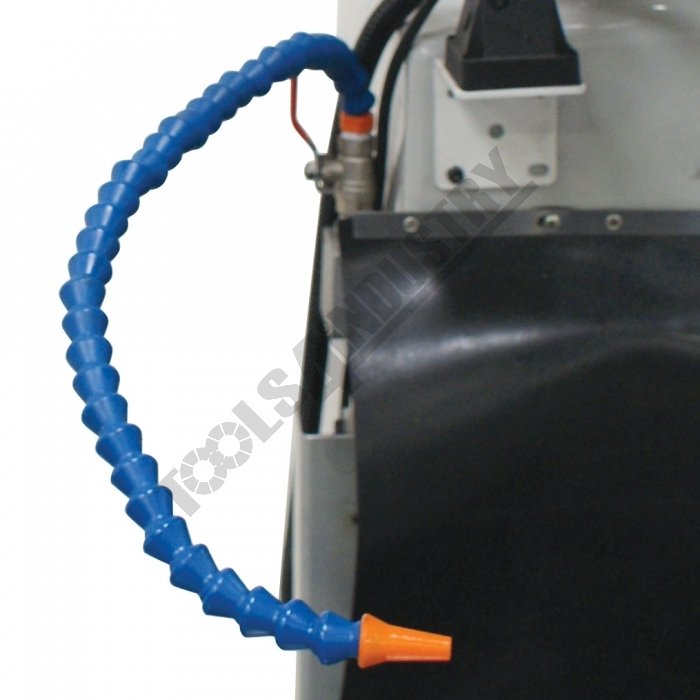

• Coolant system
• Slide-way covers
• X-Axis power-feed
• LED work light
• Machine vice (150mm)
• Clamp kit

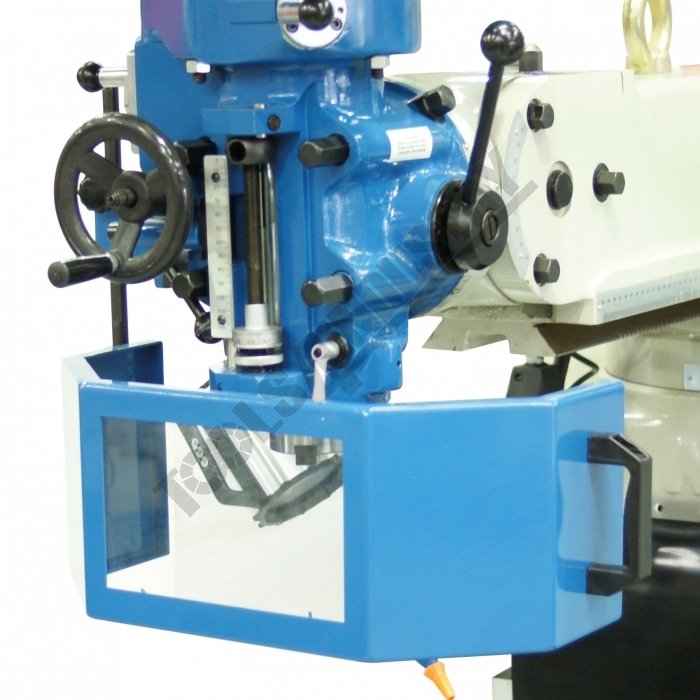

• Safety cutter guard
• Swarf tray
