| Code | M223 |
|---|---|
| Model | MRB-150W |
| Capacity | 1/2" x 12tpi BSW Whitworth Thread |
| Weight (kg) | 32 |
| Weight (m3) | 0.040 |
| Weight (Freight) | 32 |
| Dimensions (cm) | 40 x 40 x 25 |

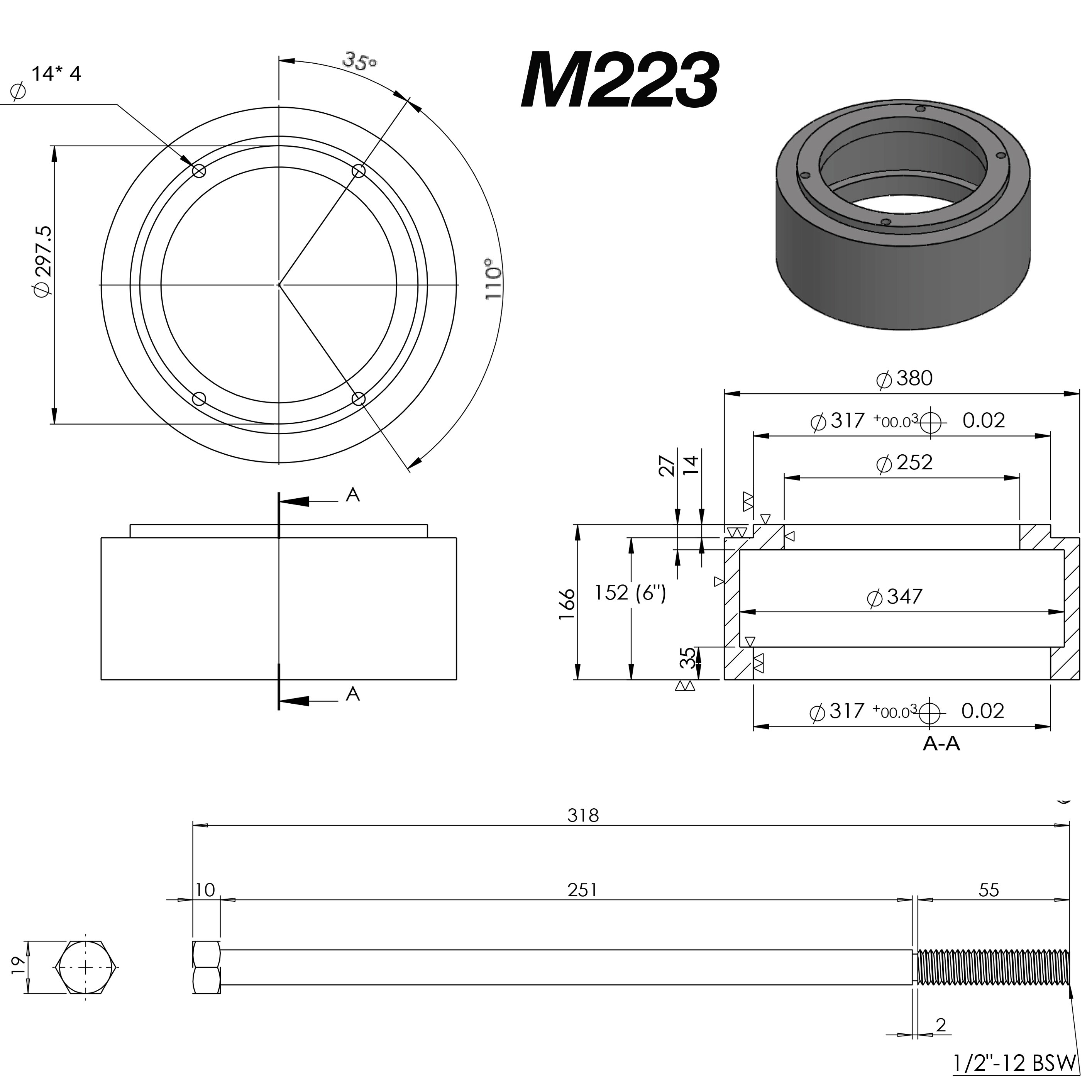

Riser Spacer - Suits Turret Milling Machines MRB-150W 1/2" x 12tpi BSW Whitworth Thread
Description

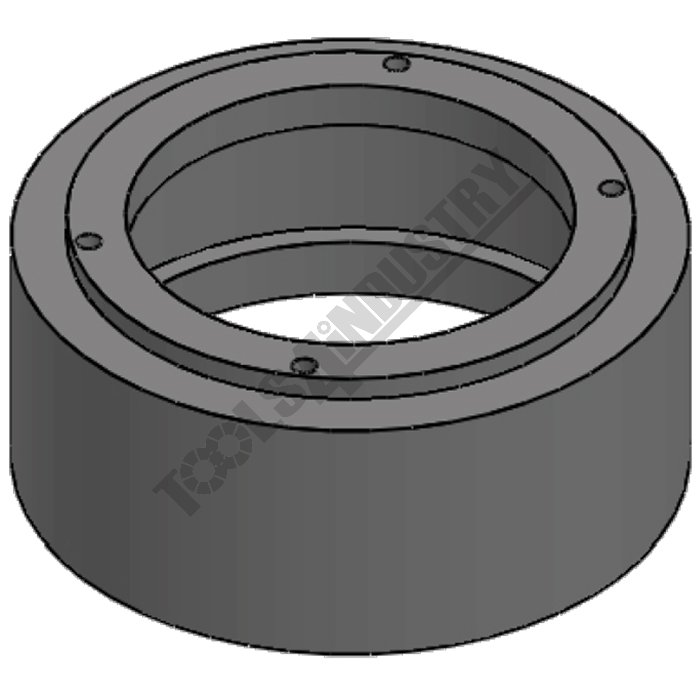

152mm Riser Block Spacer Suits The Following Models:BM-20A - (order code M588)
BM-20A - (order code M589)
BM-20E - (order code M590)
BM-30A - (order code M603D)
BM-30 - (order code M604D)
BM-40V - (order code M607D)
BM-50VE - (order code M612)
BM-65VE - (order code M629D)
BM-70VE - (order code M630D) - requires longer bolts
Features

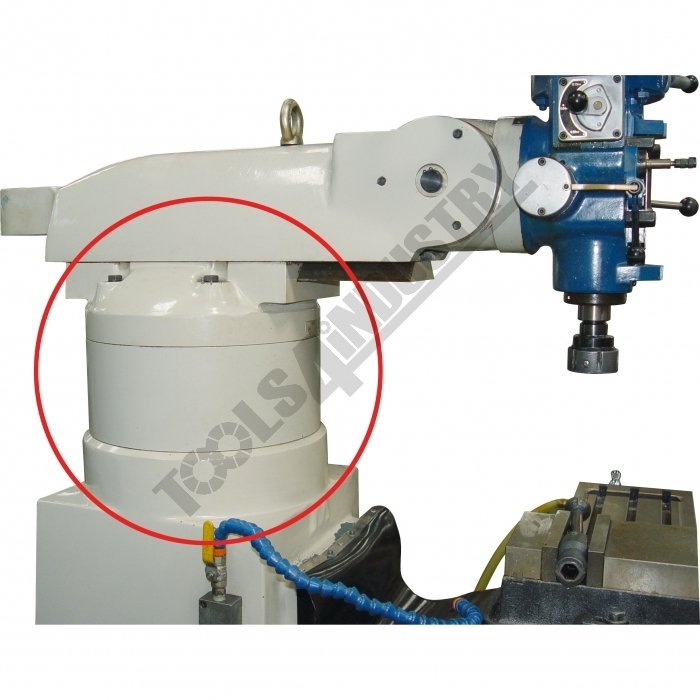

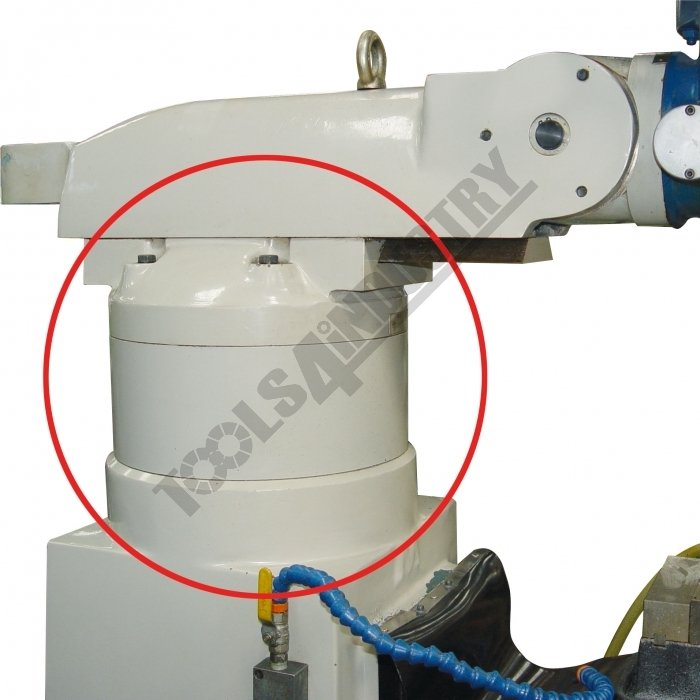

- 152mm spacer increases your milling machine Z-Axis height clearance
- Includes 4 x 318mm long bolts with 1/2" x 12tpi BSW thread
- Please Note:
- BM-70VE requires 13.5" long bolts 1/2" x 12tpi BSW thread
- This Riser Block Spacer may need a little machining to fit on some models
Specifications
- Compare 2 Products
- ORDER CODE
- MODEL
- Spacer Height Gainmm
- Locating Recess & Spigot Ømm
- Bolt Thread SizeType
| ORDER CODE | MRB-150W |
|---|---|
| MODEL | 152 |
| Spacer Height Gainmm | 317 |
| Locating Recess & Spigot Ømm | 1/2" x 12tpi BSW |
| Bolt Thread SizeType |
