| Code | M224 |
|---|---|
| Model | MRB-150M |
| Capacity | M12 x 1.75mm Metric Thread |
| Weight (kg) | 35 |
| Weight (m3) | 0.033 |
| Weight (Freight) | 35 |
| Dimensions (cm) | 39 x 39 x 22 |

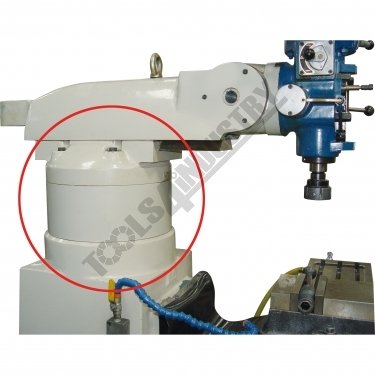

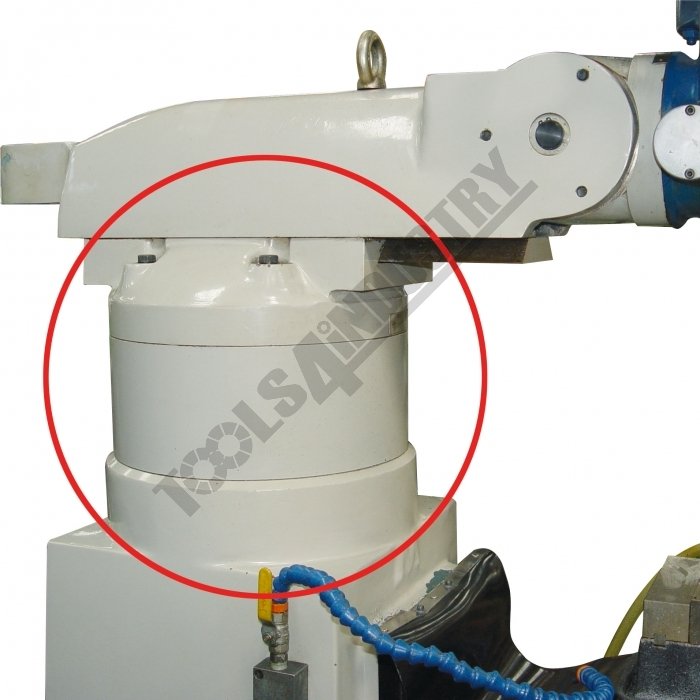

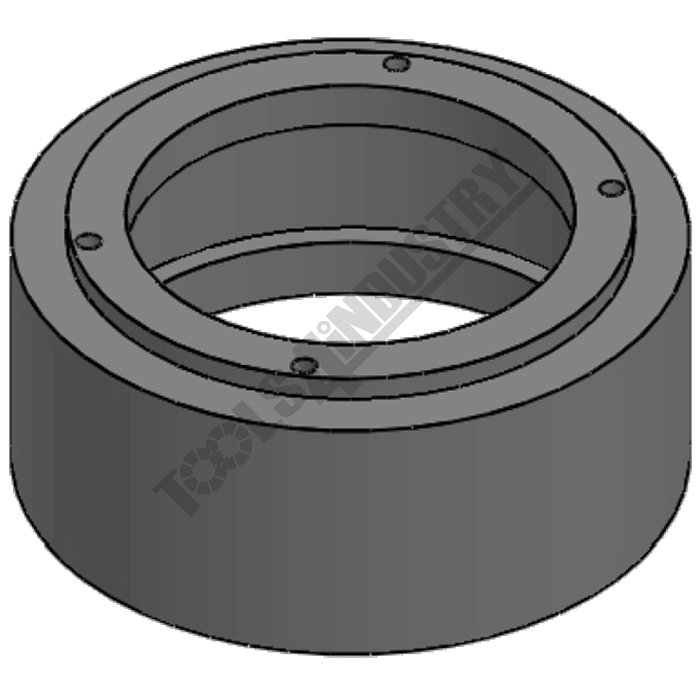

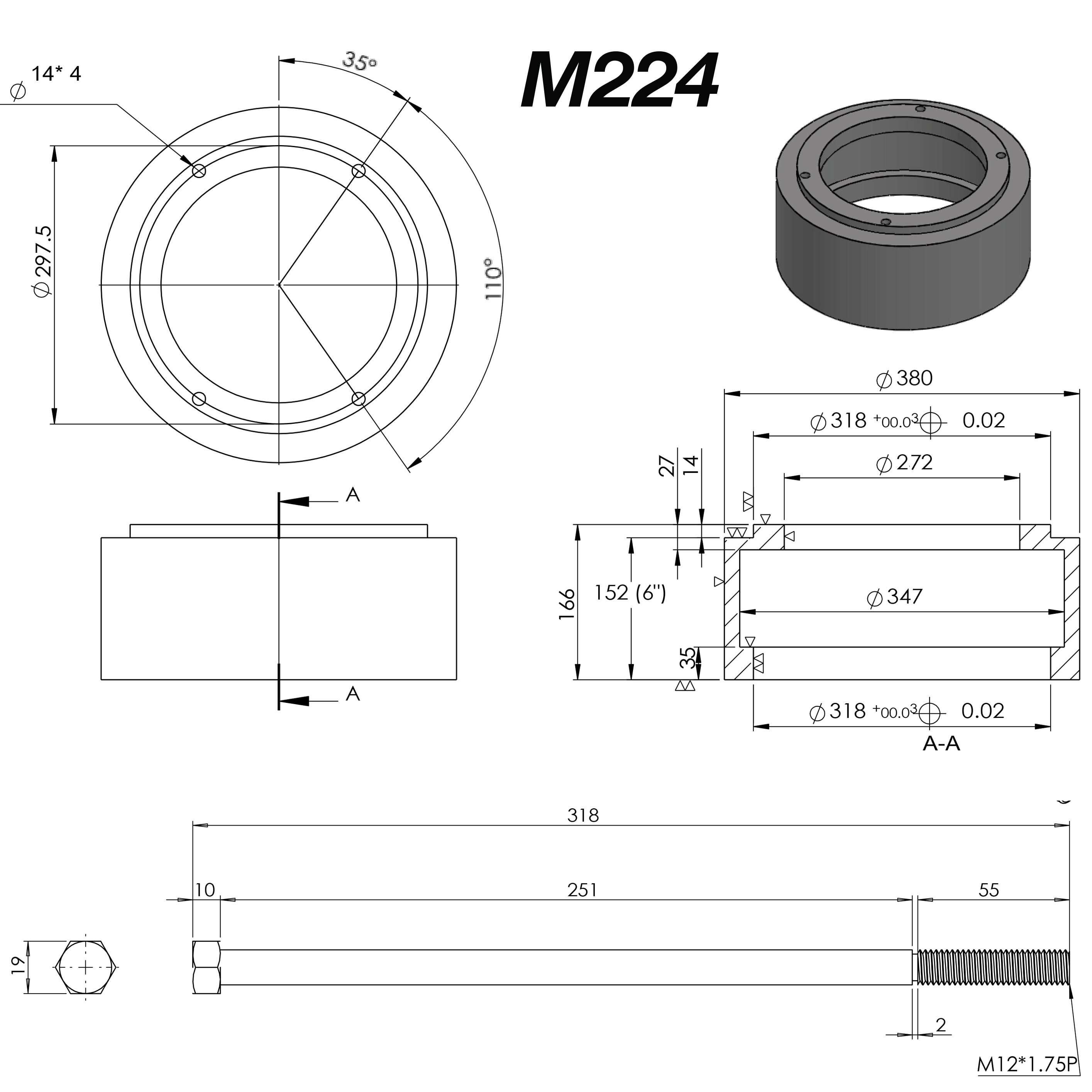

Riser Spacer - Suits Turret Milling Machines MRB-150M M12 x 1.75mm Metric Thread
Description
152mm Riser Block Spacer Suits The Following Models:BM-22A - (order code M593)
BM-22AD - (order code M593D)
BM-22 - (order code M594D)
BM-23A - (order code M595D)
BM-52VE - (order code M596D)
BM-53VE - (order code M597D)
BM-62VE - (order code M598D)
BM-63VE - (order code M599D)
Features
- 152mm spacer increases your milling machine Z-Axis height clearance
- Includes 4 x 318mm long bolts M12 x 1.75mm metric thread
- Please Note:
- This Riser Block Spacer may need a little machining to fit on some models
Specifications
- Compare 2 Products
- ORDER CODE
- MODEL
- Spacer Height Gainmm
- Locating Recess & Spigot Ømm
- Bolt Thread SizeType
| ORDER CODE | MRB-150M |
|---|---|
| MODEL | 152 |
| Spacer Height Gainmm | 318 |
| Locating Recess & Spigot Ømm | M12 x 1.75mm Metric |
| Bolt Thread SizeType |
