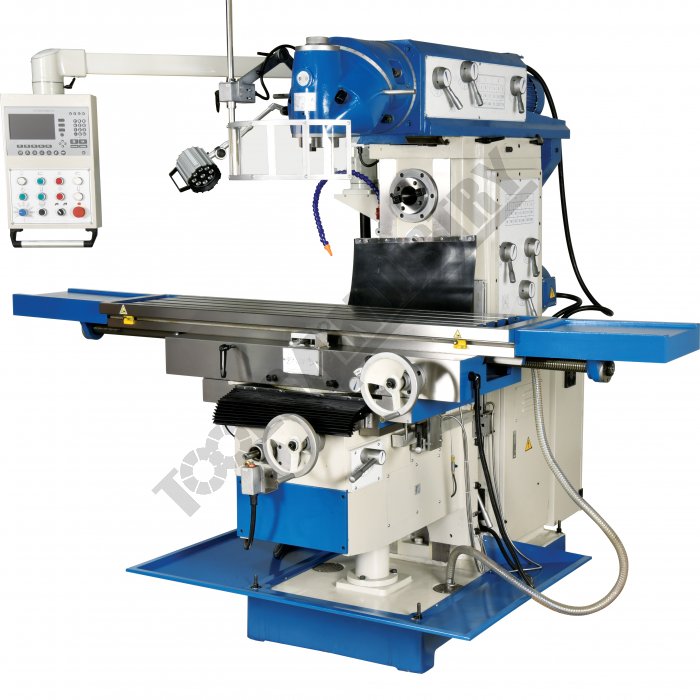

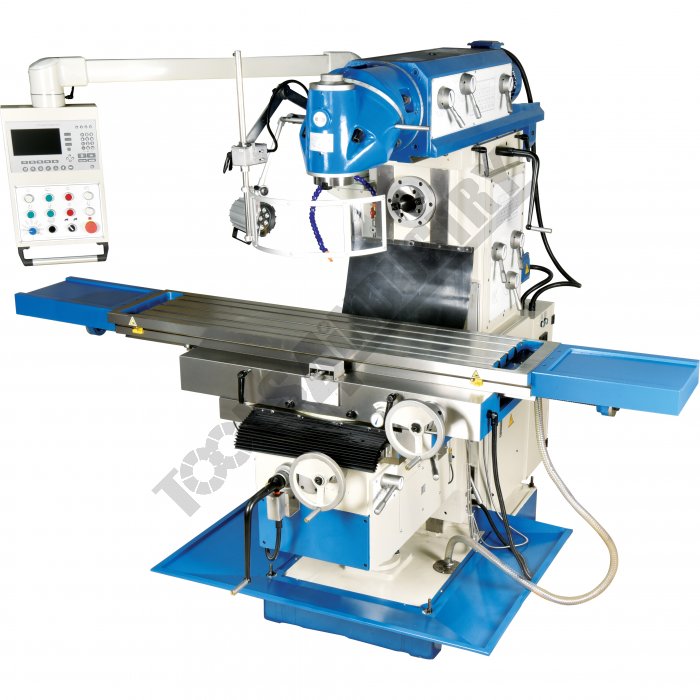

Heavy Duty Universal Milling Machine BM-1600 Table Travel: (X) - 1310mm (Y) - 300mm (Z) - 410mm

Description

The BM-1600 universal milling machine features a solid, heavy cast iron construction, making this model ideal for heavy machining of oversize workpieces.
The servo-controlled feed system ensures constant torque when removing metal under extreme load. All this is combining with and extra-large hardened & ground working table with long travels to match.

Features

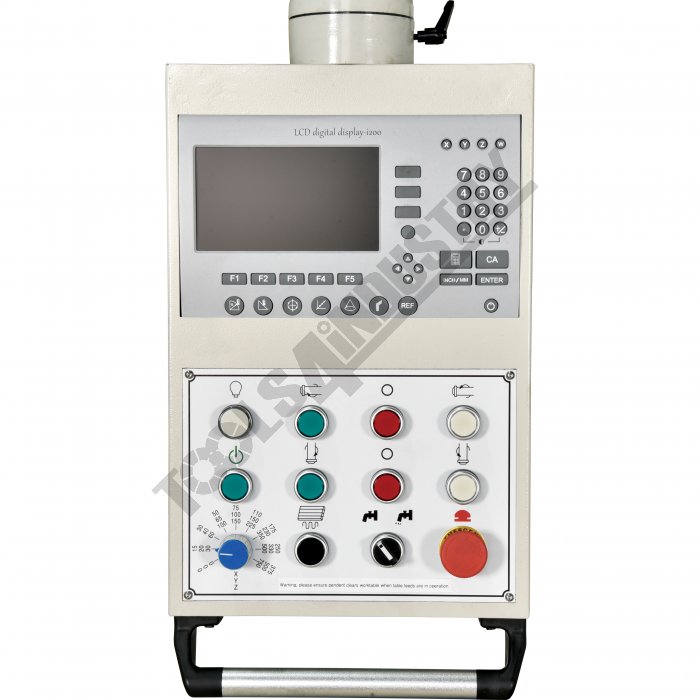

• 3-Axis digital readout fitted

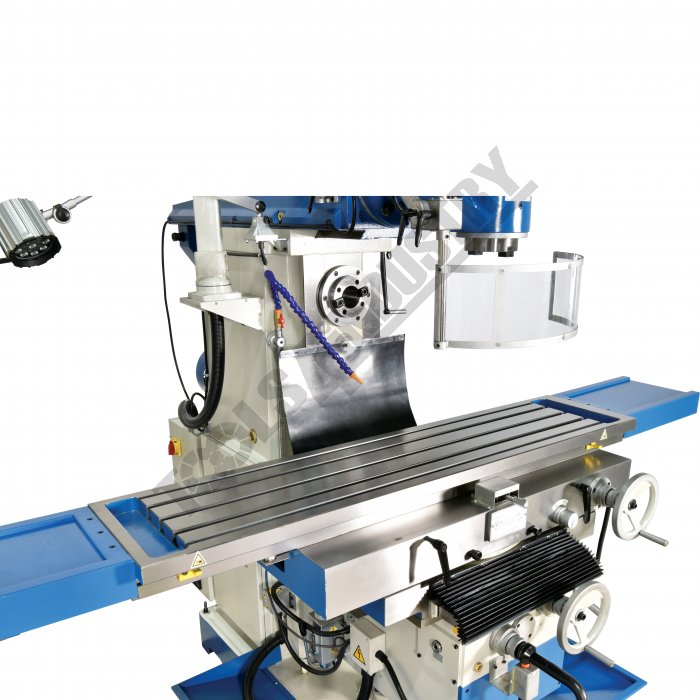

• Large 1600 x 360mm slotted work table

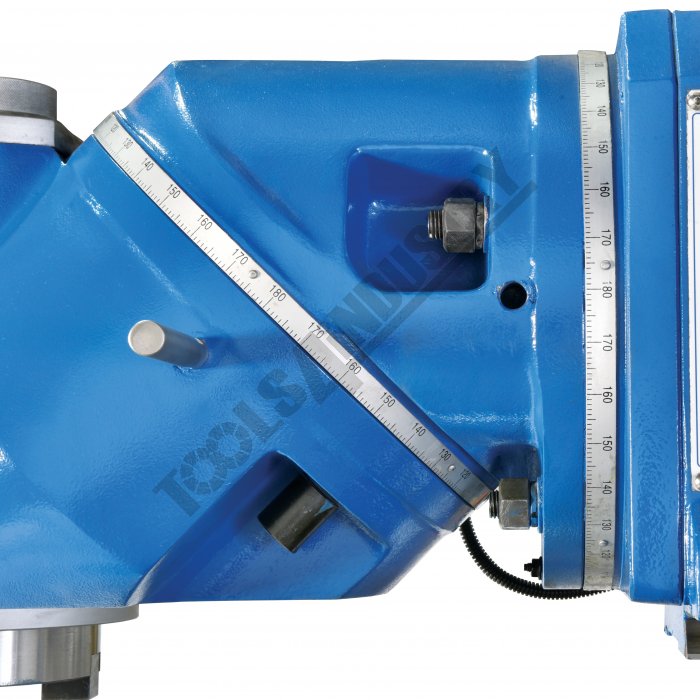

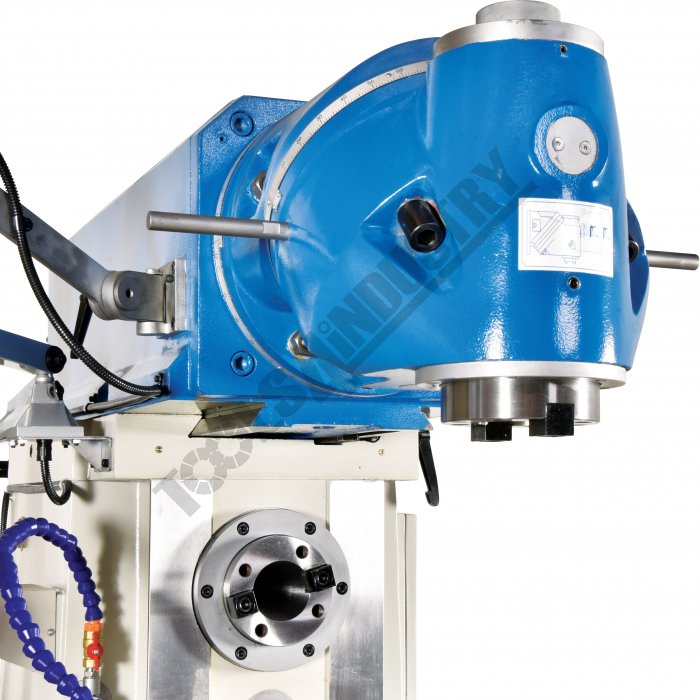

• NT50 universal head swivels 360º & tilts vertical to horizontal position
• Servo controlled feed motors on X, Y & Z-Axis ensures constant torque
• Rigid, torsion-proof construction, dovetail guide X & Z-Axis & wide square guides Y-Axis
• Robust transmission with hardened and ground gears & slide-ways
• Hardened & ground work table & all X, Y & Z-Axis slideways
• Swivel table left & right with graduated scale
• Oil lubrication pump and reservoir
• High grade casting for additional strength & minimal deformation
• Quality electrics & overload protection in an easy access enclosure
• Table trays each end of work table
• Slide-way cover Y & Z-Axis

Includes

• 3-Axis digital readout fitted

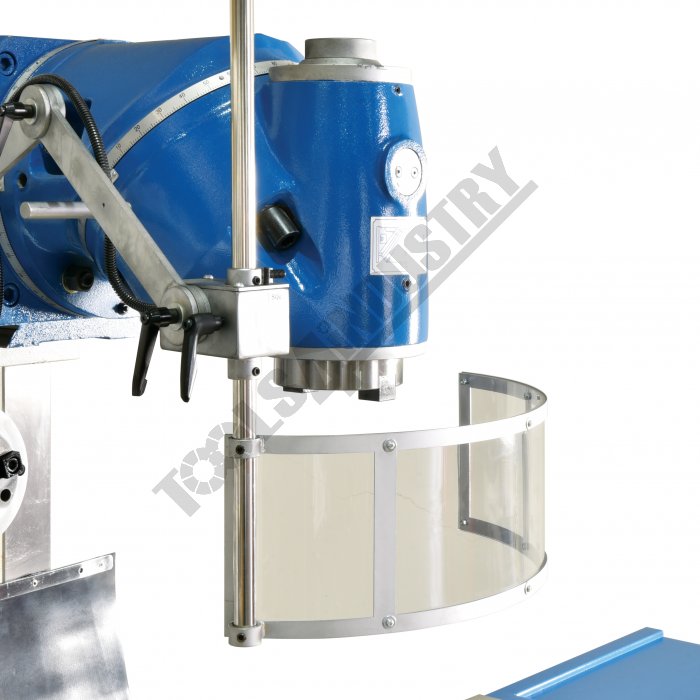

• Safety cutter guard
• Coolant system
• LED light

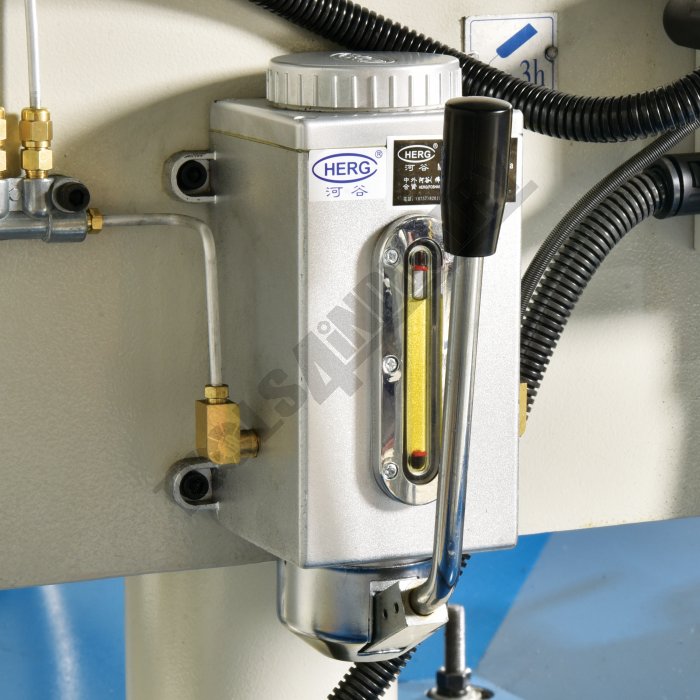

• One-shot oil lubrication pump and reservoir
• Base swarf tray

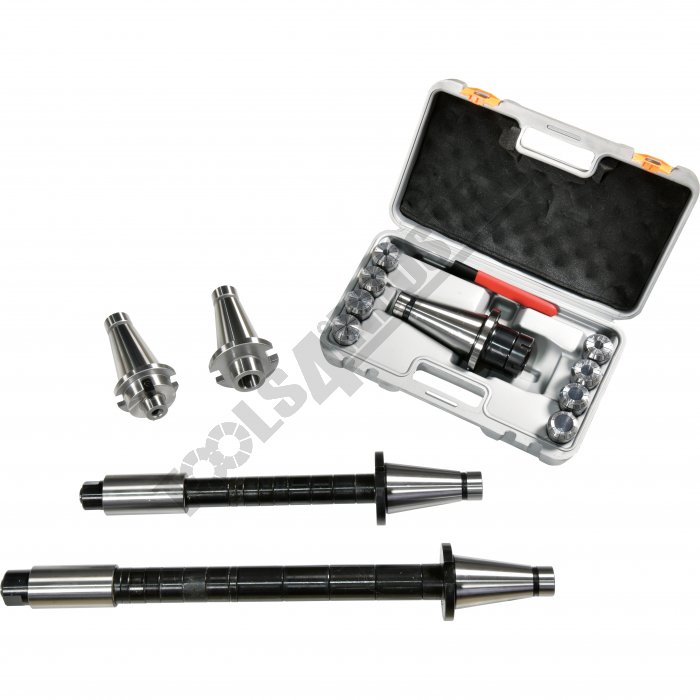

• NT50 x ER40 Collet Chuck Set with 8 Collets
• NT50 x 40mm Face Mill Arbour
• NT50 x 4MT Adaptor
• NT50 x 27mm Horizontal Arbour
• NT50 x 32mm Horizontal Arbour
• M24 drawbar for Universal Head Spindle
• M24 drawbar for Horizontal Spindle
