Code	T004B
Model	3MT
Capacity	M8 - M18
Weight (kg)	1.225
Weight (m³)	0.001
Weight (Freight)	1.225
Dimensions (cm)	19 x 6.5 x 6

TOOLMASTER

1 Year Warranty

Taiwan

Product Brochure

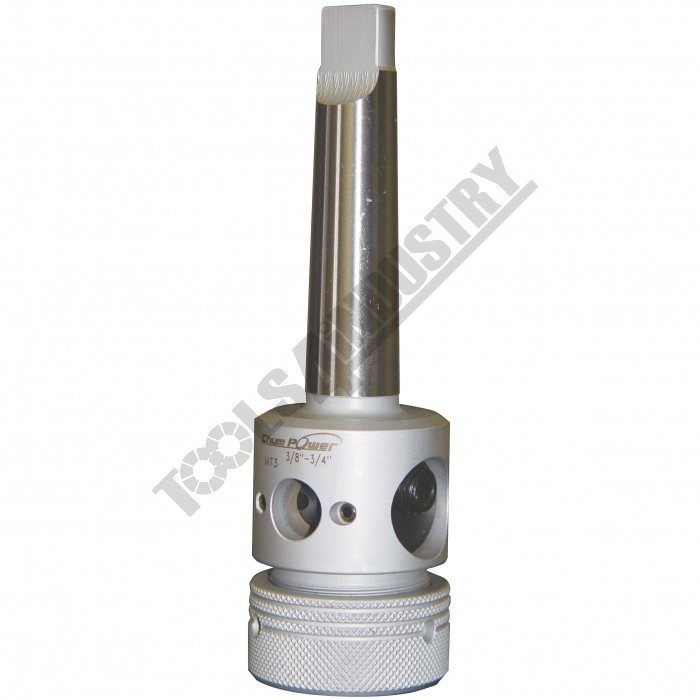

Tapping Chuck - Fixed 3MT M8 - M18

Description

Suits drilling machines with tapping/reverse cycles

Features

One piece solid design to reinforce chuck slipping
Positive clamping on the square section of the tap
Adjustable spring collet to suit all sizes in the range

Specifications

Compare 2 Products
ORDER CODE
Shank MountMT
Metric Tapping Rangemm
Metric Shank Diameter Rangemm
Imperial Tapping Rangeinch
Imperial Shank Diameter Rangeinch
Body Diametermm
Nett Weightkg

T004B
3MT
M8 - M18
7 - 14
5/16" - 3/4"
9/32" - 9/16"
Ø50
1.4

T005B
4MT
M8 - M18
7 - 14
5/16" - 3/4"
9/32" - 9/16"
Ø50
1.7

ORDER CODE	3MT
Shank MountMT	M8 - M18
Metric Tapping Rangemm	7 - 14
Metric Shank Diameter Rangemm	5/16" - 3/4"
Imperial Tapping Rangeinch	9/32" - 9/16"
Imperial Shank Diameter Rangeinch	Ø50
Body Diametermm	1.4
Nett Weightkg
