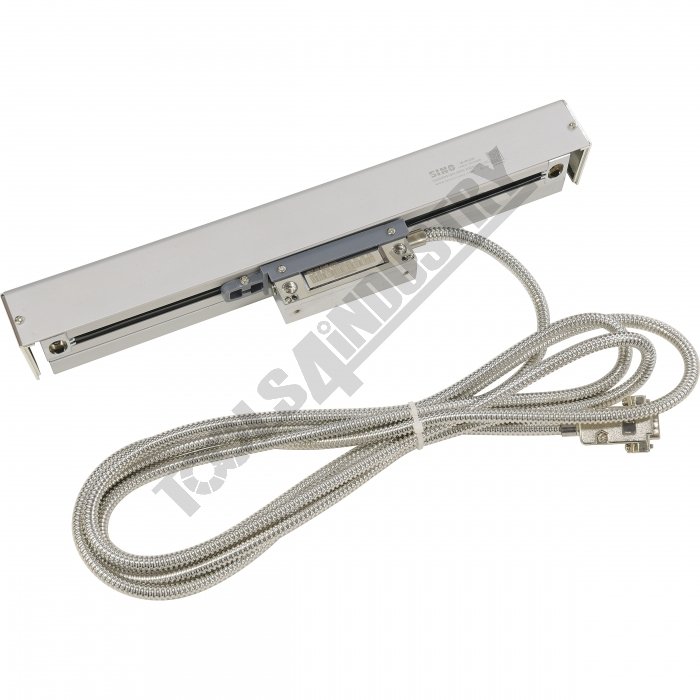

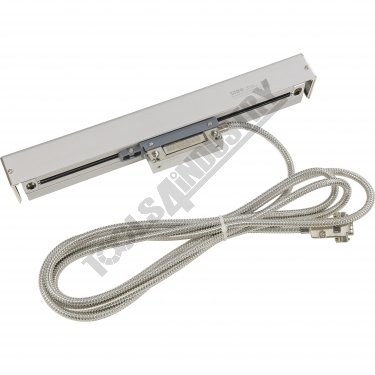

220mm Sino Digital Readout Scale MK-300-220/5U Standard Scale
Description
Sino MK series DRO scales offer an affordable low cost solution for your Lathe or Milling machine digital readout requirements. Scales lengths available in a range from 170mm to 1020mm.Compact scales available ranging from 170mm to 270mm specially designed to suit X-Axis travels on Lathes.
Features
- Scale body made from extruded aluminium with wiper seals
- Glass scale with 5µm resolution

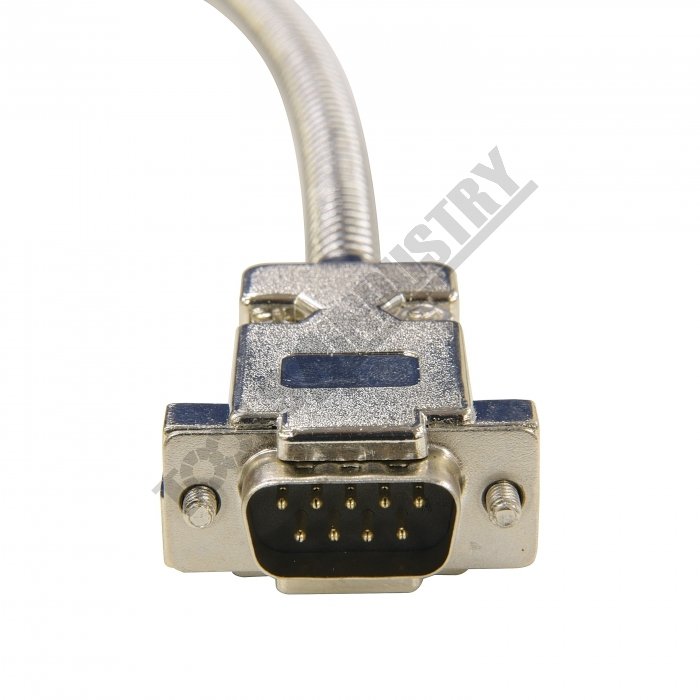

- 3m connection cable with 9 pin D-Sub connector

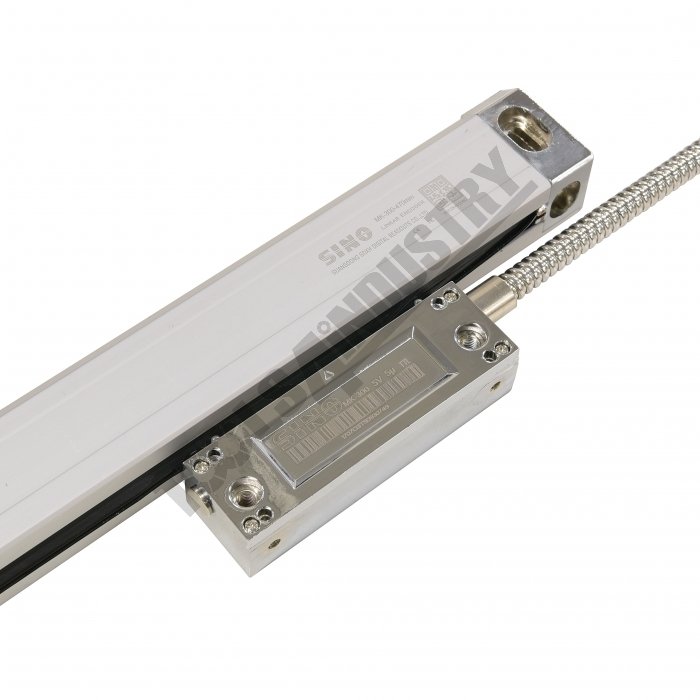

- The slide carrier of the MK series scales uses Japanese NSK bearings to provide high precision, low noise and long service life

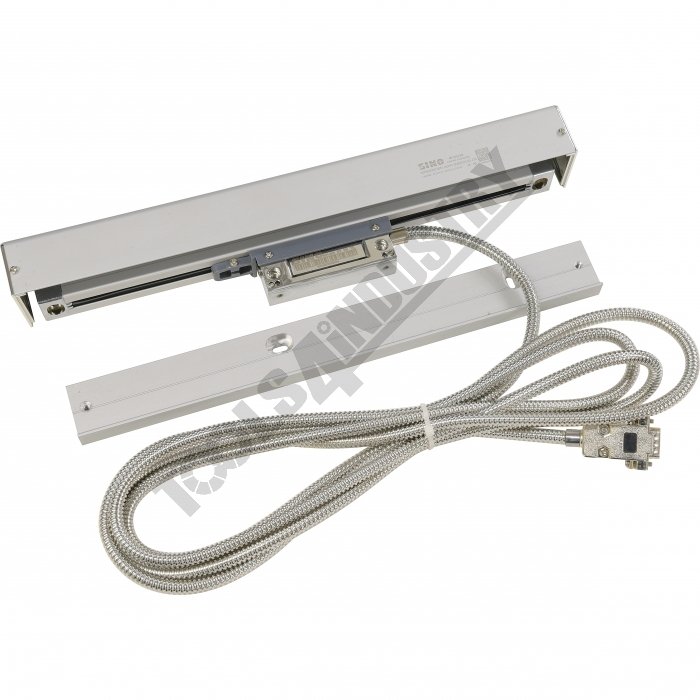

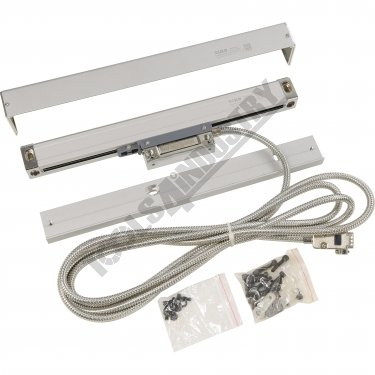

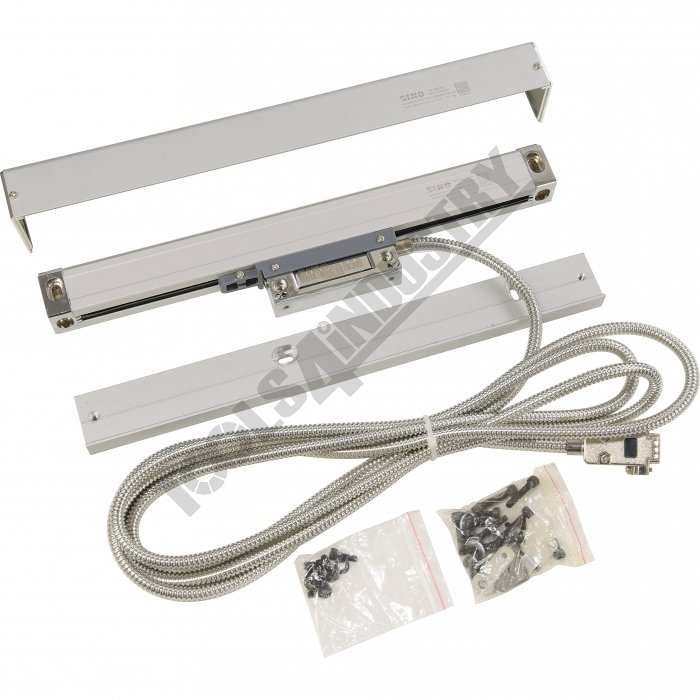

- Includes mounting backing plate, cover & mounting screws
- An easy-to-follow D.I.Y. Installation Manual is supplied with each system, complete with illustrations and mounting brackets

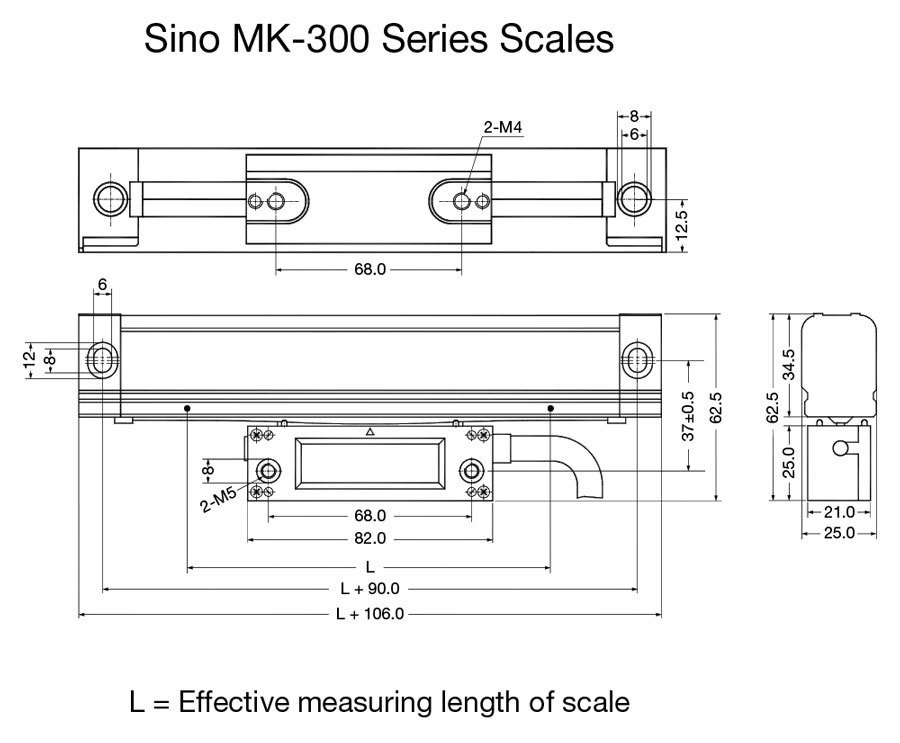

Specifications
- Compare 53 Products
- ORDER CODE
- MODEL
- Type
- Travel - Maximummm
- Overall Length (L)mm
- Scale Resolutionµm
- Grating Pitch
- Accuracyµm
- Output Signal
- Connector
- Cable LengthMetre
- Working Temperature°C
- Sealing Protection Class
- Maximum SpeedM/min
- Reference Point
- Width x Height (W x H)mm
- Backing Support PlateYes / No
- D5210
- ~
- Standard Scale
- 220
- ~
- 5
- ~
- ~
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- ~
- Yes
- D721
- ~
- VS10 Standard Scale
- 250
- 396
- 5
- ~
- ±3 - ±5
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 27.5 x 3.5
- Yes
- D721C
- ~
- GS30 Compact Scale
- 250
- 394
- 5
- ~
- ±6
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 20 x 28.5
- Yes
- D5212
- ~
- Standard Scale
- 270
- ~
- 5
- ~
- ~
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- ~
- Yes
- D722
- ~
- VS10 Standard Scale
- 300
- 446
- 5
- ~
- ±3 - ±5
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 27.5 x 33.5
- Yes
- D722C
- ~
- GS30 Compact Scale
- 300
- 444
- 5
- ~
- ±6
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 20 x 28.5
- Yes
- D723
- ~
- VS10 Standard Scale
- 350
- 496
- 5
- ~
- ±3 - ±5
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 27.5 x 33.5
- Yes
- D724
- ~
- VS10 Standard Scale
- 400
- 546
- 5
- ~
- ±3 - ±5
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 27.5 x 33.5
- Yes
- D725
- ~
- VS10 Standard Scale
- 450
- 596
- 5
- ~
- ±3 - ±5
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 27.5 x 33.5
- Yes
- D726
- ~
- VS10 Standard Scale
- 500
- 646
- 5
- ~
- ±10
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 27.5 x 33.5
- Yes
- D728
- ~
- VS10 Standard Scale
- 600
- 746
- 5
- ~
- ±10
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 27.5 x 33.5
- No
- D730
- ~
- VS10 Standard Scale
- 700
- 846
- 5
- ~
- ±10
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 27.5 x 33.5
- No
- D5225
- ~
- Standard Scale
- 720
- ~
- 5
- ~
- ~
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- ~
- No
- D732
- ~
- VS10 Standard Scale
- 800
- 946
- 5
- ~
- ±10
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 27.5 x 33.5
- No
- D734
- ~
- VS10 Standard Scale
- 900
- 1046
- 5
- ~
- ±10
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 27.5 x 33.5
- No
- D5229
- ~
- Standard Scale
- 920
- ~
- 5
- ~
- ~
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- ~
- No
- D736
- ~
- VS10 Standard Scale
- 1000
- 1146
- 5
- ~
- ±10
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 27.5 x 33.5
- No
- D736A
- ~
- VS10 Standard Scale
- 1100
- 1246
- 5
- ~
- ±10
- ~
- ~
- 5
- ~
- ~
- ~
- ~
- 27.5 x 33.5
- No
- D737
- ~
- VS10 Standard Scale
- 1200
- 1346
- 5
- ~
- ±10
- ~
- ~
- 5
- ~
- ~
- ~
- ~
- 27.5 x 33.5
- No
- D738
- ~
- VS20 Standard Scale
- 1300
- 1446
- 5
- ~
- ±10
- ~
- ~
- 5
- ~
- ~
- ~
- ~
- 27.5 x 40.1
- No
- D739
- ~
- VS20 Standard Scale
- 1500
- 1646
- 5
- ~
- ±10
- ~
- ~
- 5
- ~
- ~
- ~
- ~
- 27.5 x 40.1
- No
- D741
- ~
- VS20 Standard Scale
- 1700
- 1846
- 5
- ~
- ±10
- ~
- ~
- 7
- ~
- ~
- ~
- ~
- 27.5 x 40.1
- No
- D745
- ~
- VS20 Standard Scale
- 2000
- 2146
- 5
- ~
- ±10
- ~
- ~
- 7
- ~
- ~
- ~
- ~
- 27.5 x 40.1
- No
- D746
- ~
- VS20 Standard Scale
- 2400
- 2546
- 5
- ~
- ±10
- ~
- ~
- 9
- ~
- ~
- ~
- ~
- 27.5 x 40.1
- No
- D750
- ~
- VS20 Standard Scale
- 3000
- 3146
- 5
- ~
- ±10
- ~
- ~
- 9
- ~
- ~
- ~
- ~
- 27.5 x 40.1
- No
- D751
- ~
- Magnetic Scale
- 3000
- 3120
- 5
- ~
- ~
- ~
- ~
- 5
- ~
- ~
- ~
- ~
- 28 x 46
- No
- D752
- ~
- Magnetic Scale
- 4000
- 4120
- 5
- ~
- ~
- ~
- ~
- 5
- ~
- ~
- ~
- ~
- 28 x 46
- No
- D755
- ~
- Magnetic Scale
- 5000
- 5120
- 5
- ~
- ~
- ~
- ~
- 5
- ~
- ~
- ~
- ~
- 28 x 46
- No
- D7559
- ~
- Magnetic Scale
- 10000
- 10120
- 5
- ~
- ~
- ~
- ~
- 5
- ~
- ~
- ~
- ~
- 28 x 46
- No
- D694
- ~
- Magnetic Scale
- 1500
- 1500
- 5
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 10 x 1.5
- No
- D697
- ~
- Read Head + Cable
- ~
- ~
- 5
- ~
- ~
- ~
- ~
- 1.5
- ~
- ~
- ~
- ~
- ~
- Yes
- Q8510
- MX-500
- Compact Linear Scale
- 120
- 232
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8511
- MX-500
- Compact Linear Scale
- 170
- 282
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8512
- MX-500
- Compact Linear Scale
- 220
- 332
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8513
- MX-500
- Compact Linear Scale
- 270
- 382
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8514
- MX-500
- Compact Linear Scale
- 320
- 432
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8525
- MX-300
- Linear Scale
- 370
- 476
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8526
- MX-300
- Linear Scale
- 420
- 526
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8527
- MX-300
- Linear Scale
- 470
- 576
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8528
- MX-300
- Linear Scale
- 520
- 626
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8529
- MX-300
- Linear Scale
- 570
- 676
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8530
- MX-300
- Linear Scale
- 620
- 726
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8532
- MX-300
- Linear Scale
- 720
- 826
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8534
- MX-300
- Linear Scale
- 820
- 926
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8536
- MX-300
- Linear Scale
- 920
- 1026
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8538
- MX-300
- Linear Scale
- 1020
- 1126
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8540
- MX-600
- Linear Scale
- 1200
- 1370
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8543
- MX-600
- Linear Scale
- 1500
- 1670
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8548
- MX-600
- Linear Scale
- 2000
- 2170
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- Q8558
- MX-600
- Linear Scale
- 3000
- 3170
- 5μm (0.005mm)
- 20μm (0.02mm)
- ±0.005mm，±0.01mm/M
- 5V TTL
- 9 pin D-Sub
- 3m metal conduit
- -10℃—60℃
- Class: IP54
- 60M/Min
- Every 50mm
- ~
- Yes
- D719
- ~
- GS30 Compact Scale
- 150
- 294
- 5
- ~
- ±6
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 20 x 28.5
- Yes
- D720
- ~
- VS10 Standard Scale
- 200
- 346
- 5
- ~
- ±3 - ±5
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 27.5 x 33.5
- Yes
- D720C
- ~
- GS30 Compact Scale
- 200
- 344
- 5
- ~
- ±6
- ~
- ~
- 3
- ~
- ~
- ~
- ~
- 20 x 28.5
- Yes
