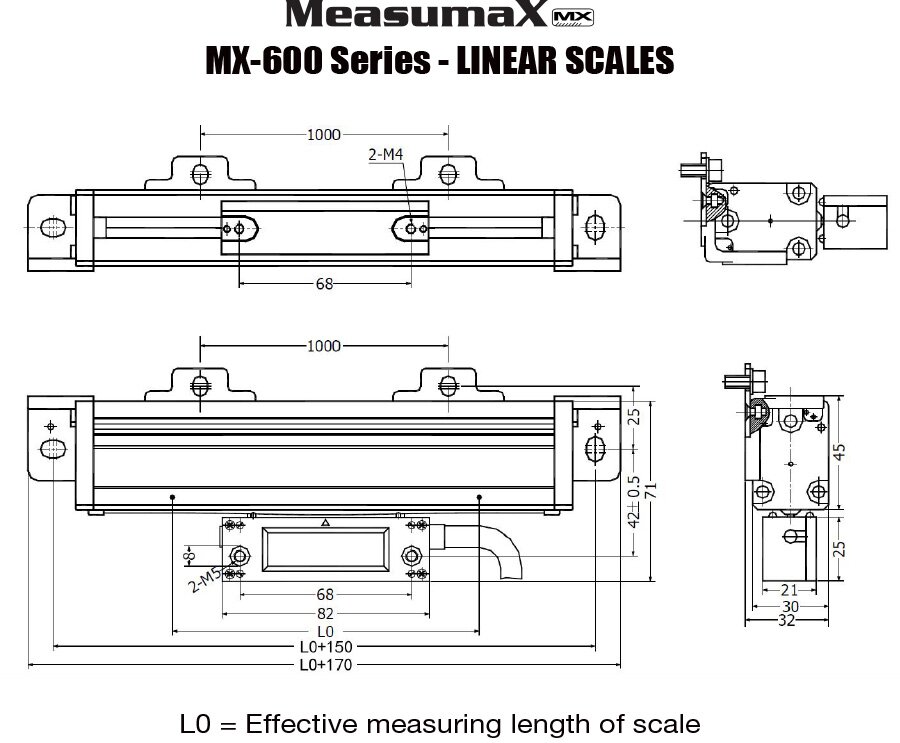

Product Brochure Installation Instructions [2 MB] MX-600 Series - Dimensions [431 KB]

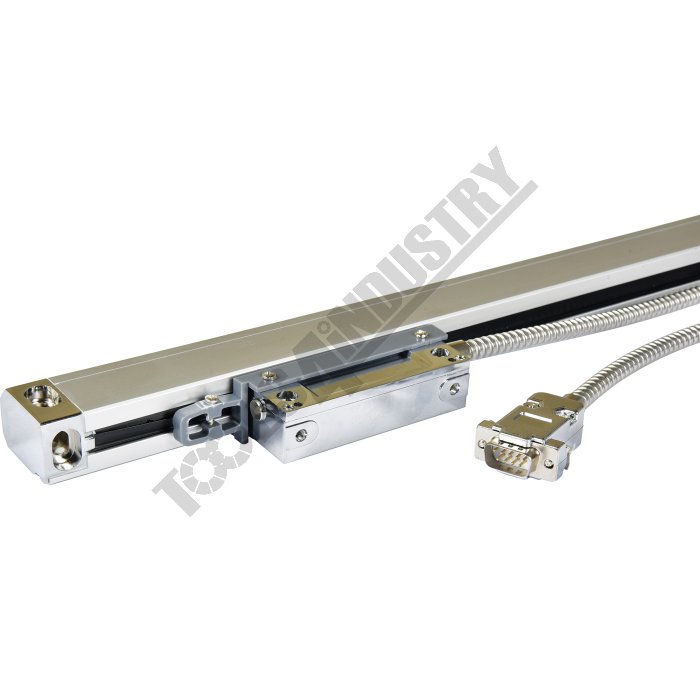

1500mm Digital Readout Scale MX-600-1500/5U MX-600 Standard Scale

Description

The Measumax MX-300 & MX-600 series linear scales are available in measuring lengths from 370 to 3000mm. With a 5μm resolution and a response speed of 60m/min these scales deliver 100% accuracy.

Features

NSK Japanese, five bearing sliding structure for a smooth and accurate movement along the length of the scale
Glass scale with 5μm resolution
Scale body made from extruded Aluminium with wiper seals providing IP54 protection
MX-600 series 30 x 45mm (W x H) section
3m connection cable with 9 pin D-Sub connector

Includes

1500mm Linear scale

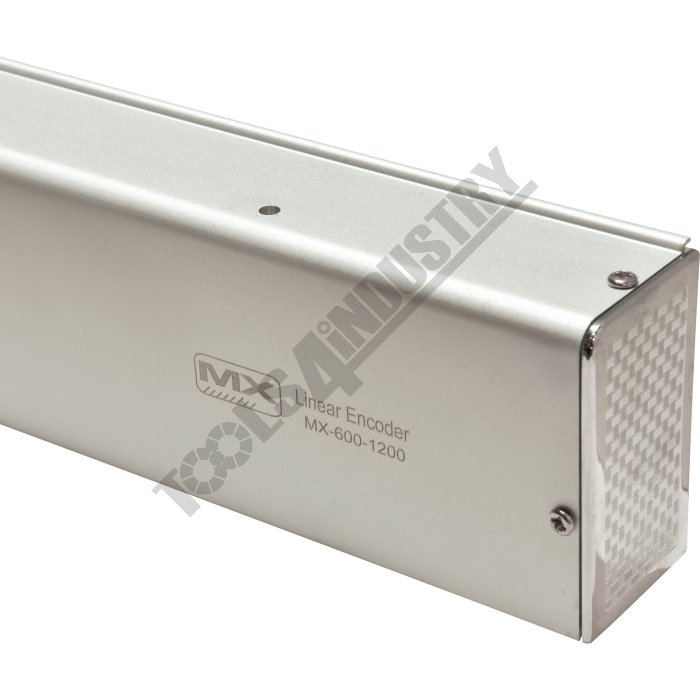

Scale cover

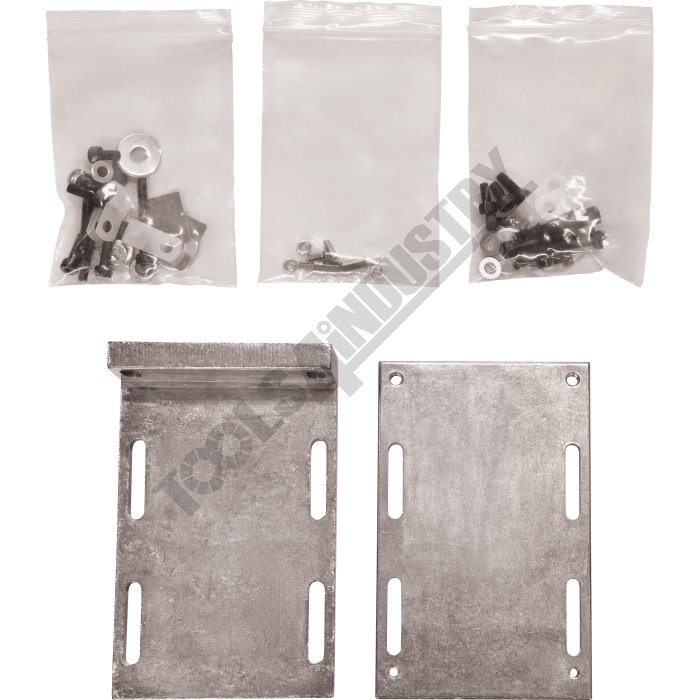

1 x Angle ‘A2’ Bracket Slotted and Tapped (40x130x10mm x 80mm wide)
1 x Flat ‘C2’ Bracket Slotted and Tapped (80x130x10mm)
Screws and washers

Specifications

Compare 53 Products
ORDER CODE
MODEL
Type
Travel - Maximummm
Overall Length (L)mm
Scale Resolutionµm
Grating Pitch
Accuracyµm
Output Signal
Connector
Cable LengthMetre
Working Temperature°C
Sealing Protection Class
Maximum SpeedM/min
Reference Point
Width x Height (W x H)mm
Backing Support PlateYes / No

Q8543
MX-600
Linear Scale
1500
1670
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8548
MX-600
Linear Scale
2000
2170
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8558
MX-600
Linear Scale
3000
3170
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

D719
~
GS30 Compact Scale
150
294
5
~
±6
~
~
3
~
~
~
~
20 x 28.5
Yes

D720
~
VS10 Standard Scale
200
346
5
~
±3 - ±5
~
~
3
~
~
~
~
27.5 x 33.5
Yes

D720C
~
GS30 Compact Scale
200
344
5
~
±6
~
~
3
~
~
~
~
20 x 28.5
Yes

D5210
~
Standard Scale
220
~
5
~
~
~
~
3
~
~
~
~
~
Yes

D721
~
VS10 Standard Scale
250
396
5
~
±3 - ±5
~
~
3
~
~
~
~
27.5 x 3.5
Yes

D721C
~
GS30 Compact Scale
250
394
5
~
±6
~
~
3
~
~
~
~
20 x 28.5
Yes

D5212
~
Standard Scale
270
~
5
~
~
~
~
3
~
~
~
~
~
Yes

D722
~
VS10 Standard Scale
300
446
5
~
±3 - ±5
~
~
3
~
~
~
~
27.5 x 33.5
Yes

D722C
~
GS30 Compact Scale
300
444
5
~
±6
~
~
3
~
~
~
~
20 x 28.5
Yes

D723
~
VS10 Standard Scale
350
496
5
~
±3 - ±5
~
~
3
~
~
~
~
27.5 x 33.5
Yes

D724
~
VS10 Standard Scale
400
546
5
~
±3 - ±5
~
~
3
~
~
~
~
27.5 x 33.5
Yes

D725
~
VS10 Standard Scale
450
596
5
~
±3 - ±5
~
~
3
~
~
~
~
27.5 x 33.5
Yes

D726
~
VS10 Standard Scale
500
646
5
~
±10
~
~
3
~
~
~
~
27.5 x 33.5
Yes

D728
~
VS10 Standard Scale
600
746
5
~
±10
~
~
3
~
~
~
~
27.5 x 33.5
No

D730
~
VS10 Standard Scale
700
846
5
~
±10
~
~
3
~
~
~
~
27.5 x 33.5
No

D5225
~
Standard Scale
720
~
5
~
~
~
~
3
~
~
~
~
~
No

D732
~
VS10 Standard Scale
800
946
5
~
±10
~
~
3
~
~
~
~
27.5 x 33.5
No

D734
~
VS10 Standard Scale
900
1046
5
~
±10
~
~
3
~
~
~
~
27.5 x 33.5
No

D5229
~
Standard Scale
920
~
5
~
~
~
~
3
~
~
~
~
~
No

D736
~
VS10 Standard Scale
1000
1146
5
~
±10
~
~
3
~
~
~
~
27.5 x 33.5
No

D736A
~
VS10 Standard Scale
1100
1246
5
~
±10
~
~
5
~
~
~
~
27.5 x 33.5
No

D737
~
VS10 Standard Scale
1200
1346
5
~
±10
~
~
5
~
~
~
~
27.5 x 33.5
No

D738
~
VS20 Standard Scale
1300
1446
5
~
±10
~
~
5
~
~
~
~
27.5 x 40.1
No

D739
~
VS20 Standard Scale
1500
1646
5
~
±10
~
~
5
~
~
~
~
27.5 x 40.1
No

D741
~
VS20 Standard Scale
1700
1846
5
~
±10
~
~
7
~
~
~
~
27.5 x 40.1
No

D745
~
VS20 Standard Scale
2000
2146
5
~
±10
~
~
7
~
~
~
~
27.5 x 40.1
No

D746
~
VS20 Standard Scale
2400
2546
5
~
±10
~
~
9
~
~
~
~
27.5 x 40.1
No

D750
~
VS20 Standard Scale
3000
3146
5
~
±10
~
~
9
~
~
~
~
27.5 x 40.1
No

D751
~
Magnetic Scale
3000
3120
5
~
~
~
~
5
~
~
~
~
28 x 46
No

D752
~
Magnetic Scale
4000
4120
5
~
~
~
~
5
~
~
~
~
28 x 46
No

D755
~
Magnetic Scale
5000
5120
5
~
~
~
~
5
~
~
~
~
28 x 46
No

D7559
~
Magnetic Scale
10000
10120
5
~
~
~
~
5
~
~
~
~
28 x 46
No

D694
~
Magnetic Scale
1500
1500
5
~
~
~
~
~
~
~
~
~
10 x 1.5
No

D697
~
Read Head + Cable
~
~
5
~
~
~
~
1.5
~
~
~
~
~
Yes

Q8510
MX-500
Compact Linear Scale
120
232
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8511
MX-500
Compact Linear Scale
170
282
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8512
MX-500
Compact Linear Scale
220
332
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8513
MX-500
Compact Linear Scale
270
382
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8514
MX-500
Compact Linear Scale
320
432
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8525
MX-300
Linear Scale
370
476
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8526
MX-300
Linear Scale
420
526
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8527
MX-300
Linear Scale
470
576
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8528
MX-300
Linear Scale
520
626
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8529
MX-300
Linear Scale
570
676
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8530
MX-300
Linear Scale
620
726
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8532
MX-300
Linear Scale
720
826
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8534
MX-300
Linear Scale
820
926
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8536
MX-300
Linear Scale
920
1026
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8538
MX-300
Linear Scale
1020
1126
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8540
MX-600
Linear Scale
1200
1370
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

ORDER CODE	MX-600
MODEL	Linear Scale
Type	1500
Travel - Maximummm	1670
Overall Length (L)mm	5μm (0.005mm)
Scale Resolutionµm	20μm (0.02mm)
Grating Pitch	±0.005mm，±0.01mm/M
Accuracyµm	5V TTL
Output Signal	9 pin D-Sub
Connector	3m metal conduit
Cable LengthMetre	-10℃—60℃
Working Temperature°C	Class: IP54
Sealing Protection Class	60M/Min
Maximum SpeedM/min	Every 50mm
Reference Point	~
Width x Height (W x H)mm	Yes
Backing Support PlateYes / No
