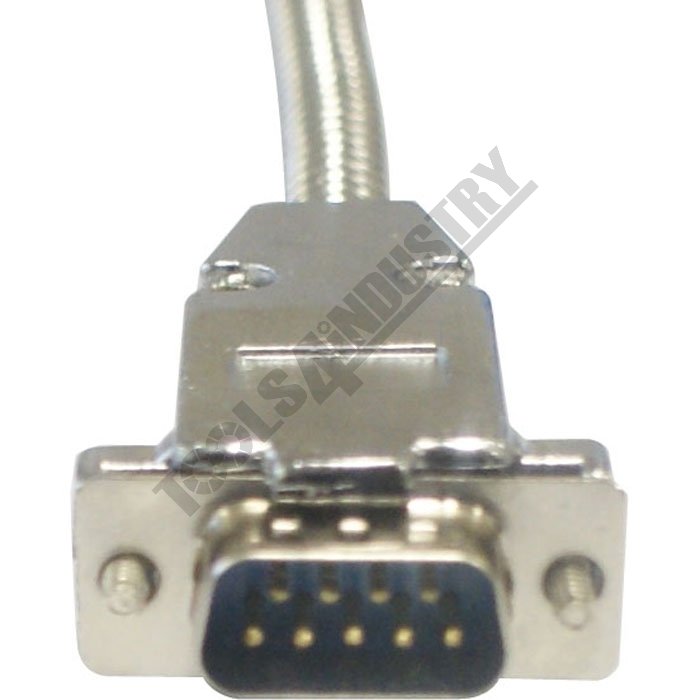

DSub9 Male Plug

DSub9 Male Plug

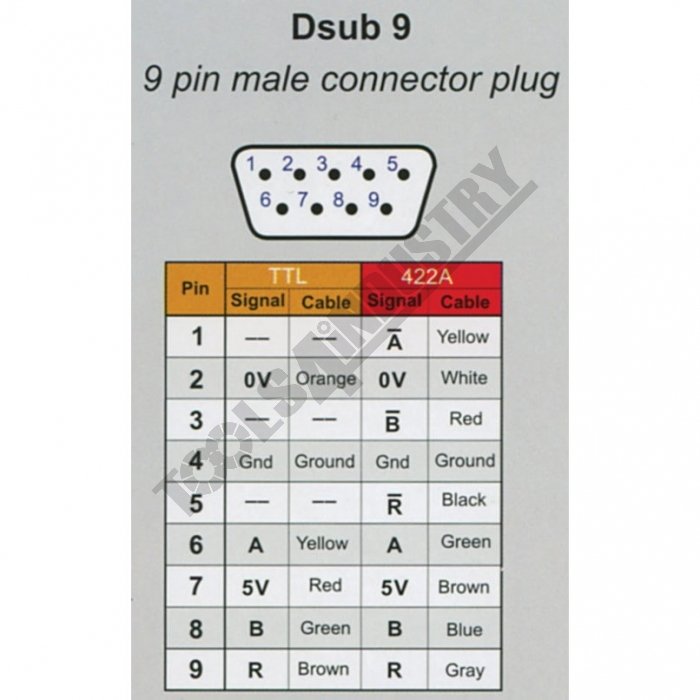

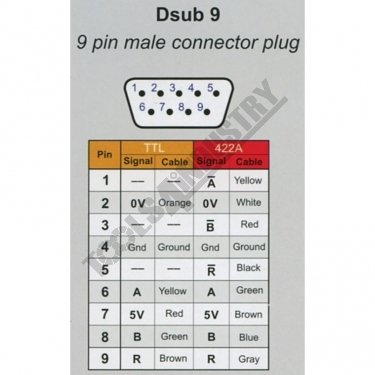

Dsub9 Wiring Diagram

Dsub9 Wiring Diagram

DIY Installation

DIY Installation

Code	D745
Capacity	VS20 Standard Scale
Weight (kg)	11
Weight (m³)	0.044
Weight (Freight)	14.652
Dimensions (cm)	227 x 14 x 14

EASSON

1 Year Warranty

Product Brochure Reader Head Replacement [134 KB]

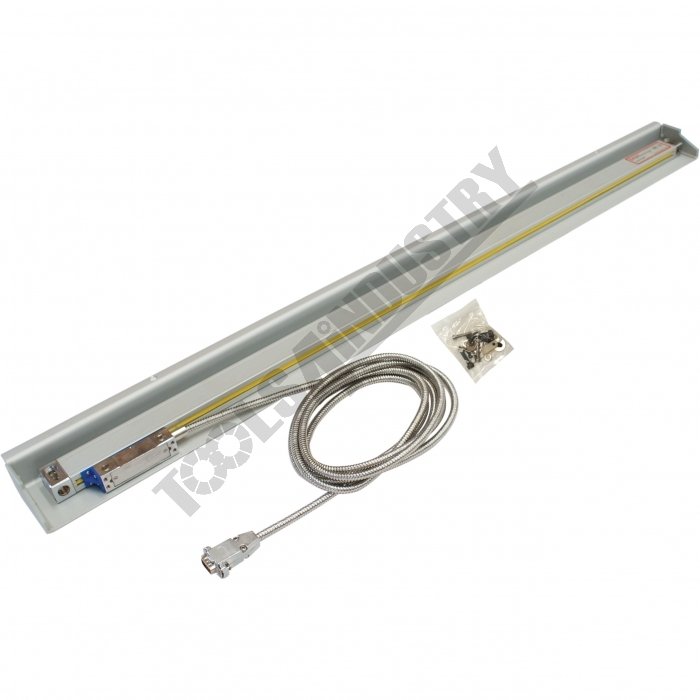

2000mm Easson Digital Readout Scale VS20 Standard Scale

Description

Easson VS series Glass Grating Linear Transducer: EASSON - Always committed to Quality, Technology & Innovation

Features

DOUBLE SEAL DESIGNED SCALES:
The plastic seals of the transducer use an innovative material to offer superior oil resistance, high elastic recovery properties and durability, carefully designed lip geometry offer low slide resistance.

100% LASER CALIBRATION:
All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy complies 100% with the specifications.

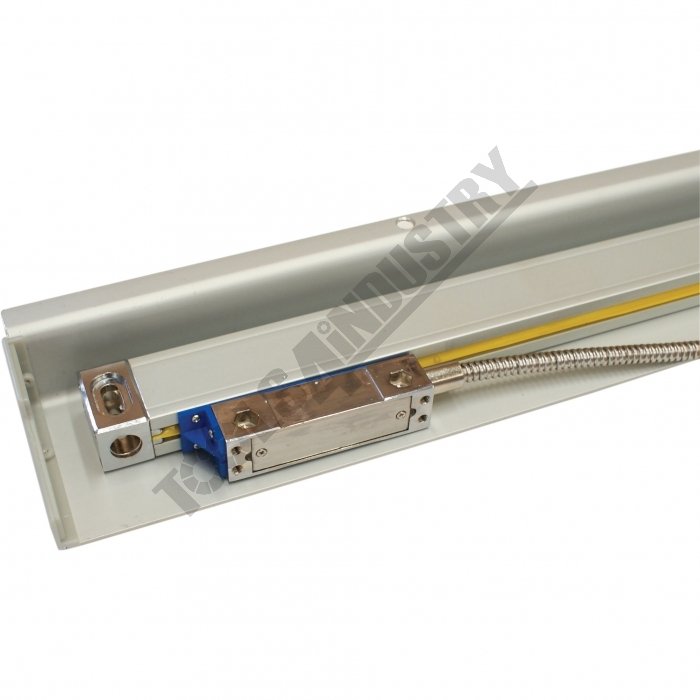

ADVANCED OPTICAL MEASURING SYSTEM:

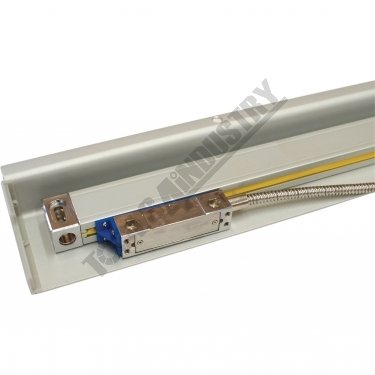

The slide carrier of the VS series scales, use a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market.
The glass grating slide-ways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.

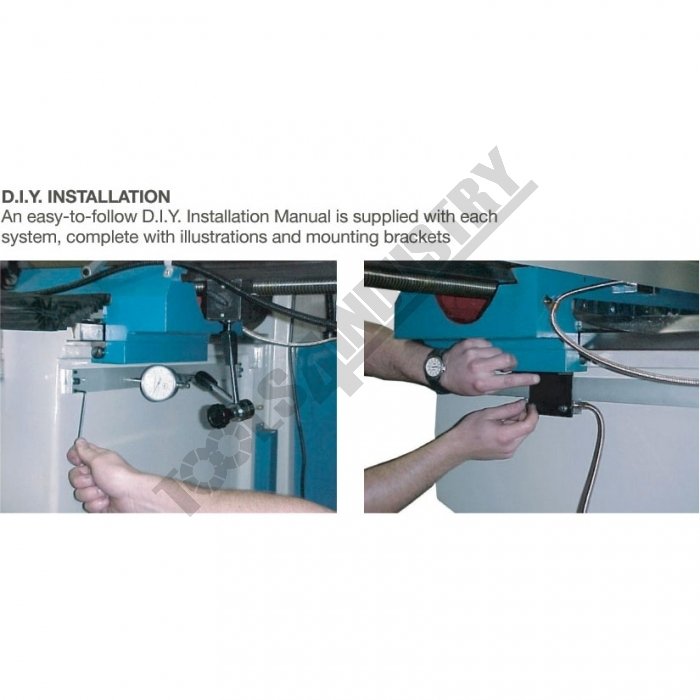

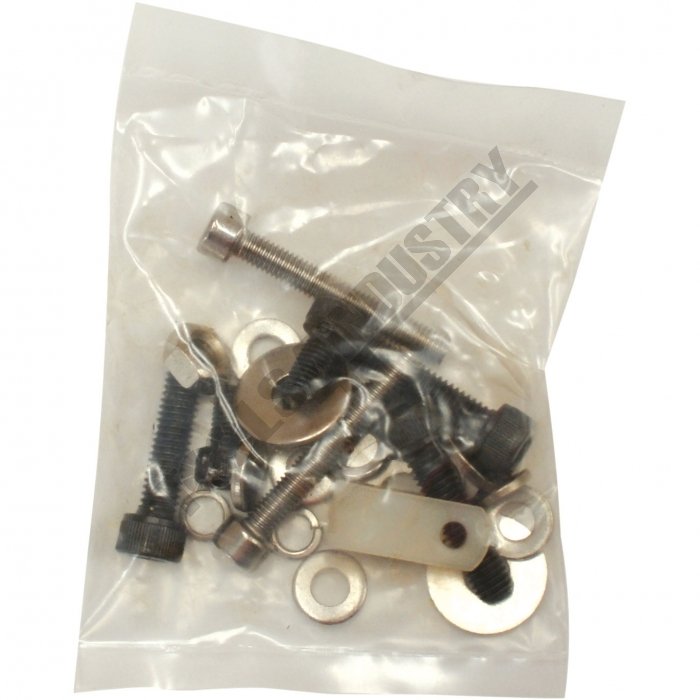

D.I.Y. INSTALLATION:
An easy-to-follow D.I.Y. Installation Manual is supplied with each system, complete with illustrations and mounting brackets.

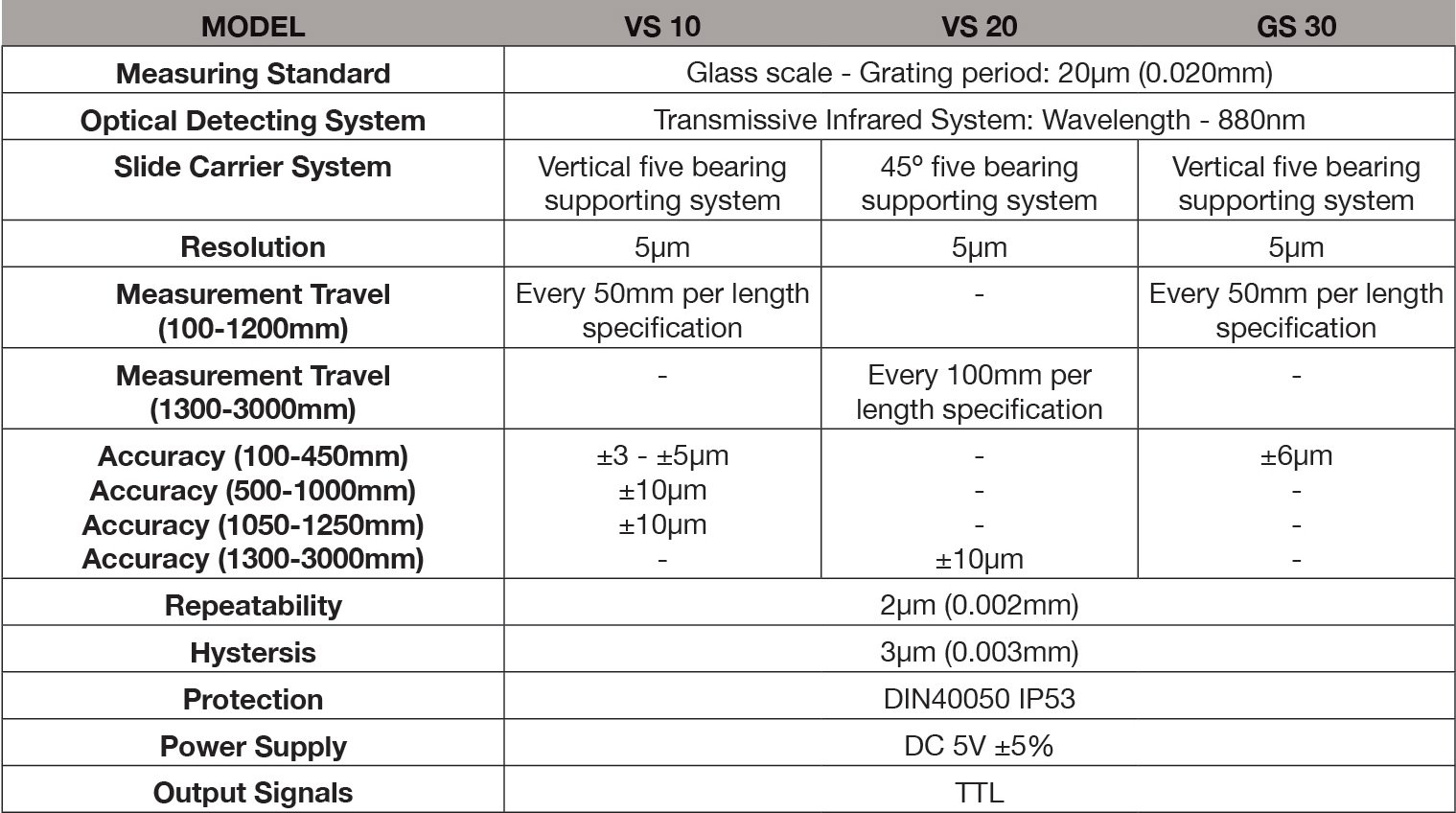

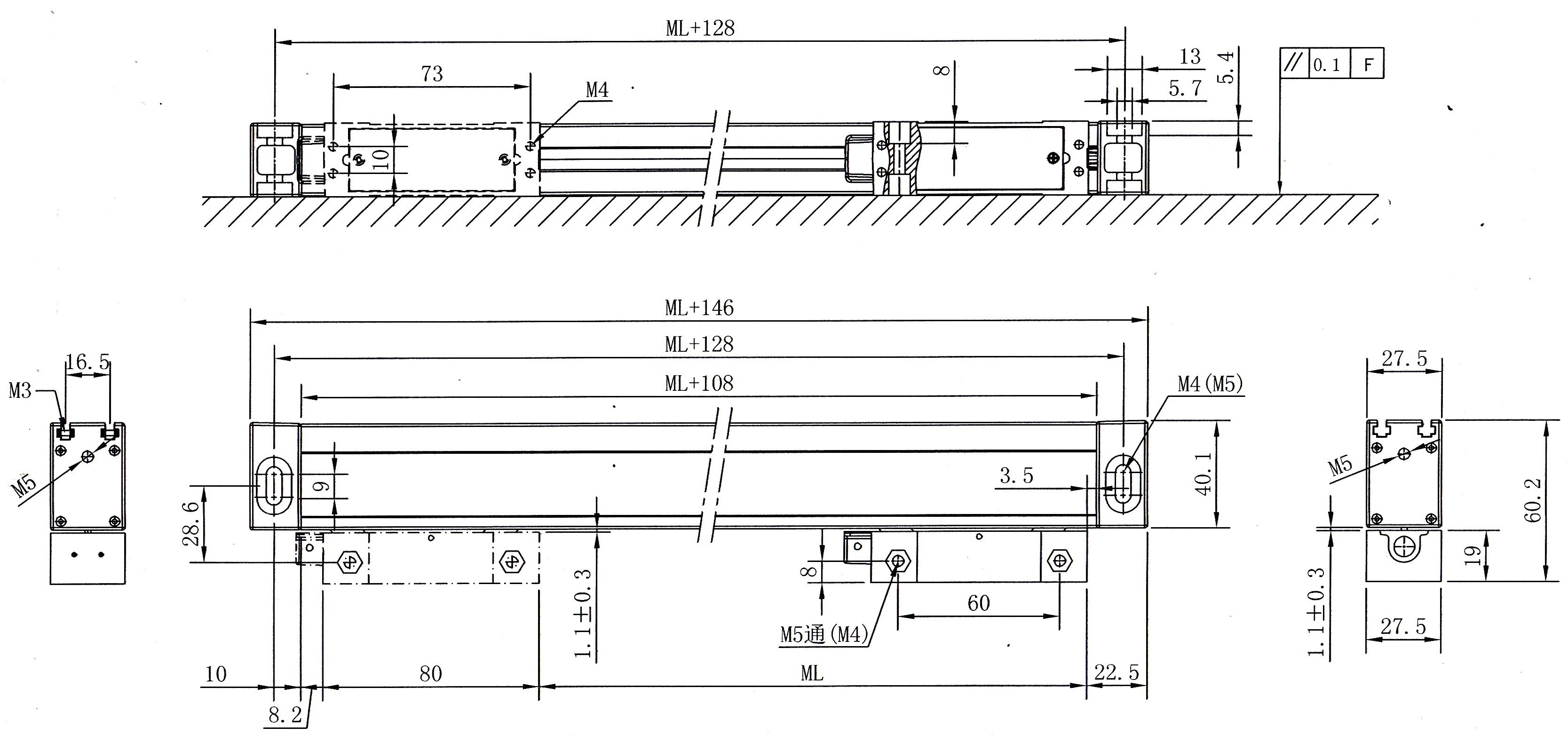

Specifications

Compare 53 Products
ORDER CODE
MODEL
Type
Travel - Maximummm
Overall Length (L)mm
Scale Resolutionµm
Grating Pitch
Accuracyµm
Output Signal
Connector
Cable LengthMetre
Working Temperature°C
Sealing Protection Class
Maximum SpeedM/min
Reference Point
Width x Height (W x H)mm
Backing Support PlateYes / No

D745
~
VS20 Standard Scale
2000
2146
5
~
±10
~
~
7
~
~
~
~
27.5 x 40.1
No

D746
~
VS20 Standard Scale
2400
2546
5
~
±10
~
~
9
~
~
~
~
27.5 x 40.1
No

D750
~
VS20 Standard Scale
3000
3146
5
~
±10
~
~
9
~
~
~
~
27.5 x 40.1
No

D751
~
Magnetic Scale
3000
3120
5
~
~
~
~
5
~
~
~
~
28 x 46
No

D752
~
Magnetic Scale
4000
4120
5
~
~
~
~
5
~
~
~
~
28 x 46
No

D755
~
Magnetic Scale
5000
5120
5
~
~
~
~
5
~
~
~
~
28 x 46
No

D7559
~
Magnetic Scale
10000
10120
5
~
~
~
~
5
~
~
~
~
28 x 46
No

D694
~
Magnetic Scale
1500
1500
5
~
~
~
~
~
~
~
~
~
10 x 1.5
No

D697
~
Read Head + Cable
~
~
5
~
~
~
~
1.5
~
~
~
~
~
Yes

Q8510
MX-500
Compact Linear Scale
120
232
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8511
MX-500
Compact Linear Scale
170
282
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8512
MX-500
Compact Linear Scale
220
332
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8513
MX-500
Compact Linear Scale
270
382
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8514
MX-500
Compact Linear Scale
320
432
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8525
MX-300
Linear Scale
370
476
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8526
MX-300
Linear Scale
420
526
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8527
MX-300
Linear Scale
470
576
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8528
MX-300
Linear Scale
520
626
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8529
MX-300
Linear Scale
570
676
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8530
MX-300
Linear Scale
620
726
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8532
MX-300
Linear Scale
720
826
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8534
MX-300
Linear Scale
820
926
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8536
MX-300
Linear Scale
920
1026
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8538
MX-300
Linear Scale
1020
1126
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8540
MX-600
Linear Scale
1200
1370
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8543
MX-600
Linear Scale
1500
1670
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8548
MX-600
Linear Scale
2000
2170
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

Q8558
MX-600
Linear Scale
3000
3170
5μm (0.005mm)
20μm (0.02mm)
±0.005mm，±0.01mm/M
5V TTL
9 pin D-Sub
3m metal conduit
-10℃—60℃
Class: IP54
60M/Min
Every 50mm
~
Yes

D719
~
GS30 Compact Scale
150
294
5
~
±6
~
~
3
~
~
~
~
20 x 28.5
Yes

D720
~
VS10 Standard Scale
200
346
5
~
±3 - ±5
~
~
3
~
~
~
~
27.5 x 33.5
Yes

D720C
~
GS30 Compact Scale
200
344
5
~
±6
~
~
3
~
~
~
~
20 x 28.5
Yes

D5210
~
Standard Scale
220
~
5
~
~
~
~
3
~
~
~
~
~
Yes

D721
~
VS10 Standard Scale
250
396
5
~
±3 - ±5
~
~
3
~
~
~
~
27.5 x 3.5
Yes

D721C
~
GS30 Compact Scale
250
394
5
~
±6
~
~
3
~
~
~
~
20 x 28.5
Yes

D5212
~
Standard Scale
270
~
5
~
~
~
~
3
~
~
~
~
~
Yes

D722
~
VS10 Standard Scale
300
446
5
~
±3 - ±5
~
~
3
~
~
~
~
27.5 x 33.5
Yes

D722C
~
GS30 Compact Scale
300
444
5
~
±6
~
~
3
~
~
~
~
20 x 28.5
Yes

D723
~
VS10 Standard Scale
350
496
5
~
±3 - ±5
~
~
3
~
~
~
~
27.5 x 33.5
Yes

D724
~
VS10 Standard Scale
400
546
5
~
±3 - ±5
~
~
3
~
~
~
~
27.5 x 33.5
Yes

D725
~
VS10 Standard Scale
450
596
5
~
±3 - ±5
~
~
3
~
~
~
~
27.5 x 33.5
Yes

D726
~
VS10 Standard Scale
500
646
5
~
±10
~
~
3
~
~
~
~
27.5 x 33.5
Yes

D728
~
VS10 Standard Scale
600
746
5
~
±10
~
~
3
~
~
~
~
27.5 x 33.5
No

D730
~
VS10 Standard Scale
700
846
5
~
±10
~
~
3
~
~
~
~
27.5 x 33.5
No

D5225
~
Standard Scale
720
~
5
~
~
~
~
3
~
~
~
~
~
No

D732
~
VS10 Standard Scale
800
946
5
~
±10
~
~
3
~
~
~
~
27.5 x 33.5
No

D734
~
VS10 Standard Scale
900
1046
5
~
±10
~
~
3
~
~
~
~
27.5 x 33.5
No

D5229
~
Standard Scale
920
~
5
~
~
~
~
3
~
~
~
~
~
No

D736
~
VS10 Standard Scale
1000
1146
5
~
±10
~
~
3
~
~
~
~
27.5 x 33.5
No

D736A
~
VS10 Standard Scale
1100
1246
5
~
±10
~
~
5
~
~
~
~
27.5 x 33.5
No

D737
~
VS10 Standard Scale
1200
1346
5
~
±10
~
~
5
~
~
~
~
27.5 x 33.5
No

D738
~
VS20 Standard Scale
1300
1446
5
~
±10
~
~
5
~
~
~
~
27.5 x 40.1
No

D739
~
VS20 Standard Scale
1500
1646
5
~
±10
~
~
5
~
~
~
~
27.5 x 40.1
No

D741
~
VS20 Standard Scale
1700
1846
5
~
±10
~
~
7
~
~
~
~
27.5 x 40.1
No

ORDER CODE	~
MODEL	VS20 Standard Scale
Type	2000
Travel - Maximummm	2146
Overall Length (L)mm	5
Scale Resolutionµm	~
Grating Pitch	±10
Accuracyµm	~
Output Signal	~
Connector	7
Cable LengthMetre	~
Working Temperature°C	~
Sealing Protection Class	~
Maximum SpeedM/min	~
Reference Point	27.5 x 40.1
Width x Height (W x H)mm	No
Backing Support PlateYes / No
