L245VS

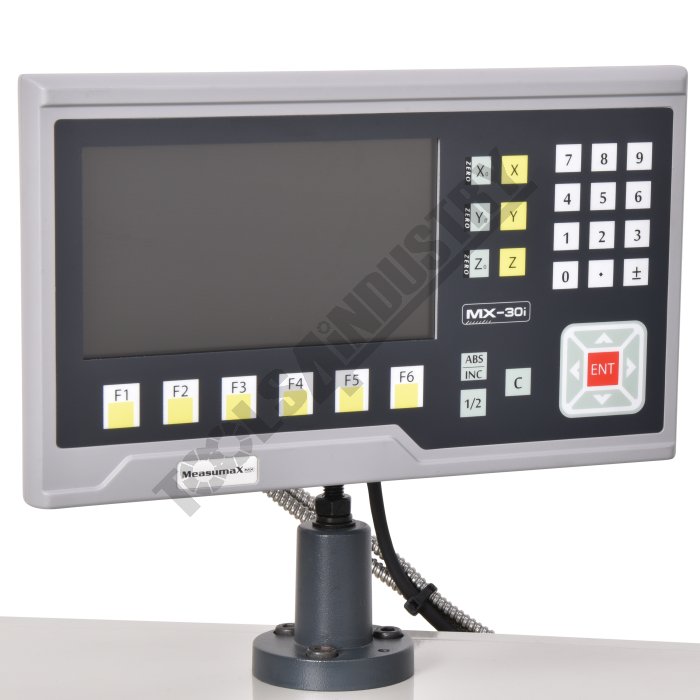

3 Axis Digital Readout

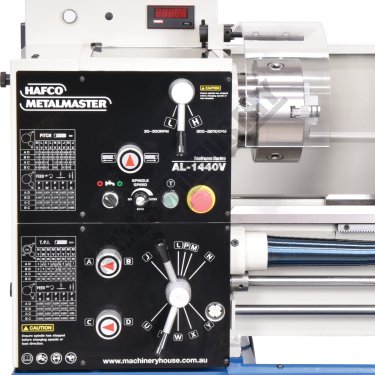

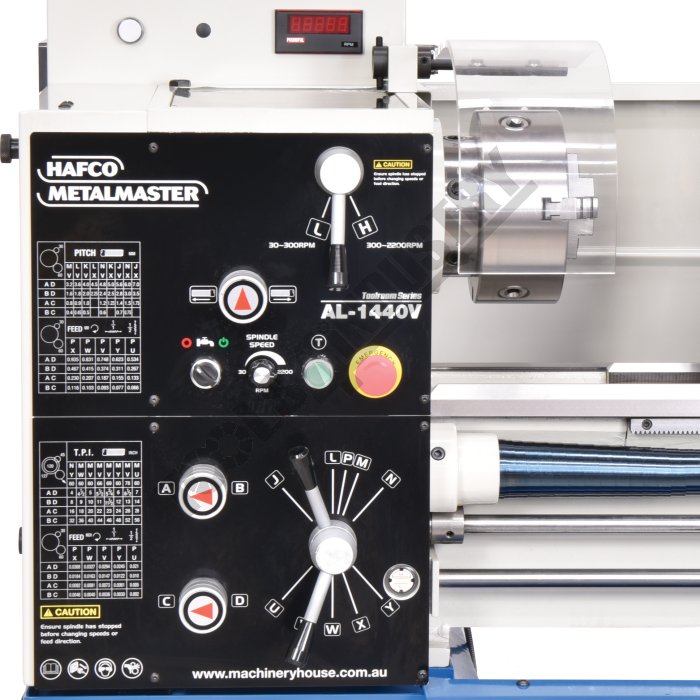

Headstock Controls

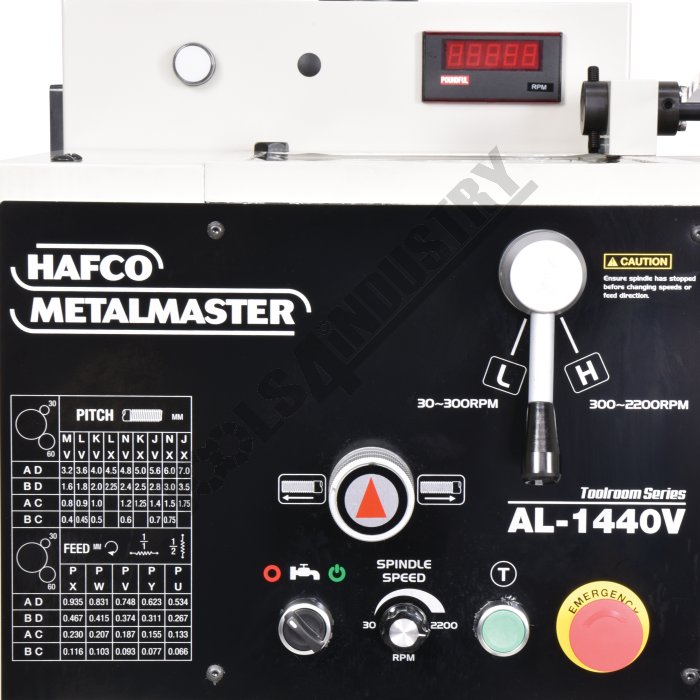

Control Panel

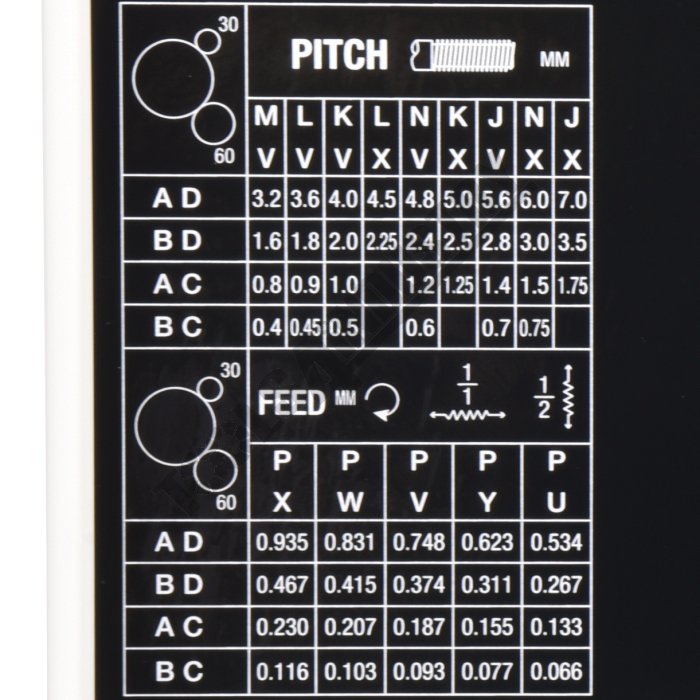

Feed Charts

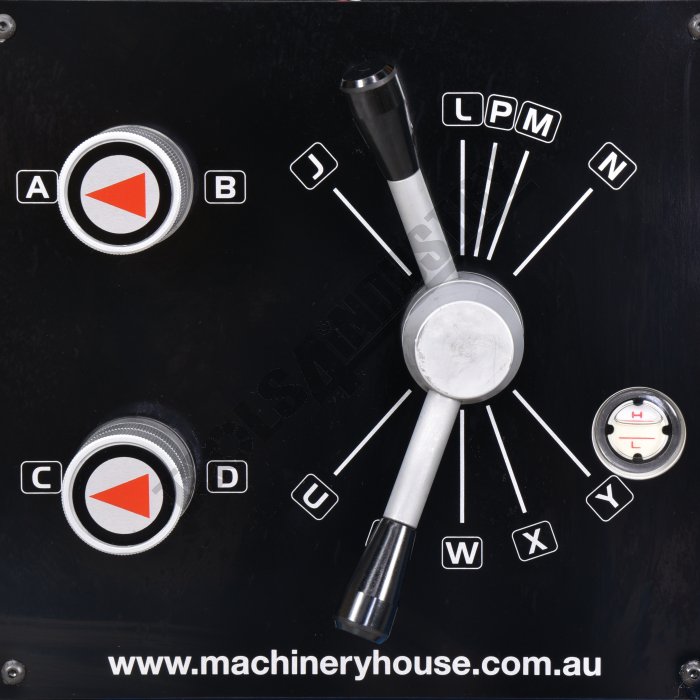

Feeds and Threads Gearbox Levers

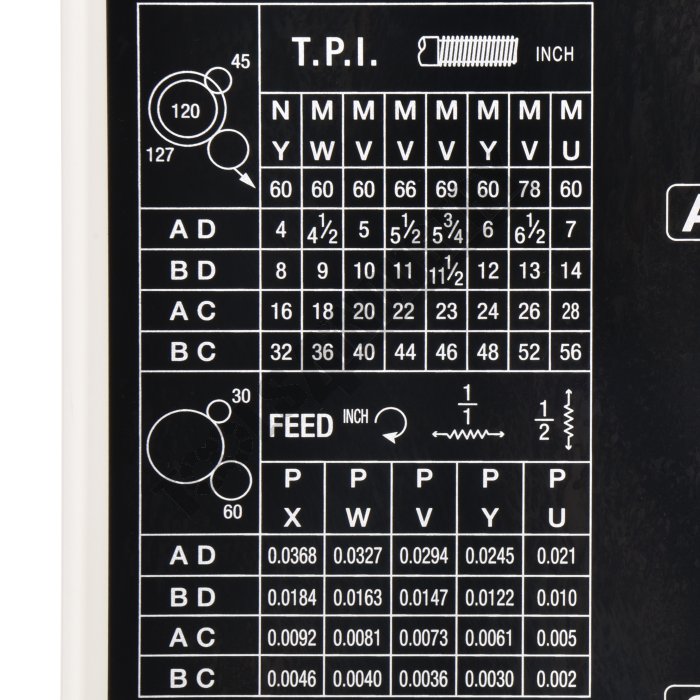

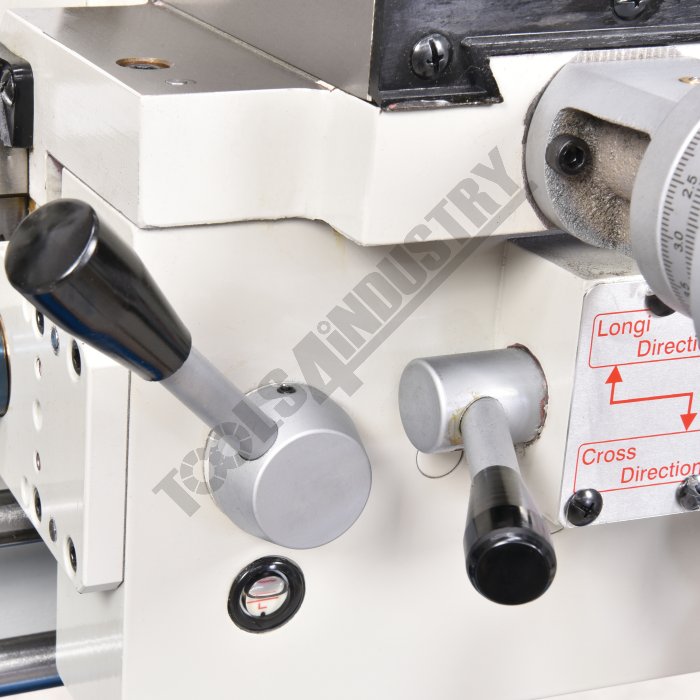

Thread Engagement Lever

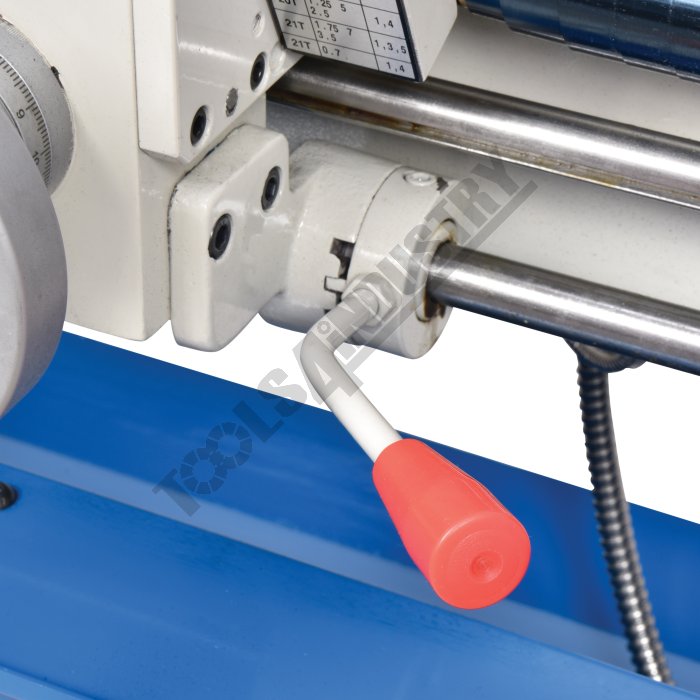

Spindle Engagement Lever

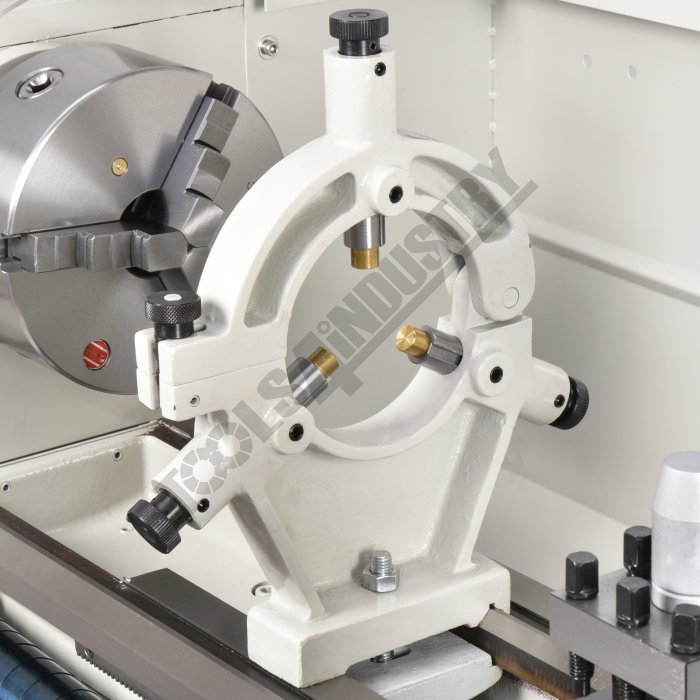

3 Point Fixed Steady

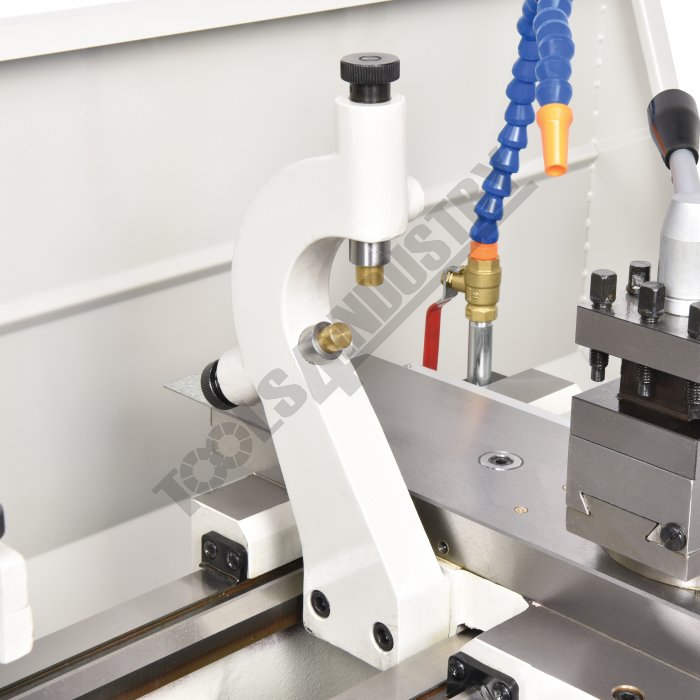

2 Point Travelling Steady

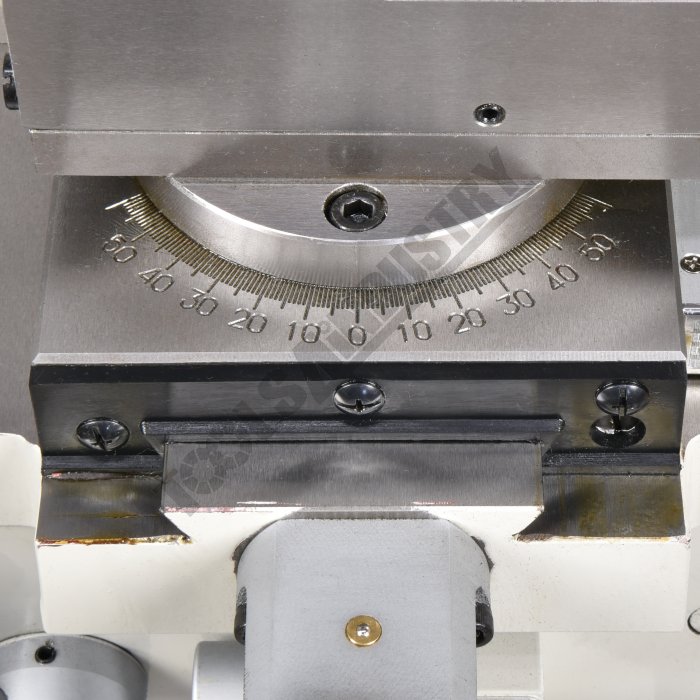

Swivel Compound Slide

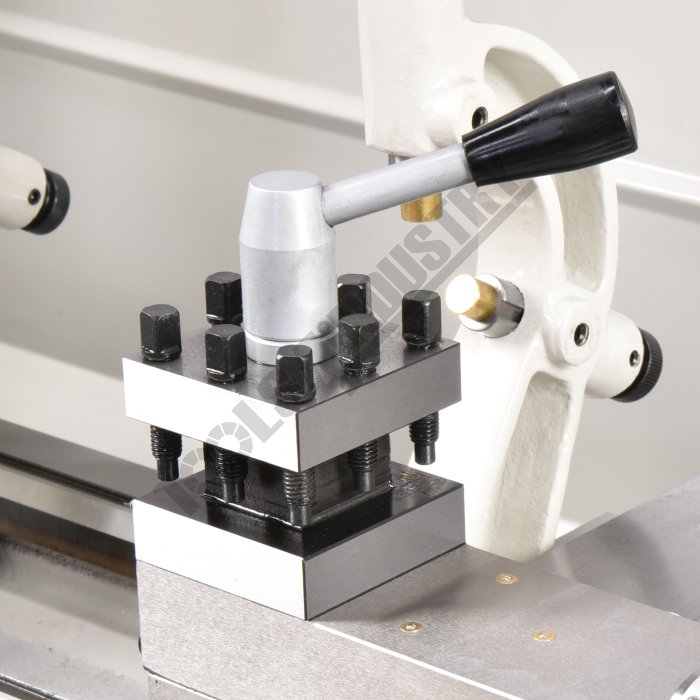

Compound Slide with 4 Way Toolpost

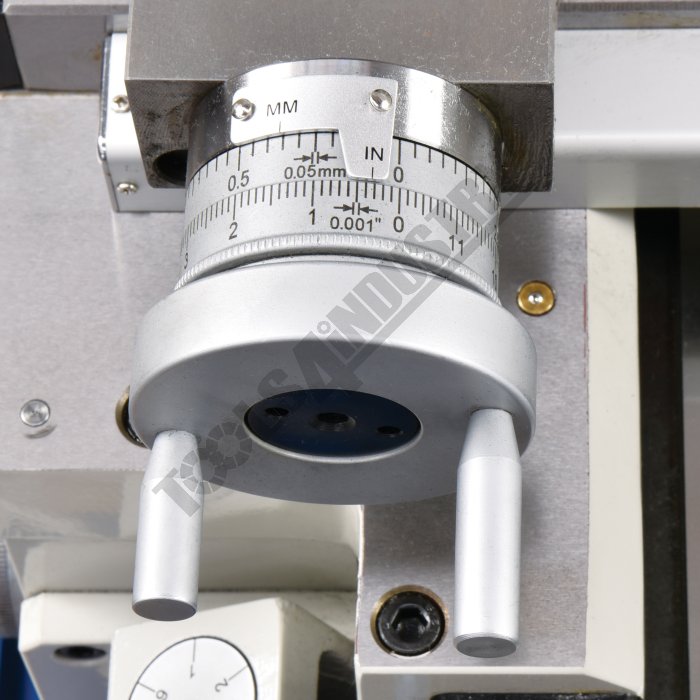

Compound Slide Dial Graduations

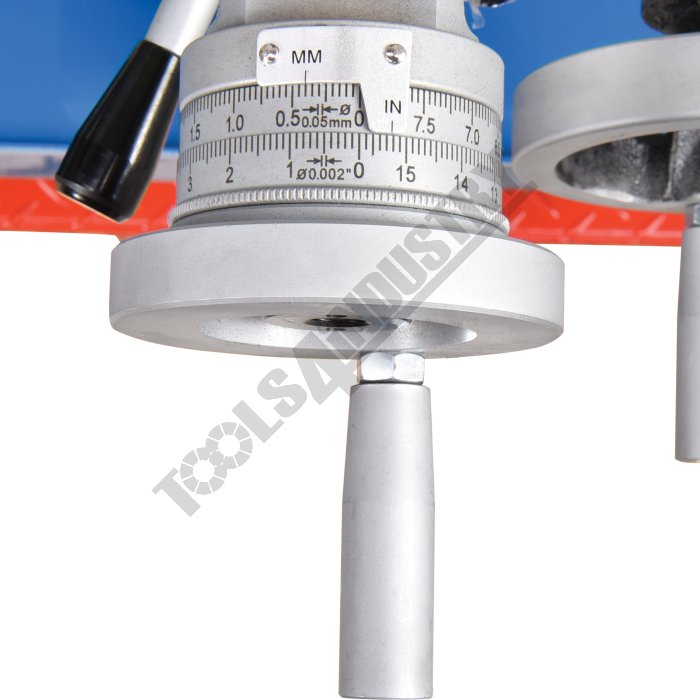

Cross Slide Feed Dial Graduations

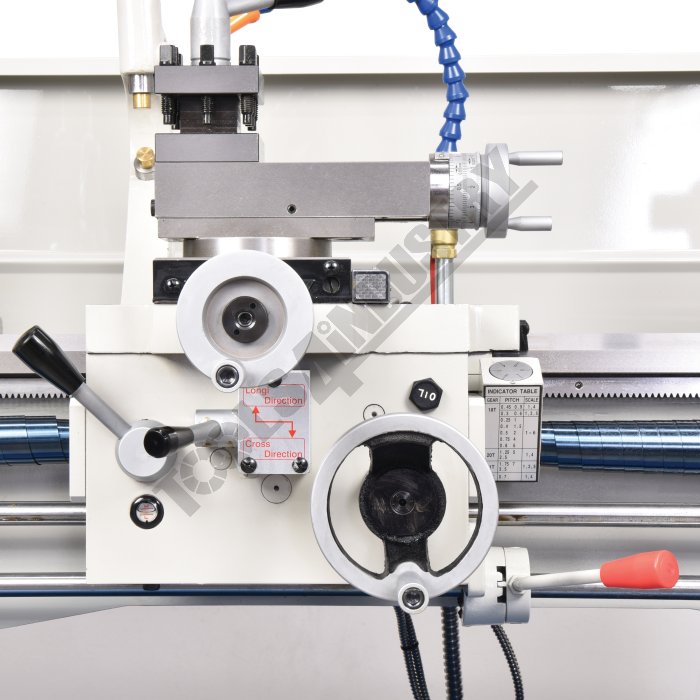

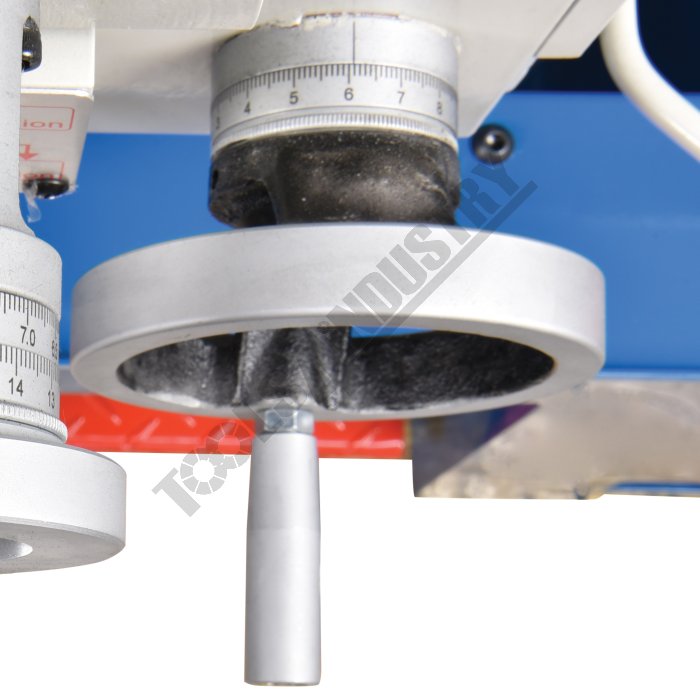

Saddle Hand Wheel

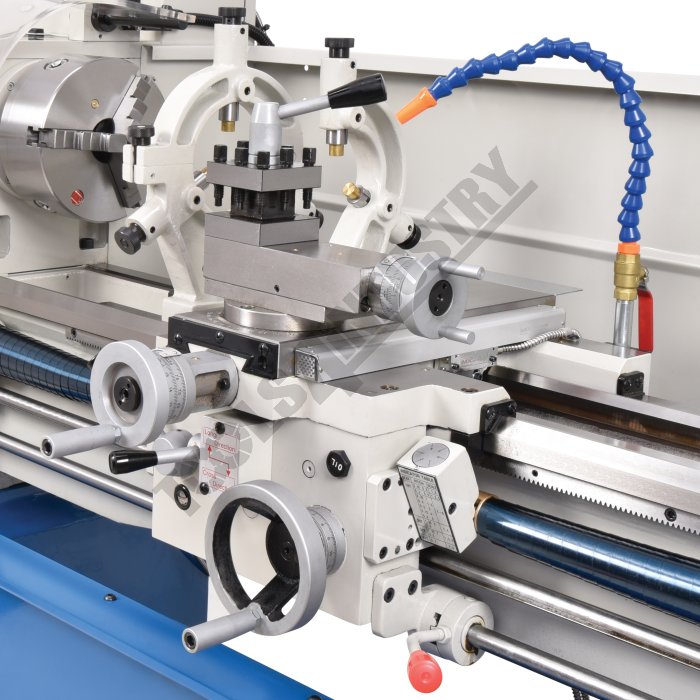

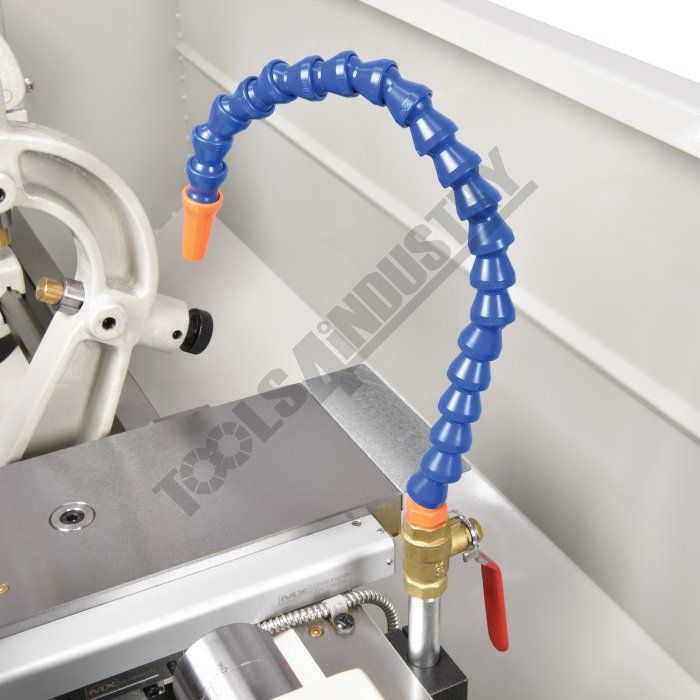

Flexible Coolant Hose

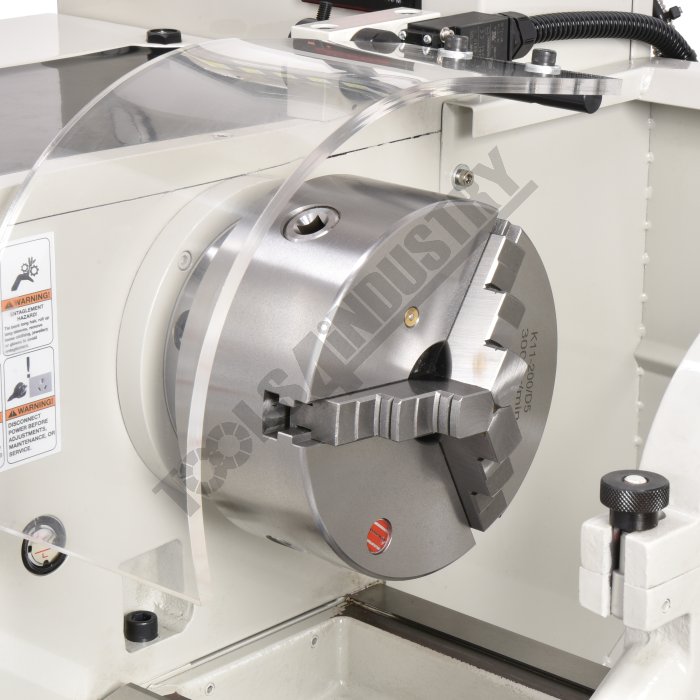

3 Jaw Camlock Chuck

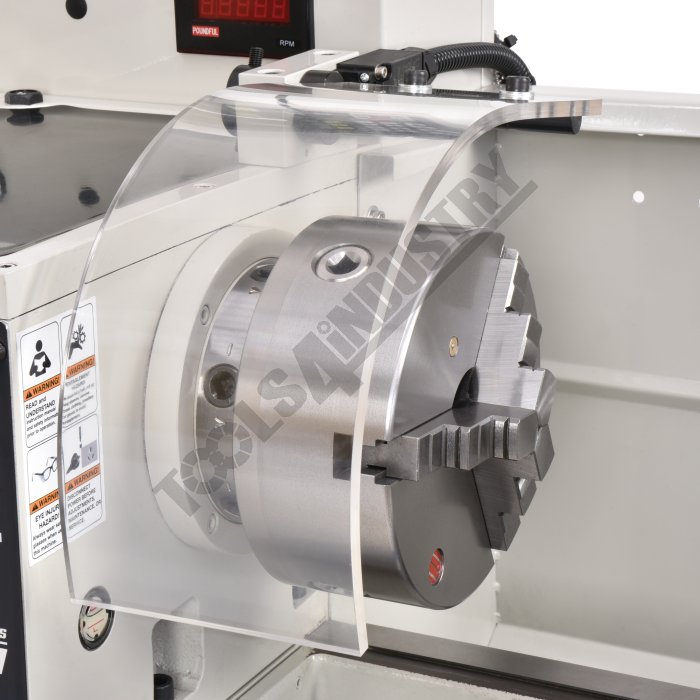

Safety Chuck Guard

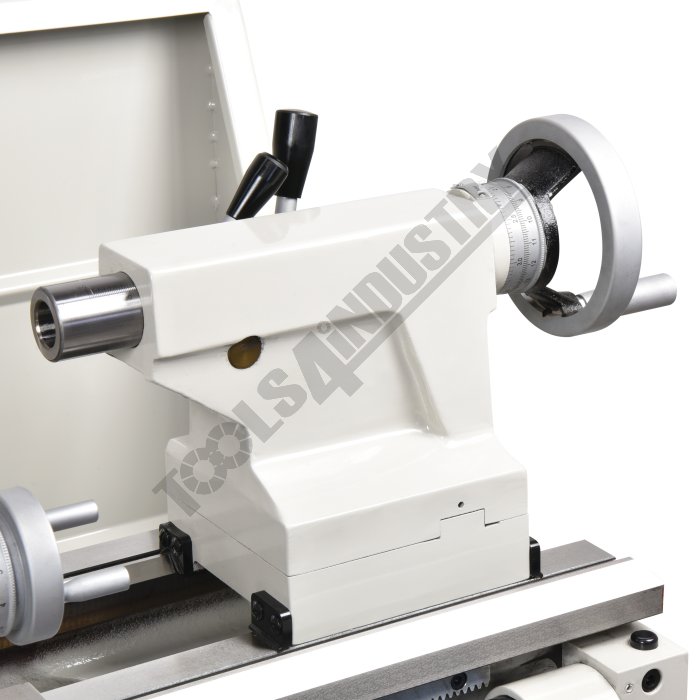

Tailstock

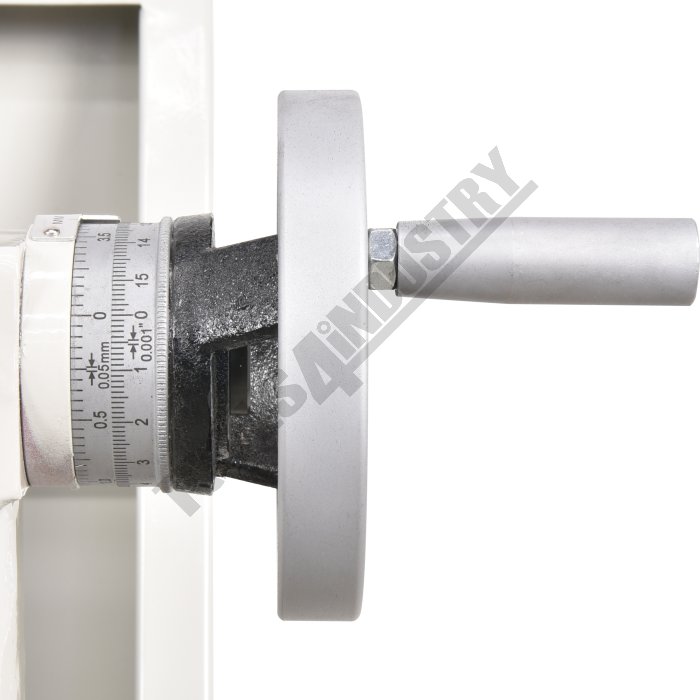

Tailstock Hand Wheel Dial Graduations

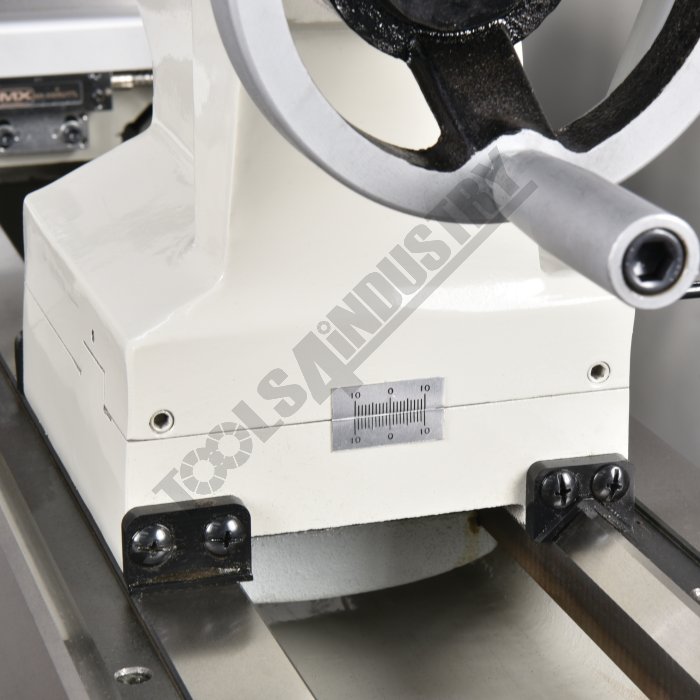

Tailstock Offset Adjustment

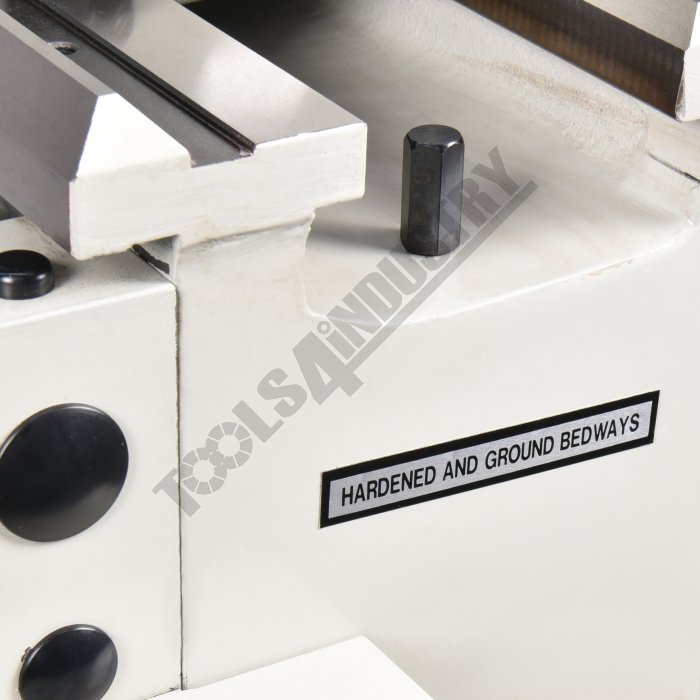

Hardened and Ground Bedways

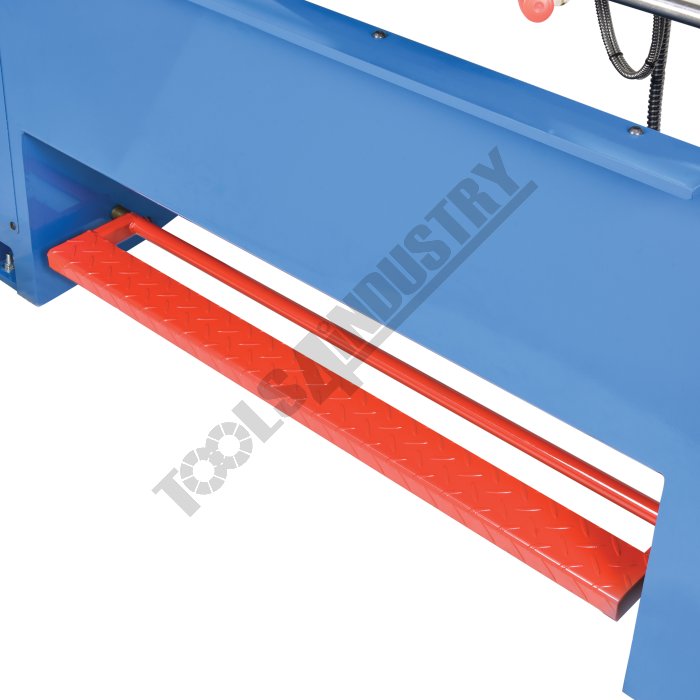

Foot Brake

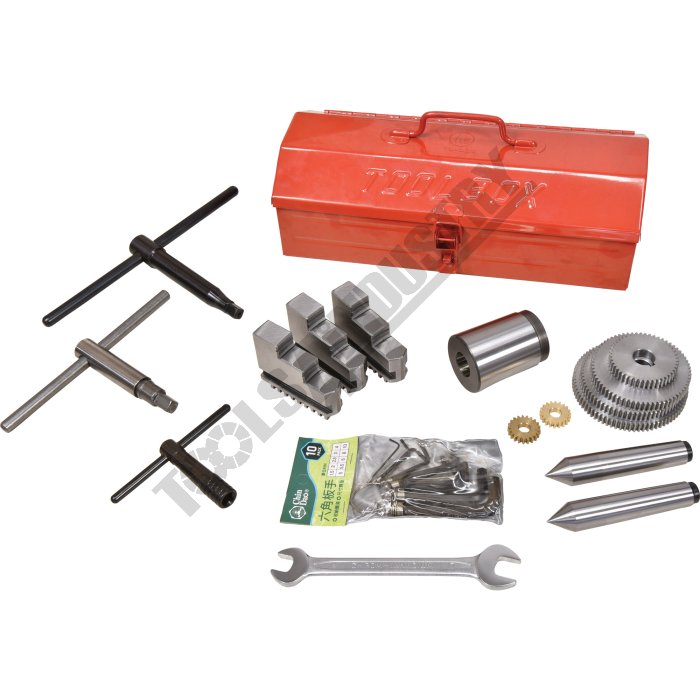

Toolbox with Accessories

Code	L245VS
Model	AL-1440V
Capacity	Ø356 x 1000mm Turning Capacity - Ø51mm Spindle Bore
Weight (kg)	814
Weight (m³)	2.223
Weight (Freight)	814
Dimensions (cm)	190 x 78 x 150

Product Brochure Instruction Manual [24 MB] Carmar DRO Operation Manual [5 MB]Lathe - Metal Risk Assessment

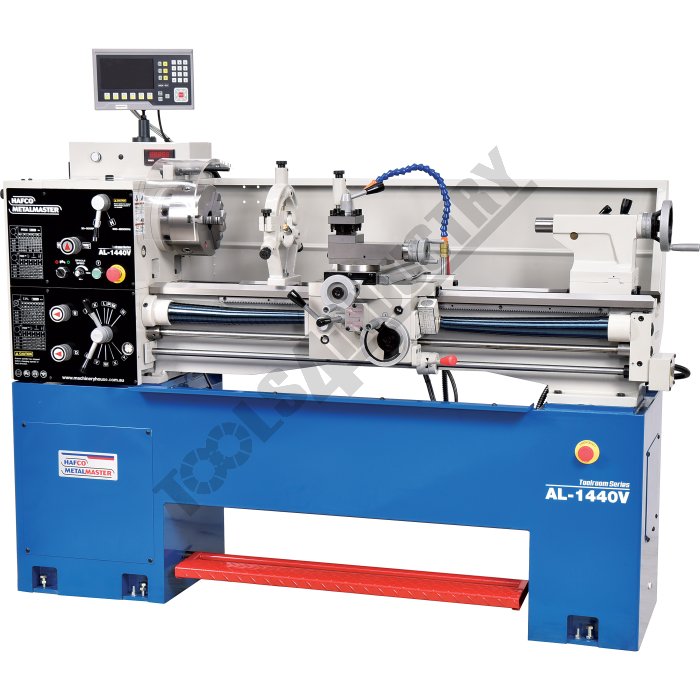

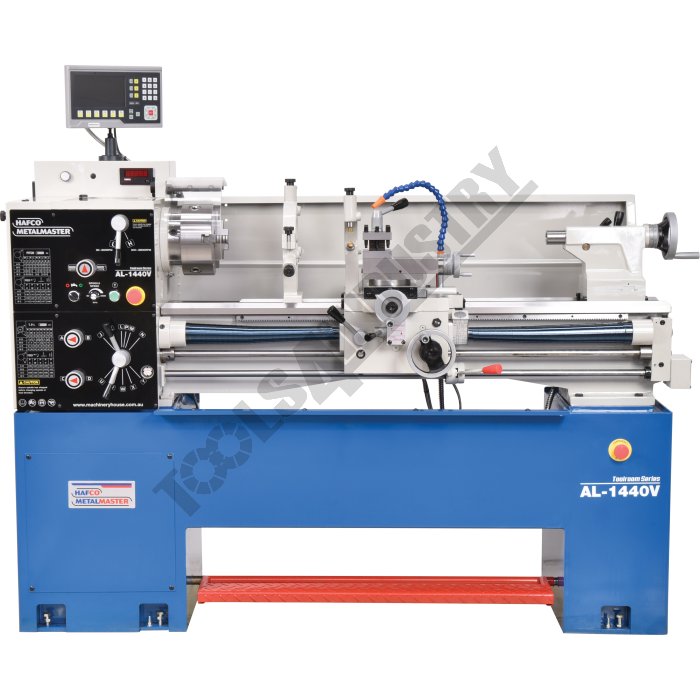

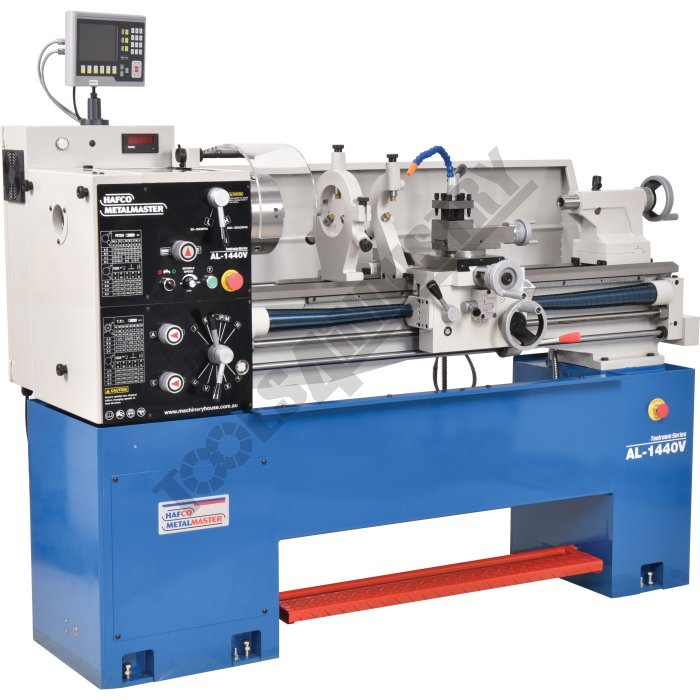

Centre Lathe AL-1440V Ø356 x 1000mm Turning Capacity - Ø51mm Spindle Bore

Description

Toolroom-quality precision lathe, made in Taiwan by the same manufacturer as the renowned AL-960B & AL-1000C/D models.

Features

Yasakawa Electric Varispeed high-performance, Low-noise, Inverter drive
Variable speed 30-2200rpm with high/low speed selector
Nachi Japanese made, adjustable taper roller bearings support the spindle
51mm spindle bore
Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting
One piece heavy steel fabricated stand
Chuck guard with safety micro switch cut out
Foot operated spindle brake with safety cut out switch
230mm wide induction hardened heavy duty cast iron bed
Removable gap bed-way for larger diameter jobs
Powered longitudinal and cross feeds
Overload clutch mechanism on auto power feed
Dual calibrated dials (except for saddle hand wheel)
Enclosed quick action gearbox for thread cutting and auto feeding
Inching button is incorporated on the control panel
Coolant system with flexible hose
Oil sight glass for head stock and gearbox
Change gears for metric and imperial thread cutting
D1-5 camlock spindle for quick chuck removal
Overload protection on drive motor and coolant system
3.75kw-5HP - 240V 3 Phase motor (runs on 15amp - 240V power)
Emergency stop switches fitted to headstock and tailstock plinth

Includes

2 axis digital readout system
200mm 3-jaw chuck with reverse jaws
200mm 4-jaw chuck
Face plate
4-Way toolpost
Fixed steady
Travelling steady
Telescopic leadscrew cover

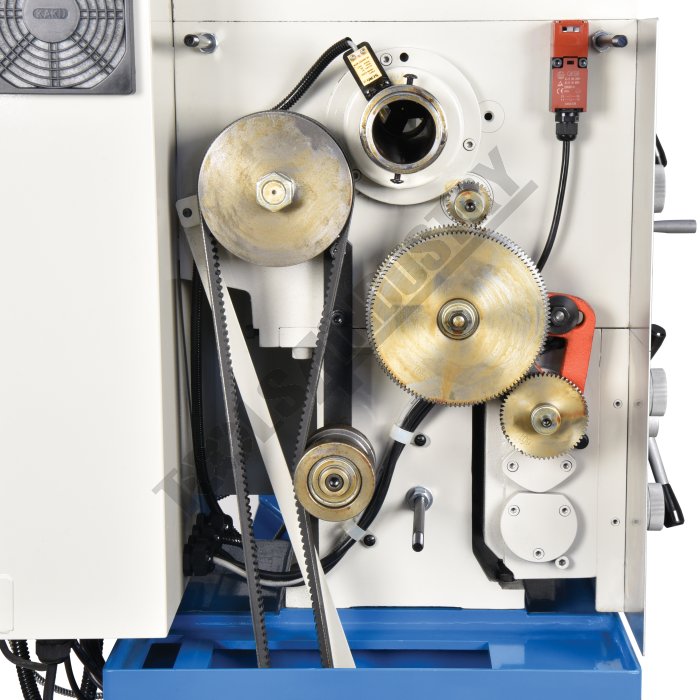

Change gears
Dead centres

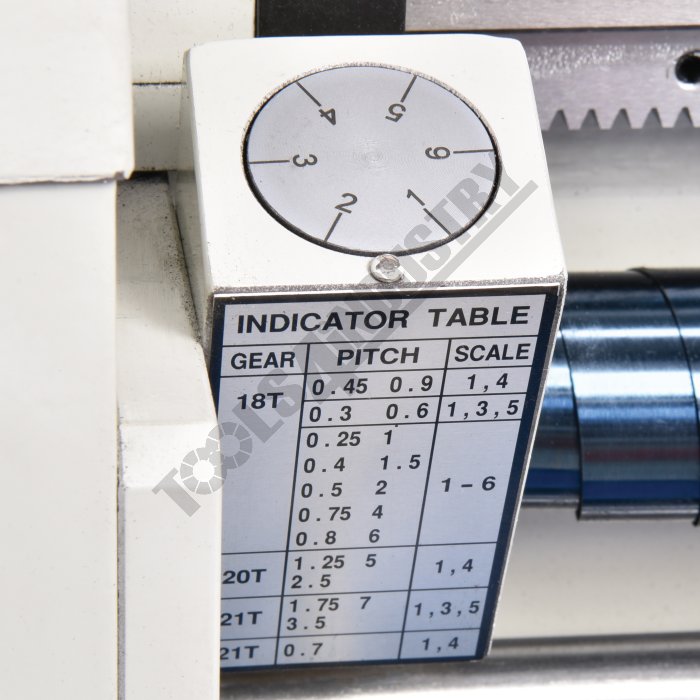

Thread-chasing dial
Safety chuck guard
Stand
Foot brake
Rear splash guard
Tool box
Instruction booklet
