| Code | L555D |
|---|---|
| Model | AL-346V |
| Capacity | Ø330 x 1000mm Turning Capacity - Ø40mm Spindle Bore |
| Weight (kg) | 636 |
| Weight (m3) | 2.154 |
| Weight (Freight) | 717.282 |
| Dimensions (cm) | 186 x 74 x 156.5 |

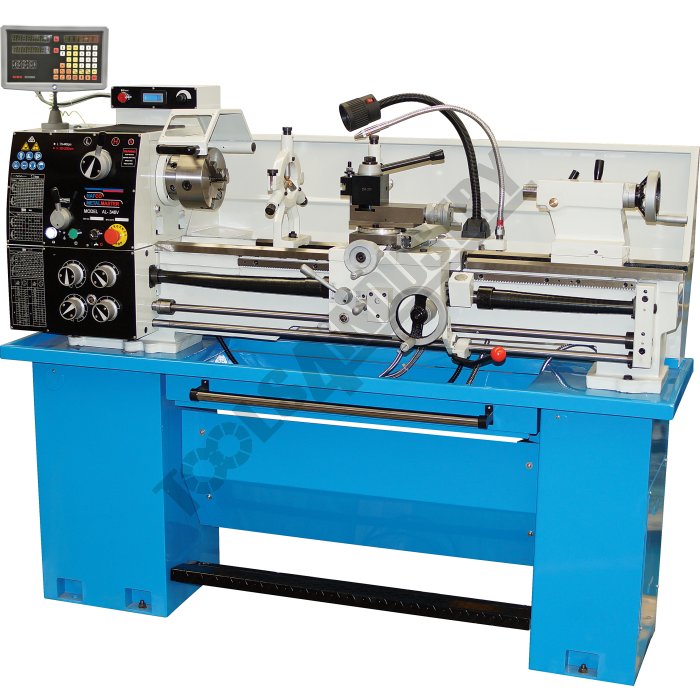

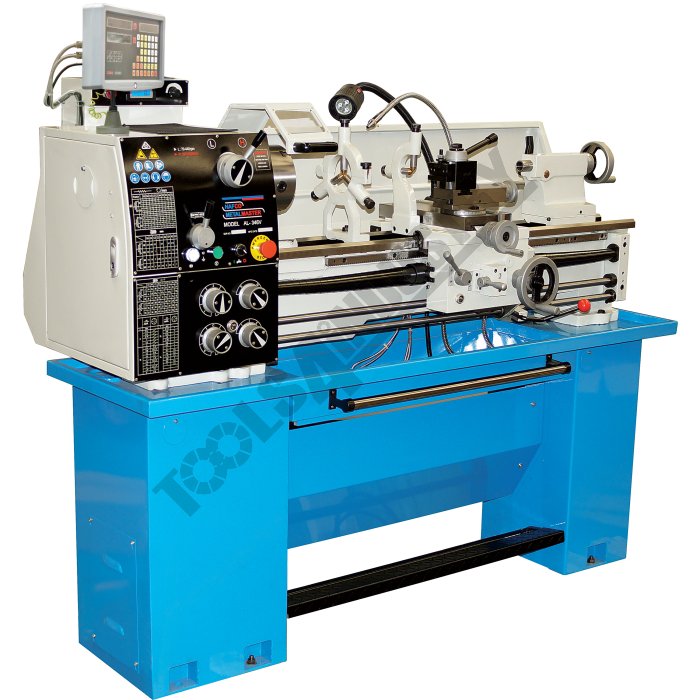

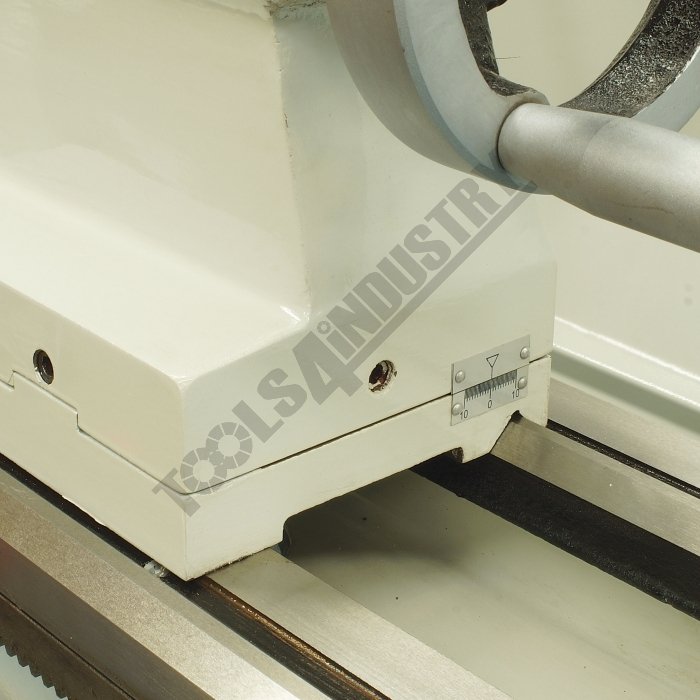

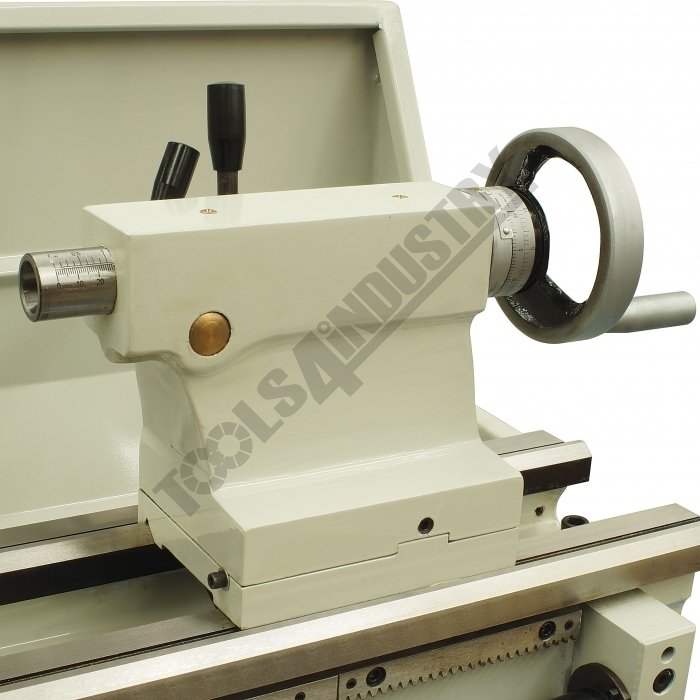

Centre Lathe AL-346V Ø330 x 1000mm Turning Capacity - Ø40mm Spindle Bore
Features

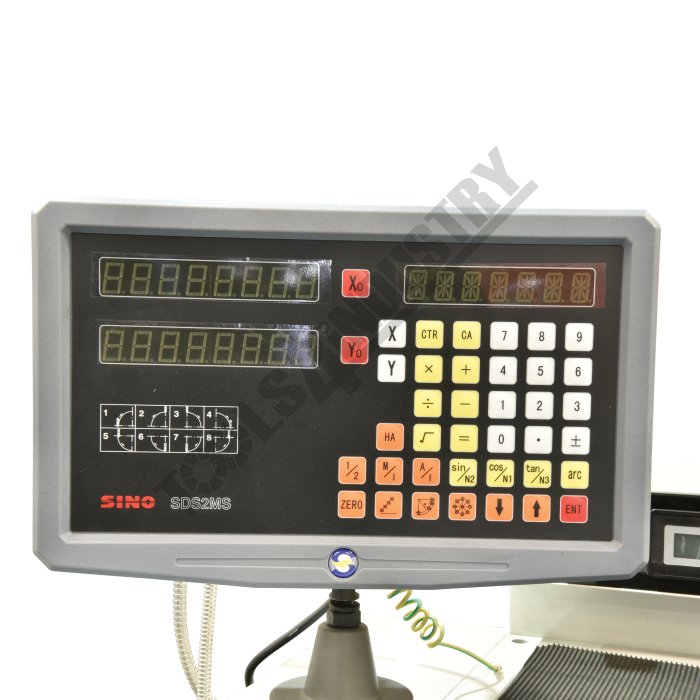

- 2 Axis digital readout system

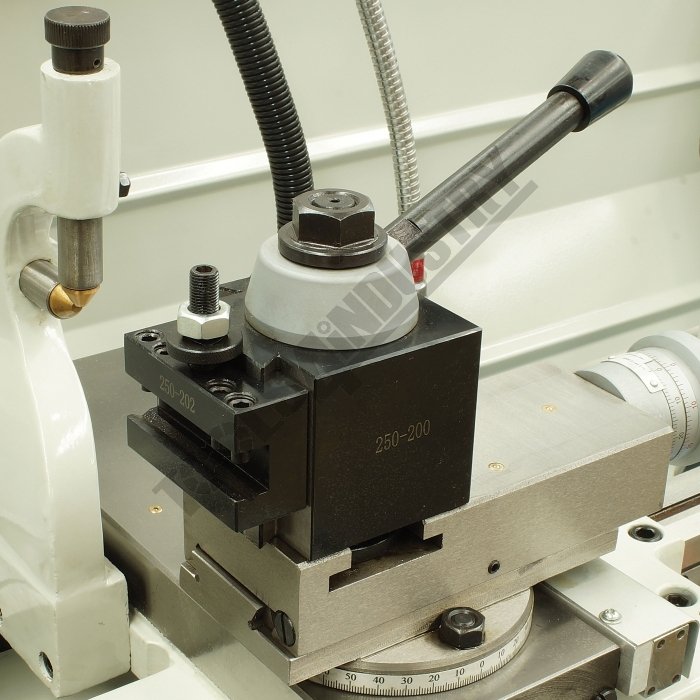

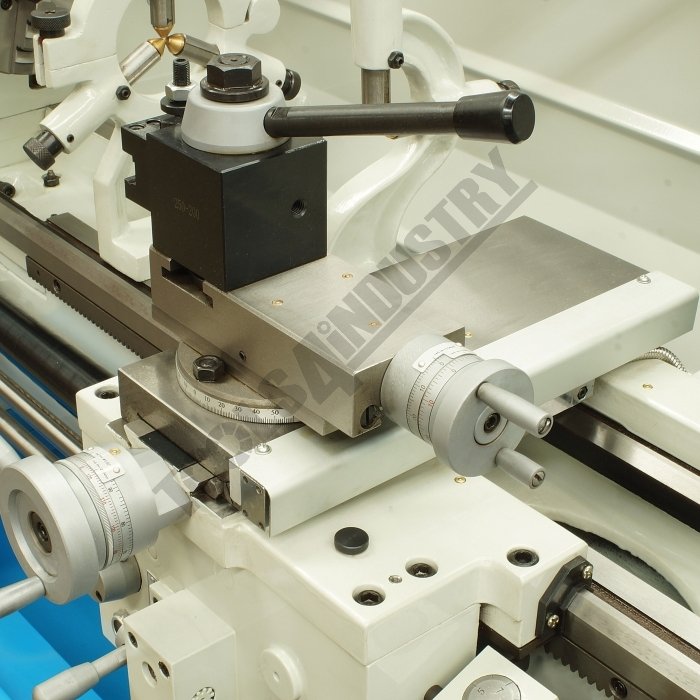

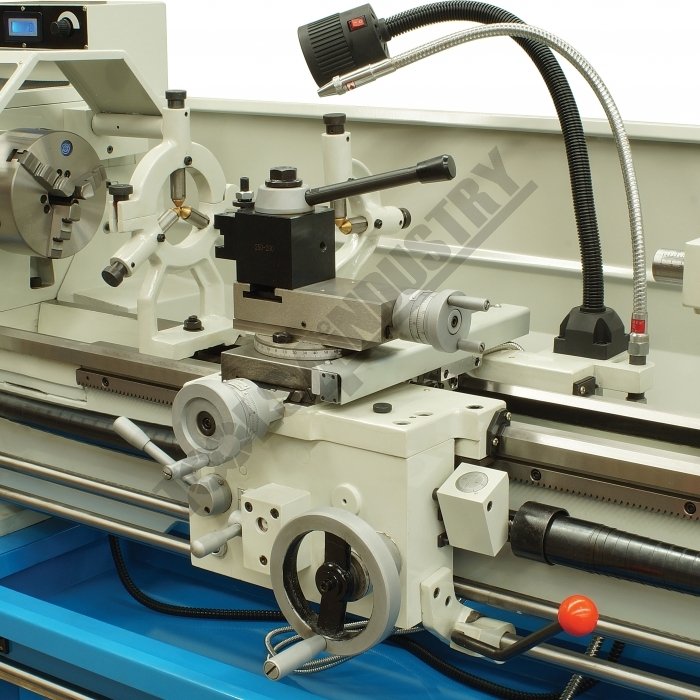

- Quick change toolpost with 4 holders

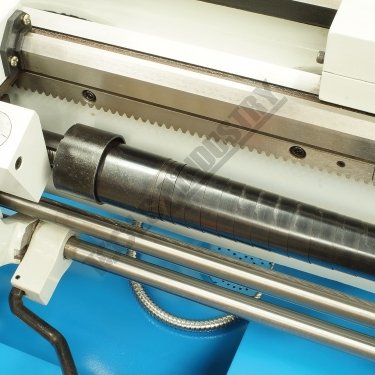

- Concertina leadscrew cover

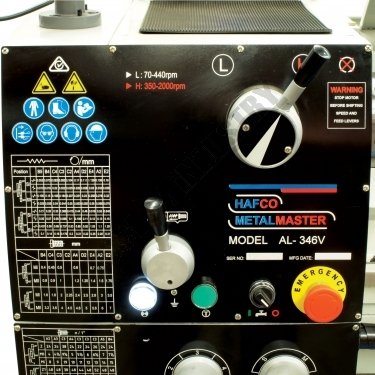

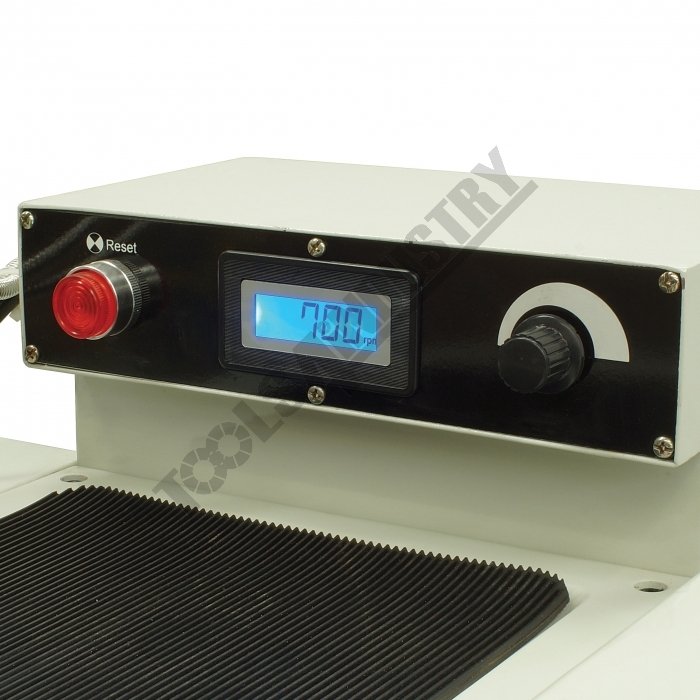

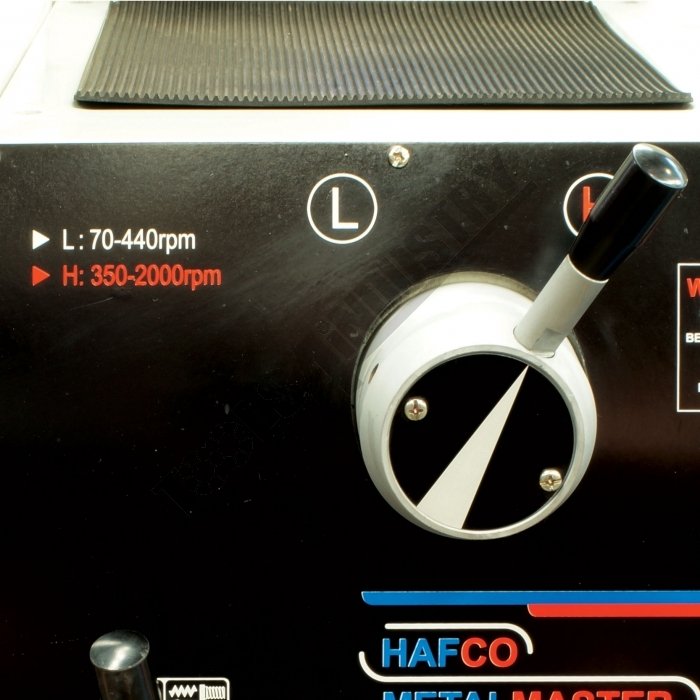

- Electronic infinitely variable inverter spindle speed with digital display
- Gear drive headstock for quick change of spindle speeds

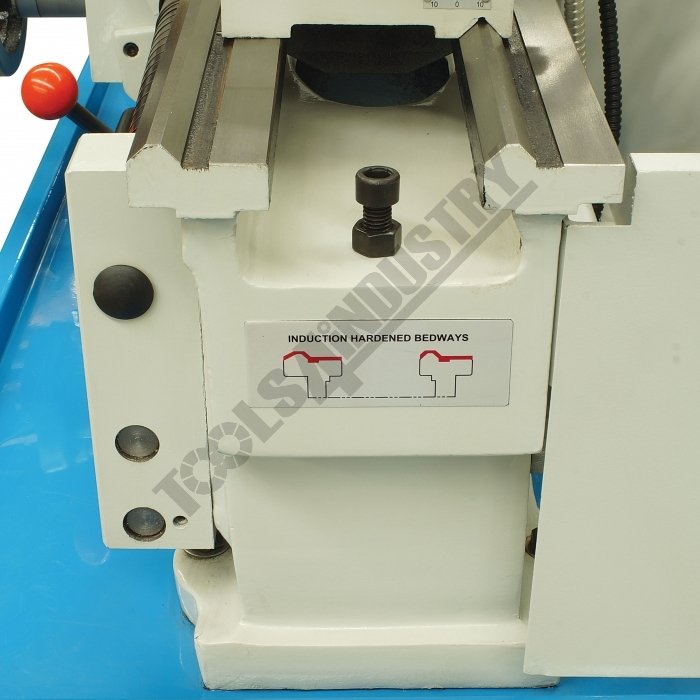

- Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting

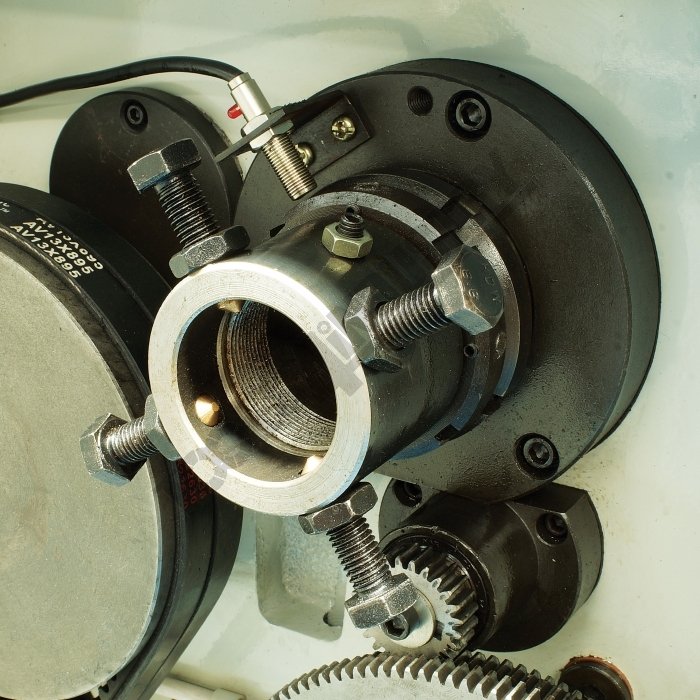

- Adjustable spindle bore bar support mechanism

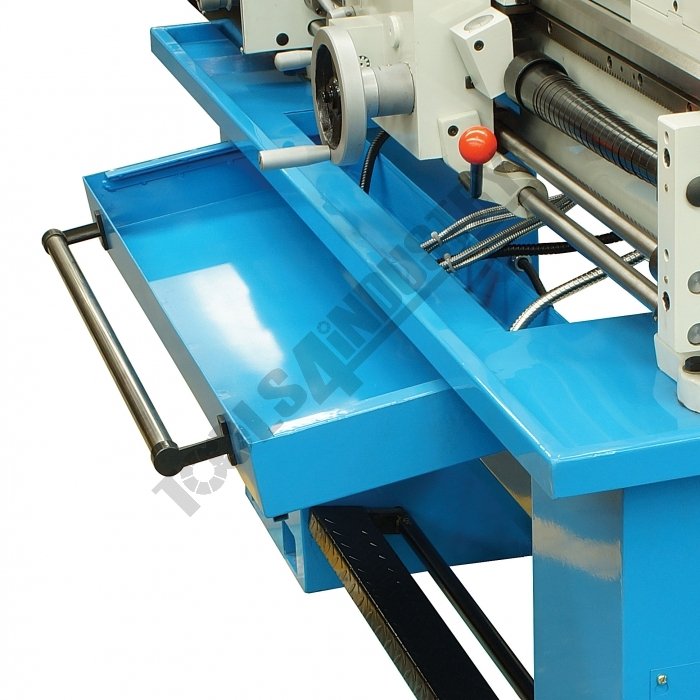

- Slide out swarf tray with handle
- Headstock protection rubber matt

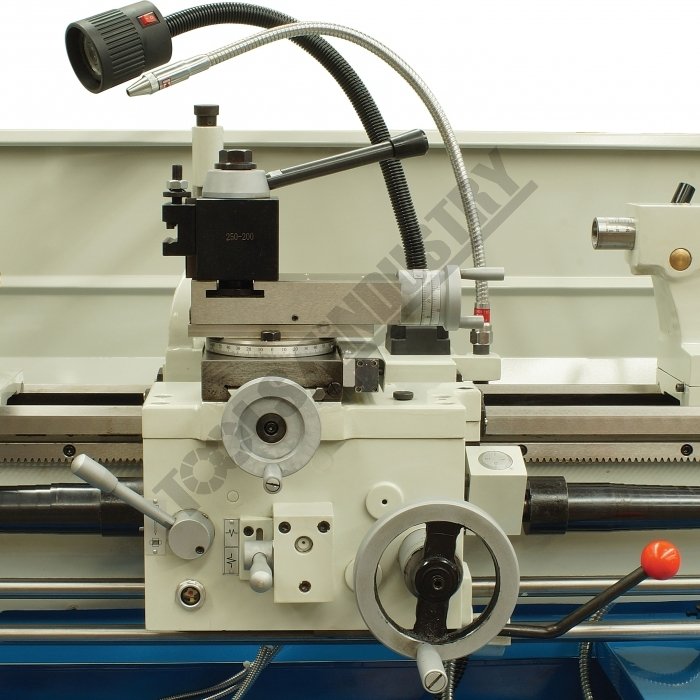

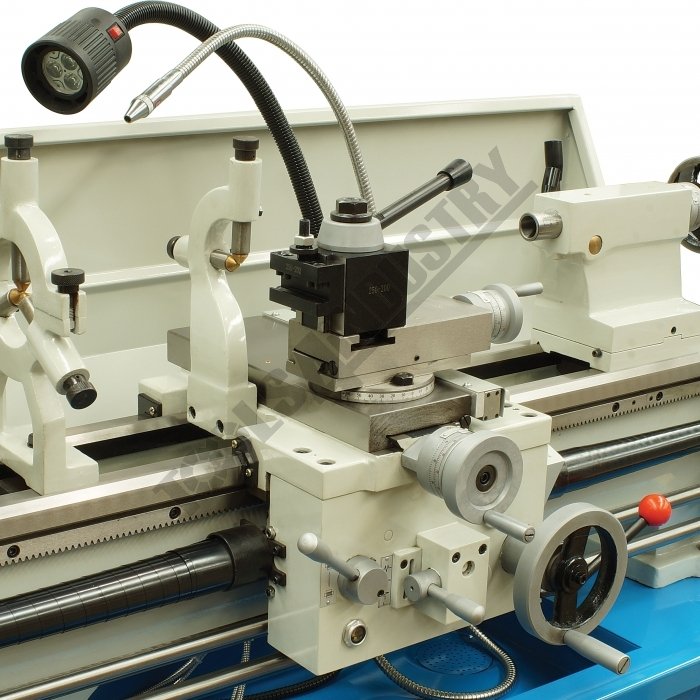

- Low voltage LED work light

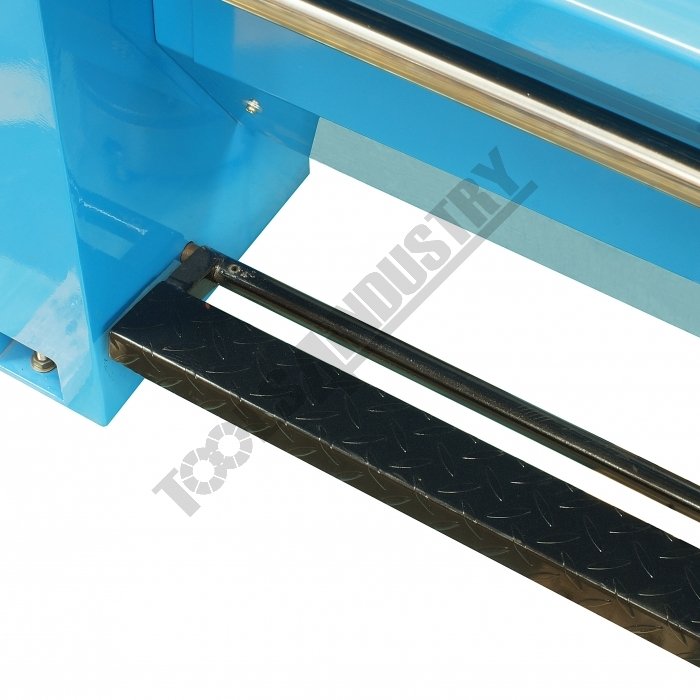

- Foot operated cut out safety switch for electric motor
- Slide out front swarf tray for easy cleaning

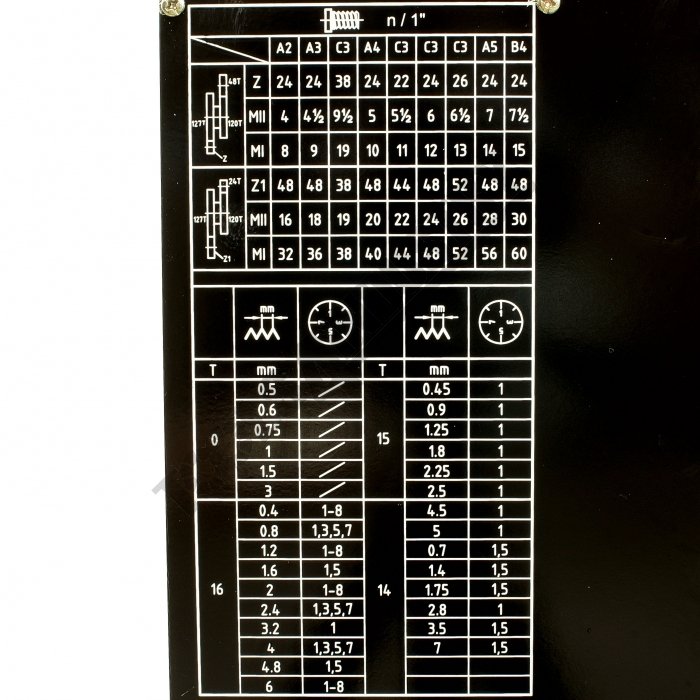

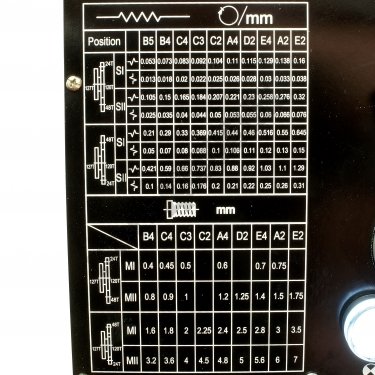

- Change gears for metric and imperial thread cutting
- Oil sight glass for head stock and gearbox
- Adjustable taper roller bearings support the spindle
- Inching button is incorporated on the control panel for convenient spindle speed selection

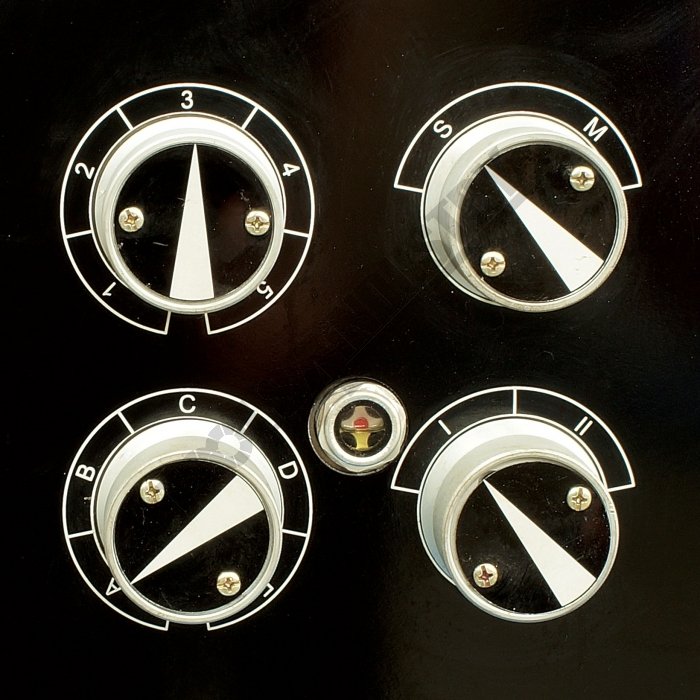

- Enclosed quick action gearbox for thread cutting and auto feeding

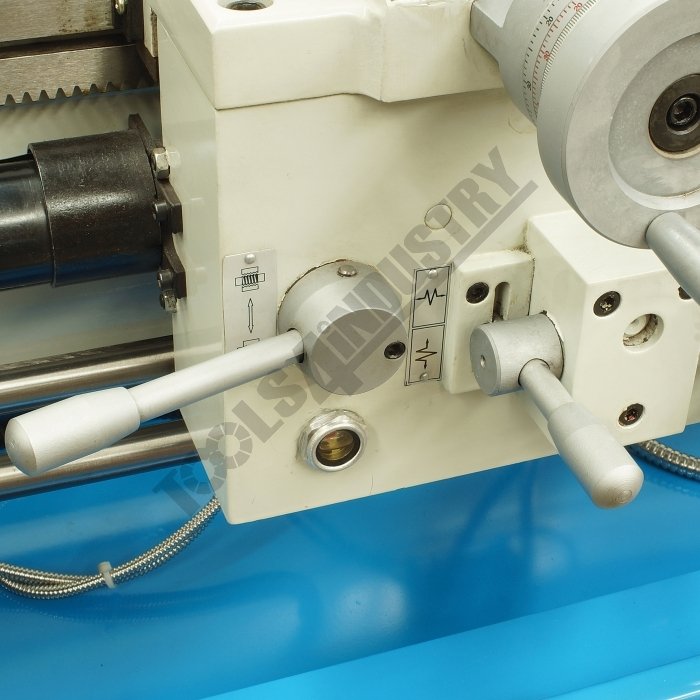

- Powered longitudinal and cross feeds

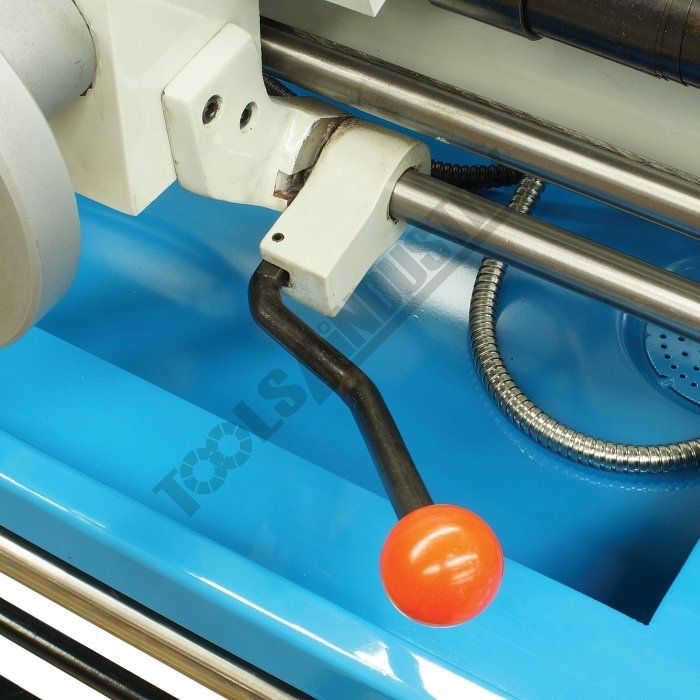

- D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
- Removable gap bed-way for larger diameter jobs

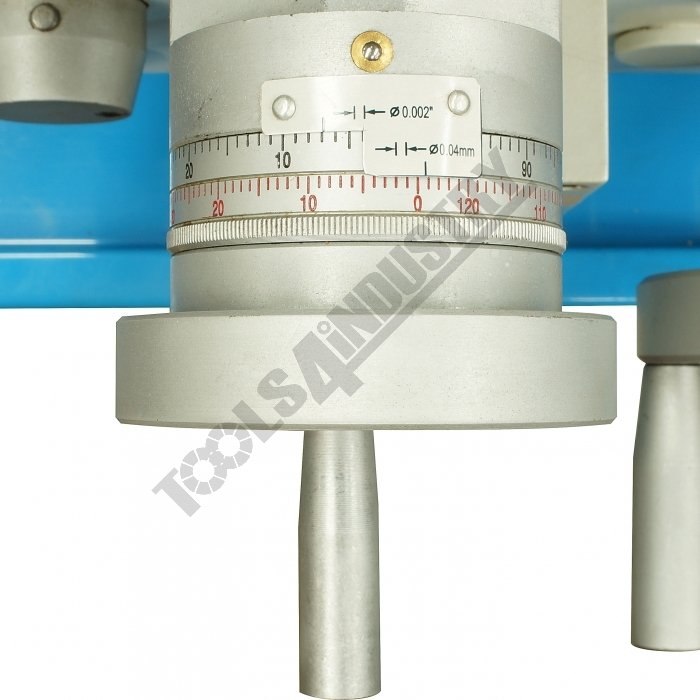

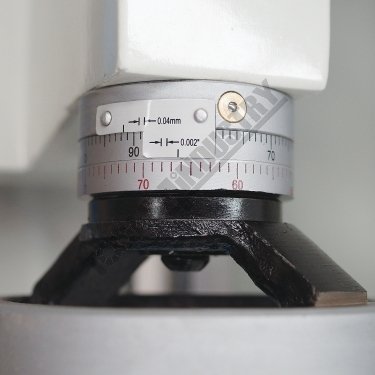

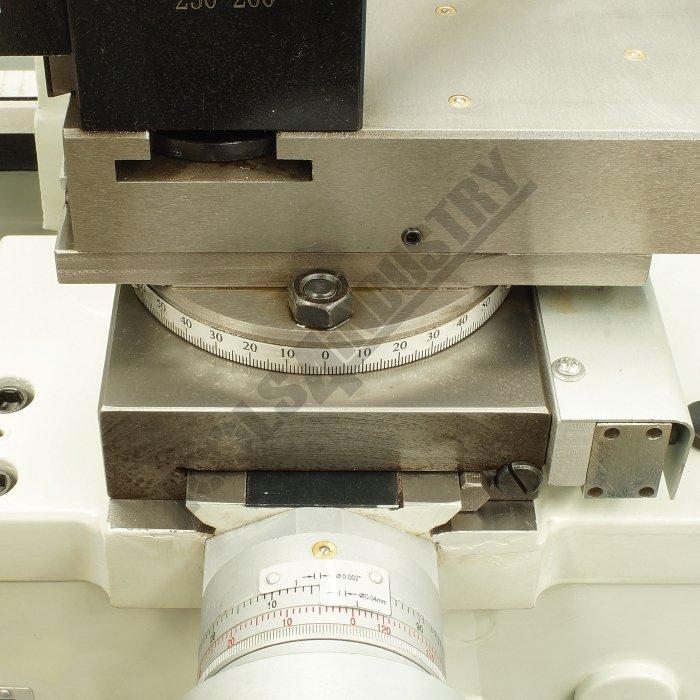

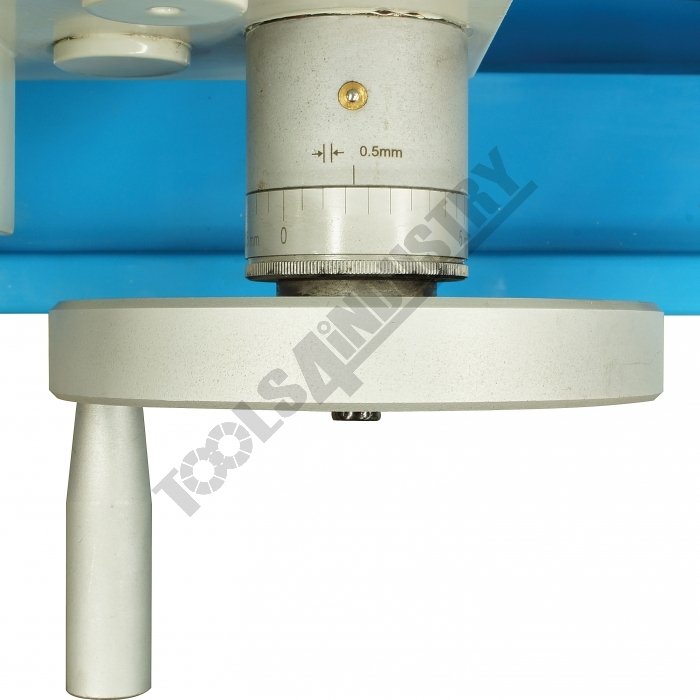

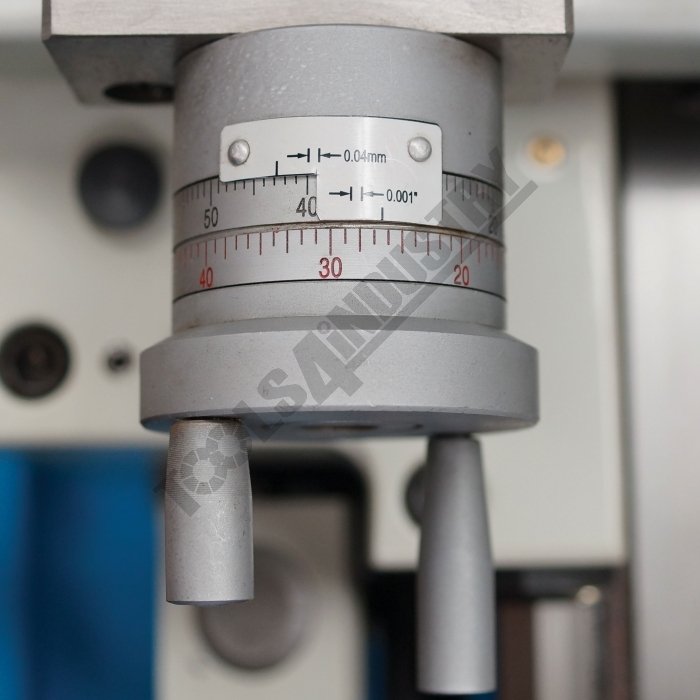

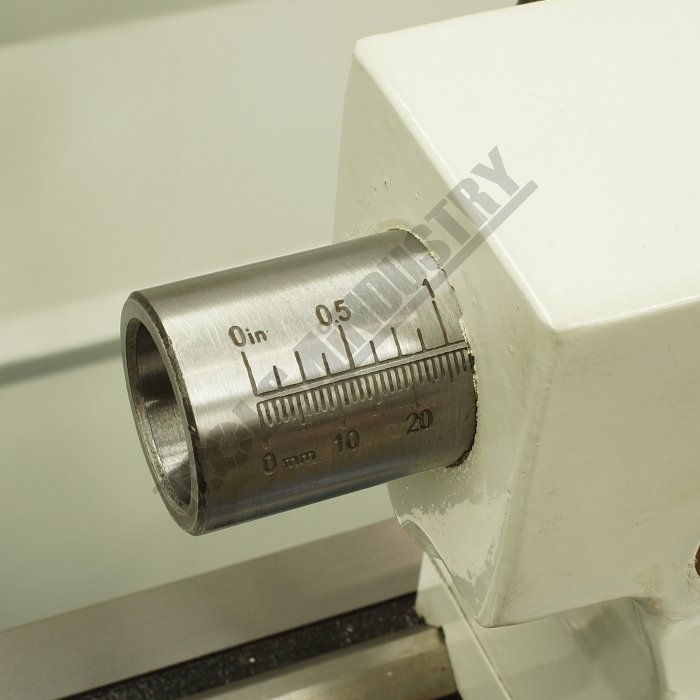

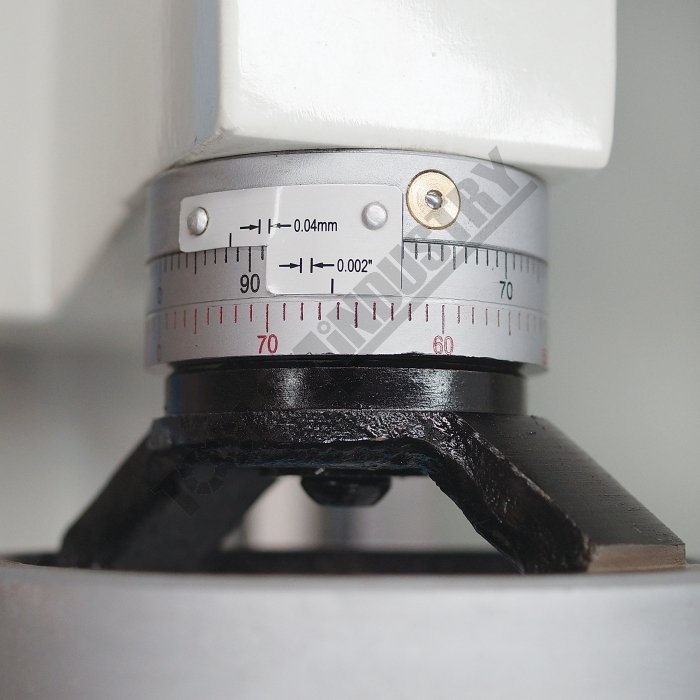

- Dual calibrated dials (except for saddle hand-wheel)

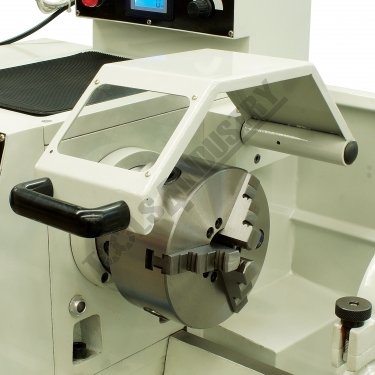

- Chuck & change gear guards are fitted with micro switches

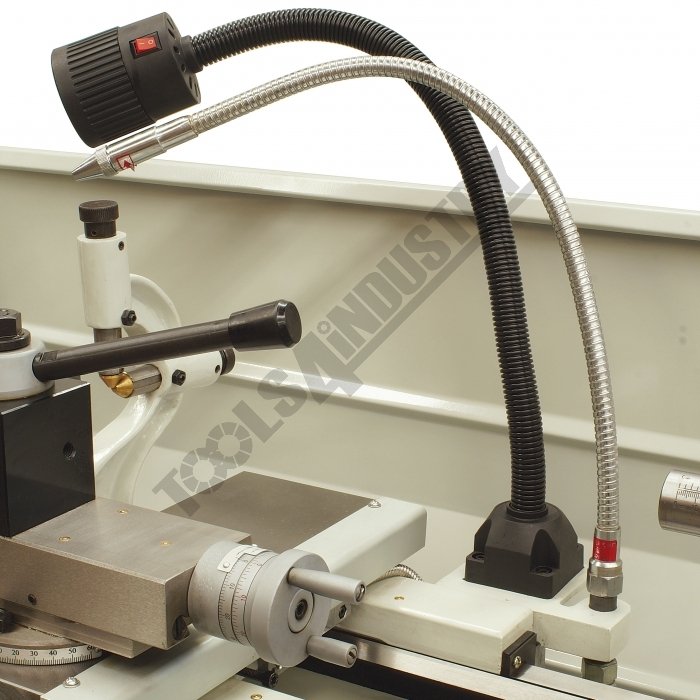

- Coolant system with flexible hose
Includes
- 2 Axis digital readout system
- Concertina leadscrew covers
- Slide out front swarf tray
- Quick change tool-post with 4 holders

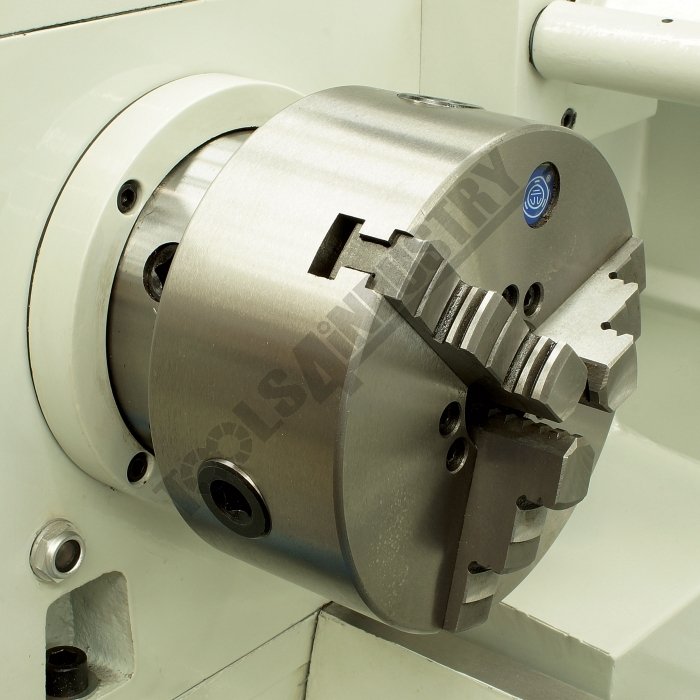

- 160mm 3-jaw chuck with reverse jaws
- 200mm 4-jaw chuck
- Face plate

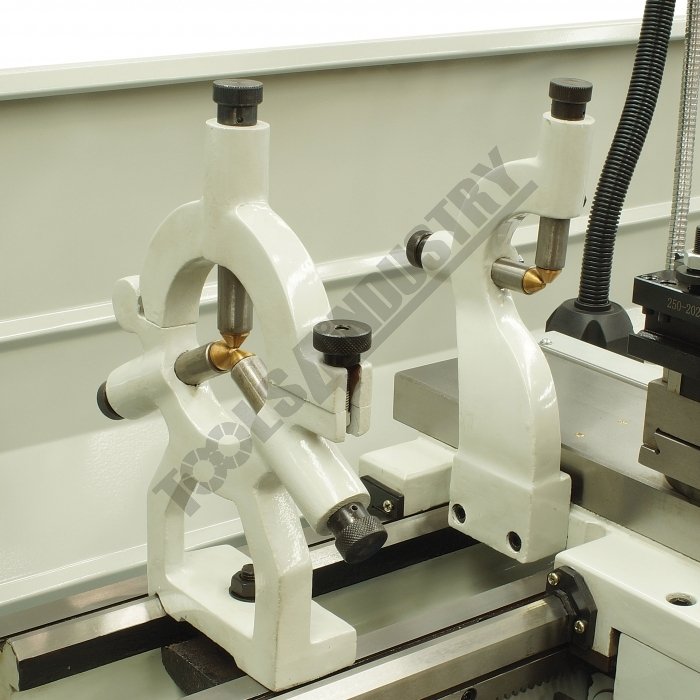

- Fixed steady
- Travelling steady
- Change gears
- Dead centres

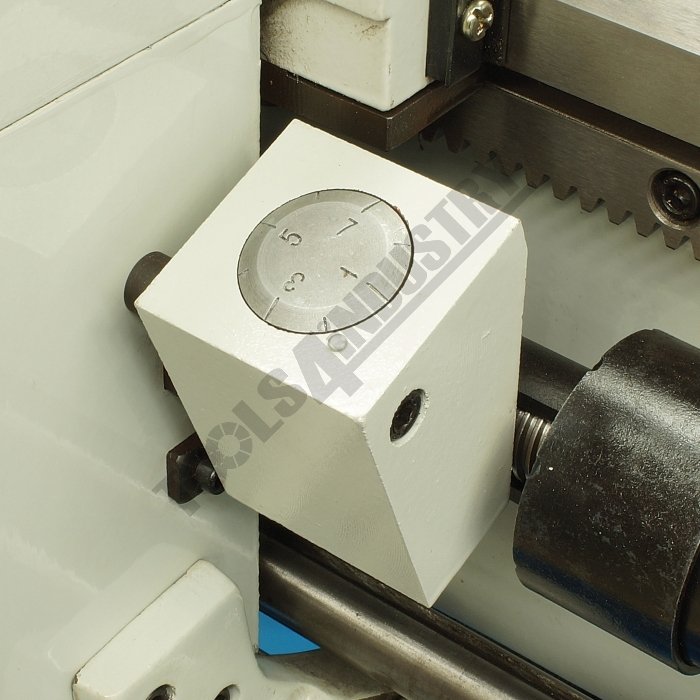

- Thread-chasing dial
- LED work light
- Rear splash guard & swarf tray
- Tool box
- Instruction booklet
Specifications
- Compare 27 Products
- ORDER CODE
- MODEL
- Swing Over Bedmm
- Distance Between Centresmm
- Spindle Boremm
- Swing In Gapmm
- Swing Over Cross-slidemm
- Digital Readout System Fitted
- Quick Change Toolpost Fitted
- Leadscrew Covers Fitted
- Taper Turning Attachment
- Coolant System
- Tool Height To Suitmm
- Centre Heightmm
- Spindle Nose Size or Type
- Bed Widthmm
- Headstock Spindle TaperMT
- Tailstock TaperMT
- Cross Slide Travelmm
- Compound Slide Travelmm
- Leadscrew Type
- Metric Cross Feed (X-Axis)mm/rev
- Imperial Cross Feed (X-Axis)inch/rev
- Metric Longitudinal Feed (Z-Axis)mm/rev
- Imperial Longitudinal Feed (Z-Axis)inch/rev

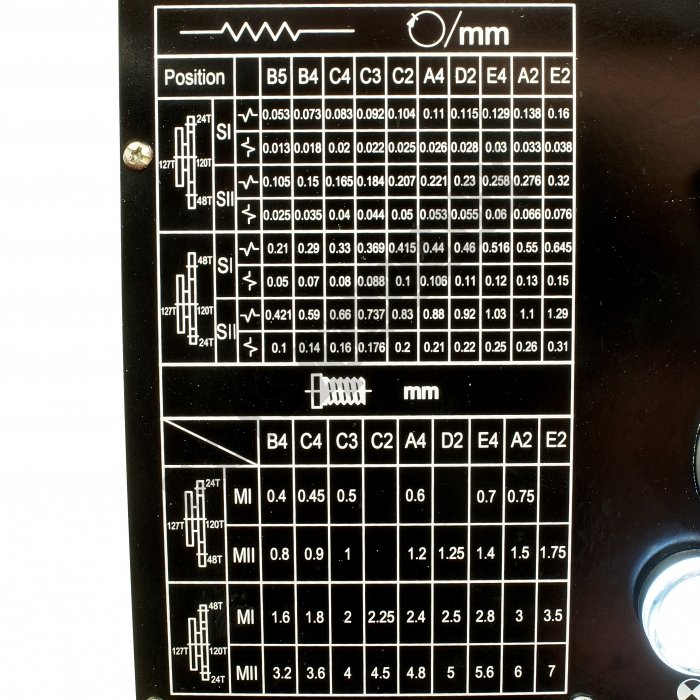

- Metric Thread Steps & PitchNo. / mm
- Imperial Thread Steps & TPINo. / TPI
- 3 Jaw Chuck Diametermm
- 4 Jaw Chuck Diametermm
- Spindle Steps / SpeedsNo. / rpm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Nett Weightkg
- L555D
- AL-346V
- 330
- 1000
- 40
- 450
- 200
- Yes
- Yes
- Yes
- ~
- Yes
- 16
- 165
- D1-4 Camlock
- 181
- 5
- 3
- 160
- 85
- Metric
- 0.013 - 0.31
- ~
- 0.053 - 1.29
- ~
- 32 (0.4 - 7)
- 36 (4-60)
- 160
- 200
- Variable (70 - 2000)
- 1.5 / 2
- 240 / 10
- 610
- L564E
- AL-356
- 356
- 1000
- 51
- 476
- 224
- Yes
- Yes
- Yes
- ~
- Yes
- 16
- 178
- D1-5 Camlock
- 187
- 6
- 4
- 160
- 68
- Metric
- 0.022 - 0.298
- ~
- 0.078 - 1.044
- ~
- 32 (0.45 - 10)
- 20 (2-1/4 - 40)
- 200
- 200
- 16 (35 - 1900)
- 1.8 / 2.4
- 415
- 650
- L565D
- AL-356V
- 356
- 1000
- 51
- 476
- 224
- Yes
- Yes
- Yes
- ~
- Yes
- 16
- 178
- D1-5 Camlock
- 187
- 6
- 4
- 160
- 68
- Metric
- 0.022 - 0.298
- ~
- 0.078 - 1.044
- ~
- 36 (0.45 - 10)
- 20 (2-1/4 - 40)
- 200
- 200
- Variable (40 - 1800)
- 1.5 / 2
- 240 / 10
- 650
- L569D
- AL-410
- 400
- 1000
- 52
- 520
- 250
- Yes
- Yes
- Yes
- ~
- Yes
- 16
- 200
- D1-5 Camlock
- 218
- 6
- 4
- 250
- 80
- Metric
- 0.011 - 0.276
- ~
- 0.052 - 1.291
- ~
- 32 (0.4 - 7)
- 36 (4 - 60)
- 200
- 200
- 18 (65 - 2000)
- 2.4 / 3.2
- 415
- 850
- L201
- AL-1324
- 330
- 600
- 40
- ~
- 200
- Optional
- Optional
- Yes
- Optional
- Yes
- 16
- 165
- D1-4 Camlock
- 190
- 5
- 3
- 175
- 100
- Metric
- 0.034 - 0.468
- ~
- 0.068 - 0.936
- ~
- 30(0.4 - 7.0)
- 32(4 - 56)
- 160
- 200
- 18 (50 - 2000)
- 2.25 / 3
- 415
- 580
- L201D
- AL-1324
- 330
- 600
- 40
- ~
- 200
- Yes
- Optional
- Yes
- Optional
- Yes
- 16
- 165
- D1-4 Camlock
- 190
- 5
- 3
- 175
- 100
- Metric
- 0.034 - 0.468
- ~
- 0.068 - 0.936
- ~
- 30(0.4 - 7.0)
- 32(4 - 56)
- 160
- 200
- 18 (50 - 2000)
- 2.25 / 3
- 415
- 580
- L240D
- AL-1000C
- 360
- 1000
- 40
- 516
- 225
- Yes
- Optional
- Yes
- Optional
- Yes
- 16
- 178
- D1-4 Camlock
- 190
- 5
- 3
- 175
- 100
- Imperial
- ~
- 0.0013 - 0.0184
- ~
- 0.0026 - 0.0368
- 30 (0.4 - 7.0)
- 32 (4 - 56)
- 160
- 200
- 9 (82 - 2000)
- 1.5 / 2
- 240 / 15
- 700
- L242D
- AL-1000D
- 360
- 1000
- 40
- 516
- 225
- Yes
- Optional
- Yes
- Optional
- Yes
- 16
- 178
- D1-4 Camlock
- 190
- 5
- 3
- 175
- 100
- Metric
- 0.034 - 0.468
- ~
- 0.068 - 0.936
- ~
- 30 (0.4 - 7.0)
- 32 (4 - 56)
- 160
- 200
- 18 (50 - 2000)
- 2.25 / 3
- 415
- 700
- L191D
- CL-38A
- 410
- 1000
- 52
- 580
- 255
- Yes
- Yes
- Yes
- ~
- Yes
- 20
- 205
- D1-6 Camlock
- 250
- 6
- 4
- 210
- 140
- Metric
- 0.025 - 0.85
- ~
- 0.05 - 1.7
- ~
- 39 (0.2 - 14)
- 45 (2 - 72)
- 200
- 250
- 16 (45 - 1800)
- 3.3 / 4.5
- 415
- 1550
- L606D
- CL-460
- 460
- 1000
- 80
- 690
- 274
- Yes
- Yes
- Yes
- Yes
- Yes
- 25
- 230
- D1-8 Camlock
- 300
- 6
- 4
- 285
- 128
- Metric
- 0.014 - 0.784
- ~
- 0.031 - 1.70
- ~
- 47 (0.1 - 14)
- 60 (2 - 112)
- 250
- 350
- 12 (25 - 1860)
- 5.5 / 7.5
- 415
- 1950
- L249VS
- Studturn 1440VS
- 360
- 1000
- Ø42
- 560
- 215
- Yes
- Optional
- Yes
- Optional
- Yes
- 16
- 178
- D1-5 Camlock
- 250
- 5
- 3
- 195
- 100
- Metric
- 0.01 - 0.13
- ~
- 0.03 - 0.40
- ~
- 27 (0.4 - 7)
- 36 (4 - 72)
- Ø193
- Ø250
- Variable (35 - 2500)
- 3.75 / 5
- 415
- 1100
- L638D
- TM-2290G
- 560
- 2200
- 105
- 788
- 340
- Yes
- Optional
- ~
- Optional
- Yes
- 25
- 280
- D1-8 Camlock
- 350
- 7
- 5
- 300
- 200
- Metric
- 0.02 - 0.4
- ~
- 0.05 - 0.82
- ~
- 24 (0.5 - 14)
- 44 (2 - 56)
- 310
- 400
- 12 (16 - 1600)
- 7.5 / 10
- 415
- 2900
- L685
- TU-1503V
- 150
- 300
- 11
- ~
- 82
- Optional
- Optional
- ~
- ~
- ~
- 8
- 75
- Fixed
- 70
- 1
- 1
- 55
- 40
- Metric
- ~
- ~
- 0.05 - 0.1
- ~
- 8 (0.5 - 1.5)
- ~
- 80
- Optional
- Variable (160 - 3000)
- 0.45 / 0.6
- 240 / 10
- 26
- L687
- TU-2004V
- 200
- 300
- 21
- ~
- 140
- Optional
- Optional
- ~
- ~
- ~
- 10
- 100
- Fixed
- 100
- 3
- 2
- 75
- 55
- Metric
- ~
- ~
- 0.1 - 0.2
- ~
- 14 (0.25 - 3)
- 12 (8 - 44")
- 100
- Optional
- Variable (150 - 2500)
- 0.60 / 0.8
- 240 / 10
- 75
- L160
- AL-51G
- 230
- 500
- 20
- ~
- 127
- Optional
- Optional
- ~
- ~
- ~
- 12
- 115
- Threaded
- 114
- 3
- 2
- 108
- 48
- Imperial
- ~
- ~
- ~
- 0.12 - 0.3
- 11 (0.5 - 3)
- 27 (8 - 56)
- 100
- 190
- 6 (100 - 1800)
- 0.55 / 0.75
- 240 / 10
- 129
- L670
- AL-50V
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 6.4
- L689
- TU-2506V
- 250
- 550
- 26
- ~
- 150
- Optional
- Optional
- ~
- ~
- ~
- 10
- 125
- Fixed
- 135
- 4
- 2
- 110
- 70
- Metric
- ~
- ~
- 0.07 - 0.4
- ~
- 21 (0.2 - 4)
- 21 (8 - 56")
- 125
- Optional
- Variable (150 - 2500)
- 1.2 / 1.6
- 240 / 10
- 156
- L149
- AL-250G
- 250
- 500
- 26
- ~
- 150
- Optional
- Optional
- Yes
- ~
- ~
- 12
- 125
- Fixed
- 140
- 4
- 3
- 145
- 75
- Metric
- 0.017 - 0.187
- ~
- 0.035 - 0.375
- ~
- 15 (0.25 - 2.5)
- ~
- 130
- Optional
- 12 (80 - 1600)
- 0.75 / 1
- 240 / 10
- 185
- L141
- AL-320G
- 320
- 600
- 38
- ~
- 210
- Optional
- Optional
- ~
- ~
- ~
- 12
- 160
- Fixed
- 160
- 5
- 3
- 150
- 100
- Metric
- 0.022 - 0.15
- ~
- 0.1 - 1.4
- ~
- 11 (0.5 - 4)
- 27 (9 - 48)
- 160
- 200
- 12 (60 - 1600)
- 0.75 / 1
- 240 / 10
- 280
- L691
- TU-3008G
- 300
- 700
- 38
- ~
- 190
- Optional
- Optional
- ~
- ~
- ~
- 12
- 150
- D1-4
- 180
- 5
- 3
- 150
- 65
- Metric
- 0.01 ~0.10
- ~
- 0.085 - 0.83
- ~
- 18 (0.2 - 3.5)
- 21 (8 - 56")
- 160
- Optional
- 12 (125 - 2400)
- 1.5 / 2
- 240 / 10
- 280
- L682
- AL-336
- 300
- 900
- 38
- 450
- 180
- Optional
- Optional
- ~
- ~
- Yes
- 12
- 150
- D1-4 Camlock
- 180
- 5
- 3
- 170
- 75
- Imperial
- ~
- 0.009 - 0.236
- ~
- 0.04 - 1.22
- 32 (0.4 - 7)
- 36 (4 - 60)
- 160
- 200
- 18 (65 - 1810)
- 1.5 / 2
- 240 / 10
- 595
- K008
- AL-336 Package Deal
- 300
- 900
- 38
- 450
- 180
- Optional
- Optional
- ~
- ~
- Yes
- 12
- 150
- D1-4 Camlock
- 180
- 5
- 3
- 170
- 75
- Imperial
- ~
- 0.009 - 0.236
- ~
- 0.04 - 1.22
- 32 (0.4 - 7)
- 36 (4 - 60)
- 160
- 200
- 18 (65 - 1810)
- 1.5 / 2
- 240 / 10
- 595
- L543D
- AL-346
- 330
- 600
- 40
- ~
- 200
- Yes
- ~
- Yes
- ~
- Yes
- 12
- 165
- D1-4 Camlock
- 181
- 5
- 3
- 160
- 85
- Metric
- 0.013-0.31
- ~
- 0.013-0.31
- ~
- 32 (0.4 -7)
- 36 (4 - 60)
- 160
- 200
- 16 (70 - 2000)
- 1.8 / 2.4
- 415 / 10
- 560
- L682D
- AL-336D-DELUXE
- 300
- 900
- 38
- 450
- 180
- Yes
- Yes
- Yes
- ~
- Yes
- 12
- 150
- D1-4 Camlock
- 180
- 5
- 3
- 170
- 75
- Imperial
- ~
- 0.009 - 0.236
- ~
- 0.04 - 1.2236
- 32 (0.4 - 7)
- 36 (4 - 60)
- 160
- 200
- 18 (65 - 1810)
- 1.5 / 2
- 240 / 10
- 595
- K008A
- AL-336D-DELUXE Package Deal
- 300
- 900
- 38
- 450
- 180
- Yes
- Yes
- Yes
- ~
- Yes
- 12
- 150
- D1-4 Camlock
- 180
- 5
- 3
- 170
- 75
- Imperial
- ~
- 0.009 - 0.236
- ~
- 0.04 - 1.2236
- 32 (0.4 - 7)
- 36 (4 - 60)
- 160
- 200
- 18 (65 - 1810)
- 1.5 / 2
- 240 / 10
- 595
- L237
- AL-960B
- 305
- 925
- 40
- 450
- 180
- Optional
- Optional
- ~
- ~
- ~
- 12
- 152.5
- D1-4 Camlock
- 190
- 5
- 3
- 170
- 90
- Imperial
- ~
- 0.0013 - 0.041
- ~
- 0.0027 - 0.082
- 26 (0.25- 7.5)
- 40 (4 - 112)
- 160
- 200
- 12 (70 - 1400)
- 1.5 / 2
- 240 / 15
- 463
- L237D
- AL-960B
- 305
- 925
- 40
- 450
- 180
- Yes
- Optional
- ~
- ~
- ~
- 12
- 152.5
- D1-4 Camlock
- 190
- 5
- 3
- 170
- 90
- Imperial
- ~
- 0.0013 - 0.041
- ~
- 0.0027 - 0.082
- 26 (0.25 - 7.5)
- 40 (4 - 112)
- 160
- 200
- 12 (70 - 1400)
- 1.5 / 2
- 240 / 15
- 470
| ORDER CODE | AL-346V |
|---|---|
| MODEL | 330 |
| Swing Over Bedmm | 1000 |
| Distance Between Centresmm | 40 |
| Spindle Boremm | 450 |
| Swing In Gapmm | 200 |
| Swing Over Cross-slidemm | Yes |
| Digital Readout System Fitted | Yes |
| Quick Change Toolpost Fitted | Yes |
| Leadscrew Covers Fitted | ~ |
| Taper Turning Attachment | Yes |
| Coolant System | 16 |
| Tool Height To Suitmm | 165 |
| Centre Heightmm | D1-4 Camlock |
| Spindle Nose Size or Type | 181 |
| Bed Widthmm | 5 |
| Headstock Spindle TaperMT | 3 |
| Tailstock TaperMT | 160 |
| Cross Slide Travelmm | 85 |
| Compound Slide Travelmm | Metric |
| Leadscrew Type | 0.013 - 0.31 |
| Metric Cross Feed (X-Axis)mm/rev | ~ |
| Imperial Cross Feed (X-Axis)inch/rev | 0.053 - 1.29 |
| Metric Longitudinal Feed (Z-Axis)mm/rev | ~ |
| Imperial Longitudinal Feed (Z-Axis)inch/rev | 32 (0.4 - 7) |
| Metric Thread Steps & PitchNo. / mm | 36 (4-60) |
| Imperial Thread Steps & TPINo. / TPI | 160 |
| 3 Jaw Chuck Diametermm | 200 |
| 4 Jaw Chuck Diametermm | Variable (70 - 2000) |
| Spindle Steps / SpeedsNo. / rpm | 1.5 / 2 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | 610 |
| Nett Weightkg |
