L160

Lathe Only

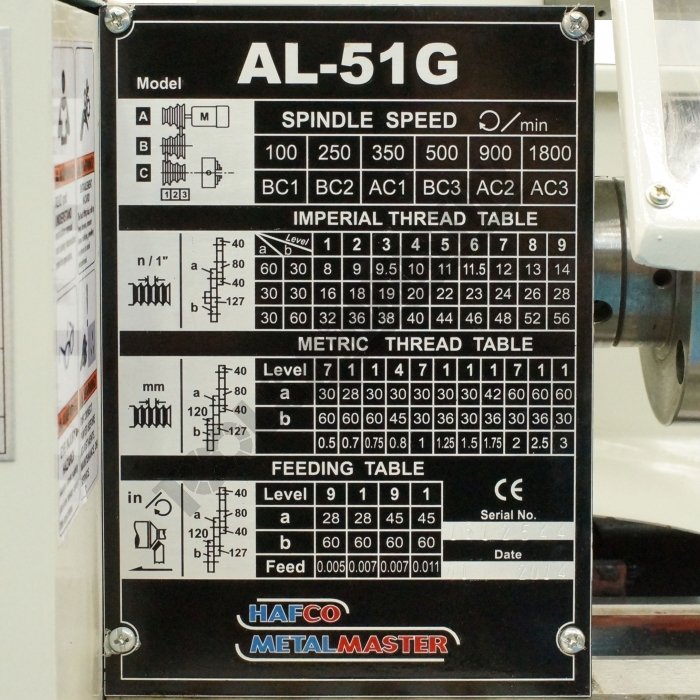

Speed and Thread Charts

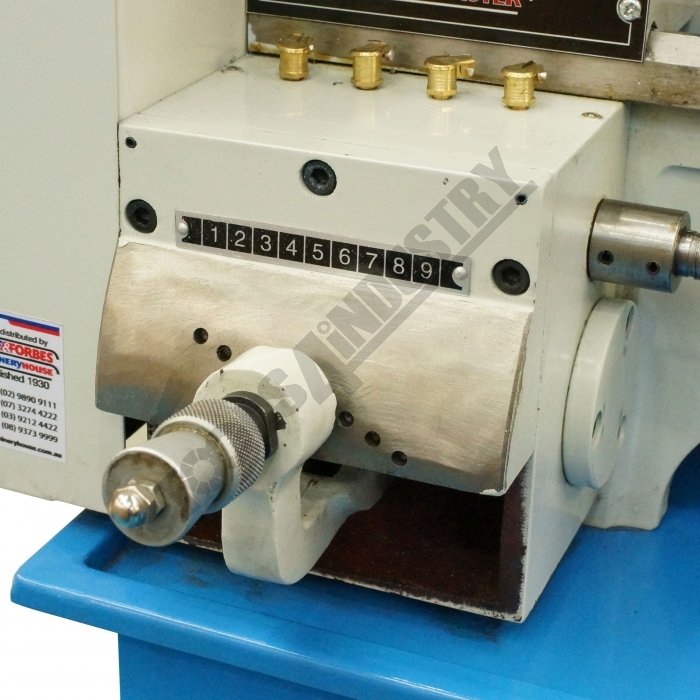

Norton Style Gear Box

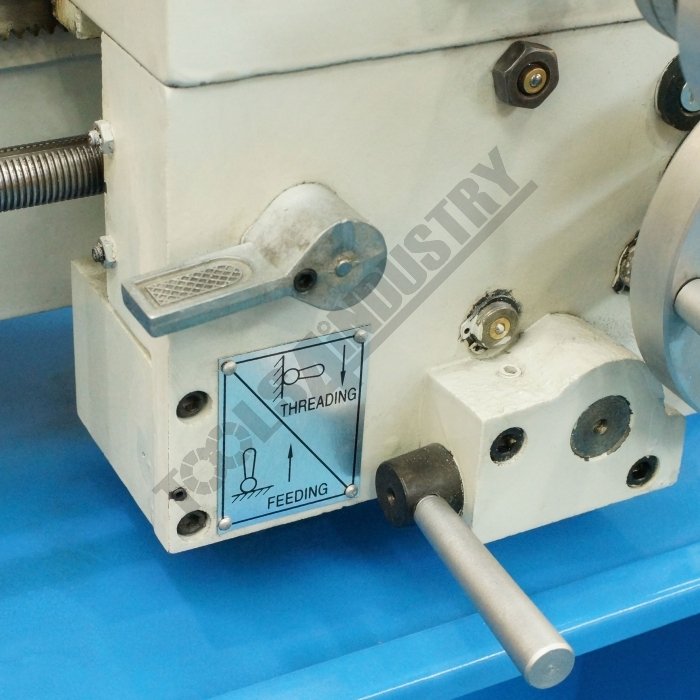

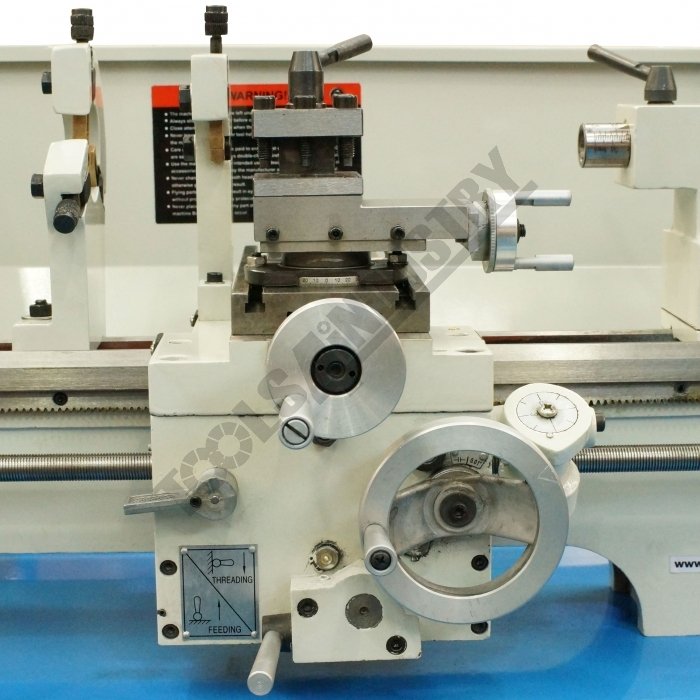

Threading and Feeding Levers

Code	L160
Model	AL-51G
Capacity	230 x 500mm Turning Capacity - 20mm Spindle Bore
Weight (kg)	136
Weight (m³)	0.288
Weight (Freight)	136
Dimensions (cm)	105 x 56 x 49

Product Brochure Instruction Manual [5 MB] Parts List [2 MB]

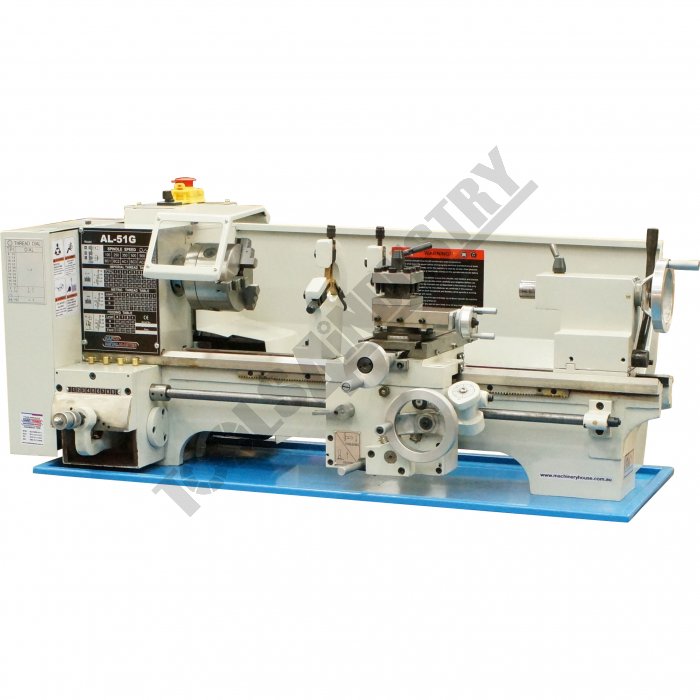

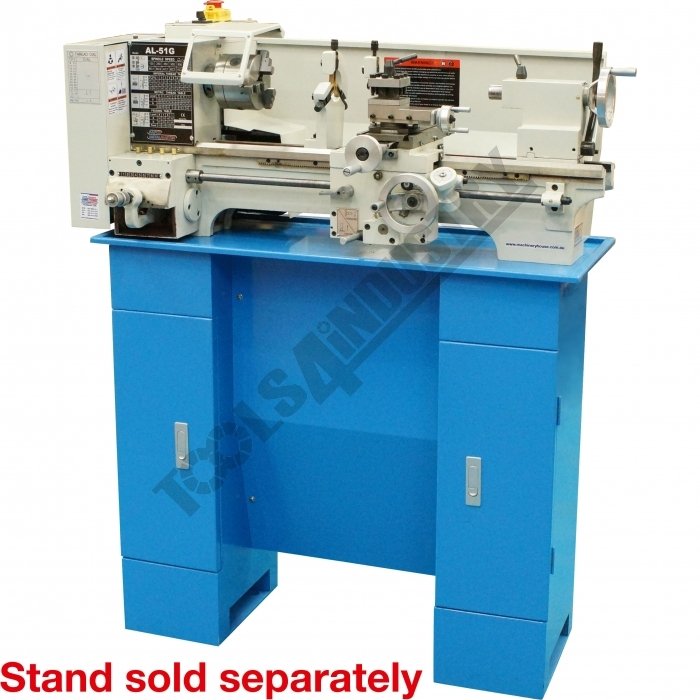

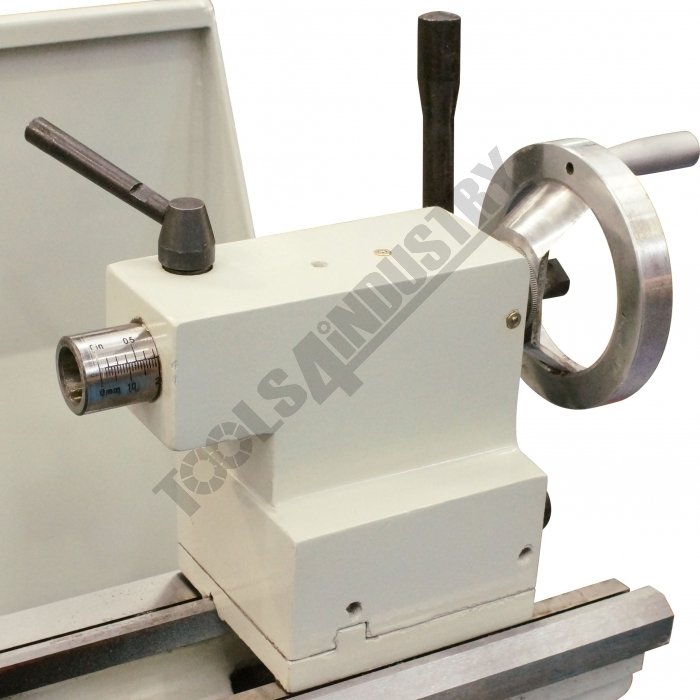

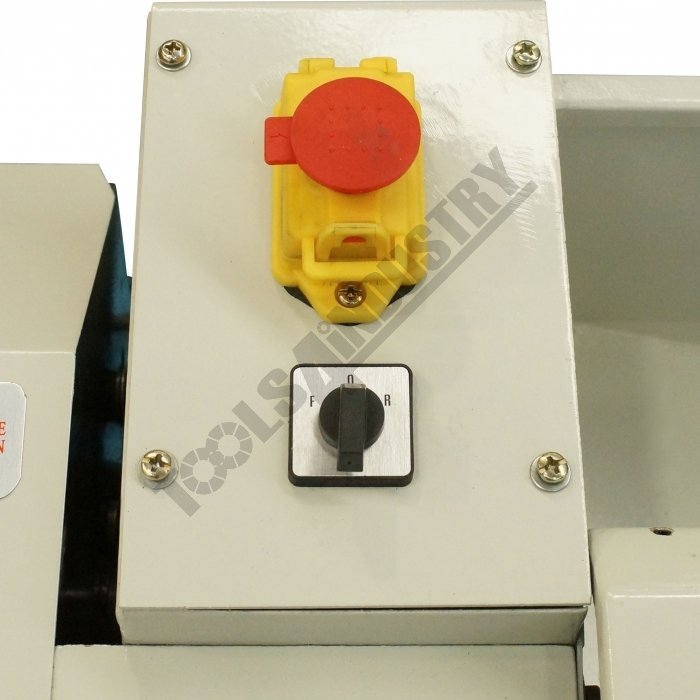

AL-51G Bench Lathe 230 x 500mm Turning Capacity - 20mm Spindle Bore

Description

AL-51G has a quick-change gearbox for easy thread cutting operations
Can also cut 9.5 and 11.5 threads per inch

Features

Perfect for the hobby machinist or auto electrician
Precision 'V'-beds are hardened and ground, encompassed on strong cast-iron rib webbing, with dovetail cross and compound slides
Includes a full set of change gears for metric and imperial thread cutting

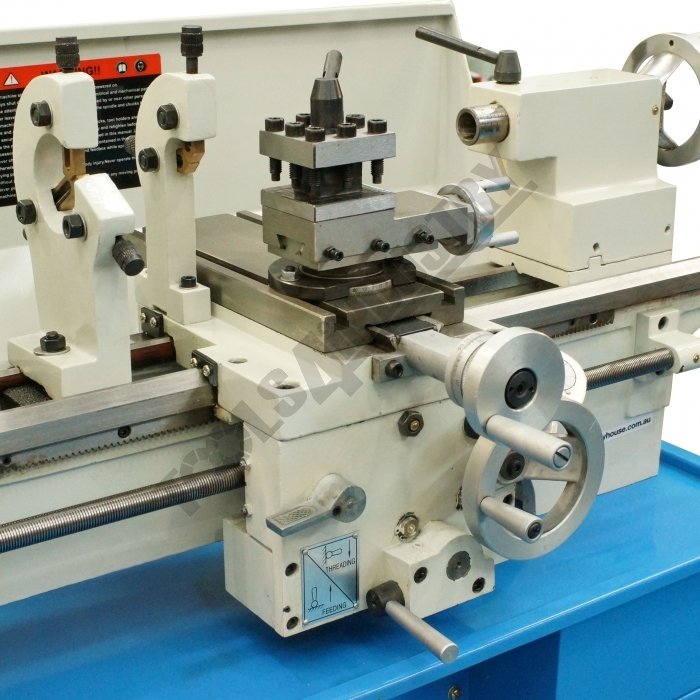

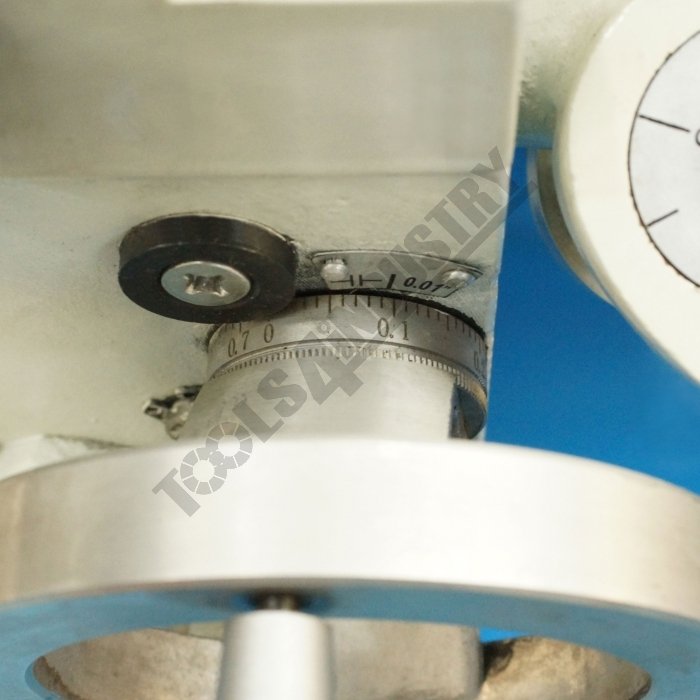

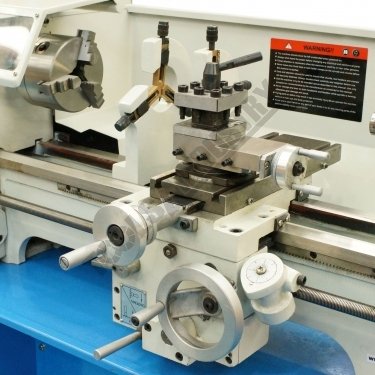

Saddle handwheel mounted on right side of apron reducing swarf contacting the hand
Induction hardened "V" beds
Norton style quick change gearbox
Adjustable ball bearings spindle support
4 x direct oiling points into gearbox

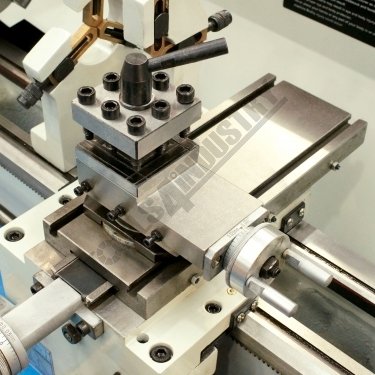

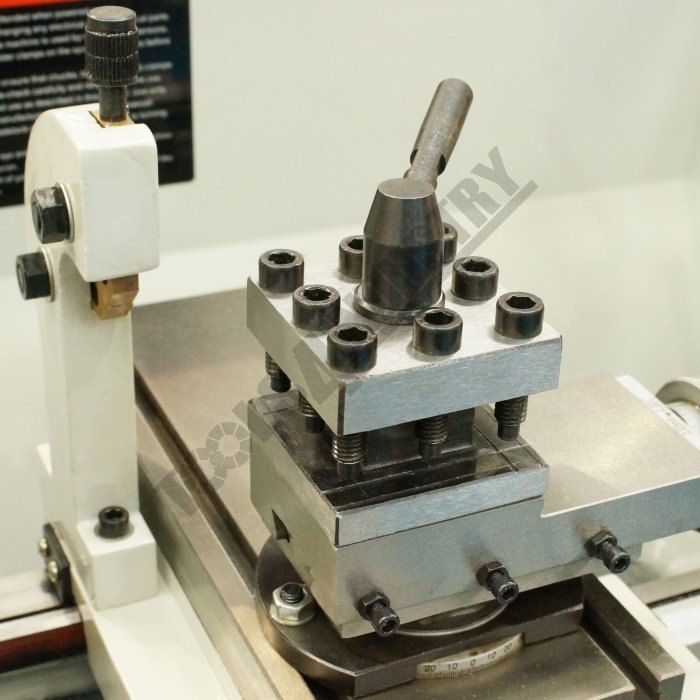

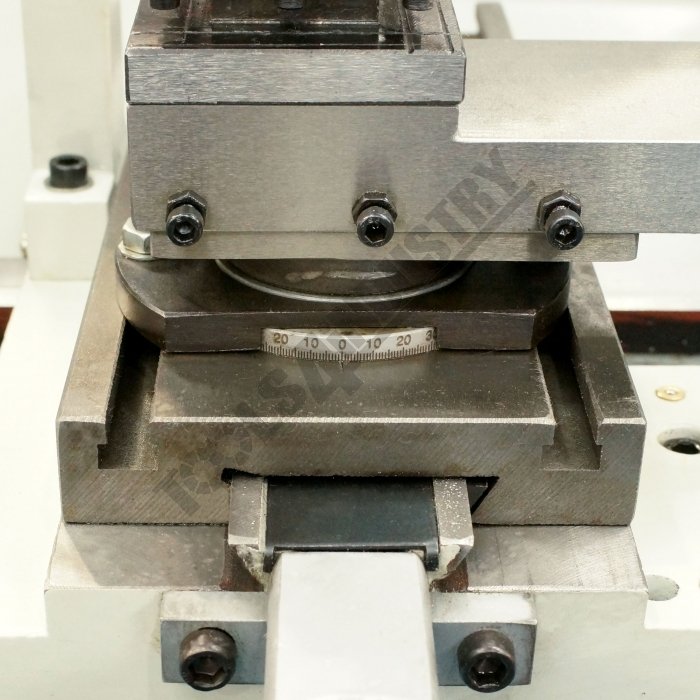

T slotted cross slide
Auto longitudinal feed

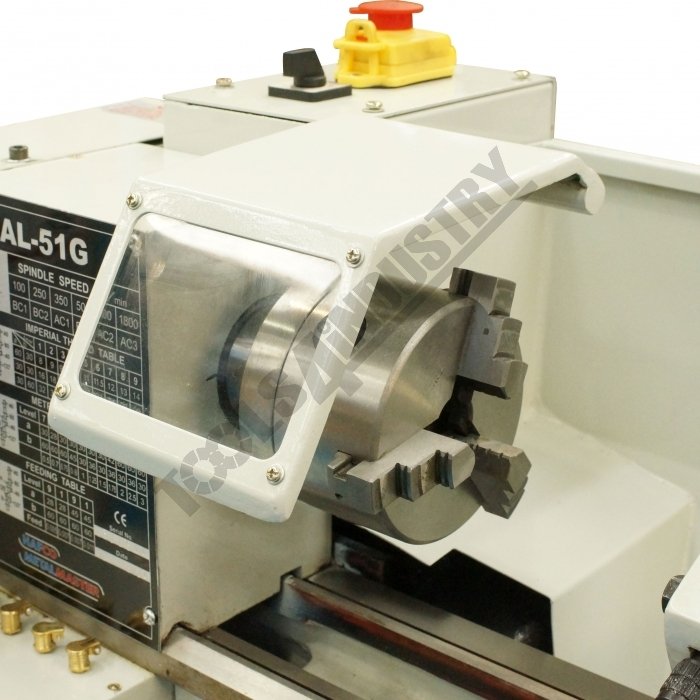

Clear perspex chuck guard

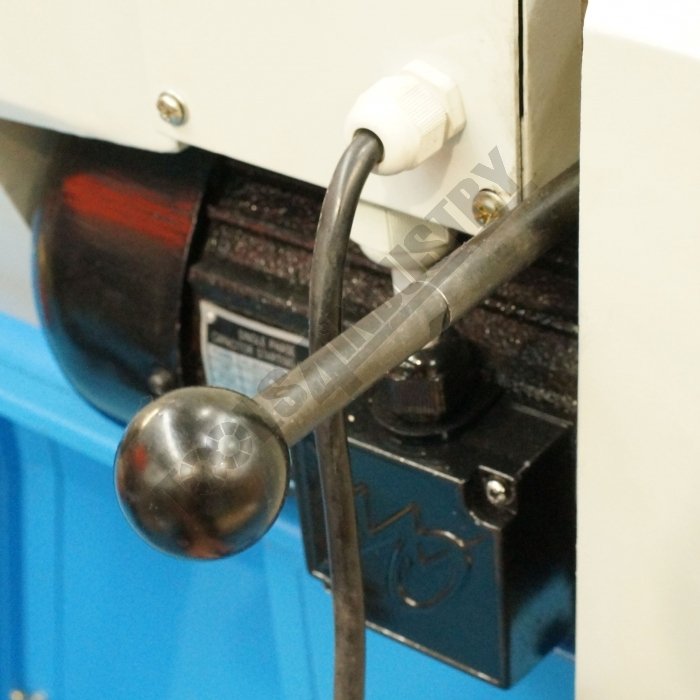

6 spindle speeds from 100-1800rpm

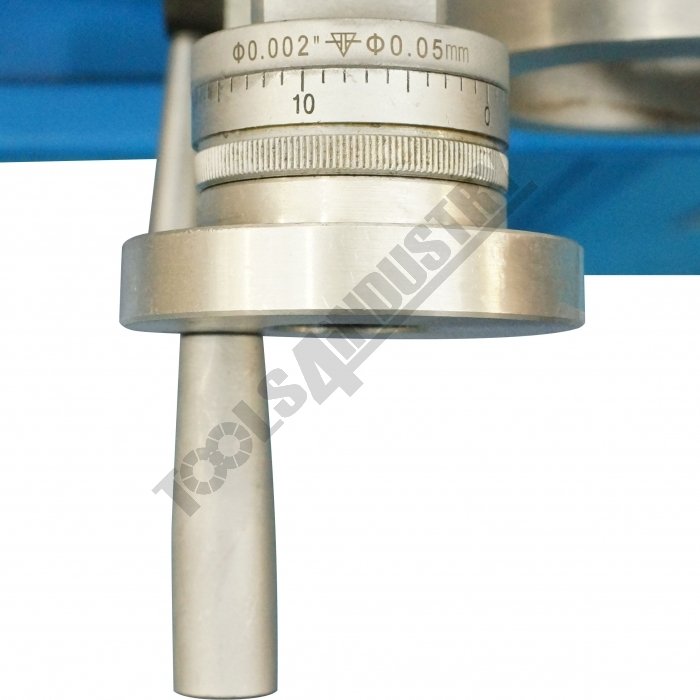

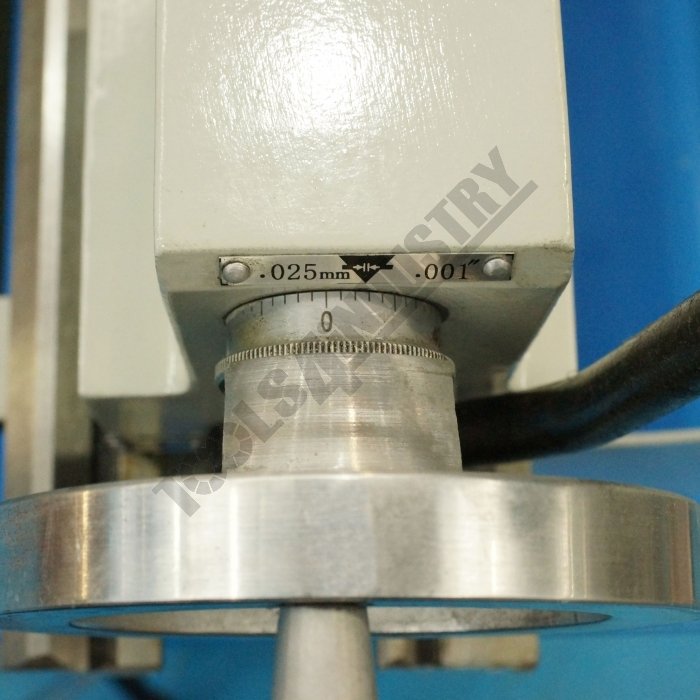

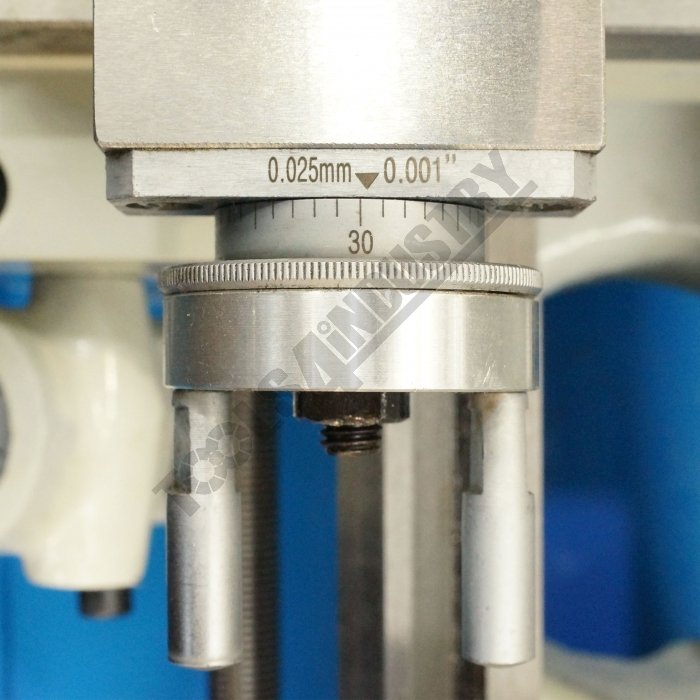

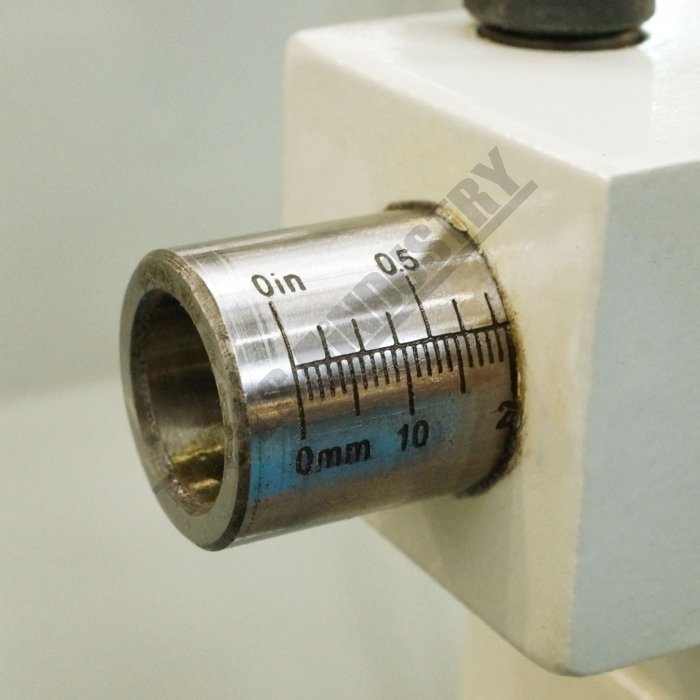

Metric dial calibrations

Includes

3-jaw chuck with reverse jaws
4-jaw chuck
Face plate

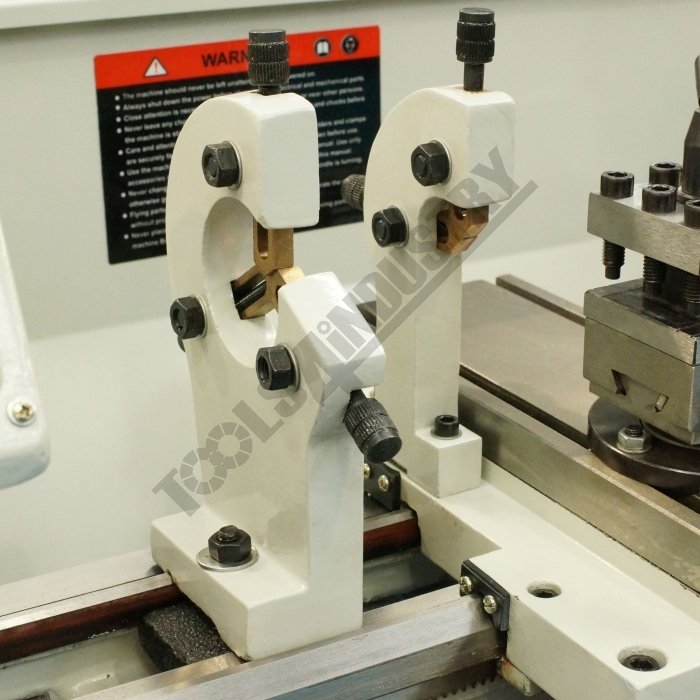

Fixed and traveling steadies
Change gears
Dead centre

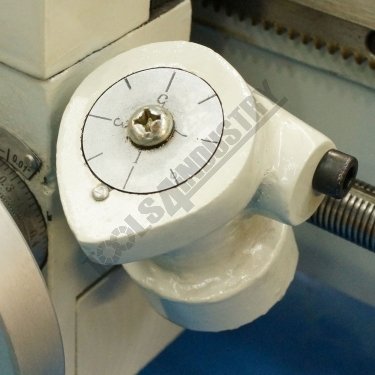

Thread chasing dial
Swarf tray
Safety chuck guard
Spanners, tool box, & instruction booklet

Optional Accessories

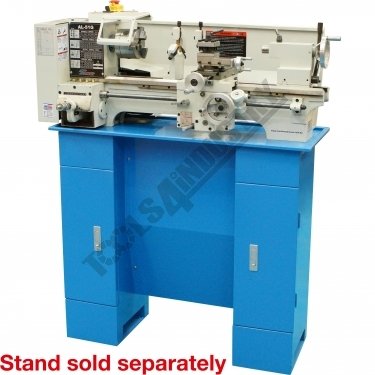

Stand to suit (L263)

Specifications

Compare 37 Products
ORDER CODE
MODEL
Swing Over Bedmm
Distance Between Centresmm
Spindle Boremm
Swing In Gapmm
Swing Over Cross-slidemm
Digital Readout System Fitted
Quick Change Toolpost Fitted
Leadscrew Covers Fitted
Taper Turning Attachment
Coolant System
Tool Height To Suitmm
Centre Heightmm
Spindle Nose Size or Type
Bed Widthmm
Headstock Spindle TaperMT
Tailstock TaperMT
Cross Slide Travelmm
Compound Slide Travelmm
Leadscrew Type
Metric Cross Feed (X-Axis)mm/rev
Imperial Cross Feed (X-Axis)inch/rev
Metric Longitudinal Feed (Z-Axis)mm/rev
Imperial Longitudinal Feed (Z-Axis)inch/rev
Metric Thread Steps & PitchNo. / mm
Imperial Thread Steps & TPINo. / TPI
3 Jaw Chuck Diametermm
4 Jaw Chuck Diametermm
Spindle Steps / SpeedsNo. / rpm
Motor PowerkW / hp
Voltage / AmperageV / amp
Shipping Dimensions (L x W x H)cm
Nett Weightkg

L160
AL-51G
230
500
20
~
127
Optional
Optional
~
~
~
10
115
Threaded
114
3
2
108
48
Imperial
~
~
~
0.12 - 0.3
11 (0.5 - 3)
27 (8 - 56)
100
190
6 (100 - 1800)
0.55 / 0.75
240 / 10
105 x 56 x 49
136
