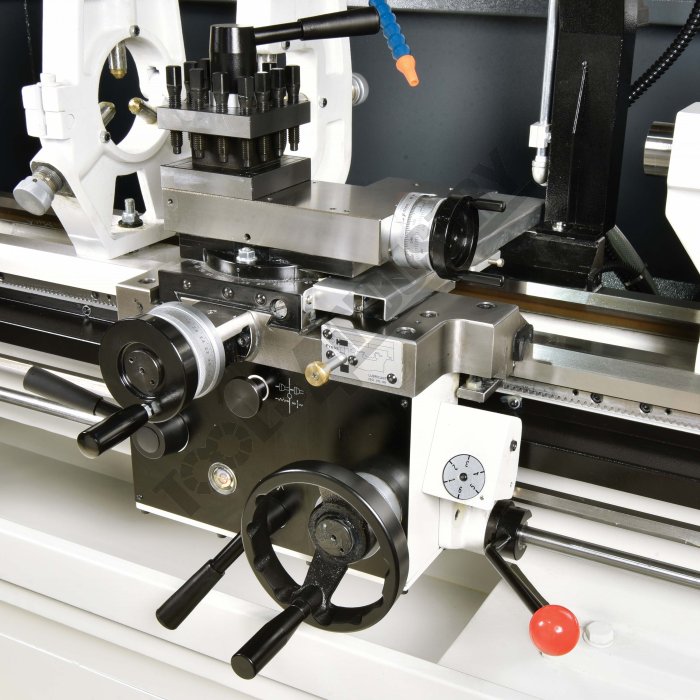

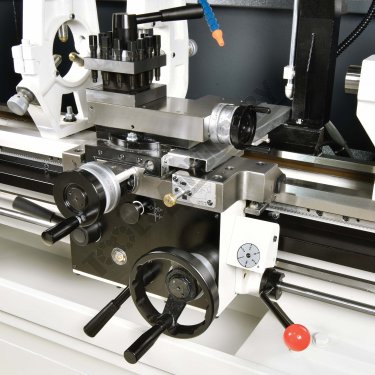

Saddle

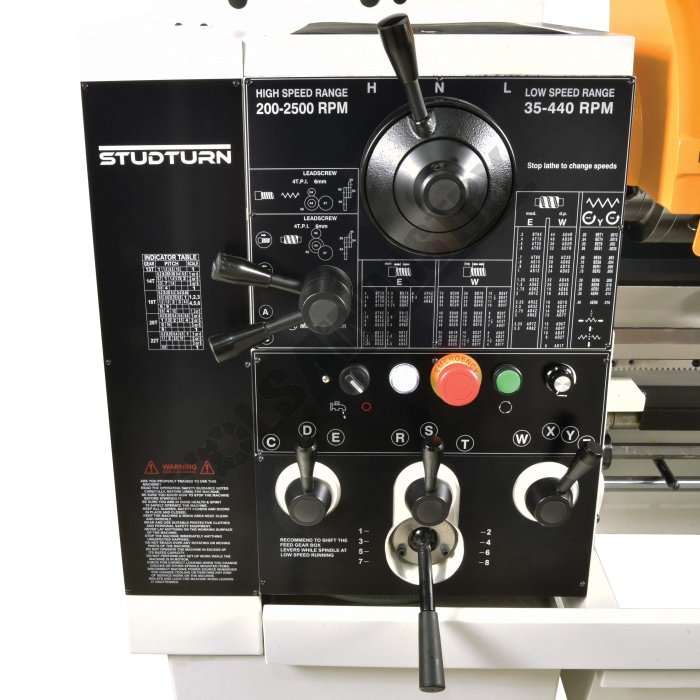

Headstock Controls

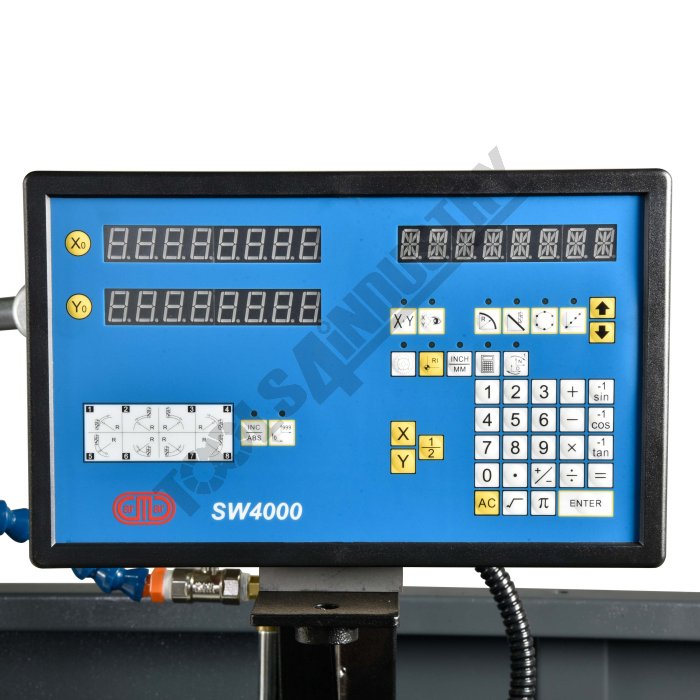

DRO

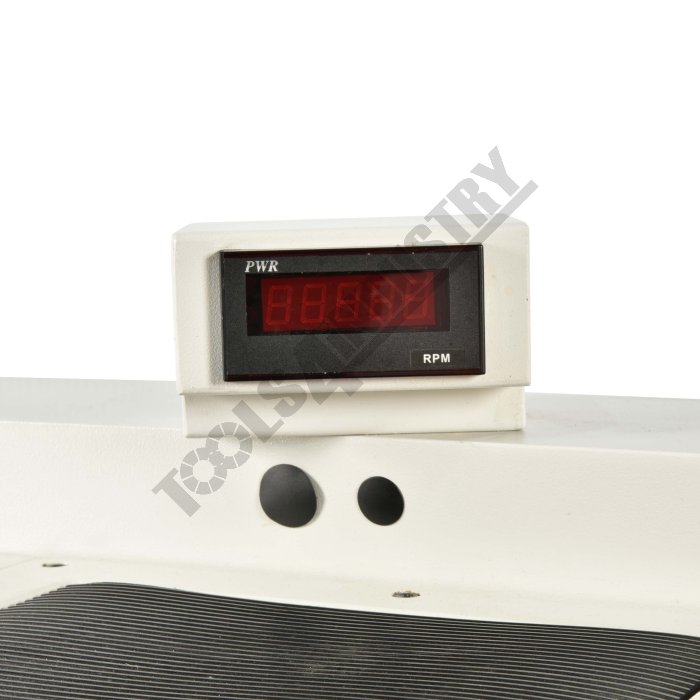

Speed Digital Readout

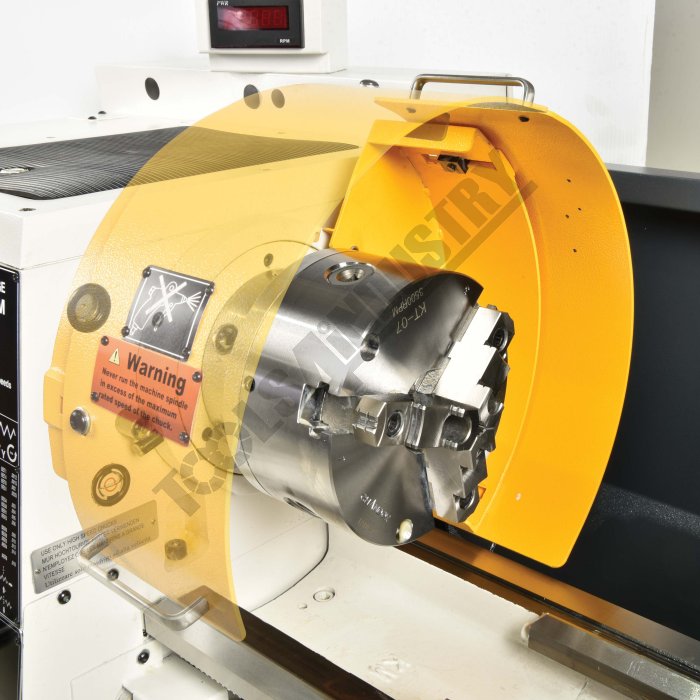

Chuck Guard with Safety Micro Switch

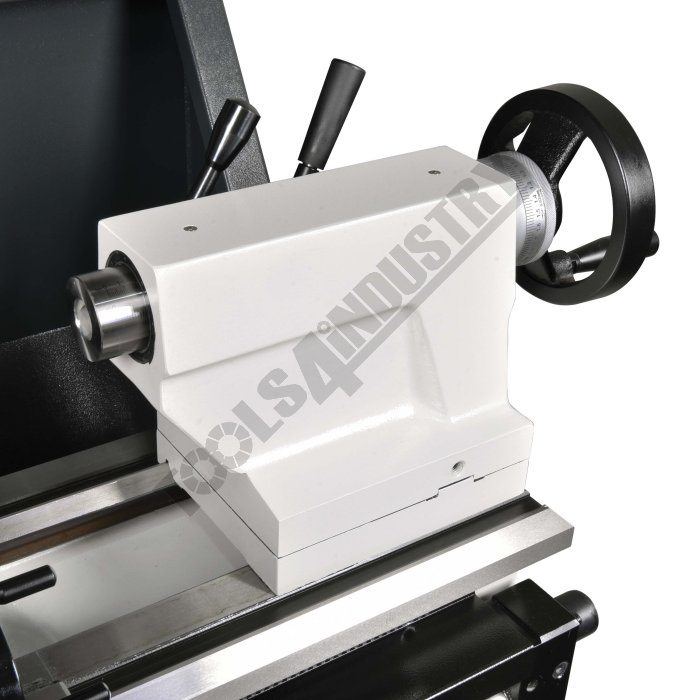

Heavy Duty Tailstock

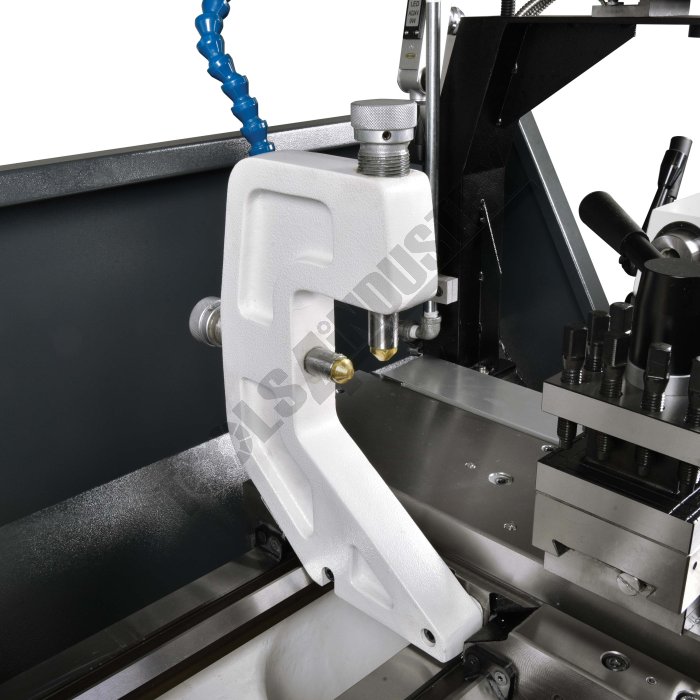

3 Point Travelling Steady

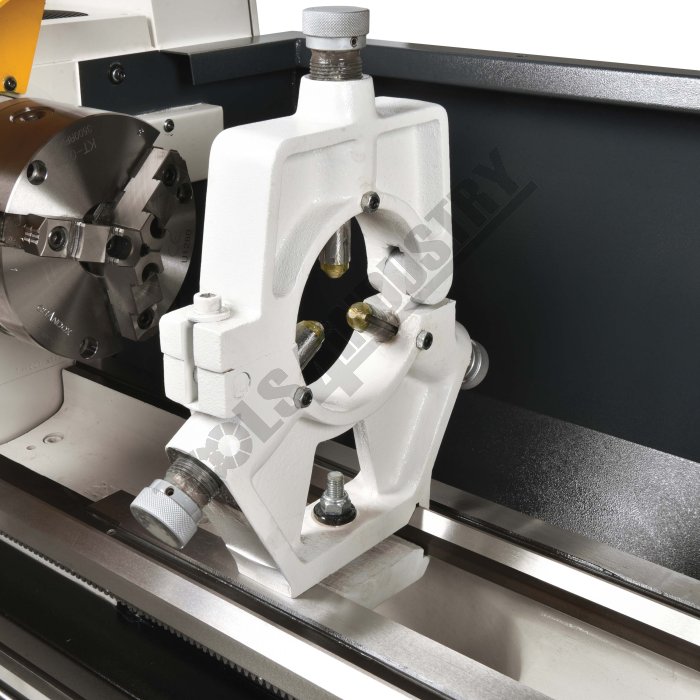

3 Point Fixed Steady

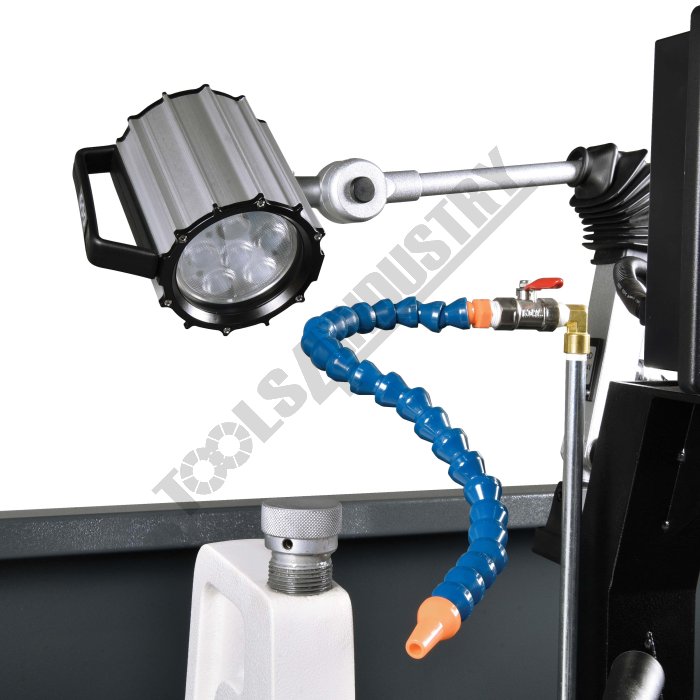

Adustable Light Coolant Nozzle

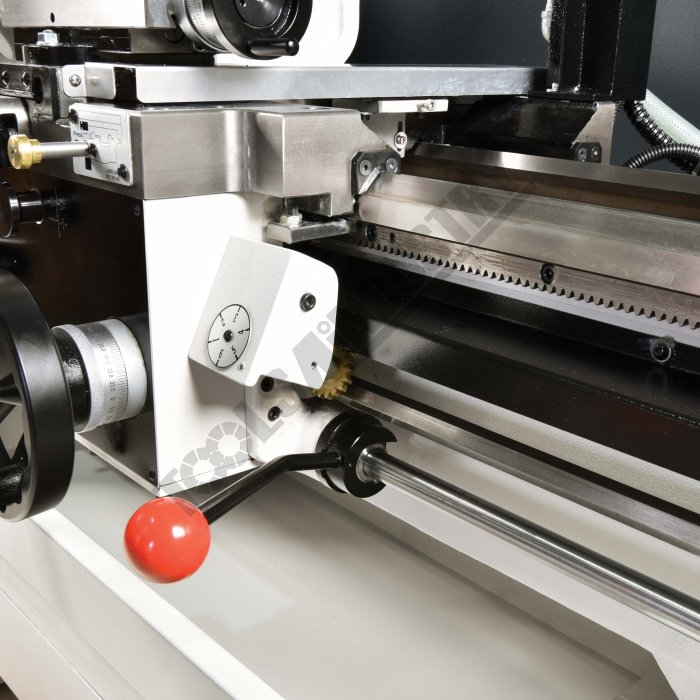

Thread Chasing Dial

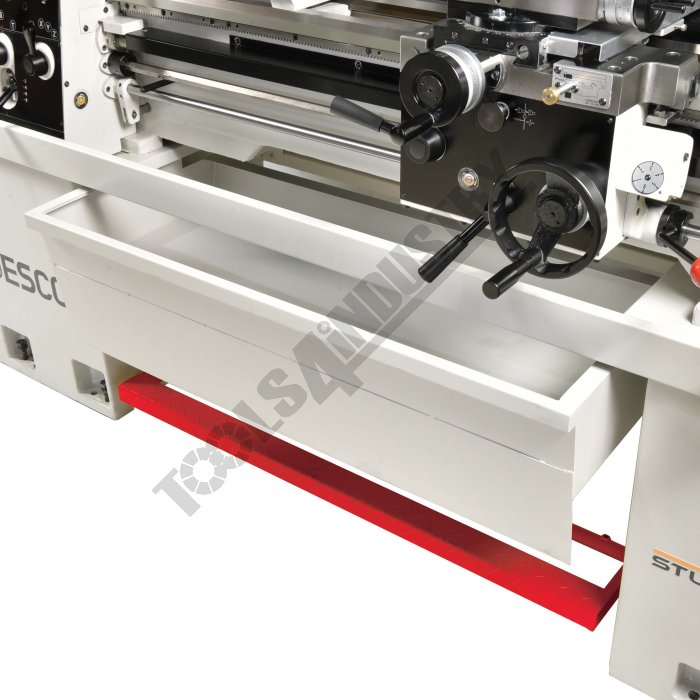

Slide Out Tray For Easy Cleaning

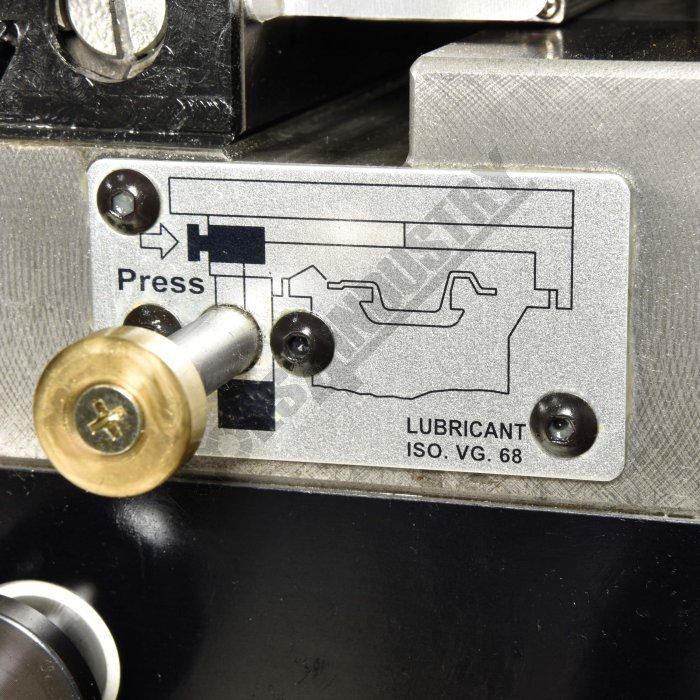

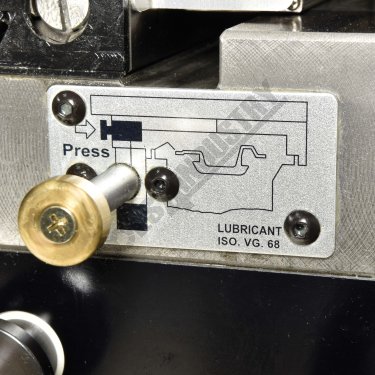

One Shot Lubrication

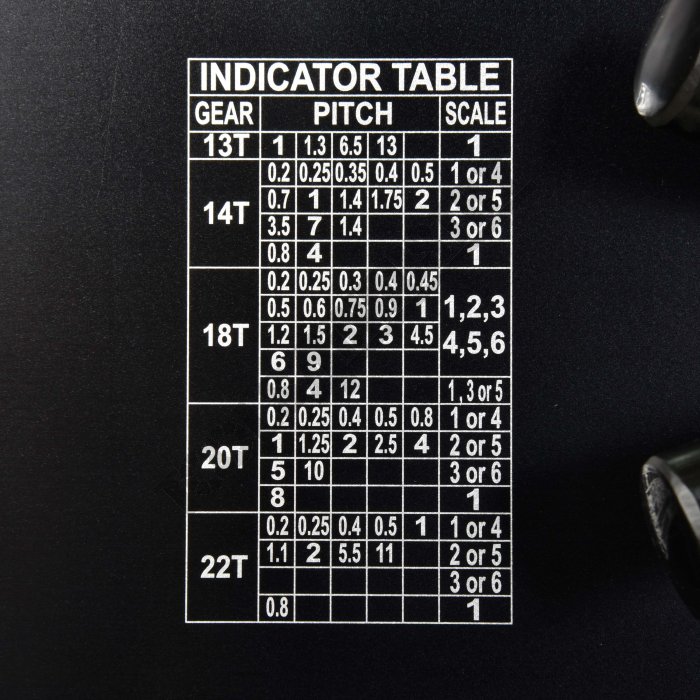

Indicator Table

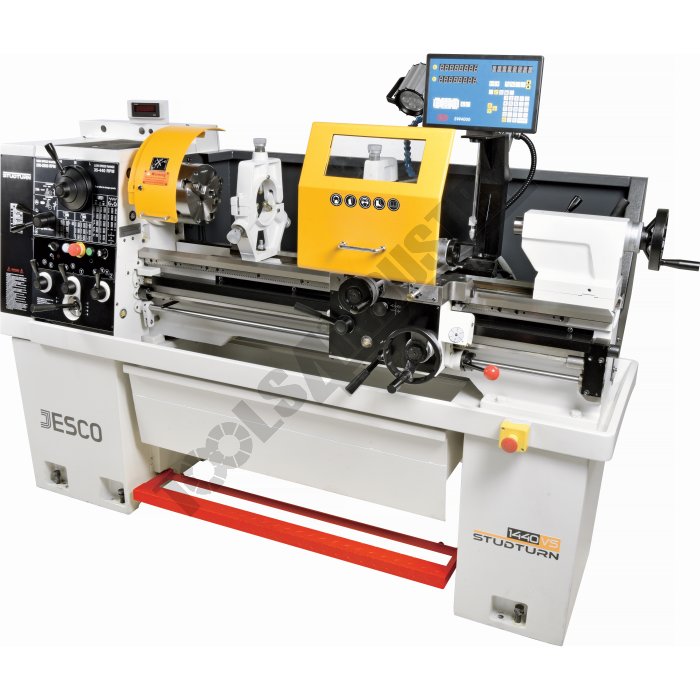

Optional Toolpost Safety Guard Full View

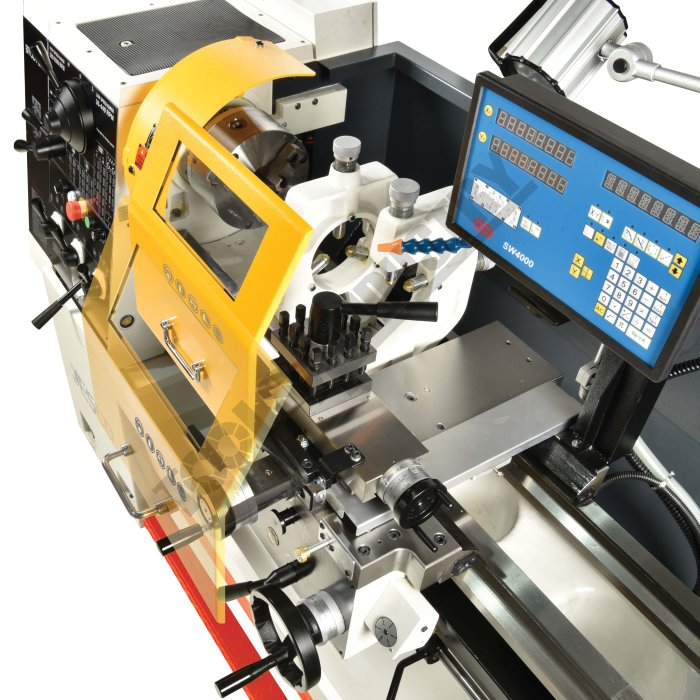

Optional Toolpost Safety Guard Top View

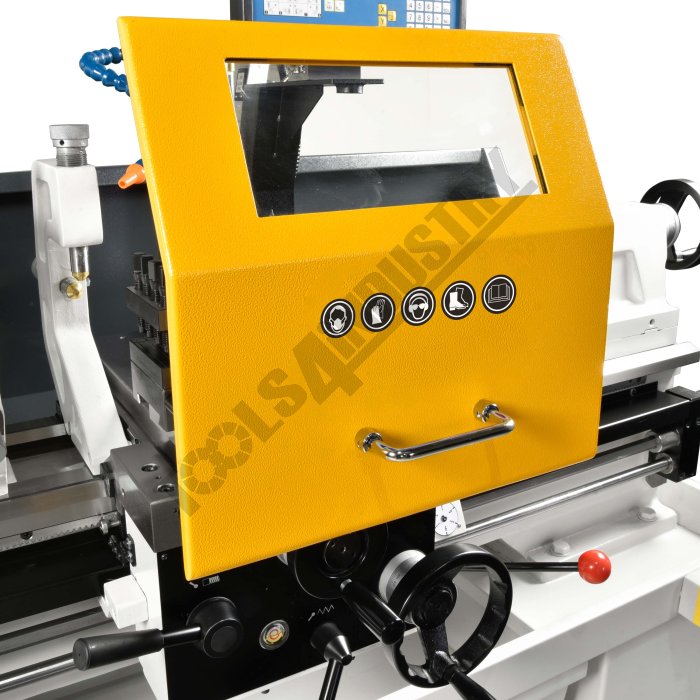

Optional Toolpost Safety Guard

Code	L249VS
Model	Studturn 1440VS
Capacity	Ø360 x 1000mm Turning Capacity - Ø42mm Spindle Bore
Weight (kg)	1100
Weight (m³)	2.670
Weight (Freight)	1100
Dimensions (cm)	185 x 88 x 164

Product Brochure Instruction Manual [7 MB] Parts List [1 MB]Lathe - Metal Risk Assessment

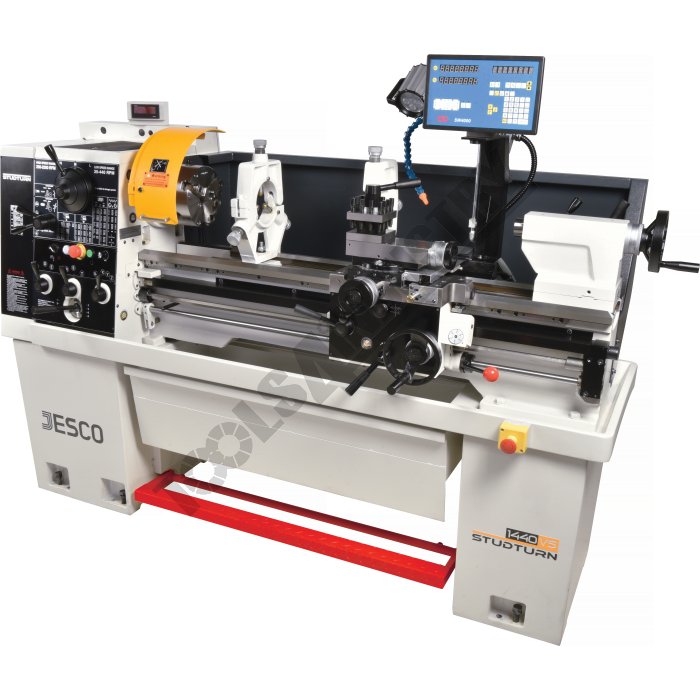

Centre Lathe Studturn 1440VS Ø360 x 1000mm Turning Capacity - Ø42mm Spindle Bore

Description

Manufactured in Taiwan, Jesco has been producing high-quality center lathes for over 30 years. As the OEM manufacturer for a prominent British lathe brand, Jesco ensures exceptional craftsmanship and reliability.

The Variable Speed Studturn boasts an impressive spindle speed of 2500rpm and features a fully enclosed universal gearbox, offering a comprehensive range of threading and feeding options. Designed with safety in mind, it includes leadscrew covers, chuck and chip guards, an additional emergency stop switch, and a convenient footbrake for enhanced operator protection.

Features

Schneider Electric Varispeed high-performance, Low-noise, Inverter drive
Variable Speed 35-2500rpm with high/low speed selector
Mechanical emergency footbrake for safety
Noise levels below 80dba
Precision Taiwanese machine, sold for over 34 years
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
Chuck guard with safety micro switch cut out
Overload protection on drive motor and coolant system
Universal enclosed gearbox incorporating metric & imperial thread capabilities
Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch
250mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 560mm
Powered longitudinal and cross feeds
Clutch in apron enabling pressure adjustment for feeding in both axis
Metric calibrated dials with clearly marked graduations
Coolant system with flexible hose enabling operator to manipulate flow direction
Oil sight glass for head stock and gearbox
Change gears for metric and imperial thread cutting
D1-5 camlock spindle for quick chuck removal
42mm spindle bore
3.75kW / 5HP 415V main motor

Includes

2 axis digital readout system
193mm 3-jaw chuck (steel body) with reverse jaws
250mm 4-jaw chuck
Faceplate
Fixed Steady with roller bearings
Travelling steady with roller bearings
Chuck guard
Leadscrew cover
Foot brake
Coolant system
Rear splash guard
Thread chasing dial
Spindle reducing bush
Dead centres
Instruction booklet

Optional Accessories

Toolpost Safety Guard

Specifications

Compare 27 Products
ORDER CODE
MODEL
Swing Over Bedmm
Distance Between Centresmm
Spindle Boremm
Swing In Gapmm
Swing Over Cross-slidemm
Digital Readout System Fitted
Quick Change Toolpost Fitted
Leadscrew Covers Fitted
Taper Turning Attachment
Coolant System
Tool Height To Suitmm
Centre Heightmm
Spindle Nose Size or Type
Bed Widthmm
Headstock Spindle TaperMT
Tailstock TaperMT
Cross Slide Travelmm
Compound Slide Travelmm
Leadscrew Type
Metric Cross Feed (X-Axis)mm/rev
Imperial Cross Feed (X-Axis)inch/rev
Metric Longitudinal Feed (Z-Axis)mm/rev
Imperial Longitudinal Feed (Z-Axis)inch/rev
Metric Thread Steps & PitchNo. / mm
Imperial Thread Steps & TPINo. / TPI
3 Jaw Chuck Diametermm
4 Jaw Chuck Diametermm
Spindle Steps / SpeedsNo. / rpm
Motor PowerkW / hp
Voltage / AmperageV / amp
Nett Weightkg

L249VS
Studturn 1440VS
360
1000
Ø42
560
215
Yes
Optional
Yes
Optional
Yes
16
178
D1-5 Camlock
250
5
3
195
100
Metric
0.01 - 0.13
~
0.03 - 0.40
~
27 (0.4 - 7)
36 (4 - 72)
Ø193
Ø250
Variable (35 - 2500)
3.75 / 5
415
1100
