| Code | L569D |
|---|---|
| Model | AL-410 |
| Capacity | 400 x 1000mm Turning Capacity - 52mm Spindle Bore |
| Weight (kg) | 850 |
| Weight (m3) | 2.466 |
| Weight (Freight) | 850 |
| Dimensions (cm) | 194 x 82 x 155 |

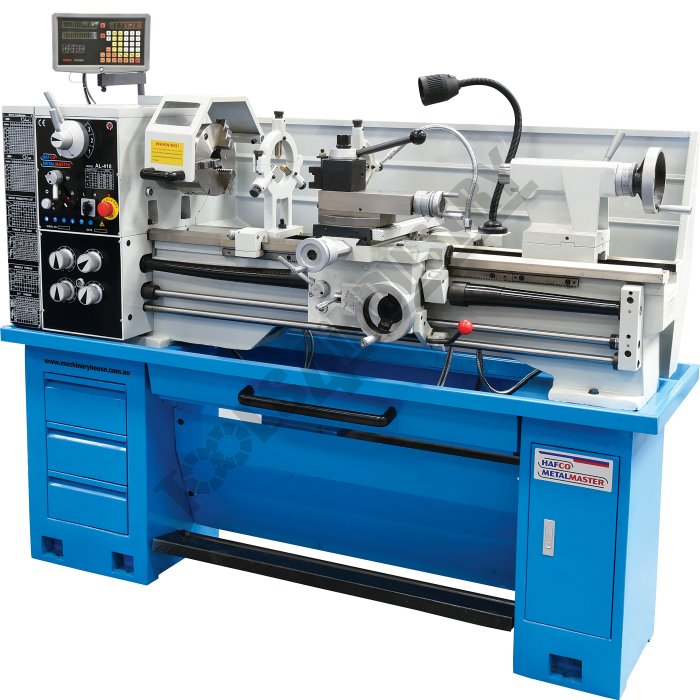

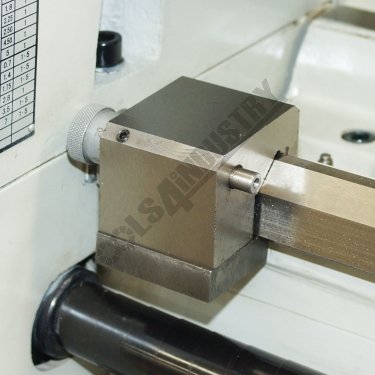

AL-410 Centre Lathe 400 x 1000mm Turning Capacity - 52mm Spindle Bore
Features

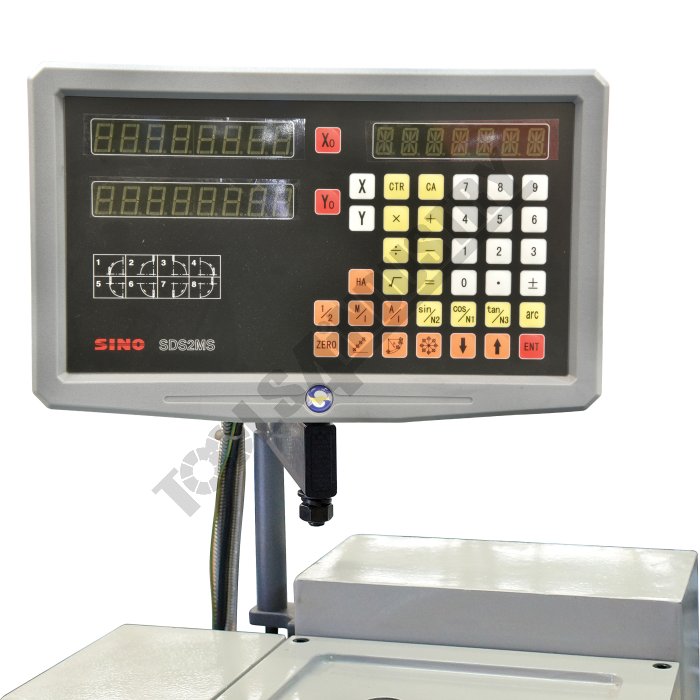

- 2 Axis digital readout system

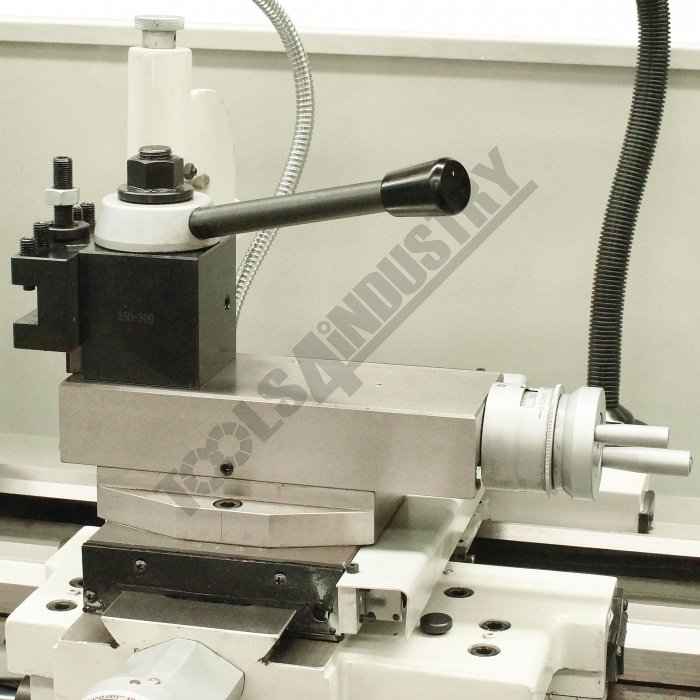

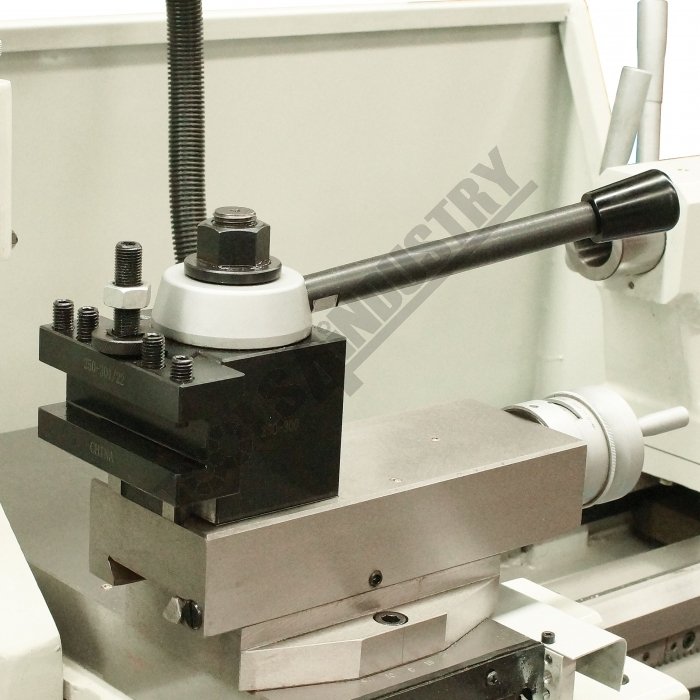

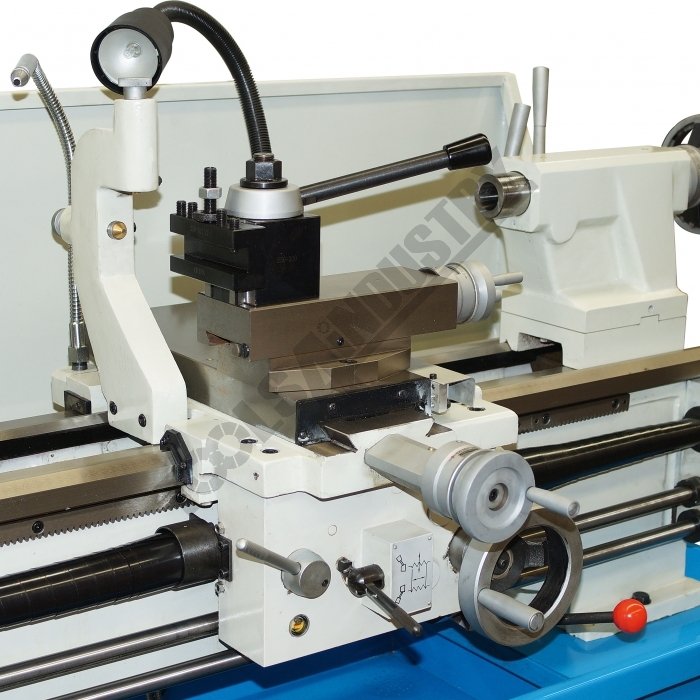

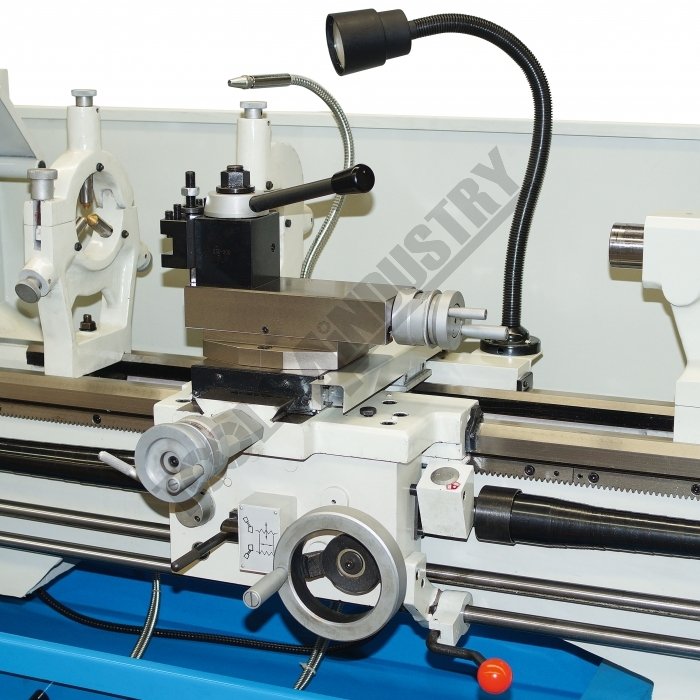

- Quick change toolpost with 5 holders

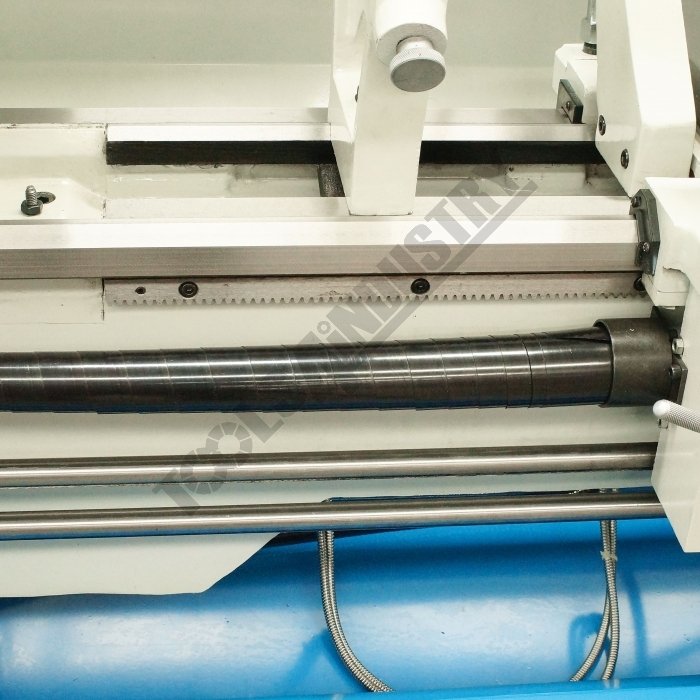

- Concertina leadscrew cover

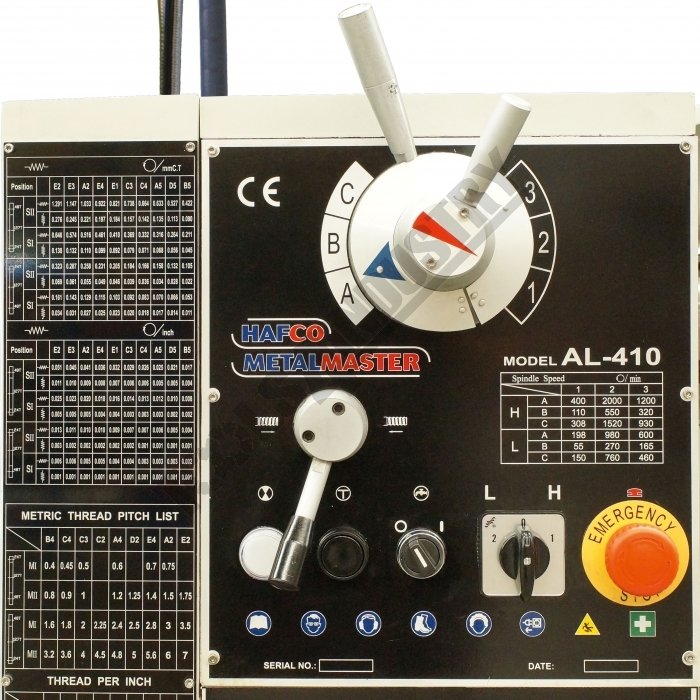

- Gear drive headstock for quick change of spindle speeds

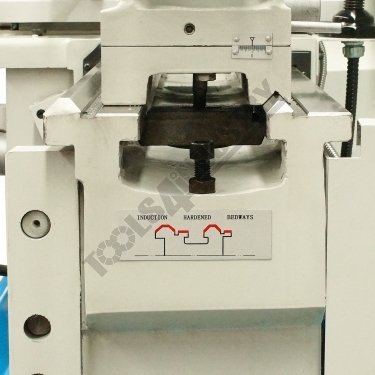

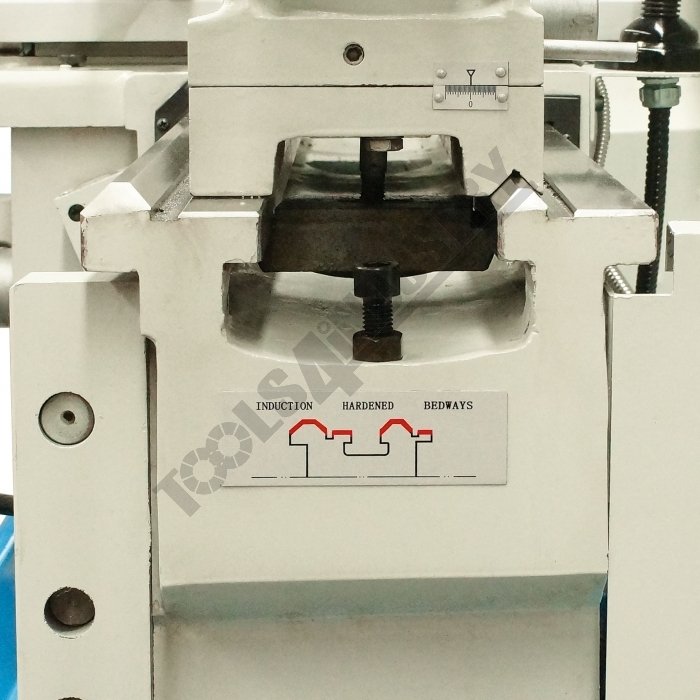

- Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting
- Low voltage work light

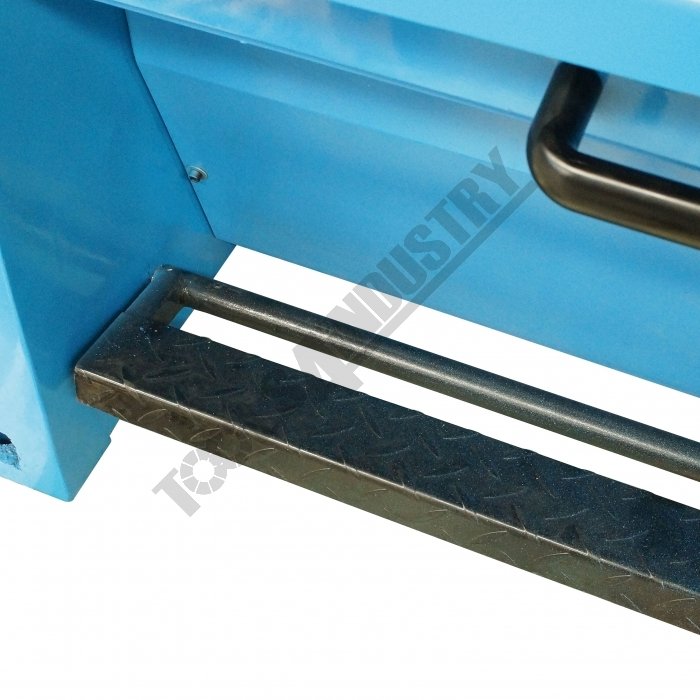

- Foot operated spindle brake with safety cut out switch
- Slide out front swarf tray for easy cleaning

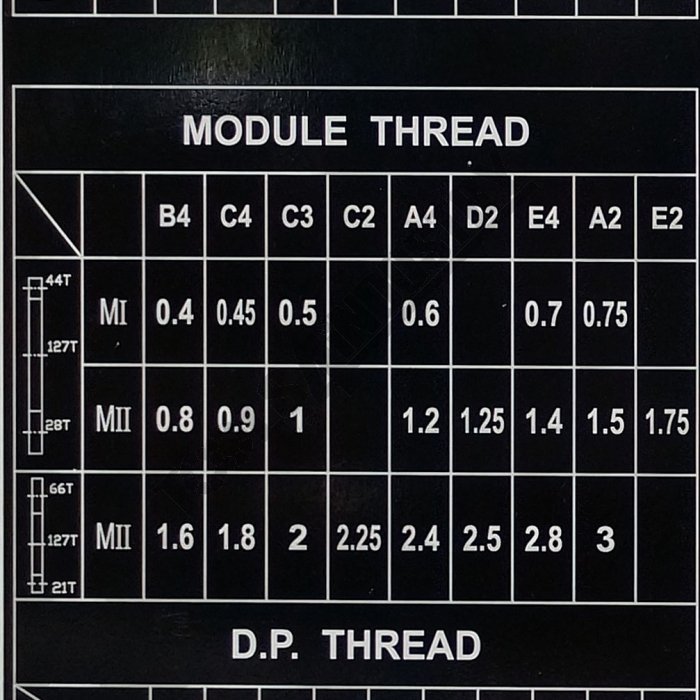

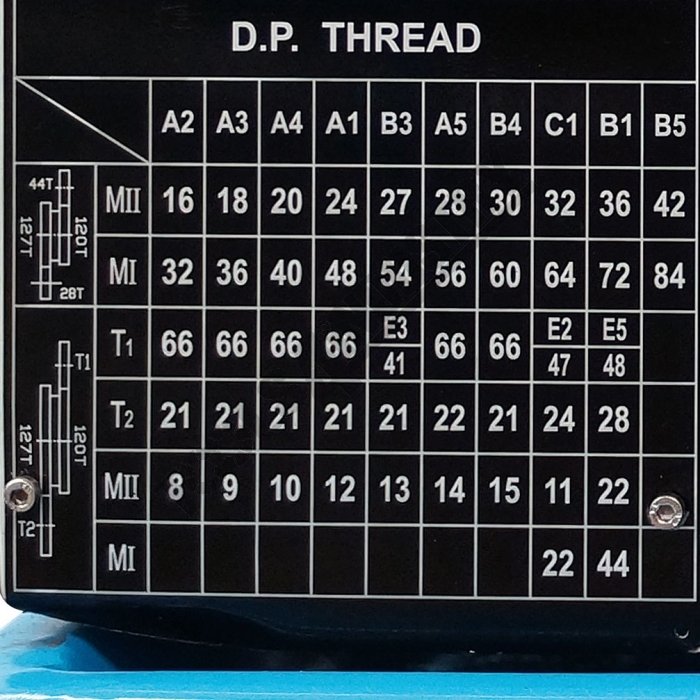

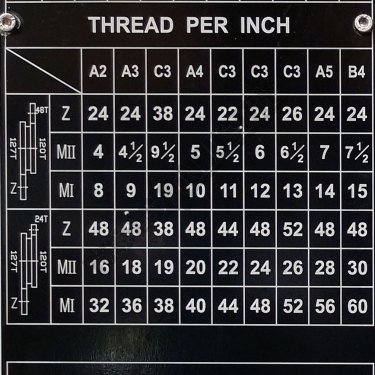

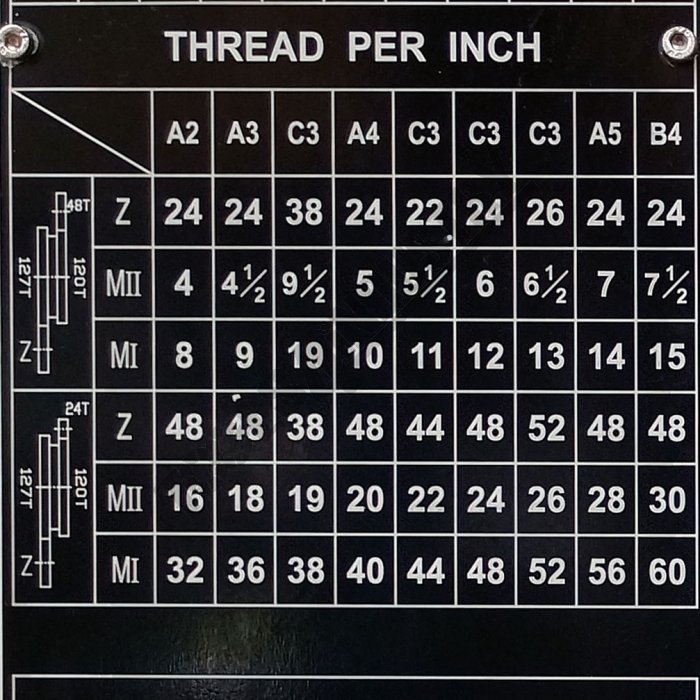

- Change gears for metric and imperial thread cutting
- Oil sight glass for head stock and gearbox
- Adjustable taper roller bearings support the spindle

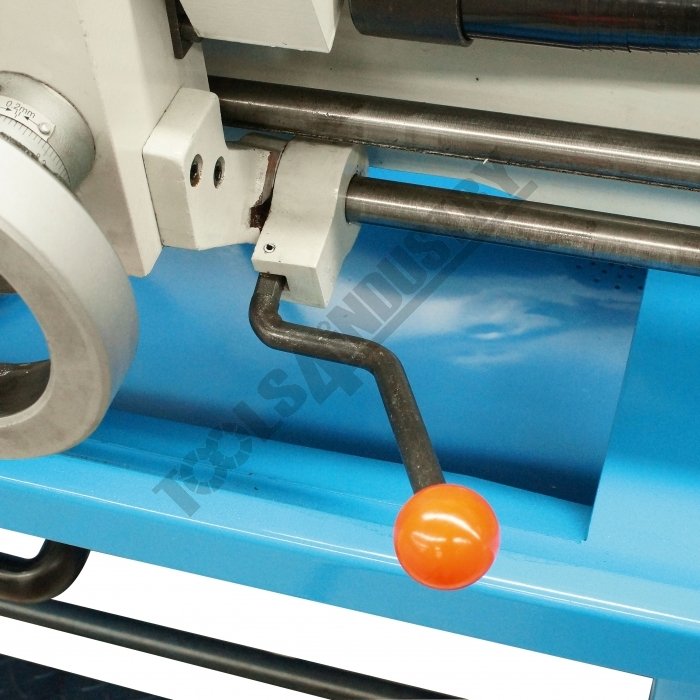

- Inching button is incorporated on the control panel for convenient spindle speed selection

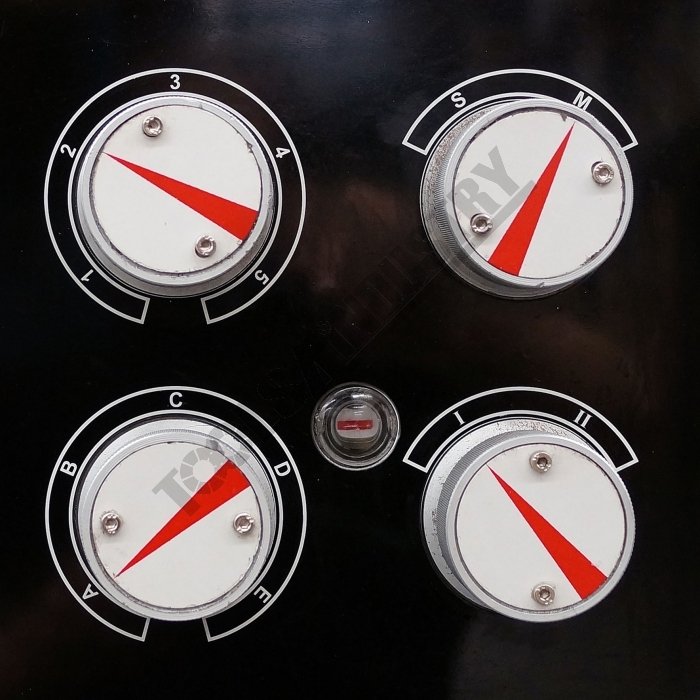

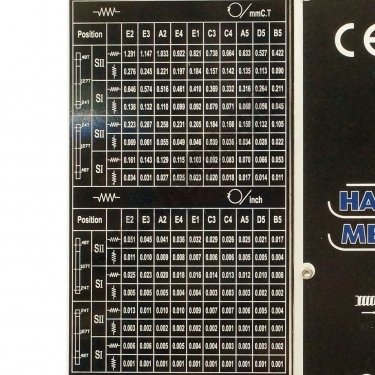

- Enclosed quick action gearbox for thread cutting and auto feeding

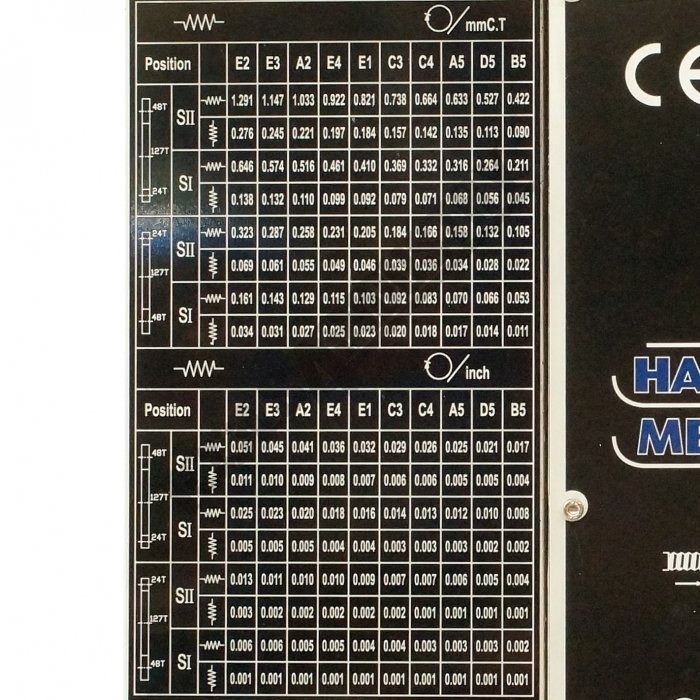

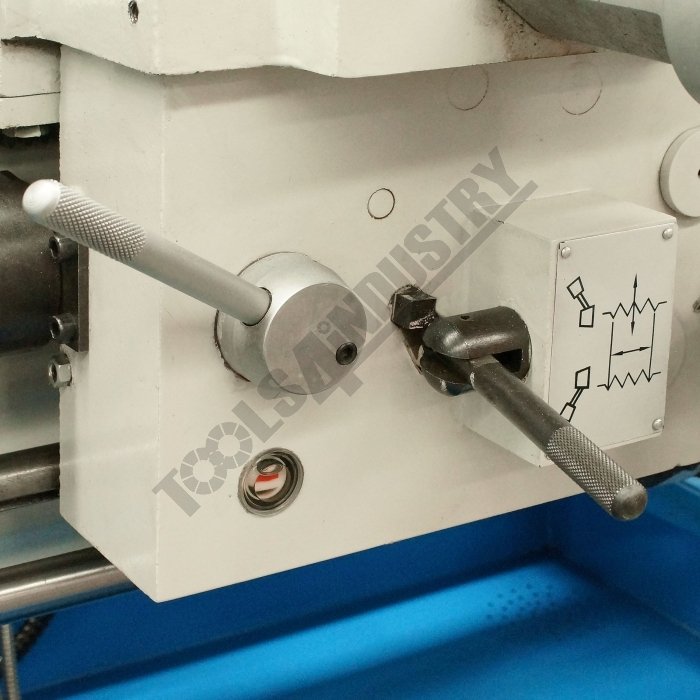

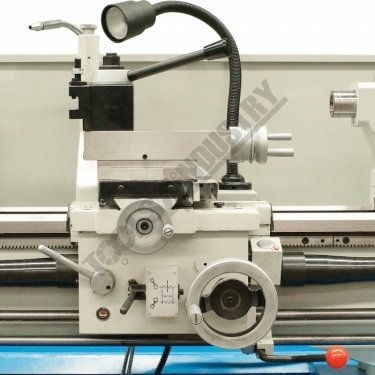

- Powered longitudinal and cross feeds
- D1-5 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
- Removable gap bed-way for larger diameter jobs

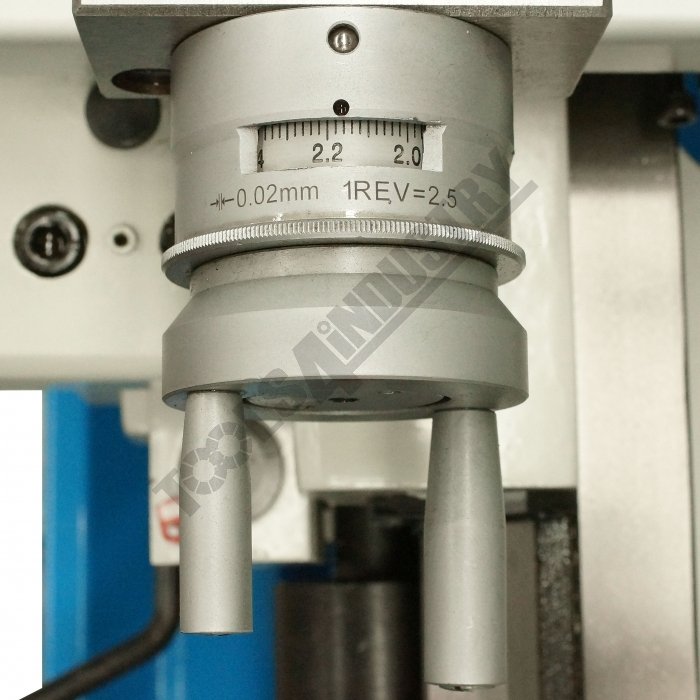

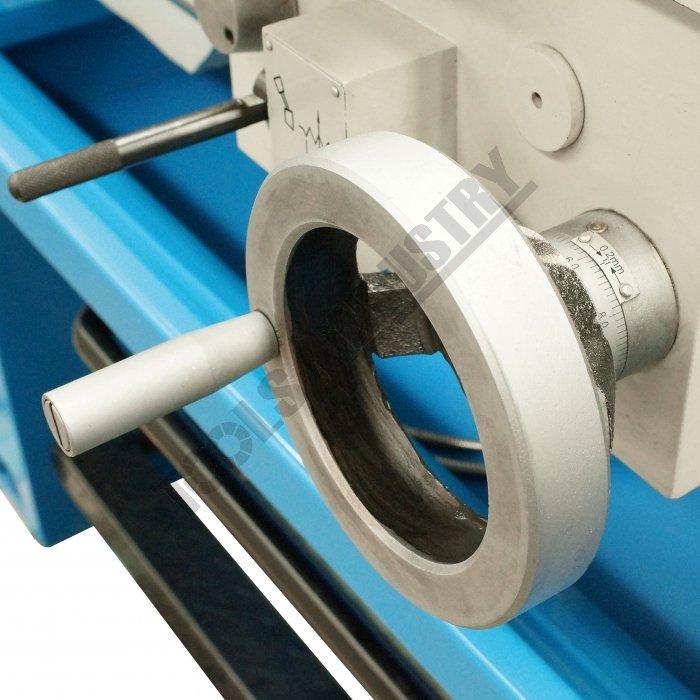

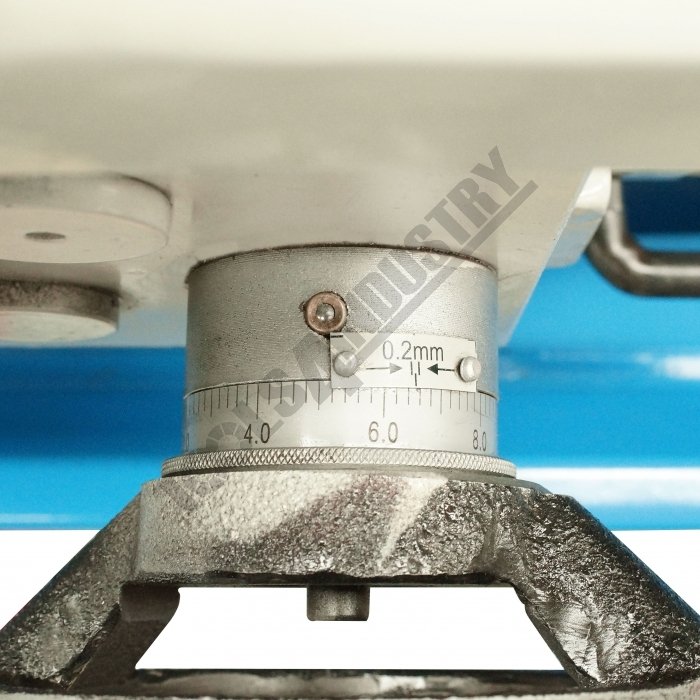

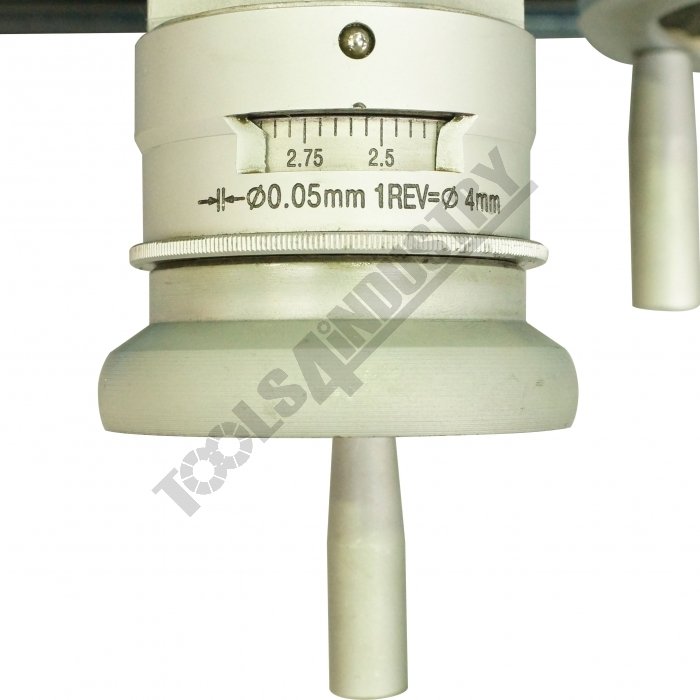

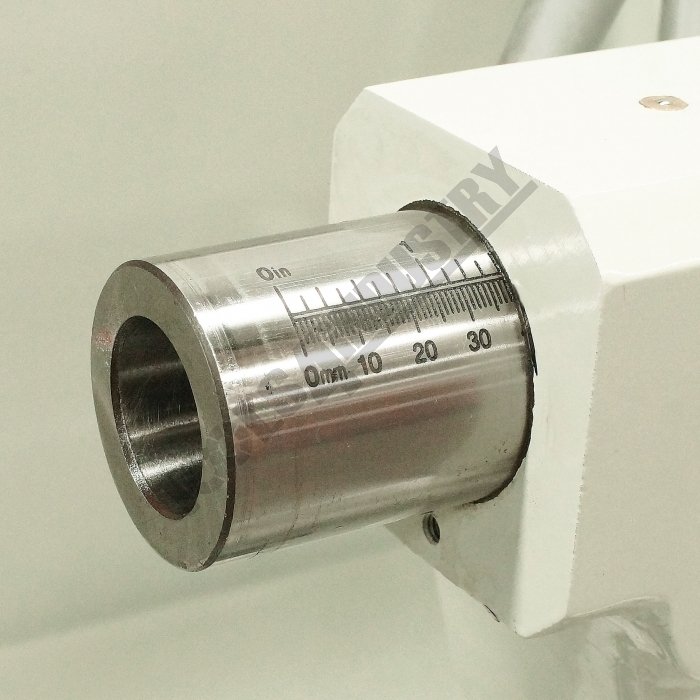

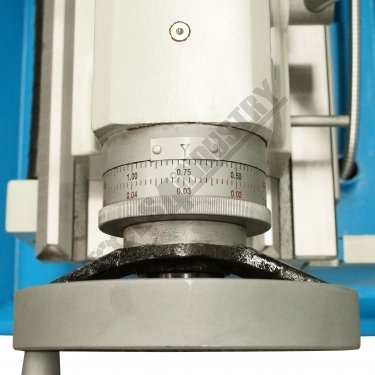

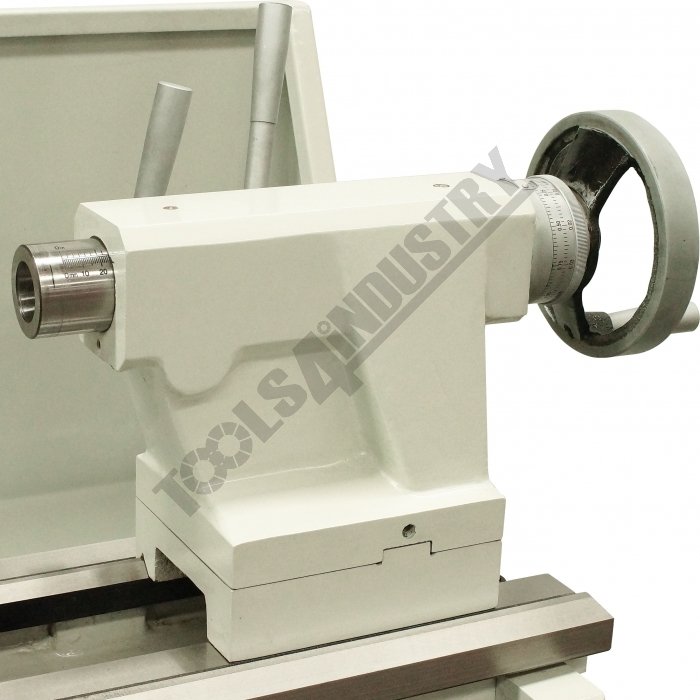

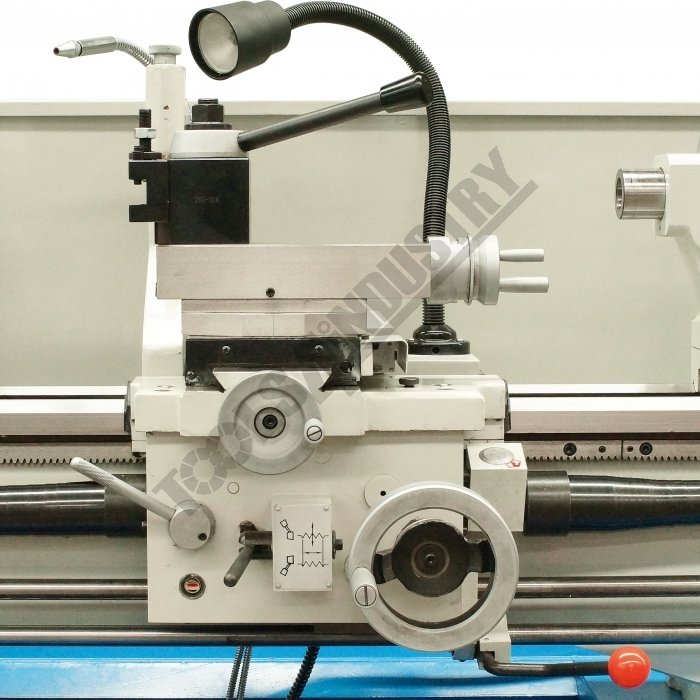

- Dual calibrated dials (except for saddle hand-wheel)

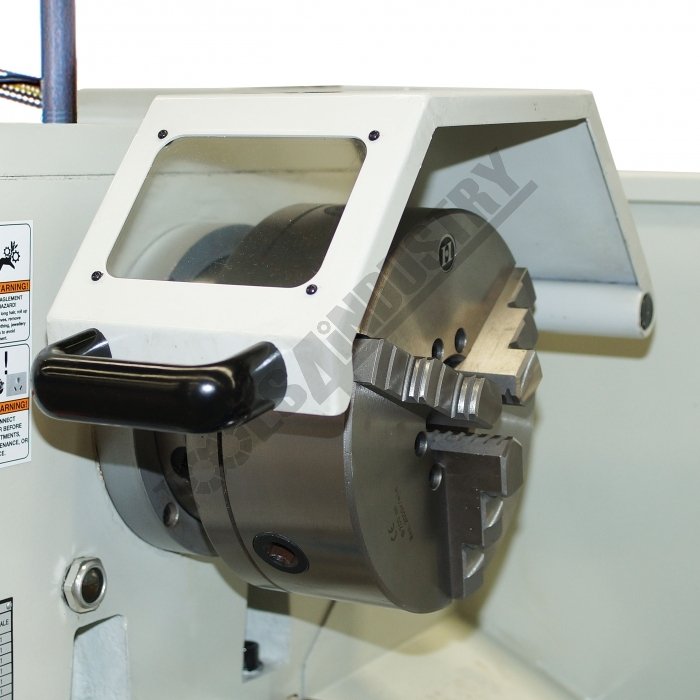

- Chuck & change gear guards are fitted with micro switches

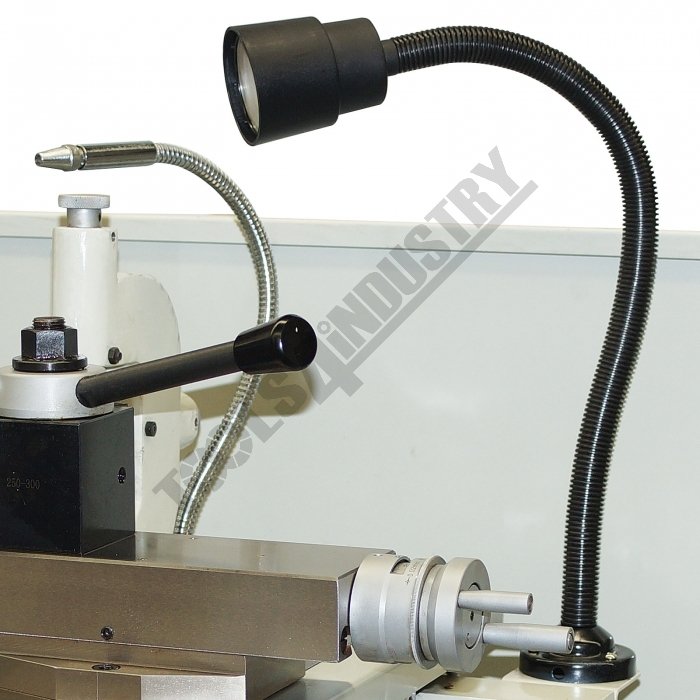

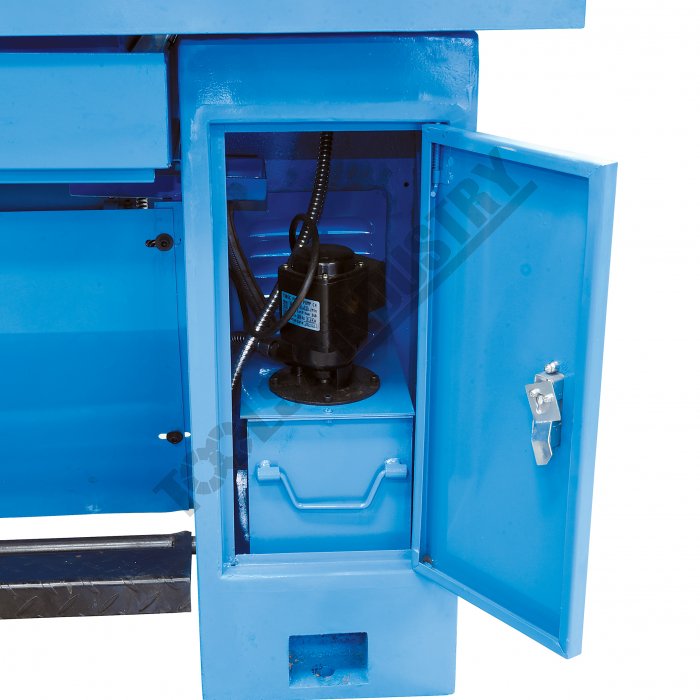

- Coolant system with flexible hose
- Slide out swarf tray
Includes
- 2 Axis digital readout system
- Concertina leadscrew covers
- Slide out front swarf tray
- Quick change tool-post with 5 holders
- 200mm 3-jaw chuck with reverse jaws
- 200mm 4-jaw chuck
- Face plate

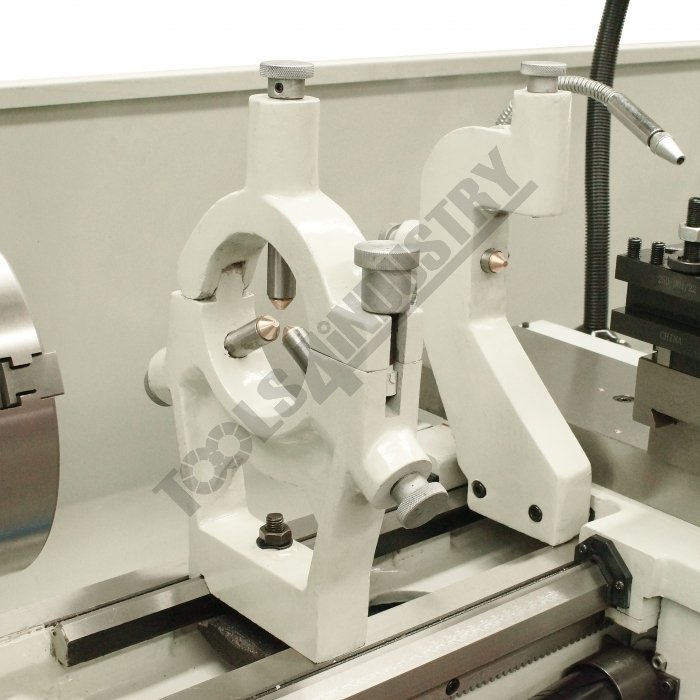

- Fixed steady
- Travelling steady
- Change gears
- Dead centres

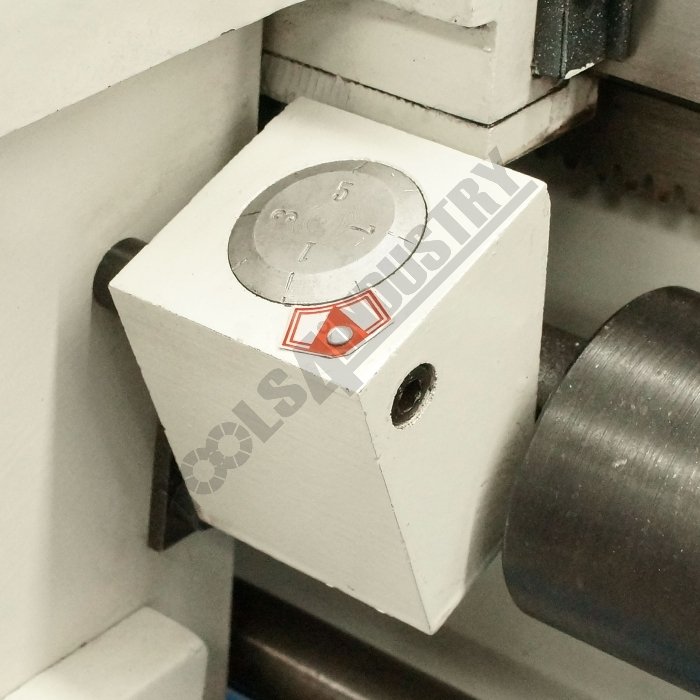

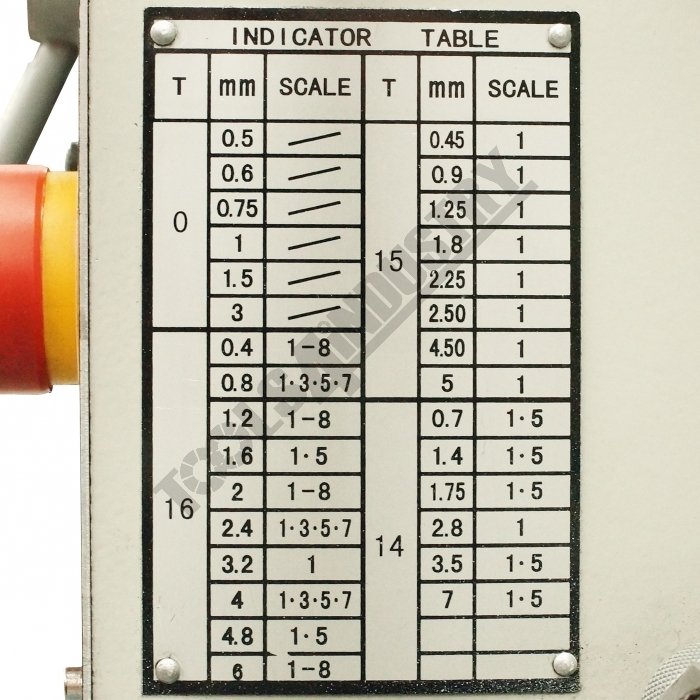

- Thread-chasing dial
- Work light
- Cast iron stand
- Rear splash guard & swarf tray

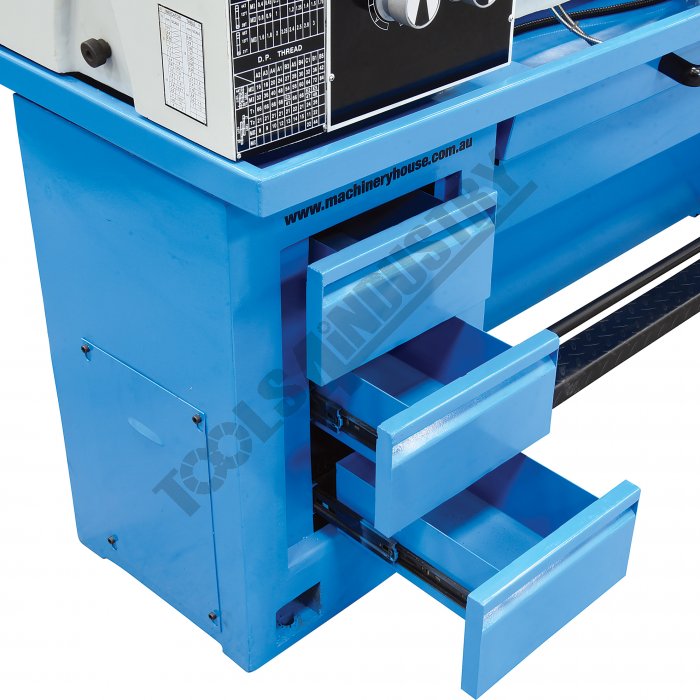

- Tool box
- Instruction booklet
Specifications
- Compare 37 Products
- ORDER CODE
- MODEL
- Swing Over Bedmm
- Distance Between Centresmm
- Spindle Boremm
- Swing In Gapmm
- Swing Over Cross-slidemm
- Digital Readout System Fitted
- Quick Change Toolpost Fitted
- Leadscrew Covers Fitted
- Taper Turning Attachment
- Coolant System
- Tool Height To Suitmm
- Centre Heightmm
- Spindle Nose Size or Type
- Bed Widthmm
- Headstock Spindle TaperMT
- Tailstock TaperMT
- Cross Slide Travelmm

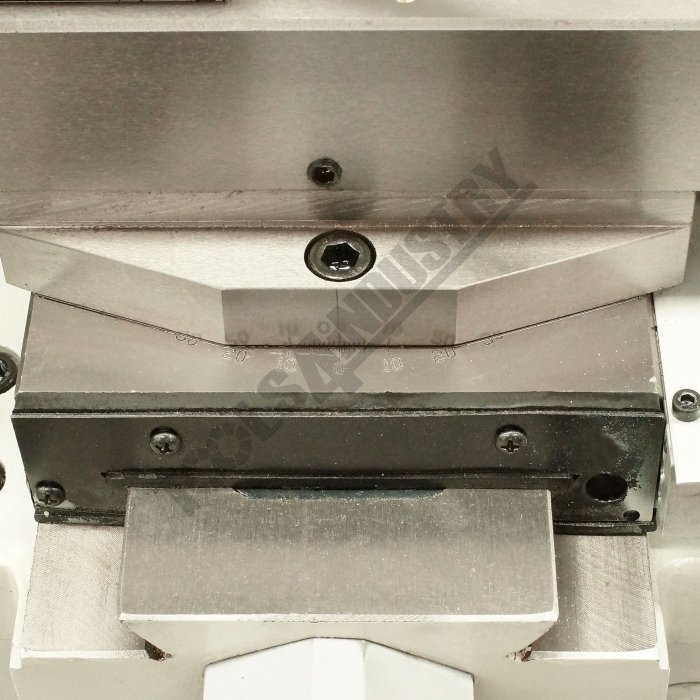

- Compound Slide Travelmm
- Leadscrew Type
- Metric Cross Feed (X-Axis)mm/rev
- Imperial Cross Feed (X-Axis)inch/rev
- Metric Longitudinal Feed (Z-Axis)mm/rev
- Imperial Longitudinal Feed (Z-Axis)inch/rev

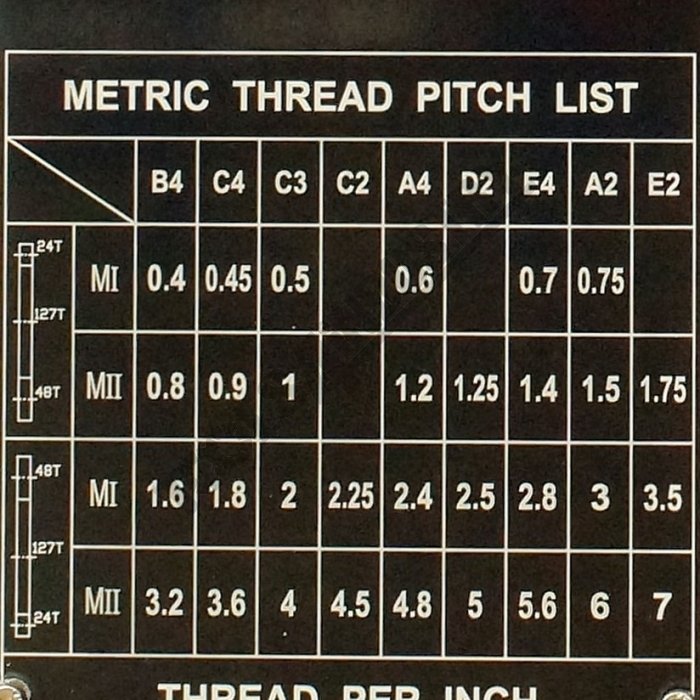

- Metric Thread Steps & PitchNo. / mm
- Imperial Thread Steps & TPINo. / TPI
- 3 Jaw Chuck Diametermm
- 4 Jaw Chuck Diametermm

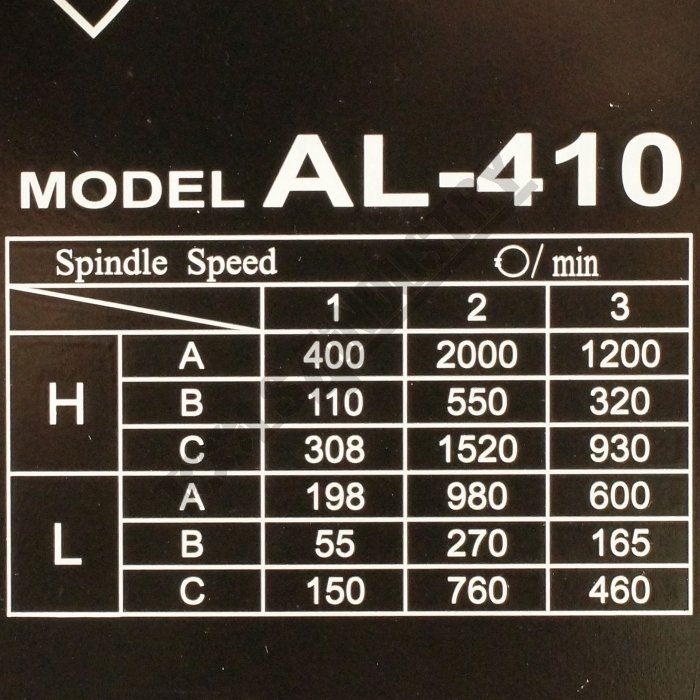

- Spindle Steps / SpeedsNo. / rpm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Shipping Dimensions (L x W x H)cm
- Nett Weightkg
- L569D
- AL-410
- 400
- 1000
- 52
- 520
- 250
- Yes
- Yes
- Yes
- ~
- Yes
- 16
- 200
- D1-5 Camlock
- 218
- 6
- 4
- 250
- 80
- Metric
- 0.011 - 0.276
- ~
- 0.052 - 1.291
- ~
- 32 (0.4 - 7)
- 36 (4 - 60)
- 200
- 200
- 18 (65 - 2000)
- 2.2 / 3
- 415
- 194 x 82 x 155
- 850
- L201
- AL-1324
- 330
- 600
- 40
- ~
- 200
- Optional
- Optional
- Yes
- Optional
- Yes
- 16
- 165
- D1-4 Camlock
- 190
- 5
- 3
- 175
- 100
- Metric
- 0.034 - 0.468
- ~
- 0.068 - 0.936
- ~
- 30(0.4 - 7.0)
- 32(4 - 56)
- 160
- 200
- 9 (82 - 2000)
- 2.25 / 3
- 415
- 148 x 76 x 150
- 580
- L201D
- AL-1324
- 330
- 600
- 40
- ~
- 200
- Yes
- Optional
- Yes
- Optional
- Yes
- 16
- 165
- D1-4 Camlock
- 190
- 5
- 3
- 175
- 100
- Metric
- 0.034 - 0.468
- ~
- 0.068 - 0.936
- ~
- 30(0.4 - 7.0)
- 32(4 - 56)
- 160
- 200
- 9 (82 - 2000)
- 2.25 / 3
- 415
- 148 x 76 x 150
- 580
- L240D
- AL-1000C
- 356
- 1000
- 40
- 516
- 225
- Yes
- Optional
- Yes
- Optional
- Yes
- 16
- 178
- D1-4 Camlock
- 190
- 5
- 3
- 175
- 100
- Imperial
- ~
- 0.0008 - 0.15
- ~
- 0.0016 - 0.30
- 30 (0.4 - 7.0)
- 32 (4 - 56)
- 160
- 200
- 9 (82 - 2000)
- 1.5 / 2
- 240 / 15
- 185 x 76 x 150
- 700
- L242D
- AL-1000D
- 356
- 1000
- 40
- 516
- 225
- Yes
- Optional
- Yes
- Optional
- Yes
- 16
- 178
- D1-4 Camlock
- 190
- 5
- 3
- 175
- 100
- Metric
- 0.033 - 0.468
- ~
- 0.066 - 0.936
- ~
- 30 (0.4 - 7.0)
- 32 (4 - 56)
- 160
- 200
- 18 (50 - 2000)
- 2.25 / 3
- 415
- 185 x 76 x 150
- 700
- L191D
- CL-38A
- 410
- 1000
- 52
- 580
- 255
- Yes
- Yes
- Yes
- ~
- Yes
- 20
- 205
- D1-6 Camlock
- 250
- 6
- 4
- 210
- 140
- Metric
- 0.025 - 0.85
- ~
- 0.05 - 1.7
- ~
- 39 (0.2 - 14)
- 45 (2 - 72)
- 200
- 250
- 16 (45 - 1800)
- 3.3 / 4.5
- 415
- 203 x 82 x 160
- 1550
- L600D
- CL-410
- 410
- 1000
- 58
- 640
- 224
- Yes
- Yes
- ~
- ~
- Yes
- 25
- 205
- D1-6 Camlock
- 300
- 6
- 4
- 290
- 128
- Metric
- 0.014 - 0.784
- ~
- 0.031 - 1.70
- ~
- 41 (0.1 - 14)
- 60 (2 - 112)
- 250
- 250
- 12 (25 - 2000)
- 5.5 / 7.5
- 415
- 225 x 112 x 162
- 1850
- L606D
- CL-460
- 460
- 1000
- 80
- 690
- 274
- Yes
- Yes
- Yes
- Yes
- Yes
- 25
- 230
- D1-8 Camlock
- 300
- 6
- 4
- 285
- 128
- Metric
- 0.014 - 0.784
- ~
- 0.031 - 1.70
- ~
- 47 (0.1 - 14)
- 60 (2 - 112)
- 250
- 350
- 12 (25 - 1860)
- 5.5 / 7.5
- 415
- 225 x 112 x 162
- 1950
- L632D
- TM-1740G
- 430
- 1000
- 80
- 650
- 235
- Yes
- Optional
- ~
- Optional
- Yes
- 25
- 215
- D1-8 Camlock
- 300
- 7
- 4
- 250
- 125
- Metric
- 0.02 - 0.4
- ~
- 0.05 - 0.82
- ~
- 17 (0.5 - 7)
- 39 (4 - 56)
- 275
- 320
- 12 (40 - 2000)
- 5.5 / 7.5
- 415
- 223 x 106 x 162
- 1910
- L254D
- DASHIN CHAMPION 1550
- 390
- 1250
- 55
- 610
- 240
- Yes
- Optional
- Yes
- ~
- Yes
- 20
- 195
- D1-6 Camlock
- 270
- 6
- 4
- 230
- 120
- Metric
- 0.02 - 0.50
- ~
- 0.040 - 1.00
- ~
- 39(0.2 - 14)
- 40(2 - 72)
- 232
- 250
- 16 (25 - 2000)
- 5.5 / 7.5
- 415
- 251 x 102 x 175
- 1500
- L255VS
- DASHIN CHAMPION 2500
- 390
- 1250
- 55
- 610
- 240
- Yes
- Optional
- Yes
- ~
- Yes
- 20
- 190
- D1-6
- 270
- 6
- 4
- 230
- 120
- Metric
- 0.02 - 0.5
- ~
- 0.040 - 1.00
- ~
- 39(0.2 - 14)
- 45(2 - 72)
- 230
- 250
- Variable (18 - 2500)
- 5.5 / 7.5
- 415
- 251 x 102 x 175
- 1500
- L607D
- CL-460
- 460
- 1500
- 80
- 690
- 274
- Yes
- Yes
- Yes
- Yes
- Yes
- 25
- 230
- D1-8 Camlock
- 300
- 6
- 4
- 285
- 128
- Metric
- 0.014 - 0.784
- ~
- 0.031 - 1.70
- ~
- 47 (0.1 - 14)
- 60 (2 - 112)
- 250
- 350
- 12 (25 - 1860)
- 5.5 / 7.5
- 415
- 280 x 112 x 162
- 2150
- L634D
- TM-1960G
- 480
- 1500
- 80
- 690
- 275
- Yes
- Optional
- ~
- Optional
- Yes
- 25
- 240
- D1-8 Camlock
- 300
- 7
- 4
- 250
- 125
- Metric
- 0.02 - 0.4
- ~
- 0.05 - 0.82
- ~
- 17 (0.5 - 7)
- 39 (4 - 56)
- 275
- 320
- 12 (40 - 2000)
- 5.5 / 7.5
- 415
- 279 x 106 x 162
- 2250
- L610D
- CL-560
- 560
- 1500
- 105
- 785
- 355
- Yes
- Yes
- Yes
- Yes
- Yes
- 25
- 280
- D1-8 Camlock
- 350
- 7
- 5
- 316
- 130
- Metric
- 0.020-0.573
- ~
- 0.059-1.646
- ~
- 47 (0.2 - 14)
- 60 (2 - 112)
- 320
- 400
- 12 (20 - 1600)
- 7.5 / 10
- 415
- 290 x 119 x 175
- 2700
- L637D
- TM-2260G
- 560
- 1500
- 105
- 788
- 340
- Yes
- Optional
- ~
- Optional
- Yes
- 25
- 280
- D1-8 Camlock
- 350
- 7
- 5
- 300
- 200
- Metric
- 0.02 - 0.4
- ~
- 0.05 - 0.82
- ~
- 24 (0.5 - 14)
- 44 (2 - 56)
- 310
- 400
- 12 (16 - 1600)
- 7.5 / 10
- 415
- 290 x 115 x 193
- 2550
- L611D
- CL-560
- 560
- 2000
- 105
- 785
- 355
- Yes
- Yes
- Yes
- Yes
- Yes
- 25
- 280
- D1-8 Camlock
- 350
- 7
- 5
- 316
- 130
- Metric
- 0.020-0.573
- ~
- 0.059-1.646
- ~
- 47 (0.2 - 14)
- 60 (2 - 112)
- 320
- 400
- 12 (20 - 1600)
- 7.5 / 10
- 415
- 340 x 119 x 175
- 3000
- L627D
- CL-100A
- 660
- 2000
- 105
- 900
- 440
- Yes
- Yes
- Yes
- Yes
- Yes
- 25
- 330
- D1-8 Camlock
- 400
- 7
- 5
- 368
- 230
- Metric
- 0.044 - 1.48
- ~
- 0.022 - 0.74
- ~
- 54 (0.45 - 120)
- 54 (7/16 - 80)
- 325
- 400
- 16 (25 - 1600)
- 7.5 / 10
- 415
- 377 x 115 x 184
- 3400
- L639D
- TM-2680G
- 660
- 2000
- 120
- 890
- 438
- Yes
- Optional
- ~
- Optional
- Yes
- 30
- 330
- D1-11 Camlock
- 400
- 7
- 5
- 375
- 200
- Metric
- 0.02 - 0.4
- ~
- 0.05 - 0.82
- ~
- 24 (0.5 - 14)
- 44 (2 - 56)
- 310
- 400
- 12 (12 - 1200)
- 11.25 / 15
- 415
- 361 x 115 x 194
- 3200
- L628D
- CL-100A
- 660
- 3000
- 105
- 900
- 440
- Yes
- Yes
- Yes
- Yes
- Yes
- 25
- 330
- D1-8 Camlock
- 400
- 7
- 5
- 368
- 230
- Metric
- 0.044 - 1.48
- ~
- 0.022 - 0.74
- ~
- 54 (0.45 - 120)
- 54 (7/16 - 80)
- 325
- 400
- 16 (25 - 1600)
- 7.5 / 10
- 415
- 477 x 115 x 184
- 3700
- L642D
- TM-26120G
- 660
- 3300
- 120
- 890
- 438
- Yes
- Optional
- ~
- Optional
- Yes
- 30
- 330
- D1-11 Camlock
- 400
- 7
- 5
- 375
- 200
- Metric
- 0.02 - 0.4
- ~
- 0.05 - 0.82
- ~
- 24 (0.5 - 14)
- 44 (2 - 56)
- 310
- 400
- 12 (12 - 1200)
- 11.25 / 15
- 415
- 485 x 115 x 194
- 4000
- L645D
- TM-33130HDX
- 860
- 3310
- 153 (Optional 230)
- 1000
- 620
- Yes
- Optional
- ~
- Optional
- Yes
- 32
- 430
- A2-11
- 510
- 7
- 6
- 480
- 330
- Metric
- 0.025 - 0.35
- ~
- 0.05 - 0.7
- ~
- 37 (0.8 - 14)
- 36 (2 - 28)
- 400
- 500
- 12 (8 - 680)
- 15 / 20
- 415
- 550 x 200 x 190
- 6800
- L646D
- TM-33170HDX
- 860
- 4310
- 153 (Optional 230)
- 1000
- 620
- Yes
- Optional
- ~
- Optional
- Yes
- 32
- 430
- A2-11
- 510
- 7
- 6
- 480
- 330
- Metric
- 0.025 - 0.35
- ~
- 0.05 - 0.7
- ~
- 37 (0.8 - 14)
- 36 (2 - 28)
- 400
- 500
- 12 (8 - 680)
- 15 / 20
- 415
- 650 x 200 x 190
- 7600
- L685
- TU-1503V
- 150
- 300
- 11
- ~
- 82
- Optional
- Optional
- ~
- ~
- ~
- 8
- 75
- Fixed
- 70
- 1
- 1
- 55
- 40
- Metric
- ~
- ~
- 0.05 - 0.1
- ~
- 8 (0.5 - 1.5)
- ~
- 80
- Optional
- Variable (160 - 3000)
- 0.45 / 0.6
- 240 / 10
- 59 x 33 x 27
- 24
- L687
- TU-2004V
- 200
- 300
- 21
- ~
- 140
- Optional
- Optional
- ~
- ~
- ~
- 10
- 100
- Fixed
- 100
- 3
- 2
- 75
- 55
- Metric
- ~
- ~
- 0.1 - 0.2
- ~
- 14 (0.25 - 3)
- 12 (8 - 44")
- 100
- Optional
- Variable (150 - 2500)
- 0.60 / 0.8
- 240 / 10
- 82 x 48 x 49
- 75
- L160
- AL-51G
- 230
- 500
- 20
- ~
- 127
- Optional
- Optional
- ~
- ~
- ~
- 10
- 115
- Threaded
- 114
- 3
- 2
- 108
- 48
- Imperial
- ~
- ~
- ~
- 0.12 - 0.3
- 11 (0.5 - 3)
- 27 (8 - 56)
- 100
- 190
- 6 (100 - 1800)
- 0.55 / 0.75
- 240 / 10
- 105 x 56 x 49
- 136
- L689
- TU-2506V
- 250
- 550
- 26
- ~
- 150
- Optional
- Optional
- ~
- ~
- ~
- 12
- 125
- Fixed
- 135
- 4
- 2
- 110
- 70
- Metric
- ~
- ~
- 0.07 - 0.4
- ~
- 21 (0.2 - 4)
- 21 (8 - 56")
- 125
- Optional
- Variable (150 - 2500)
- 1.2 / 1.6
- 240 / 10
- 120 x 56 x 57
- 156
- L149
- AL-250G
- 250
- 500
- 26
- ~
- 150
- Optional
- Optional
- Yes
- ~
- ~
- 16
- 125
- Fixed
- 140
- 4
- 3
- 145
- 75
- Metric
- 0.017 - 0.187
- ~
- 0.035 - 0.375
- ~
- 15 (0.25 - 2.5)
- ~
- 130
- Optional
- 12 (80 - 1600)
- 0.75 / 1
- 240 / 10
- 122 x 65 x 65
- 185
- L141
- AL-320G
- 320
- 600
- 38
- ~
- 210
- Optional
- Optional
- ~
- ~
- ~
- 12
- 160
- Fixed
- 160
- 5
- 3
- 150
- 100
- Metric
- 0.022 - 0.15
- ~
- 0.1 - 1.4
- ~
- 11 (0.5 - 4)
- 27 (9 - 48)
- 160
- 200
- 12 (60 - 1600)
- 0.75 / 1
- 240 / 10
- 137 x 73 x 73
- 280
- L691
- TU-3008G
- 300
- 700
- 38
- ~
- 190
- Optional
- Optional
- ~
- ~
- ~
- 16
- 150
- D1-4
- 180
- 5
- 3
- 150
- 65
- Metric
- 0.01 ~0.10
- ~
- 0.085 - 0.83
- ~
- 18 (0.2 - 3.5)
- 21 (8 - 56")
- 160
- Optional
- 12 (125 - 2400)
- 1.5 / 2
- 240 / 10
- 153 x 71 x 58
- 280
- k0012
- TU-3008G - Package Deal
- 300
- 700
- 38
- ~
- 190
- Optional
- Optional
- ~
- ~
- ~
- 16
- 150
- D1-4
- 180
- 5
- 3
- 150
- 65
- Metric
- 0.01 ~0.10
- ~
- 0.085 - 0.83
- ~
- 18 (0.2 - 3.5)
- 21 (8 - 56")
- 160
- Optional
- 12 (125 - 2400)
- 1.5 / 2
- 240 / 10
- 153 x 71 x 135
- 365
- L682
- AL-336
- 300
- 900
- 38
- 450
- 180
- Optional
- Optional
- ~
- ~
- Yes
- 12
- 150
- D1-4 Camlock
- 180
- 5
- 3
- 170
- 75
- Imperial
- ~
- 0.009 - 0.236
- ~
- 0.04 - 1.22
- 32 (0.4 - 7)
- 36 (4 - 60)
- 160
- 200
- 18 (65 - 1810)
- 1.5 / 2
- 240 / 10
- 168 x 76 x 145
- 595
- L682D
- AL-336D-DELUXE
- 300
- 900
- 38
- 450
- 180
- Yes
- Yes
- Yes
- ~
- Yes
- 12
- 150
- D1-4 Camlock
- 180
- 5
- 3
- 170
- 75
- Imperial
- ~
- 0.009 - 0.236
- ~
- 0.04 - 1.2236
- 32 (0.4 - 7)
- 36 (4 - 60)
- 160
- 200
- 18 (65 - 1810)
- 1.5 / 2
- 240 / 10
- 168 x 76 x 145
- 595
- L237
- AL-960B
- 305
- 925
- 40
- 450
- 180
- Optional
- Optional
- ~
- ~
- ~
- 12
- 152.5
- D1-4 Camlock
- 190
- 5
- 3
- 170
- 90
- Imperial
- ~
- 0.03 - 1.04
- ~
- 0.06 - 2.08
- 26 (0.25- 7.5)
- 40 (4 - 112)
- 160
- 200
- 12 (70 - 1400)
- 1.5 / 2
- 240 / 15
- 178 x 76 x 149
- 463
- L237D
- AL-960B
- 305
- 925
- 40
- 450
- 180
- Yes
- Optional
- ~
- ~
- ~
- 12
- 152.5
- D1-4 Camlock
- 190
- 5
- 3
- 170
- 90
- Imperial
- ~
- 0.03 - 1.04
- ~
- 0.06 - 2.08
- 26 (0.25 - 7.5)
- 40 (4 - 112)
- 160
- 200
- 12 (70 - 1400)
- 1.5 / 2
- 240 / 15
- 178 x 76 x 149
- 470
- L555D
- AL-346V
- 330
- 1000
- 40
- 450
- 200
- Yes
- Yes
- Yes
- ~
- Yes
- 16
- 165
- D1-4 Camlock
- 181
- 5
- 3
- 160
- 85
- Metric
- 0.013 - 0.31
- ~
- 0.053 - 1.29
- ~
- 32 (0.4 - 7)
- 36 (4-60)
- 160
- 200
- Variable (70 - 2000)
- 1.5 / 2
- 240 / 10
- 187 x 75 x 157
- 635
- L564E
- AL-356
- 356
- 1000
- 51
- 476
- 224
- Yes
- Yes
- Yes
- ~
- Yes
- 16
- 178
- D1-5 Camlock
- 187
- 6
- 4
- 160
- 68
- Metric
- 0.022 - 0.298
- ~
- 0.078 - 1.044
- ~
- 32 (0.45 - 10)
- 20 (2-1/4 - 40)
- 200
- 200
- 16 (35 - 1900)
- 1.8 / 2.4
- 415
- 194 x 76 x 152
- 650
- L565D
- AL-356V
- 356
- 1000
- 51
- 476
- 224
- Yes
- Yes
- Yes
- ~
- Yes
- 16
- 178
- D1-5 Camlock
- 187
- 6
- 4
- 160
- 68
- Metric
- 0.022 - 0.298
- ~
- 0.078 - 1.044
- ~
- 36 (0.45 - 10)
- 20 (2-1/4 - 40)
- 200
- 200
- Variable (40 - 1800)
- 1.5 / 2
- 240 / 10
- 194 x 76 x 152
- 650
| ORDER CODE | L569D |
|---|---|
| MODEL | AL-410 |
| Swing Over Bedmm | 400 |
| Distance Between Centresmm | 1000 |
| Spindle Boremm | 52 |
| Swing In Gapmm | 520 |
| Swing Over Cross-slidemm | 250 |
| Digital Readout System Fitted | Yes |
| Quick Change Toolpost Fitted | Yes |
| Leadscrew Covers Fitted | Yes |
| Taper Turning Attachment | ~ |
| Coolant System | Yes |
| Tool Height To Suitmm | 16 |
| Centre Heightmm | 200 |
| Spindle Nose Size or Type | D1-5 Camlock |
| Bed Widthmm | 218 |
| Headstock Spindle TaperMT | 6 |
| Tailstock TaperMT | 4 |
| Cross Slide Travelmm | 250 |
| Compound Slide Travelmm | 80 |
| Leadscrew Type | Metric |
| Metric Cross Feed (X-Axis)mm/rev | 0.011 - 0.276 |
| Imperial Cross Feed (X-Axis)inch/rev | ~ |
| Metric Longitudinal Feed (Z-Axis)mm/rev | 0.052 - 1.291 |
| Imperial Longitudinal Feed (Z-Axis)inch/rev | ~ |
| Metric Thread Steps & PitchNo. / mm | 32 (0.4 - 7) |
| Imperial Thread Steps & TPINo. / TPI | 36 (4 - 60) |
| 3 Jaw Chuck Diametermm | 200 |
| 4 Jaw Chuck Diametermm | 200 |
| Spindle Steps / SpeedsNo. / rpm | 18 (65 - 2000) |
| Motor PowerkW / hp | 2.2 / 3 |
| Voltage / AmperageV / amp | 415 |
| Shipping Dimensions (L x W x H)cm | 194 x 82 x 155 |
| Nett Weightkg | 850 |
