| Code | L076 |
|---|---|
| Capacity | Diamond & Straight Knurl Heads |
| Weight (kg) | 0.4 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.4 |
| Dimensions (cm) | 15 x 5 x 3 |

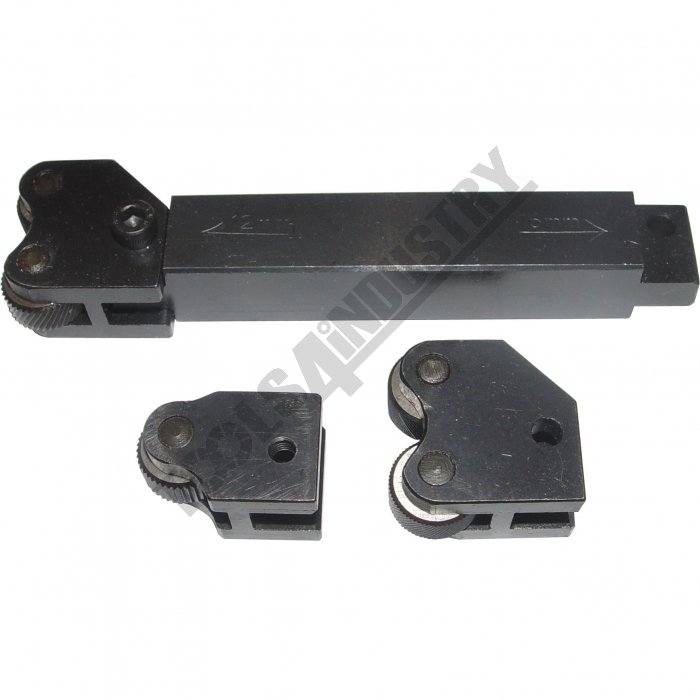

Knurling Tool Holder Kit Diamond & Straight Knurl Heads
Description
Suitable for both 12mm and 16mm centre height by means of mounting points on either end of the shank.Features

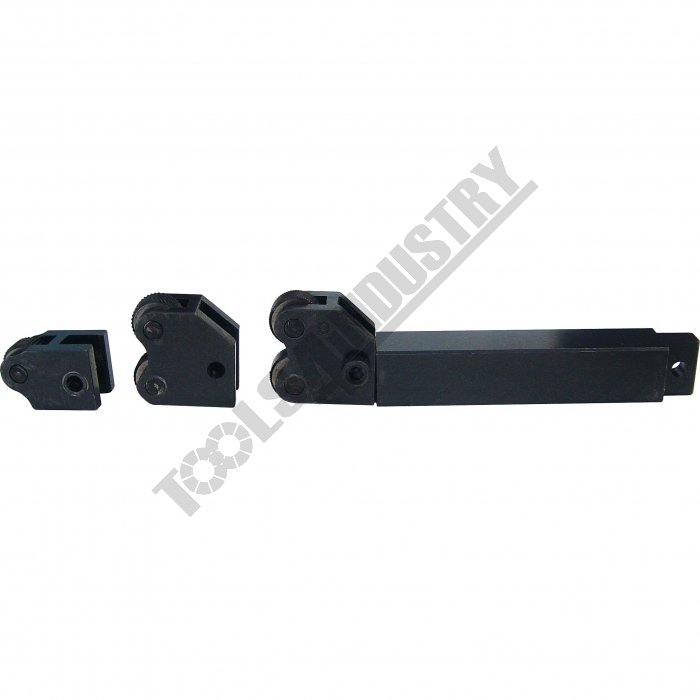

- 3 head knurling kit consisting of - medium and fine diamond knurls, and one straight knurl
- Head 1: Diamond Medium Knurl - (2 wheels)
- Head 2: Diamond Fine Knurl - (2 wheels)
- Head 3: Straight Medium Knurl - (1 wheel)
Specifications
- Compare 4 Products
- ORDER CODE
- Knurl Pattern
- Knurl Pitch
- Type
- Knurl Roller Sizemm
- Knurl Roller QuantityNo.
- Holder Size (L x W x H)mm
- Nett Weightkg
- L076
- Diamond & Straight
- Diamond Medium-2 Wheels
Diamond Fine-2 Wheels
Straight Medium-1 Wheel - Interchangeable Type
- ~
- 2, 2, 1
- 120 x 18 x 18
- 0.40
- L079
- Diamond
- Medium
- Swivel type
- 19 x 9.5 x 6.3
- 2
- 123.6 x 16 x 16
- 0.40
- L080
- Diamond
- Medium
- Adjustable Clamp Type
- 19 x 9.5 x 6.3
- 2
- 76 x 9.5 x 16
- 0.45
- L070
- Diamond
- Coarse, Medium, Fine
- Swivel & Rotation Type
- 16 x 8 x 6.3
- 6
- 139 x 9.5 x 22
- 0.60
| ORDER CODE | Diamond & Straight |
|---|---|
| Knurl Pattern | Diamond Medium-2 Wheels Diamond Fine-2 Wheels Straight Medium-1 Wheel |
| Knurl Pitch | Interchangeable Type |
| Type | ~ |
| Knurl Roller Sizemm | 2, 2, 1 |
| Knurl Roller QuantityNo. | 120 x 18 x 18 |
| Holder Size (L x W x H)mm | 0.40 |
| Nett Weightkg |
