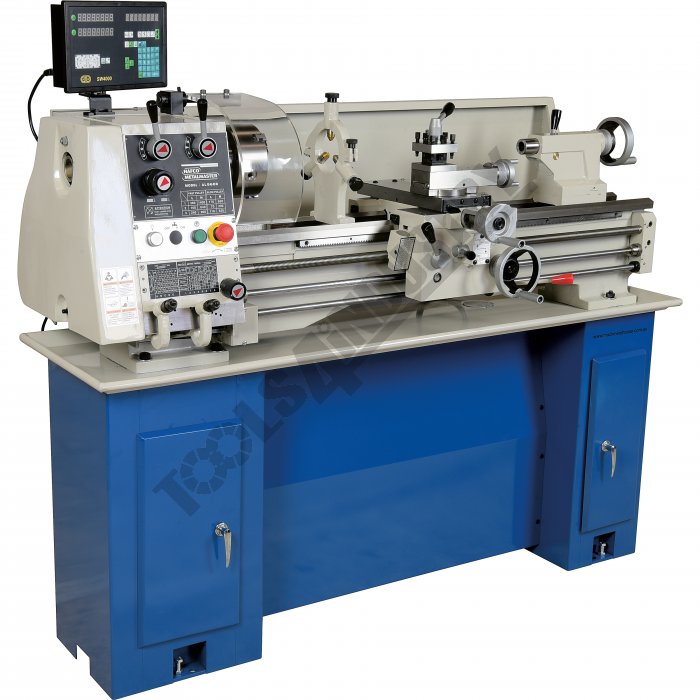

Left View

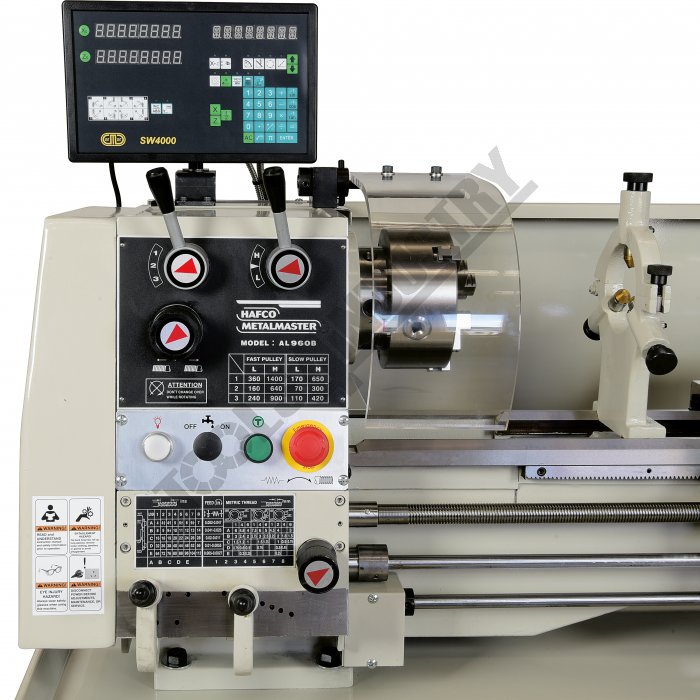

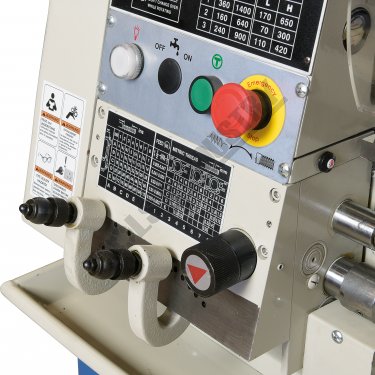

Feed Threading Levers and Control Panel

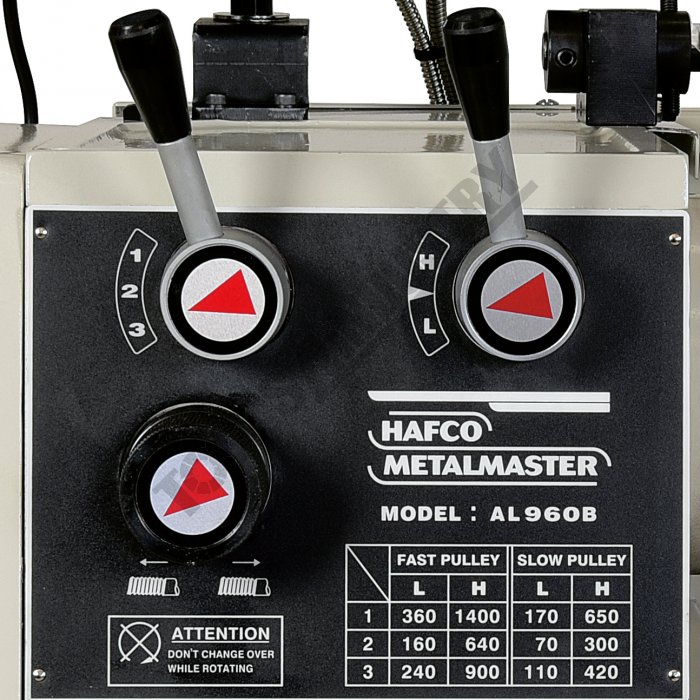

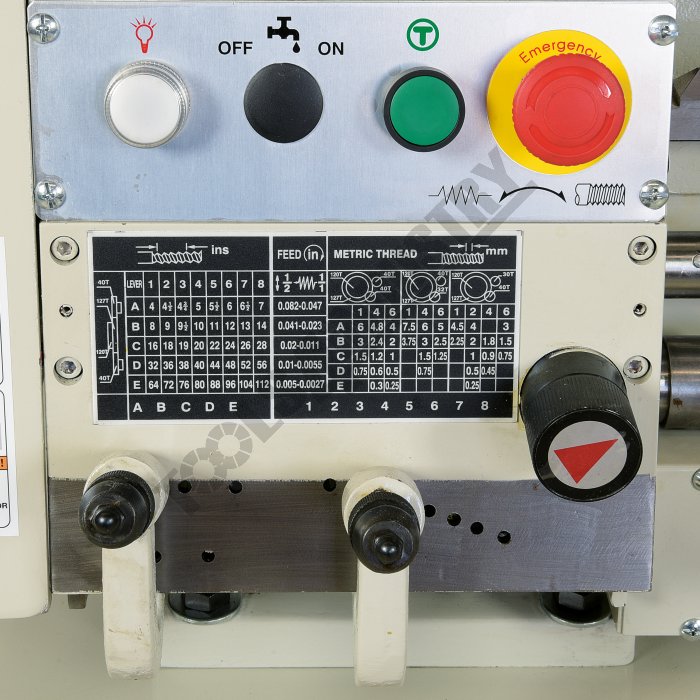

Feed and Theading Levers

Feed and Theading Charts

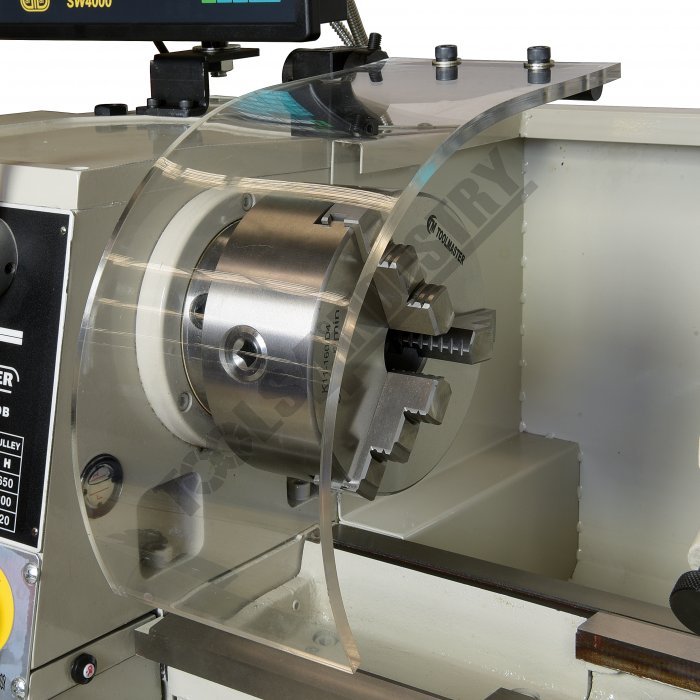

Safety Chuck Guard

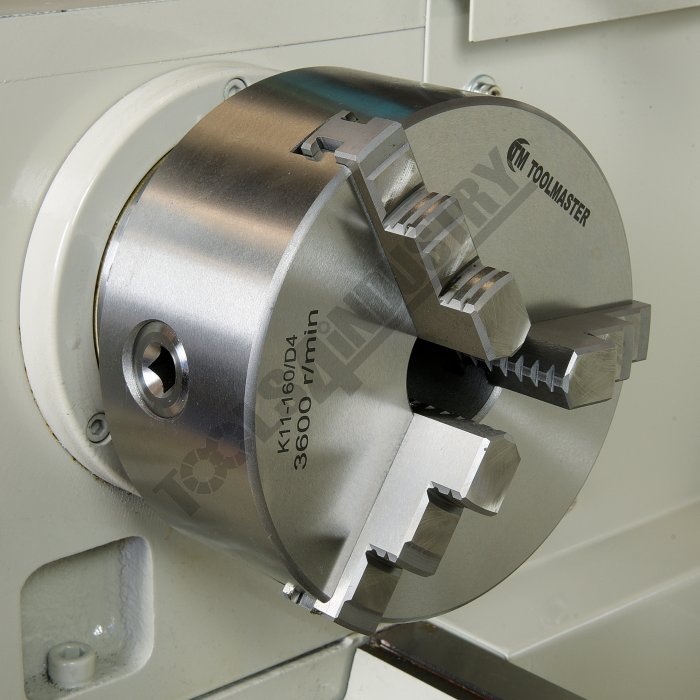

3 Jaw Chuck

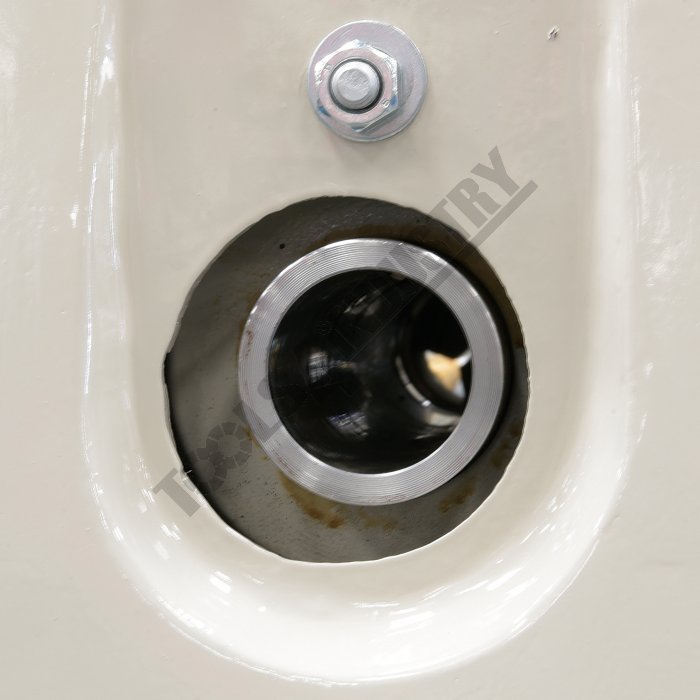

40mm Spindle Bore

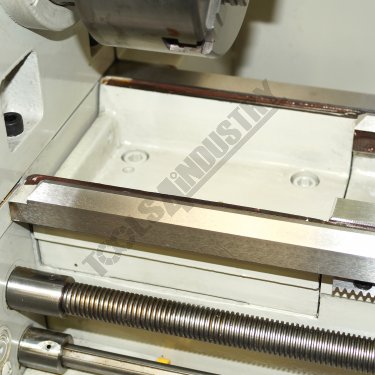

Removable Gap Bed Way

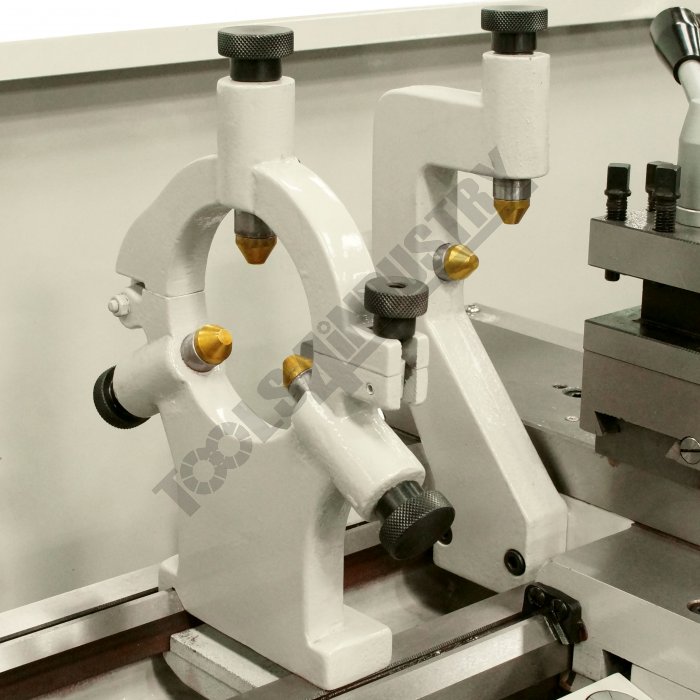

Fixed & Travelling Steadies

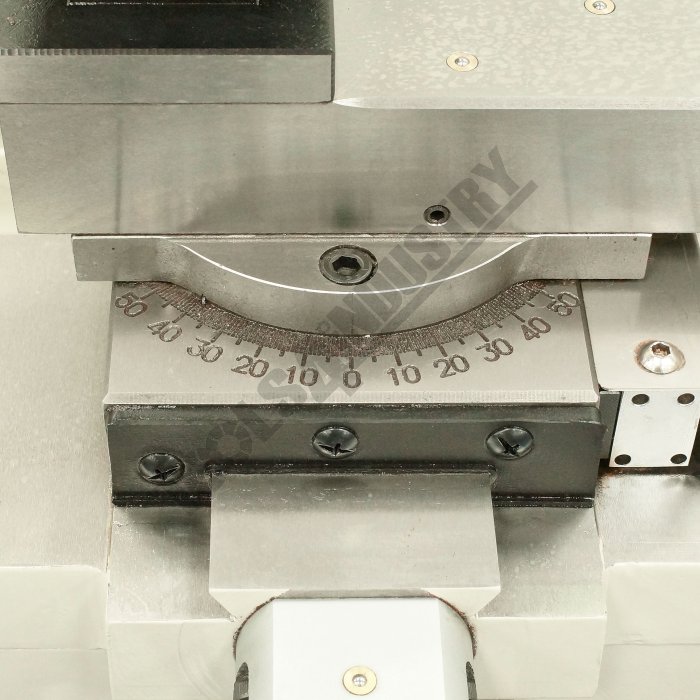

Compound Slide Angle Scale

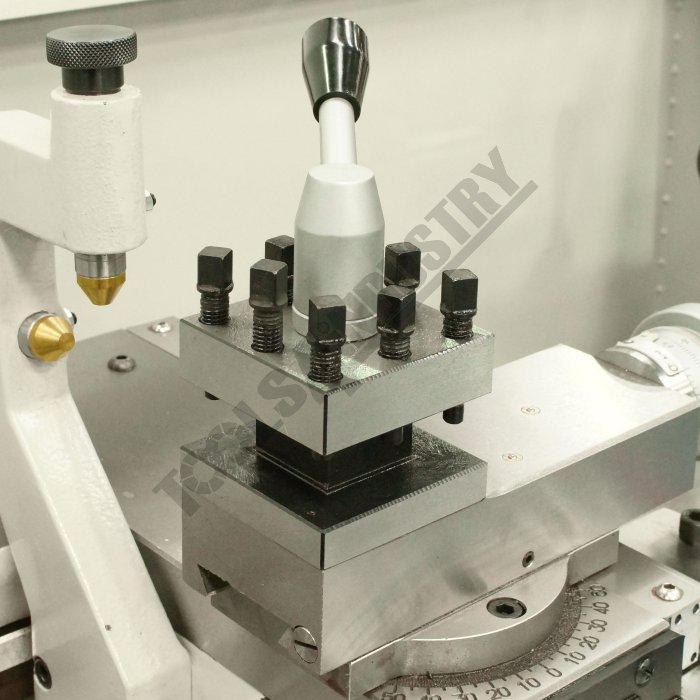

Toolpost

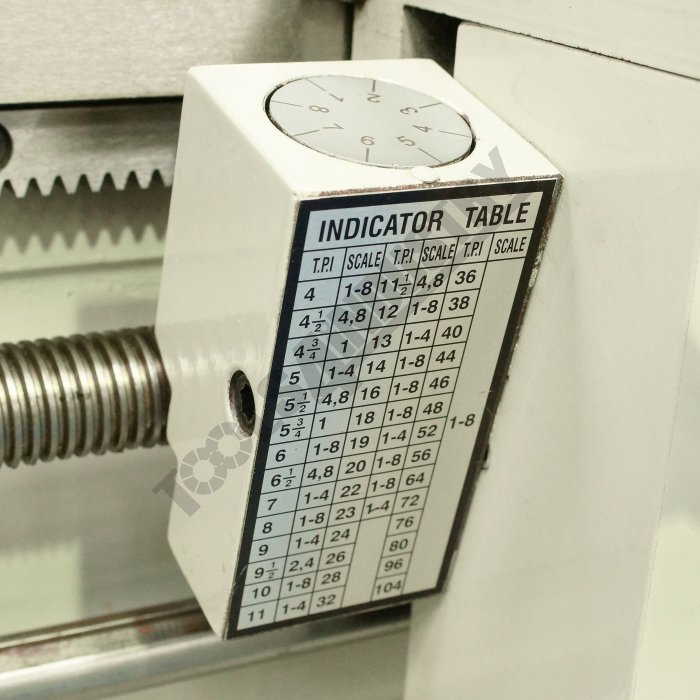

Thread Chasing Dial

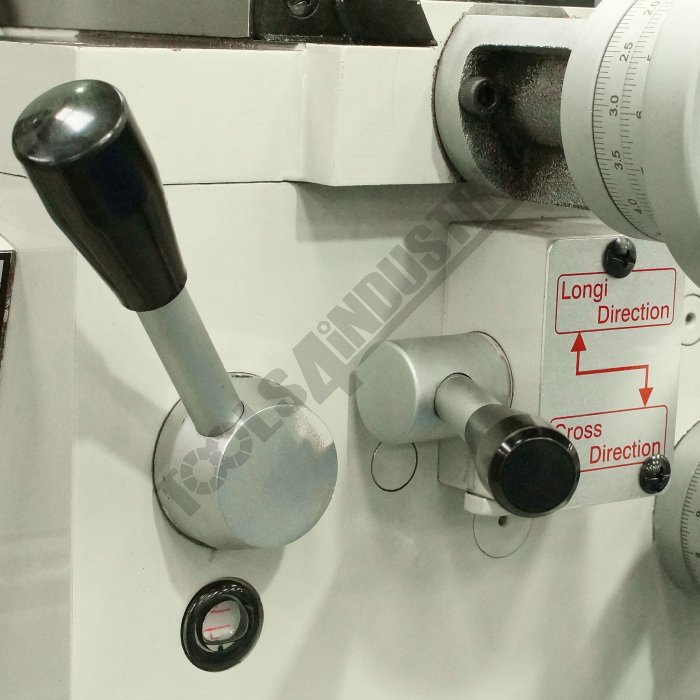

Feed and Threading Engagment Levers

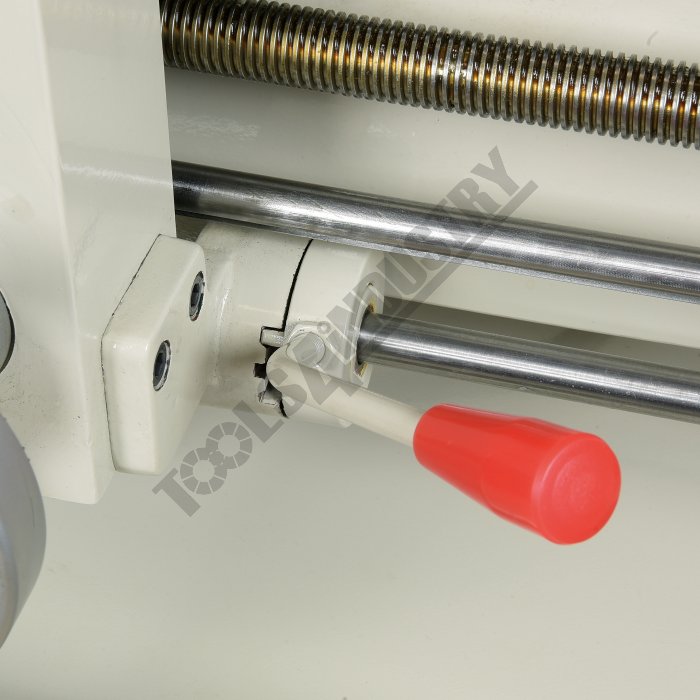

Spindle Engagement Lever

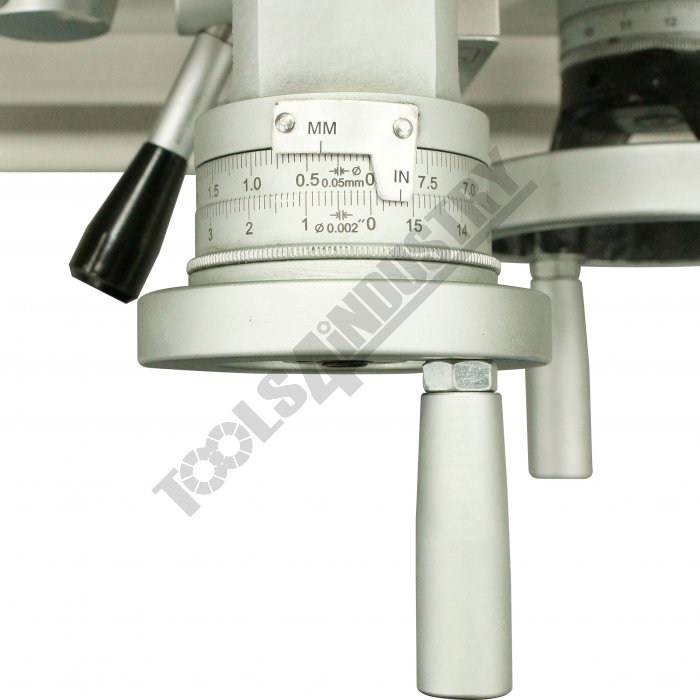

Cross Feed Dial Graduations

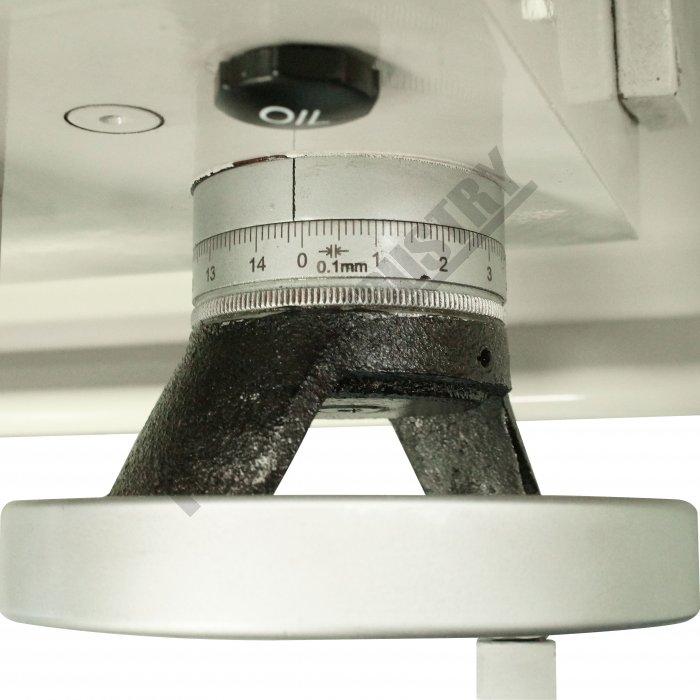

Saddle Hand Wheel Graduations

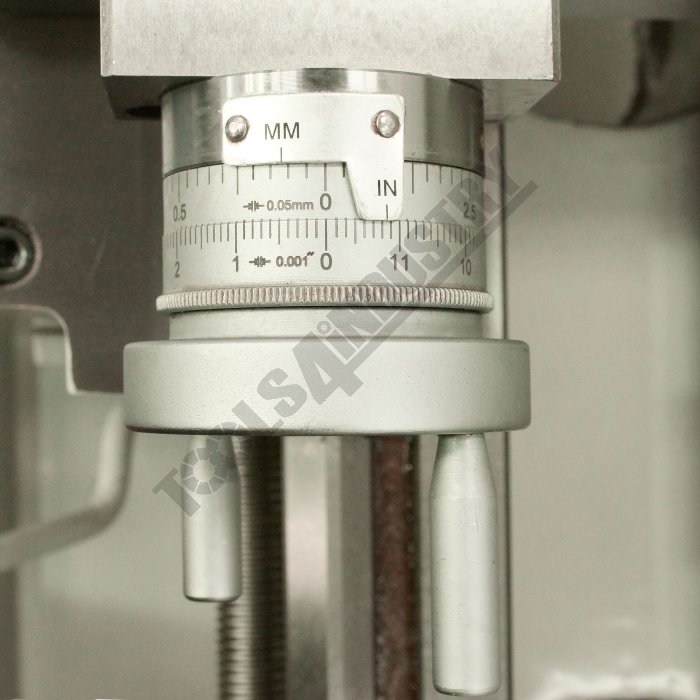

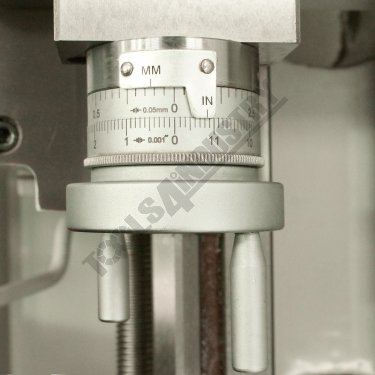

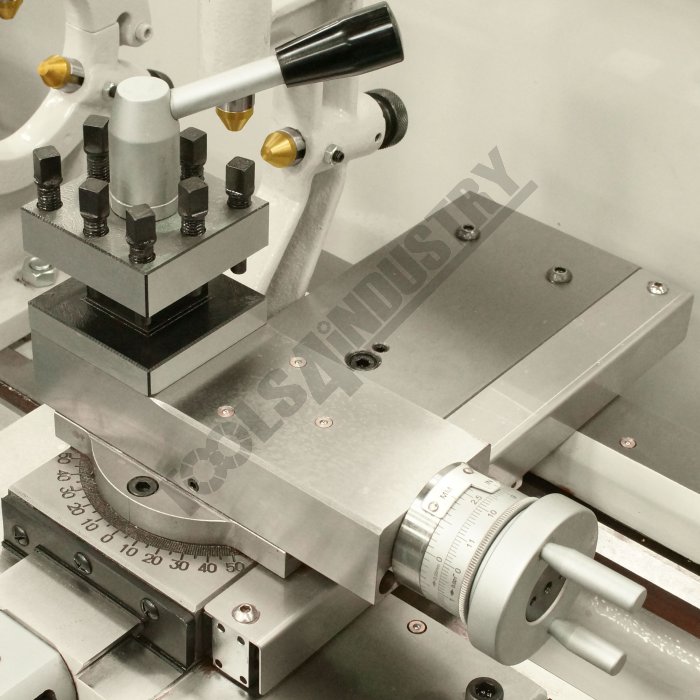

Compound Slide Dial Graduations

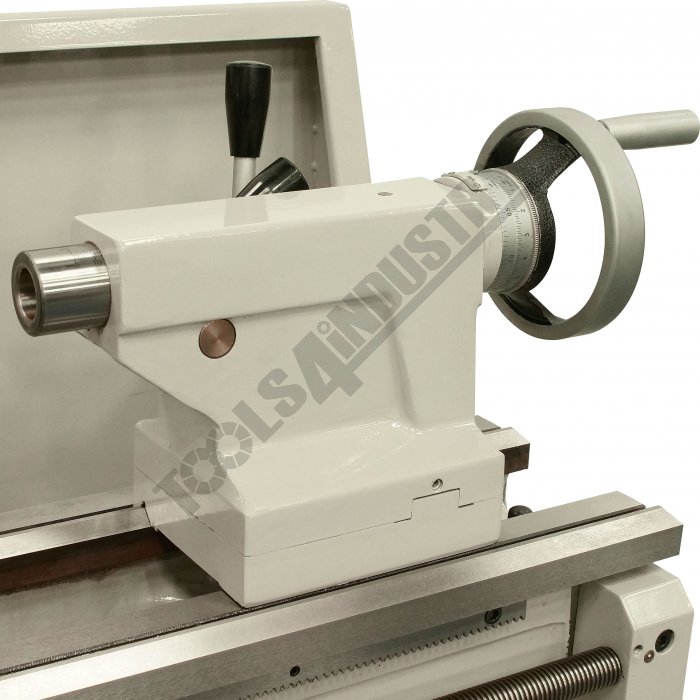

Tailstock

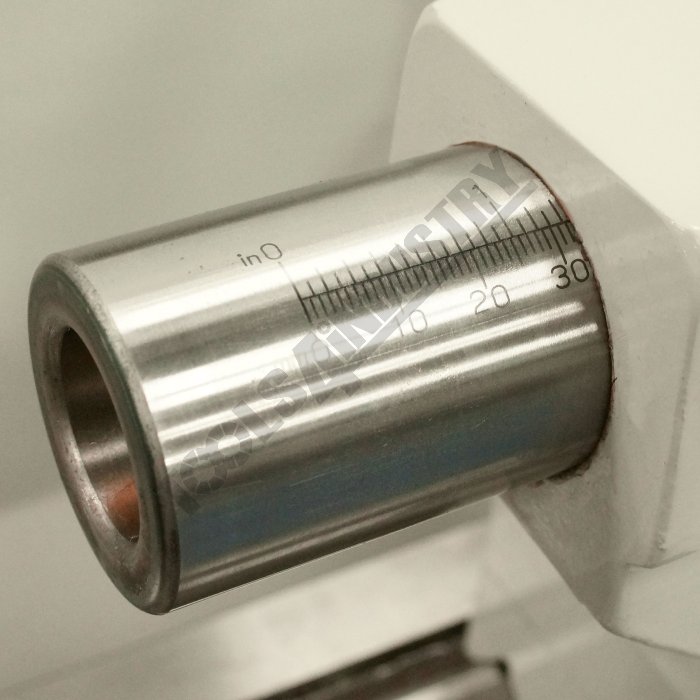

Tailstock Quill Graduations

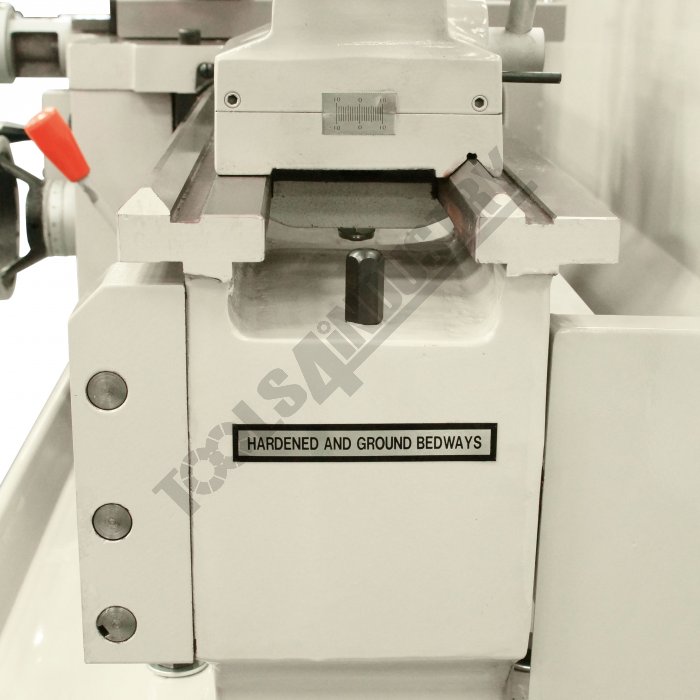

Hardened and Ground Bedways

Code	L237D
Model	AL-960B
Capacity	305 x 925mm Turning Capacity - 40mm Spindle Bore
Weight (kg)	400
Weight (m³)	1.028
Weight (Freight)	400
Dimensions (cm)	178 x 76 x 76

Product Brochure Instruction Manual [4 MB] Parts List [2 MB]

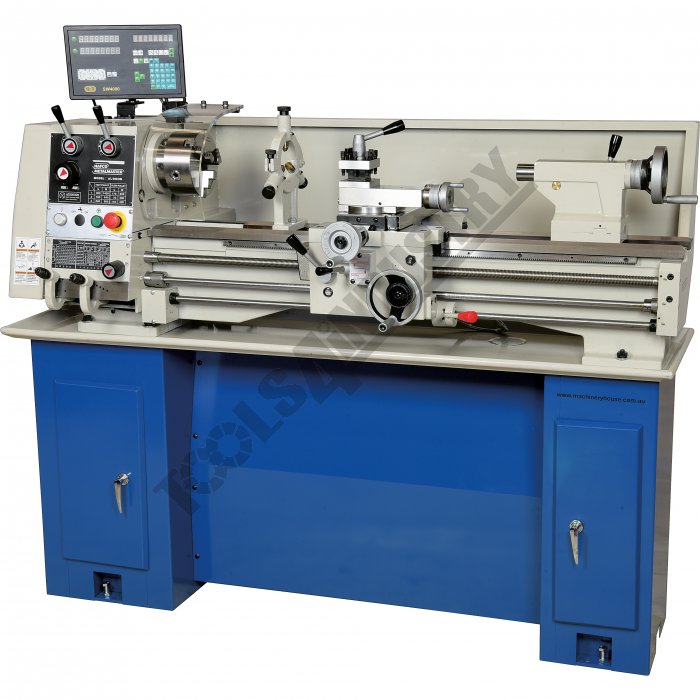

AL-960B Centre Lathe 305 x 925mm Turning Capacity - 40mm Spindle Bore

Description

Manufactured in Taiwan

A superior Taiwanese quality specification, floor standing, heavy duty metal turning lathe suitable for the enthusiastic home model engineer, gunsmith engineers and small work shops. Featuring a precision ground, induction hardened bed, fully gear driven spindle with hardened and ground gears with a speed range of 70 - 1400rpm, selectable via the front of headstock mounted gear selection levers.

2hp single phase 240 volt motor is supplied on machine, taper roller spindle bearings, range of cross and longitudinal feed speeds selected on a separate gearbox, thread chasing dial, chuck guard & splash guard.

Supplied with a large range of standard accessories including a 150mm(6") 3 jaw self centring chuck, 200mm(8") 4 jaw independent chuck, face plate, dead centres, 5 to 3 MT reduction sleeve, steady rest, follow rest, standard tool post, floor stand with a swarf tray. Change gears and toolbox with maintenance tools.

Features

Toolroom quality lathe, made in Taiwan and has been sold for over 20 years

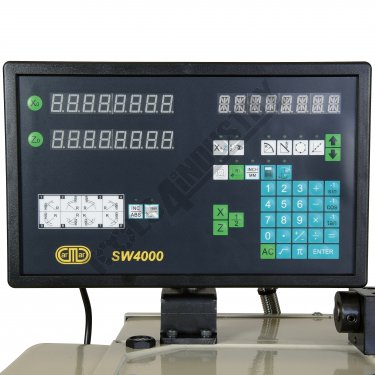

2 Axis digital readout system
Gear driven headstock for quick change of spindle speeds
Precision 'V'- beds are hardened and ground
Adjustable taper roller bearings support the spindle
Change gears for metric and imperial thread cutting
Saddle handwheel mounted on right side of apron reducing swarf contacting the hand
External adjustable cross feed leadscrew nut
Powered longitudinal and cross feeds
12 spindle speeds 70-1400rpm
Dual calibrated dials (except saddle hand wheel)
Quick-action feed gearbox for thread cutting
D1-4 camlock spindle for quick chuck changes and safe reverse direction turning
Removable gap bed way for larger diameter jobs

Includes

2 Axis digital readout system
160mm 3-jaw chuck with reverse jaws
200mm 4-jaw chuck
Face plate
Fixed and travelling steadies
Change gears
Dead centre
Cabinet stand
Splash tray
Swarf tray
Thread-chasing dial
Chuck guard
Tool box and instruction booklet
