| Code | D126 |
|---|---|
| Capacity | Ø1 - Ø10mm |
| Weight (kg) | 3.5 |
| Weight (m3) | 0.007 |
| Weight (Freight) | 3.5 |
| Dimensions (cm) | 34 x 28 x 7 |

Metric 135º Precision HSS Drill Set - 170 Pieces Ø1 - Ø10mm
Description

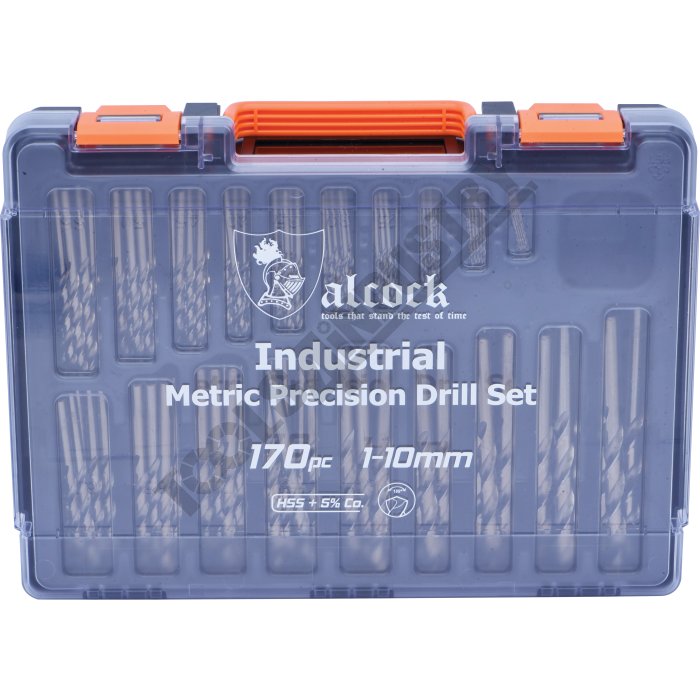

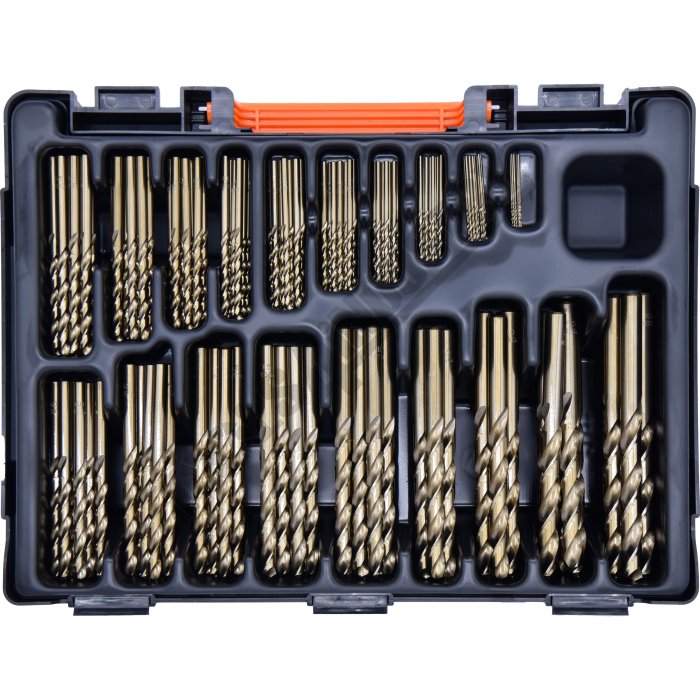

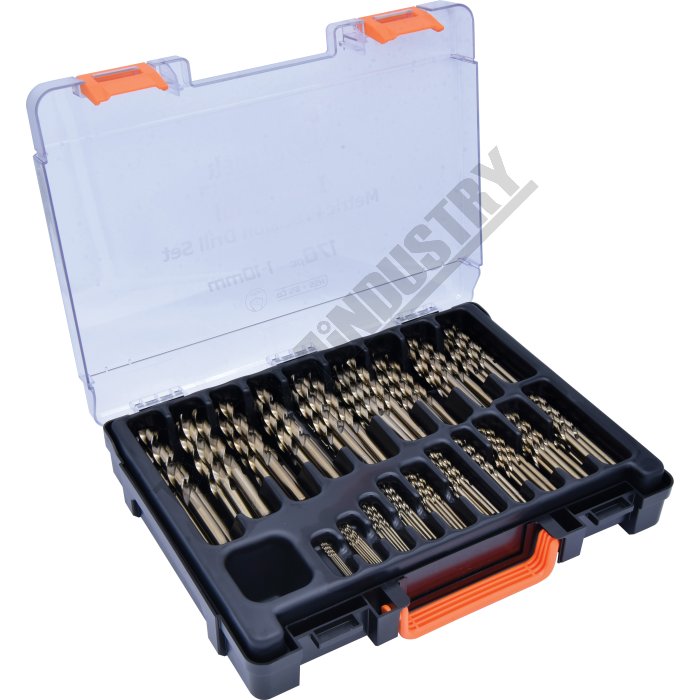

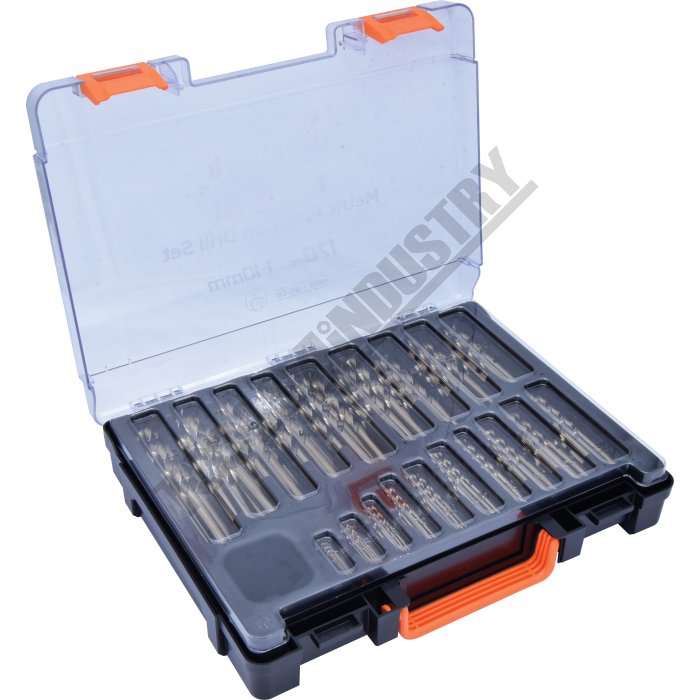

Alcock Drill Bits are manufactured to DIN 338 standards from M35 HSS with 5% cobalt for outstanding durability, heat resistance, and drilling performance. Precision-ground flutes ensure fast chip removal, while the 135° split-point tip cuts quickly, self-centres, and reduces wandering—perfect for tougher steels.You’ll always be ready for the job with this kit—no more getting caught out after breaking or losing a drill bit. Every size is neatly stored in this tough, organized carry case, keeping your workshop tidy and your drill bits right at your fingertips.

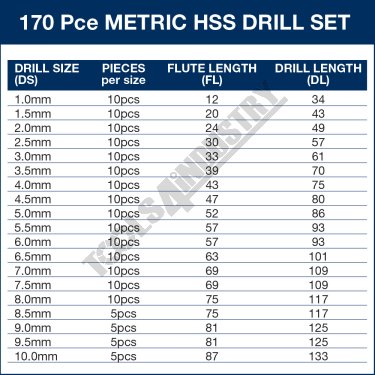

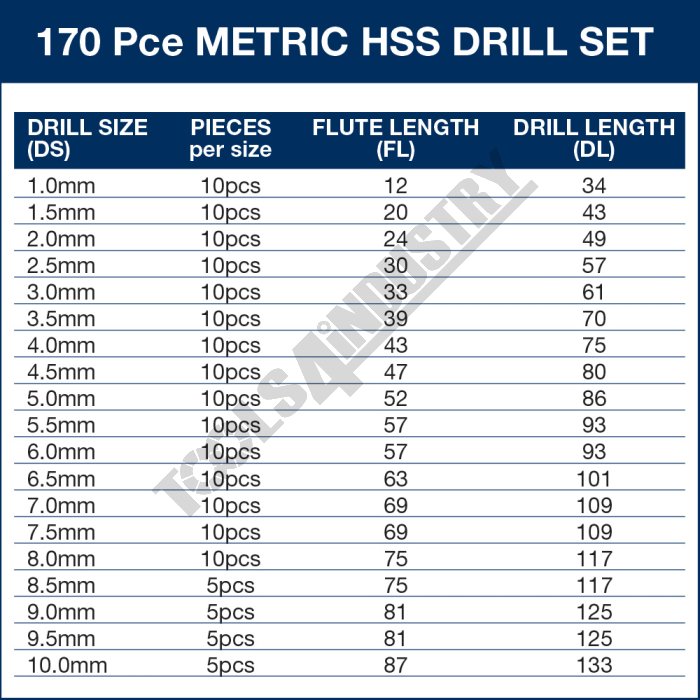

Size range:
1.0 – 10.0mm in 0.5mm increments
Pieces Per Size Range:
10pcs per size (1.0–8.0mm)
5pcs per size (8.5–10.0mm)

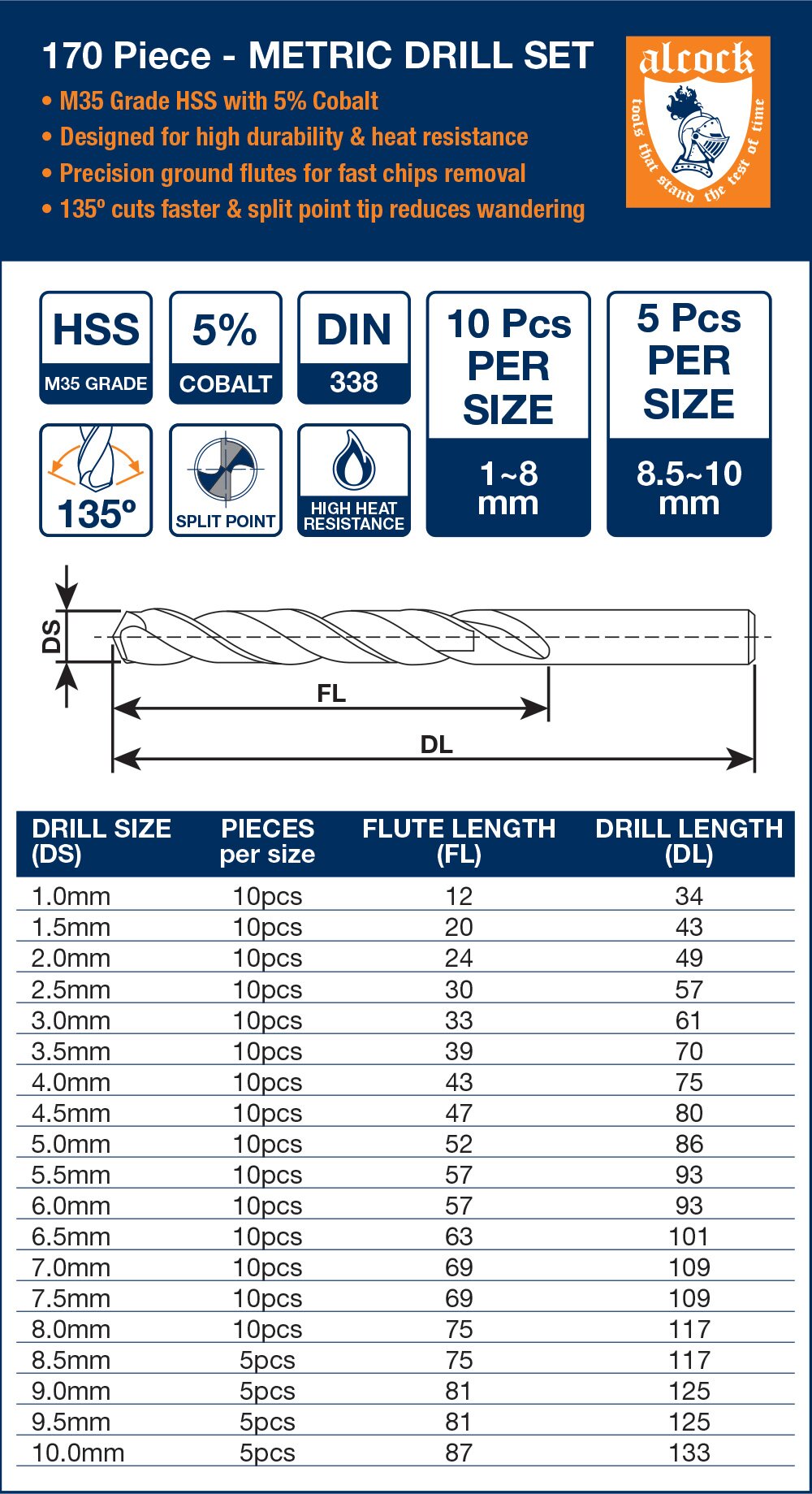

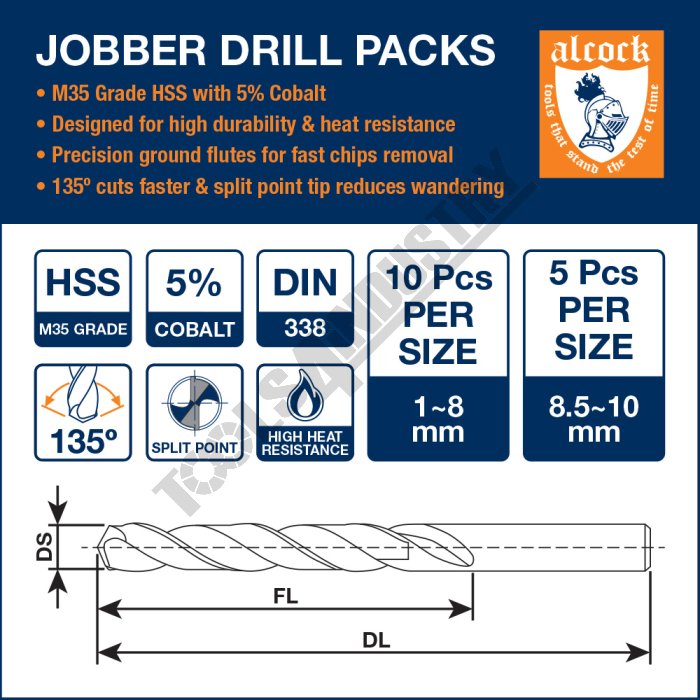

Features
- 170pc kit - (1.0 - 10.0mm in 0.5mm increments)
- M35 Grade HSS including 5% Cobalt
- Designed for high durability & heat resistance
- Precision ground flutes for fast chips removal
- 135º cuts faster & split point tip reduces wandering
- Manufactured to DIN 338 Standard
- Bronze oxide finish to reduce friction
Specifications

- Compare 7 Products
- ORDER CODE
- FlutesType
- Number of PiecesNo.
- Drill Size RangeInch / mm
- Metric / Imperial~
- Drill Size StepsInch / mm
- Point AngleDegrees
- StandardDIN
- Nett Weightkg

- D126
- Precision Ground
- 170
- 1 - 10mm
- Metric
- 0.5mm
- 135º
- DIN 338
- 4.84

- D104
- ~
- 4
- 6.0, 8.0, 10.0, 12.0
- Metric
- ~
- 90°
- DIN 1897
- ~

- D123
- Precision Ground
- 25
- 1 - 13mm
- Metric
- 0.5mm
- ~
- ~
- 1.7

- D125
- Precision Ground
- 29
- 1/16" - 1/2"
- Imperial
- 1/64"
- ~
- ~
- 1.7

- D1272
- Precision Ground
- 25
- 1 - 13mm
- Metric
- 0.5mm
- 135º
- DIN 338
- 1.7

- D1282
- Precision Ground
- 29
- 1/16 - 1/2"
- Imperial
- 1/64"
- 135º
- DIN 338
- 1.7

- D1285
- Precision Ground
- 51
- 1 - 6mm
- Metric
- 0.1mm
- 135º
- DIN 338
- 1.7
| ORDER CODE | Precision Ground |
|---|---|
| FlutesType | 170 |
| Number of PiecesNo. | 1 - 10mm |
| Drill Size RangeInch / mm | Metric |
| Metric / Imperial~ | 0.5mm |
| Drill Size StepsInch / mm | 135º |
| Point AngleDegrees | DIN 338 |
| StandardDIN | 4.84 |
| Nett Weightkg |
