| Code | D123 |
|---|---|
| Model | D101SM3 |
| Capacity | Ø1 - Ø13mm |
| Weight (kg) | 1.7 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 1.7 |
| Dimensions (cm) | 20 x 11.2 x 6 |

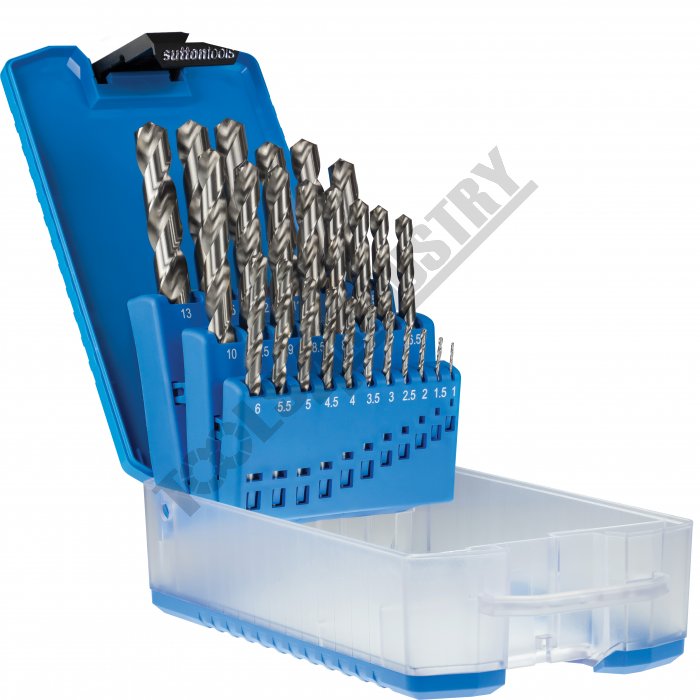

Metric 118º Precision HSS Drill Set - 25 Piece D101SM3 Ø1 - Ø13mm
Description
Sutton Tools Silver Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling in a wide range of ferrous & non-ferrous materials such as steel, aluminium, brass, wood & plastics.Features
- 25 piece set
- 1.0 - 13mm in 0.5 increments

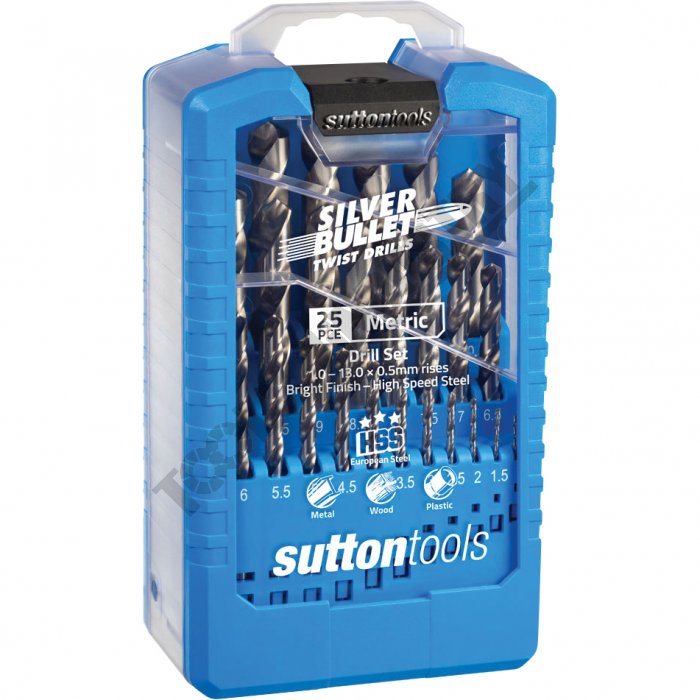

- See-through Storage Case
- Australian Made

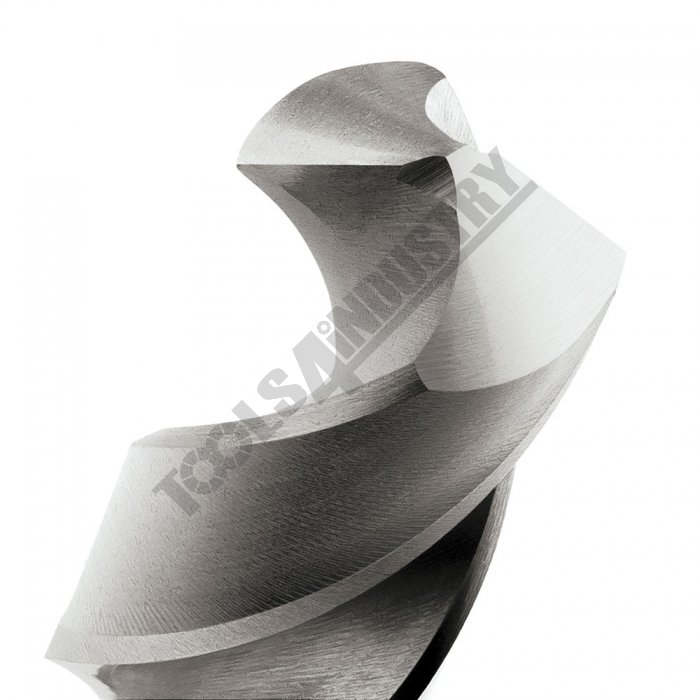

- 118° standard point for general purpose applications

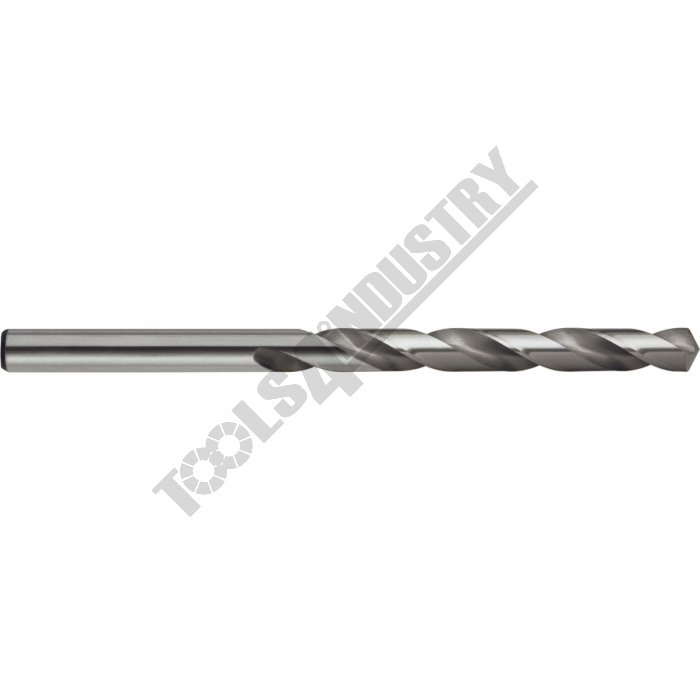

- Precision engineered parallel shank for accurate hole size
- Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
- Bright finish for general purpose applications, non-ferrous metals & plastics
Specifications
- Compare 7 Products
- ORDER CODE
- FlutesType
- Number of PiecesNo.
- Drill Size RangeInch / mm
- Metric / Imperial~
- Drill Size StepsInch / mm
- Point AngleDegrees
- StandardDIN
- Nett Weightkg
- D123
- Precision Ground
- 25
- 1 - 13mm
- Metric
- 0.5mm
- ~
- ~
- 1.7
- D125
- Precision Ground
- 29
- 1/16" - 1/2"
- Imperial
- 1/64"
- ~
- ~
- 1.7
- D1272
- Precision Ground
- 25
- 1 - 13mm
- Metric
- 0.5mm
- 135º
- DIN 338
- 1.7
- D1282
- Precision Ground
- 29
- 1/16 - 1/2"
- Imperial
- 1/64"
- 135º
- DIN 338
- 1.7
- D1285
- Precision Ground
- 51
- 1 - 6mm
- Metric
- 0.1mm
- 135º
- DIN 338
- 1.7
- D126
- Precision Ground
- 170
- 1 - 10mm
- Metric
- 0.5mm
- 135º
- DIN 338
- 4.84
- D104
- ~
- 4
- 6.0, 8.0, 10.0, 12.0
- Metric
- ~
- 90°
- DIN 1897
- ~
| ORDER CODE | Precision Ground |
|---|---|
| FlutesType | 25 |
| Number of PiecesNo. | 1 - 13mm |
| Drill Size RangeInch / mm | Metric |
| Metric / Imperial~ | 0.5mm |
| Drill Size StepsInch / mm | ~ |
| Point AngleDegrees | ~ |
| StandardDIN | 1.7 |
| Nett Weightkg |
