| Code | D1272 |
|---|---|
| Capacity | Ø1 - Ø13mm |
| Weight (kg) | 1.7 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 1.7 |
| Dimensions (cm) | 20 x 11.2 x 6 |
Metric 135º Precision HSS Drill Set - 25 Piece Ø1 - Ø13mm
Description

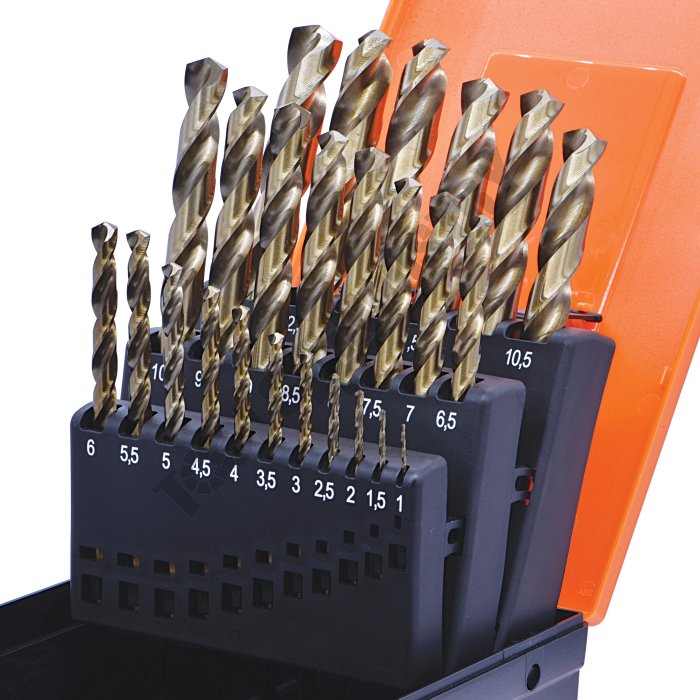

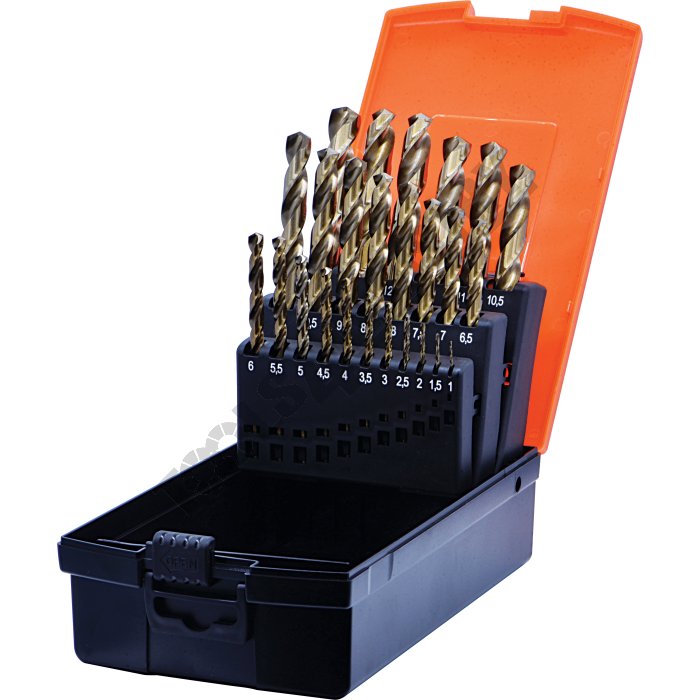

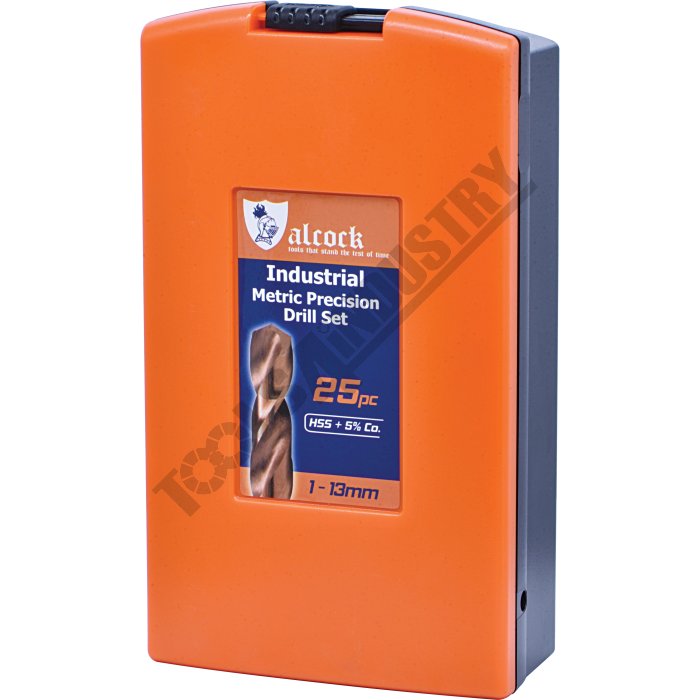

Alcock Drill Bits are manufactured to DIN 338 standards from M35 HSS with 5% cobalt for outstanding durability, heat resistance, and drilling performance. Precision-ground flutes ensure fast chip removal, while the 135° split-point tip cuts quickly, self-centres, and reduces wandering—perfect for tougher steels.Supplied in a durable plastic case with clearly labeled sizes, these sets make it easy to grab the right bit every time—perfect for both workshops and site use.

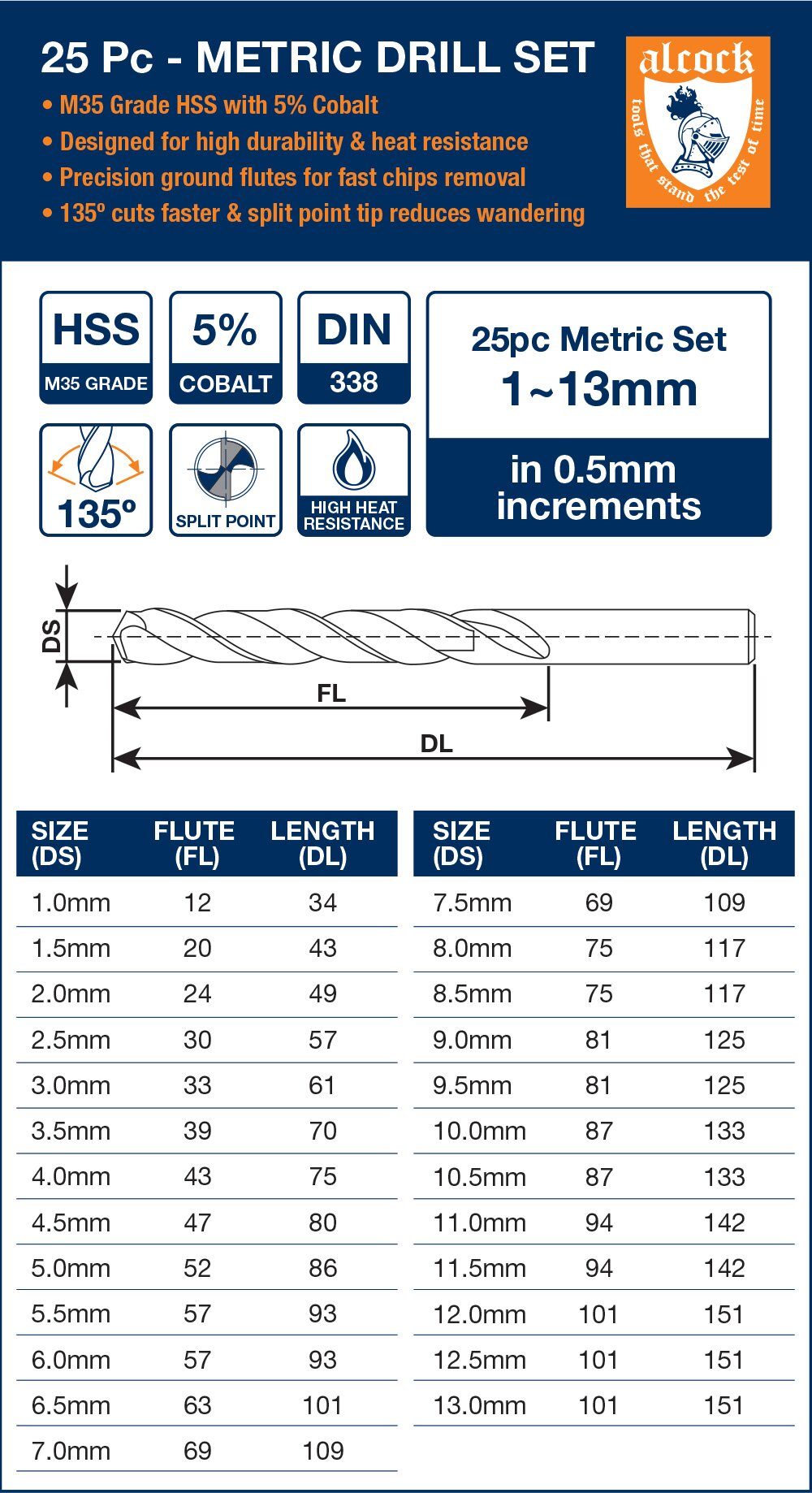

Sizes available: 1.0mm to 13.0mm in 0.5mm increments
Features
- 25 pieces in sizes from 1mm to 13mm in 0.5mm increments
- M35 Grade HSS including 5% Cobalt
- Designed for high durability & heat resistance
- Precision ground flutes for fast chips removal

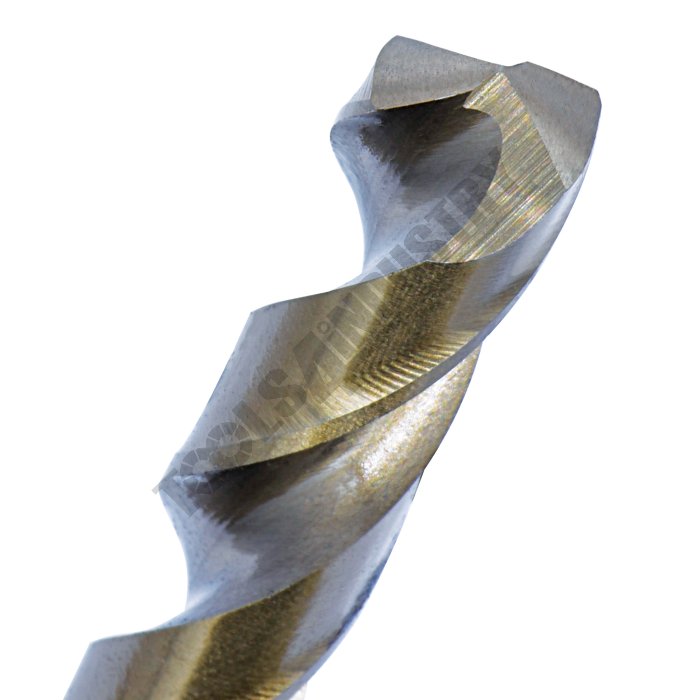

- 135º cuts faster & split point tip reduces wandering
- Manufactured to DIN 338 Standard
- Bronze oxide finish to reduce friction
Specifications
- Compare 7 Products
- ORDER CODE
- FlutesType
- Number of PiecesNo.
- Drill Size RangeInch / mm
- Metric / Imperial~
- Drill Size StepsInch / mm
- Point AngleDegrees
- StandardDIN
- Nett Weightkg
- D1272
- Precision Ground
- 25
- 1 - 13mm
- Metric
- 0.5mm
- 135º
- DIN 338
- 1.7
- D1282
- Precision Ground
- 29
- 1/16 - 1/2"
- Imperial
- 1/64"
- 135º
- DIN 338
- 1.7
- D1285
- Precision Ground
- 51
- 1 - 6mm
- Metric
- 0.1mm
- 135º
- DIN 338
- 1.7
- D126
- Precision Ground
- 170
- 1 - 10mm
- Metric
- 0.5mm
- 135º
- DIN 338
- 4.84
- D104
- ~
- 4
- 6.0, 8.0, 10.0, 12.0
- Metric
- ~
- 90°
- DIN 1897
- ~
- D123
- Precision Ground
- 25
- 1 - 13mm
- Metric
- 0.5mm
- ~
- ~
- 1.7
- D125
- Precision Ground
- 29
- 1/16" - 1/2"
- Imperial
- 1/64"
- ~
- ~
- 1.7
| ORDER CODE | Precision Ground |
|---|---|
| FlutesType | 25 |
| Number of PiecesNo. | 1 - 13mm |
| Drill Size RangeInch / mm | Metric |
| Metric / Imperial~ | 0.5mm |
| Drill Size StepsInch / mm | 135º |
| Point AngleDegrees | DIN 338 |
| StandardDIN | 1.7 |
| Nett Weightkg |
