L606D

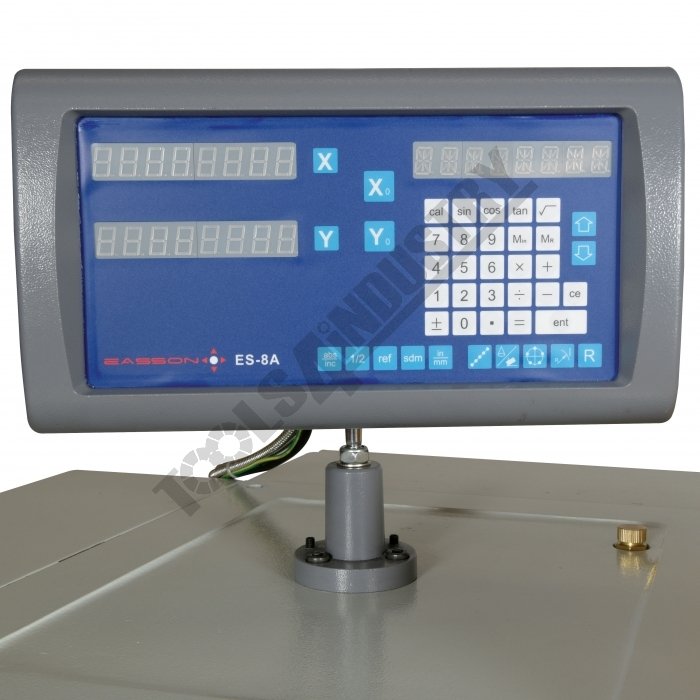

2 Axis Digital Readout

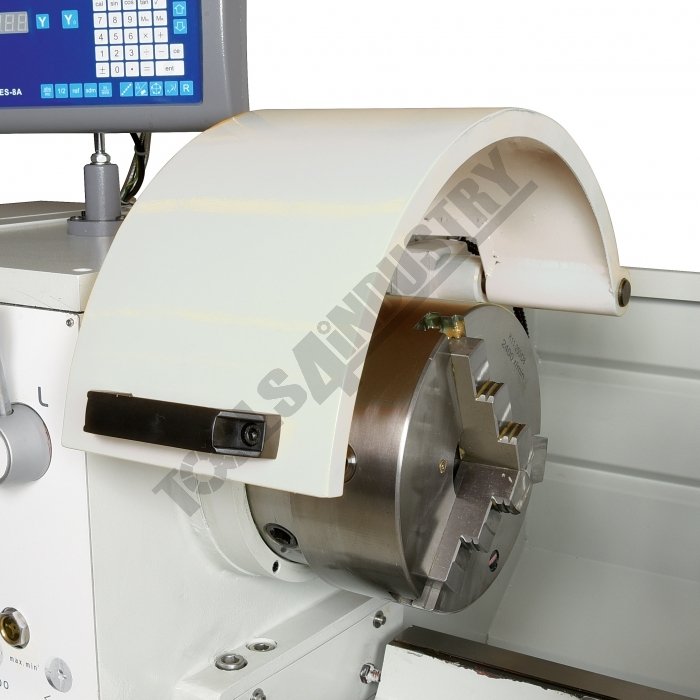

Safety Chuck Guard

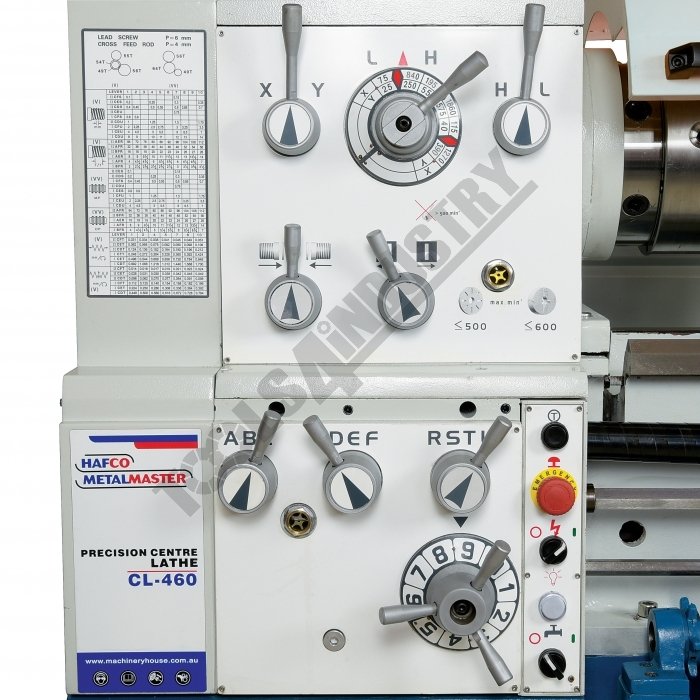

Headstock Controls

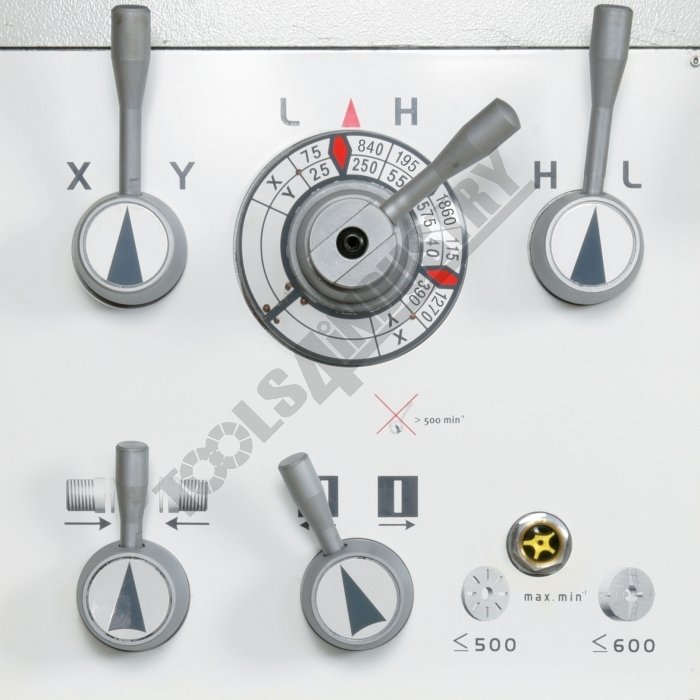

Speed Selections Levers and Feed Levers

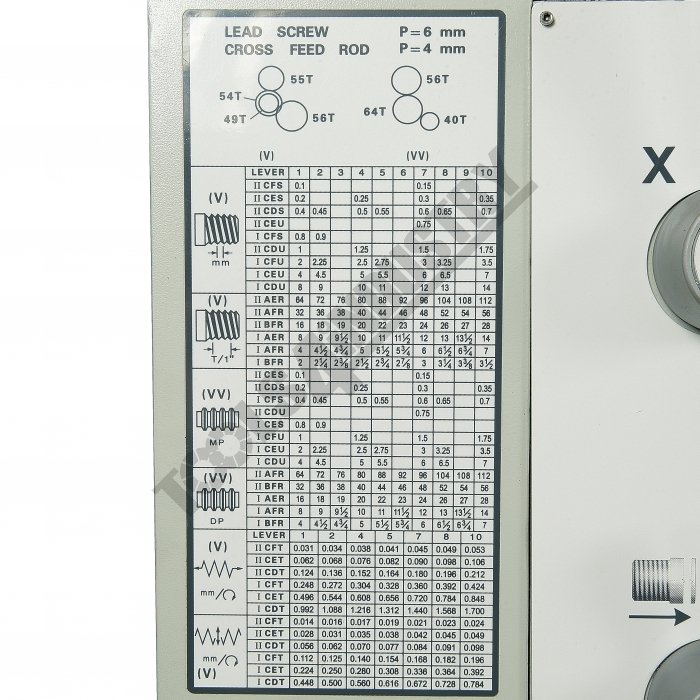

Feed Chart

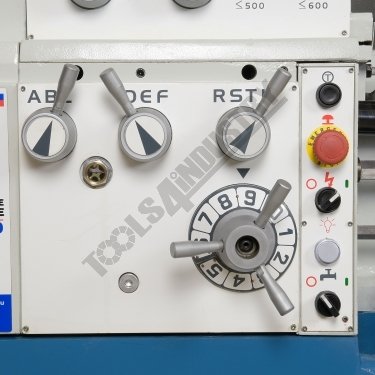

Feed Lever

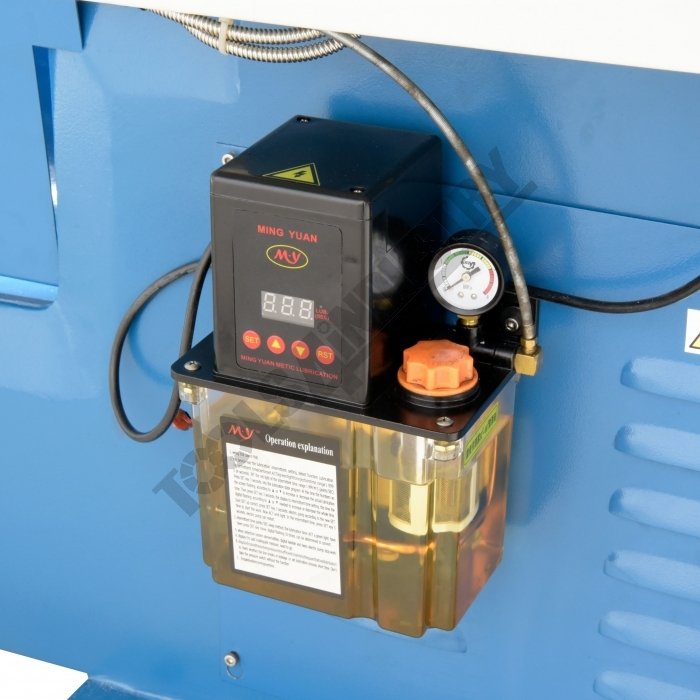

Automatic Lubrication System

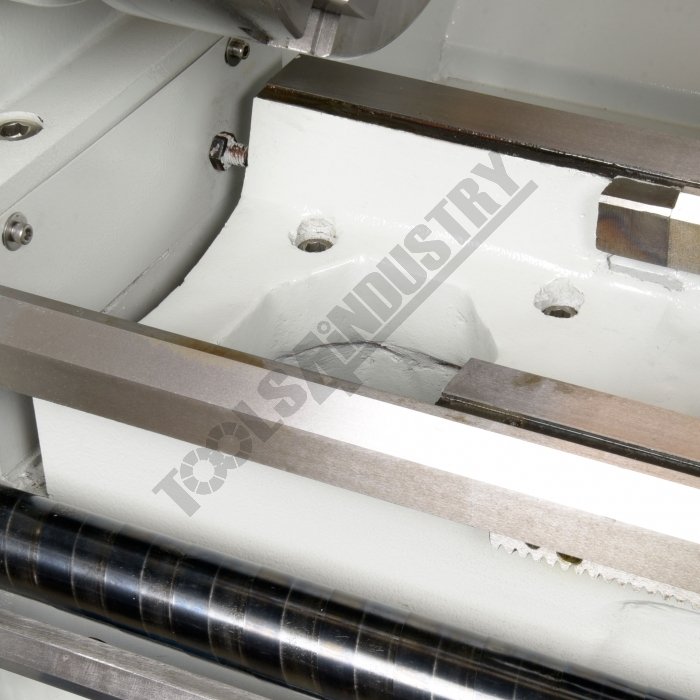

Removable Gap Bedway

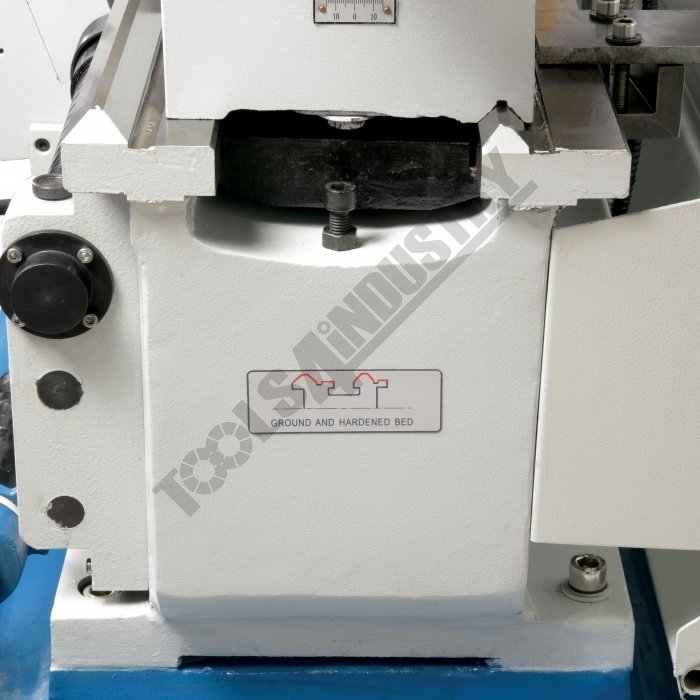

Hardened and Ground Bed

Taper Turning Attachment

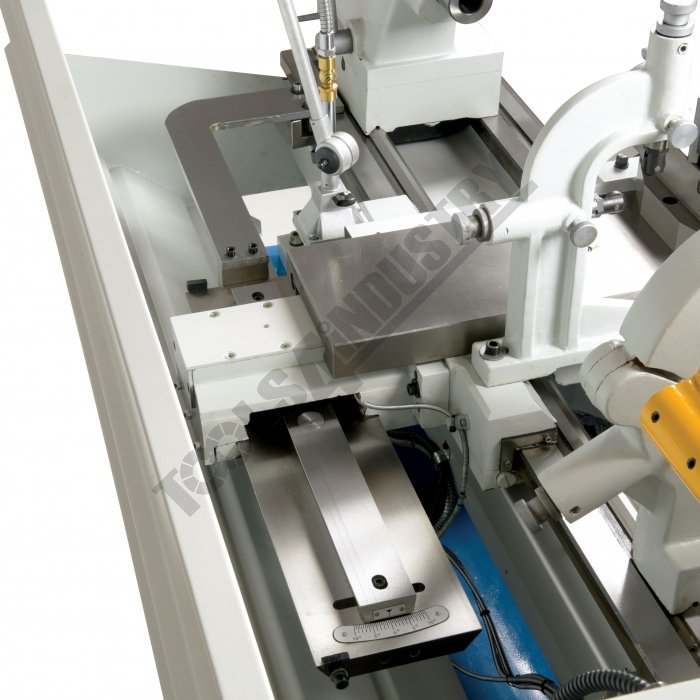

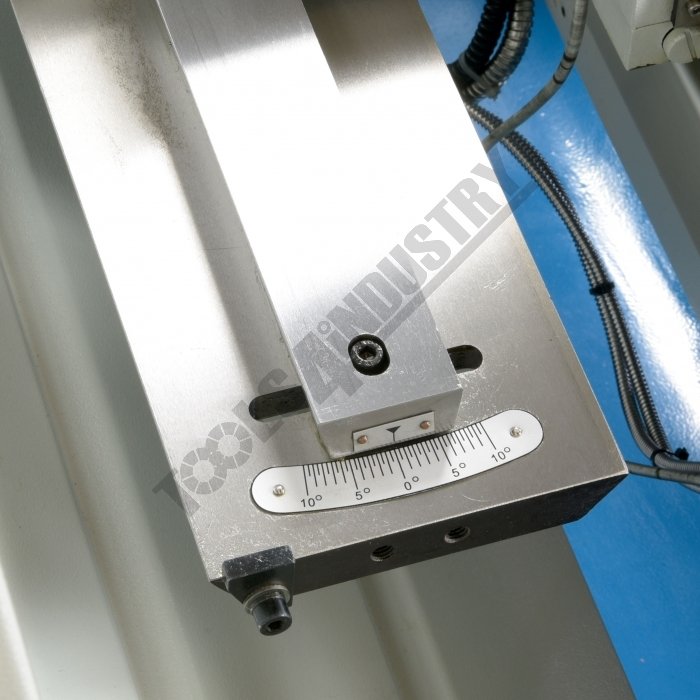

Taper Turning Attachment Close Up

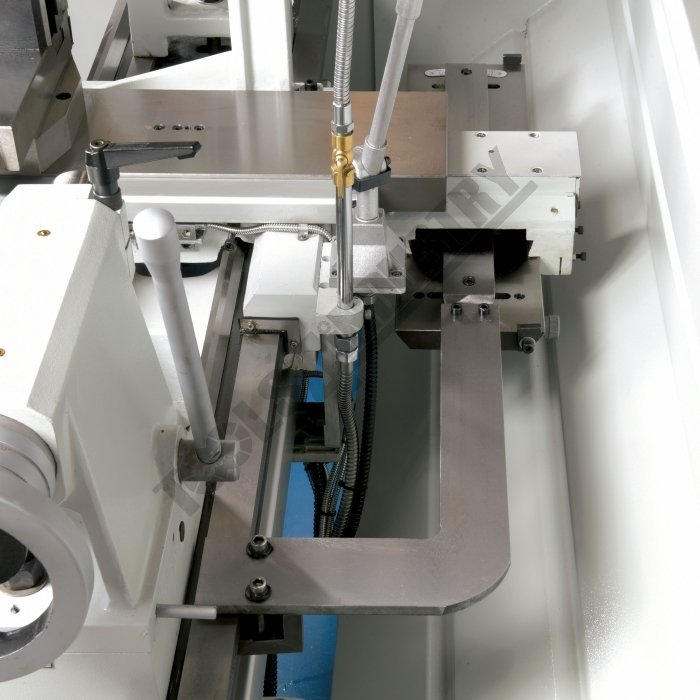

Taper Turning Attachment Full View

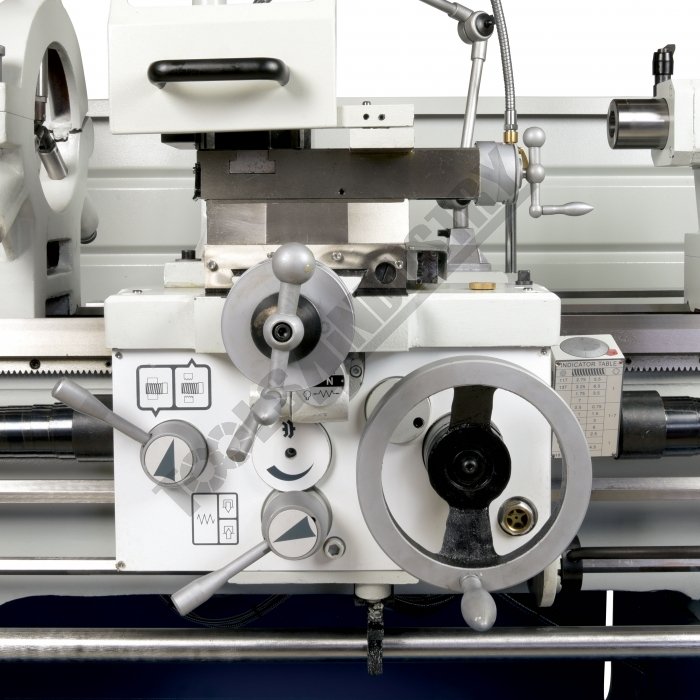

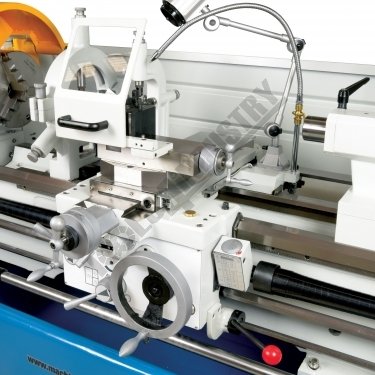

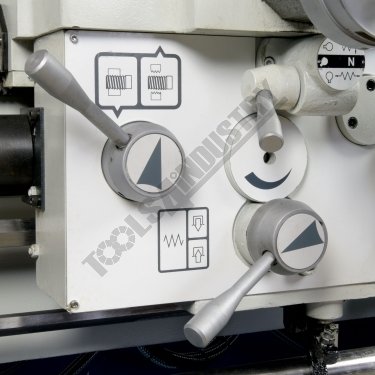

Saddle Front View

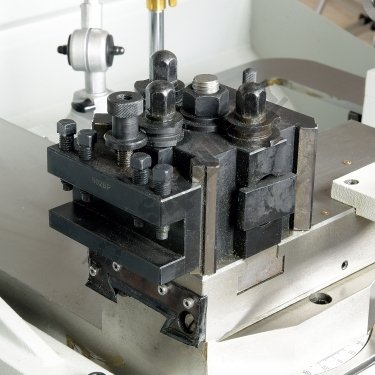

Quick Change Toolpost

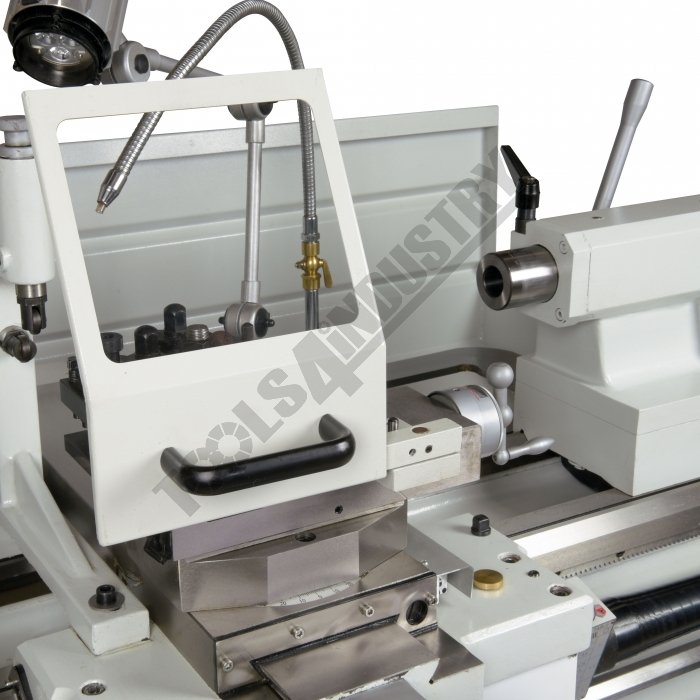

Saddle Safety Guard

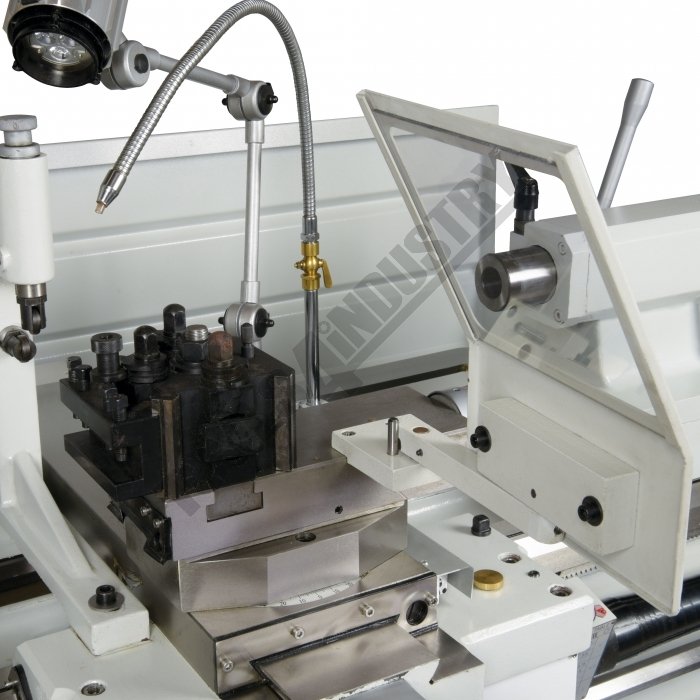

Saddle Safety Guard Shown Open

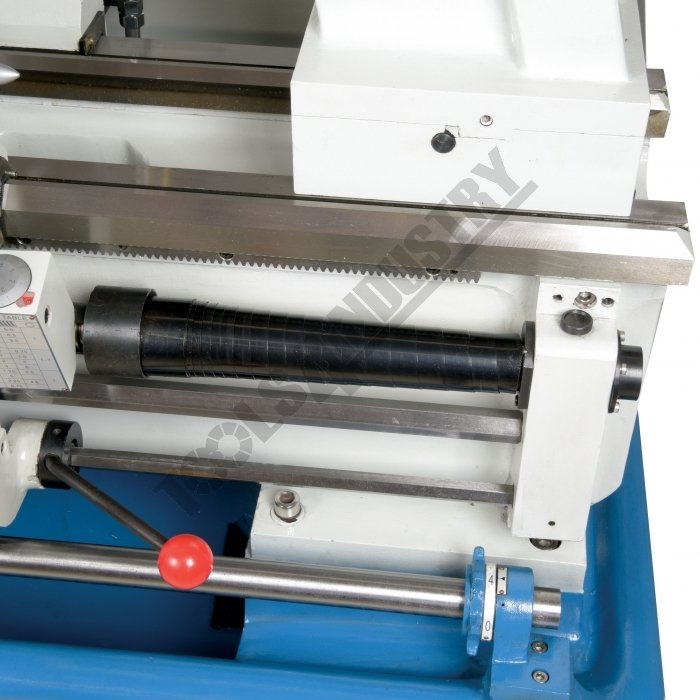

Leadscrew Covers

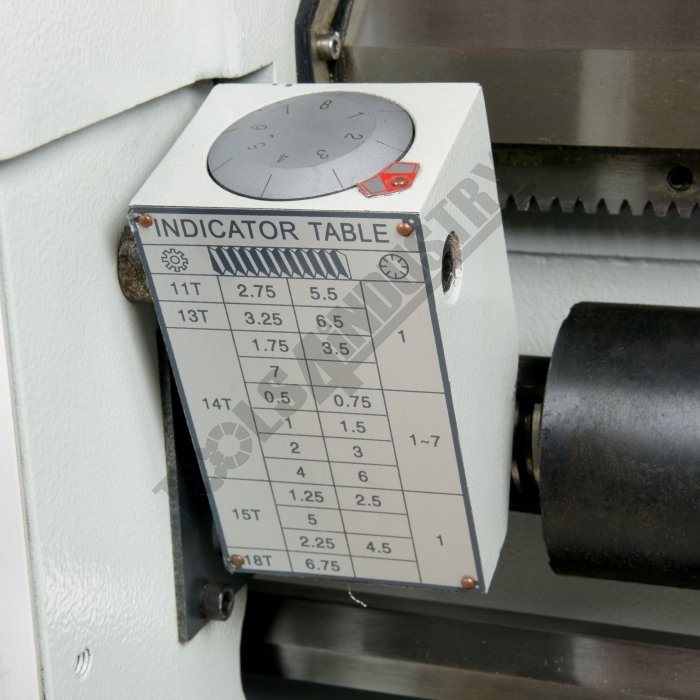

Thread Chasing Dial

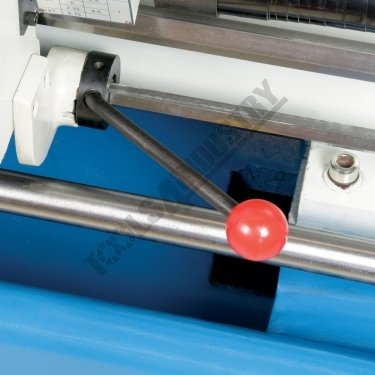

Spindle Engagement Lever

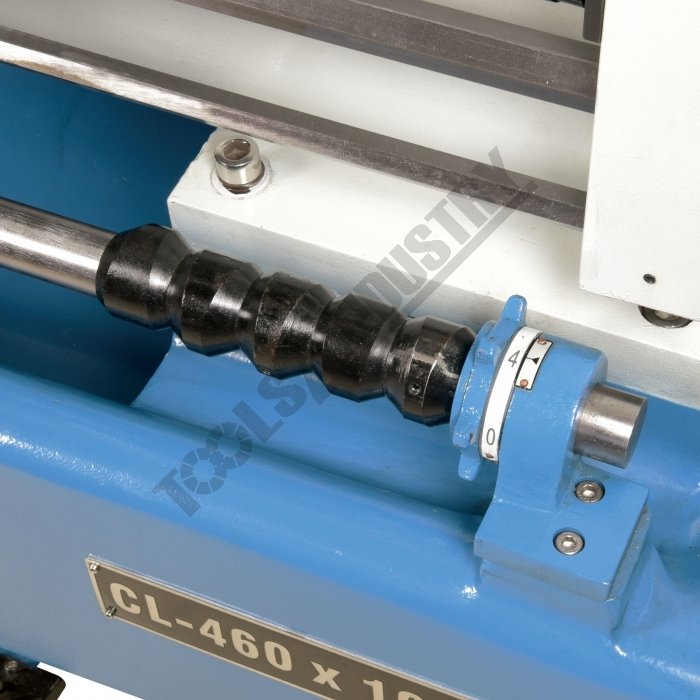

5 Position Adjustable Length Stop

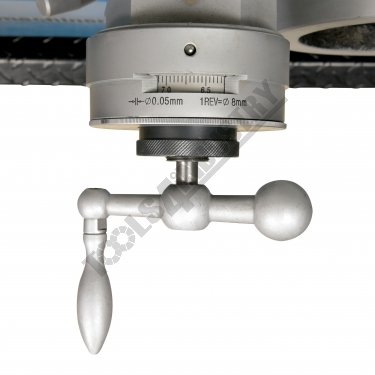

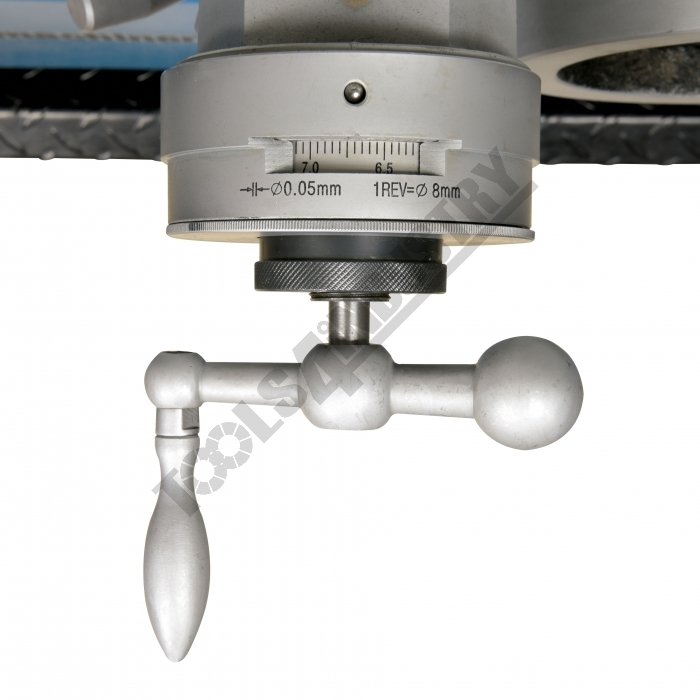

Cross Feed Dial in Metric Mode

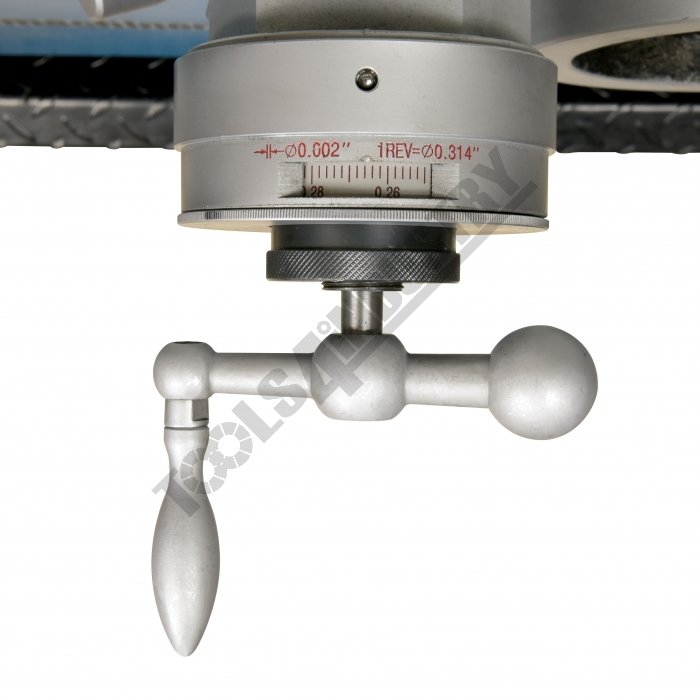

Cross Feed Dial in Imperial Mode

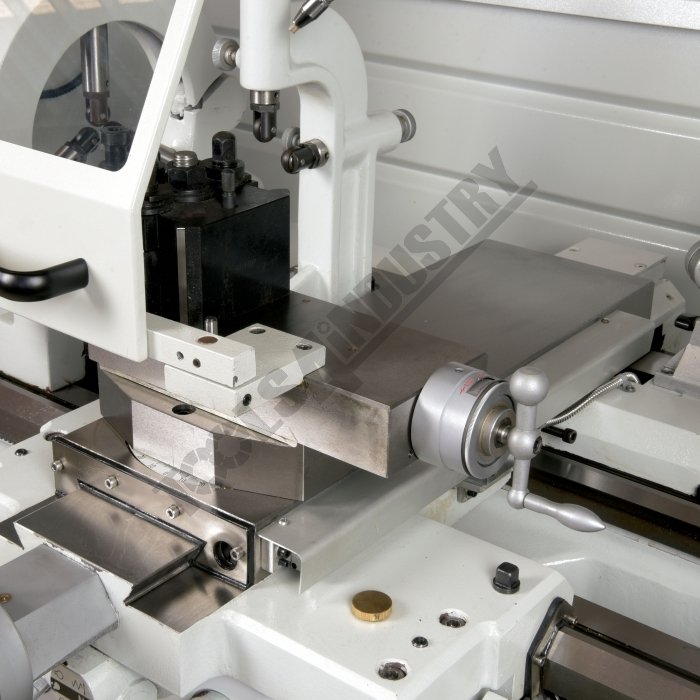

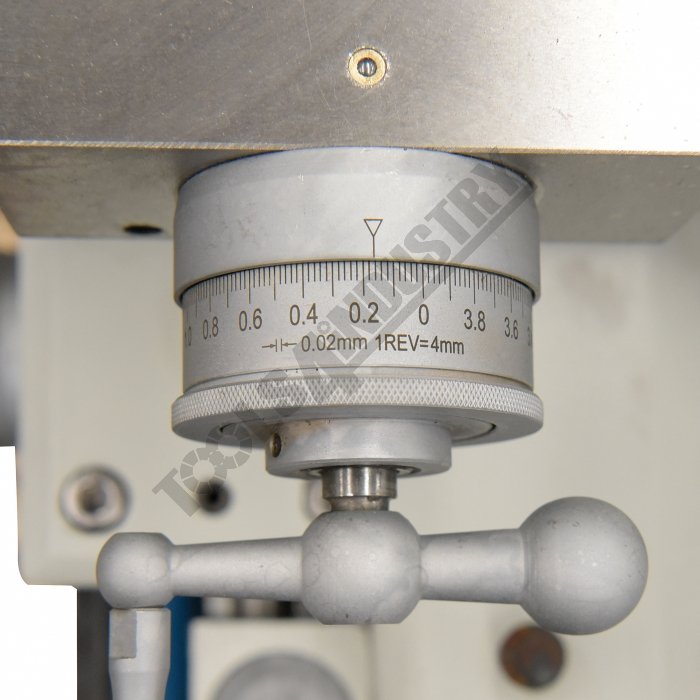

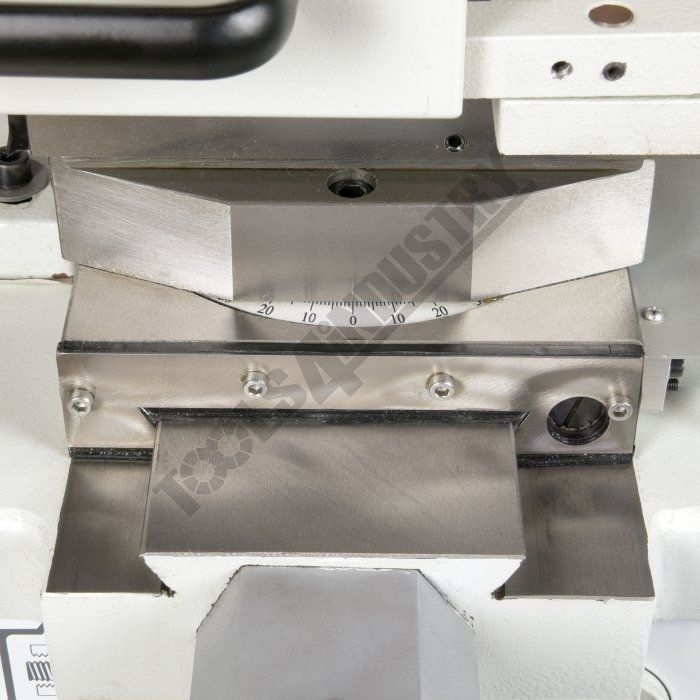

Compound Slide Dial in Metric

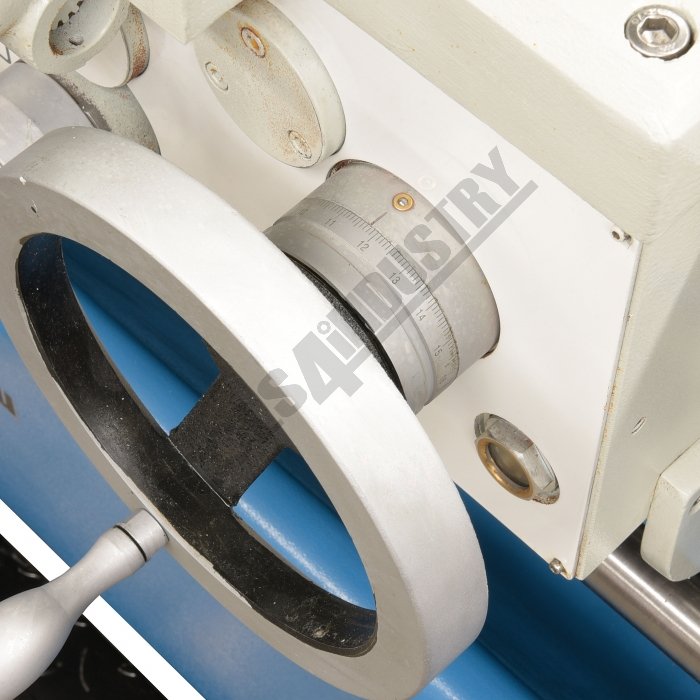

Saddle Dial In Metric

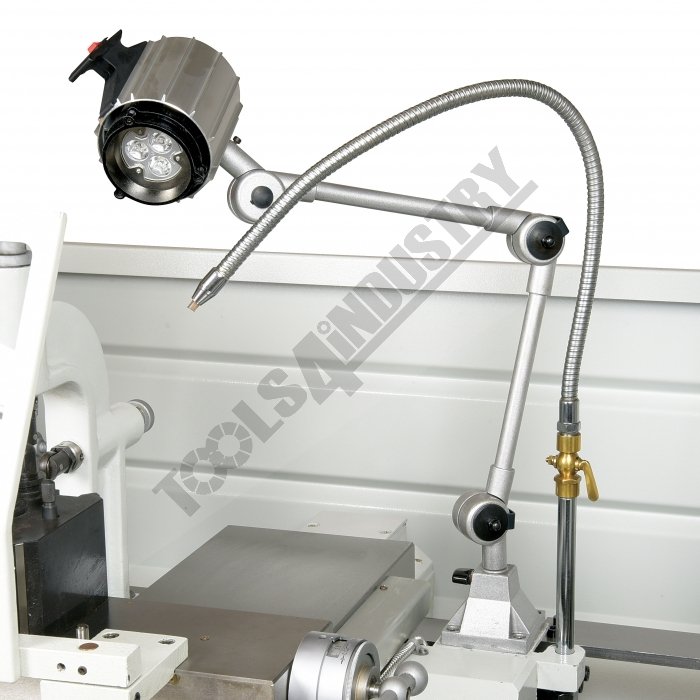

LED Worklight and Coolant Hose

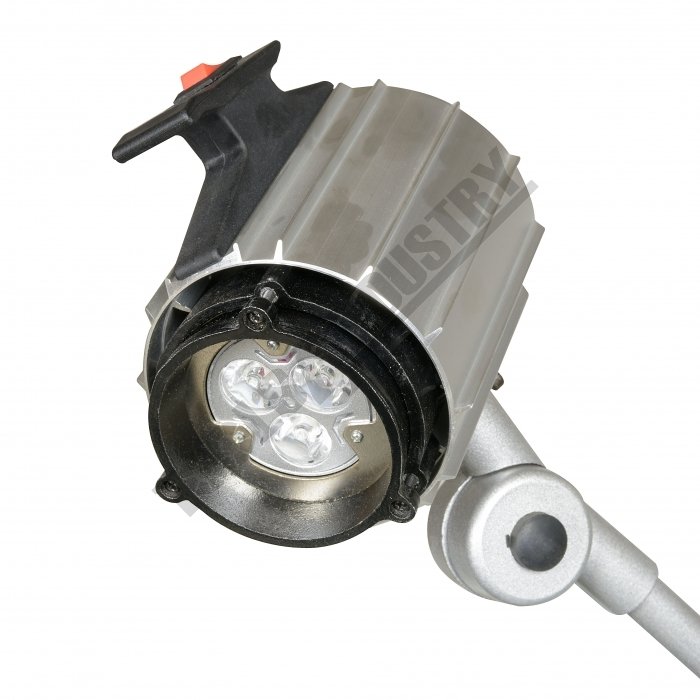

LED Worklight Close Up

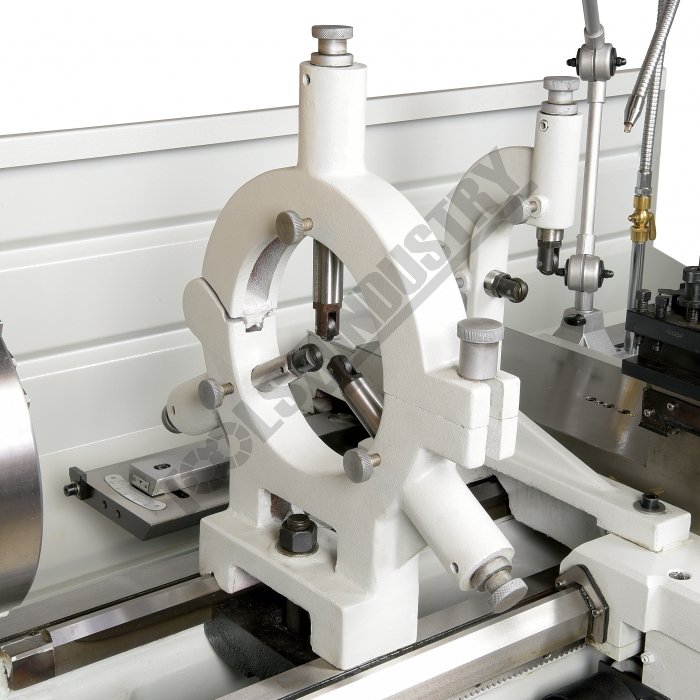

Fixed Steady with Roller Guides

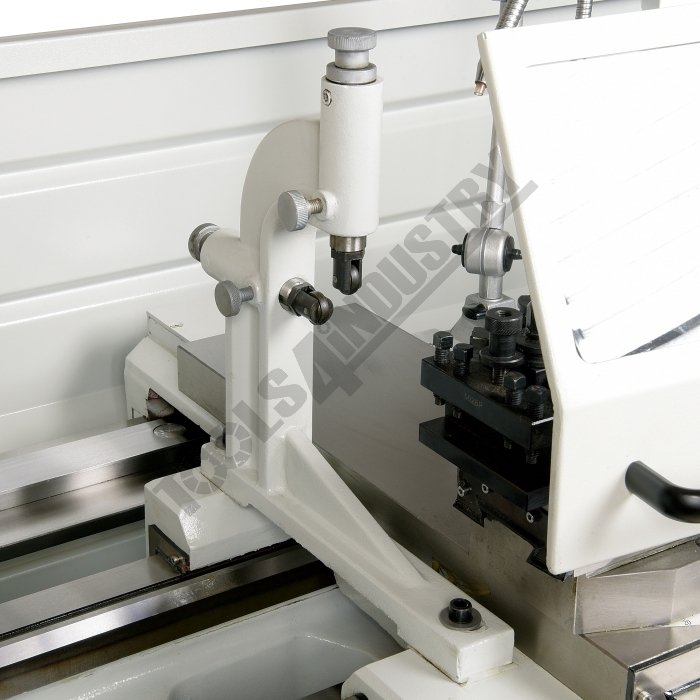

Travelling Steady with Roller Guides

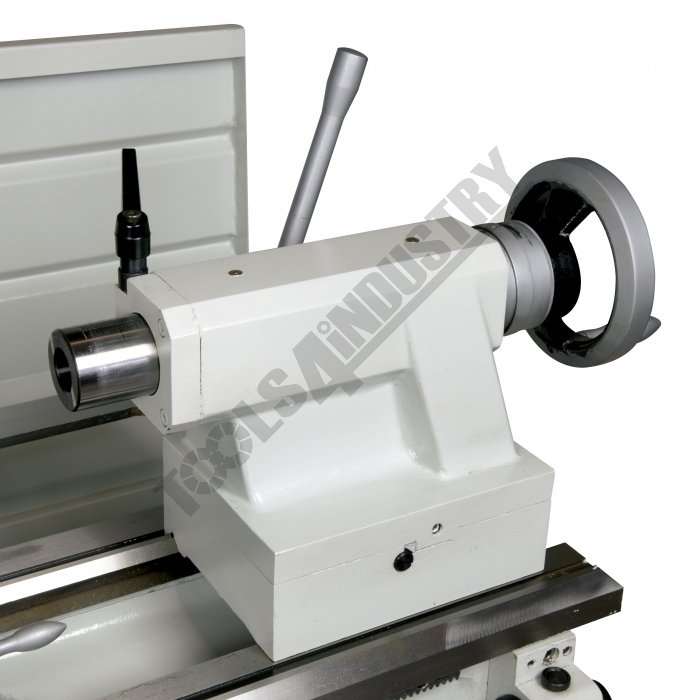

Tailstock

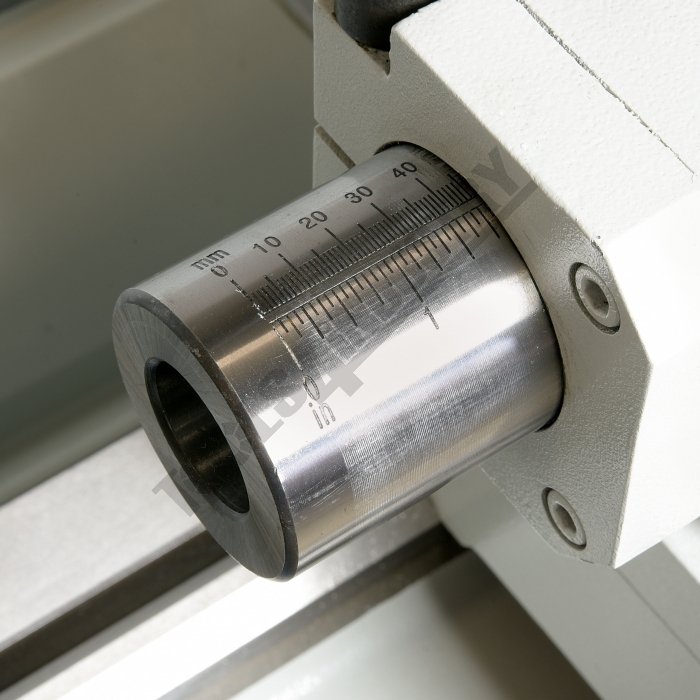

Tailstock Quill Graduations

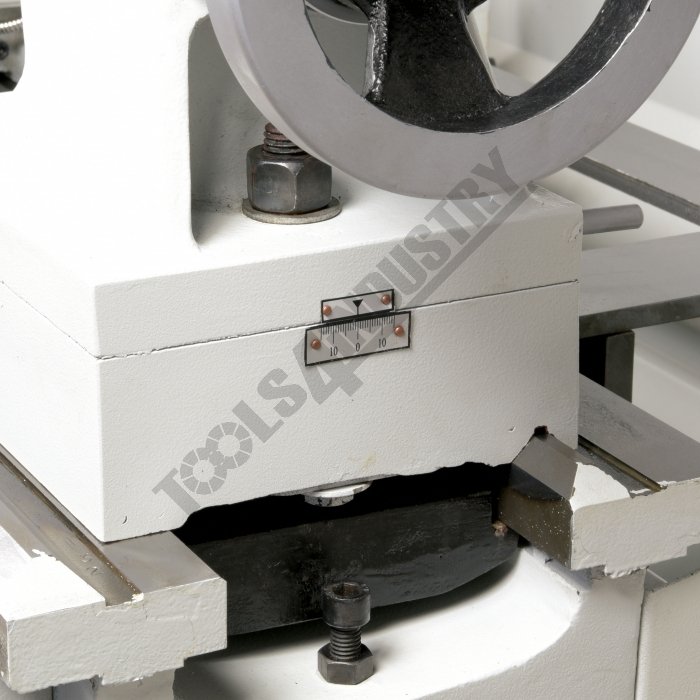

Tailstock with Horizontal Adjustment

Tailstock Dial in Metric

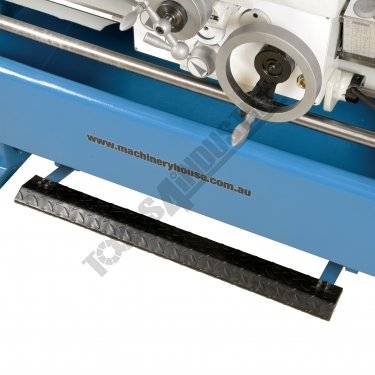

Footbrake

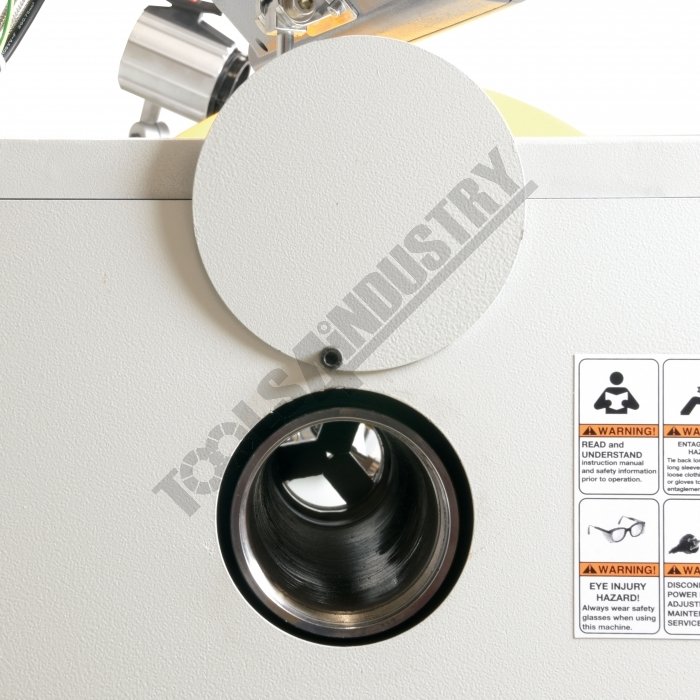

80mm Spindle Bore

Code	L606D
Model	CL-460
Capacity	Ø460 x 1000mm Turning Capacity - Ø80mm Spindle Bore
Weight (kg)	2000
Weight (m³)	4.082
Weight (Freight)	2000
Dimensions (cm)	225 x 112 x 162

Product Brochure Instructions Manual [26 MB] Parts List [14 MB] Instruction Manual - Readout System [10 MB]Lathe - Metal Risk Assessment

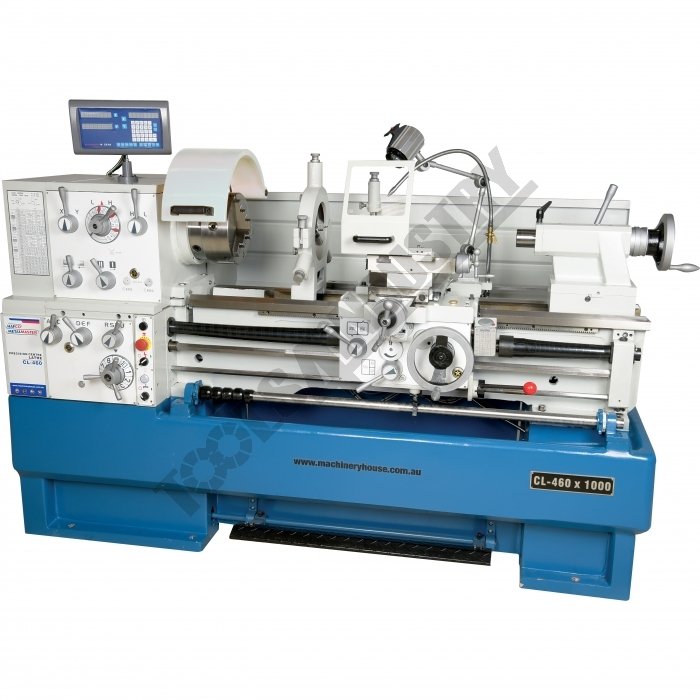

Centre Lathe CL-460 Ø460 x 1000mm Turning Capacity - Ø80mm Spindle Bore

Features

2 axis digital readout system
Quick change toolpost
Taper turning attachment fitted to saddle
Automatic lubrication pump oiling slides
Triple bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
One piece cast iron base increases rigidity
Overload protection on drive motor and coolant system
Universal enclosed gearbox incorporating metric & imperial thread capabilities
Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch
300mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing workpiece to swing up to 690mm
Chuck guard fitted with safety micro switch
Powered longitudinal and cross feeds
Adjustable 5 position length-stop mechanism for accurate repetitive operation
Micro adjustable saddle stop
Dual calibrated cross feed dial incorporating metric & imperial graduations
Coolant system with flexible hose enabling operator to manipulate flow direction
Oil level sight glass for headstock and gearbox
Low voltage halogen work light
D1-8 camlock spindle for quick chuck removal
12 spindle speeds from 25-1860rpm
Large 80mm spindle bore
5.5kW / 7.5HP 415V main motor

Includes

2 axis digital readout system
Taper turning attachment
Quick change toolpost
Auto lubrication pump for slides
Concertina leadscrew covers
250mm 3-jaw chuck with reverse jaws
350mm 4-jaw chuck
350m face plate
Fixed steady with roller bearings
Travelling steady with brass guides
Dead centres
Thread chasing dial
Foot brake
Coolant system
LED Work light
Rear splash guard
Spindle reducing bush
