Headstock

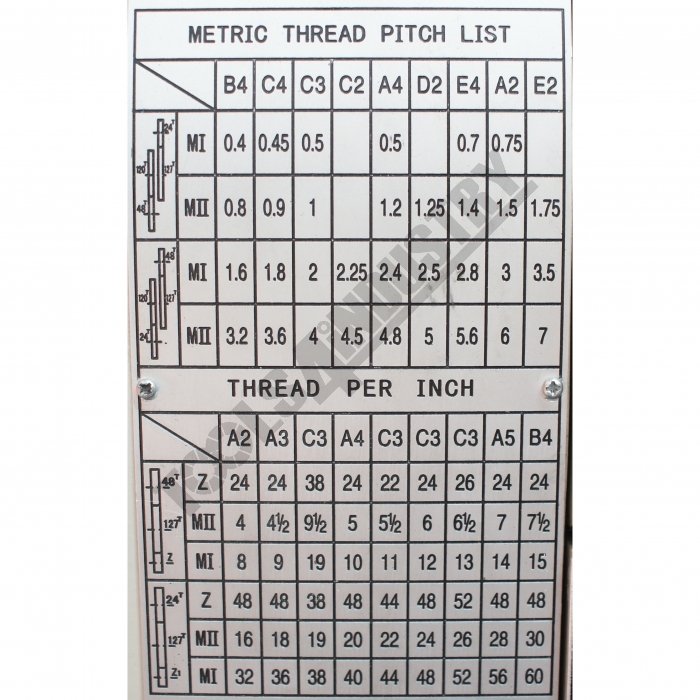

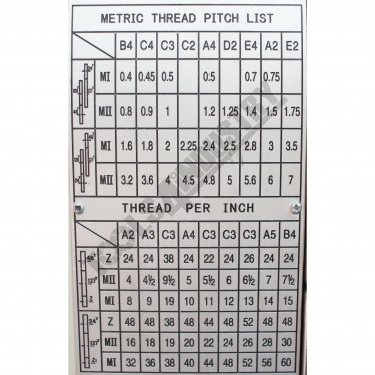

Metric Thread Chart

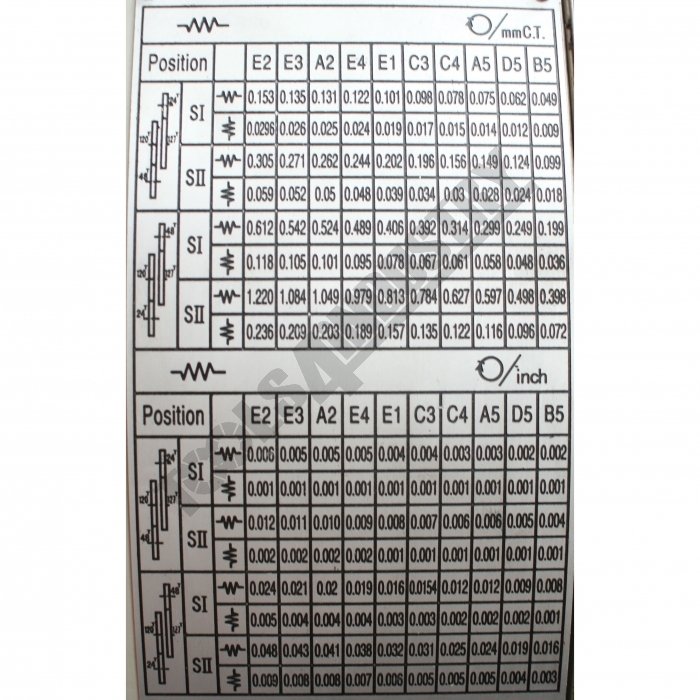

Feed Charts

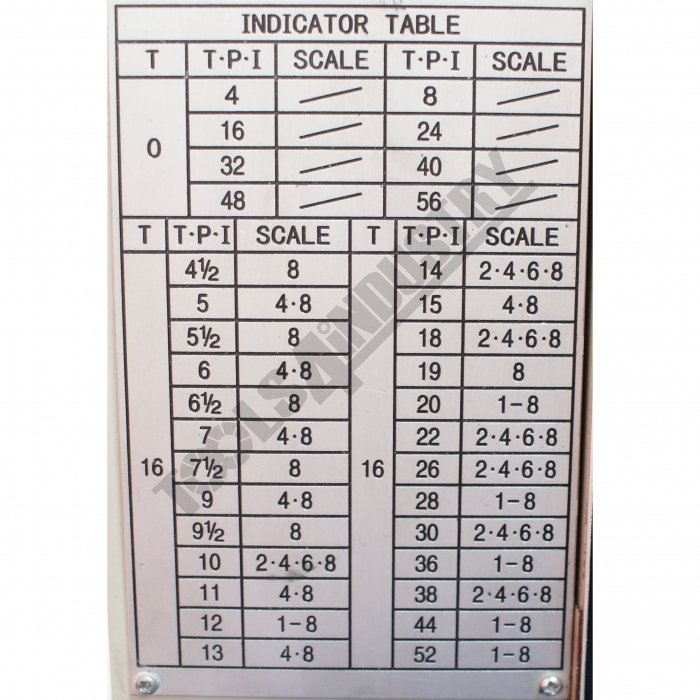

Thread Chase-Indicator Table

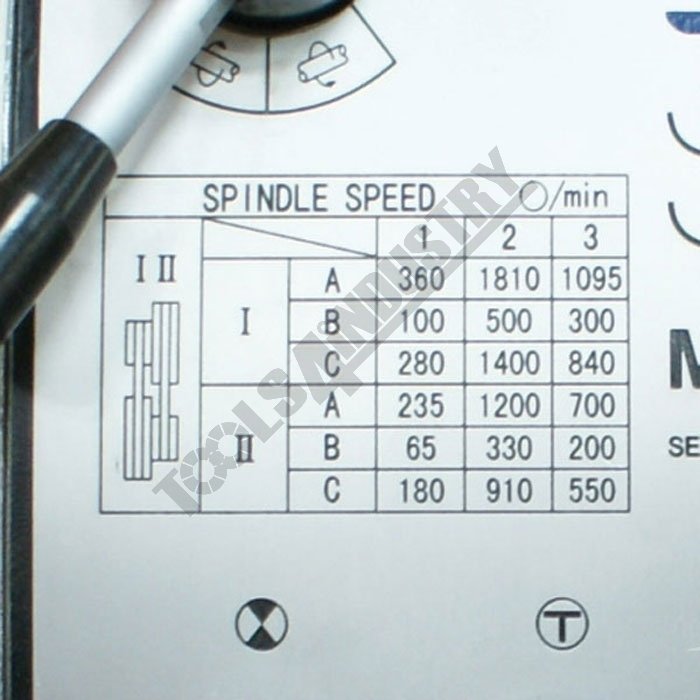

18 Spindle speeds 65-1810rpm

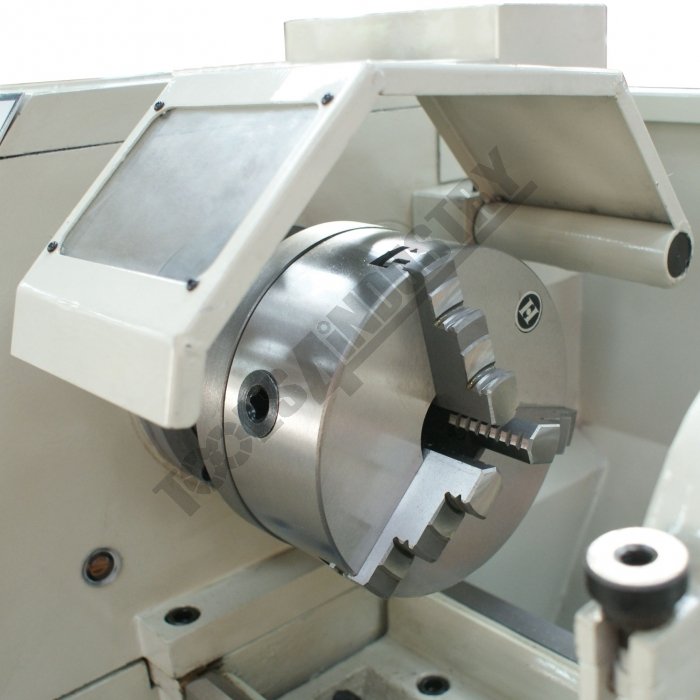

Chuck Guard With Safety Micro Switch

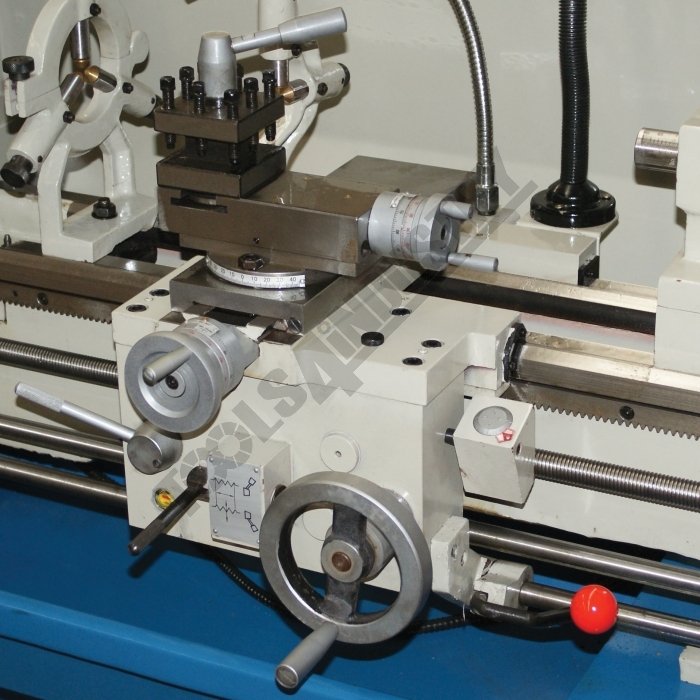

Saddle Right View

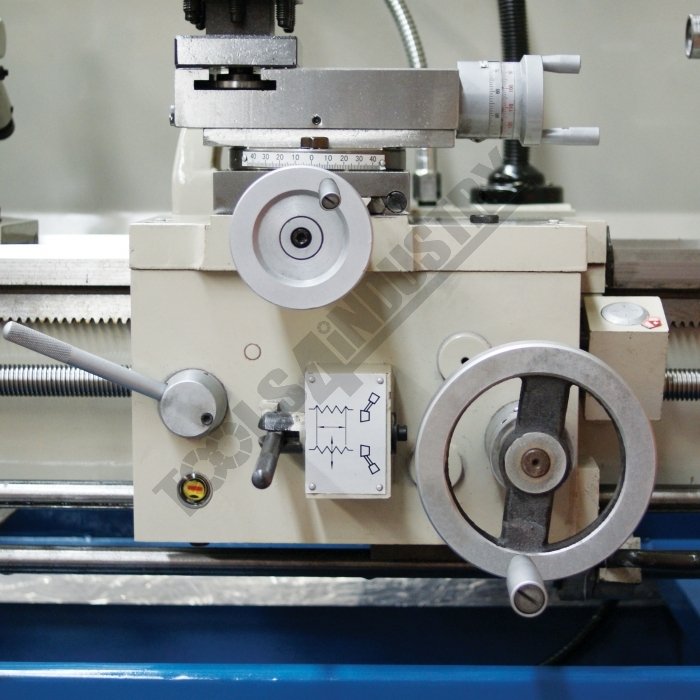

Saddle Control

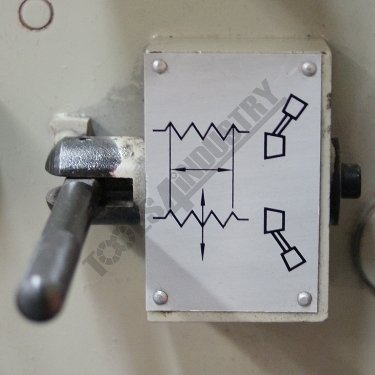

Feed Engagement Lever

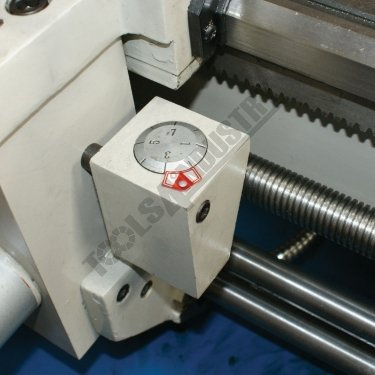

Thread Chasing Dial

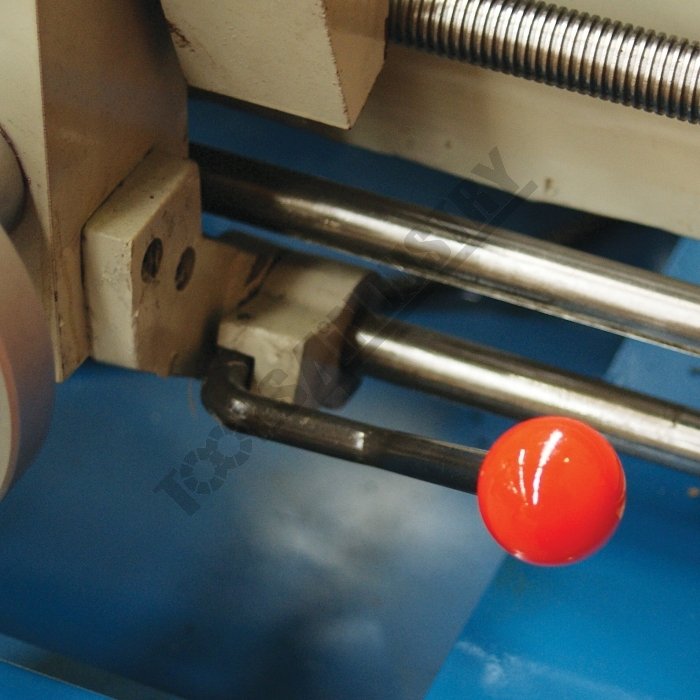

Forward Reverse Spindle Lever

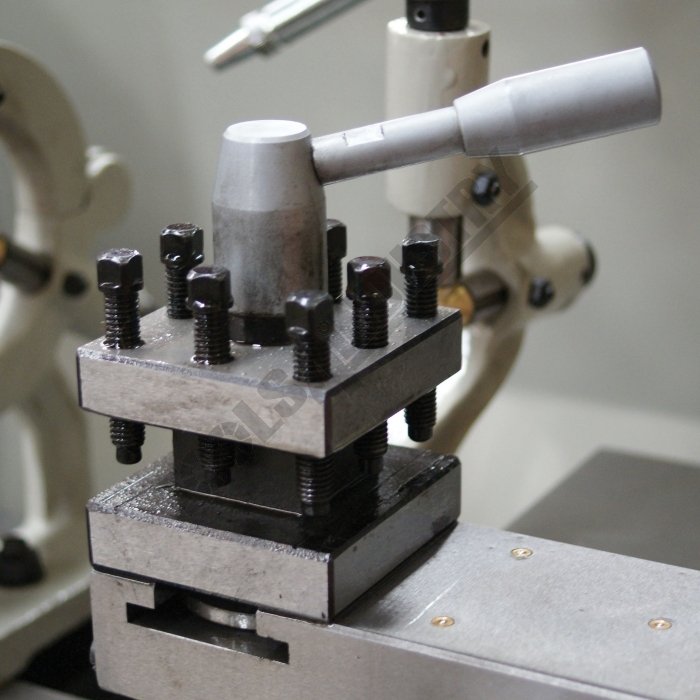

Toolpost

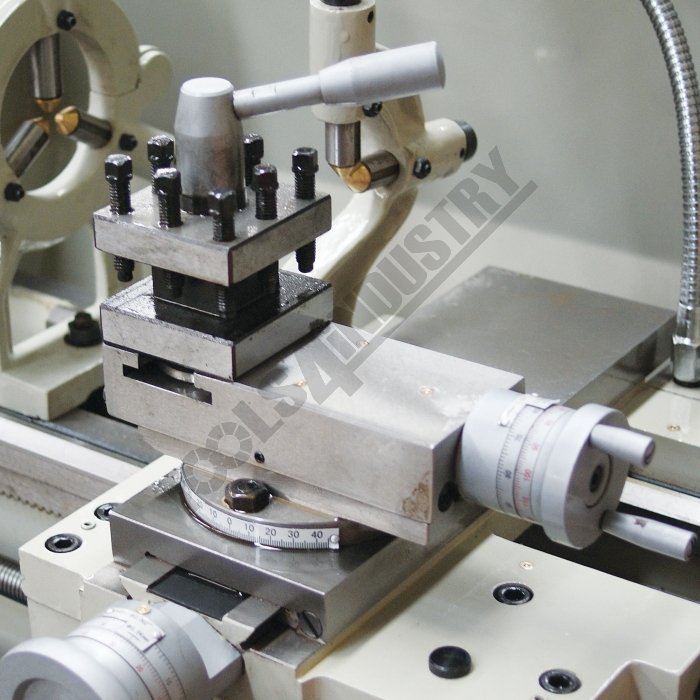

Compound Slide

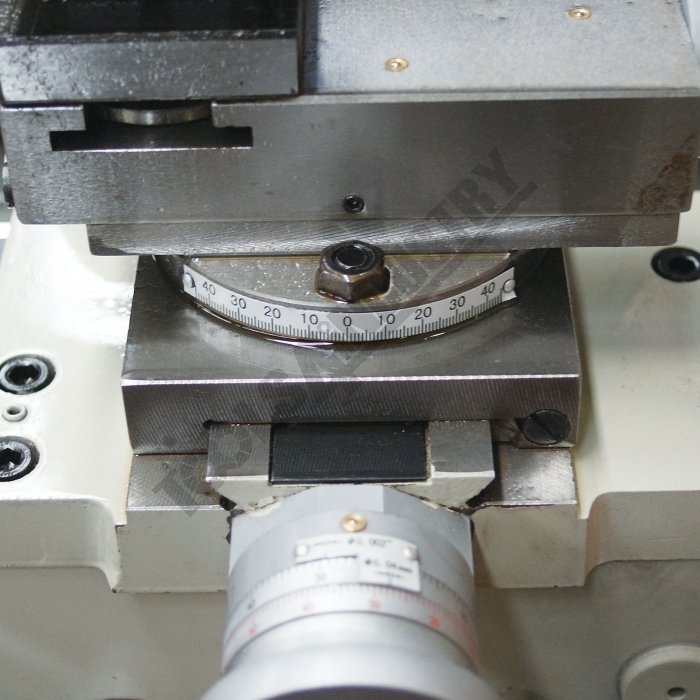

Swivel Compound Slide

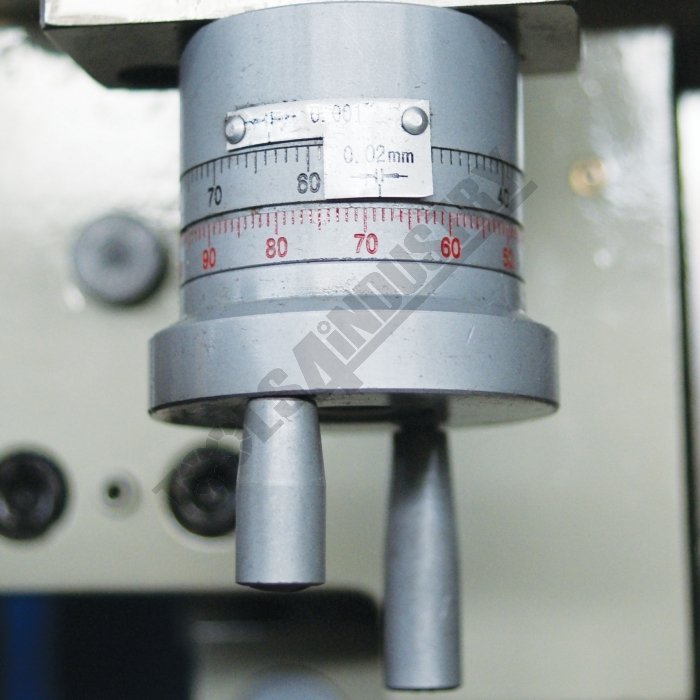

Compund Slide Hand Wheel

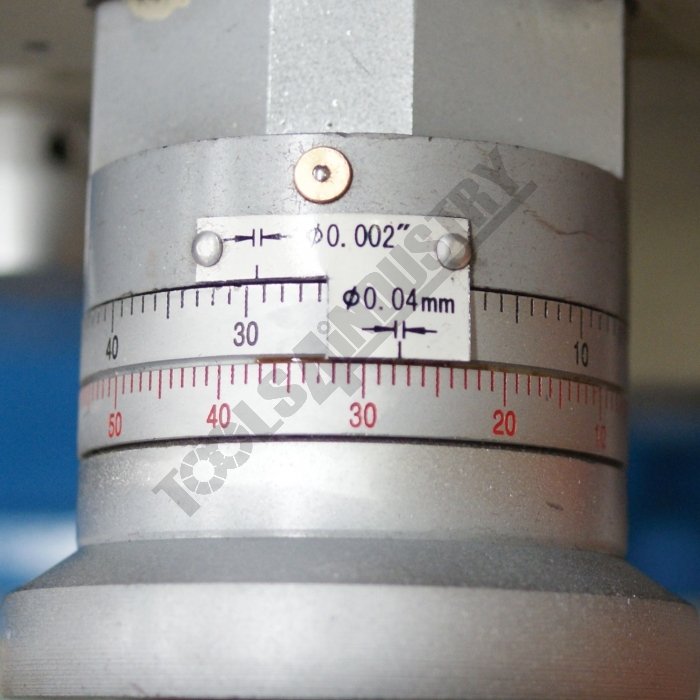

Crossslide Hand Wheel

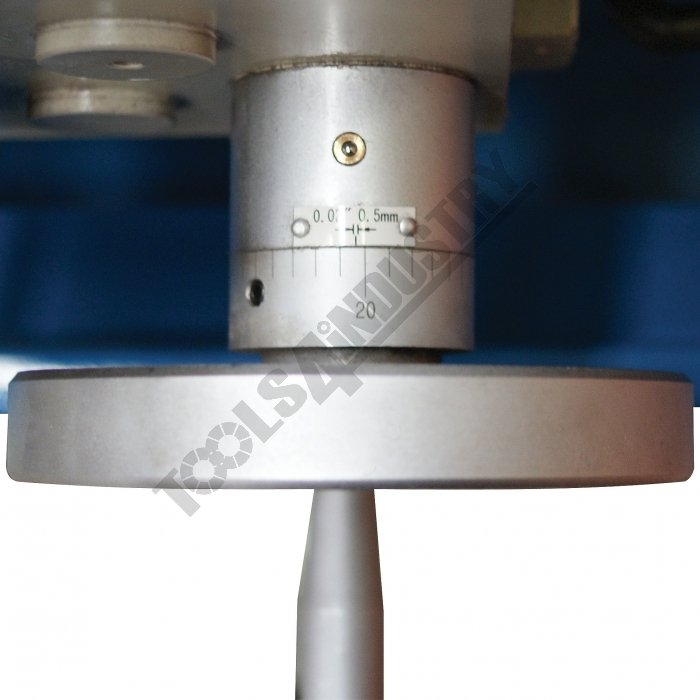

Saddle Hand Wheel

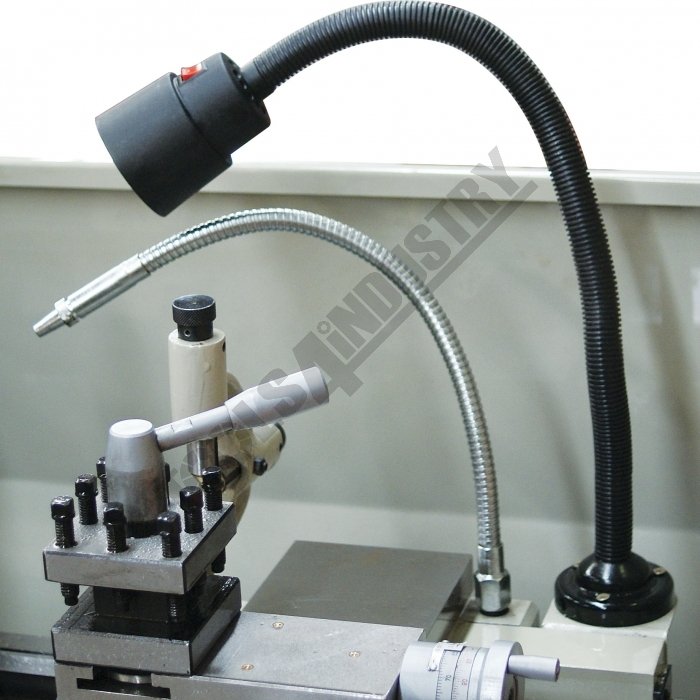

Lamp and Coolant Hose

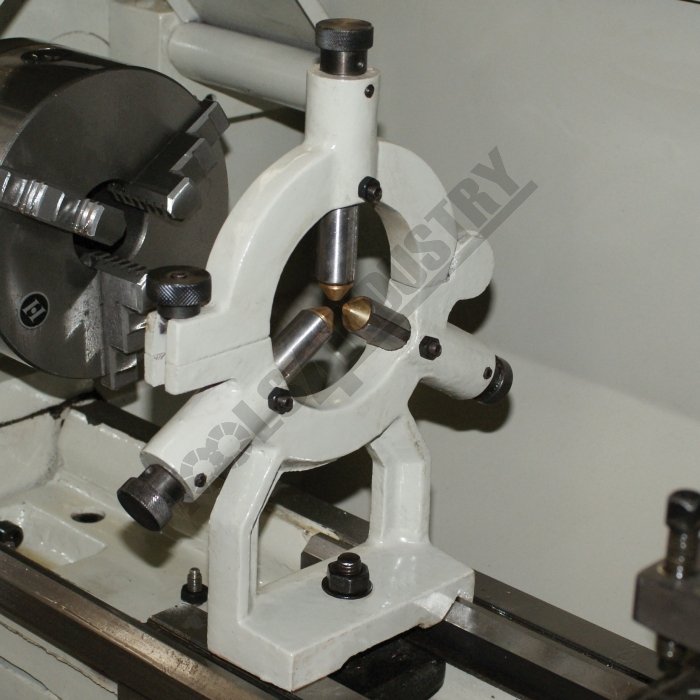

3 Point Fixed Steady

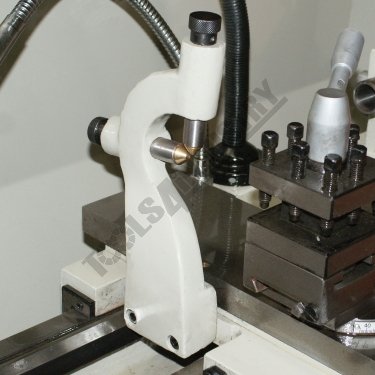

2 Point Travelling Steady

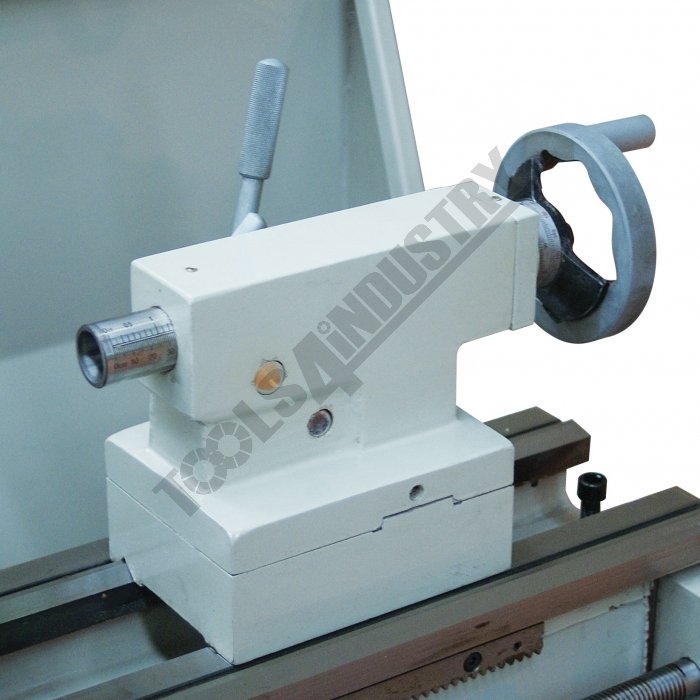

Tailstock

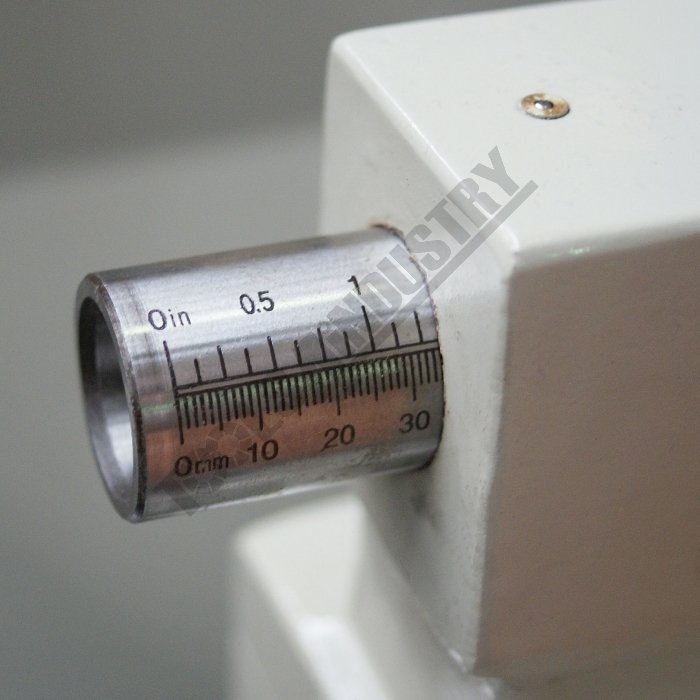

Tailstock Quill

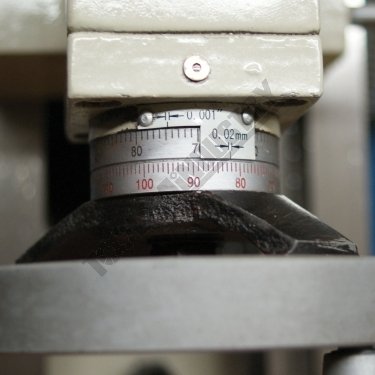

Tailstock Hand Wheel

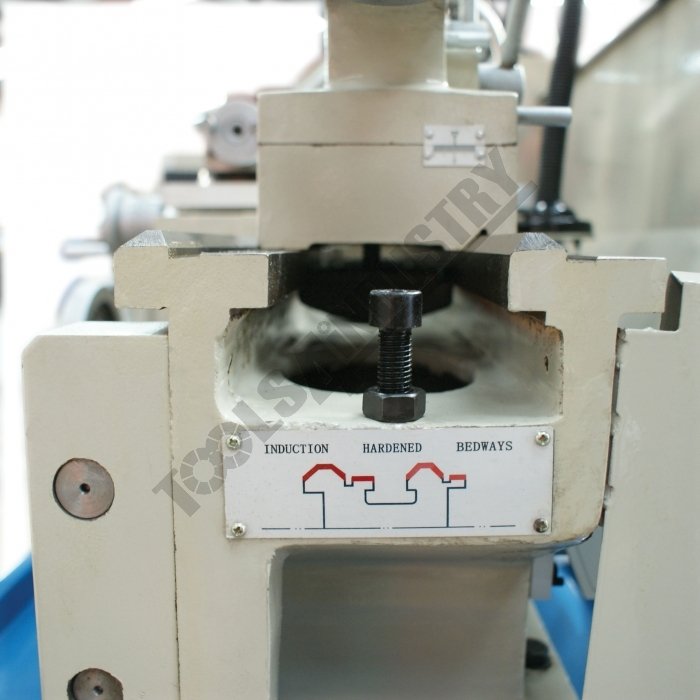

Induction Hardened Bedways

Code	L682
Model	AL-336
Capacity	Ø300 x 900mm Turning Capacity - Ø38mm Spindle Bore
Weight (kg)	480
Weight (m³)	0.932
Weight (Freight)	480
Dimensions (cm)	168 x 76 x 73

Product Brochure Instruction Manual [13 MB] Parts List [2 MB]Lathe - Metal Risk Assessment

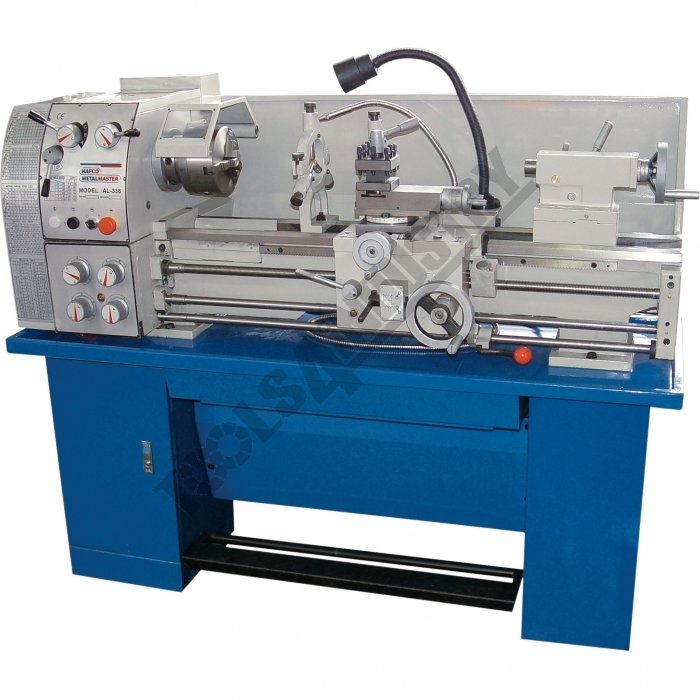

Centre Lathe AL-336 Ø300 x 900mm Turning Capacity - Ø38mm Spindle Bore

Description

The AL-336 high quality centre lathe with a turning capacity of Ø300 x 900mm is well known in the industry for its metal turning capabilities & is suitable for the model engineer or general maintenance workshops.

Featuring an induction hardened vee bedways are precision ground that allows the saddle to smoothly slide over it, full gear driven spindle speeds ranging from 65 - 1810rpm are selectable via the gear selector levers that are accessible from the front of headstock for your convenience & certainly makes this lathe package well sort after.

The 2hp single phase 240V motor is ample power to drive the 3 & 4 jaw chucks, auto feed & screw cutting thread system and the adjustable taper roller spindle bearings ensures accuracy & smooth operation even when under cutting load. A great range of cross, longitudinal feed speeds & metric & imperial screw cutting threads are easy accessible & selected via the separate gearbox located underneath the headstock for your convenience.

Supplied with a large range of standard accessories including a 150mm 3 jaw self centring chuck, 200mm 4 jaw independent chuck with D1-4 camlock for quick change over, face plate, spindle safety foot brake, chuck guard with safety interlock switch, thread chasing dial, rear splash guard, coolant pump system, work light, fixed & traveling steadies & that rounds up most of the great features on this fantastic centre lathe. The floor stand is equipped with a slide out swarf tray that makes it very easy to clean down and remove your waste material swarf.

Features

Gear drive headstock for quick change of spindle speeds
Precision 'V'-beds are hardened and ground, incorporating a rigid webbed casting
Slide out swarf tray from front of machine
Low voltage work light
Foot operated spindle brake with safety cut out switch
Change gears for metric and imperial thread cutting
Oil sight glass for head stock and gearbox
Adjustable taper roller bearings support the spindle
18 spindle speeds from 65 to 1810rpm
Inching button is incorporated on the control panel for convenient spindle speed selection
Enclosed quick action gearbox for thread cutting and auto feeding
Powered longitudinal and cross feeds
D1-4 camlock spindle for quick chuck changes and safe reverse direction turning. ISO standard
Removable gap bed-way for larger diameter jobs
Dual calibrated dials (except for saddle hand-wheel)
Chuck & change gear guards are fitted with micro switches

Includes

3-jaw chuck with reverse jaws
4-jaw chuck
Face plate
Fixed steady
Travelling steady
Coolant system
Change gears
Dead centres
Thread-chasing dial
Safety chuck guard
Work light
Stand
Foot brake
Rear splash guard & slide out swarf tray
Tool box
Instruction booklet

Specifications

Compare 27 Products
ORDER CODE
MODEL
Swing Over Bedmm
Distance Between Centresmm
Spindle Boremm
Swing In Gapmm
Swing Over Cross-slidemm
Digital Readout System Fitted
Quick Change Toolpost Fitted
Leadscrew Covers Fitted
Taper Turning Attachment
Coolant System
Tool Height To Suitmm
Centre Heightmm
Spindle Nose Size or Type
Bed Widthmm
Headstock Spindle TaperMT
Tailstock TaperMT
Cross Slide Travelmm
Compound Slide Travelmm
Leadscrew Type
Metric Cross Feed (X-Axis)mm/rev
Imperial Cross Feed (X-Axis)inch/rev
Metric Longitudinal Feed (Z-Axis)mm/rev
Imperial Longitudinal Feed (Z-Axis)inch/rev
Metric Thread Steps & PitchNo. / mm
Imperial Thread Steps & TPINo. / TPI
3 Jaw Chuck Diametermm
4 Jaw Chuck Diametermm
Spindle Steps / SpeedsNo. / rpm
Motor PowerkW / hp
Voltage / AmperageV / amp
Nett Weightkg

L682
AL-336
300
900
38
450
180
Optional
Optional
~
~
Yes
12
150
D1-4 Camlock
180
5
3
170
75
Imperial
~
0.009 - 0.236
~
0.04 - 1.22
32 (0.4 - 7)
36 (4 - 60)
160
200
18 (65 - 1810)
1.5 / 2
240 / 10
595

K008
AL-336 Package Deal
300
900
38
450
180
Optional
Optional
~
~
Yes
12
150
D1-4 Camlock
180
5
3
170
75
Imperial
~
0.009 - 0.236
~
0.04 - 1.22
32 (0.4 - 7)
36 (4 - 60)
160
200
18 (65 - 1810)
1.5 / 2
240 / 10
595

L543D
AL-346
330
600
40
~
200
Yes
~
Yes
~
Yes
12
165
D1-4 Camlock
181
5
3
160
85
Metric
0.013-0.31
~
0.013-0.31
~
32 (0.4 -7)
36 (4 - 60)
160
200
16 (70 - 2000)
1.8 / 2.4
415 / 10
560

L682D
AL-336D-DELUXE
300
900
38
450
180
Yes
Yes
Yes
~
Yes
12
150
D1-4 Camlock
180
5
3
170
75
Imperial
~
0.009 - 0.236
~
0.04 - 1.2236
32 (0.4 - 7)
36 (4 - 60)
160
200
18 (65 - 1810)
1.5 / 2
240 / 10
595

K008A
AL-336D-DELUXE Package Deal
300
900
38
450
180
Yes
Yes
Yes
~
Yes
12
150
D1-4 Camlock
180
5
3
170
75
Imperial
~
0.009 - 0.236
~
0.04 - 1.2236
32 (0.4 - 7)
36 (4 - 60)
160
200
18 (65 - 1810)
1.5 / 2
240 / 10
595

L237
AL-960B
305
925
40
450
180
Optional
Optional
~
~
~
12
152.5
D1-4 Camlock
190
5
3
170
90
Imperial
~
0.0013 - 0.041
~
0.0027 - 0.082
26 (0.25- 7.5)
40 (4 - 112)
160
200
12 (70 - 1400)
1.5 / 2
240 / 15
463

L237D
AL-960B
305
925
40
450
180
Yes
Optional
~
~
~
12
152.5
D1-4 Camlock
190
5
3
170
90
Imperial
~
0.0013 - 0.041
~
0.0027 - 0.082
26 (0.25 - 7.5)
40 (4 - 112)
160
200
12 (70 - 1400)
1.5 / 2
240 / 15
470

L555D
AL-346V
330
1000
40
450
200
Yes
Yes
Yes
~
Yes
16
165
D1-4 Camlock
181
5
3
160
85
Metric
0.013 - 0.31
~
0.053 - 1.29
~
32 (0.4 - 7)
36 (4-60)
160
200
Variable (70 - 2000)
1.5 / 2
240 / 10
610

L564E
AL-356
356
1000
51
476
224
Yes
Yes
Yes
~
Yes
16
178
D1-5 Camlock
187
6
4
160
68
Metric
0.022 - 0.298
~
0.078 - 1.044
~
32 (0.45 - 10)
20 (2-1/4 - 40)
200
200
16 (35 - 1900)
1.8 / 2.4
415
650

L565D
AL-356V
356
1000
51
476
224
Yes
Yes
Yes
~
Yes
16
178
D1-5 Camlock
187
6
4
160
68
Metric
0.022 - 0.298
~
0.078 - 1.044
~
36 (0.45 - 10)
20 (2-1/4 - 40)
200
200
Variable (40 - 1800)
1.5 / 2
240 / 10
650

L569D
AL-410
400
1000
52
520
250
Yes
Yes
Yes
~
Yes
16
200
D1-5 Camlock
218
6
4
250
80
Metric
0.011 - 0.276
~
0.052 - 1.291
~
32 (0.4 - 7)
36 (4 - 60)
200
200
18 (65 - 2000)
2.4 / 3.2
415
850

L201
AL-1324
330
600
40
~
200
Optional
Optional
Yes
Optional
Yes
16
165
D1-4 Camlock
190
5
3
175
100
Metric
0.034 - 0.468
~
0.068 - 0.936
~
30(0.4 - 7.0)
32(4 - 56)
160
200
18 (50 - 2000)
2.25 / 3
415
580

L201D
AL-1324
330
600
40
~
200
Yes
Optional
Yes
Optional
Yes
16
165
D1-4 Camlock
190
5
3
175
100
Metric
0.034 - 0.468
~
0.068 - 0.936
~
30(0.4 - 7.0)
32(4 - 56)
160
200
18 (50 - 2000)
2.25 / 3
415
580

L240D
AL-1000C
360
1000
40
516
225
Yes
Optional
Yes
Optional
Yes
16
178
D1-4 Camlock
190
5
3
175
100
Imperial
~
0.0013 - 0.0184
~
0.0026 - 0.0368
30 (0.4 - 7.0)
32 (4 - 56)
160
200
9 (82 - 2000)
1.5 / 2
240 / 15
700

L242D
AL-1000D
360
1000
40
516
225
Yes
Optional
Yes
Optional
Yes
16
178
D1-4 Camlock
190
5
3
175
100
Metric
0.034 - 0.468
~
0.068 - 0.936
~
30 (0.4 - 7.0)
32 (4 - 56)
160
200
18 (50 - 2000)
2.25 / 3
415
700

L191D
CL-38A
410
1000
52
580
255
Yes
Yes
Yes
~
Yes
20
205
D1-6 Camlock
250
6
4
210
140
Metric
0.025 - 0.85
~
0.05 - 1.7
~
39 (0.2 - 14)
45 (2 - 72)
200
250
16 (45 - 1800)
3.3 / 4.5
415
1550

L606D
CL-460
460
1000
80
690
274
Yes
Yes
Yes
Yes
Yes
25
230
D1-8 Camlock
300
6
4
285
128
Metric
0.014 - 0.784
~
0.031 - 1.70
~
47 (0.1 - 14)
60 (2 - 112)
250
350
12 (25 - 1860)
5.5 / 7.5
415
1950

L249VS
Studturn 1440VS
360
1000
Ø42
560
215
Yes
Optional
Yes
Optional
Yes
16
178
D1-5 Camlock
250
5
3
195
100
Metric
0.01 - 0.13
~
0.03 - 0.40
~
27 (0.4 - 7)
36 (4 - 72)
Ø193
Ø250
Variable (35 - 2500)
3.75 / 5
415
1100

L638D
TM-2290G
560
2200
105
788
340
Yes
Optional
~
Optional
Yes
25
280
D1-8 Camlock
350
7
5
300
200
Metric
0.02 - 0.4
~
0.05 - 0.82
~
24 (0.5 - 14)
44 (2 - 56)
310
400
12 (16 - 1600)
7.5 / 10
415
2900

L685
TU-1503V
150
300
11
~
82
Optional
Optional
~
~
~
8
75
Fixed
70
1
1
55
40
Metric
~
~
0.05 - 0.1
~
8 (0.5 - 1.5)
~
80
Optional
Variable (160 - 3000)
0.45 / 0.6
240 / 10
26

L687
TU-2004V
200
300
21
~
140
Optional
Optional
~
~
~
10
100
Fixed
100
3
2
75
55
Metric
~
~
0.1 - 0.2
~
14 (0.25 - 3)
12 (8 - 44")
100
Optional
Variable (150 - 2500)
0.60 / 0.8
240 / 10
75

L160
AL-51G
230
500
20
~
127
Optional
Optional
~
~
~
12
115
Threaded
114
3
2
108
48
Imperial
~
~
~
0.12 - 0.3
11 (0.5 - 3)
27 (8 - 56)
100
190
6 (100 - 1800)
0.55 / 0.75
240 / 10
129

L670
AL-50V
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
6.4

L689
TU-2506V
250
550
26
~
150
Optional
Optional
~
~
~
10
125
Fixed
135
4
2
110
70
Metric
~
~
0.07 - 0.4
~
21 (0.2 - 4)
21 (8 - 56")
125
Optional
Variable (150 - 2500)
1.2 / 1.6
240 / 10
156

L149
AL-250G
250
500
26
~
150
Optional
Optional
Yes
~
~
12
125
Fixed
140
4
3
145
75
Metric
0.017 - 0.187
~
0.035 - 0.375
~
15 (0.25 - 2.5)
~
130
Optional
12 (80 - 1600)
0.75 / 1
240 / 10
185

L141
AL-320G
320
600
38
~
210
Optional
Optional
~
~
~
12
160
Fixed
160
5
3
150
100
Metric
0.022 - 0.15
~
0.1 - 1.4
~
11 (0.5 - 4)
27 (9 - 48)
160
200
12 (60 - 1600)
0.75 / 1
240 / 10
280

L691
TU-3008G
300
700
38
~
190
Optional
Optional
~
~
~
12
150
D1-4
180
5
3
150
65
Metric
0.01 ~0.10
~
0.085 - 0.83
~
18 (0.2 - 3.5)
21 (8 - 56")
160
Optional
12 (125 - 2400)
1.5 / 2
240 / 10
280

ORDER CODE	AL-336
MODEL	300
Swing Over Bedmm	900
Distance Between Centresmm	38
Spindle Boremm	450
Swing In Gapmm	180
Swing Over Cross-slidemm	Optional
Digital Readout System Fitted	Optional
Quick Change Toolpost Fitted	~
Leadscrew Covers Fitted	~
Taper Turning Attachment	Yes
Coolant System	12
Tool Height To Suitmm	150
Centre Heightmm	D1-4 Camlock
Spindle Nose Size or Type	180
Bed Widthmm	5
Headstock Spindle TaperMT	3
Tailstock TaperMT	170
Cross Slide Travelmm	75
Compound Slide Travelmm	Imperial
Leadscrew Type	~
Metric Cross Feed (X-Axis)mm/rev	0.009 - 0.236
Imperial Cross Feed (X-Axis)inch/rev	~
Metric Longitudinal Feed (Z-Axis)mm/rev	0.04 - 1.22
Imperial Longitudinal Feed (Z-Axis)inch/rev	32 (0.4 - 7)
Metric Thread Steps & PitchNo. / mm	36 (4 - 60)
Imperial Thread Steps & TPINo. / TPI	160
3 Jaw Chuck Diametermm	200
4 Jaw Chuck Diametermm	18 (65 - 1810)
Spindle Steps / SpeedsNo. / rpm	1.5 / 2
Motor PowerkW / hp	240 / 10
Voltage / AmperageV / amp	595
Nett Weightkg

Recommended Accessories

Steel Machine Mount & Rubber Insert

500kg Load Capacity
M16 Thread x 90mm Long

Code: M002
