Code	C052
Capacity	Taiwanese Precision Quality
Weight (kg)	1.14
Weight (m³)	0.001
Weight (Freight)	1.14
Dimensions (cm)	19.7 x 5.9 x 6

HAFCO

1 Year Warranty

Taiwan

Product Brochure

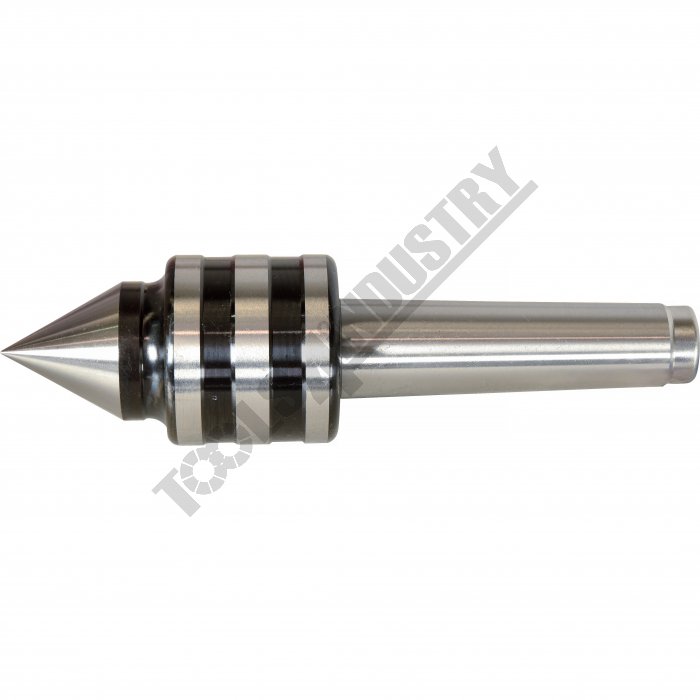

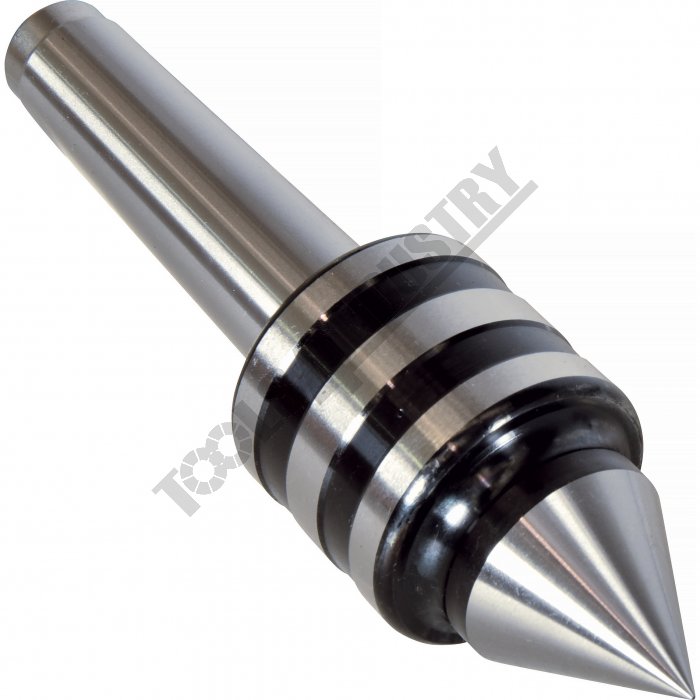

3MT Live Centre Taiwanese Precision Quality

Features

Centre shaft manufactured from SKS3 steel and vacuum heat treated
Precision ground
Concentric within 0.01mm
Centre runs on taper roller bearing and needle roller bearing

Specifications

Compare 6 Products
ORDER CODE
TaperMT
Point Type
Maximum Speedrpm
Maximum Load Capacitykg
Angle θdeg
Amm
Bmm
C
D
D1
d
Emm
Fmm
Gmm
Lmm
Nett Weightkg

C052
3MT
Standard
4500
~
~
~
49.5
~
~
~
~
47
36.5
24
170
1.14

C057
3MT
Extended
3500
400
60
46
44
86
41
25
10
~
~
~
176
0.84

C054
4MT
Standard
3000
~
~
~
50
~
~
~
~
37.3
27
22.3
185
1.32

C059
4MT
Extended
3000
600
60
55
51
108
47
32
12
~
~
~
214
1.46

C060
5MT
Standard
2000
1065
60
54
72
136
65
52
~
~
~
~
262
3.7

C050
2MT
Standard
5000
~
~
~
40
~
~
~
~
38
26
22.5
133.5
0.6

ORDER CODE	3MT
TaperMT	Standard
Point Type	4500
Maximum Speedrpm	~
Maximum Load Capacitykg	~
Angle θdeg	~
Amm	49.5
Bmm	~
C	~
D	~
D1	~
d	47
Emm	36.5
Fmm	24
Gmm	170
Lmm	1.14
Nett Weightkg
