| Code | C059 |
|---|---|
| Capacity | Taiwanese Precision Quality |
| Weight (kg) | 1.46 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 1.46 |
| Dimensions (cm) | 24 x 8 x 6.5 |

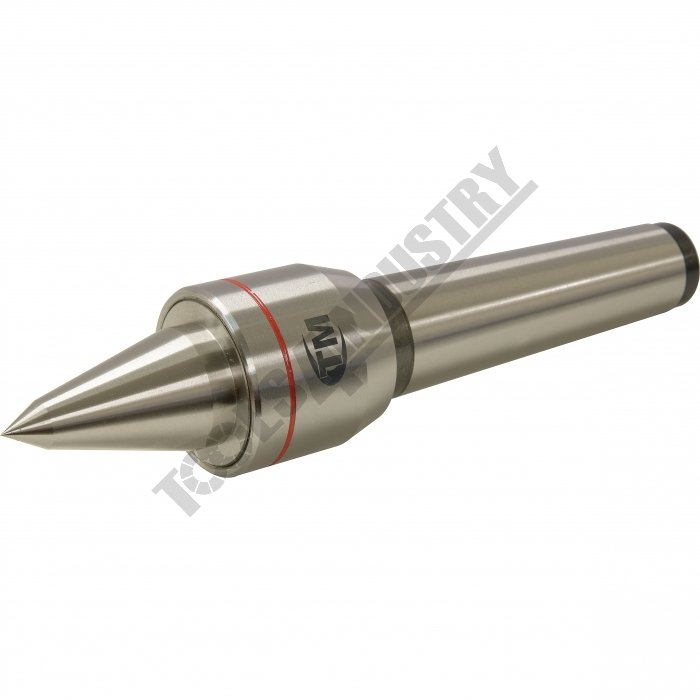

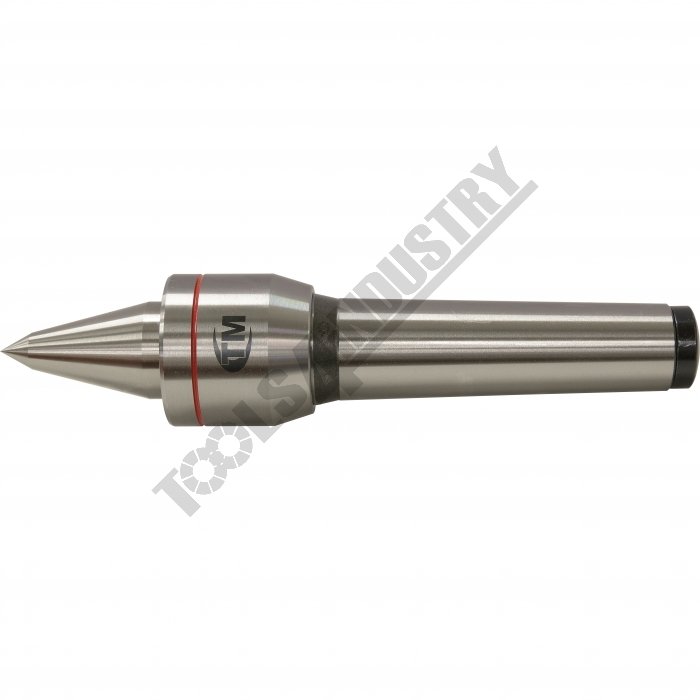

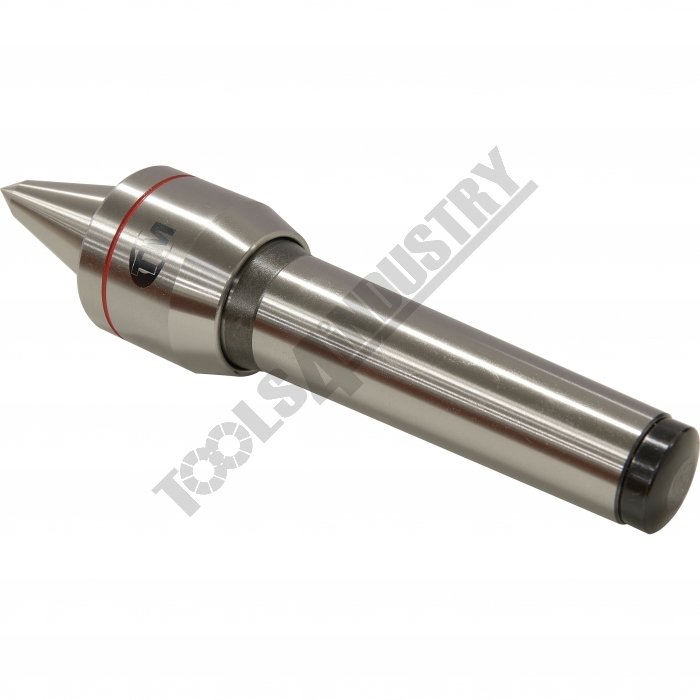

4MT Live Centre Extended Point Taiwanese Precision Quality
Description
Toolmaster live centre's are fitted with needle, thrust and ball bearings suitable for medium to high speed lathes with heavy loads.The shaft is made from alloy steel heat treated to HRC 60° providing high rigidity and high durability.
Features

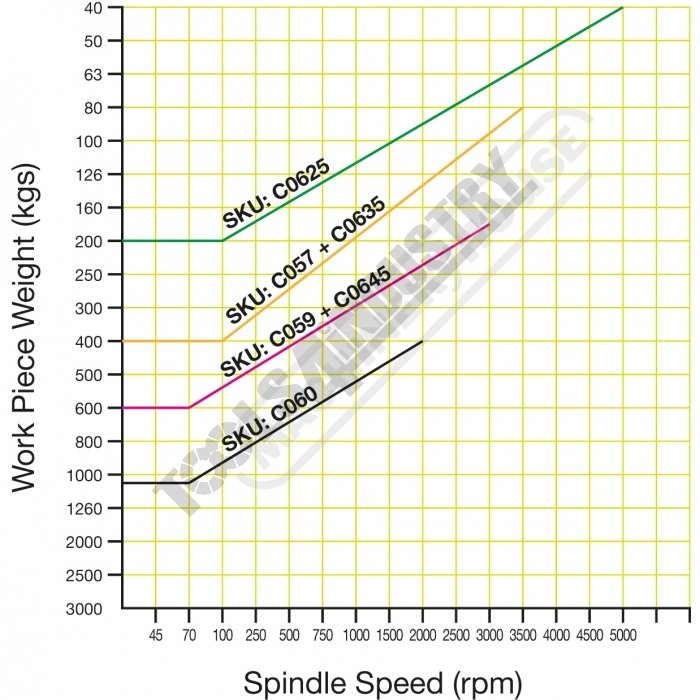

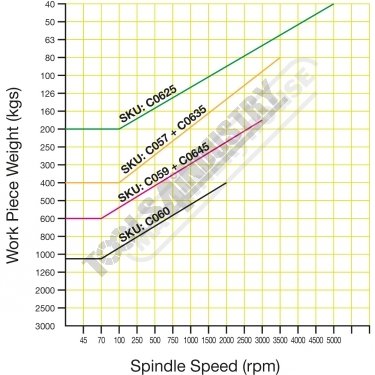

- Maximum speed 3000rpm @ 180kg
- Maximum load 600kg @ 70rpm
- Hardened to HRC 60º
- Made from alloy steel
- Assembled with thrust, needle & ball bearings
Specifications
- Compare 6 Products
- ORDER CODE
- TaperMT
- Point Type
- Maximum Speedrpm
- Maximum Load Capacitykg

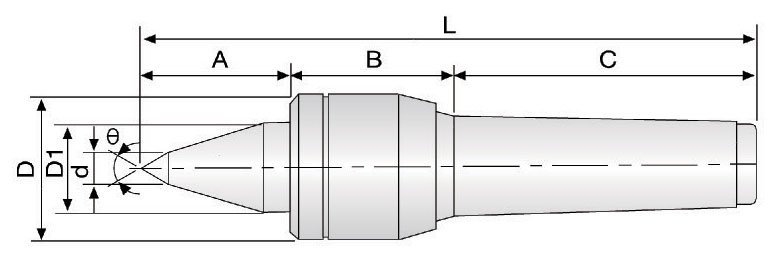

- Angle θdeg
- Amm
- Bmm
- C
- D
- D1
- d
- Emm
- Fmm
- Gmm
- Lmm
- Nett Weightkg
| ORDER CODE | 4MT |
|---|---|
| TaperMT | Extended |
| Point Type | 3000 |
| Maximum Speedrpm | 600 |
| Maximum Load Capacitykg | 60 |
| Angle θdeg | 55 |
| Amm | 51 |
| Bmm | 108 |
| C | 47 |
| D | 32 |
| D1 | 12 |
| d | ~ |
| Emm | ~ |
| Fmm | ~ |
| Gmm | 214 |
| Lmm | 1.46 |
| Nett Weightkg |
