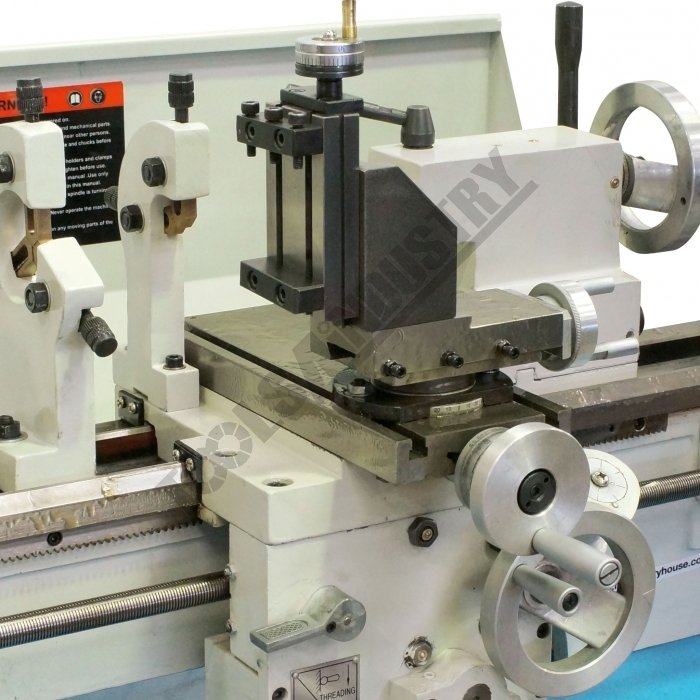

Shown fitted to Lathe

Shown fitted to Lathe

Code	L276
Capacity	50 x 90mm Ground Table
Weight (kg)	10
Weight (m³)	0.014
Weight (Freight)	10
Dimensions (cm)	29 x 22 x 22

TOOLMASTER

1 Year Warranty

India

Product Brochure

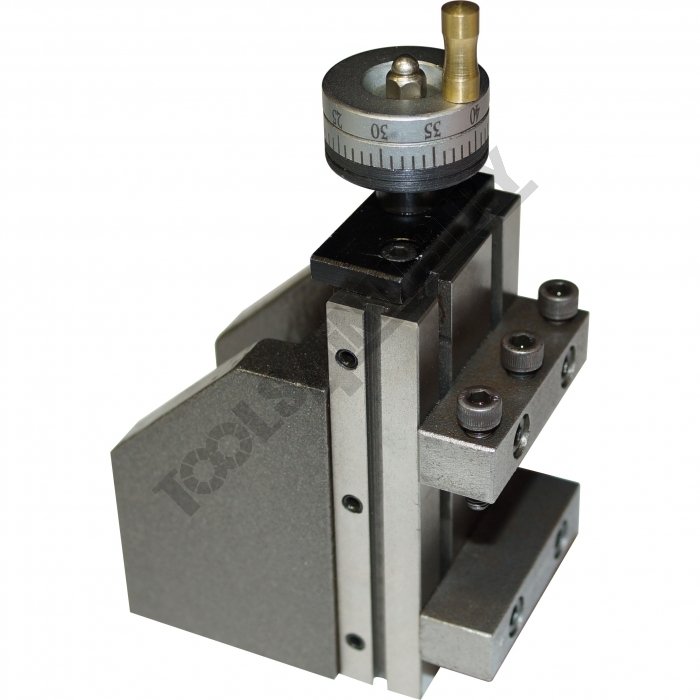

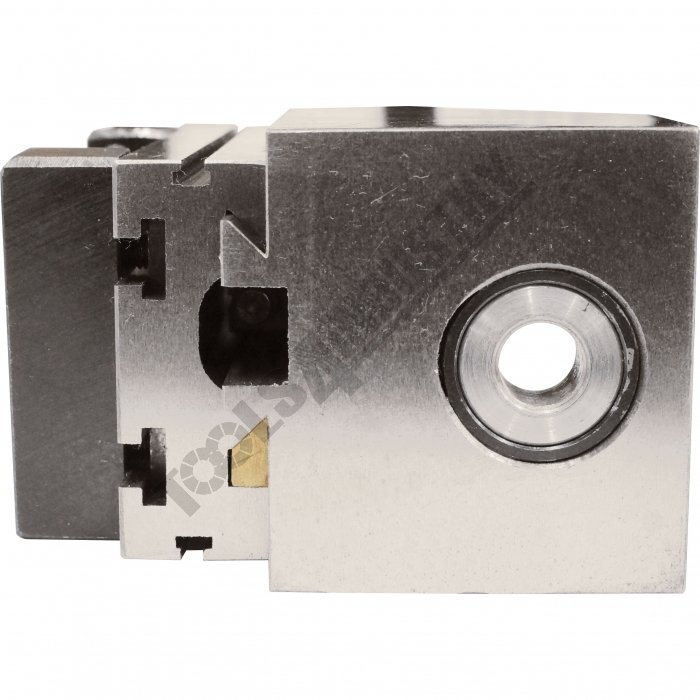

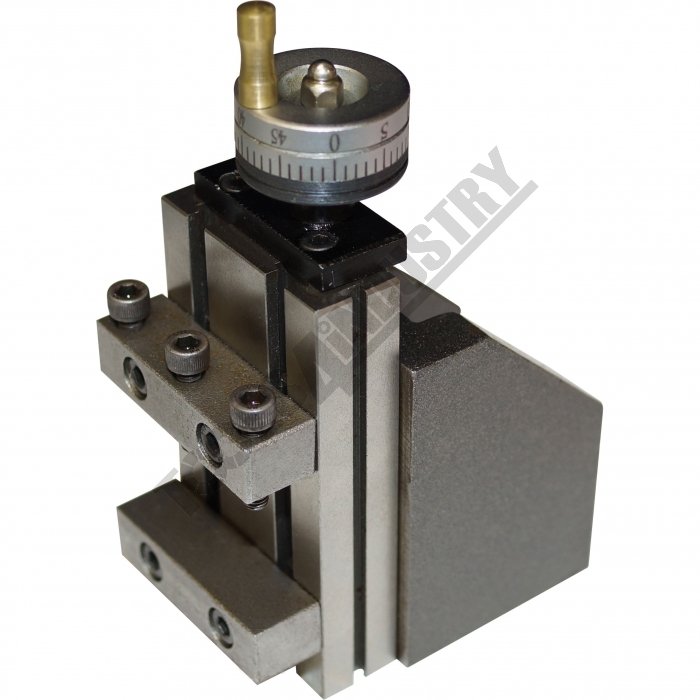

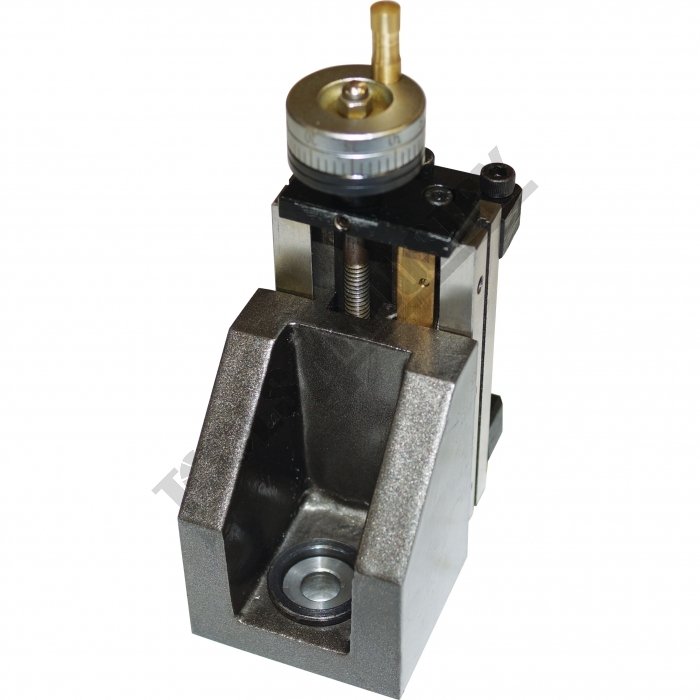

Mini Vertical Mill Slide 50 x 90mm Ground Table

Description

To suit most bench lathes with approximately 150mm swing.

Features

40mm vertical travel
0.001" increments
2 x 5mm T slots
50 x 55mm base
20mm locating spigot
Adjustable material clamping - 65mm max.
Dovetail slides with brass gib key

Includes

20 x 10mm reducing bush

Specifications

Compare 2 Products
ORDER CODE
Vertical Slide Travelmm
Nett Weightkg

L276
40
6

L277
80
8.5

ORDER CODE	40
Vertical Slide Travelmm	6
Nett Weightkg
