| Code | G220 |
|---|---|
| Model | SG-820H |
| Capacity | 530 x 220mm Table Travel |
| Weight (kg) | 850 |
| Weight (m3) | 3.310 |
| Weight (Freight) | 1,102.230 |
| Dimensions (cm) | 145 x 113 x 202 |

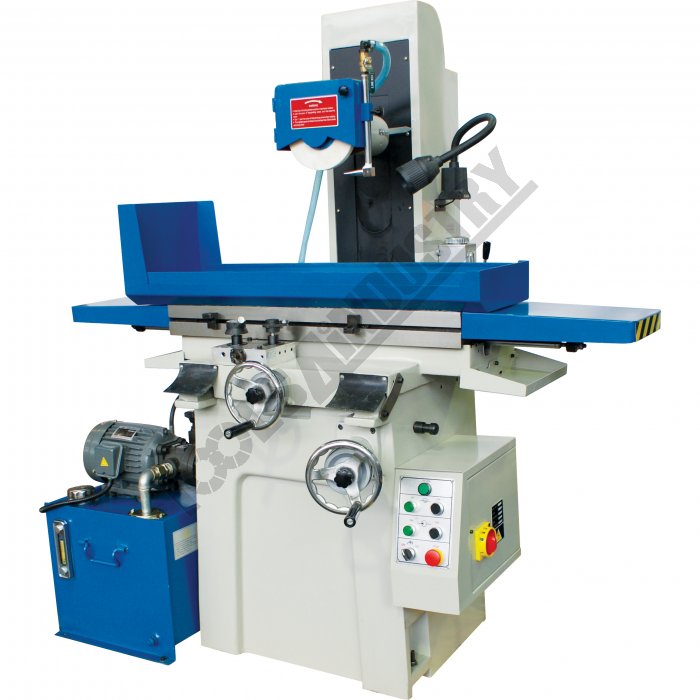

Hydraulic Surface Grinder SG-820H 530 x 220mm Table Travel
Description
The SG-820H is an excellent surface grinder for grinding precision parts in hardened or annealed ferrous metals. It features heavy duty cast iron construction, quiet running precision spindle, ball bearing longitudinal slide, coolant system and more.Features

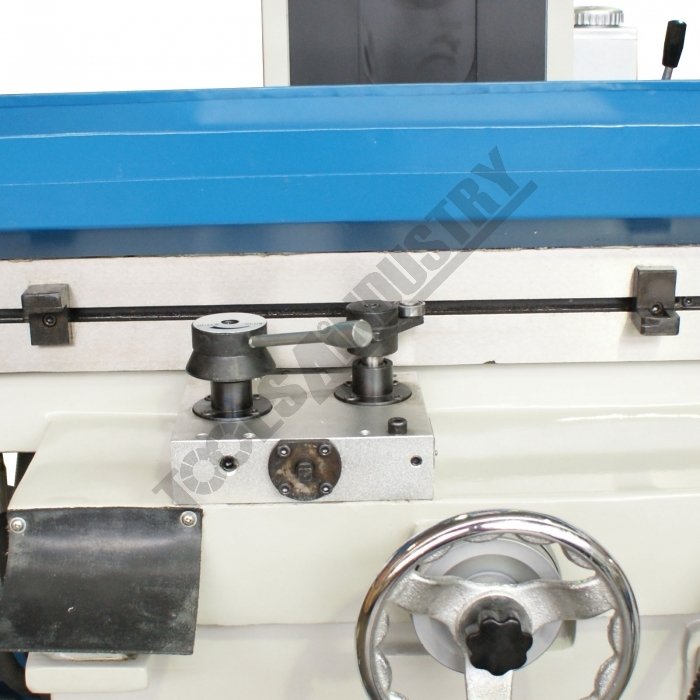

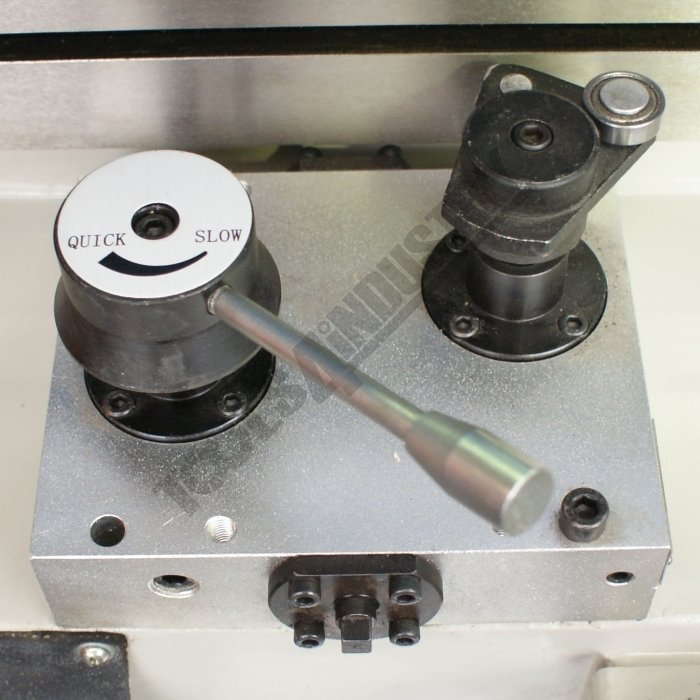

- Hydraulic longitudinal table travel
- Quality castings and Precision Japanese P4 ball bearing supporting the spindle

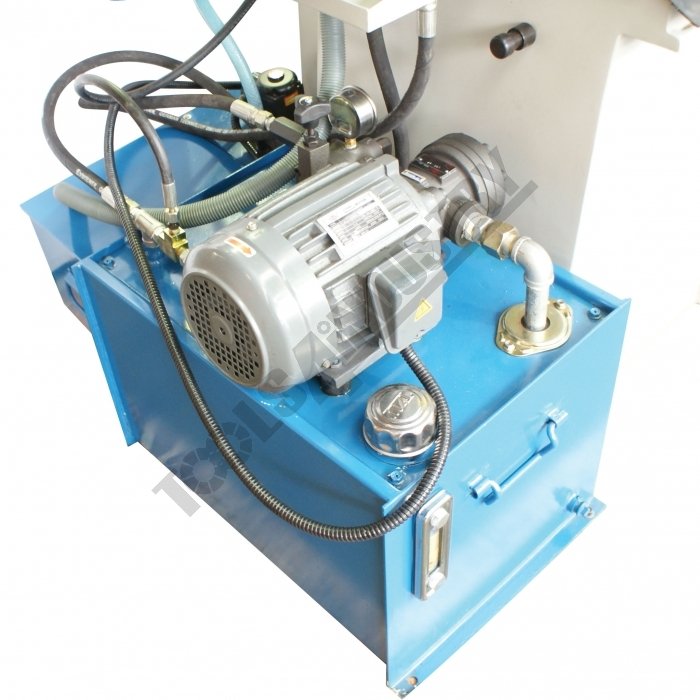

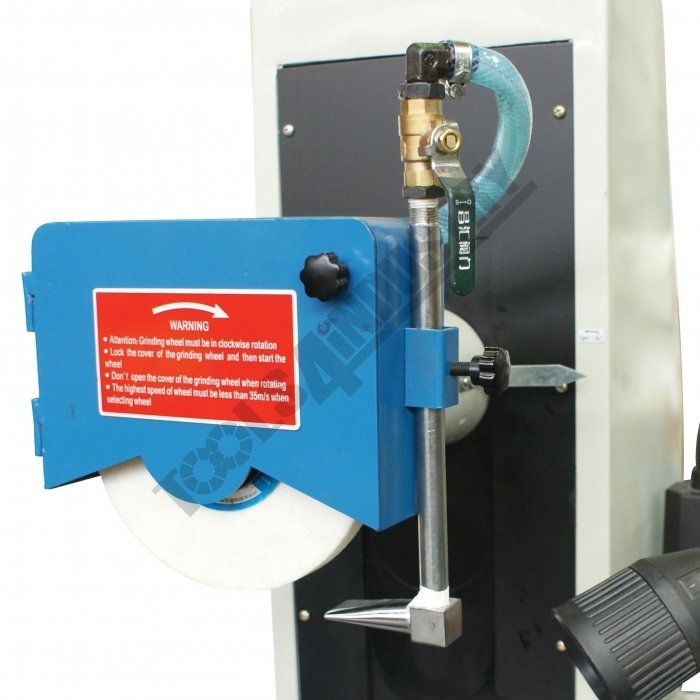

- Coolant system with nozzle and flow control valve
- Cast iron machine body and stand for maximum rigidity and smooth operation

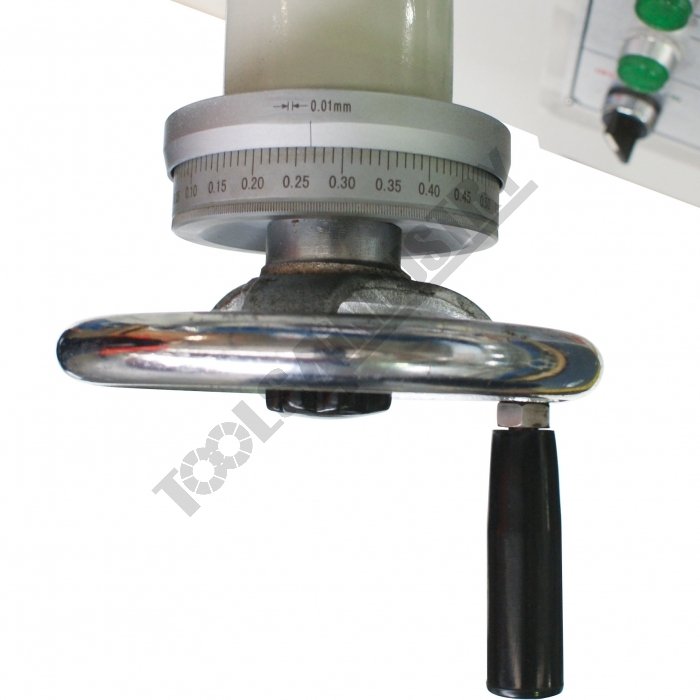

- Vertical dial graduations 0.01mm

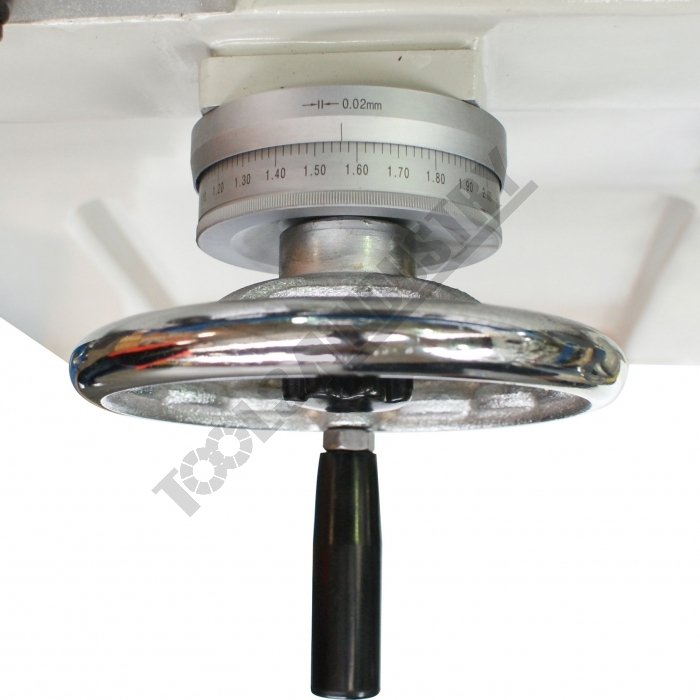

- Cross travel graduations 0.02mm

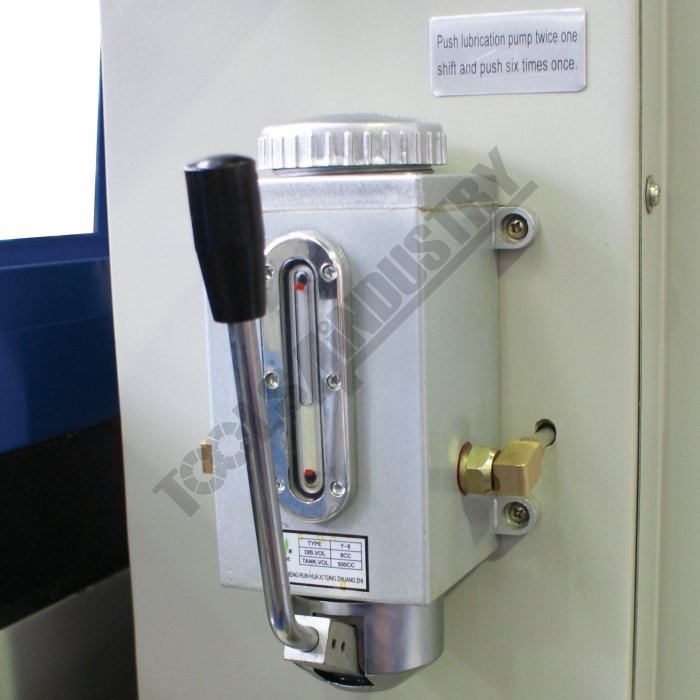

- Manual one shot lubrication pump
- Wheel balancing stand and arbor

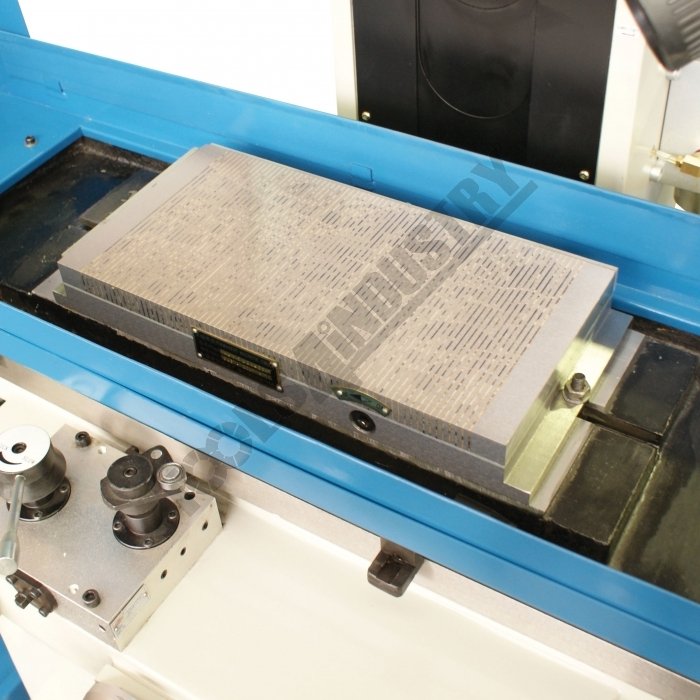

- 400 x 200mm magnetic chuck
- Diamond wheel dresser

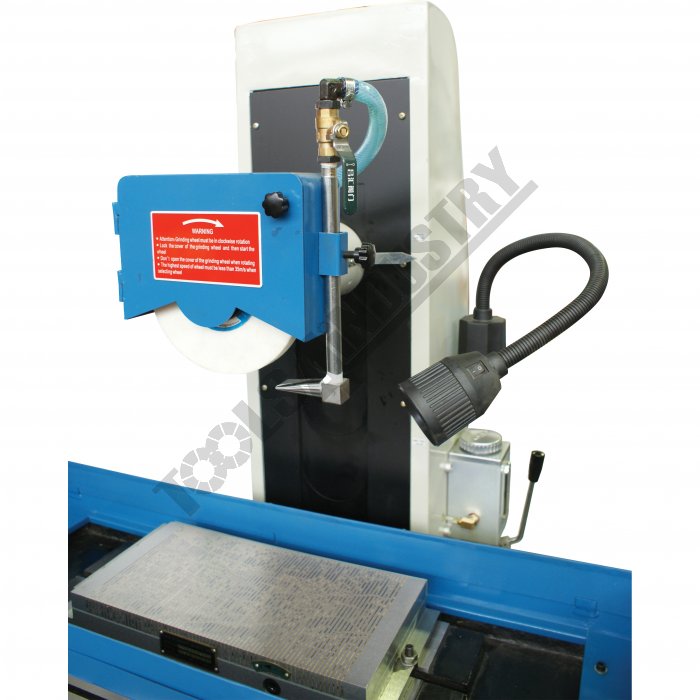

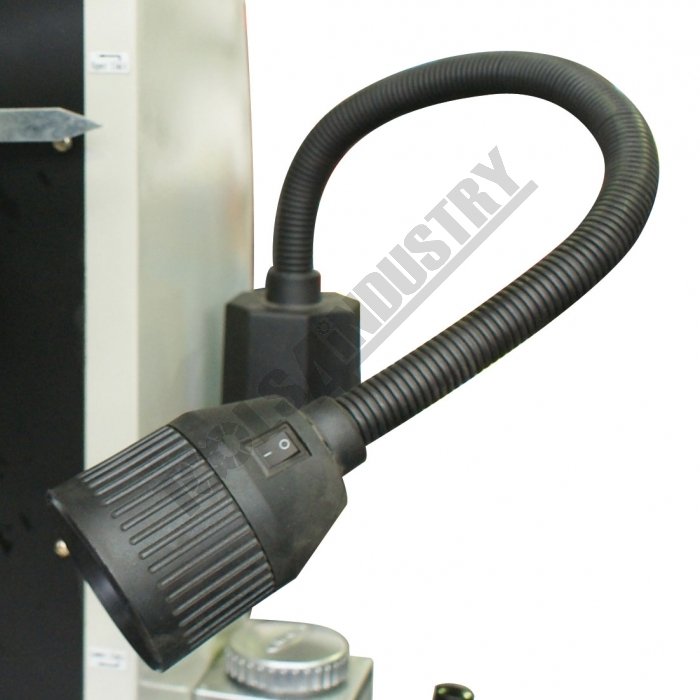

- Halogen work light
Specifications
- Compare 3 Products
- ORDER CODE
- MODEL
- AD5 Controller
- Magnetic Chuck Sizemm
- Longitudinal Table Traverse - Maximummm
- Cross Table Traverse - Maximummm
- Table Bed Sizemm
- Spindle To Table - Maximummm
- Wheel Diametermm
- Vertical Increment Graduationsmm
- Vertical Graduations Per Revolutionmm/rev
- Cross Increment Graduationsmm
- Cross Graduations Per Revolutionmm/rev
- Spindle MotorkW / hp
- Voltage / AmperageV / amp
- Nett Weightkg
| ORDER CODE | SG-820H |
|---|---|
| MODEL | ~ |
| AD5 Controller | 400 x 200 |
| Magnetic Chuck Sizemm | 530 |
| Longitudinal Table Traverse - Maximummm | 220 |
| Cross Table Traverse - Maximummm | 480 x 200 |
| Table Bed Sizemm | 450 |
| Spindle To Table - Maximummm | 200 |
| Wheel Diametermm | 0.01 |
| Vertical Increment Graduationsmm | 1.25 |
| Vertical Graduations Per Revolutionmm/rev | 0.02 |
| Cross Increment Graduationsmm | 2.5 |
| Cross Graduations Per Revolutionmm/rev | 1.1 / 1.5 |
| Spindle MotorkW / hp | 415 |
| Voltage / AmperageV / amp | 750 |
| Nett Weightkg |
