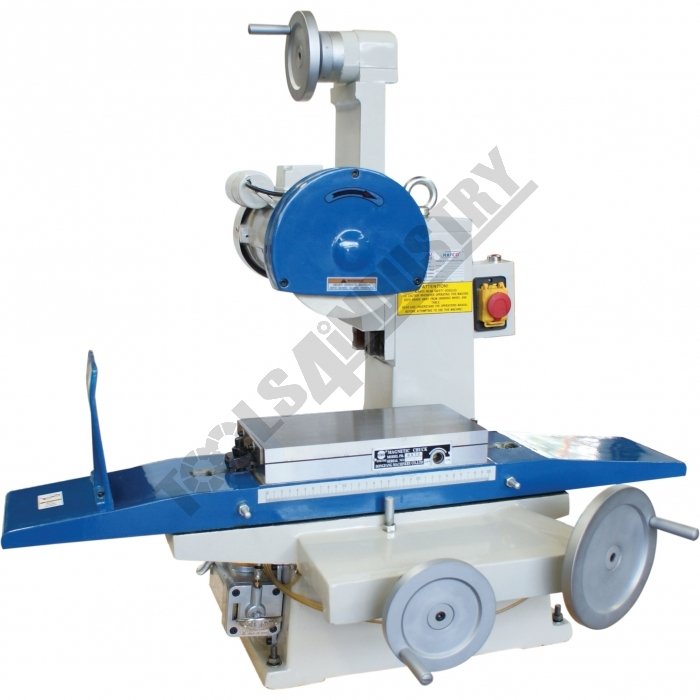

Left View

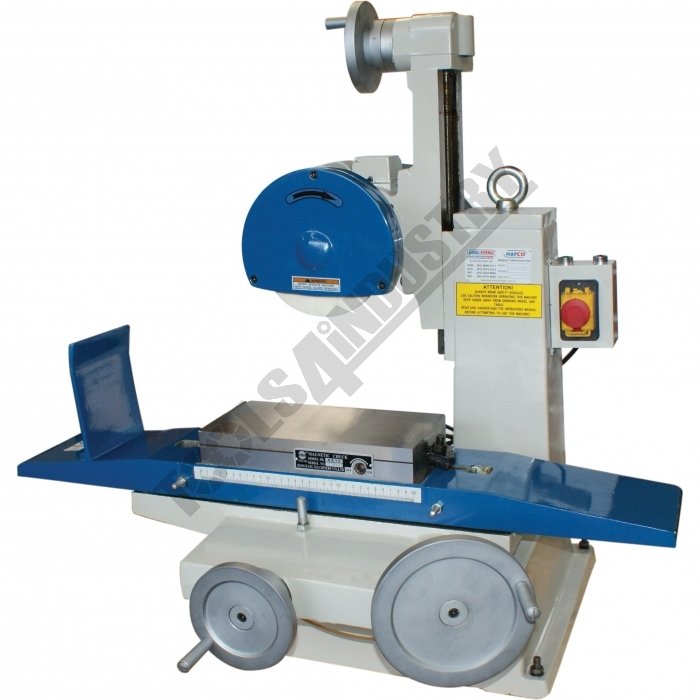

Right View

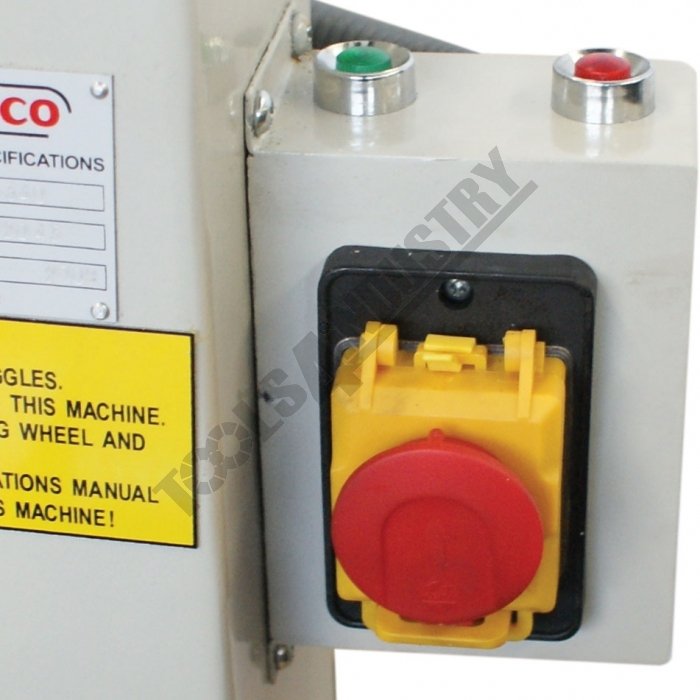

Start & Stop with Emergency Stop

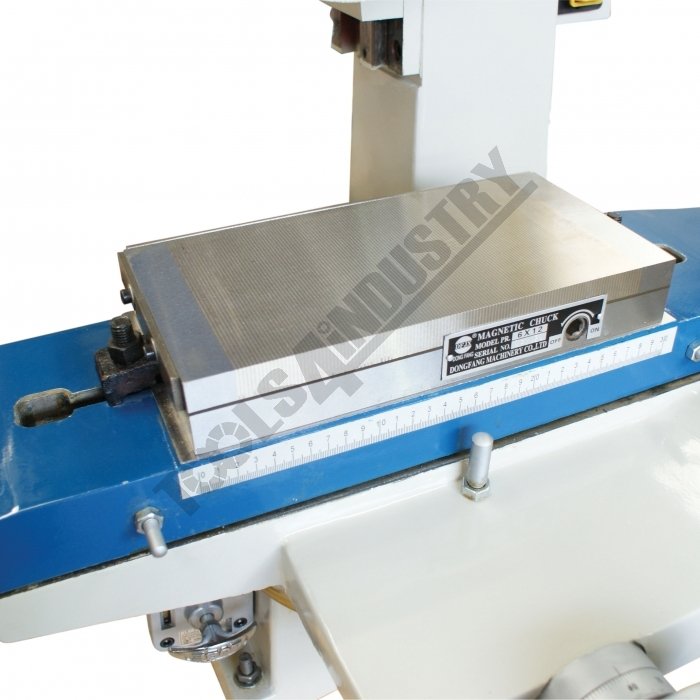

Fine Pole Magnetic Chuck

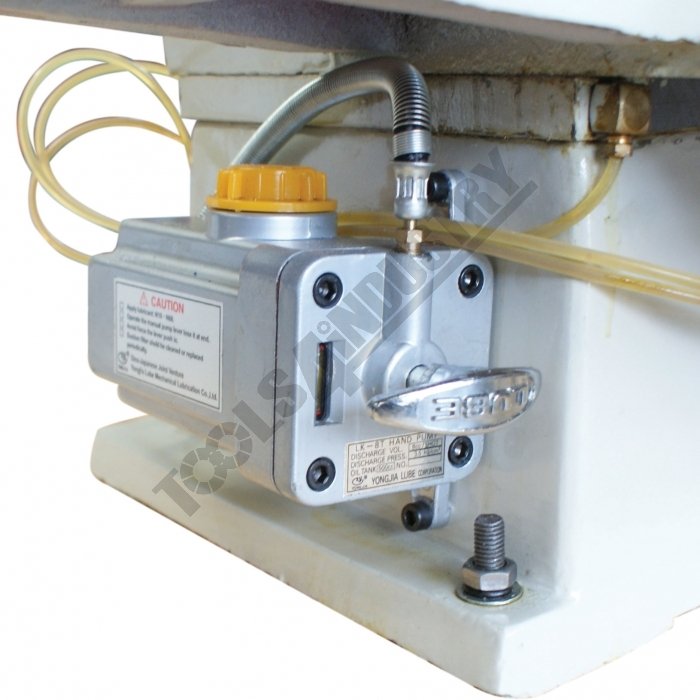

One Shot Lubrication Pump

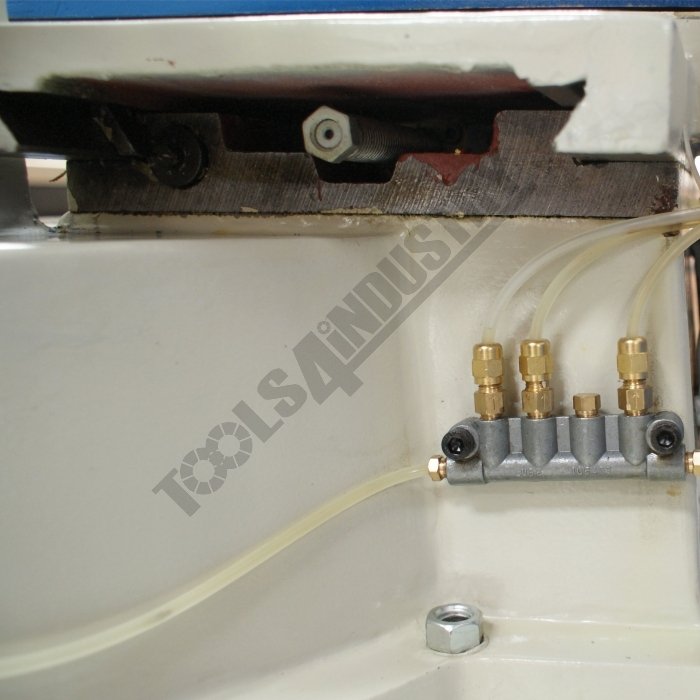

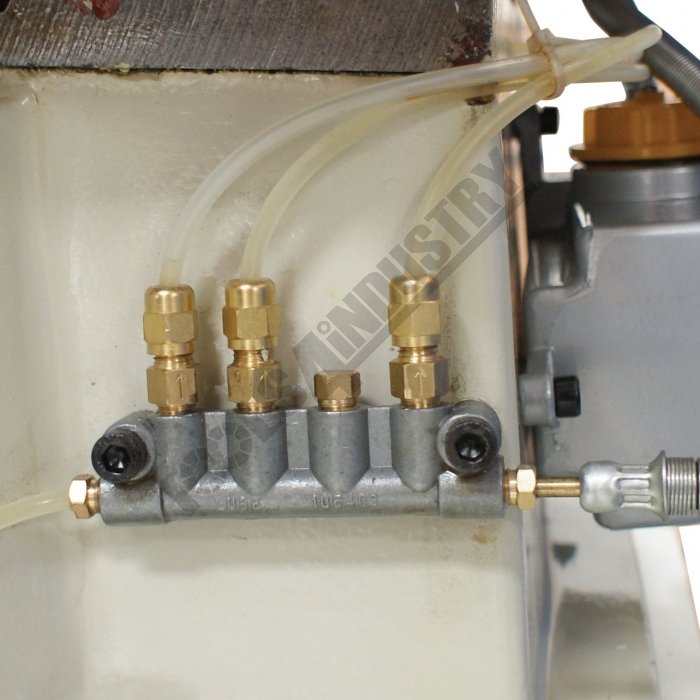

Lubrication directional Housing Block

Code	G203
Model	SG-340
Capacity	340 x 170mm Table Travel
Weight (kg)	260
Weight (m³)	0.719
Weight (Freight)	260
Dimensions (cm)	110 x 76 x 86

Product Brochure Instruction Manual [4 MB] Parts List [2 MB]Surface Grinder Risk Assessment

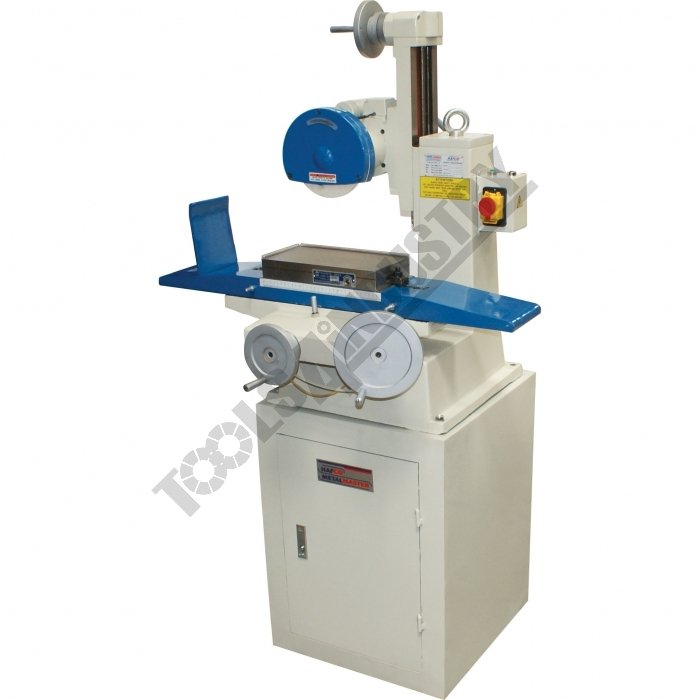

Manual Surface Grinder SG-340 340 x 170mm Table Travel

Description

The SG-340 manual bench mounted surface grinder is designed to enable operator to quickly change work piece and easy set-up alternate applications. Manual Feed Table (340mm) x (170mm).

When absolute surface grinding precision is needed in tough to machine materials, this is the machine to own. Large dials and fine thread screws yield maximum precision. Bring mirror-like finishes to your metal Working projects with this professional machine.

Features

Precision grinding machine with minimal workshop space required
Ball bearing table slides providing smooth action
Angular contact spindle bearings that eliminates vibration enabling precision grinding

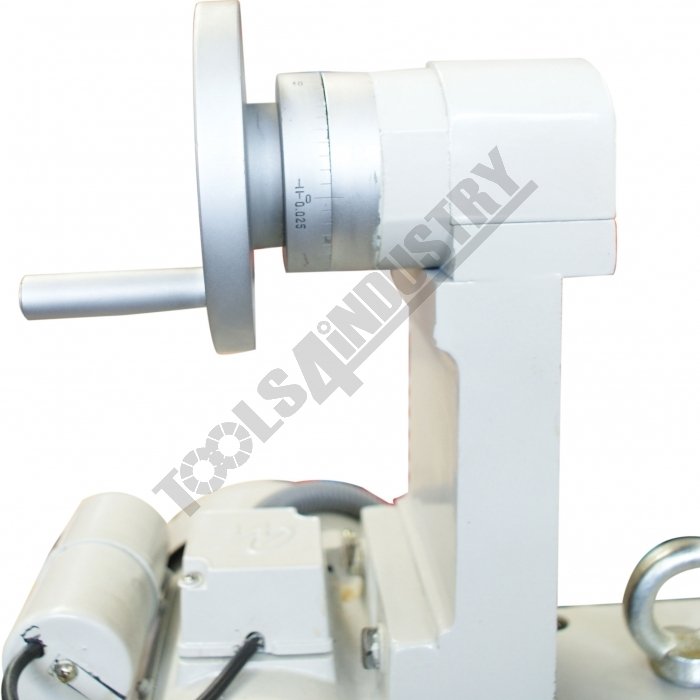

Vertical dial graduations 0.025mm

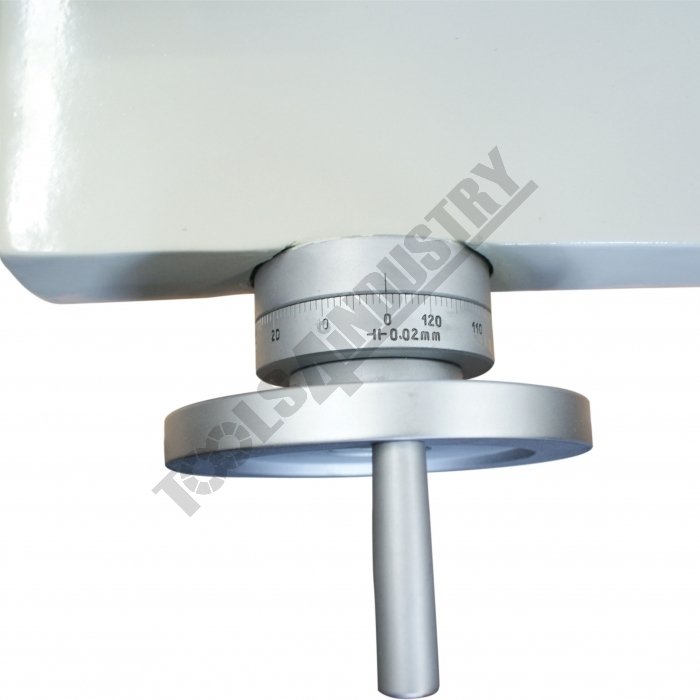

Cross travel graduations 0.02mm
Magnetic chuck (300 x 150mm)

Includes

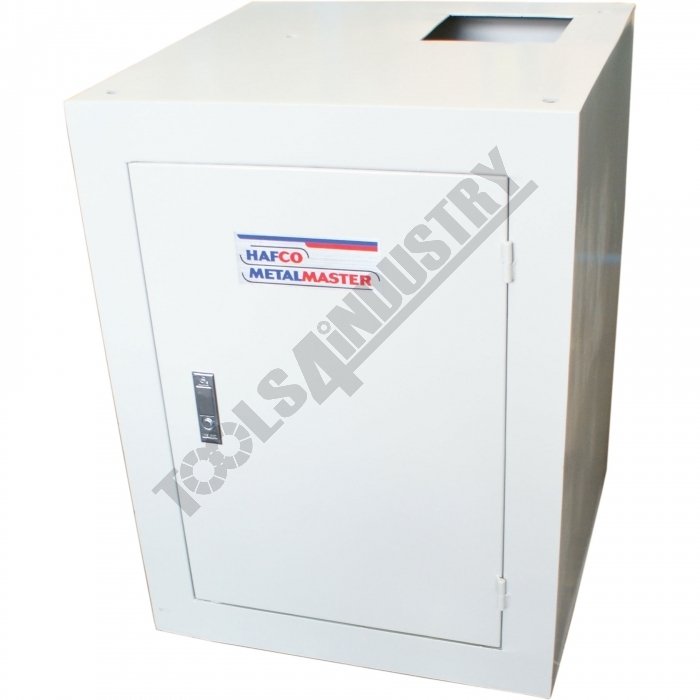

Stand

Specifications

Compare 3 Products
ORDER CODE
MODEL
AD5 Controller
Magnetic Chuck Sizemm
Longitudinal Table Traverse - Maximummm
Cross Table Traverse - Maximummm
Table Bed Sizemm
Spindle To Table - Maximummm
Wheel Diametermm
Vertical Increment Graduationsmm
Vertical Graduations Per Revolutionmm/rev
Cross Increment Graduationsmm
Cross Graduations Per Revolutionmm/rev
Spindle MotorkW / hp
Voltage / AmperageV / amp
Nett Weightkg

G203
SG-340
~
300 x 150
340
170
~
275
180
0.025
1.25
~
~
0.55 / 0.75
240 / 10
260

G218
SG-820
~
400 x 200
530
220
480 x 200
490
200
0.01
1.25
0.02
2.5
1.1 / 1.5
415
800

G220
SG-820H
~
400 x 200
530
220
480 x 200
450
200
0.01
1.25
0.02
2.5
1.1 / 1.5
415
750

ORDER CODE	SG-340
MODEL	~
AD5 Controller	300 x 150
Magnetic Chuck Sizemm	340
Longitudinal Table Traverse - Maximummm	170
Cross Table Traverse - Maximummm	~
Table Bed Sizemm	275
Spindle To Table - Maximummm	180
Wheel Diametermm	0.025
Vertical Increment Graduationsmm	1.25
Vertical Graduations Per Revolutionmm/rev	~
Cross Increment Graduationsmm	~
Cross Graduations Per Revolutionmm/rev	0.55 / 0.75
Spindle MotorkW / hp	240 / 10
Voltage / AmperageV / amp	260
Nett Weightkg
