Code	C306
Capacity	450mm x 150mm
Weight (kg)	26
Weight (m³)	0.014
Weight (Freight)	26
Dimensions (cm)	53.5 x 23 x 11

TOOLMASTER

1 Year Warranty

Product Brochure

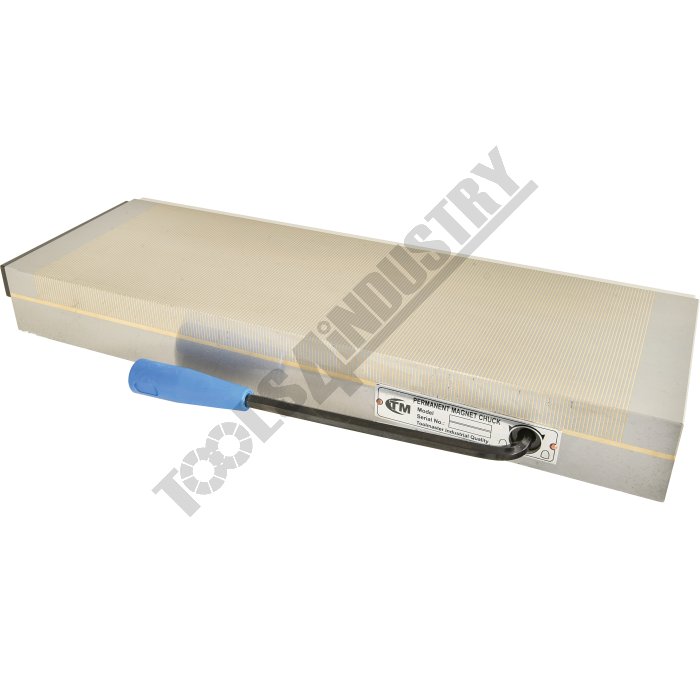

Magnetic Chuck 450mm x 150mm

Features

Cam-operated On/Off handle to hold and release the work-piece
Powerful permanent magnets
Thick top and base plate for maximum rigidity
Adjustable side keeper plate

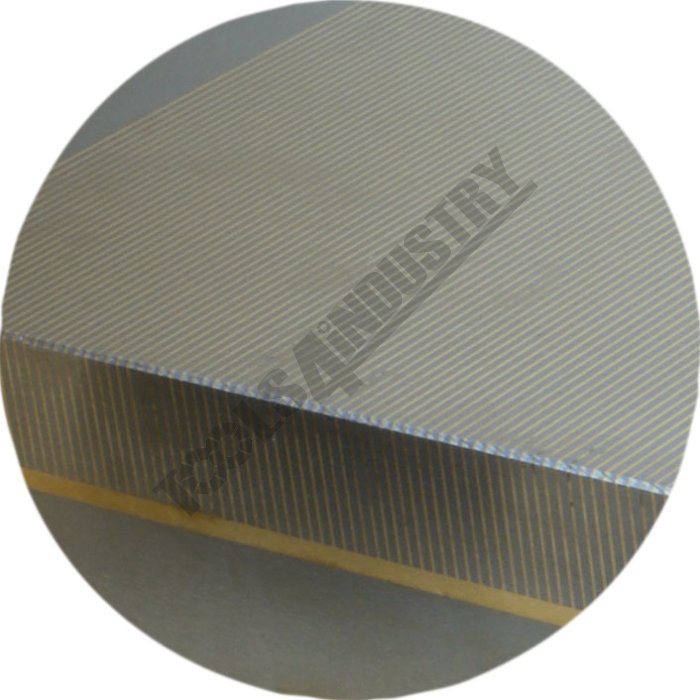

The fine pitched magnetic poles make it suitable for small and thin pieces

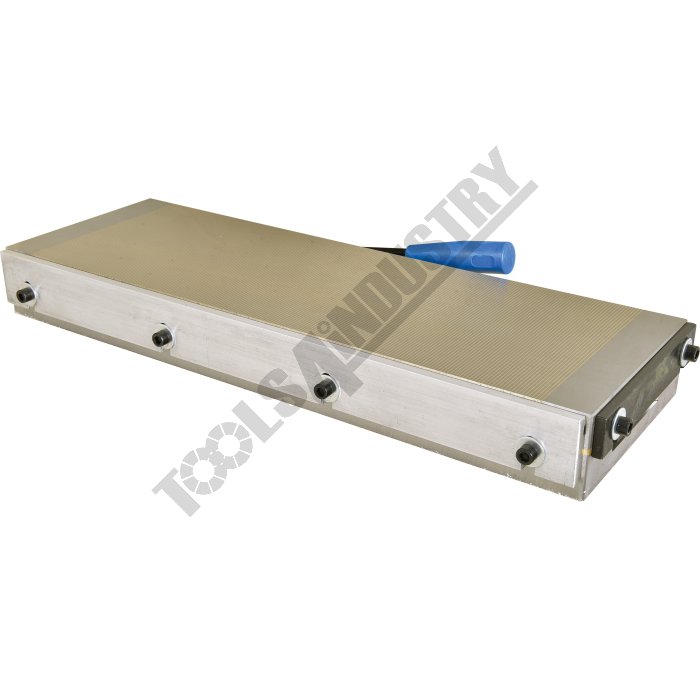

Includes rear keeper plate

Specifications

Compare 4 Products
ORDER CODE
Dimensions (L x W x H)mm
Magnetic ForceN/cm2
Pmm
Lmm
Bmm
Hmm
Tmm
Nett Weightkg

C306
450 x 150 x 53
120
1 + 3
450
150
53
20
26

C308
450 x 200 x 53
80
0.5 + 1
450
200
53
23
35

C300
250 x 125 x 48
120
1 + 3
250
125
48
20
14

C302
300 x 150 x 48
120
1 + 3
300
150
48
20
19

ORDER CODE	450 x 150 x 53
Dimensions (L x W x H)mm	120
Magnetic ForceN/cm2	1 + 3
Pmm	450
Lmm	150
Bmm	53
Hmm	20
Tmm	26
Nett Weightkg
